SMC Networks SMCGS502 - FICHE TECHNIQUE Instructions d'utilisation et de sécurité

802.1p

QoS 802.3az

73.2

SMCGS502

*76.81

SMCGS802

www.smc.com

www.smc-asia.com

Connect Your World ...

Switches | Wireless | Broadband | Home Security | Network Adapters

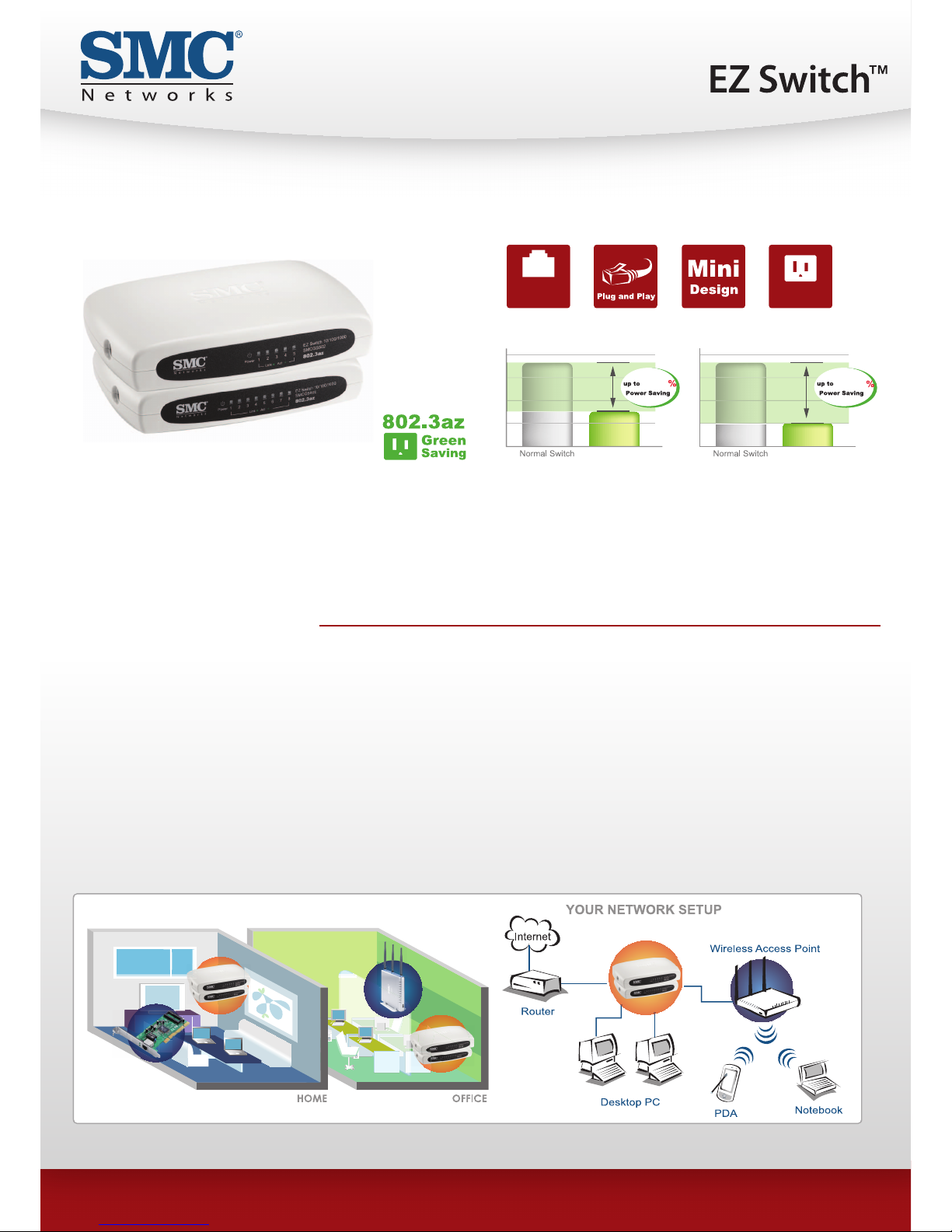

SMCGS502/SMCGS802

EZ SwitchTM 5- and 8-Port Gigabit Ethernet Switches

Product Overview

The SMC EZ SwitchTM 10/100/1000 family includes the SMCGS502 and SMCGS802, 5- and 8-port unmanaged

10/100/1000 Mbps Gigabit Ethernet switches with plastic-case chassis that bring the speed of Gigabit copper to the desktop.

Environmentally friendly, they consume up to 76%* less power than non-Green Ethernet switches, without reducing network

performance. QoS priority and Auto-MDI/MDIX on all ports makes these Gigabit desktop switches ideal for home and small

office network environments.

Key Features and Benefits

IEEE 802.3az Energy-Efficient Ethernet Support

When two 802.3az-compliant switches are connected, up to

76%* of power consumption can be saved.

Support for IEEE 802.1p Quality of Service

The switch supports 802.1p Quality of Service, which is useful

in implementations where time-sensitive data, such as voice

and video, are streamed across the network.

Broadcast Storm Control and CRC Filtering

Broadcast storm control prevents broadcast traffic storms

from consuming bandwidth, and CRC filtering stops bad

packets from propagating throughout the network.

Support for Jumbo Packets

Support for Jumbo packets of up to 9K Bytes in size.

Auto MDI/MDI-X on Each Port

Support for Auto-MDI/MDIX means that no crossover cables

are required. Straight-through cables can be used for all

connections.

SMCGS502/SMCGS802

www.smc.com

www.smc-asia.com

Connect Your World ...

Switches | Wireless | Broadband | Home Security | Network Adapters

Electromagnetic Compatibility

■ CE Mark

■ FCC Class A

■ KCC

■ C-Tick

Environmental Specification

■ Temperature: 0°C to 40°C (32°F~104°F)

■ Humidity: 10% to 90% (non-condensing)

Safety

■ LVD (EN60950)

Immunity

■ EN55024

■ IEC61000-4/2/3/4/5/6/8/11

Emissions

■ FCC Class A, EN55022/EN61000-3-2/3

Warranty

Please check www.smc.com for the warranty terms in your country.

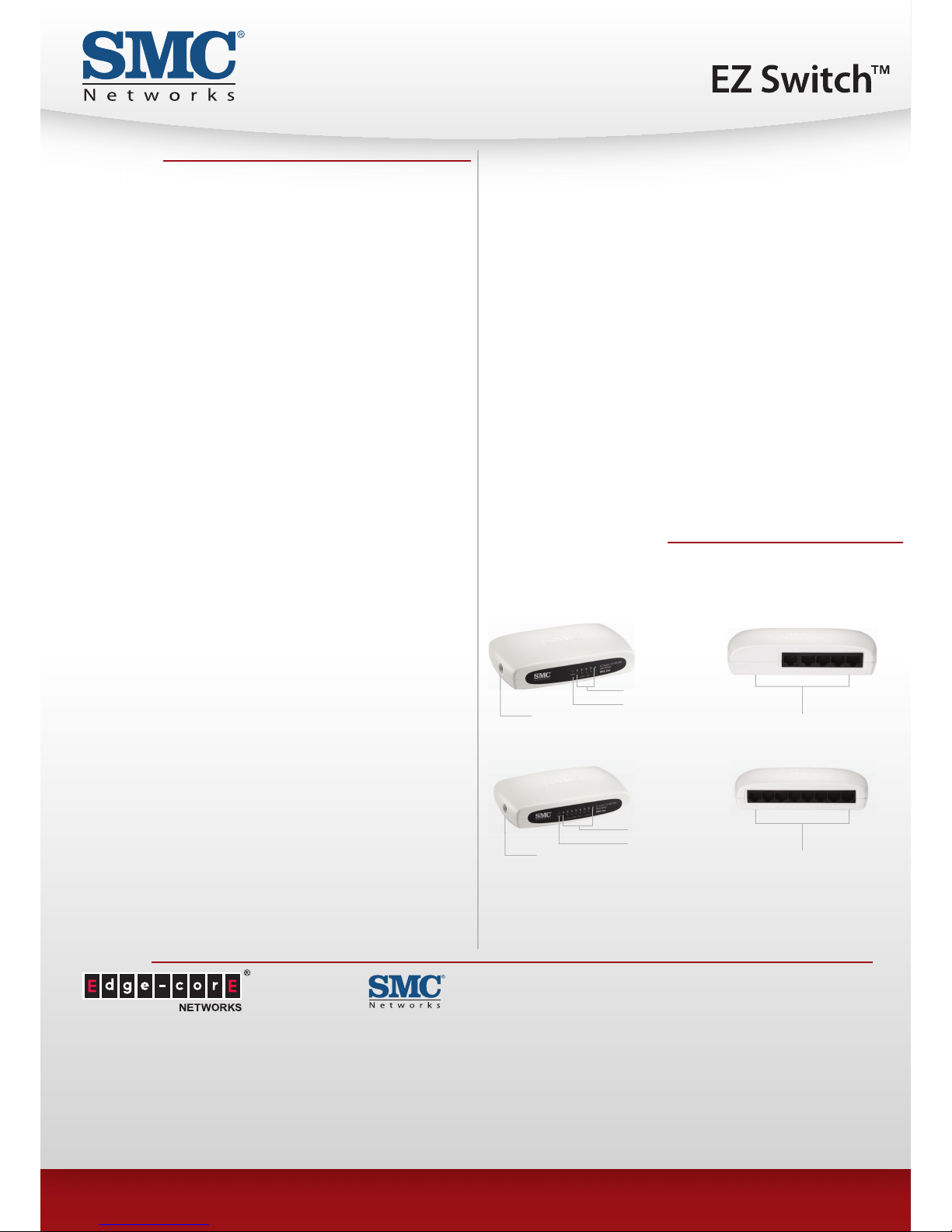

Physical Connection

Contact

Worldwide Corporate and Sales Headquarters

No. 1 Creation Road III,

Hsinchu Science Park,

30077, Taiwan, R.O.C.

Tel: +886 3 5638888 Fax: +886 3 6686111

Singapore

1 Coleman Street

#07-09, The Adelphi

Singapore 179803

Tel: 65-63387667 Fax: 65-63387767

Check www.smc-asia.com or www.smc.com for your local country contact information

Europe/Africa

C/Fructuós Gelabert 6-8 2º, 2ª,

Edificio Conata II,

08970 Sant Joan Despí

Barcelona - Spain

Phone: +34 93 477 4920

Edge-Core Networks Corporation

Features

Physical Ports

SMCGS502:

■ 5 10/100/1000BASE-T

■ DC power socket

SMCGS802:

■ 8 10/100/1000BASE-T

■ DC power socket

Network Interface

■ 10BASE-T (IEEE 802.3)

■ 100BASE-TX (IEEE 802.3u)

■ 1000BASE-T (IEEE 802.3ab)

Features

■ Jumbo Frames 9K

■ IEEE 802.3x Flow Control

■ Auto-MDI/MDIX

■ IEEE 802.1p QoS

■ IEEE 802.3az

Switching Database

■ 8K MAC address entries

Memory Buffer

■ 1M Bits (128K Bytes)/Device

Throughput

■ SMCGS502: 7.4 Mpps

■ SMCGS802: 11.9 Mpps

LED

■ System: Power

■ Port: Link/Activity

Power Supply

■ Extenal power adapter 9V/0.5A

Mechanical

■ Dimensions (W x D x H): 144.5 x 87 x 27 mm (5.69 x 3.43 x 1.06 in)

Weight

■ SMCGS502: 142 g (0.31 lbs)

■ SMCGS802: 166 g (0.37 lbs)

Electromagnetic Compatibility

■ CE Class A

■ FCC Class A

*According to an IEEE 802.3az Energy Efficient Ethernet measurement

test conducted by an independent testing company, the SMCGS502

saves 73.2% and the SMCGS802 76.81% when each is compared to a

non-Green Ethernet switch.

SMCGS502

Diagnostic LEDs

Power LEDs

Power Connector

SMCGS802

Diagnostic LEDs

Power LEDs

Power Connector 8 Gigabit LAN Ports

5 Gigabit LAN Ports

SMC-DS-0312-01
