SMC MAX 700 Front Differential gear box and gear motor maintenance note:

1. Diff. Gear Motor check & Gear tooth align check at 2WD mode.

a. Motor negative pole must be connect to earth.

b. Please check the function of the diff. gear motor (26650-MAX-00) if works nor Check the 2WD gear

align position if correct for the dot with line by following

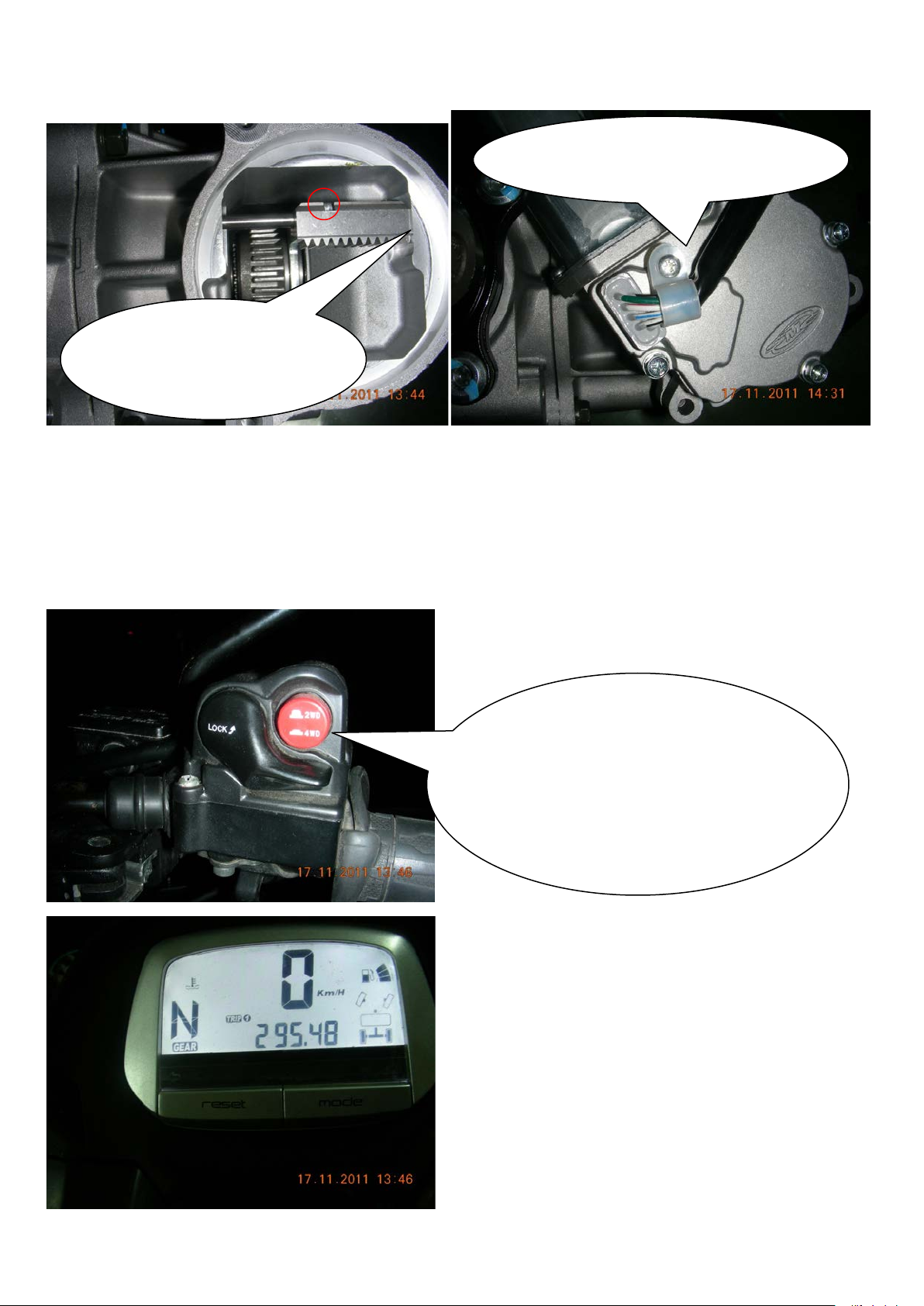

Switch RH handle switch to 2WD mode. Check the

Diff. Lock motor gear tooth if align with the line

While motor rotate test, must connect

earth in advance.

1. Check display on the meter and motor by switching RH. Handle switch by

2WD-4WD-Diff. Lock if show correctly and motor rotate function.

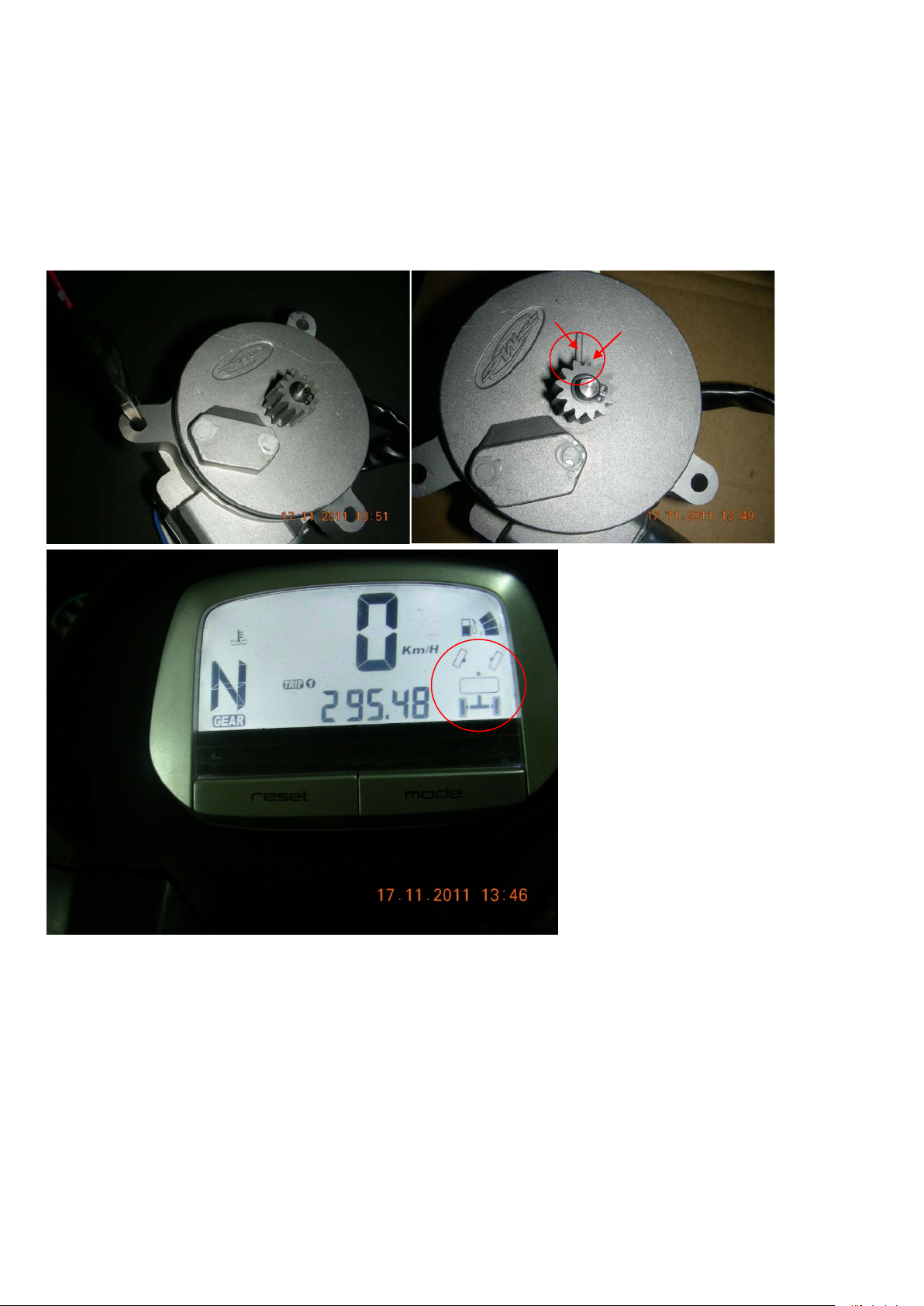

2. Then switch back to 2WD mode. If display at speedometer still blinking,

change the motor assy. (26650-MAX-00)

2. Shift motor slide gear align check(inside diff. gear box):

a. Shift motor slide gear align

Notice while assembly:

1. The Shift motor slide gear at Diff. gear box must correctly align with motor, otherwise will cause gear

position not correct and not correct engaged.

2. While assembly, please special take care of the o-ring on the motor is correctly seated.

b. Check after assembly:

Move the shift motor

slide gear to the right

end side

Re-assembly the motor to the

diff. gear box at 2WD mode

Switch the RH handle switch for

2WD-4WD-Diff Lock again if normal.

If still not normal, re-check the gear

tooth align between gear motor and

Shift motor slide gear
