ISO Cylinder

Series C96

ø32, ø40, ø50, ø63, ø80, ø100, ø125

Conforming to ISO 15552

Variations

Series Action

Double

acting

Type

Single

rod

Double

rod

Non-

lube

Non-

lube

Basic Standard variations

Built-in

magnet

Option

Heat

resistant

Stainless

steel rod

Bore (mm)

32, 40, 50, 63

80, 100, 125

Standard

Series

C96

How to Order

ISO Cylinder: Standard

Double Acting, Single/Double Rod

Series C96

ø32, ø40, ø50, ø63, ø80, ø100, ø125

With auto switch

Without auto switch

∗Lead wire length symbols: 0.5 m ········· Nil (Example) M9NW

1 m ········· M (Example) M9NWM

3 m ········· L (Example) M9NWL

5 m ········· Z (Example) M9NWZ

∗Solid state switches marked with “쑗” are produced upon receipt of order.

∗Since there are other applicable auto switches than listed, refer to SMC “Best Pneumatics 2004” Vol.7/8/9/10 catalog.

∗For details about auto switches with pre-wired connector, refer to SMC “Best Pneumatics 2004” Vol.6 catalog.

∗D-A9쏔, M9쏔, M9쏔W, M9쏔AL are shipped together, (but not assembled).

(Switch mounting bracket is only assembled at the time of shipment.)

∗∗ D-M9BM, M9NM, M9PM type (product of 1 m in length of the lead wire) are applicable from the shipment in May, 2008.

C96SD

Built-in magnet

Bore size

Stroke (mm)

100

125

32 mm

40 mm

50 mm

63 mm

80 mm

100 mm

125 mm

Mounting

Basic/Without bracket

Axial foot

Rod end flange

Head end flange

Single clevis

Double clevis

Center trunnion

B 32 100

Number of

auto switches

Auto switch

Nil Without auto switch

M9BW

C96S B 32 100

Nil

2 pcs.

1 pc.

3 pcs.

“n” pcs.

Single rod

Double rod

Rod

Nil

∗For applicable auto switch

model, refer to the below

table.

Refer to “Standard Stroke” on page 20.

Applicable Auto Switches/Tie-rod Mounting

Wiring

(Output) Tie-rod

mounting Band

mounting

—

M9N

M9P

M9B

J51

M9NW

M9PW

M9BW

M9NA

M9PA

M9BA

F59F

P4DW

A96

A59W

A93

A90

A54

A64

0.5

(Nil)

쎲

—

쎲

쑗

쎲

—

쎲

(M)

쎲

—

쎲

쑗

—

쎲

—

쎲

—

(L)

—

G39

K39

A33

A34

A44

—

Lead wire length (m)Auto switch model

Load voltage Applicable

load

Pre-wired

connector

Relay,

PLC

Relay,

PLC

Relay,

PLC

—

Type Special function

—

Diagnosis indication

(2-color)

Water resistant

(2-color)

Strong magnetic field

resistant (2-color)

Diagnosis indication

(2-color)

Diagnosis output (2-color)

Yes

None

Yes

None

Indicator

light

Reed switch

—

100 V, 200 V

100 V

100 V or less

100 V, 200 V

200 V or less

—

100 V, 200 V

쑗

—

쑗

—

쑗

(Z)

쑗

—

쑗

—

쎲

24 V

—

Solid state switch

3-wire (NPN)

3-wire (PNP)

2-wire

2-wire (Non-

polar type)

3-wire

(Equiv. to

NPN)

3-wire (NPN)

2-wire

3-wire (NPN)

3-wire (PNP)

2-wire

3-wire (NPN)

3-wire (PNP)

2-wire

4-wire (NPN)

5 V, 12 V

5 V

5 V, 12 V

12 V

5 V, 12 V

12 V

—

Electrical

entry

Grommet

DIN

Terminal

conduit

Terminal

conduit

∗∗

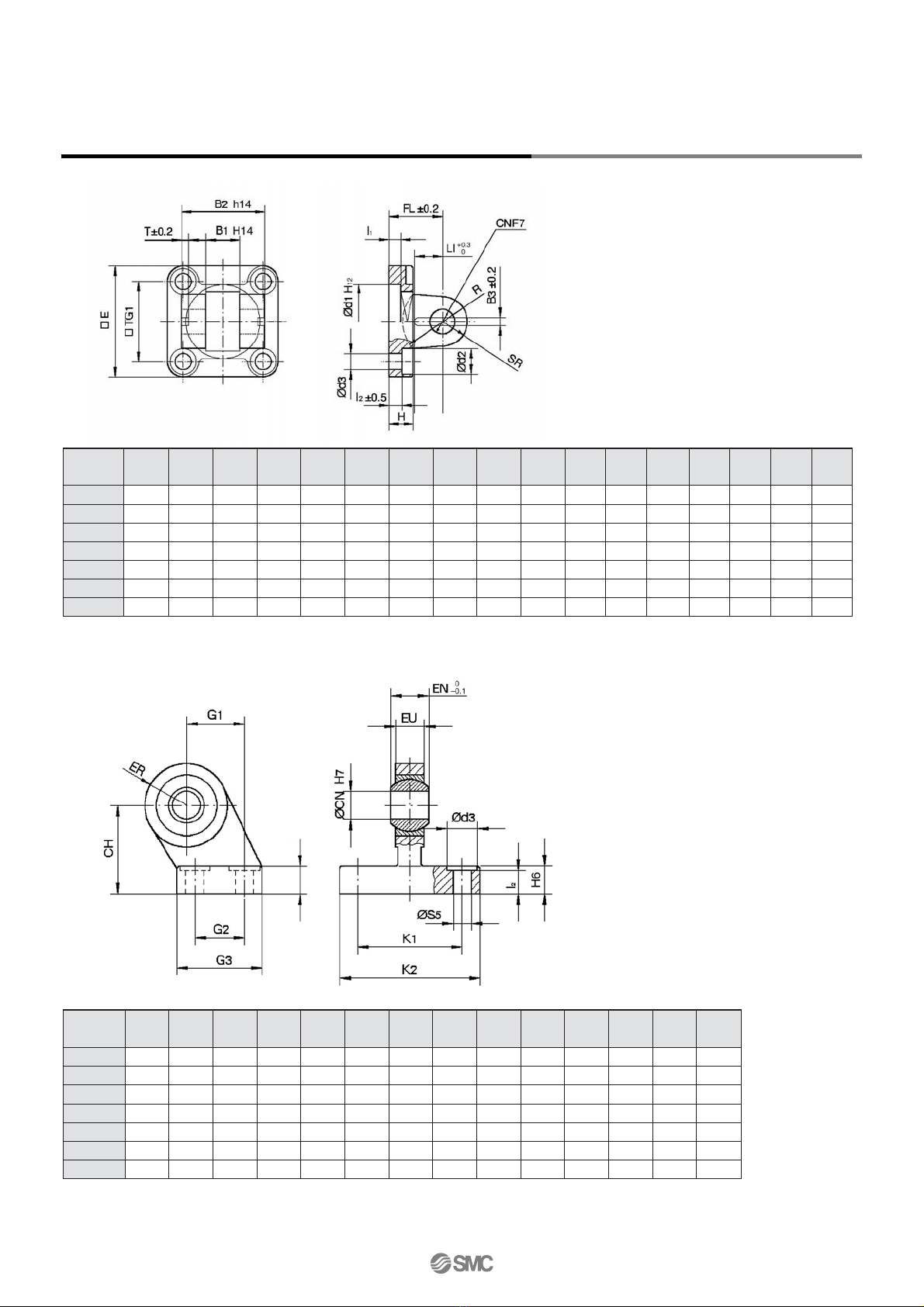

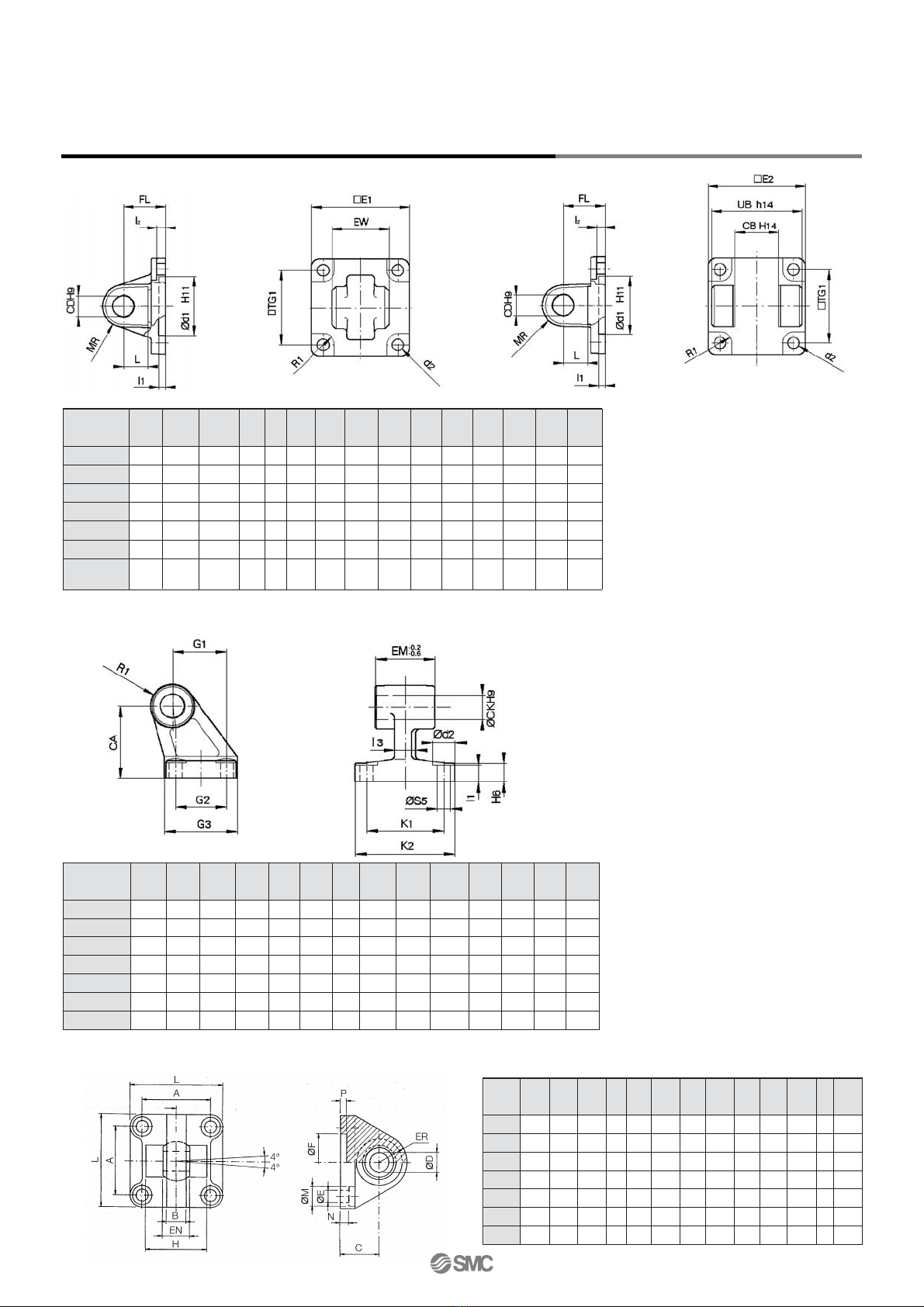

Piston Rod Mounting Accessories

Bore

size

(mm)

100

125

Bore

size

(mm)

100

125

Bore

size

(mm)

100

125

F5032

F5040

F5050

F5063

F5080

F5100

F5125

Page 24 for dimensions.

D5032

D5040

D5050

D5063

D5080

D5100

D5125

Page 24 and 25 for dimensions.

Plain With ball joint

C5032

C5040

C5050

C5063

C5080

C5100

C5125

CS5032

CS5040

CS5050

CS6063

CS5080

CS5100

CS5125

Page 24 and 25 for dimensions.

L5032

L5040

L5050

L5063

L5080

L5100

L5125

Page 24 for dimensions.

E5032

E5040

E5050

E5063

E5080

E5100

E5125

Page 25 for dimensions.

DS5032

DS5040

DS5050

DS5063

DS5080

DS5100

DS5125

Page 26 for dimensions.

ES5032

ES5040

ES5050

ES5063

ES5080

ES5100

ES5125

Page 26 for dimensions.

GKM10-20

GKM12-24

GKM16-32

GKM20-40

GKM30-54

Page 27 for dimensions.

KJ10D

KJ12D

KJ16D

KJ20D

KJ27D

Page 27 for dimensions.

JA30-10-125

JA40-12-125

JA50-16-150

JAH50-20-150

JA125-27-200

Page 27 for dimensions.

FDC

LDS ES E

GKM KJ JA

Rod/Head end flange

Supplied with 4 screws.

Female head end clevis

(Corresponds to E accessory)

Supplied with bolt, safety device and 4 screws.

Male head end clevis

Supplied with 4 screws.

Foot

Supplied with 2 pieces and 4 screws.

Female head end clevis

(for ES accessory)

Angled head end clevis

with ball joint

Angled head end clevis

Rod clevis

(ISO 8140)

Piston rod ball joint

(ISO 8139)

Floating joint

Supplied with bolt and safety device.

Series C96

ISO Cylinder: Standard

Double Acting, Single/Double Rod

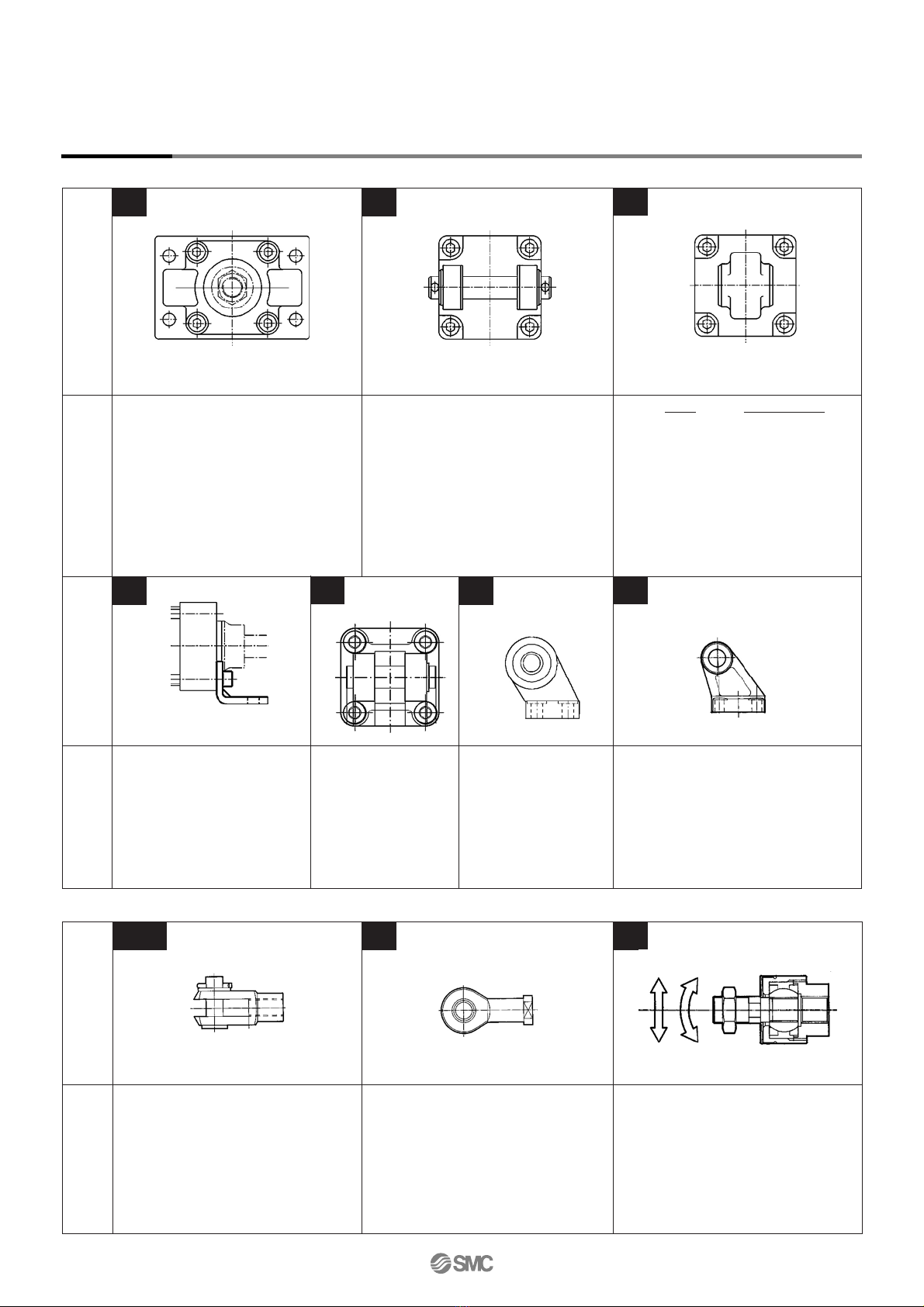

Accessories

Cylinder Mounting Accessories

Series C96

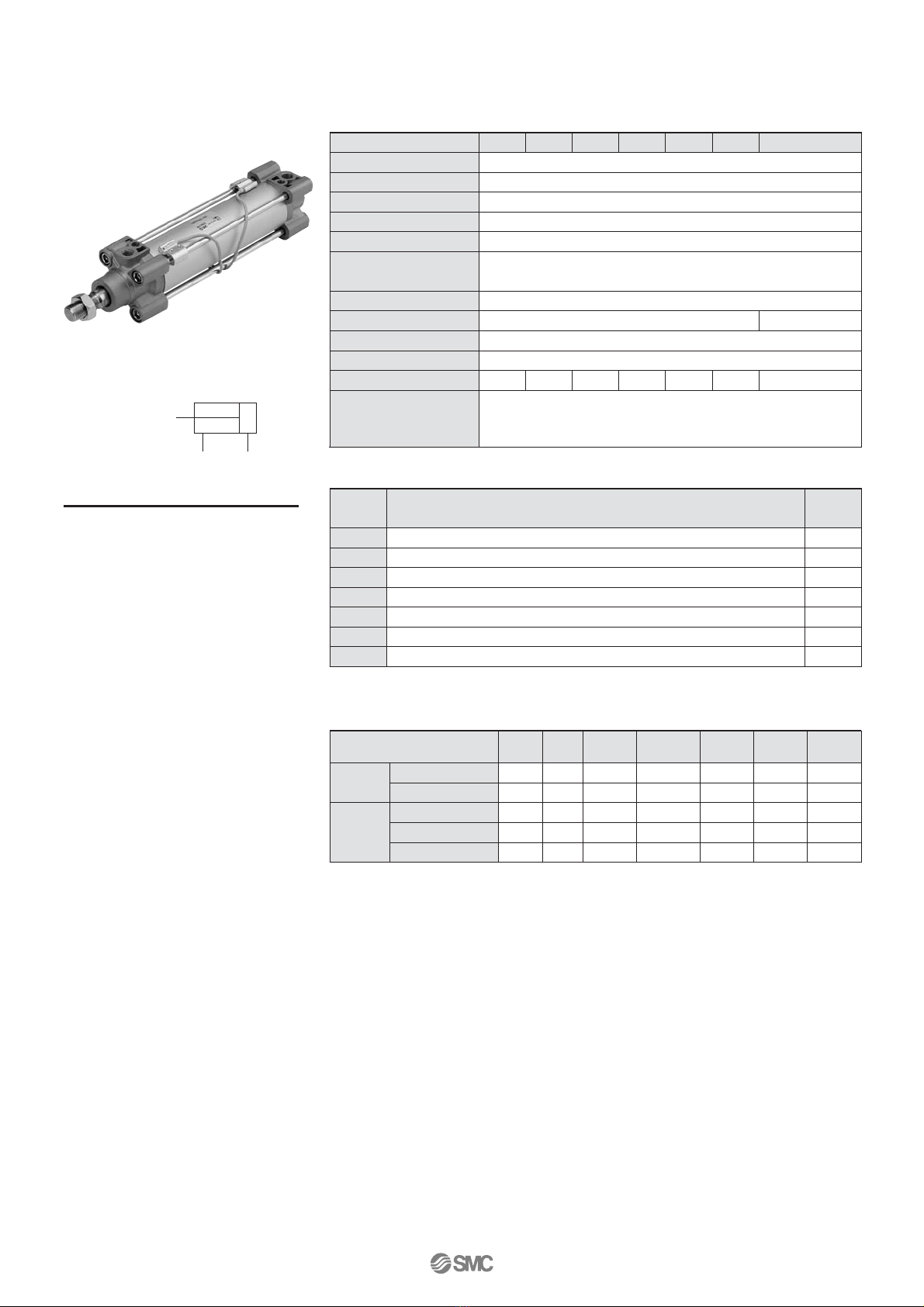

Specifications

Action

Fluid

Proof pressure

Max. operating pressure

Min. operating pressure

Ambient and fluid

temperature

Lubrication

Operating piston speed

Allowable stroke tolerance

Cushion

Port size

Mounting

Bore size (mm)

Double acting

Air

1.5 MPa

1.0 MPa

0.05 MPa

Without auto switch: –20 to 70°C

With auto switch: –10 to 60°C

Not required (Non-lube)

Both ends (Air cushion)

Basic, Axial foot, Rod end flange,

Head end flange, Single clevis, Double clevis,

Center trunnion

50 to 1000 mm/s 50 to 700 mm/s

32 40 63 100 125

Standard Stroke

100

125

Bore size

(mm)

25, 50, 80, 100, 125, 160, 200, 250, 320, 400, 500

25, 50, 80, 100, 125, 160, 200, 250, 320, 400, 500, 600

25, 50, 80, 100, 125, 160, 200, 250, 320, 400, 500, 600, 700, 800

Standard stroke

(mm)

—

50 80

G 1/8 G 1/4 G 1/4 G 3/8 G 3/8 G 1/2 G 1/2

Max.

stroke

1000

1900

2000

Intermediate strokes are available.

∗Please consult with SMC for longer strokes.

∗

Accessories

JIS Symbol

Double acting

Minimum Stroke for

Auto Switch Mounting

Refer to page 28 for “Minimum Stroke for

Auto Switch Mounting”.

Up to 250 st: , 251 to 1000 st: , 1001 to 1500 st: , 1501 to 2000 st:

+1.0

0+1.4

0+1.8

0+2.2

∗Please do not use a piston rod ball joint (or floating joint) together with a head end clevis with a ball

joint (or angled head end clevis with a ball joint).

Rod end nut

Clevis pin

Piston rod ball joint

Rod clevis

Rod boot

Mounting

Standard

Option

쎲

—

쎲

—

쎲

—

쎲

—

쎲

—

쎲

—

쎲

Basic Foot Rod end

flange

Head end

flange

Center

trunnion

Single

clevis

쎲

Double

clevis

Series C96

ISO Cylinder: Standard

Double Acting, Single/Double Rod

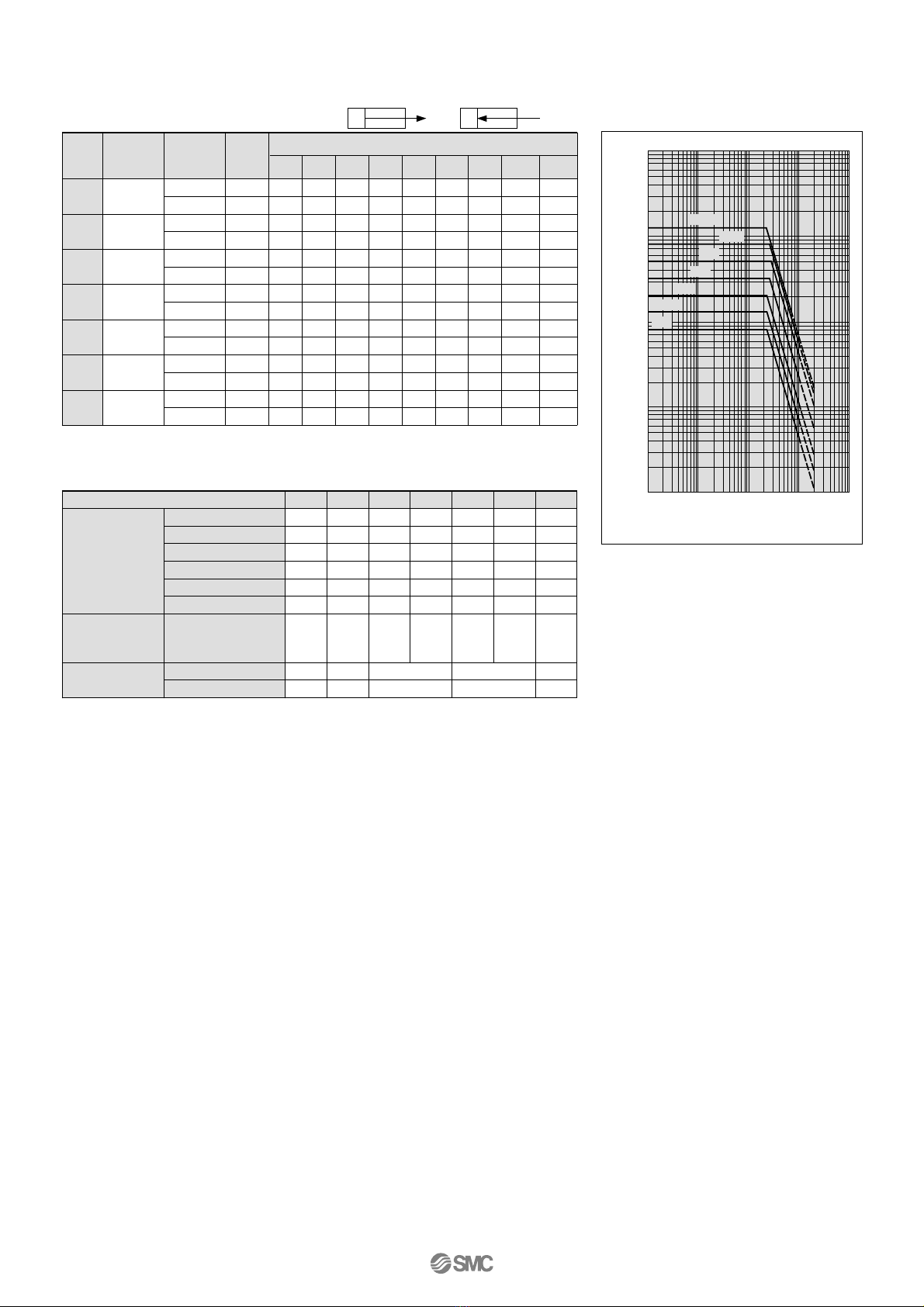

Theoretical Output

Bore

size

(mm)

100

125

804

691

1257

1056

1963

1649

3117

2803

5027

4536

7854

7363

12272

11468

0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

Rod

diameter

(mm)

OUT

Operating

direction

Piston

area

(mm2)

Operating pressure (MPa)

(N)

OUT IN

Note) Theoretical out put (N) = Pressure (MPa) x Piston area (mm2)

Mass

Bore size (mm)

Basic mass

Additional mass

per each 50 mm

stroke

Basic

Foot

Flange

Single clevis

Double clevis

Trunnion

All mounting brackets

Single rod clevis

Double rod clevis

0.53

0.16

0.20

0.16

0.20

0.71

0.11

0.07

0.09

Accessory

0.83

0.20

0.23

0.32

1.10

0.16

0.11

0.15

1.33

0.38

0.47

0.37

0.45

1.73

0.24

1.74

0.46

0.58

0.60

0.71

2.48

0.26

2.77

0.89

1.30

1.07

1.28

4.25

0.40

0.22

0.34

0.40

0.69

100

3.69

1.09

1.81

1.73

2.11

5.95

0.44

125

6.70

2.60

4.10

4.15

4.25

2.98

0.71

1.20

1.84

(kg)

Calculation: (Example) C96SD40-100

• Basic mass ··········· 0.83 (kg) (Basic, ø40)

• Additional mass ···· 0.16 (kg/50 st)

• Cylinder stroke ······ 100 (st)

0.83 + 0.16 x 100 ÷50 + 0.32 = 1.47kg

Allowable Kinetic Energy

Example: Load limit at rod end when air cylinder

ø63 is actuated with max. actuating

speed 500 mm/s. See the intersection

of lateral axis 500 mm/s and ø63 line,

and extend the intersection to left.

Thus, the allowable load is 80 kg.

161

138

251

211

393

330

623

561

1005

907

1571

1473

2454

2294

241

207

377

317

589

495

935

841

1508

1361

2356

2209

3682

3440

322

276

503

422

785

660

1247

1121

2011

1814

3142

2945

4909

4587

402

346

629

528

982

825

1559

1402

2514

2268

3927

3682

6136

5734

482

415

754

634

1178

989

1870

1682

3016

2722

4712

4418

7363

6881

563

484

880

739

1374

1154

2182

1962

3519

3175

5498

5154

8590

8027

643

553

1006

845

1570

1319

2494

2242

4022

3629

6283

5890

9817

9174

724

622

1131

950

1767

1484

2805

2523

4524

4082

7068

6627

11045

10321

804

691

1257

1056

1963

1649

3117

2803

5027

4536

7854

7363

12272

11468

• Mounting ·········· 0.32 (kg) (Double clevis)

1 10 100 1000 10000

10000

100

Max. acting speed (mm/sec)

Load mass (kg)

ø125

ø100

ø80

ø63

ø50

ø40

ø32

Series C96

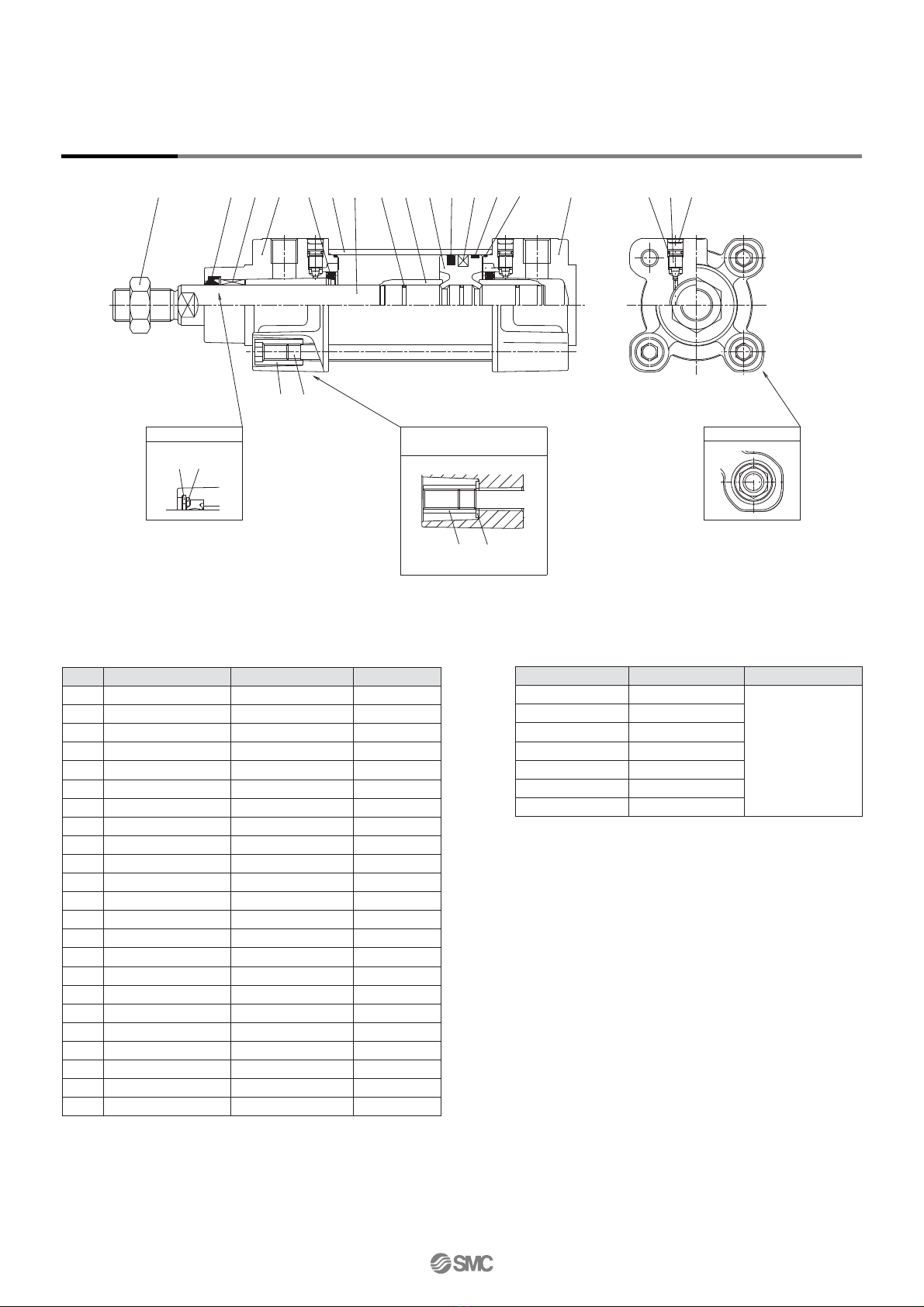

Construction

r!6 !1qyet

!7 !3w

!8!2!0 @0 @1@2 @3

ø125 ø80 to ø125

(No flat washer for ø125)

ø80 to ø125

[First angle projection]

No. Description Material Note

Aluminum die-casted

Aluminum alloy

Carbon steel

Aluminum alloy

Brass

Carbon steel

Steel

Steel wire

Sintered metal

Steel for spring

Stainless steel

Steel for spring

Urethane rubber

Resin

NBR

ø80 and ø100

ø40 to ø125

ø125

Rod cover

Head cover

Cylinder tube

Piston rod

Piston

Cushion ring

Tie-rod

Tie-rod nut

Flat washer

Rod end nut

Cushion valve

Bushing

Snap ring

Rod seal holder

Snap ring

Cushion seal

Wearing

Piston seal

Rod seal

Cylinder tube gasket

Cushion valve seal

Piston gasket

Magnet

Component Parts

Kit no.

100

Contents

Kits include items

!6 to @0.

CS95-32

CS95-40

CS95-50

CS95-63

CS95-80

CS96-100

125 CS96-125

Replacement Parts: Seal Kit

Bore size (mm)

∗Seal kits consist of items !6 to @0 contained in one kit, and can be

orderd using the number for each respective tube bore size.

Series C96

ISO Cylinder: Standard

Double Acting, Single/Double Rod

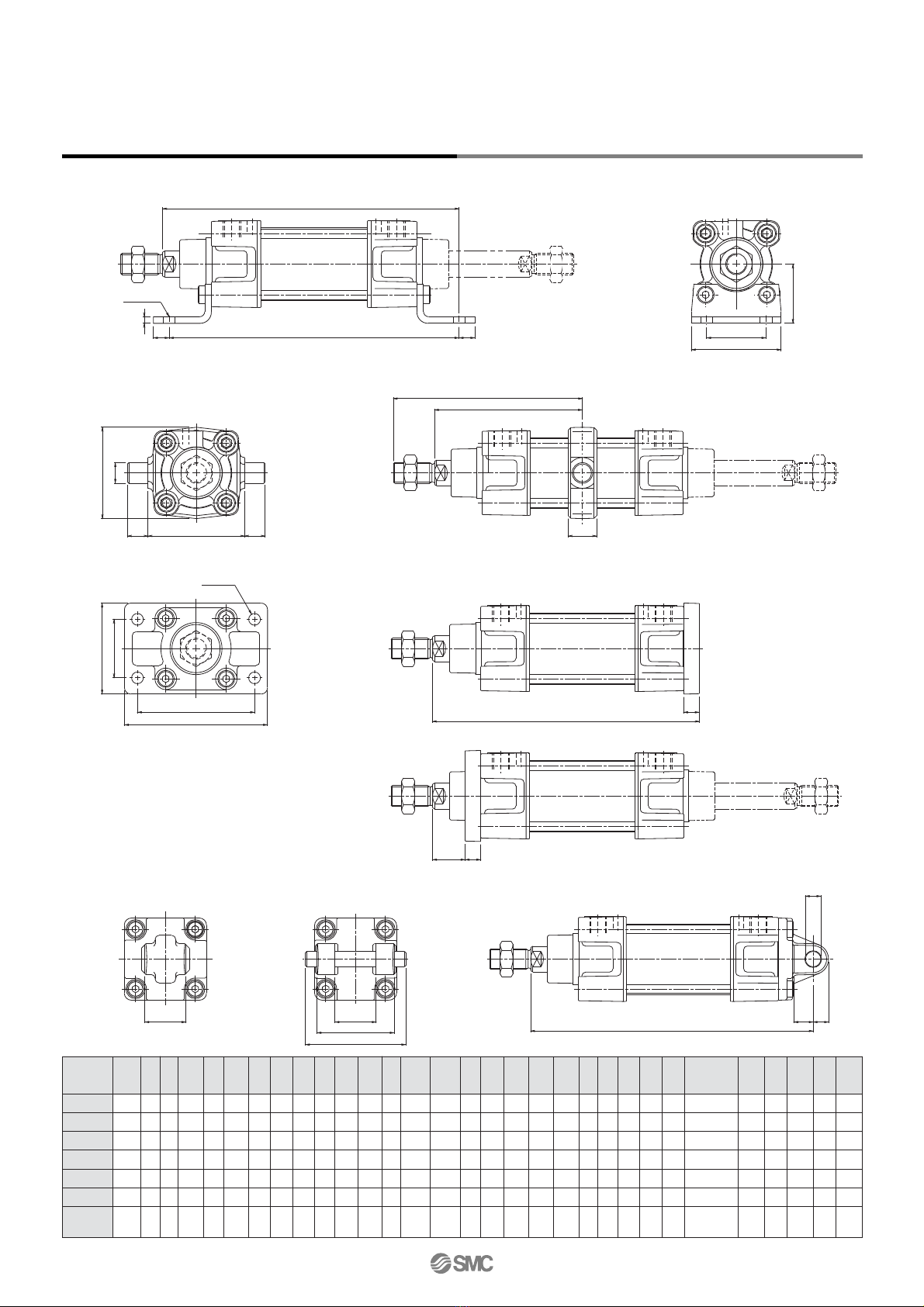

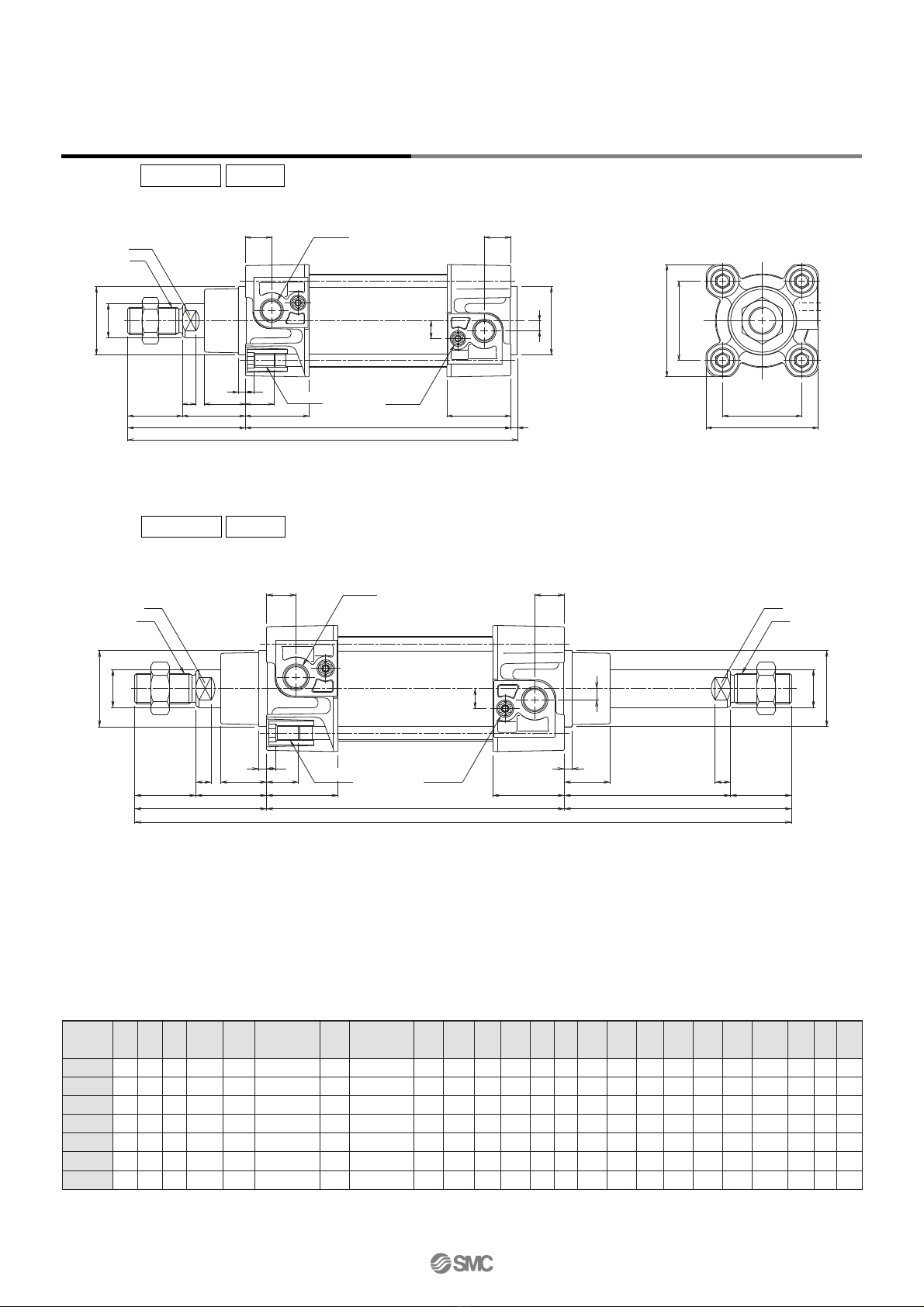

Dimensions: Without Mounting Bracket

C96S(D)B Bore size - Stroke

Bore size

(mm)

100

øB

d11 øD EE PL RT L12 KK SW G BG L8

125

VD VA WA WB E R L2 L9

C96S(D)B Bore size - Stroke

[First angle projection]

G 1/8

G 1/4

G 3/8

G 1/2

15.5

16.5

M6 x 1

M8 x 1.25

M10 x 1.5

M12 x 1.75

6.5

M10 x 1.25

M12 x 1.25

M16 x 1.5

M20 x 1.5

M27 x 2

37.5

105

106

121

128

138

160

11.5

10.5

146

163

179

194

218

233

285

119

190

213

244

259

300

320

398

118

144

32.5

46.5

56.5

110

—

øB

øD

PL PL

L8 + Stroke VA

ZZ + Stroke

VD L9

L12

2 x EE

8 x RT

Cushion

valve

øB

øD

øB

øD

WH + Stroke

H+ Stroke

PL PL

L8 + Stroke

ZY + 2 x Stroke

2 x EE

VD L9

L12

BG 8 x RT

Cushion

valve

Foot (L)

Center trunnion (T)

Head end mounting (G)

Rod end mounting (F)

Flange (F/G)

Head end

single clevis (C)

Head end

double clevis (D)

Series C96

Dimensions: Cylinder Mounting Accessories [First angle projection]

Bore size

(mm)

100

125

100

120

157

Max.

110

136

160

Max.

4.5

5.5

6.5

øAB

14.5

82.5

97.5

110

120

145

106.5

122

129.5

150

160

199

142

161

170

185

210

220

250

144

163

175

190

215

230

270

110

132

160

100

126

150

180

øFB

100

120

Max.

157

110

120

153

178

Max.

224

130

145

155

170

190

205

245

h14

110

130

øTD

H14

110

140

Max.

157

26-0.2/-0.6

28-0.2/-0.6

32-0.2/-0.6

40-0.2/-0.6

50-0.2/-0.6

60-0.2/-0.6

70-0.5/-1.2

øCD

Min.

9.5

Max.

142

160

170

190

210

230

275

XA + Stroke

Z+ 1/2 Stroke

XV + 1/2 Stroke

SA + Stroke

TL TM TL

AO AO

4 x øAB

øTD

XD + Stroke L

4 x FB

ZF + Stroke

Series C96

ISO Cylinder: Standard

Double Acting, Single/Double Rod

Dimensions: Cylinder Mounting Accessories (C/D/E/CS) [First angle projection]

Mounting (E)

Mounting (C) Mounting (D)

∗Black color

Bore size

(mm) E1EW TG1FL l1LI2ød1øCD MR ød2R1E2UB CB

–0.2

–0.6

–0.2

–0.6

–0.2

–0.6

–0.2

–0.6

–0.2

–0.6

–0.2

–0.6

–0.5

–1.2

100

125

113

Max.

157

32.5

46.5

56.5

110

5.5

6.5

9.5

6.6

13.5

6.5

8.5

115

Max.

157

110

130

–0.2

–0.6

–0.2

–0.6

–0.2

–0.6

–0.2

–0.6

–0.2

–0.6

–0.2

–0.6

–0.5

–1.5

Bore size

(mm) ød2 øCK øS5 K1G1l1G2EMK2

max.

CA H6R1

124

22.5

100

6.6

12.5

13.5

125

Mounting (CS): Head end clevis with ball joint

øD øF øE L øM N P H

max. H7 ER

max. H11 ±0.5

Bore

size

(mm)

—

100

32.5

46.5

56.5

110

10.5

6.6

13.5

115

140

10.5

5.5

6.5

125

–0.1

Mounting (DS)

Dimensions: Cylinder Mounting Accessories (DS/ES)

Series C96

[First angle projection]

Mounting (ES)

Bore size

(mm) EB1B2B3TG1T

3.3

4.3

6.3

100

115

140

32.5

46.5

56.5

110

11.5

5.5

6.5

ød1

ød2

10.5

ød3

6.6

13.5

øCN

125

Bore size

(mm) ød3øCN øS5K1I2G1G2EN EU CH H6

32 11

124

100

6.6

13.5

8.5

10.5

11.5

12.5

10.5

125

min.

max.

∗Black color

Autres manuels pour C96 Series

Ce manuel convient aux modèles suivants

Autres manuels SMC Networks Équipement industriel

SMC Networks

SMC Networks LVD Series Manuel utilisateur

SMC Networks

SMC Networks EX510 Series Manuel utilisateur

SMC Networks

SMC Networks JMHZ2-16D-X7400B-CRX Manuel utilisateur

SMC Networks

SMC Networks XT316-30(B) Manuel utilisateur

SMC Networks

SMC Networks AFD20 D Series Manuel utilisateur

SMC Networks

SMC Networks MHT2-32DZ Manuel utilisateur

SMC Networks

SMC Networks EtherCAT EX260-VEC1 Manuel utilisateur

SMC Networks

SMC Networks KFG2 Series Manuel utilisateur

SMC Networks

SMC Networks Electro Industries ProtoCessor Guide de l'utilisateur

SMC Networks

SMC Networks MY2 Series Manuel utilisateur

SMC Networks

SMC Networks MGP-XB24 Manuel utilisateur

SMC Networks

SMC Networks MHM-25D-X7400A-ASSISTA Manuel utilisateur

SMC Networks

SMC Networks EX260-SCA1-X176 Manuel

SMC Networks

SMC Networks LEHR Series Manuel utilisateur

SMC Networks

SMC Networks EX260-VIL1 Manuel utilisateur

SMC Networks

SMC Networks MGC Seires Manuel utilisateur

SMC Networks

SMC Networks MWB-X3075 Series Manuel utilisateur

SMC Networks

SMC Networks JSY5000-H Series Manuel utilisateur

SMC Networks

SMC Networks VQD1000-V Series Manuel utilisateur

SMC Networks

SMC Networks EX600-SEN5 16 Series Manuel utilisateur

SMC Networks

SMC Networks AW20 Series Guide de démarrage rapide

SMC Networks

SMC Networks ZQ Series Manuel utilisateur

SMC Networks

SMC Networks EX260-SPN1 Manuel utilisateur

SMC Networks

SMC Networks MY3A Series Manuel utilisateur

Manuels Équipement industriel populaires d'autres marques

ABB

ABB Unifix AD Manuel

Mark 7

Mark 7 Evolution Manuel utilisateur

Husky

Husky HyPET Manuel utilisateur

bora

bora PM-1800 Manuel utilisateur

Grizzly

Grizzly T32428 Manuel utilisateur

Siemens

Siemens 8MF1 Series Manuel utilisateur

ABB

ABB HT610965 Manuel utilisateur

ABB

ABB SafeLink Manuel utilisateur

Phoenix

Phoenix PHX-150 Manuel utilisateur

ABB

ABB A165-L32 Manuel utilisateur

ABB

ABB HT842936 Manuel utilisateur

Rioned

Rioned UrbanJet Manuel utilisateur

Hermetica

Hermetica 10 Series Manuel utilisateur

HORNER

HORNER OEE Solution Manuel utilisateur

Hammerhead

Hammerhead HG375 Manuel utilisateur

SCHUNK

SCHUNK VERO-S NSE-A3 138 Instructions d'utilisation

ABB

ABB HT566657 Manuel utilisateur

Webasto

Webasto GSE CAN Manuel utilisateur
