EZ Connect Wireless USB adapter Manual

The 11 Mbps wireless USB adapter is an easy to use, cost-effective,

high-speed and secure wireless networking device for the

networked SOHO environment. It allows users to share network

resources and provides instant access to the internet.

Using this adapter in conjunction with SMC’s EZ Connect Wireless

Access Point, you can create an instant network that integrates

seamlessly with 10 Mbps Ethernet LANs. Moreover, moving or

expanding your network is as easy as moving or installing

additional Access Points - no wires!

PACKAGE CHECKLIST

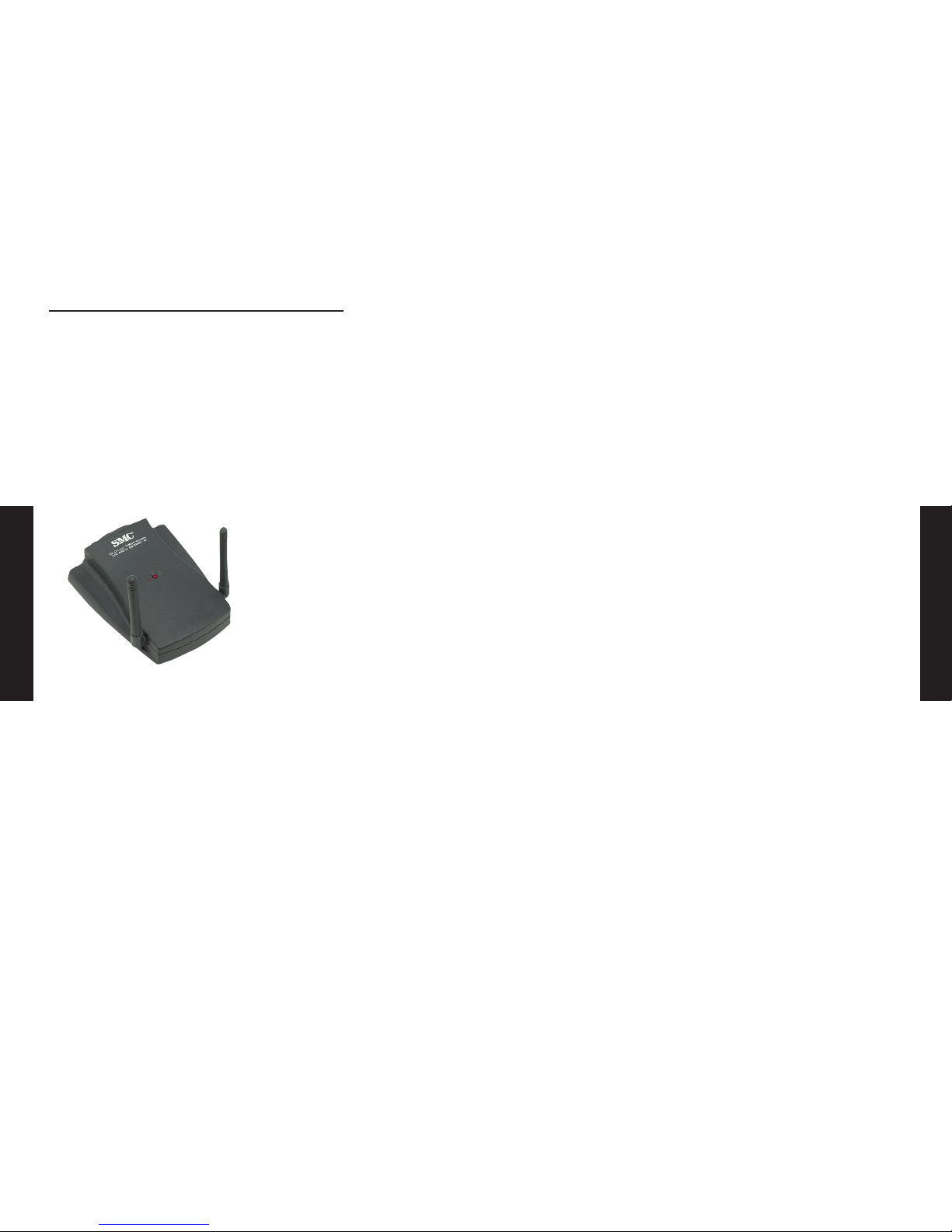

The EZ Connect Wireless USB Adapter package includes:

• 1 EZ Connect Wireless USB Adapter with dual dipole antenna

(SMC2662W-AR)

• 1 Installation CD-Rom

• 1 USB cable

• This User Guide

English

System Requirements

Before you install the EZ Connect Wireless USB Adapter, check your

system for the following requirements:

• An available USB port in your computer.

• Windows 98/Me/2000 (Have the Windows installation

CD-ROM ready for use during installation).

• A minimum of 1 MB of free disk space for installing the

driver and utility program.

• Another IEEE 802.11b compliant device installed in your

network, such as the SMC2655W Wireless Access Point, or

the SMC2662W Wireless USB Adapter.

INSTALLATION

WARNING:

• Backup your driver CD-Rom and use the copy as the working

diskette to protect the original from accidental damage.

1. Select an unused USB port and remove its protective

bracket.

2. Carefully insert the USB cable and press until it is firmly

seated in the USB port.

3. Install the appropriate network driver for your operating

system. Drivers can be found on the CD-Rom that comes

with this package.

4. Install the configuration program for your wireless USB

adapter. The SETUP.EXE file can be found on the CD-Rom

with this package.(D:\Drivers\SMC2662W\Utility\setup.exe)

1 2

DRIVER INSTALLATION

Select the driver you need for your system and refer to this guide

for the installation and configuration procedure. Any new or

updated drivers can be downloaded from SMC’s Web site at

http://www..smc.com.

WINDOWS 98/ME INSTALLATION

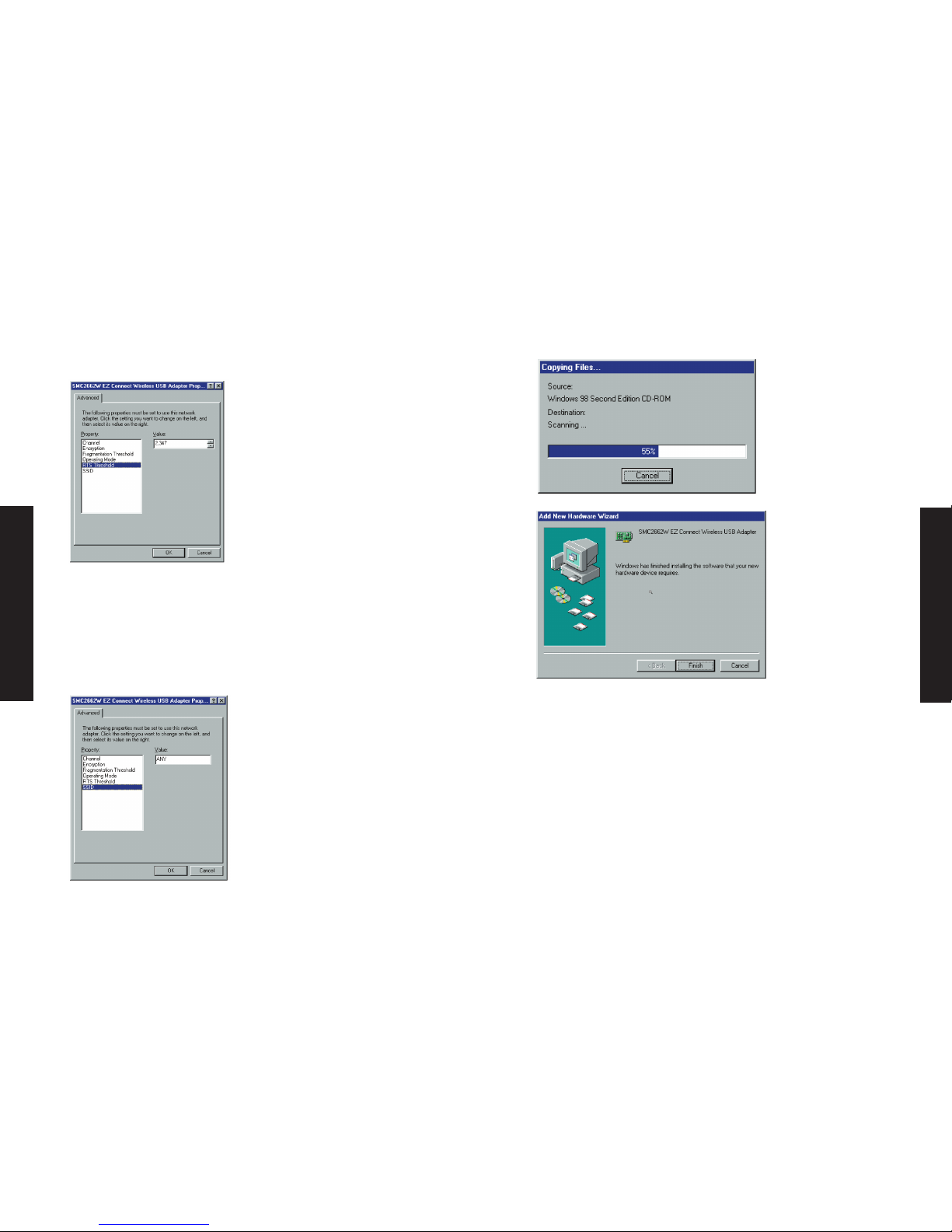

1. Windows 98/Me will automatically detect the new hardware and

prompt you to install the driver. Click "Next" to find the driver.

English

2. Insert the CD-Rom that comes in the package and specify

the location "D:\" and click "Next".

3. Click "Next" to copy files from the CD-Rom.

3 4

English

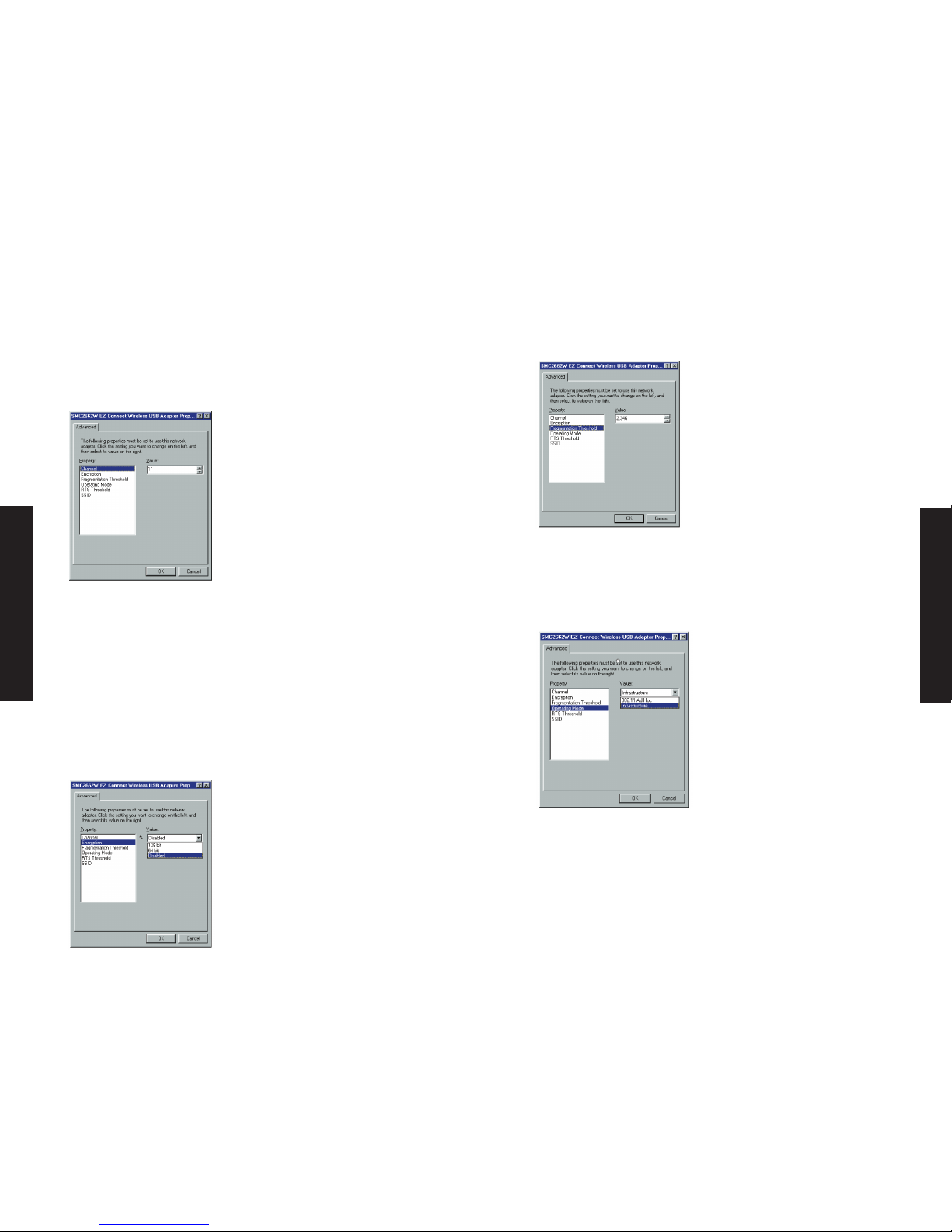

4. Set the "Channel" to the same radio channel as that used

by the other wireless clients in your group. However, if you

are connecting to a network via an access point, the

adapter will automatically set the channel to be the same

as that used by the Access Point.

5. For more secure data transmission, set the "Encryption" to

"128-bit" or "64-bit" to ensure wireless network security.

The advance Wired Equivalent Privacy (WEP) is implemented

in this card to prevent unauthorized access. The 128-bit

setting gives a higher level of security but the setting must

be the same for all clients in your wireless network.

(Default: Disabled) To completely configure WEP, you must

use the Configuration Utility. Please see "Encryption Screen"

under the "Configuration and Diagnostic Utility" section.

6. Set the "Fragmentation Threshold". (The Default is 2346

which means "Disabled")

7. Set the "Operating Model" to "802.11 Ad-Hoc" or

"Infrastructure" depending on the type of network you want

to connect to.

5 6

8. Set the "RTS Threshold" to the same as that used by other

devices in your network. (The default is 2347 which means

"Disabled")

9. Set the "SSID" identifier to the same as that used by the ad

hoc work group or access point you want to connect to.

(SMC2652W Access point default: WLAN) If you will be

roaming among multiple Access Points with different

BSSID’s, a value of "ANY" will allow connection to any SSID.

English

10. Insert Windows98/Me CD-ROM and click "OK". Windows will

copy source file to your system.

11. If you want to add more protocols after installation, go to

control panel and double-click "Network".

7 8

12. Select the "Configuration" tab and click "Add" to install the

network protocols you want to use, such as IPX/SPX,

NetBEUI or TCP/IP. If you install TCP/IP, be sure to set the

appropriate Gateway, DNS Server, and Domain for your

network. If you install an IPX/SPX compatible protocol, then

you also need to install the Client for NetWare Networks.

13. Click "File and Print Sharing" to share files or printers.

14. Click on the "Identification" tab on the Network dialog

box, and specify your computer name and network

workgroup.

15. Click "OK" in the Network dialog box and the system will

restart your computer.

WINDOWS 2000 INSTALLATION

1. Windows 2000 will automatically detect the new hardware

and prompt you to install the driver Click "Next" to find

the driver.

English

2. Insert the CDROM included in this package and select "CD-

Rom drives" and then click "Next".

3. Click "Next" to copy files from the CD-Rom.

9 10

English

4. Finish the driver installation.

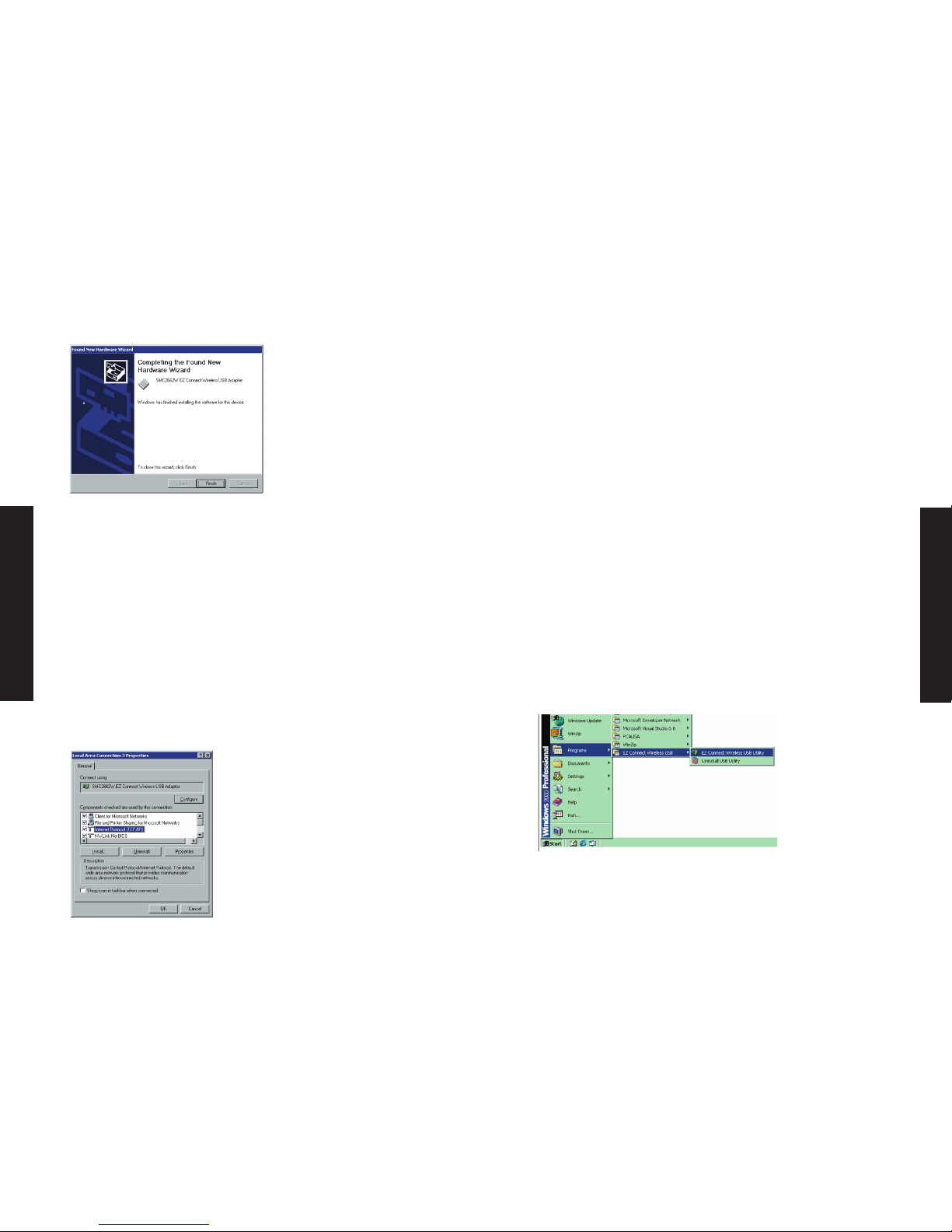

5. If you want to add more protocols after installation, go to

control panel and double click on "Network and Dial-up

Connections" and double click "Local Area Connection X",

click "Properties".

6. Select the "General" tab and click "install" to install the

network protocols you want to use, such as IPX/SPX,

NetBEUI or TCP/IP. If you install TCP/IP, be sure to set the

appropriate Gateway, DNS Server, and Domain for your

network. If you install an IPX/SPX compatible protocol,

then you also need to install the Client for NetWare

Networks.

CONFIGURATION AND DIAGNOSTIC UTILITY

SMC’s EZ Connect Wireless USB adapter provides free optional

management software for quick network configuration and easy

diagnostics. The CD-Rom that comes with the package contains a

user-friendly interface for configuring the EZ Connect Wireless USB

Adapter.

Utility Installation

To install the utility software:

1. Insert the CD-Rom that comes with this package into your

computer’s CD-Rom drive (D:\).

2. Select the folder "D:\Drivers\SMC2662W-AR" and double

click on "setup.exe".

3. Follow the on-screen instructions to finish installation.

Using the Wireless LAN Utility

Once the installation is completed, the configuration utility can be

accessed by selecting the "EZ Connect Wireless USB Utility" icon

from the "EZ Connect Wireless USB" folder.

11 12

English

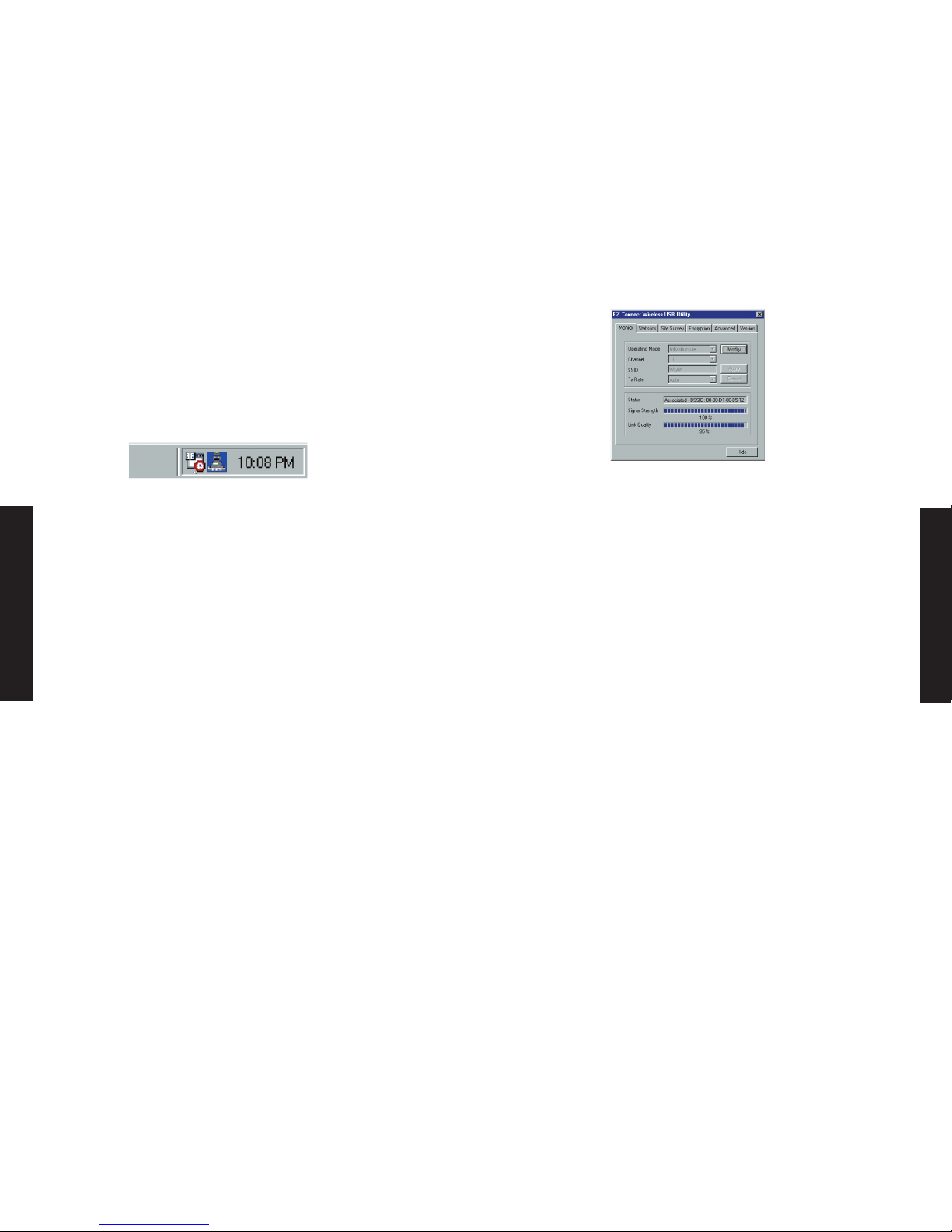

Quick-Launch Icon

After the utility program is running, it will have a "Quick Launch"

icon in the lower right hand corner of the task bar. Double clicking

the icon in the Quick Launch bar will open the EZ Connect Wireless

USB Utility program, providing quick access to all settings of the

adapter. This configuration software includes the following

functions:

Monitor Allow you to monitor network status and configure

parameters for the wireless adapter.

Statistics Show the statistics of the wireless adapter.

Site Survey Scan/Show all the APs in range.

Encryption Provides WEP security control.

Advanced Allow you to configure the advanced settings.

Version Show the version information.

Monitor Screen

When you start the wireless USB utility, the information window

for the SMC2662W-AR is shown as the figure below. Click on the

"Monitor" tab to monitor the network status of the wireless

adapter, including the BSS ID, current channel, link quality, and

signal strength.

Click "Modify" to configure "Operating Model",

"Channel", "SSIDl" and "Tx Rate". After

configuration, just click "Apply" to save the

changes.

Operating Mode Set the station operation mode to io802.11

AdHocl1 for network configurations that do not

have any Access Points, or to "Infrastructure" for

configurations with Access Points.

("Infrastructure" is the default setting)

Channel If you are setting up an ad hoc wireless LAN, set

the channel number to the same radio channel as

that used by the other wireless clients in your

group. However, if you are connecting to a

network via an Access Point, then the channel is

automatically set to the channel of the Access

Point that the adapter connects to.

SSID Input an SSID string that you want to connect to

("ANY" is the default setting). If you will be

roaming among multiple Access Points with

different BSSID’s, a value of "ANY" will allow

connection to any SSID.

Tx Rate Indicates the communication rates. Select

appropriate transmission speed to match your

wireless LAN settings. (Default: Fully Automatic)

13 14

English

PS Mode Enable the Power Saving Mode for reducing power

loading. (Default: Disabled)

Note : The "Channel" can only be set when the

"Operating Model" is "802.11 Ad-Hoc".

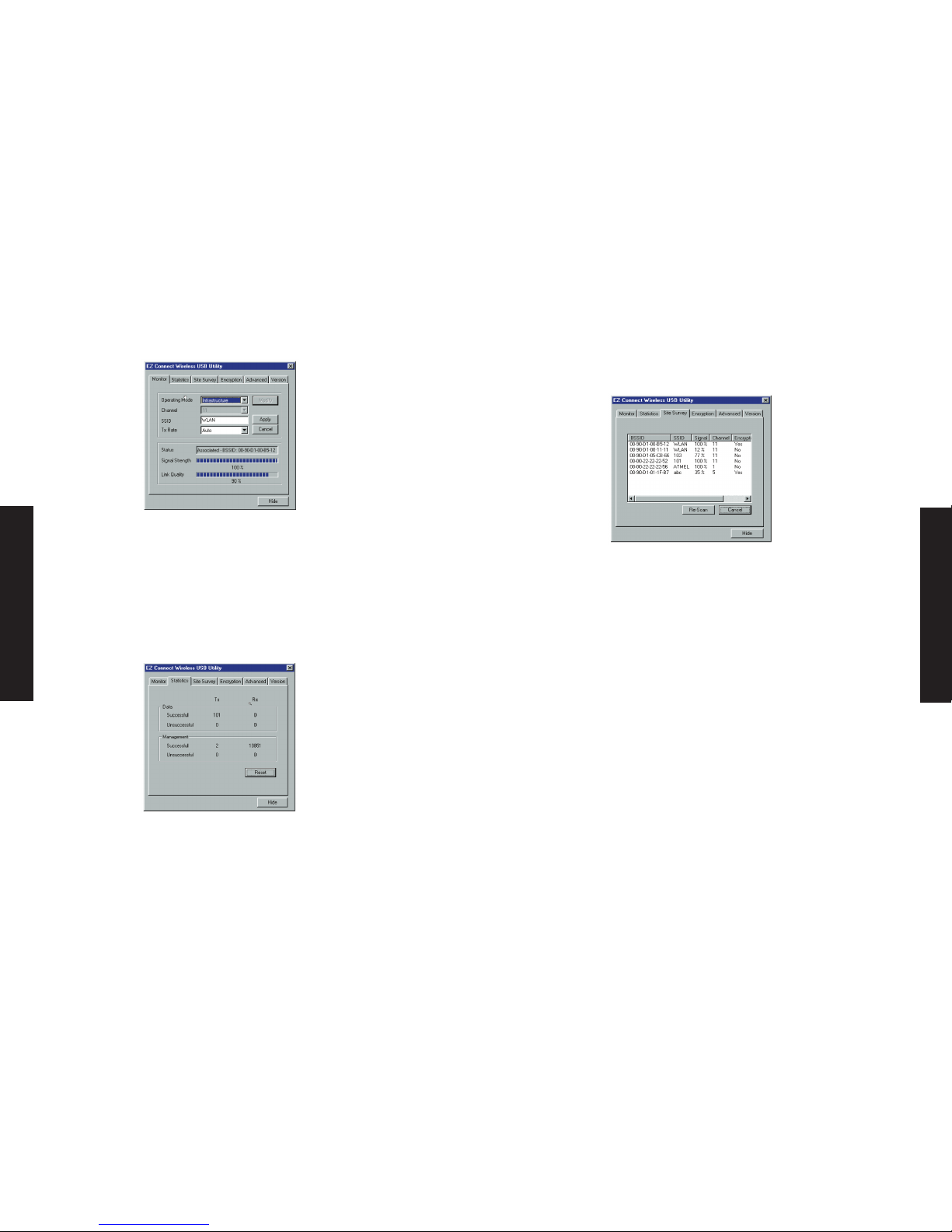

The Statistics screen

The Statistics screen displays "Data Frames" and

"Management Frames".

Site Survey Screen

The Site Survey screen displays all AP’s in wireless

LAN, and you can choose one of them to connect

to by double clicking.

Encryption Screen

Encryption

For more secure data transmission, set the

"Encryption" to "128-bit" or "64-bit" to ensure

wireless network security. Wired Equivalent Privacy

(WEP) is implemented in this adapter to prevent

unauthorized access to your wireless network. The

128-bit setting gives a higher level of security,

but the setting must be the same as other clients

in your wireless network. (Default: Disabled)

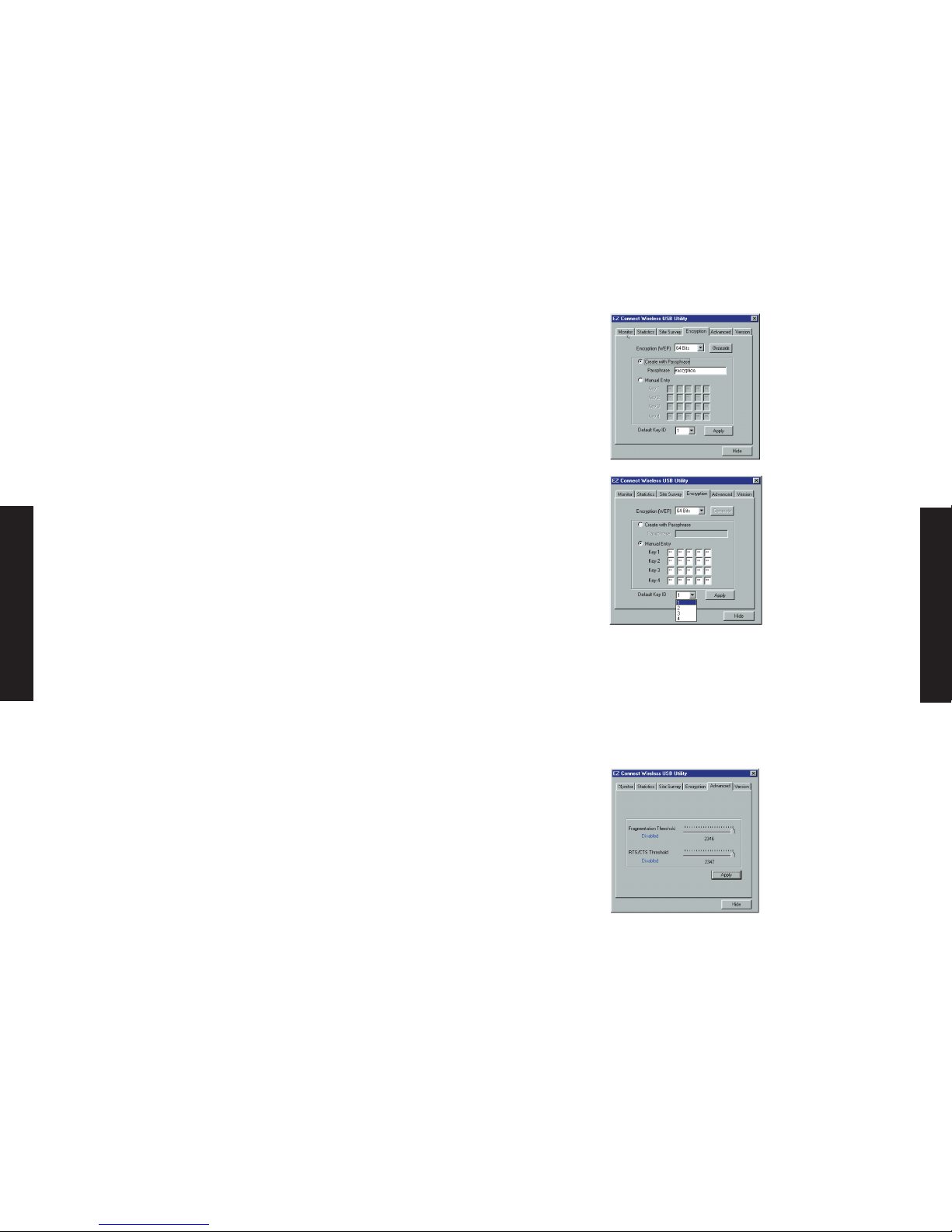

The WEP (Wired Equivalent Privacy) implemented

in SMC’s EZ Connect Wireless USB adapter is based

on an RC4 encryption algorithm. The security keys

provided to ensure data confidentiality are four 10

digit keys for the 64-bit WEP setting (first screen

below) and one 26-digit key for the 128-bit WEP

setting (second screen below). This WEP security

protects your wireless LAN against eavesdropping

and unauthorized access by hackers or unexpected

intruders.

15 16

English

Create with Passphrase

Security keys for WEP encryption are generated

from your Passphrase string, so you must use the

same passphrase on all the other stations in your

network.

Manual Entry

"Manual Entry" allows the user to manually enter

key elements. ( 2 Hexadecimal digits in each

block)

Default Key ID

Choose the Key ID that has the encryption string

you prefer. If you are using a key generated from

Passphrase, you must use the same Passphrase and

key on each station.

To use the WEP function, take the following steps:

1. Select "128-bit" or "64-bit" for the "Encryption" field.

2. Then choose Create with Passphrase, type a string in the

Passphrase field and click "Generate", then select the key, and

click "Apply".

Note:

Passphrase string can consist of up to 32 alphanumeric

character. Or choose Manual Entry and enter key elements in

one of the keys 1-4, and click "Apply".

Note:

Each bit key must be hexadecimal.

Advanced Screen

Here you can set values of "Fragmentation

Threshold" (Default: 2346, which means Disabled)

and "RTS/CTS Threshold" (Default: 2347, which

means Disabled).

17 18

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels SMC Networks Adaptateur

SMC Networks

SMC Networks SMC EZ Connect g SMCWUSB-G Manuel utilisateur

SMC Networks

SMC Networks SMCWPCIT-G Manuel utilisateur

SMC Networks

SMC Networks Tiger Card SMC10GPCIe-10BT Manuel utilisateur

SMC Networks

SMC Networks HPKIT-ETH - FICHE TECHNIQUE Guide d'installation

SMC Networks

SMC Networks EZ Connect SMC2662W Manuel utilisateur

SMC Networks

SMC Networks SMC EZ Connect N Pro Draft 11n Wireless CardBus Adapter... Manuel utilisateur

SMC Networks

SMC Networks HP1D-USB Manuel utilisateur

SMC Networks

SMC Networks EZ Connect G SMC2835W Manuel utilisateur

SMC Networks

SMC Networks EZ Networking SMC2209USB/ETH Manuel utilisateur

SMC Networks

SMC Networks SMC EZ Connect N Pro Draft 11n Wireless CardBus Adapter... Manuel utilisateur

SMC Networks

SMC Networks EZ Connect SMCHPAVH-ETH Manuel utilisateur

SMC Networks

SMC Networks Elite16 Series Manuel utilisateur

SMC Networks

SMC Networks 1255TX-2 - annexe 1 Manuel utilisateur

SMC Networks

SMC Networks EZ Networking SMC2208USB/ETH Manuel utilisateur

SMC Networks

SMC Networks SMCWPCI-GM Manuel utilisateur

SMC Networks

SMC Networks WCB-N - annexe 2 Manuel utilisateur

SMC Networks

SMC Networks 2835W V2 Manuel utilisateur

SMC Networks

SMC Networks SMCWUSBS-N Manuel utilisateur

SMC Networks

SMC Networks 2336W-AG Manuel utilisateur

SMC Networks

SMC Networks EZ Connect SMC2664W Manuel utilisateur

SMC Networks

SMC Networks SMCWUSB-N Manuel utilisateur

SMC Networks

SMC Networks 2635W Manuel utilisateur

SMC Networks

SMC Networks EZ Connect N SMCWUSBS-N4 Manuel utilisateur

SMC Networks

SMC Networks FieldServer FS-8700-16 BACnet PTP Note de version

Manuels Adaptateur populaires d'autres marques

PCB Piezotronics

PCB Piezotronics 090B274 Manuel utilisateur

Auvidea

Auvidea J20 Manuel du produit

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manuel utilisateur

Akribis

Akribis ITF-21-BISS-MIT Manuel utilisateur

Tenda

Tenda W54U Manuel utilisateur

ROHO

ROHO AGILITY Manuel utilisateur

PROLiNK

PROLiNK WN2001 Manuel utilisateur

Hawking

Hawking HUF2 Manuel utilisateur

Airlink101

Airlink101 AWLC4030 Manuel utilisateur

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manuel utilisateur

Philips

Philips SWA4554S/10 Manuel utilisateur

JVC

JVC TS-C9D2B Manuel d'instructions

NETGEAR

NETGEAR A6100 Manuel utilisateur

D-Link

D-Link DWA-121 Manuel utilisateur

Philips

Philips SWA2037 Manuel utilisateur

Basalte

Basalte 0610-20 Manuel utilisateur

Yealink

Yealink EHS40 Manuel utilisateur

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manuel utilisateur
