SMAX GW-8F2G Manuel utilisateur

User Menu

GW-8F2G

Ver 1.03

2015/2/25

Contents

1. Start to use...................................................................................................... 3

2. Web page of “System Information”................................................................. 4

3. Quick Install .................................................................................................... 5

4. System Configuration ...................................................................................... 7

5. PoE.................................................................................................................. 8

6. LED Power Saving.......................................................................................... 11

7. Fundamentals ............................................................................................... 12

8. Security ......................................................................................................... 18

9. Statistics........................................................................................................ 19

10. Product Specification .................................................................................. 20

10.1. External Interfaces .............................................................................. 20

10.2. Port Functions ..................................................................................... 20

10.3. PoE Functions...................................................................................... 20

10.4. Push Button......................................................................................... 21

10.5. Power Supply –External Adaptor......................................................... 21

10.6. System Information............................................................................. 21

1. START TO USE

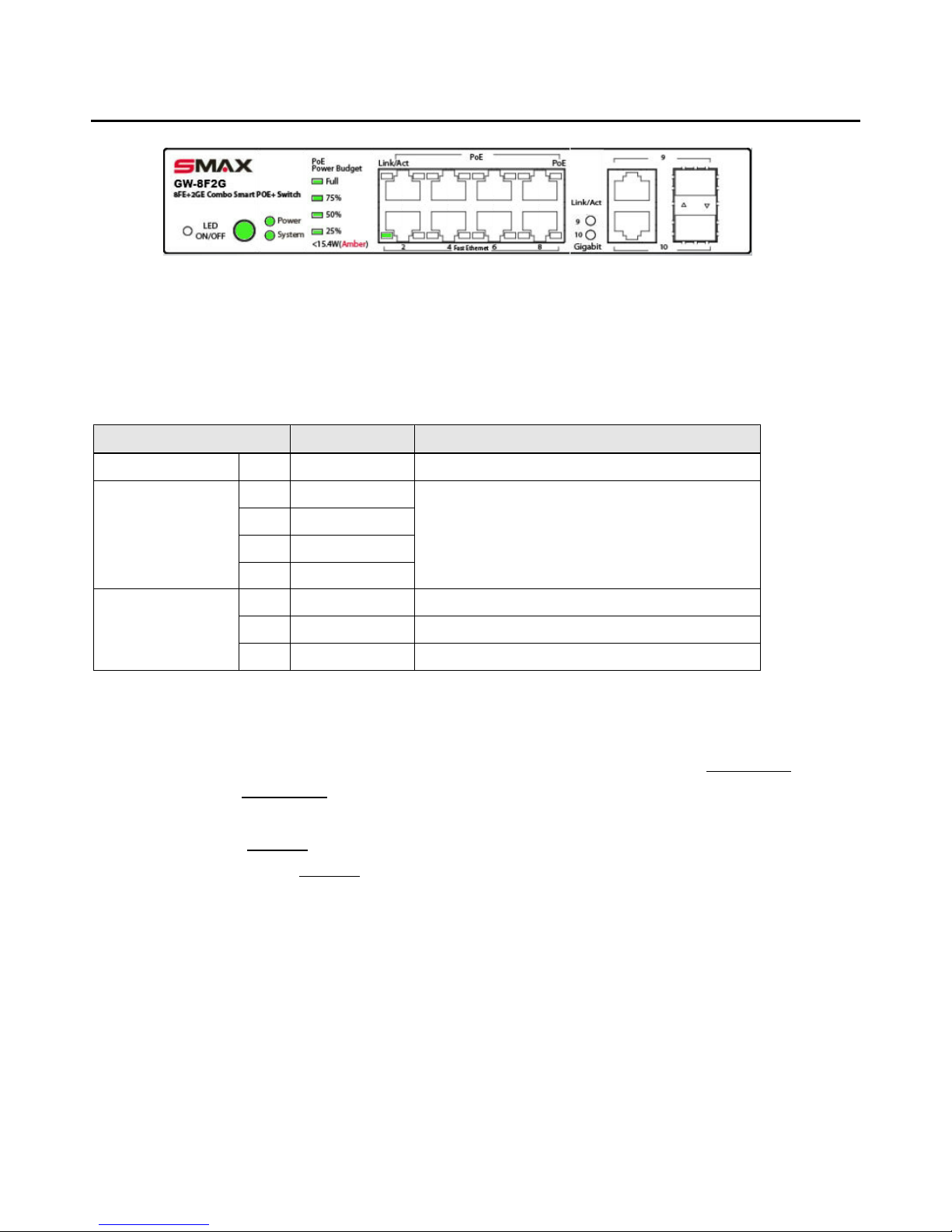

Fig. Front panel of GW-8F2G

 Power on the Switch:

Power on the Switch before plug in any Ethernet cable, system will go through Power-On-Self-Test

(POST) with LEDs lighting in Green or Amber. Then, after completing the POST, LEDs will stay at the

state as the table below..

LED Indication Color / State Description

Power Green On The device is powered on.

Full Green On

75% Green On

50% Green On

PoE Power Budget

25% Green On

Power for POE is full, not been consumed yet.

dark During device boot-up.

Amber On Device passed POST and ready for operation.

System

Green On Successfully log into the device.

 Log into the Switch:

Connect PC to any port of the Switch via Ethernet cable. Make sure the LAN setting of PC

is set to work in the same subnet as Switch device which the default IP address is 192.168.1.2

Type IP address 192.168.1.2 in the WEB Browser of PC, you will then be asked to enter ID and

Password so that you can log into the Switch device.

The default ID is “admin”.

The default Password is “admin”.

Press “OK”, you will log in and see the welcome page for “System Information”.

2. WEB PAGE OF “SYSTEM INFORMATION”

 “System Information”, “POE Configuration” and “Basic Configuration” expose most of the important

information which Installer or Network Administrator may need for realizing the status and

configuration in a quick glance.



No setting function is provided on this page.

Want to configure the Switch device? Kick an icon on the left side of the page.

3. QUICK INSTALL

Quick Install

Fig. IP Surveillance Quick Setup

 IP Surveillance Quick Setup requires only 2 steps to complete your surveillance network installation.

Step 1: Connect IPCAM, NVR, and PC as the Figure.

Step 2: Enable and Apply “IP Surveillance VLAN”. (Default value is Disable.)

Then, all connected devices will be discovered automatically; the discovered IPCAMs and NVR will be

securely bound to the Switch port. Press Refresh to get the table updated with connected devices’

MAC address and IP address. For network management purpose, user can modify IP address by Edit.

Now, we are done. Go check your monitor for the image captured.

 Disable IP Surveillance VLAN, user probably prefer the other type of VLAN setting, Port Base or Tag

Base. Configure them on the page “Fundamentals”  “VLAN”  “VLAN Mode”.

Quick Install

What is IP Surveillance VLAN?

Enable IP Surveillance VLAN, the Switch will automatically find and setup the connected surveillance

devices, such as IP Camera or NVR which supports our proprietary “IP Finder Protocol”.

After discovered IP Camera, its IP address will be modified to ensure all IPCAMs and Switch are in the same

working subnet. Furthermore, security mechanism will bind the Ethernet port to the IPCAM’s MAC address.

“MAC + Port Binding” prevents IPCAM device from malicious replacement. Its result can be observed in

“Security” ”Binding Table”.

Furthermore, IP Surveillance VLAN makes the port 1~port 8 video stream be individually carried to and only

to the uplink port (destination port 9 or port 10). Source port (port 1~ port 8) is not allowed to

communicate to each other. So that network snooping is prevented.

Don’t you worry about the VLAN. All VLAN related setup is automatically done by this smart Switch. Its

result can be observed in “Fundamentals” ”VLAN””IP Surveillance Base”.

4. SYSTEM CONFIGURATION

System

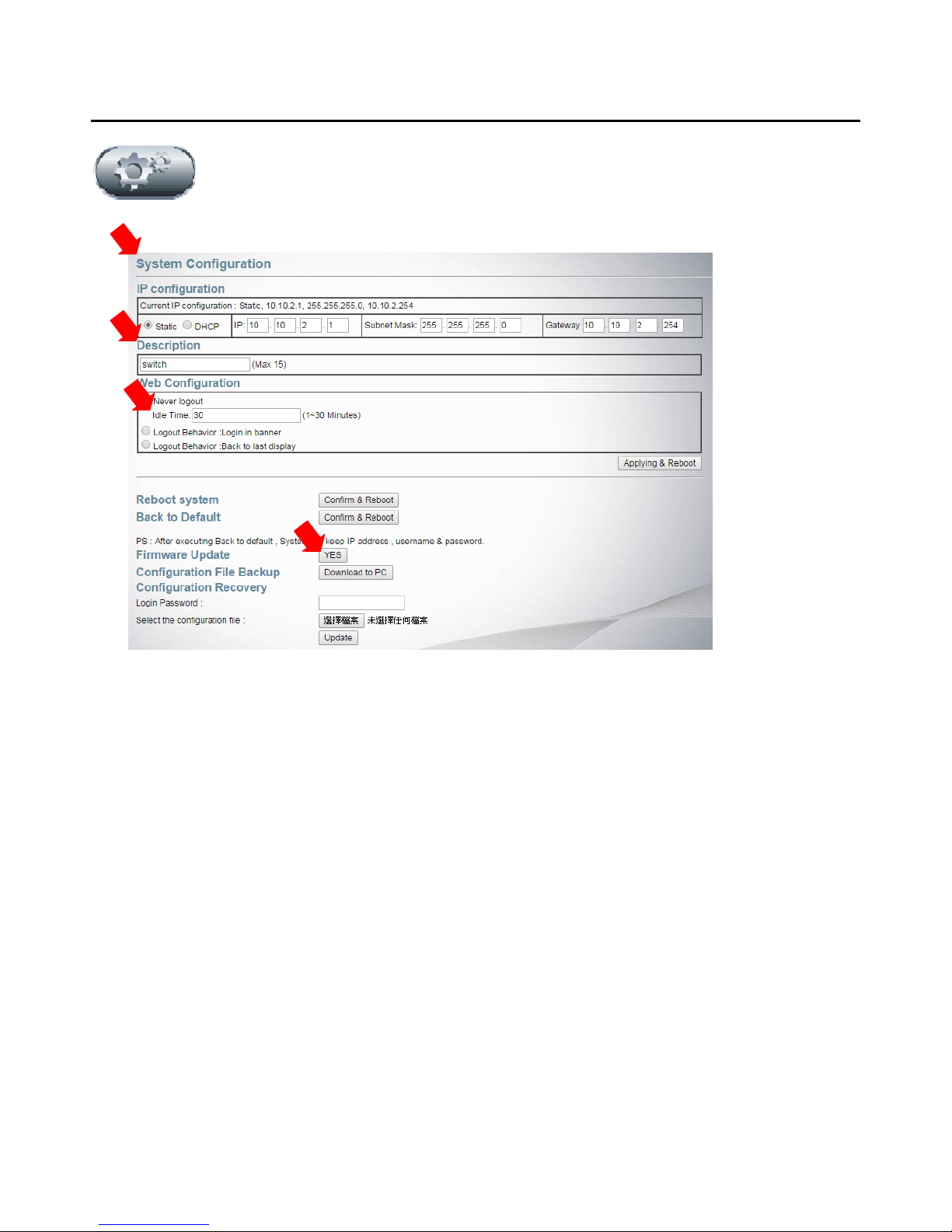

 In this page, user can re-set the IP address of this Switch device. Also you can give your Switch an

easily-remembered name in “System” “System Configuration” “Description”.

 In “System” “System Configuration” “Web Configuration”, set “Idle Time” will make device

automatically log out by the time you set.

 Click Yes on the “Firmware Update” will be requested to enter the password (default is “system”) and

to specify the location of new firmware (xxxxx.bin). Simply follow the instructions to update the

firmware which a few minutes are required for the process. During update, don’t turn off the power,

message “uploading” will keep showing on the web page.

5. POE

Power Over Ethernet

 “Power Over Ethernet ”  “POE Configuration”  “System Level“  “System PoE Operation”

Disable and Apply will stop all POE activity of this Switch device.

Default of “System PoE Operation” is Enable (of course). This is a POE Switch, isn’t it?

 “Power Over Ethernet ”  “POE Configuration”  “System Level“  “System Max PoE Power

Budget”

User can define the POE power budget of the Switch device here. Note that POE power budget of

GW-8F2G is 90 Watt, which is the Maximum power for POE usage.

 “Power Over Ethernet ”  “POE Configuration”  “Port level”  “Status”

If user want to disable Power Over Ethernet function of any specific port, set it here.

 “Power Over Ethernet ”  “POE Configuration”  “Port level”  “Priority”

- “Priority” setting (High, Middle, Low) decides the port’s priority of feeding power to PD.

This setting takes effect only upon the Switch device power-on.

- If there are several ports share the same priority, port number takes over the decision. The

smaller the port number is, the higher the priority is. For instance, port 1 and port2 share the

same priority “middle”, port1 priority will be higher than port2.

Default setting here applies the same priority to every port, meaning port1 priority is the highest

in this Switch device, followed by port2, then port3….

Power Over Ethernet

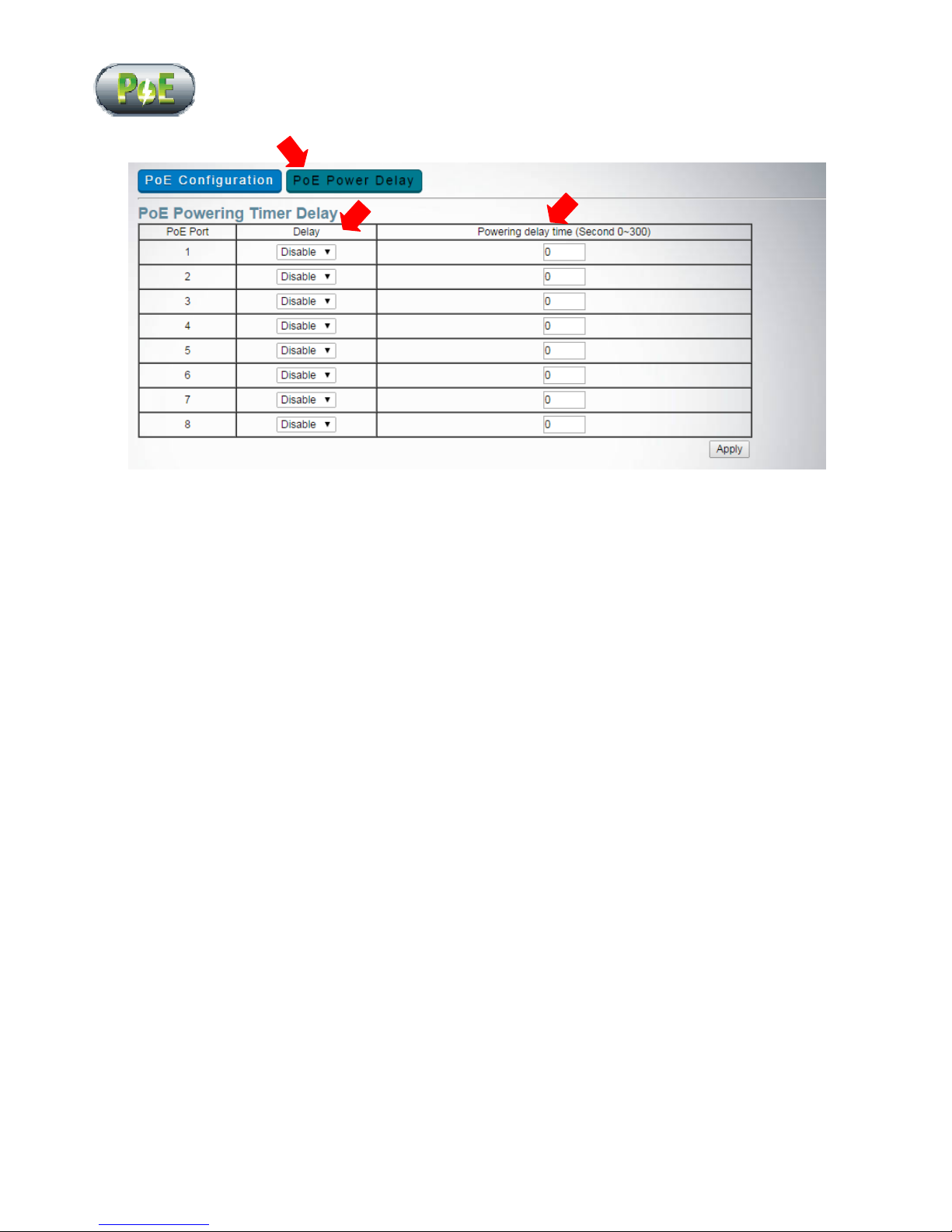

 Enable “Power Over Ethernet ”  “POE Power Delay”  “ PoE Powering Timer Delay”  “Delay”

and set “Powering delay time” will postpone the port to feed power to PD. At most, a port can delay

300 seconds before its powering. This setting takes effect only upon the Switch device power-on.
