SMART LINK ELECTRONICS LIMITED
www.smartooo.com
1. Introduction
SMARTOOO 7614 1 by 4 HDMI TV Wall support CVBS/VGA/HDMI/USB
play input sources to be freely arranged on 4 displays. The embedded
scaler converts signals from the input sources to match the native resolution of
monitors, flat panel displays, projectors as well as user-selectable output settings
up to 1920x1080. All the operation and control can be done through IR,
Ethernet and RS-232.
The HDMI TV Wall is widely used in KTV, hotels, bars, leisure centers,
shopping malls, television stores, cinemas, products display, media
advertising, building, education and training, Brand stores, airports,
subway, etc.
2. Feature
Compliant with HDMI1.3a, DVI1.0;

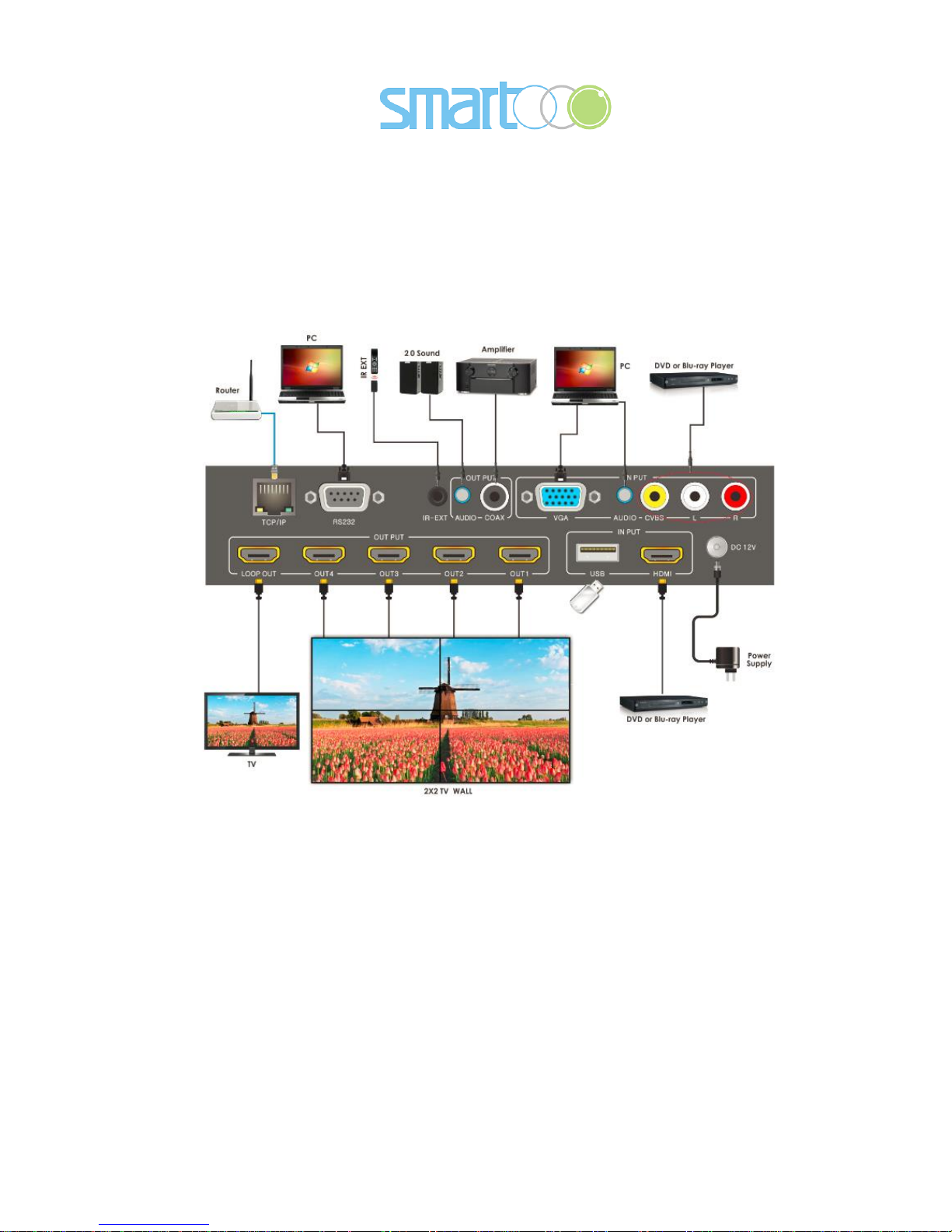

Output source signal to 4 displays (2 by 2 Video wall) as a full image
with adjustable Bezel Correction;
Supports IR, Ethernet and RS232 controls;
Supports cascade to 9 dispays (3 by 3 video wall) mode;
Supports CVBS/VGA/HDMI input and USB movie, picture and music
playback;
Advanced video De-interlace for improving 480i and 576i SD video
input;
Support input formats:
CVBS: PAL, NTSC, SECAM with stereo audio input;
VGA:640x480@60Hz, 800x600@60Hz, 1024x768@60Hz,
1280x1024@60Hz, 1280x720@60Hz, 1360x768@60Hz,
1440x900@60Hz, 1680x1050@60Hz, 1920x1080@60Hz with
stereo audio input;
HDMI: 1080p@50/60Hz, 1080i@50/60Hz, 720p@50/60Hz,
576i/p,480i/p, 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz,
1280x1024@60Hz, 1280x720@60Hz, 1360x768@60Hz,
1440x900@60Hz, 1680x1050@60Hz, 1920x1080@60Hz;
USB: MPEG, H.264, RM/RMVB movie decode, JPEG, BMP, PNG Picture
decode and MPEG1/2, MP3 audio decode;
Support output resolution up to 1080p60Hz;
