Section 1: System Overview

Section 1.0

What does SmarTire RV Do?

SmarTire RV is an active tire pressure and temperature

monitoring system designed specifically for recreational

vehicles. At the push of a button, the system provides the

driver with real-time tire pressure and temperature

information – even when the vehicle is in motion.

To warn the driver of an under inflated tire before it becomes

dangerous, SmarTire RV provides 3 tire alerts:

Section 1.1

What does SmarTire RV Do?

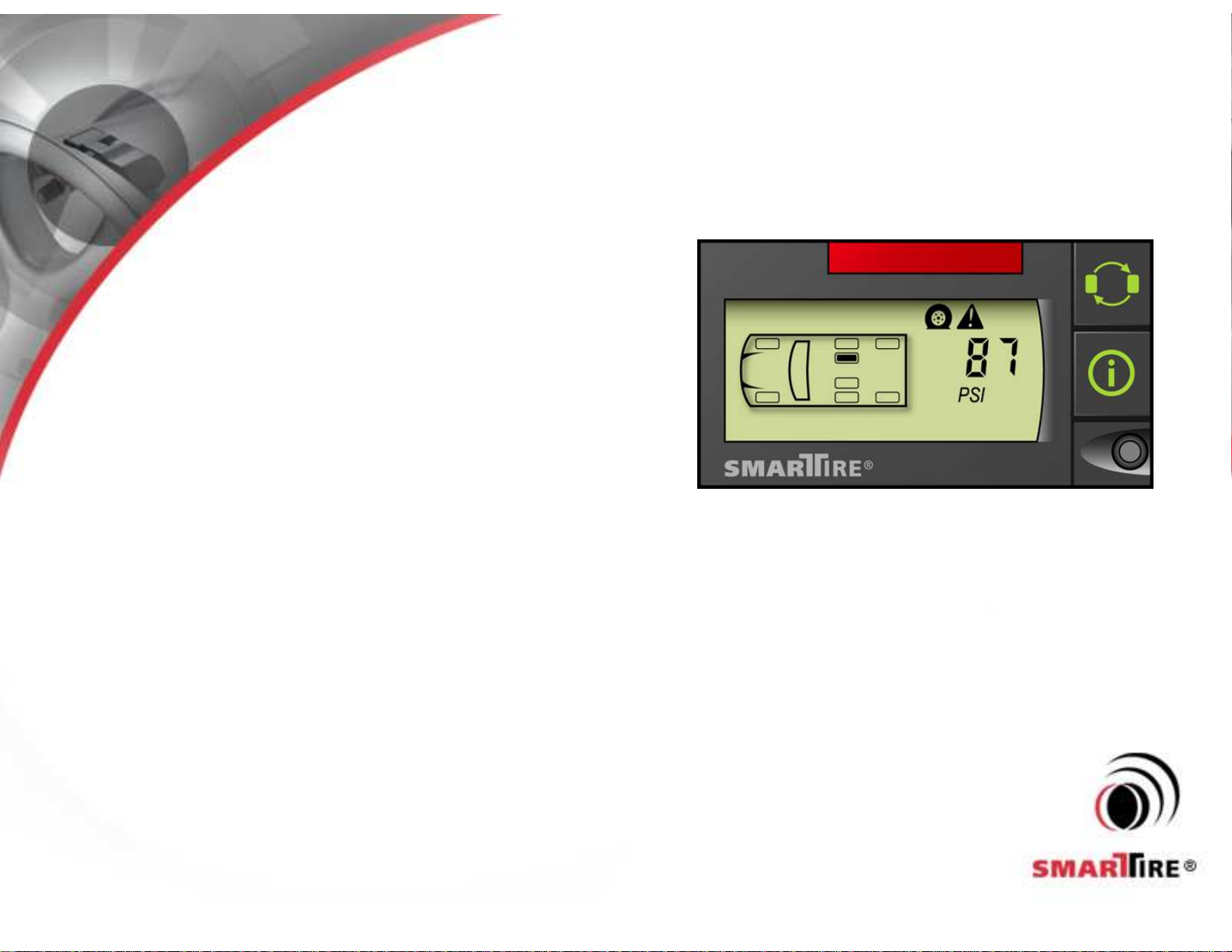

The Pressure Deviation Alert is the

first warning of an under inflated tire.

If the measured pressure inside a tire

is different than what the pressure is

supposed to be (SmarTire uses the

cold inflation setting and the

Pressure Deviation Alert

measured temperature of a tire to calculate the proper

pressure), the driver is alerted to the condition with a flashing

warning light and an audible alarm. This temperature

compensation calculation enables the SmarTire to provide a

warning of pressure loss even when tires are warm.

The default setting triggers the alert when a tire is 10 PSI under

or over inflated. This setting can be customized by the user.

Section 1.1

What does SmarTire RV Do?

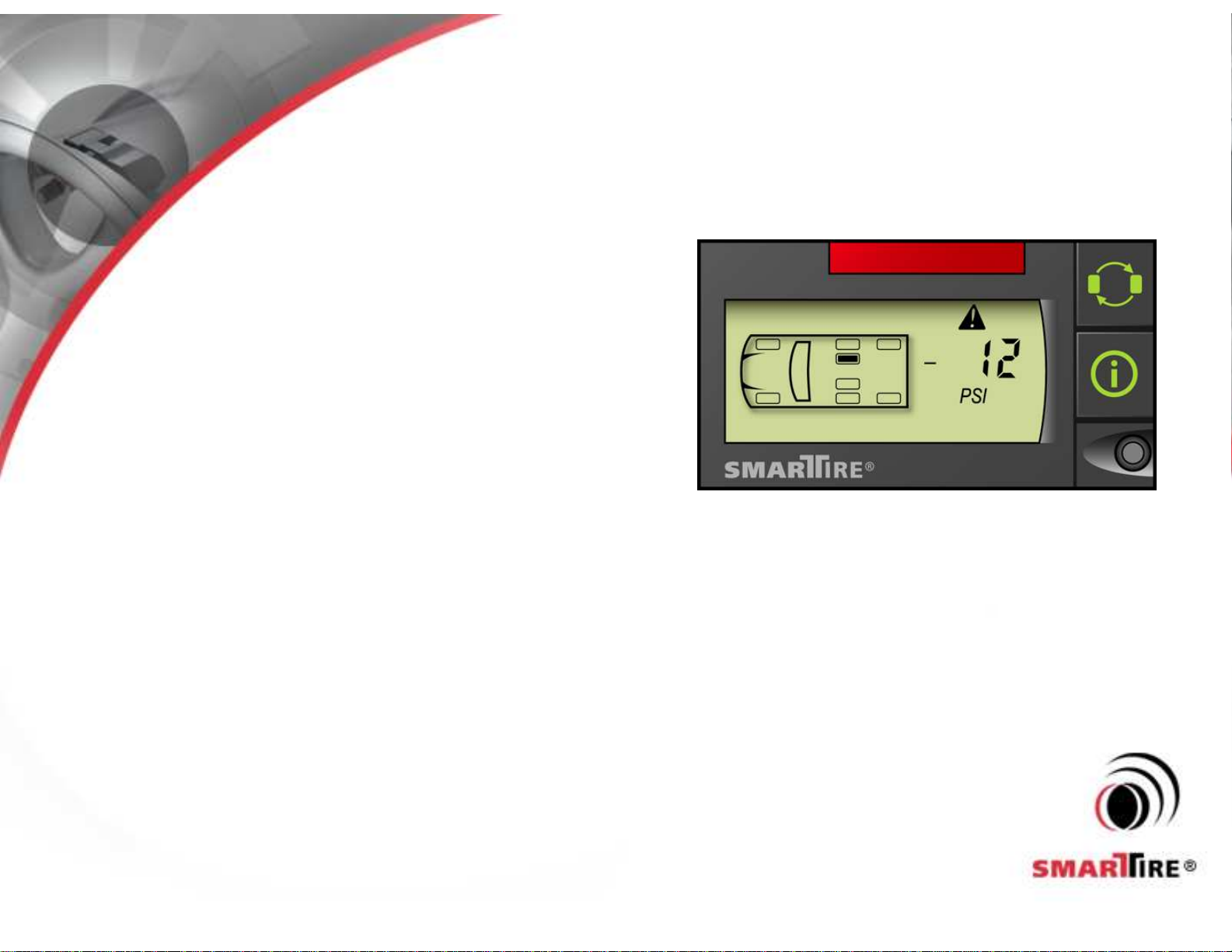

The Critical Low Pressure Alert

warns the driver when a tire’s

pressure falls below a fixed, user

defined pressure level. This audible

and visual warning is intended to

alert the driver to a critical tire

Critical Low Pressure Alert

condition in order for them to take immediate precautions.

Unlike the Pressure Deviation Alert, the Critical Low Pressure

Alert does not use a temperature compensation calculation. As

such, if a tire’s pressure falls below the default setting (10 PSI

below the cold inflation pressure), the tire truly is critically

under-inflated and should be addressed immediately.

Like the Pressure Deviation Alert, the default settings for the

Critical Low Pressure Alert can be customized by the user.

Section 1.1

What does SmarTire RV Do?

The High Temperature Alert warns

the driver when a tire’s temperature

exceeds a preset threshold. The

default setting for the 4 wheel

preconfigured kits is 176°F (80°C)

and 195 °F (90°C) for 6 and 8

wheel kits.

High Temperature Alert

High tire temperatures are typically caused by under-inflation

and the SmarTire system will usually provide a Pressure

Deviation Alert and a Critical Low Pressure Alert well in

advance of a High Temperature Alert. If triggered on its own,

the High Temperature Alert can be an indication of an

alternative problem such as a dragging brake or a bearing

failure. Like the other two alerts, the default high temperature

setting can be customized by the user.

Section 1.1

What does SmarTire RV Do?

With SmarTire on board, RV owners will have peace-of-mind

knowing that their tires are constantly monitored and rolling

smoothly.

The Benefits of SmarTire RV are:

• Reduce accident risk

• Avoid inconvenience

• Increase fuel economy

• Extend tire life

Section 1.1

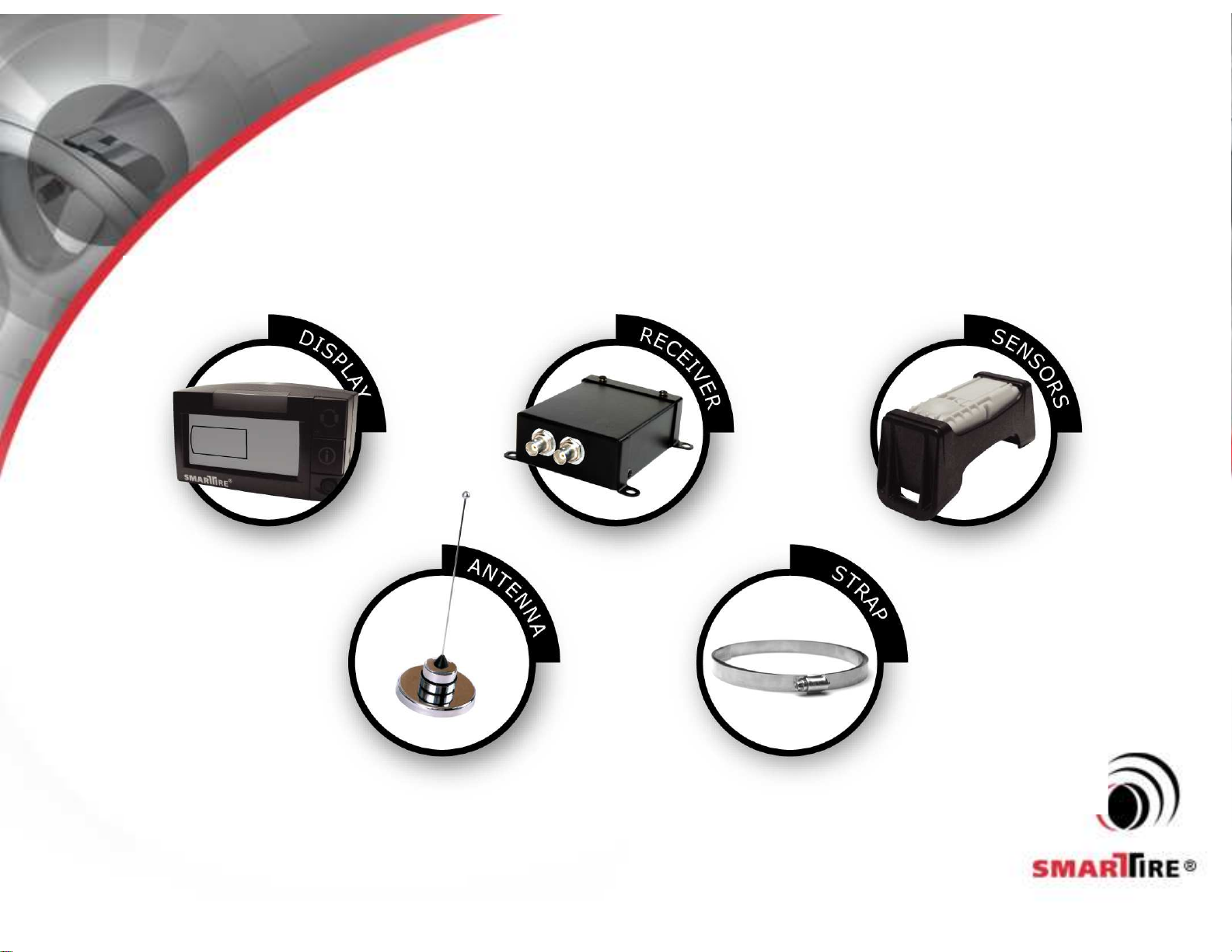

Core System Components

Section 1.1

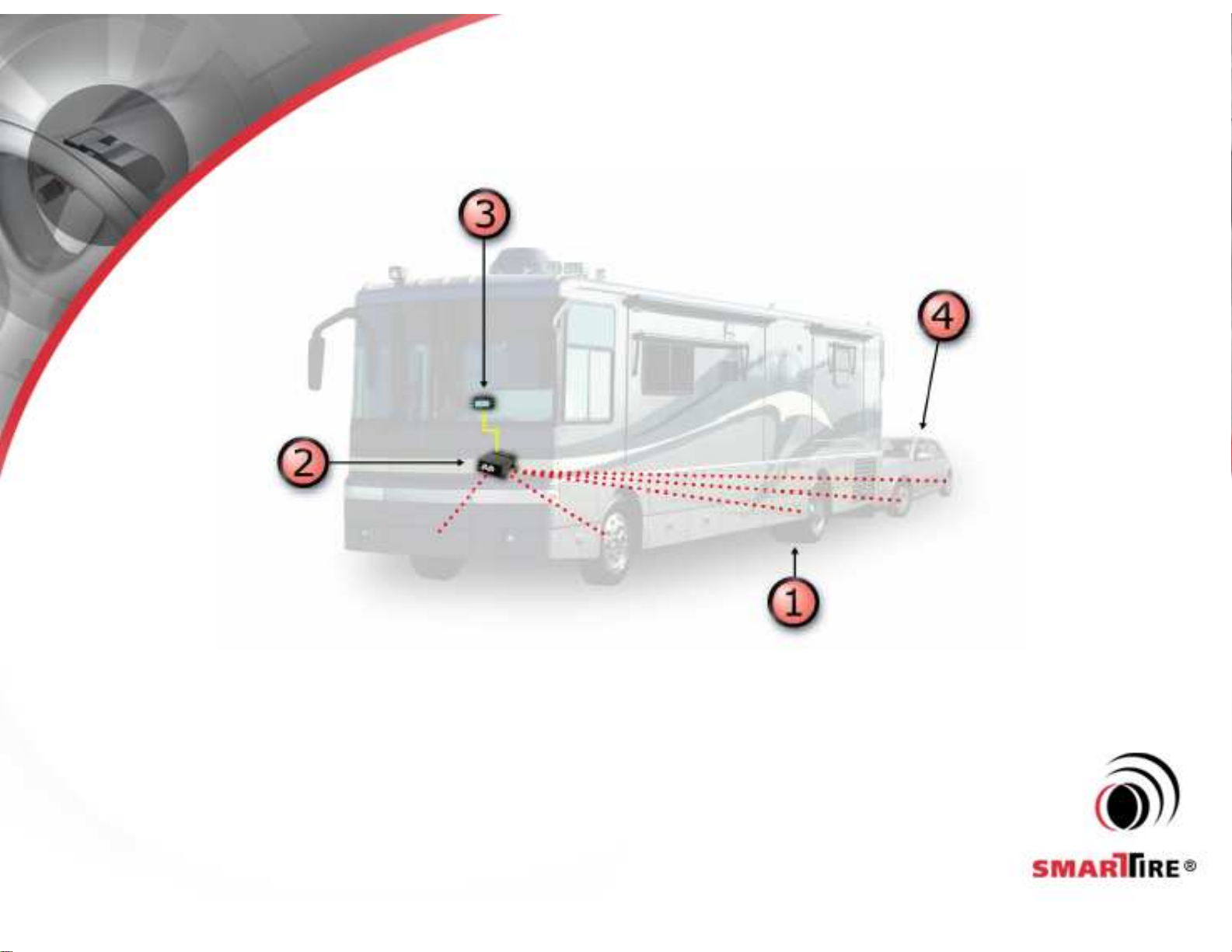

1. Sensors mounted on the surface of the wheels using stainless steel straps

measure internal tire pressure and temperature. This information along with a

unique identification number is wirelessly transmitted to a receiver mounted

in the vehicle.

How does SmarTire RV Work?

Section 1.2

2. Pre-programmed with the unique ID numbers of each sensor on the

vehicle, the receiver picks-up the wireless signals sent by the sensors

using antennas located on the underside of the vehicle.

How does SmarTire RV Work?

Section 1.2

3. The real-time tire information is available to the driver using a dash

mounted display. At the push of a button, the driver will receive an

update on the pressure and temperature condition of their tires. If a tire

problem is detected, they will be instantly alerted to the tire condition by

a flashing red light and an audible alarm.

How does SmarTire RV Work?

Section 1.2
