SMART Board 7000 Manuel utilisateur

SMART Board

USER’S MANUAL

Important information

NOTE

Referto the installationand maintenance guide for important information about installing and

maintaining the display (see More information on page 8).

WARNING

⚫Do not open or disassemble the display. Yourisk electrical shock from the high voltage

inside the casing. Opening the casing also voids the warranty.

⚫

Do not stand (or allow children to stand) on a chair to touch the surface of the display.

⚫To reduce the risk of fire orelectric shock, do not expose the display to rain or moisture.

⚫Do not insert objects inside the cabinet ventilation holes, because they could touch

dangerous voltage points and cause electric shock, fire or product damage which may not

be covered by the warranty.

⚫

Do not place heavy objects on the power cable. Damage to the cable could cause shock,

fire orproduct damage whichmay not be covered by the warranty.

⚫

If the glass is broken, do not touch the liquid crystal. To prevent injury, handle glass

fragments with care when disposing of them.

⚫

Disconnect all of the display’s power cables from the wall outlet and seek assistance from

qualified service personnel if any of the following occur:

oThe power cable or plug is damaged

oLiquid is spilled into the display

oObjects fall into the display

oThe display is dropped

Structural damage, such as cracking, occurs

oThe display behaves unexpectedly when you follow operating instruction

Feature

iQ experience

Description

The display’s iQ appliance provides one-touch access to

collaborative tools, including a whiteboard, wireless

screen sharing and a web browser.

The SBID-7375, SBID-7386, SBID-7375P and SBID-7386P

models have an Intel Compute Card in the appliance to

provide a fully functional Windows 10 solution at your

fingertips, without the need for an external PC or cabling.

You can do everything on the display that you can do at

your computer—open and close applications, meet with

others, create new documents or edit existing ones, visit

websites, play and manipulate videos, and so on—by

touching the display’s surface.

You can write over applications in digital ink using one of

the supplied pens, and then erase the digital ink using

your palm, the eraser or the erasers on the pens.

The display includes integrated speakers for presenting

audio from connected input sources.

More information

Page 18

Touch support

Page 14

Writing and

drawing support

Page 15

Audio support

[N/A]

Features

The SMART Board 7000 or 7000 Pro series interactive display is the hub of your classroom or

meeting room. PC-free embedded computing provides one-touch access to collaborative tools,

including a whiteboard, wireless screen sharing and a web browser. There’s no need for wires,

cablesormanual software and firmware updates.

The display includes the following features:

Components

The display consists of the following components:

No. Name

Pictured

Screen

Presence detection sensor (×2)

Home button

Eraser

Pen (×4)

Convenience panel

iQ appliance (and Intel Compute Card)

Connector panel

Not pictured

AC power inlet, outlet and switch

RS-232 connectors

Speakers

Presence detection sensors

The display has two presence detection

sensors on its top frame that can detect

people up to 16' (5 m) away when the

display is in Standby mode.

When the sensors detect people in the

room, the display is ready to turn on. To

turn on the display, press the

Power

button orpick up a pen or eraser.

If the room is empty for a specified

period, the display returns to Standby

mode.

Home button

Tap the Home button to open the Home screen. From the Home screen, you can open the iQ

appliance’s apps as well as the settings.

Formore informationabout the Home screenand the iQ experience, see Using the iQ experience

on page 18.

Pens and eraser

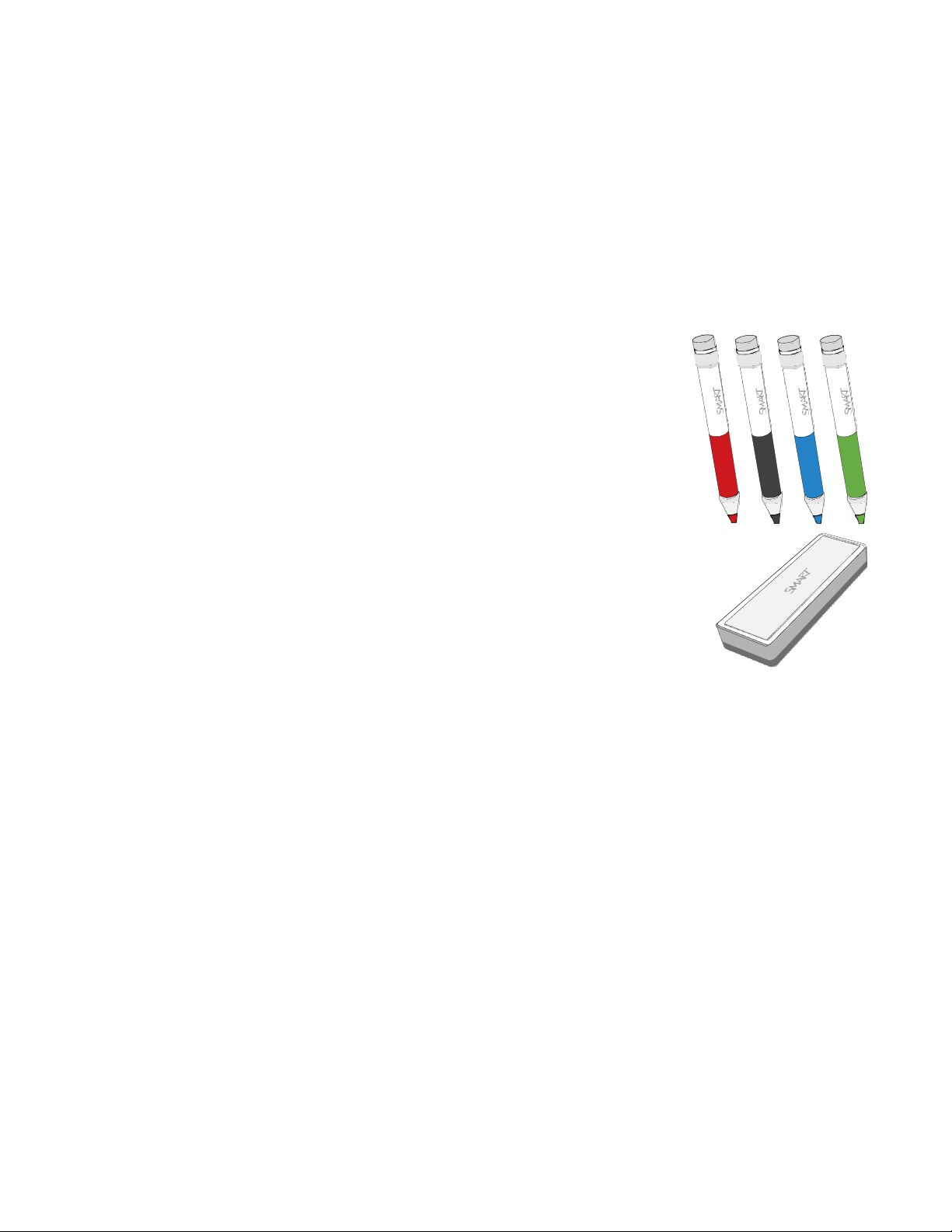

The display comes with black, red, blue and green pens. Each pen has

an attached eraser and an indicator light.

In addition to the pens, the display includes an eraser, which you can use

when you want to erase a large area on the screen.

For more information about the pens and eraser, see Using the pens and eraser on page 15.

Convenience panel

The convenience panel contains buttons forturning the display onand off and controlling the

volume. It also includes connectors for USB peripherals and a computer or other input source.

For more information about the convenience panel, see Using the convenience panel on page 12.

Internal speakers

The display includes two 10 W integrated speakers. You can also connect external speakers.

SMART Audio 400 classroom amplification system

Available for education models, the SMART Audio 400 classroom amplification

system provides high-quality audio amplification. The system comes with a

teacher microphone and optional student microphone. Multiple speaker

options are available, including

wall- and

ceiling-mounted

speakers. The

amplifier receives audio signals from the microphones and translates them into

crystal-clear sound through the speakers.

Waking up the display and putting it back to sleep

The display’s presence detection sensors can detect people up to 16' (5 m) away when the display

is in Standby mode (in other words, sleeping). When the sensors detect people, the display enters

Ready mode and is ready to wake. To wake the display, do one of the following:

⚫

Press the

Power

button

on the convenience panel.

⚫

Pick up a pen or the eraser.

The display returns to a partial sleeping state when one of the following occurs:

⚫The sensors don’t detect people in the room for 60 minutes.

⚫

You press the

Power

button

on the convenience panel.

The display remains in this partial sleeping state until all pens are fully charged. The display enters

a full sleeping state after all pens are fully charged.

Using the convenience panel

The convenience panel contains buttons forturning the display onand off and controlling the

volume. It also includes connectors for USB peripherals and a computer or other input source.

No.

Name

Procedure

Power

⚫

Press to enter or exit Standby mode.

⚫

Press and hold for four seconds to turn off the display.

⚫

Press and hold for 10 seconds to reset the display.

Volume increase

Press to increase the volume.

Volume

Press to decrease the volume.

decrease

Freeze

Press to freeze and unfreeze the screen (see page 13).

USB Type A

Connect USB drives and other devices that you want to use

connector (×2)

with the iQ appliance or a connected computer.

HDMI 2 input

connectors

Connect a computeror other input source to use with the

display (see page 23).

Using the Power button to identify the display’s status

The Power button indicates the display’s status:

Power button

Display status

Off

Amber

White

Not receiving power

Standby mode

Normal operating mode

Adjusting audio

If you’re presenting content with sound, you can use the buttons onthe convenience panel to

increase and decrease the volume.

Freezing the screen

Youcan temporarily freeze the screenby pressing the Freeze button onthe convenience panel.

This is particularly useful when you want to pause a video, an animation or other moving content.

NOTE

Freezing the screen does not pause any applications running on the connected computer. It

simply freezes the display of those applications.

To unfreeze the screen, press the

Freeze

button again.

Using touch

You can do everything on the display that you can do at your computer—open and close

applications, meet with others, create new documents or edit existing ones, visit websites, play

and manipulate videos, and so on—by touching the display’s surface.

You can use an array of gestures within applications, including panning, scaling, rotating and

zooming in and out.

The display’s support for up to 16 simultaneous interaction points (combination of 10 finger touch

points, four pen touch points and two eraser touch points) enables you and other users to interact

with objects onthe screen at the same time.

NOTE

’

uch

™

(

uch

)

™

imiz

uch

vir

lly

and zero contact detect height.

Exclusive to SMART, HyPr Touch allows for SMART’s unique Simultaneous Tool Differentiation—

the use of 10 touch points, four pens and two erasers (tool and palm) by multiple users for a truly

natural, fully collaborative experience.

You can also use gestures within applications.

NOTE

Not all gestures work in all applications. Refer to an application’s documentation to learn which

gestures it supports.

Pan (one finger) Pan (two fingers) / scroll
