Smart Wheel SMARTkick X7 Series Manuel utilisateur

X7 Series USER MANUAL

FOLDING E-SCOOTER

www.smartwheel.ca/smartkick

Take your journey further!

About the Manual

●Congratulations on your purchase of the Smartkick X7 Series E-scooter.

●For your riding safety, please read this user manual carefully before using scooter and ensure to be able to ride the

scooter under correct guidance. Learn all the safety warning and tips listed in this manual that will be helpful for you to

better control the scooter.

●Please note "Warnings “and "Tips" in this manual particularly.

Warnings: Improper operation may result in personal injury.

Tips: Helpful advice & clues for the usage of E-scooter.

●Should you have any inquiries, please contact us immediately.

Tips:

A. Children below 14 years old should not operate this scooter unless otherwise carefully supervised by an adult.

B. The people without experience, poor ability to accept & physical coordination, should learn to ride with accompanies.

Please read this manual carefully before you ride the electric scooter, make sure that you can ride correctly.

C. Children are prohibited from cleaning and maintenance of the product due to mechanical and moving parts.

WARNING!

IMPROPER USE OF THE SCOOTER AND/OR FAILURE TO READ THIS USER MANUAL MAY

LEAD TO SERIOUS BODILY INJURY. SELLER WILL TAKE NO RESPONSIBILITY FOR ANY INJURIES

CAUSED BY IMPROPER USE WITHOUT FOLLOWING THE MANUAL.

Content

1.Safety Notes………………………………………………………………………………………… 3-5

2.Product Introduction …………………………………………………………………………… 6-10

3.How to ride…………………………………………………………………………………………… 11-12

4.Battery Instruction………………………………………………………………………………… 13-14

5.Parameter …………………………………………………………………………………………… 15

6.Maintenance………………………………………………………………………………………… 16

7.Trouble shooting…………………………………………………………………………………… 17

8.Packing List ………………………………………………………………………………………… 17

9.Product Quality Certificate …………………………………………………………………… 18

10.Product Warranty Card………………………………………………………………………… 18

1. Safety Notes

1.1About safety

There’s risk for riding e-scooter. For your safety, please learn to ride safely and obey the local rules in your area pertaining to kick

style e-scooter regulations.

●Please inspect tire for damages as well as your scooter for loose parts. Make sure all parts are tight and secured before

riding. Please contact local dealer or service location for any unexpected situation.

●Please do not do anything that may harm other people or their properties with e-scooter.

●Any conversion of the e-scooter is prohibited as it will change its performance or damage the structure, which may bring

serious injury. It will also impact you warranty negatively.

●Please do not put the electric scooter in the water, which will not only damage the electric scooter, but may also cause a

safety issue.

1.2 Safety Precautions

Please note that you may lose balance, crash or fall when you ride an e-scooter. To avoid injury, you should be

familiar with this manual and keep the e-scooter in good maintenance condition.

Safety measurements should be taken before riding, e.g: wear

sportswear, helmet, kneecap, elbow pads .

explosive or steam, liquid, dust and fiber.

2. Product Introduction

Be Careful of the road with roadblock, sandstone,

puddles, mud, wet, ice, snow, slope (>10º), stairs,

steps, dark area when you are riding.

DO NOT use in dangerous area, where the exploding

or catching fire may be caused by something

inflammable, explosive, steam, liquid, dust, fiber.

10º

DO NOT ride on roads where other Vehicle drive

unless allowed by law. Follow your local laws for riding

in your area.

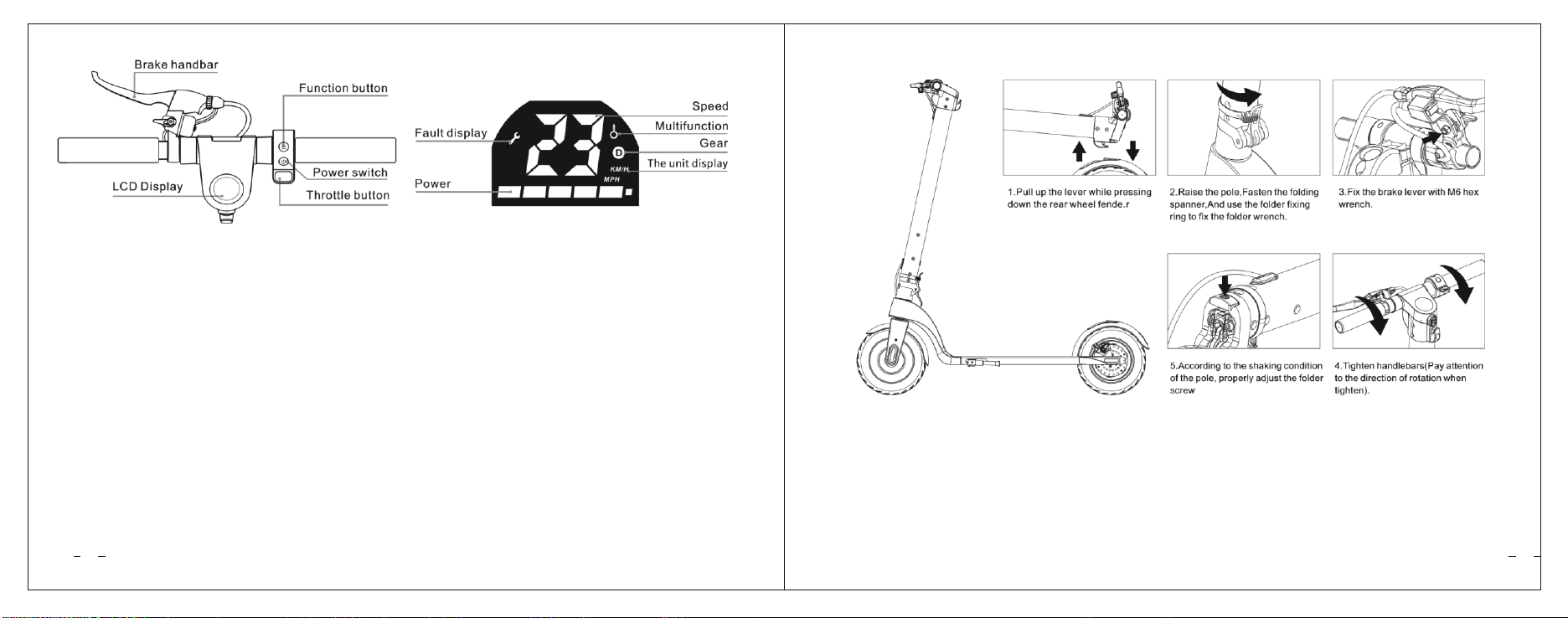

LCD

display

Instructions of Buttons

1 Switch: Long press the power button to turn on/off the power

2 Acceleration: Press the right acceleration button to start and accelerate

3 Brake: Hold the brake handle to brake (simultaneous dual brake system). Lightly step on the rear fender to assist the

rear fender brake.

4 Short press the function key to directly adjust the speed:

Beginner mode: no characters in the gear position (10 km)

Normal mode: gear characters display white (15 km)

Sports mode: gear characters display red (25 km by default) To unlock max speed to 30 km follow Instrument Function

5 Headlights: Press the function button twice shortly to turn on the headlights. Taillights feature is always on.

In the light-on state, press the function button twice shortly to turn off the headlights.

6 Cruise mode: Hold the accelerator at current speed for 6 seconds to enter the cruise mode. Exit the cruise mode when

pressing accelerator again or brake.

2.2 Pre-assembly instructions

2. Unscrew the battery

cover

3. Tighten the battery cover and

push the dashboard cover lock

down, complete the installation.

Assemble

Disassemble

2.3 Folding chart

3.Open the folder wrench and lower

the pole.

4.Align the hook with the hole of the

rear fender and press down.

2.4 Battery Disassemble and Assembly

3. Pull the battery

straight up to remove

the battery

1. Pull up and press the

dashboard cover lock to

open the cover

1. Pull up and press the

dashboard cover lock to

open the cover

2. Align the battery groove

with the groove in the pole

and slowly put the battery

inside (please pay attention

to the groove direction)

3. How to ride the scooter

2Put one foot on the pedal, 3 Balance both feet on your scooter when you

Push off the ground with your strong leg. have enough momentum

1Press the POWER button for 2 seconds. elbow-pad when

you learn to ride the scooter.

Please wear helmet, kneecap,

elbow-pad when you learn to ride the scooter.

5 Press the THROTTLE button to speed up.

Do not ride too fast.

6 Press the brake lever to brake, and gently

press the rear fender to assist the brake.

7 When the scooter stops or run at a slow speed,

you can get off.

4. Battery Instruction

The instruction shows how to charge and maintain the battery, some safety notices and the specification.

Please use the battery properly according to this instruction to prolong the battery life and its performance.

4.1 Battery Parameters

Name

Parameter

Name

Parameter

Name

Parameter

Type

Li-ion battery

Working Temperature

0℃-35℃

Store Time（-10℃-40℃）

3 months (full charge)

Charging Time

3-4 hours

Charging Temperature

0℃-35℃

Initial Volume

5Ah/6.4Ah

Voltage

36V

Max Charging Voltage

42V

Max Charging Current

4.2 Battery Safety

Do not continue to use the battery when the following conditions occur:

The battery of the electric scooter should be used only with local law. Only for professionals to disassemble and maintain

the battery.

Odor or excessive heat; leak any substance; do not touch anything leaking from the battery.

Do not let children and animals touch the battery. Must unplug the charger before installing the battery or riding.

In the case of charging, it is very dangerous to do anything related to electric vehicles.

If you want the electric scooter to run most efficiently, the battery must be charged and used within the temperature range

indicated in the battery specifications.

Lithium batteries are considered dangerous and require local law to allow transportation.

The battery contains dangerous substances. Please do not open the battery. Do not insert anything into the battery. It is

forbidden to charge a lithium battery that has been over-discharged. A battery that has been over-discharged has a

safety hazard and can only be scrapped.

Tip: When the internal temperature of the battery exceeds 45 °C, the battery is protected.

Do not charge the battery at high temperature (45 ° C) or Charge the battery in a high temperature (40 ° C) environment.

Only use the original charging equipment to charge the electric scooter.

4.3 Charging step

●Open the charging port cover, make sure the charging port is clean and dry.

●Connect the charger with the battery and the other end with power(100V-240V;50/60Hz), make sure the charging

indicator is on.

●When the indicator light on the charger changes, indicating that the charging process is normal, otherwise check if the line

connection is good.

●When the indicator on the charger has color change, it indicates that the battery has been filled to 99%, Please stop

charging; long time over charge will affect the battery life.

Tips:

Remove the battery to open the silicone charging port, plug the charger DC plug into the battery charging port; plug the

power cord into the charger, then connect the other port to the socket (100V-240V; 50/60Hz), and confirm the charger

indicator is on normally

Cover the charging port with the anti-dust cap in case some metal may touch the charging port and bring short-circuit

after charging finished.

Smartkick X7 8.5”

25km/h (unlockable to 30km/h ±1km)

Smartkick X7 Pro 10”

8°

10°

5. Specification

6. Maintenance

Maintenance considerations：

•Make sure the electric scooter charger and charging line are disconnected and ensure that the electric scooter is off.

•Wipe the shell with a soft cloth to clean the electric scooter. Please don’t put more lubricating oil on bearing when you do the

maintenance for it.

Warning

•It is forbidden to clean electric scooters by using water cannon or soaking in liquid. This will cause permanent damage of

the electronic devices in the host.

Storage

•Please charge your electric scooter before storage, for preventing the battery from discharging too long time. Please ensure

charge at least once every three months.

•If the storage environment temperature is lower than 0 ℃, please don't charge electric scooter. Please put it in inside

environment temperature (above 10 ℃) and then charge, storage temperature is - 10 ℃to 35 ℃.

•Please keep the electric scooter in a suitable place indoor, dry and appropriate temperature. You can mask the electric

scooter to prevent from the dust.

Warning

•In order to protect the user's safety, the user cannot take apart the electric scooter, otherwise, the user will give up the

maintenance warranty rights of the product automatically.

7. Trouble shooting

Please contact the sales office or the dealer with no hesitate for repair when the electric scooter fails to ride normally.

Description of adverse phenomena

Solution

Unable starting up

Check to see if the battery is powered

Cannot charge

1.Check whether the plugboard has electricity；

2.Check the charger whether connect AC plug

(the light whether is on);

3.Check the plug of the charger and the charging port

of the whole scooter have been inserted correctly.

No horn、no blue tooth signal

Check the Bluetooth switch whether turn on.

8. Packing List

Electric scooter packing list：

E-scooter: 1PC

Charger: 1PC

Manual: 1PC

Screws & Wrench: 1set

Please contact us with no hesitate if there is any breakage or missing when you open package. We will replace it for you as soon

as possible.

Have a nice day!

9. Product Quality Certificate

This product is qualified by passing QC inspection and allowed to be sold on the market.

The warranty card or regular sales invoice is effective proof of purchase certificate. Please keep it safe properly.

10.Product Warranty Card

Owner First Name

Owner Last

Name

Age

Address

Telephone

Zip

Dealer Name and

Address

Purchase Price

Serial Number

Commodity and

Specifications

Owner Signature

Dealers Signature

Warranty Terms & Conditions:

1. One-year warranty to the main body including handlebar stem, motor, charger & controller.

2. Battery is 6 months warranty period, tire and tubes 3 months against manufacturing defects.

3. Plastic decorative covers, fenders, stand, rubber handles & rear wheel is not under the scope of warranty.

4.Any of damage caused by accident, rider misuse of the device, not following instructions in the manual, cosmetic damages, or

water damages are excluded from the warranty. A charged service will be performed for these defects.
