Smart Systems BWC-SM1 Manuel utilisateur

BWC-SM1

User Guide

1 Table of Contents

BWC-SM1.......................................................................................................................................1

USER GUIDE..................................................................................................................................1

1TABLE OF CONTENTS...........................................................................................................2

2INTRODUCTION......................................................................................................................3

OVERVIEW ........................................................................................................................................................ 3

FEATURES ......................................................................................................................................................... 3

BOX CONTENTS.................................................................................................................................................. 3

SPECIFICATIONS..........................................................................................................................4

3BODY CAMERA OVERVIEW ..................................................................................................5

4BODY CAMERA MANAGEMENT SOFTWARE.......................................................................6

4.1 SYSTEM REQUIREMENTS........................................................................................................................... 6

4.2 SOFTWARE INTERFACE.............................................................................................................................. 6

4.2.1 Camera Info menu....................................................................................................................... 7

4.2.2 Network Settings menu ................................................................................................................ 8

4.2.3 Camera Settings menu................................................................................................................. 9

4.2.4 Encryption menu........................................................................................................................ 10

4.2.5 Password menu.......................................................................................................................... 10

4.3 MOBILE APP......................................................................................................................................... 11

4.4 ACCESS FROM PC .................................................................................................................................. 12

4.4.1 Access Device’s storage in File Explorer.................................................................................. 12

4.4.2 Access Device’s storage via WiFi.............................................................................................. 12

2 Introduction

Overview

Record more using less storage space with H.265 compression method.

Ruggedly designed and easy to use, the Smart Systems Body Worn Camera provides law enforcement and

security personnel with true HD 1080p video recording capabilities. A 140° wide-angle lens captures a full

forensic view for accurate information gathering and analysis.

Fast record activation on the go with a quick press of the button on the front of the device. Small and

lightweight, the BWC-SM1 offers high performance and ease of use on field. Review and bookmark videos

on Android and iPhone using a secure APP that connects directly to the BWC-SM1 using a secure wireless

connection.

Features

Smart Systems’ Body Camera offers integrated features designed to perform in various

applications.

One-touch recording

HD 1080P video

H.265 video compression

Built-in GPS support

Built-in WiFi support

AES 256 encryption

Shock proof

6-axis image stabilization

32GB/64GB internal storage

140º wide-angle lens for a complete forensic view

Password protected to prevent unauthorized access

Embedded in video Officer Information, Watermark, GPS coordinates, and Date and Time

Box Contents

Body Camera

USB Cable

USB Power Adapter

Camera Dock Charger

Epaulette Clip

Gator Clip

Specifications

CAMERA

Image Sensor

4MP CMOS

Image Stabilization

6-axis Image Stabilization

Field of View

140°

VIDEO AND RECORDING

Video Recording

H.265, H.264, MP4

Recording Resolution

1920x1080p, 1280x720, 848x470

Frame Rate

30 frames per second

Pre-Record Buffer

60-120 seconds

Post-Record Buffer

5-60 seconds

Recording Status Notification

Vibration and Audible notification

Watermark

Embedded into video Officer ID, Time and Date

File Encryption

AES 256

Recording Storage Capacity

32GB/64GB, non-removable

Compatible

ONVIF

WIRELESS FEATURES

WiFi

AP / STA / P2P

WiFi Security

Password Authentication

Streaming Resolution

1280x720, 848x480, 432x240

Frame Rate

30 frames per second

Streaming Bitrate Control

Yes

App

Smartphone IOS and Android user app. Playback and

bookmark

Bluetooth

Yes

AUDIO

Audio Capture

High-Quality, built-in microphone



40MPx Max

Image Format

JPEG

STANDARD FEATURES

GPS

Internal GPS receiver

IR LED

IR LED Switch

Auto or OFF

IR Distance

49ft.

Programmable Notifications

Buzzer, Vibrations, 3-color LED indicator for battery label and

camera status.

ENVIRONMENTAL

Ingress Protection

IP67

Shock Proof

5.9 ft.

Operating Temperature

-22° F ~ +131° F

Storage Temperature

-40° F ~ +140° F

BATTERY

Type

Non-Removable

Built-in 3200mAH Lithium-Polymer Battery

Recording Life

12 hours at 1080P @30fps

15 hours at 480P @30fps

Standby Time

100+ hours

Charge Time

4 hours

SIZE AND WEIGHT

Dimensions (WxHxD)

2.28 x 3.21 x 0.93 in.

Weight

4.97oz. (camera only)

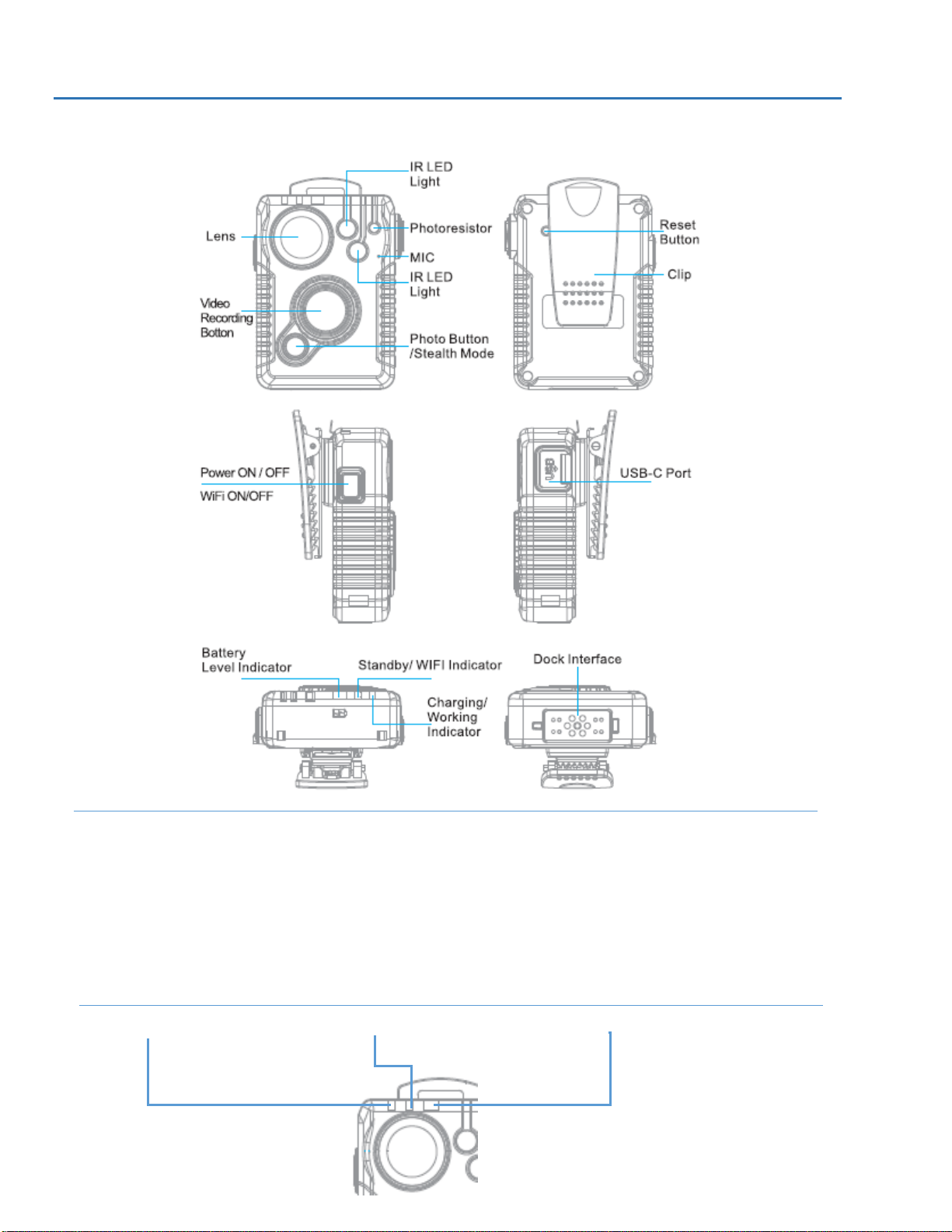

3 Body Camera Overview

Power Button

Hold for 2 seconds to turn Camera On or Off.

Push once to enable WiFi feature on the camera

Record Button

Push once to start recording. Hold down for 3 seconds

to stop recording.

Photo Button /Stealth Button

Push once to take a photo while recording. Hold down

for 2 seconds to disable or enable Status LED lights

Reset Button

Resets camera. Does not affect storage or camera

settings.

Battery Charge Status Light

-50% and above: Green Light

-49% and below: Orange Light

-2% and below: Red Light,

warning beeping indicating low

battery.

WiFi/Standby Mode Status Light

- Standby Mode: Green Light

- Wifi Mode: Blue Light

Record Status Light

- Record Enabled: Solid Red Light

Indicator Lights

Key Buttons

4 Body Camera Management Software

4.1 System Requirements

The Body Camera Management Software provides users with tools to make changes to the body

camera, including accessing recorded data stored on the camera.

Windows 7, 8, and 10

USB Port

4.2 Software Interface

Connect Body Worn Camera to a PC.

When Body Worn Camera is connected to a PC, open “Cam Manager” to access the device.

The software will prompt for User Type and Password.

Default Password

General User

000000

Admin

888888

*Note: For security reasons, it’s recommended to change default password.

4.2.1 Camera Info menu

Camera info menu contains body camera information. In this menu Camera ID and User ID can be

entered.

Device Info Provides with Camera Model number and Serial number.

Other Camera Information provides with the following functions:

Device ID

Edit Device ID

User ID

Edit User ID

Firmware Version

Camera current firmware version

Battery Level

Displays Battery Level

Custom Water Mark

Add custom watermark text

Free Space

Displays available storage space in the camera

Format Disk

Formats the storage, erasing all data

Refresh

Refreshes the device

Sync PC DateTime

Syncs Date and Time to the Camera from PC

Camera Off

Shuts off the camera

Camera Reboot

Restarts the camera

Open File Explorer

Opens Camera’s storage in File Explorer folder

Default Settings

Default camera settings

Apply

Saves settings.

Key Information

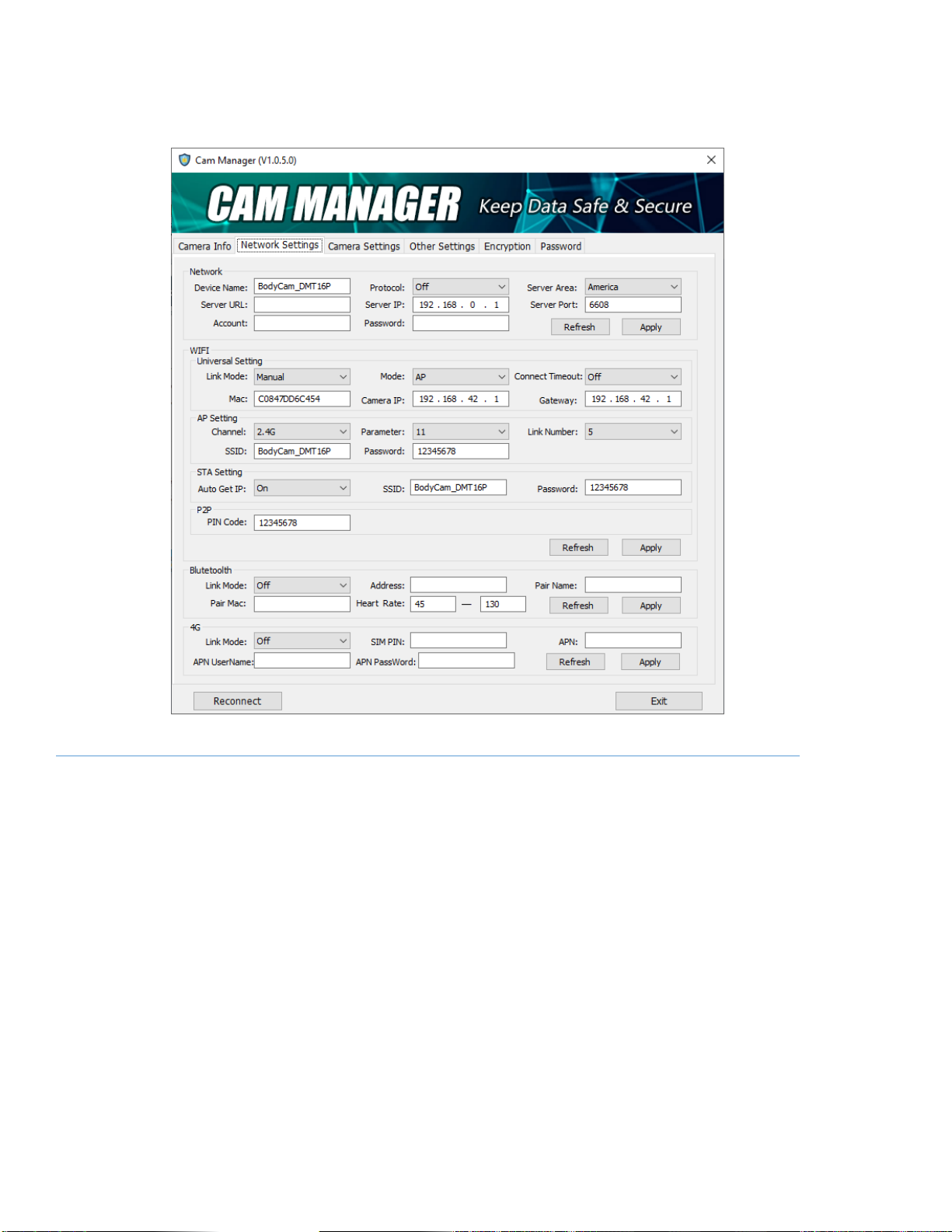

4.2.2 Network Settings menu

Network Settings menu allows authorized users to configure camera’s WiFi network.

Link Mode

Off

Auto

Manual

Disables WiFi

Automatically enables WiFi on power

Manually enable WiFi by using power button on the

Body Camera. Single Push on power button

enables/disables WiFi feature.

AP Settings

Enables Video streaming through SmartPhone App

STA Settings

Enables live Streaming when in WiFi hotspot

P2P

Enables WiFi Direct connection

Bluetooth

Enables Bluetooth connectivity

Enables 4G function of the Body Camera (Optional

feature)

Wireless Settings

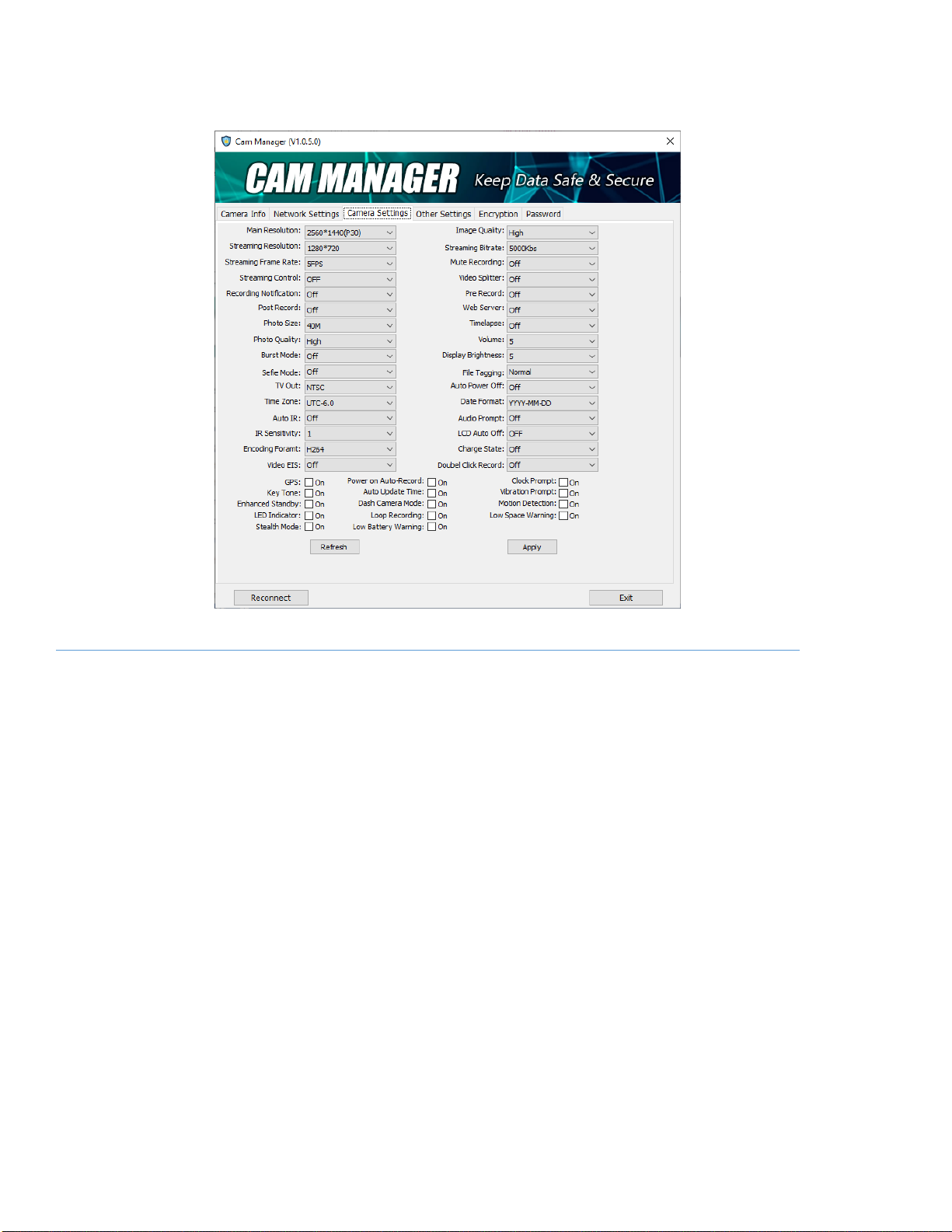

4.2.3 Camera Settings menu

Authorized users may adjust Camera settings inside the Camera Settings menu.

Camera Settings

Image Quality

Video recording quality selection

Streaming Bitrate

Wireless streaming bitrate selection

Mute Recording

Enables/Disables audio recording

with video.

Video Splitter

Video segments. OFF selection is a

segment of 30 minutes.

Pre-Record

Enables Pre-record while device is

on standby.

Web Server

Allows users to access Camera data

via Web Browser using Camera IP

address (See WiFi Universal settings

in Section 4.2.2).

Timelapse

Automatic photo shoot interval

Volume

Speaking volume selection

File Tagging

File Tagging selection menu

Auto Power Off

Automatic Power down selection

Date Format

Data format selection

Audio Prompt

Enables/Disables audio recording

notification

Charge State

Charge selection menu. When

disabled, camera does not charge

when powered on.

Double Click Record

Enables double-push on record

button to start recording

Main Resolution

Recording resolution selection

Streaming Resolution

Streaming resolution selection

Streaming Frame Rate

Streaming frame rate selection

Streaming Control

Streaming control selection

Recording Notification

Enables beeping notification of

camera recording on timed interval

Post Record

Enables Post-record after recording

stopped

Photo Size

Photo size selection

Photo Quality

Photo quality selection

Burst Mode

Photo burst selection menu

Selfie Mode

Single photo shoot delay selection

TV Out

Video Standard selection

Time Zone

Time Zone selection menu

Auto IR

Automatic Infrared selection

IR Sensitivity

Infrared sensitivity selection

Encoding Format

File Compression method selection

Video EIS

Electronic Image Stabilization

selection

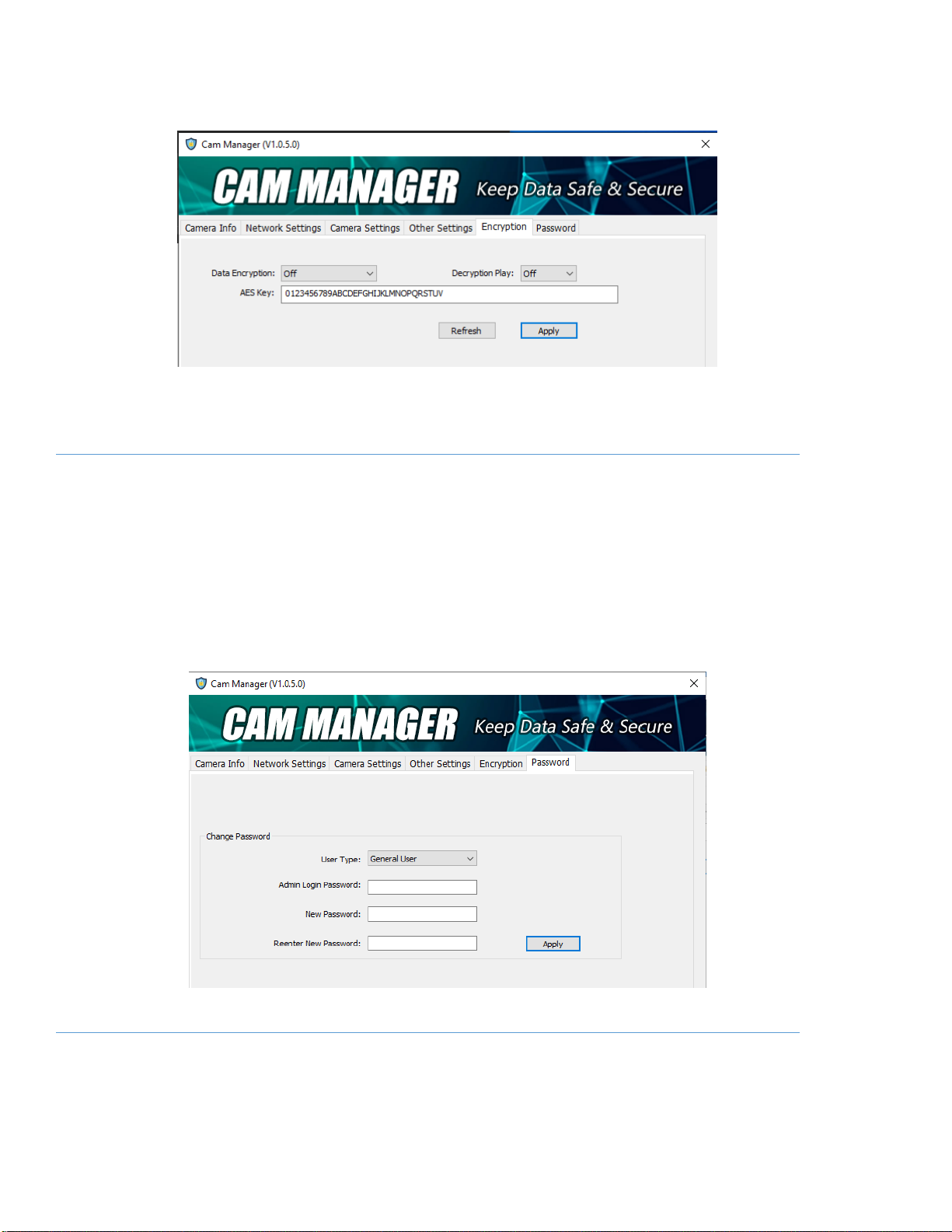

4.2.4 Encryption menu

The device supports AES256 Encryption method that protects recorded data files stored on the device.

Data Encryption

Enables Data Encryption

Off

Disables Data Encryption

Decryption Play

Plays back Encrypted data

Off

Disables playback of Encrypted Data

4.2.5 Password menu

Authorized users may change Camera login password in this menu.

User Type

General User

Administrator

Admin Login Password

Current Password used in the Camera

New Password

Enter new Password

Reenter New Password

Repeat new Password

Encryption Settings

Password Settings
