Smart power Venus Series Manuel utilisateur

What's in the box: • Battery

• Instructions

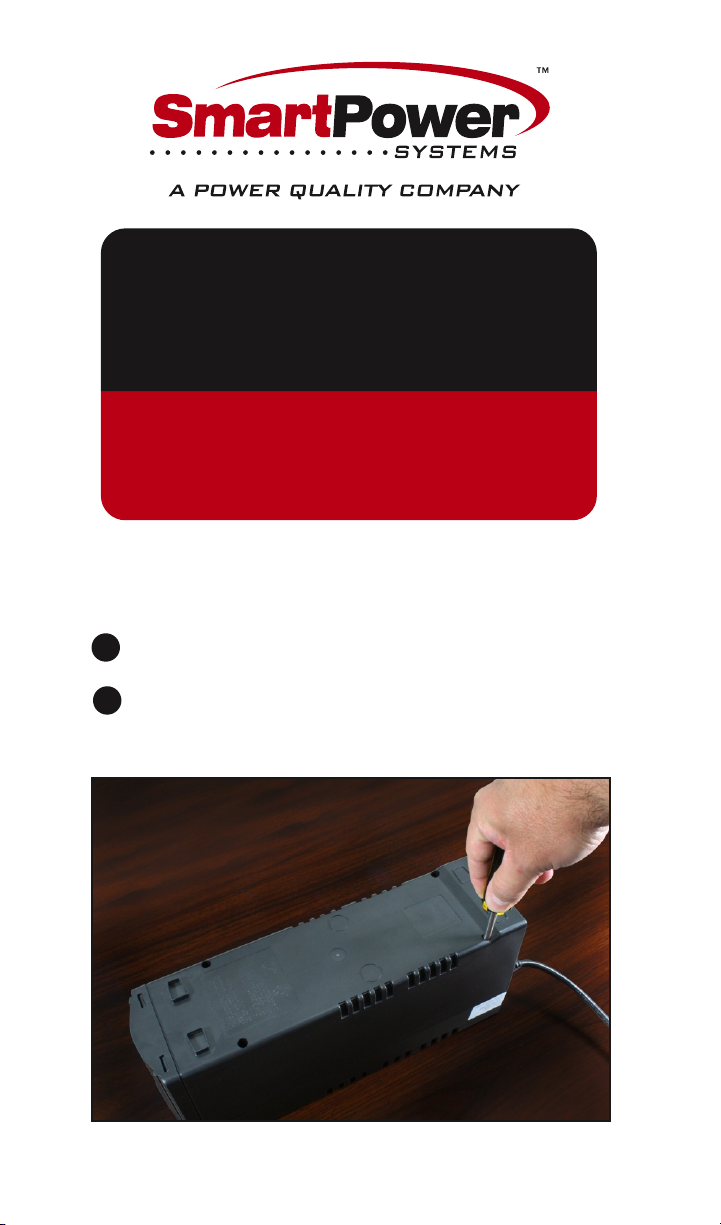

Turn the UPS upside down

Unscrew all 4 screws located at the base of the UPS

with a screwdriver. Make sure you loosen up all screws

before going to step 3.

Photo 1

030/17 70526

INSTRUCTIONS FOR

BATTERY REPLACEMENT

IMPORTANT: Before replacing the battery, turn off the

UPS and unplug the UPS cord from the wall outlet.

PLEASE FOLLOW THESE INSTRUCTIONS CAREFULLY

TO AVOID INJURY OR DAMAGE TO THE UNIT

Venus UPS - Models 600VA & 800VA

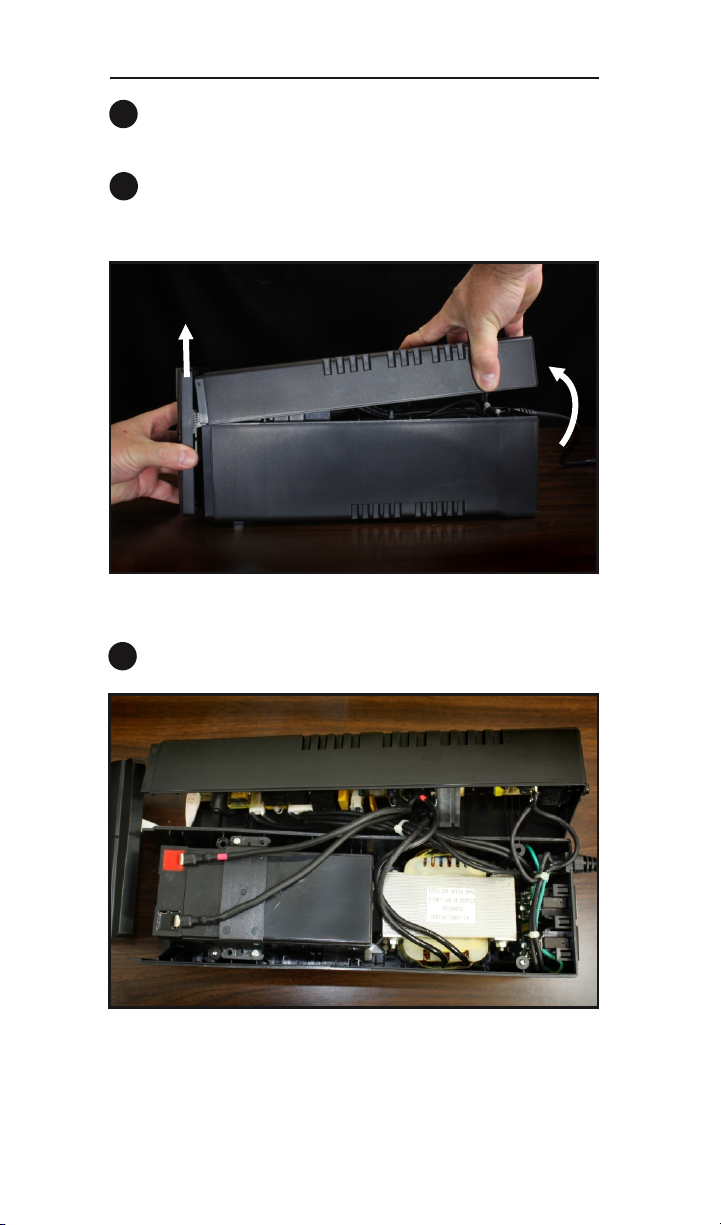

Turn the UPS down side up and shake all 4 screws

off.

Pull top cover up about 1.5 inches from the back.

Then pull front panel up slightly and separate from

chassis as shown below.

Photo 2

Turn top cover on the side as shown in photo 3.

Photo 3

INSTRUCTIONS FOR BATTERY REPLACEMENT

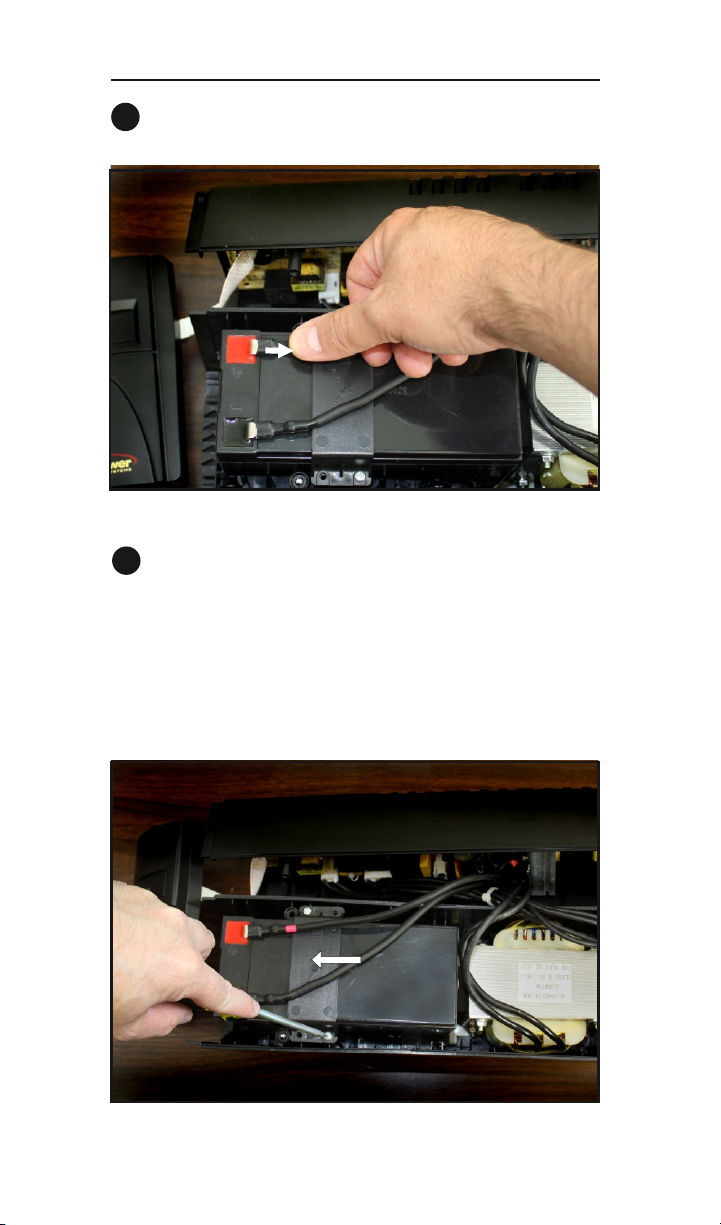

Unplug the red wire first by pulling it from the

red terminal, then the black one.

Photo 4

Unscrew the bracket covering the battery with

a screwdriver as shown on photo 5.

WARNING: Do not make any contact with the

battery terminals with the screwdriver or any

other metal materials like watches, rings, etc.

Electric shock could occur and it could cause

harm to you and the battery.

Photo 5

BATTERY

BRACKET

BATTERY

BRACKET

INSTRUCTIONS FOR BATTERY REPLACEMENT

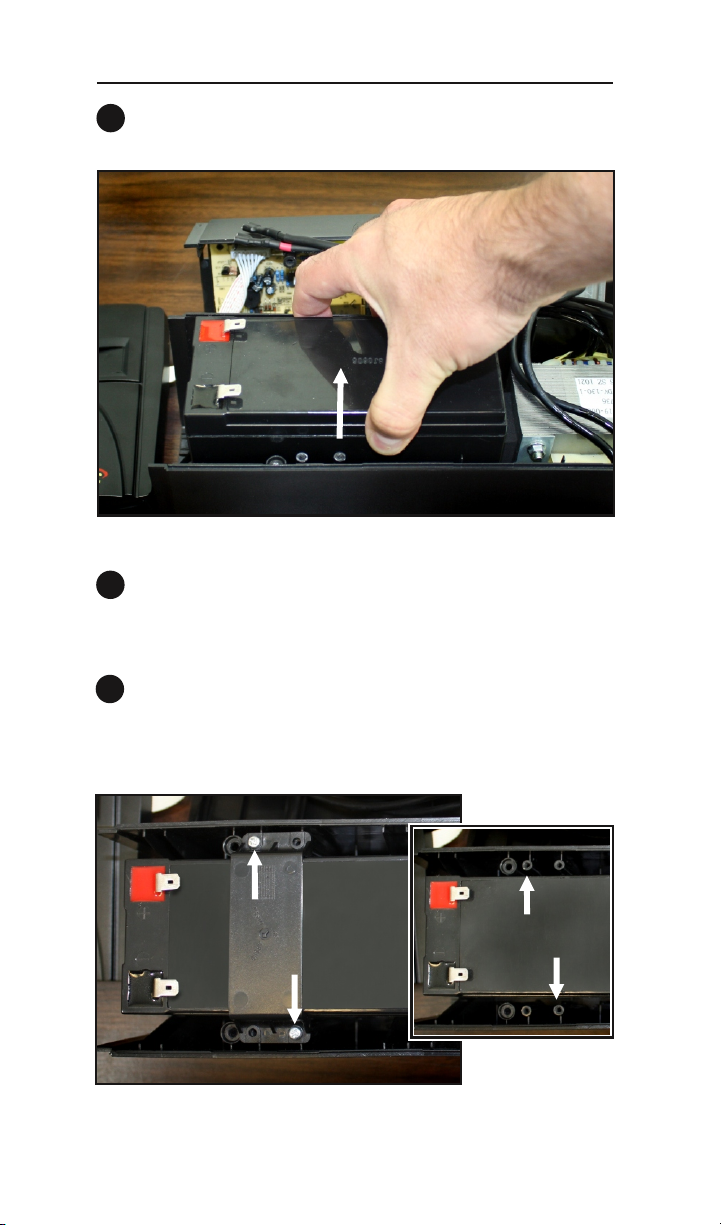

Photo 6

Remove the battery by pulling up. It should slide out

easily.

Screw cover bracket back on as shown on Photo 7.

There is only one screw for each side. Make sure

the bracket sits on top of the holes as shown on

photo 7b.

Photo 7

Photo 7b

Place new battery in by making sure the terminals

are facing as shown on photo 6. The battery should

slide in and fit comfortably in its place.

SCREWS FOR

BRACKET

SCREWS FOR

BRACKET

HOLES FOR

SCREWS

HOLES FOR

SCREWS

INSTRUCTIONS FOR BATTERY REPLACEMENT

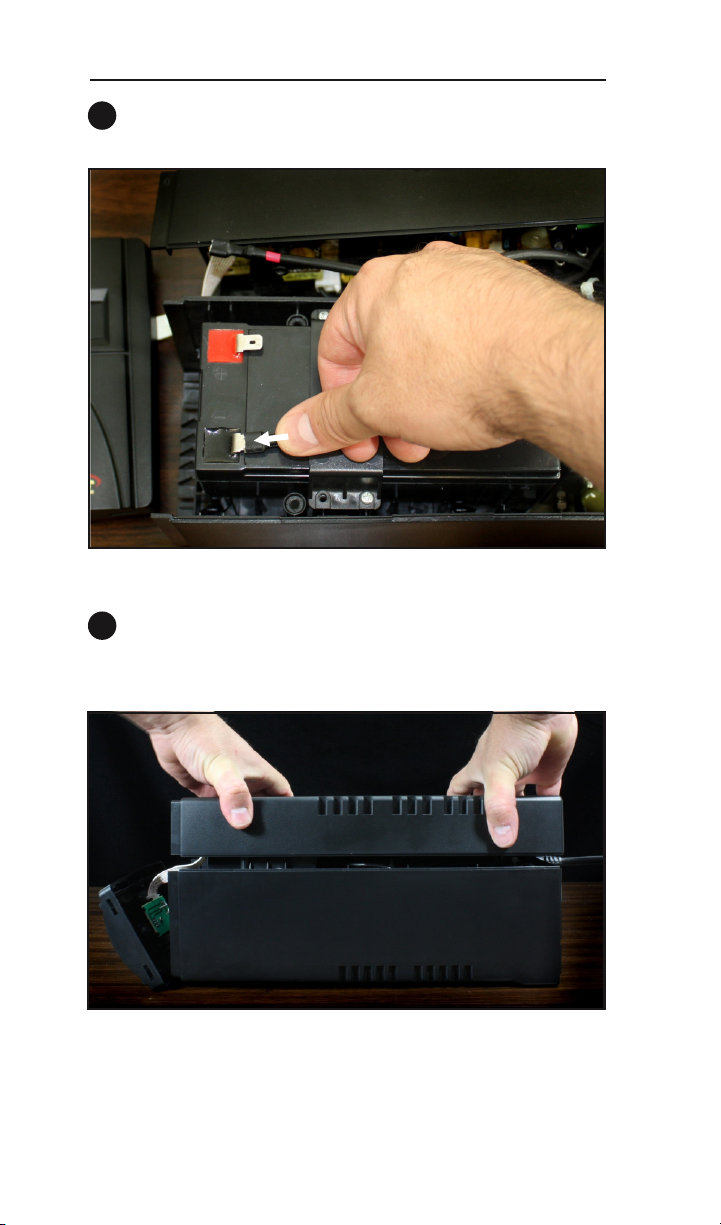

Photo 9

Put top cover back as shown on photo 9. Make sure

there are no wires coming out when putting top cover

back on.

Connect the black wire first to the black terminal

then, the red wire to the red terminal.

Photo 8

INSTRUCTIONS FOR BATTERY REPLACEMENT

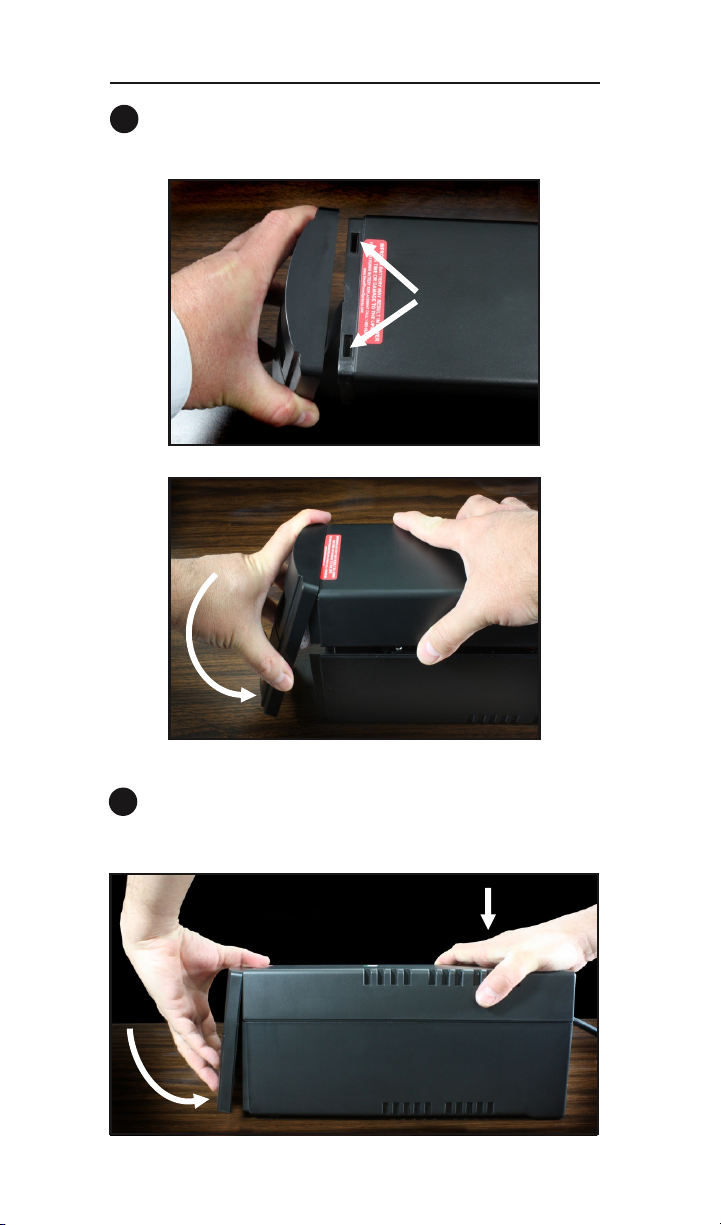

Connect the top of the front panel into the holes

on the top cover and push towards chassis.

Photo 10b

Photo 10

14 Push down the top cover together with the chassis

and snap the front panel in place completely, as

shown below.

Photo 11

HOLESHOLES

INSTRUCTIONS FOR BATTERY REPLACEMENT

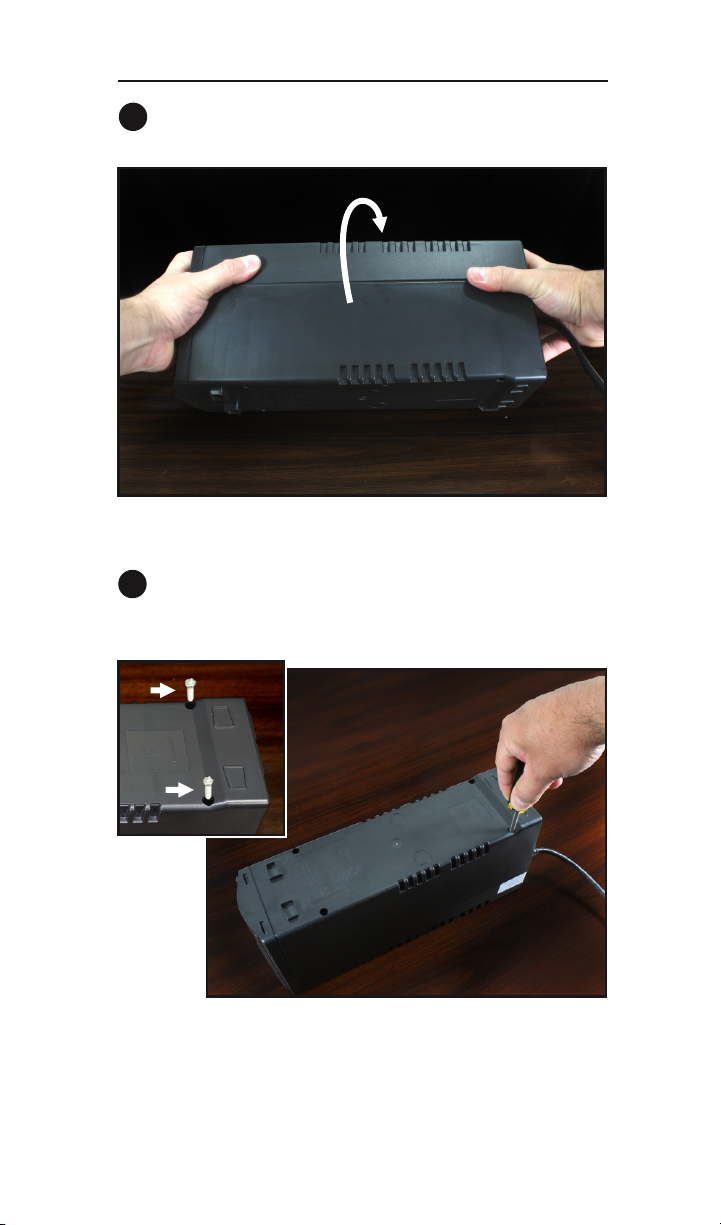

Drop screws inside hole making sure the head of

the screw is up. Screw all 4 screws back in until

tight.

Hold all panels together tightly and turn UPS

upside down.

Photo 12

Photo 13b

Photo 13

INSTRUCTIONS FOR BATTERY REPLACEMENT

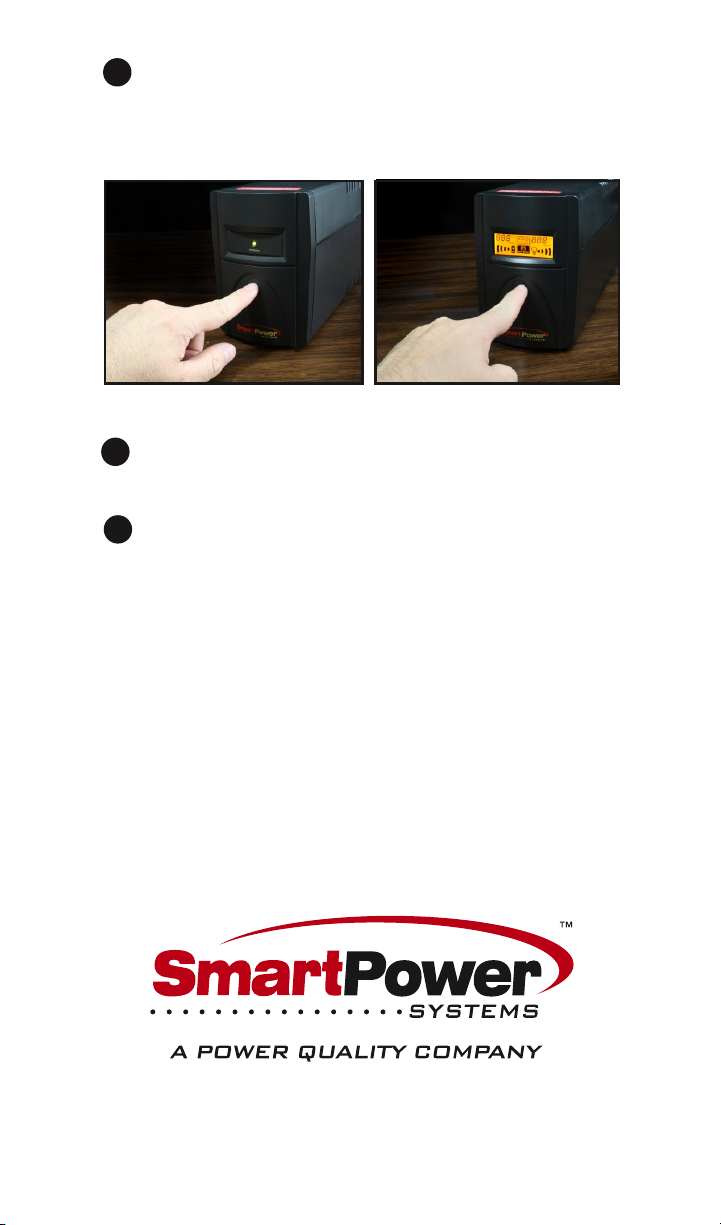

Test the UPS by pressing the button and making sure

the "Protected" green LED comes on (LED model) or

the LCD diagnostic display comes on (LCD model).

Turn UPS off by pressing the button again.

Finally, plug all your equipment back to the UPS and

turn UPS on by pressing the button.

Photo 14 - LED Model Photo 14b - LCD Model

19 Recycle the used battery:

• Never dispose the batteries in a fire. It may

explode.

• Do not open or mutilate the batteries. Released

electrolyte is harmful to the skins and eyes. It

may be toxic. A battery can present a risk of

electrical shock and high short circuit current.

To recycle properly the used battery, please do not

discard the battery into the trash bin. Please follow

your local laws and regulations; you may contact

your local recycling waste center for further

information to dispose of it properly.

1760 Stebbins Drive - Houston, Texas 77043

Tel:800-882-8285 - Fax:(713)984-0841

E-mail: [email protected]

www.smartpowersystems.com
