Smart home EM 1000 Manuel utilisateur

EM 1000

User’s Manual

Wireless Asset Protection

ECHOPORT

SMARTHOME.COM(TM) 1-800-SMART-HOME

949-221-9200 http://www.smarthome.com

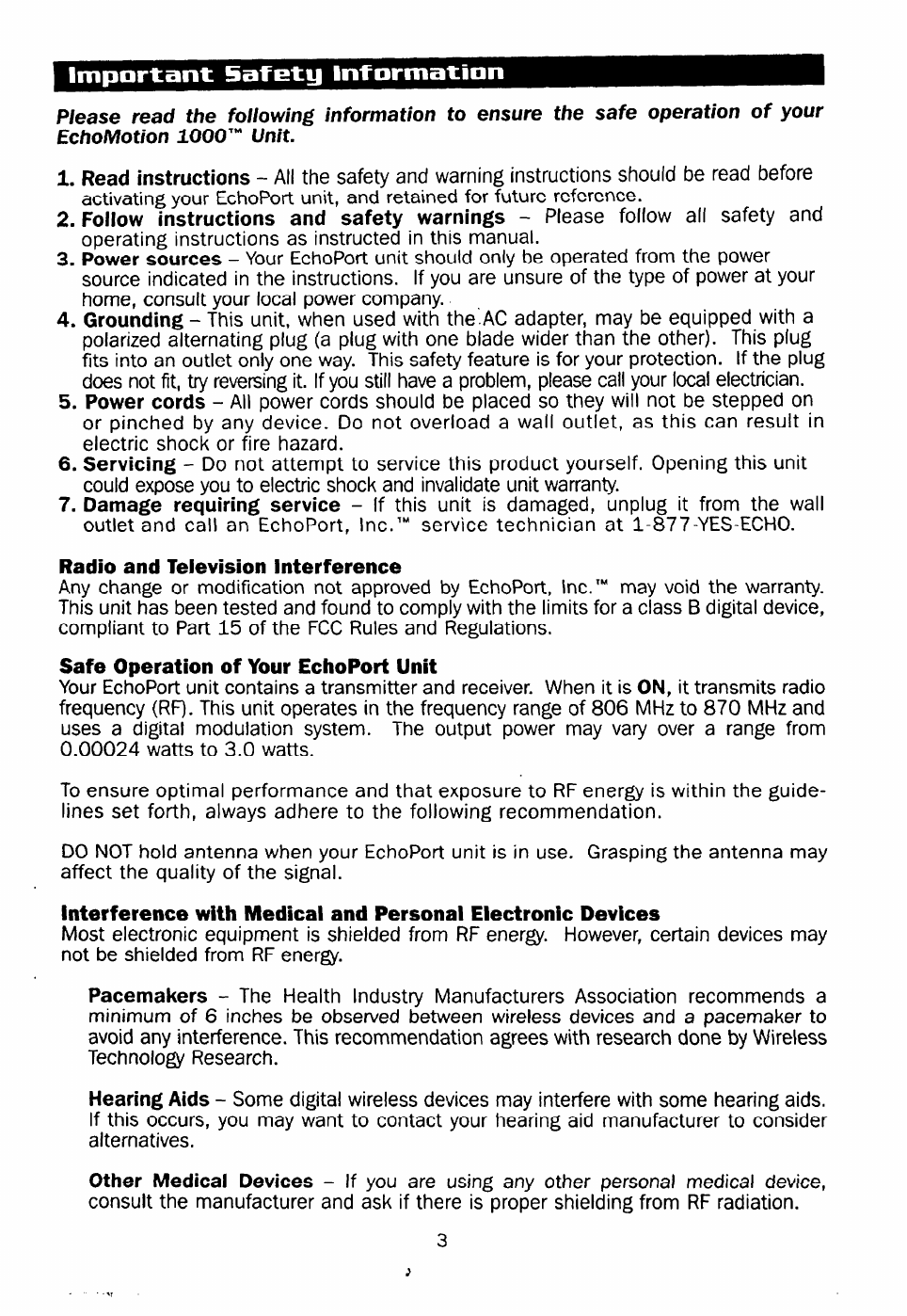

P/ease read the following information to ensure the safe operation of your

Echo&?0tion 1000 ‘” Unit.

1. Read instructions -

All

the safety and warning instructions should be read before

activating your EchoPort unit, and retained for future reference.

2. Follow

instructions and safety warnings -

Please follow all safety and

operating instructions as instructed in this manual.

Power sources - Your

EchoPort unit should only be operated from the power

source indicated in the instructions. If you are unsure of the type of power at your

home, consult your local power company.

Grounding -

This unit, when used with the:AC adapter, may be equipped with a

polarized alternating plug (a plug with one blade wider than the other). This plug

fits into an outlet only one way. This safety feature is for your protection. If the plug

does not fit, try reversing it. If you stilt have a problem, please call your local electrician.

Power cords -

All power cords should be placed so they will not be stepped on

or pinched by any device. Do not overload a wall outlet, as this can result in

electric shock or fire hazard.

Servicing -

Do not attempt to service this product yourself. Opening this unit

could expose you to electric shock and invalidate unit warranty.

Damage requiring service -

If this unit is damaged, unplug it from the wall

outlet and call an EchoPort, Inc.‘” service technician at l-877 -YES-ECHO.

Radio and Television Interference

Any change or modification not approved by EchoPort, Inc. IM may void the warranty.

This unit has been tested and found to comply with the limits for a class B digital device,

compliant to Part 15 of the FCC Rules and Regulations.

Safe Operation of Your EchoPort Unit

Your EchoPort unit contains a transmitter and receiver. When it is ON, it transmits radio

frequency (RF). This unit operates in the frequency range of 806 MHz to 870 MHz and

uses a digital modulation system. The output power may vary over a range from

0.00024 watts to 3.0 watts.

To ensure optimal performance and that exposure to RF energy is within the guide-

lines set forth, always adhere to the following recommendation.

DO NOT hold antenna when your EchoPort unit is in use. Grasping the antenna may

affect the quality of the signal.

Interference with Medical and Personal Electronic Devices

Most electronic equipment is shielded from RF energy. However, certain devices may

not be shielded from RF energy.

Pacemakers -

The Health Industry Manufacturers Association recommends a

minimum of 6 inches be observed between wireless devices and a pacemaker to

avoid any interference. This recommendation agrees with research

done by

Wireless

Technology Research.

Hearing Aids -

Some digital wireless devices may interfere with some hearing aids.

If this occurs, you may want to contact your hearing aid manufacturer to consider

alternatives.

Other Medical Devices -

If you are using any other personal medical device,

consult the manufacturer and ask if there is proper shielding from RF radiation.

SMARTHOME.COM(TM) 1-800-SMART-HOME 949-221-9200

http://www.smarthome.com

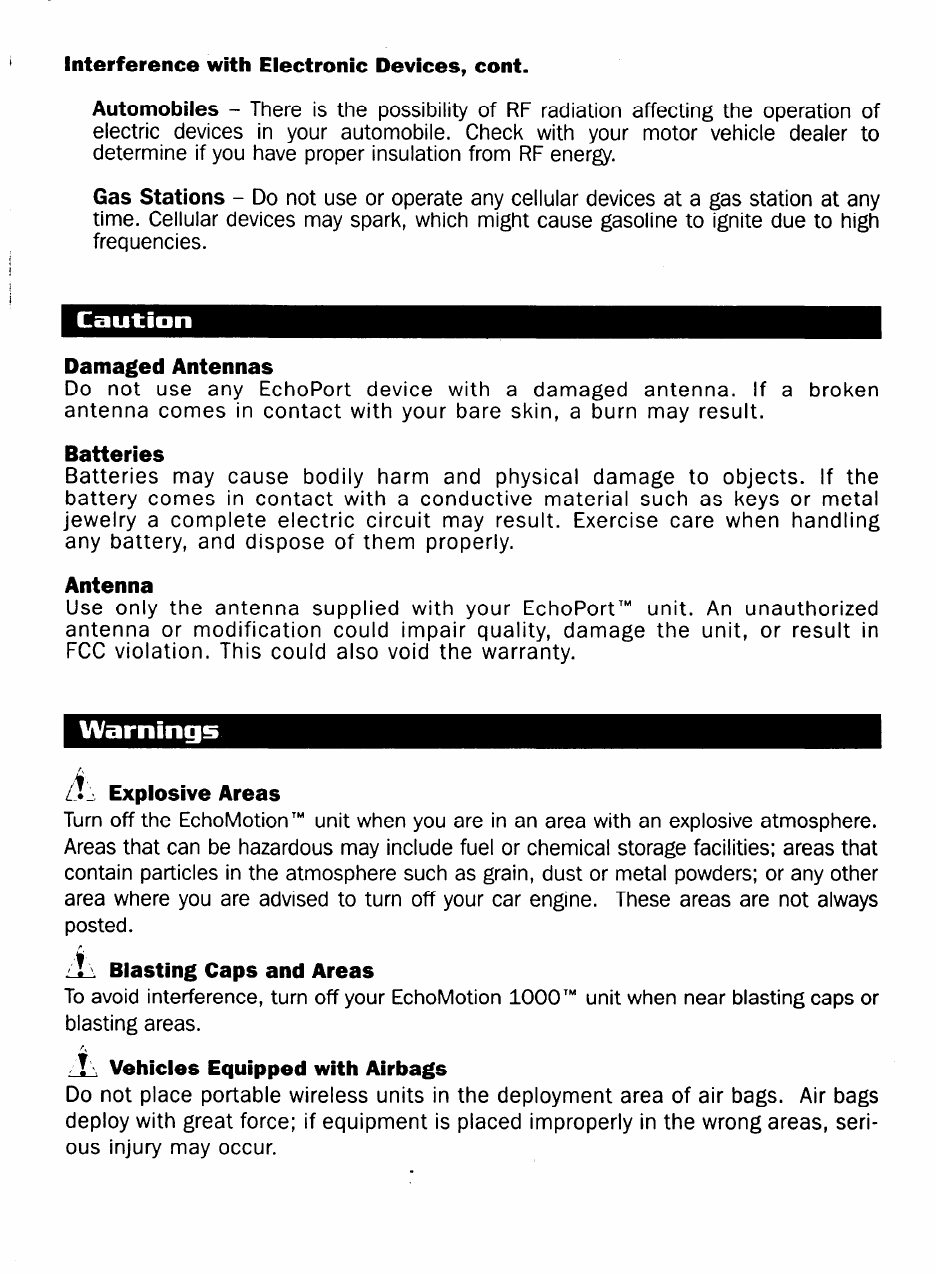

Interference with Electronic Devices, cont.

Automobiles -

There is the possibility of RF radiation affecting the operation

electric devices in your automobile. Check with your motor vehicle dealer

determine if you have proper insulation from RF energy.

Gas Stations -

Do not use or operate any cellular devices at a gas station at any

time. Cellular devices may spark, which might cause gasoline to ignite due to high

frequencies.

. I 1

Damaged Antennas

Do not use any EchoPort device with a damaged antenna. If a broken

antenna comes in contact with your bare skin, a burn may result.

Batteries

Batteries may cause bodily harm and physical damage to objects. If the

battery comes in contact with a conductive material such as keys or metal

jewelry a complete electric circuit may result. Exercise care when handling

any battery, and dispose of them properly.

Antenna

Use only the antenna supplied with your EchoPort’” unit. An unauthorized

antenna or modification could impair quality, damage the unit, or result in

FCC violation. This could also void the warranty.

. 8

Explosive Areas

Turn off the EchoMotion’” unit when you are in an area with an explosive atmosphere.

Areas that can be hazardous may include fuel or chemical storage facilities; areas that

contain particles in the atmosphere such as grain, dust or metal powders; or any other

area where you are advised to turn off your car engine. These areas are not always

posted.

b!_i

Blasting Caps and Areas

To avoid interference, turn off your EchoMotion 1000’” unit when near blasting caps or

blasting areas.

i’,

Vehicles Equipped with Airbags

gnat place portable wireless units in the deployment area of air bags. Air bags

deploy with great force; if equipment is placed improperly in the wrong areas, seri-

ous injury may occur.

SMARTHOME.COM(TM) 1-800-SMART-HOME 949-221-9200

http://www.smarthome.com

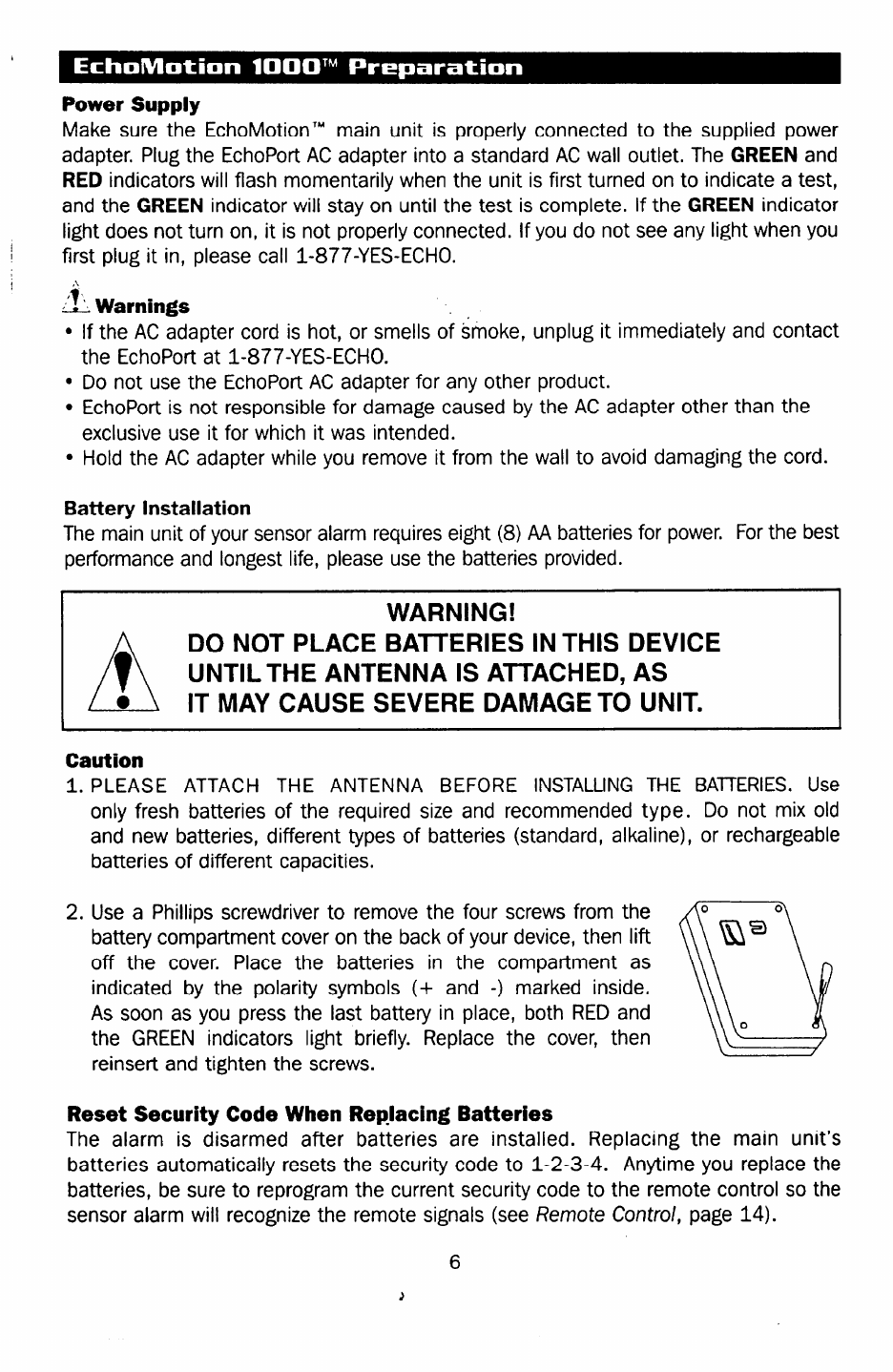

Power Supply

Make sure the EchoMotion TM

main unit is properly connected to the supplied power

adapter. Plug the EchoPort AC adapter into a standard AC wall outlet. The GREEN and

RED indicators will flash momentarily when the unit is first turned on to indicate a test,

and the GREEN indicator will stay on until the test is complete. If the GREEN indicator

light does not turn on, it is not properly connected. If you do not see any light when you

first plug it in, please call l-877-YES-ECHO.

LL Warnings

If the AC adapter cord is hot, or smells of smoke, unplug it immediately and contact

the EchoPort at l-877-YES-ECHO.

Do not use the EchoPort AC adapter for any other product.

EchoPort is not responsible for damage caused by the AC adapter other than the

exclusive use it for which it was intended.

Hold

the AC adapter while you remove it from the wall to avoid damaging the cord.

Battery Installation

The main unit of your sensor alarm requires eight (8) AA batteries for power. For the best

performance and longest life, please use the batteries provided.

WARNING!

A t

DO NOT PLACE BAll-ERIES IN THIS DEVICE

UNTILTHE ANTENNA IS ATTACHED, AS

a IT MAY CAUSE SEVERE DAMAGETO UNIT.

Caution

1. PLEASE ATTACH THE ANTENNA BEFORE INSTALLING THE BATTERIES. Use

only fresh batteries of the required size and recommended type.

not mix old

and new batteries, different types of batteries (standard, alkaline), or rechargeable

batteries of different capacities.

2. Use a Phillips screwdriver to remove the four screws from the

battery compartment cover on the back of your device, then lift

off the cover. Place the batteries in the compartment as

indicated by the polarity symbols (+ and -) marked inside.

As soon as you press the last battery in place, both RED and

the GREEN indicators light briefly. Replace the cover, then

reinsert and tighten the screws.

Reset Security Code When Replacing Batteries

The alarm is disarmed after batteries are installed. Replacing the main unit’s

batteries automatically resets the security code to l-2-3-4. Anytime you replace the

batteries, be sure to reprogram the current security code to the remote control so the

sensor alarm will recognize the remote signals (see Remote Control, page 14).

SMARTHOME.COM(TM) 1-800-SMART-HOME 949-221-9200

http://www.smarthome.com

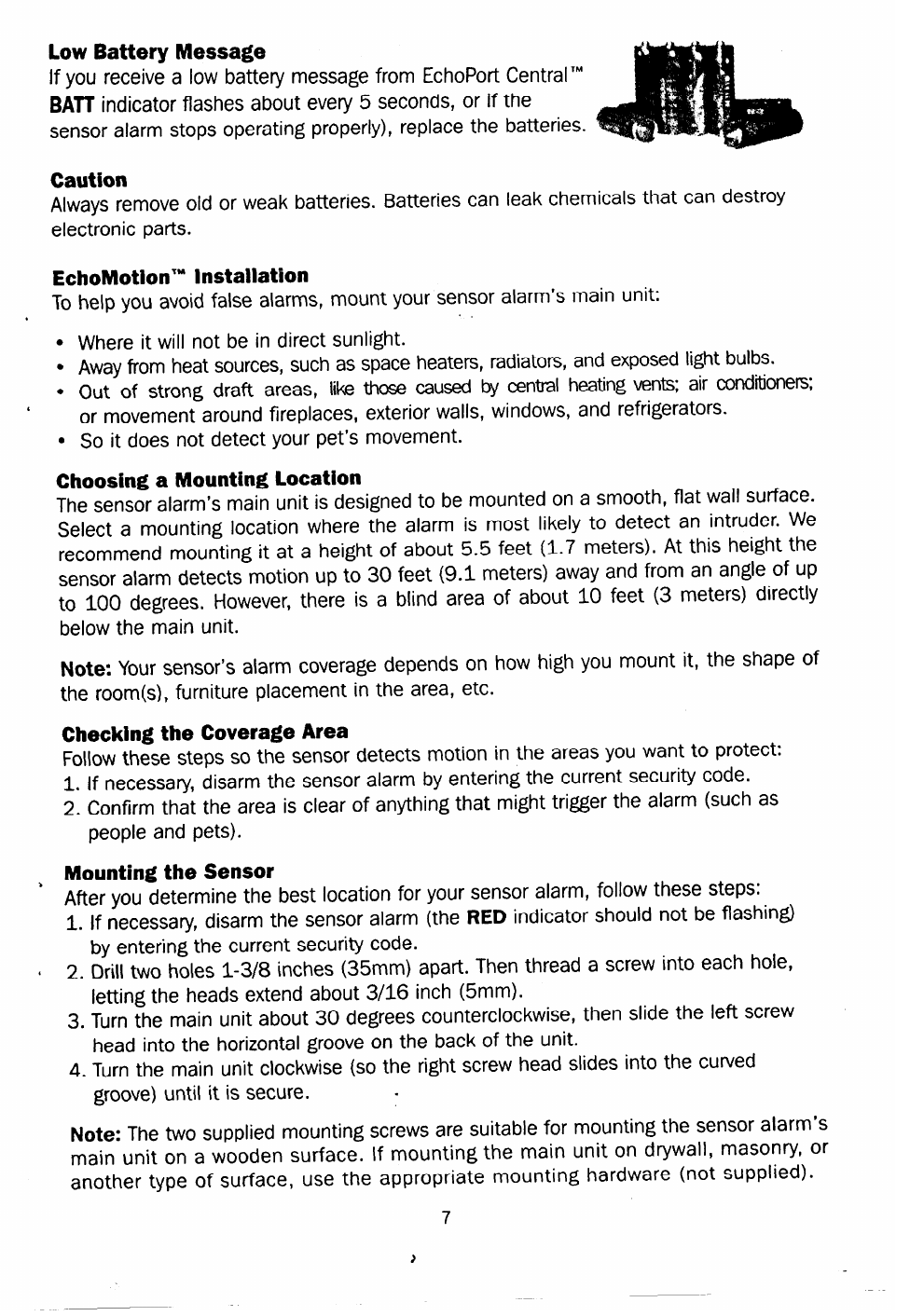

Low Battery Message

you

receive a low battery message from EchoPort Central’”

BATT

indicator flashes about every

seconds, or if the

sensor alarm stops operating properly), replace the batteries.

Caution

Always remove old or weak batteries. Batteries can leak chemicals that can destroy

electronic parts.

EchoMotion’” Installation

help you avoid false alarms, mount your sensor alarm’s main unit:

Where it will not be in direct sunlight.

Away from heat sources, such as space heaters, radiators, and exposed light bulbs.

Out of strong draft areas, like those caused by central heating vents; air conditioners;

or movement around fireplaces, exterior walls, windows, and refrigerators.

So it does not detect your pet’s movement.

Choosing a Mounting Location

The sensor alarm’s main unit is designed to be mounted on a smooth, flat wall surface.

Select a mounting location where the alarm is most likely to detect an intruder. We

recommend mounting it at a height of about 5.5 feet (1.7 meters). At this height the

sensor alarm detects motion up to 30 feet (9.1 meters) away and from an angle of up

to 100 degrees. However, there is a blind area of about 10 feet (3 meters) directly

below the main unit.

Note: Your sensor’s alarm coverage depends on how high you mount it, the shape of

the room(s), furniture placement in the area, etc.

Checking the Coverage Area

Follow these steps so the sensor detects motion in the areas you want to protect:

1. If necessary, disarm the sensor alarm by entering the current security code.

2. Confirm that the area is clear of anything that might trigger the alarm (such as

people and pets).

Mounting the Sensor

After you determine the best location for your sensor alarm, follow these steps:

1. If necessary, disarm the sensor alarm (the RED indicator should not be flashing)

by entering the current security code.

2. Drill two holes l-3/8 inches (35mm) apart. Then thread a screw into each hole,

letting the heads extend about 3/16 inch (5mm).

3. Turn the main unit about 30 degrees counterclockwise, then slide the left screw

head into the horizontal groove on the back of the unit.

4. Turn the main unit clockwise (so the right screw head slides into the curved

groove) until it is secure.

Note: The two supplied mounting screws are suitable for mounting the sensor alarm’s

main unit on a wooden surface. If mounting the main unit on drywall, masonry, or

another type of surface, use the appropriate mounting hardware (not supplied).

SMARTHOME.COM(TM) 1-800-SMART-HOME 949-221-9200

http://www.smarthome.com

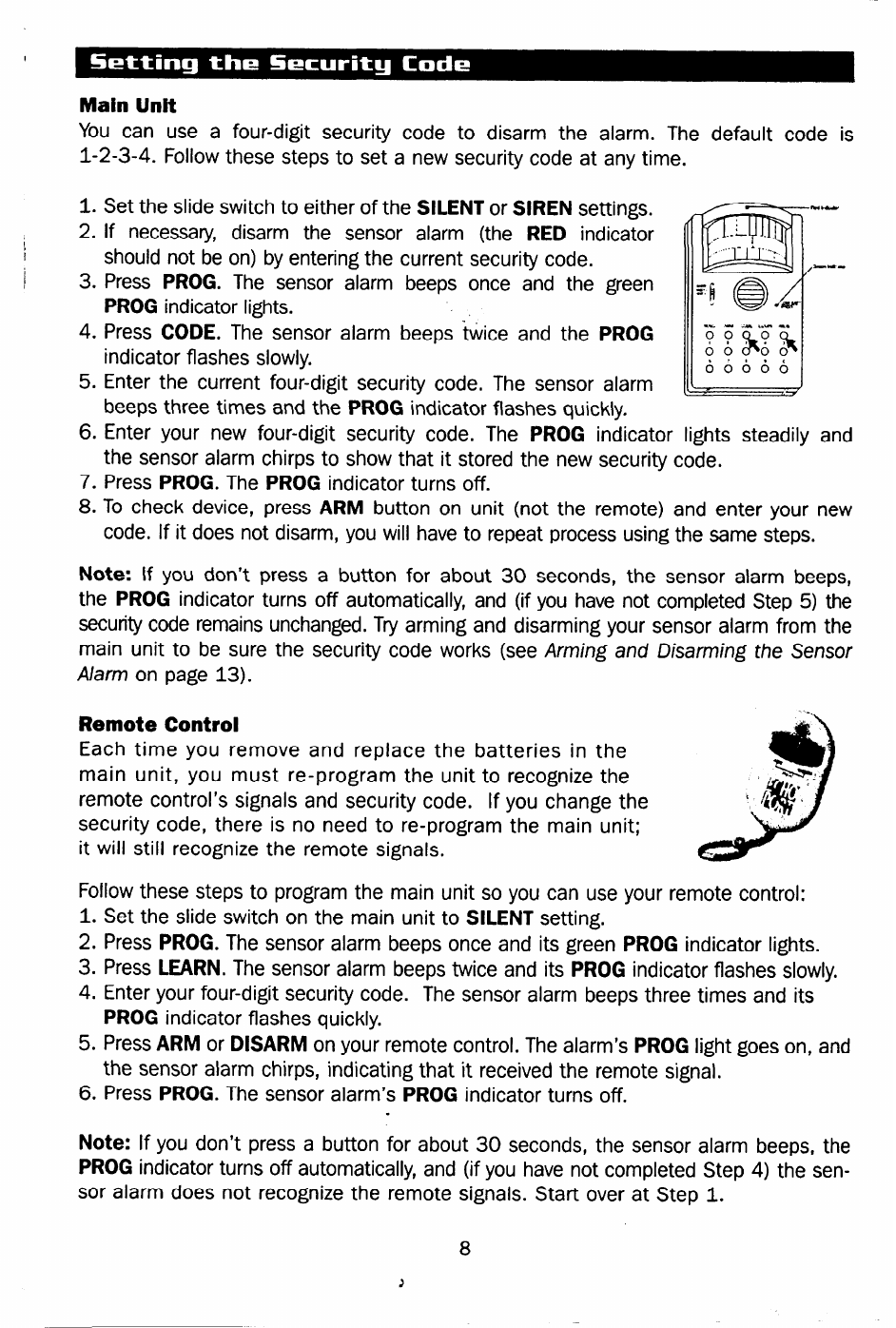

Main Unit

You

can use a four-digit security code to disarm the alarm. The default code is

l-2-3-4. Follow these steps to set a new security code at any time.

Set the slide switch to either of the SILENT or SIREN settings.

If necessary, disarm the sensor alarm (the RED indicator

should not be on) by entering the current security code.

Press PROG. The sensor alarm beeps once and the green

PROG indicator lights.

Press CODE. The sensor alarm beeps &ice and the PROG

indicator flashes slowly.

Enter the current four-digit security code. The sensor alarm

beeps three times and the PROG indicator flashes quickly.

Enter your new four-digit security code. The PROG indicator lights steadily and

the sensor alarm chirps to show that it stored the new security code.

Press PROG. The PROG indicator turns off.

To check device, press ARM button on unit (not the remote) and enter your new

code. If it does not disarm, you will have to repeat process using the same steps.

Note: If you don’t press a button for about 30 seconds, the sensor alarm beeps,

the PROG indicator turns off automatically, and (if you have not completed Step 5) the

security code remains unchanged. Try arming and disarming your sensor alarm from the

main unit to be sure the security code works (see Arming and Disarming the Sensor

Alar-m on page 13).

Remote Control

Each time you remove and replace the batteries in the

main unit, you must re-program the unit to recognize the

remote control’s signals and security code. If you change the

security code, there is no need to re-program the main unit;

it will still recognize the remote signals.

Follow these steps to program the main unit so you can use your remote control:

Set the slide switch on the main unit to SILENT setting.

Press PROG. The sensor alarm beeps once and its green PROG indicator lights.

Press LEARN. The sensor alarm beeps twice and its PROG indicator flashes slowly.

Enter your four-digit security code. The sensor alarm beeps three times and its

PROG indicator flashes quickly.

Press ARM or DISARM on your remote control. The alarm’s PROG light goes on, and

the sensor alarm chirps, indicating that it received the remote signal.

Press PROG. The sensor alarm’s PROG indicator turns off.

Note: If you don’t press a button for about 30 seconds, the sensor alarm beeps, the

PROG indicator turns off automatically, and (if you have not completed Step 4) the sen-

sor alarm does not recognize the remote signals. Start over at Step 1.

SMARTHOME.COM(TM) 1-800-SMART-HOME 949-221-9200

http://www.smarthome.com

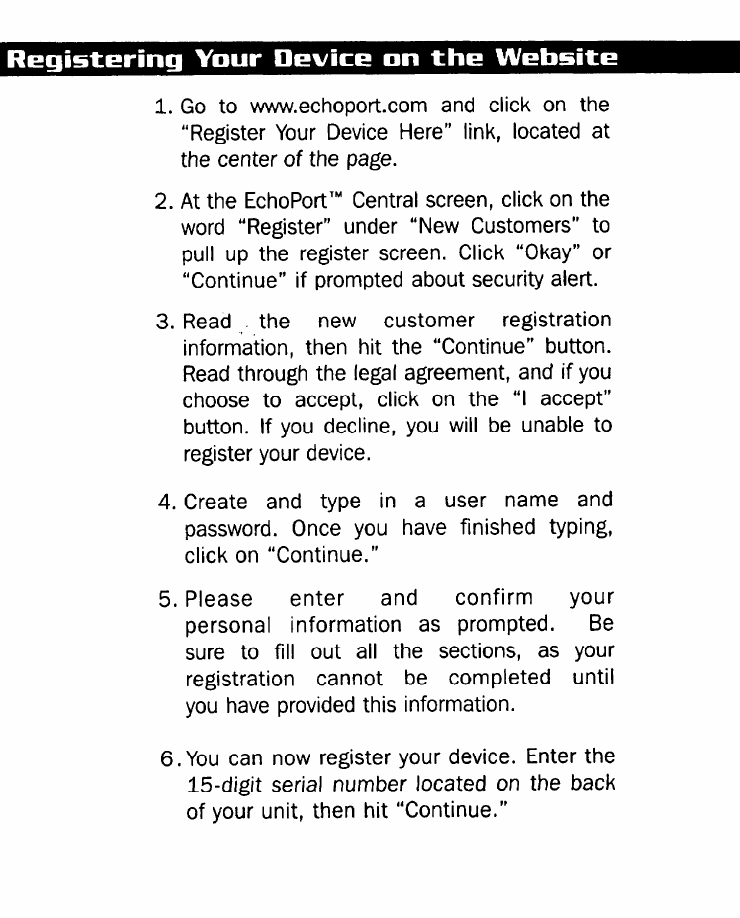

1. Go to www.echoport.com and click on the

“Register Your Device Here” link, located at

the center of the page.

2. At the EchoPort’” Central screen, click on the

word “Register” under “New Customers” to

pull up the register screen. Click “Okay” or

“Continue” if prompted about security alert.

Read

the new customer registration

information, then hit the “Continue” button.

Read through the legal agreement, and if you

choose to accept, click on the “I accept”

button. If you decline, you will be unable to

Create and type in a user name and

password. Once you have finished typing,

click on “Continue.”

Please enter and confirm your

personal information as prompted. Be

sure to fill out all the sections, as your

registration cannot be completed until

you have provided this information.

You can now register

your

device. Enter the

15-digit serial number located on the back

of vour unit. then hit “Continue.”

SMARTHOME.COM(TM) 1-800-SMART-HOME

949-221-9200 http://www.smarthome.com

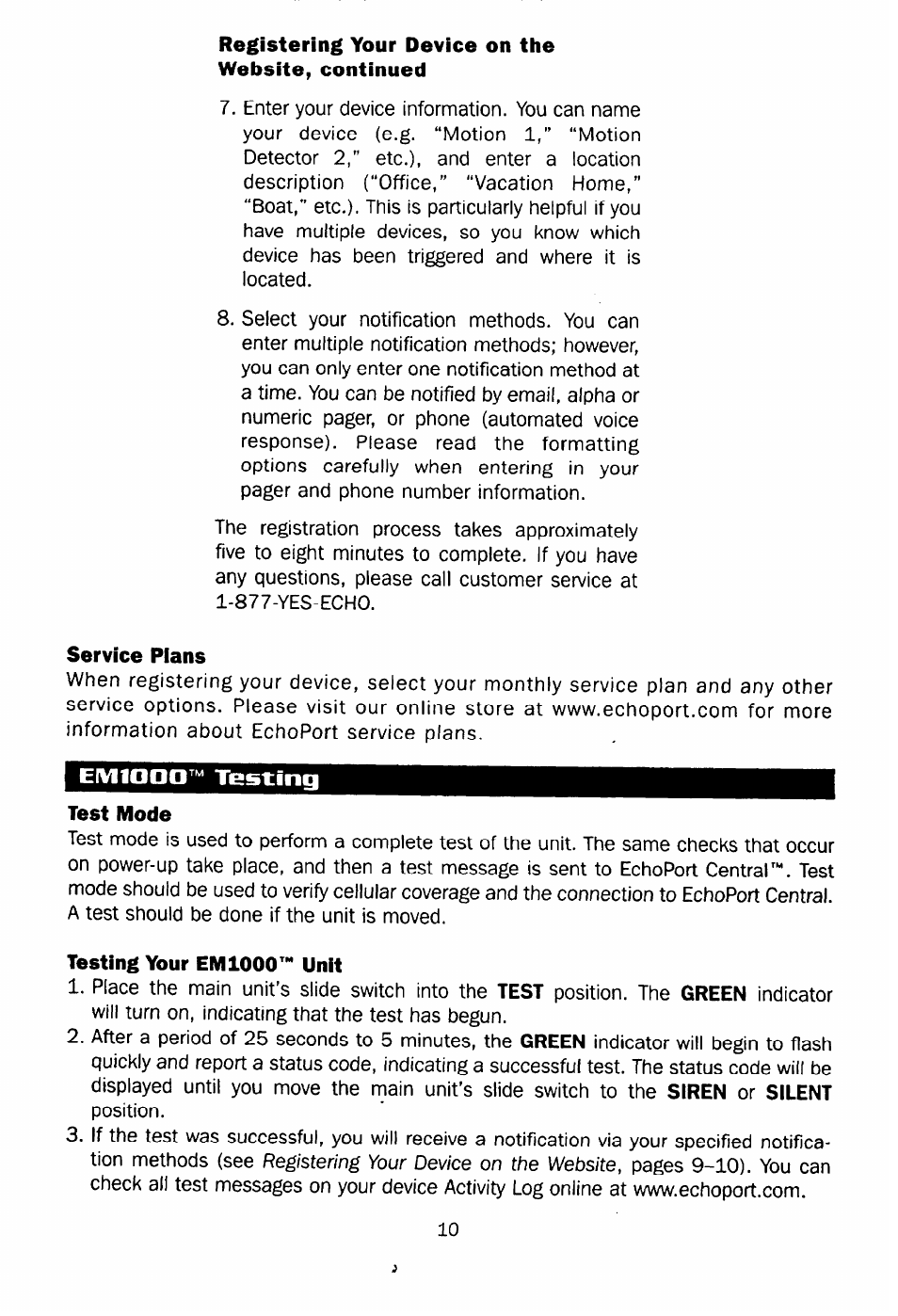

Registering Your Device on the

Website, continued

Enter your device information. You can name

your device (e.g. “Motion 1,” “Motion

Detector 2,

”

etc.), and enter a location

description (“Office,” “Vacation Home,”

“Boat,” etc.). This is particularly helpful if you

have multiple devices, so you know which

device has been triggered and where it is

located.

Select your notification methods. You can

enter multiple notification methods; however,

you can only enter one notification method at

a time. You can be notified by email, alpha or

numeric pager, or phone (automated voice

response). Please read the formatting

options carefully when entering in your

pager and phone number information.

Ine registration process takes approximately

five to eight minutes to complete. If you have

any questions, please call customer service at

I-877-YES-ECHO.

Service Plans

When registering your device, select your monthly service plan and any other

service options. Please visit our online store at www.echoport.com for more

information about EchoPort service plans.

Test Mode

Test mode is used to perform a complete test of the unit. The same checks that occur

on power-up take place, and then a test message is sent to EchoPort Central’“. Test

mode should be used to verify cellular coverage and the connection to EchoPort Central.

A test should be done if the unit is moved.

Testing

Your

EMlOOO'"Unit

Place the main unit’s slide switch into the TEST position. The GREEN indicator

will turn on, indicating that the test has begun.

After a period of 25 seconds to 5 minutes, the GREEN indicator will begin to flash

quickly and report a status code, indicating a successful test. The status code will be

displayed until you move the main unit’s slide switch to the StREN or StLENT

position.

If the test was successful, you will receive a notification via your specified notifica-

tion methods (see Registering Your Device on the Website, pages 9-10). You can

check all test messages on your device Activity Log online at www.echoport.com.

SMARTHOME.COM(TM) 1-800-SMART-HOME 949-221-9200

http://www.smarthome.com

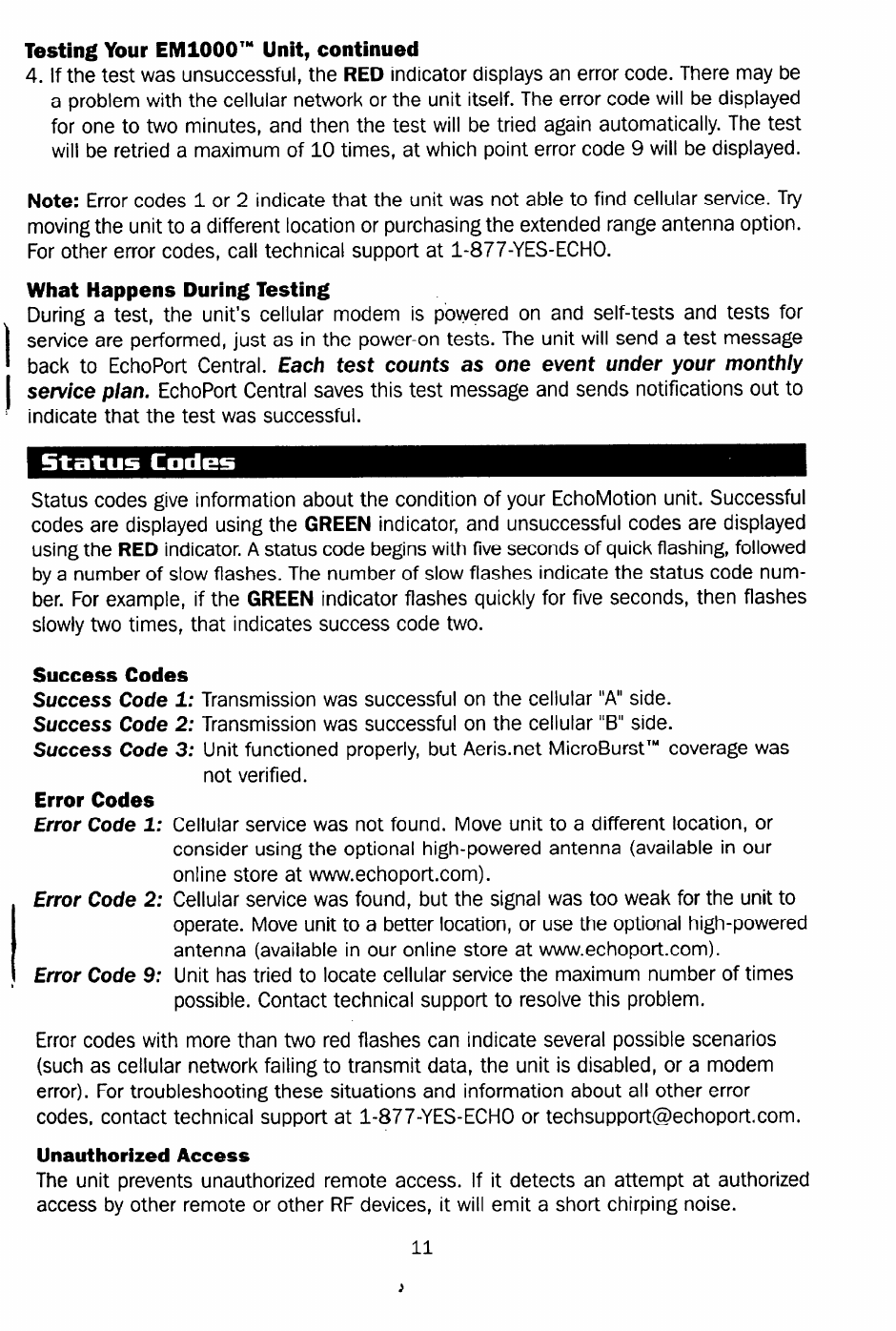

Testing Your

EMlOOO'"

Unit, continued

If the test was unsuccessful, the RED indicator displays an error code. There may be

a problem with the cellular network or the unit itself. The error code will be displayed

for one to two minutes, and then the test will be tried again automatically. The test

will be retried a maximum of 10 times, at which point error code 9 will be displayed.

Note:

Error codes 1 or 2 indicate that the unit was not able to find cellular service. Try

moving the unit to a different location or purchasing the extended range antenna option.

For other error codes, call technical support at 1-877-YES-ECHO.

What Happens During Testing

During a test, the unit’s cellular modem is powered on and self-tests and tests for

service are performed, just as in the power-on tests. The unit will send a test message

back to EchoPort Central. Each test counts

as one event under your monthly

service plan.

EchoPort Central saves this test message and sends notifications out to

indicate that the test was successful.

Status codes give information about the condition of your EchoMotion unit. Successful

codes are displayed using the GREEN indicator, and unsuccessful codes are displayed

using the RED indicator. A status code begins with five seconds of quick flashing, followed

by a number of slow flashes. The number of slow flashes indicate the status code num-

ber. For example, if the GREEN indicator flashes quickly for five seconds, then flashes

slowly two times, that indicates success code two.

Success Codes

Success Code 1:

Transmission was successful on the cellular “A” side.

Success Code 2: Transmission was successful on the cellular “B” side.

Success Code

3: Unit functioned properly, but Aeris.net MicroBurst’” coverage was

Error Codes

Error Code 1:

Error Code 2:

Error Code 9:

not verified.

to a different location, or

antenna (available in our

was too weak for the unit to

Cellular service was not found. Move unit

consider using the optional high-powered

online store at www.echoport.com).

Cellular service was found, but the signal

operate. Move unit to a better location, or use the optional high-powered

antenna (available in our online store at www.echoport.com).

Unit has tried to locate cellular service the maximum number of times

possible. Contact technical support to resolve this problem.

Error codes with more than two red flashes can indicate several possible scenarios

(such as cellular network failing to transmit data, the unit is disabled, or a modem

error). For troubleshooting these situations and information about all other error

codes, contact technical support at l-877-YES-ECHO or techsupport@?echoport.com.

Unauthorized Access

The unit prevents unauthorized remote access. If it detects an attempt at authorized

access by other remote or other RF devices, it will emit a short chirping noise.

SMARTHOME.COM(TM) 1-800-SMART-HOME 949-221-9200

http://www.smarthome.com

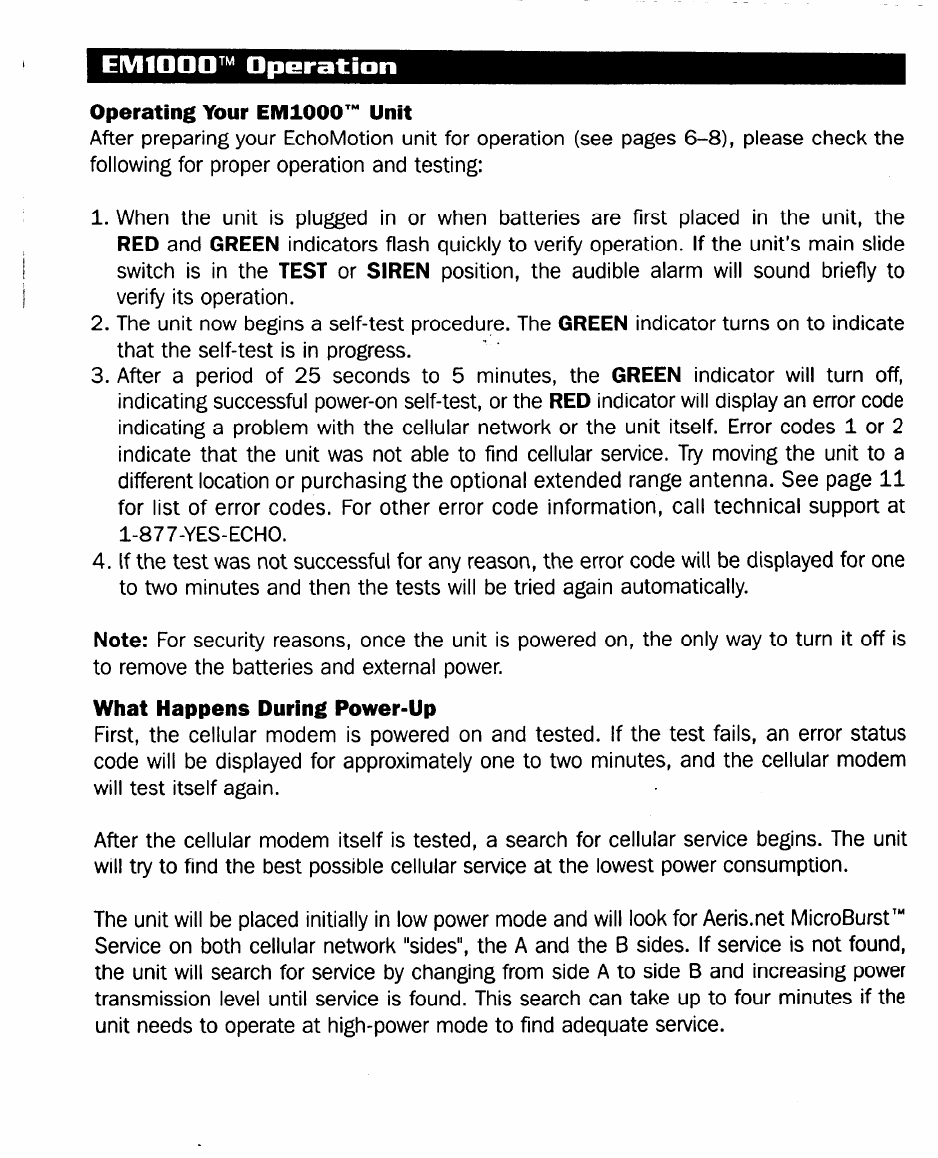

Operating Your

EMlOOO'"

Unit

After preparing your EchoMotion unit for operation (see pages 6-8), please check the

following for proper operation and testing:

2..

. 1

When the unit is plugged in or when batteries are first placed in the unit, the

RED and GREEN indicators flash quickly to verify operation. If the unit’s main slide

switch is in the TEST or SIREN position, the audible alarm will sound briefly to

verify its operation.

The unit now begins a self-test procedure. The GREEN indicator turns on to indicate

that the self-test is in progress.

- ’

After a period of 25 seconds to 5 minutes, the GREEN indicator will turn off,

indicating successful power-on self-test, or the RED indicator will display an error code

indicating a problem with the cellular network or the unit itself. Error codes 1 or 2

indicate that the unit was not able to find cellular service. Try moving the unit to a

different location or purchasing the optional extended range antenna. See page 11

for list of error codes. For other error code information, call technical support at

l-877-YES-ECHO.

If the test was not successful for any reason, the error code will be displayed for one

to two minutes and then the tests will be tried again automatically.

Note: For security reasons, once the unit is powered on, the only way to turn it off is

to remove the batteries and external power.

What Happens During Power-Up

First, the cellular modem is powered on and tested. If the test fails, an error status

code will be displayed for approximately one to two minutes, and the cellular modem

will test itself again.

After the cellular modem itself is tested, a search for cellular service begins. The unit

will try to find the best possible cellular service at the lowest power consumption.

The unit will be placed initially in low power mode and will look for Aeris.net MicroBurst’”

Service on both cellular network “sides”, the A and the B sides. If service is not found,

the unit will search for service by changing from side A to side B and increasing power

transmission level until service is found. This search can take up to four minutes if the

unit needs to operate at high-power mode to find adequate service.

SMARTHOME.COM(TM) 1-800-SMART-HOME 949-221-9200

http://www.smarthome.com

Table des matières

Autres manuels smart home Système de sécurité

smart home

smart home 7307 Manuel utilisateur

Manuels Système de sécurité populaires d'autres marques

Inner Range

Inner Range Concept 2000 Manuel utilisateur

Climax

Climax Mobile Lite R32 Instructions de montage

CADDX

CADDX NX-6 Manuel utilisateur

FBII

FBII XL-31 Series Manuel utilisateur

Johnson Controls

Johnson Controls PENN Connected PC10 Manuel utilisateur

Aeotec

Aeotec Siren Gen5 Manuel utilisateur

Blaupunkt

Blaupunkt SA 2700 Manuel utilisateur

IDEAL

IDEAL Accenta Manuel du propriétaire

AJAX

AJAX DoubleButton Manuel utilisateur

Swann

Swann SW-P-MC2 Manuel utilisateur

Ecolink

Ecolink Siren+Chime Manuel utilisateur

Digital Monitoring Products

Digital Monitoring Products XR150 Manuel utilisateur

EDM

EDM Solution 6+6 Wireless-AE Manuel utilisateur

Highway Safety Group

Highway Safety Group EA401 Manuel utilisateur

Siren

Siren LED GSM Manuel utilisateur

Detection Systems

Detection Systems 7090i Instructions de montage

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuel utilisateur

Siemens

Siemens FDM273 Manuel utilisateur

smart home EM 1000 Manuel utilisateur

Manuels Système de sécurité populaires d'autres marques
