SMART Board SB800ix2 Manuel utilisateur

SMARTBoard® 800ix2

interactive whiteboard systems

CONFIGURATION AND USER’S GUIDE

FOR MODELS SB800ix2 AND SB800ix2-SMP

smarttech.com/kb/170340

FCC warning

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the manufacturer’s instructions, may cause harmful interference to radio communications. Operation of

this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Trademark notice

SMARTBoard, SMARTNotebook, SMARTMeetingPro, SMARTGoWire, DViT, smarttech, the SMART logo and all SMART taglines are trademarks or registered

trademarks of SMARTTechnologiesULC in the U.S. and/or other countries. Microsoft, Windows and InternetExplorer are either registered trademarks or trademarks of

Microsoft Corporation in the U.S. and/or other countries. Blu-ray is a trademark of the Blu-ray Disc Association. All other third-party product and company names may be

trademarks of their respective owners.

into any language in any form by any means without the prior written consent of SMARTTechnologiesULC. Information in this manual is subject to change without notice

and does not represent a commitment on the part of SMART.

This product and/or use thereof covered by one or more of the following U.S. patents.

www.smarttech.com/patents

08/2015

i smarttech.com/kb/170340

Important information

Before you install and use your SMARTBoard interactive whiteboard system, read and understand

the safety warnings and precautions in this user’s guide and the included important information

document. These safety warnings and precautions describe the safe and correct operation of your

interactive whiteboard system and its accessories, helping you to prevent injuries and equipment

damage. Ensure that your interactive whiteboard system is always being used correctly.

In this document, “interactive whiteboard system” refers to the following:

lSMARTBoard 800 series interactive whiteboard

lSMARTUX80 projector

lAccessories and optional equipment

The projector included with your system is designed to work only with certain SMARTBoard

interactive whiteboard models. Contact your authorized SMART reseller (smarttech.com/where) for

more information.

Safety warnings, cautions and important

information

Installation

WARNING

lFailure to follow the installation instructions shipped with your SMART product could result in

personal injury and damage to the product.

lTo reduce the risk of fire or electric shock, do not expose the SMART product to rain or

moisture.

lTwo people are required to mount your SMART product because it may be too heavy for one

person to safely maneuver.

When you lift your interactive whiteboard, you and your assistant should stand on either side

of the screen, supporting its weight at the bottom while balancing the top with your other

hands.

IMPORTANT INFORMATION

ii smarttech.com/kb/170340

lWhen mounting the projector boom on a framed or hollow wall, attach the mounting bracket to

a stud to safely support the projector’s weight. If you use only drywall anchors, the drywall can

fail, resulting in possible personal injury, and damage to the product which may not be covered

by your warranty.

lDo not leave cables on the floor where they can be a tripping hazard. If you must run a cable

over the floor, lay it in a flat, straight line and secure it to the floor with tape or a cable

management strip of a contrasting color. Handle cables carefully and avoid excessive

bending.

CAUTION

lDo not operate this unit immediately after moving it from a cold location to a warm location.

When the unit is exposed to such a change in temperature, moisture can condense on the lens

and crucial internal parts. Allow the system to stabilize to room temperature before operation

to prevent possible damage to the unit.

lDo not place the unit in hot locations, such as near heating equipment. Doing so could cause a

malfunction and shorten the life of the projector.

lAvoid setting up and using the SMART product in an area with excessive levels of dust,

humidity and smoke.

lDo not place your SMART product in direct sunlight or near any appliance that generates a

strong magnetic field.

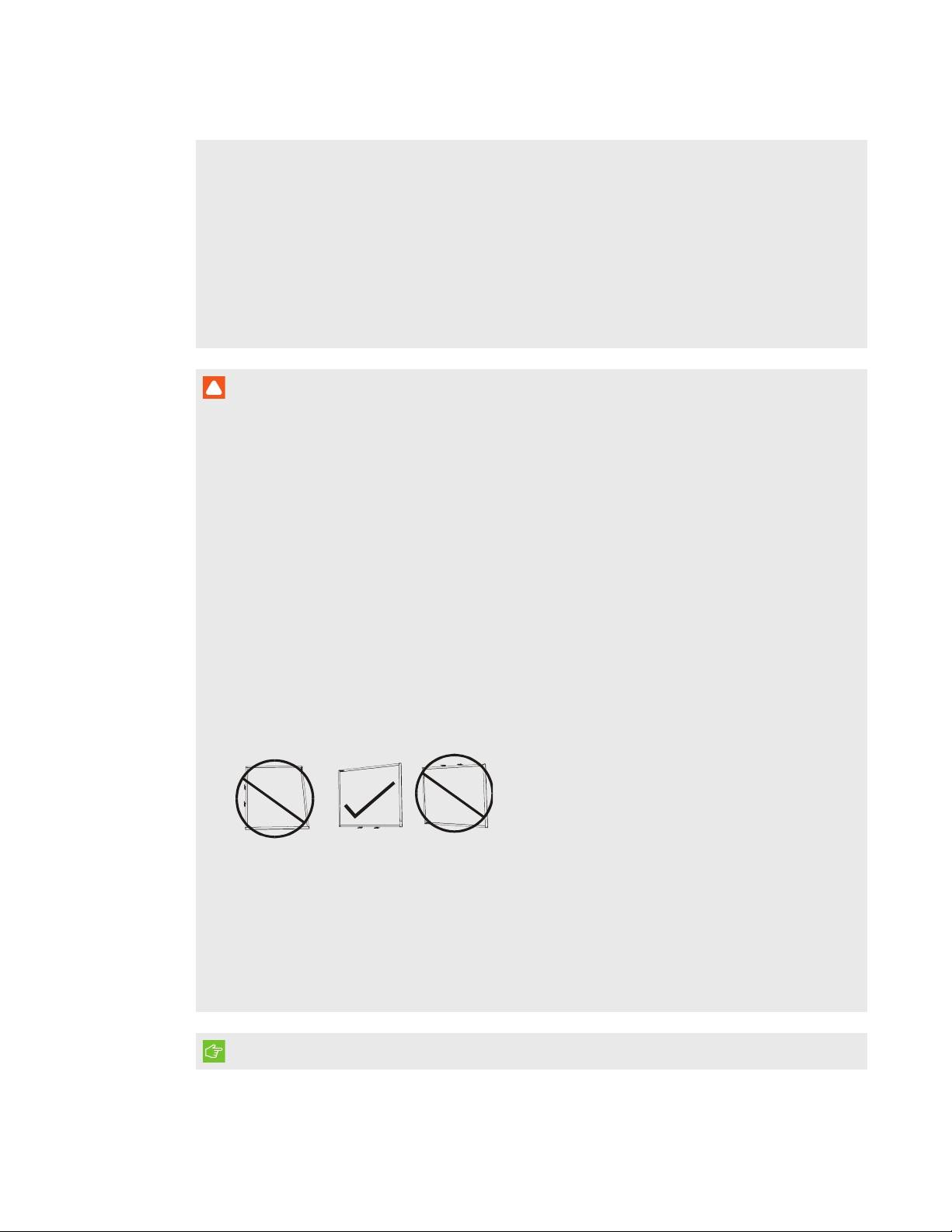

lIf you need to lean the interactive whiteboard against a wall before you mount it, make sure it

remains in an upright position, resting on the pen tray brackets, which can sustain the weight

of the interactive whiteboard.

Do not rest the interactive whiteboard on its side or on the top of the frame.

lYou must connect the USB cable that came with your SMARTBoard interactive whiteboard to

a computer that has a USB compliant interface and that bears the USB logo. In addition, the

USB source computer must be compliant with CSA/UL/EN 60950 and bear the CE mark and

CSA and/or UL Mark(s) for CSA/UL 60950. This is for operating safety and to avoid damage to

the SMARTBoard interactive whiteboard.

IMPORTANT

IMPORTANT INFORMATION

iii smarttech.com/kb/170340

lThe

SMARTBoard 885ix2 and 885ix2-SMP interactive whiteboard system textless

installation guide

is also available online (smarttech.com/kb/170341).

lThe SMARTBoard 880i6 and 885i6 interactive whiteboard system textless installation guide

is also available online (smarttech.com/kb/170499).

lMake sure an electrical socket is near your SMART product and remains easily accessible

during use.

lUsing your SMART product near a TV or radio could cause interference to the images or

sound. If this happens, move the TV or radio away from the projector.

Operation

WARNING

lIf you are using an external audio system, use only the power supply included with that

product. Using the wrong power supply might create a safety hazard or damage the

equipment. If in doubt, refer to the specification sheet for your product to verify the power

supply type.

lDo not climb (or allow children to climb) on a wall- or stand-mounted SMARTBoard interactive

whiteboard.

Do not climb on, hang from or suspend objects from the projector boom.

Climbing on the interactive whiteboard or projector boom could result in personal

injury or product damage.

lTo prevent injury or product and property damage, use only the mounting hardware

supplied with your SMARTBoard 800 series interactive whiteboard when you install your

product on drywall. The mounting hardware provided with other interactive whiteboards may

not be strong enough to support the weight of SMARTBoard 800 series interactive

whiteboards.

CAUTION

lDo not block the projector’s ventilation slots and openings.

lIf dust or small items prevent pen tray buttons from being pressed or cause constant button

contact, remove the obstructions carefully.

IMPORTANT

lIf you have peripheral devices that do not use a 3.5 mm phone jack audio in/out, a DB15 VGA

video input connector or an HDMI® video connector, or that do not use a 4-pin power mini-DIN

IMPORTANT INFORMATION

iv smarttech.com/kb/170340

output connector to provide power to other SMARTproducts, you may need to purchase third-

party adapters.

lKeep your remote control in a safe place because there is no other way to access menu

options.

lDo not disconnect cables from the ECP to connect peripheral devices because you could

disconnect controls for your interactive whiteboard.

lDisconnect the product from its power source when it’s not used for a long period.

Other precautions

If you own a SMARTproduct other than a SMARTBoard interactive whiteboard system, refer to the

installation manual for your product for relevant warnings and maintenance instructions.

Environmental requirements

Before you install your SMARTBoard interactive whiteboard system, review the following

environmental requirements.

Environmental

requirement

Parameter

Operating temperature l41°F to 95°F (5°C to 35°C) from 0' to 6000' (0 m to 1800 m)

l41°F to 86°F (5°C to 30°C) from 6000' to 9800' (1800 m to 3000 m)

Storage temperature l-4°F to 122°F (-20°C to 50°C)

Humidity l5% to 95% storage relative humidity, non-condensing

5% to 85% operating relative humidity, non-condensing

Water and fluid

resistance

lIntended for indoor use only. Doesn’t meet any salt-spray or water

ingress requirements.

lDon’t pour or spray liquids directly onto your interactive whiteboard,

the projector or any of its sub-components.

Dust lIntended for use in office and classroom environments. Not for

industrial use where heavy dust and pollutants can cause

malfunctions or impaired operation. Periodic cleaning is required in

areas with heavier dust. See

Cleaning the projector

on page21 for

information on cleaning the SMARTUX80 projector.

IMPORTANT INFORMATION

v smarttech.com/kb/170340

Environmental

requirement

Parameter

Electrostatic discharge

(ESD)

lEN61000-4-2 severity level 4 for direct and indirect ESD

lNo malfunction or damage up to 8kV (both polarities) with a 330ohm,

150 pF probe (air discharge)

lUnmated connectors meet no malfunction or damage up to 4kV (both

polarities) for direct (contact) discharge

Cables lAll SMARTBoard interactive whiteboard system cables should be

shielded to prevent potential accidents and degraded video and audio

quality.

Conducted and radiated

emissions

lEN55022/CISPR 22, Class A

vii smarttech.com/kb/170340

Contents

Important information i

Safety warnings, cautions and important information i

Environmental requirements iv

Chapter 1: About your interactive whiteboard system 1

SMARTBoard 800ix2 interactive whiteboard system features 2

Included accessories 5

Chapter 2: Installing your interactive whiteboard system 7

Choosing a location 7

Choosing a height 8

Routing the cables 9

Installing SMART software 9

Setting up the projector image 9

Integrating your system with peripheral devices 12

Chapter 3: Using your interactive whiteboard system 13

Using your projector 13

Using your interactive whiteboard 15

Using the Extended Control Panel (ECP) 15

Using the SMARTGoWire cable 17

Chapter 4: Maintaining your interactive whiteboard system 19

Maintaining your interactive whiteboard 19

Cleaning the projector 21

Focusing and adjusting the projector image 21

Removing and replacing the projector lamp module 21

Resetting the lamp hours 23

Replacing the remote control battery 24

Chapter 5: Troubleshooting your interactive whiteboard system 25

Before you start 26

Determining your interactive whiteboard system’s status 29

Resolving interactive whiteboard issues 30

Resolving projector issues 32

Resolving audio issues 37

Resolving network communication issues 38

Resolving ECP issues 39

Accessing the service menu 39

CONTENTS

viii smarttech.com/kb/170340

Transporting your interactive whiteboard system 40

Appendix A: Remotely managing your system through a network interface 41

Web page management 41

Simple Network Management Protocol (SNMP) 49

Crestron® RoomView® 49

Appendix B: Remotely managing your system through an RS-232 serial interface 51

Connecting your room control system to the SMARTUX80 projector 52

Projector programming commands 53

Appendix C: Adjusting projector settings 67

Appendix D: Integrating other devices 75

Video format 75

Connecting peripheral sources and outputs 78

Appendix E: Remote control code definitions 81

Appendix F: Hardware environmental compliance 83

Waste Electrical and Electronic Equipment and Battery regulations (WEEE and

BatteryDirectives) 83

Batteries 83

Mercury 83

More information 83

Index 85

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels SMART Board Tableau blanc interactif

SMART Board

SMART Board Board 600i5 Manuel utilisateur

SMART Board

SMART Board Board X800i4 Manuel utilisateur

SMART Board

SMART Board Board E70 Manuel utilisateur

SMART Board

SMART Board 685ix Manuel utilisateur

SMART Board

SMART Board SB685ix2 Manuel utilisateur

SMART Board

SMART Board D685ix Manuel utilisateur

SMART Board

SMART Board M685ix2 Manuel utilisateur

SMART Board

SMART Board SB680-MP Manuel utilisateur

SMART Board

SMART Board SBM685ix2 Manuel utilisateur

SMART Board

SMART Board SB685ix2 Manuel utilisateur

SMART Board

SMART Board 400 series Guide de configuration

SMART Board

SMART Board 3000i Manuel utilisateur

SMART Board

SMART Board SB685ix2 Manuel utilisateur

SMART Board

SMART Board Board 600i6 Manuel utilisateur

SMART Board

SMART Board Board 600i6 Manuel utilisateur

SMART Board

SMART Board 685ix Manuel utilisateur

SMART Board

SMART Board 600i3 Manuel utilisateur

SMART Board

SMART Board Board E70 Manuel utilisateur

SMART Board

SMART Board 880i5-SMP Manuel utilisateur

SMART Board

SMART Board Board X800 Series Manuel utilisateur

SMART Board

SMART Board 880i5 Manuel utilisateur

SMART Board

SMART Board 885ix Manuel utilisateur

SMART Board

SMART Board Board X800 Series Manuel utilisateur

SMART Board

SMART Board 680iv Manuel utilisateur

Manuels Tableau blanc interactif populaires d'autres marques

SMART

SMART KAPP42 Manuel utilisateur

HitachiSoft

HitachiSoft StarBoard FX-TRIO-88W Manuel utilisateur

Buhl

Buhl LyteBoard Manuel utilisateur

SMART

SMART SBX880 Manuel utilisateur

Legamaster

Legamaster e-SCREEN ETX Manuel utilisateur

Seneca

Seneca eno Manuel utilisateur

BenQ

BenQ RP840G Manuel utilisateur

SMART

SMART Sympodium IC-150 Manuel utilisateur

Olivetti

Olivetti OLIBOARD Manuel utilisateur

Turning Technologies

Turning Technologies MOBIVIEW Manuel utilisateur

Panasonic

Panasonic UB-5335 Manuel utilisateur

Dukane

Dukane ITP84 Manuel utilisateur

Bretford

Bretford EDUIMS Guide de configuration

Panasonic

Panasonic Panaboard UB-5315 Manuel utilisateur

Plus

Plus M-11S Manuel utilisateur

TRIUMPH BOARD

TRIUMPH BOARD ULTRA SLIM Manuel utilisateur

Returnstar Interactive Tech

Returnstar Interactive Tech IQBoard DVT V7.0 Manuel utilisateur

AVer

AVer CP series Manuel utilisateur
