SMART-AVI XTPRO Manuel utilisateur

SXGA, AUDIO, RS-232 AND IR

1,000 FT OVER CAT5 EXTENDER

USE A SINGLE CAT5 CABLE

TO BROADCAST

HIGH RESOLUTION SXGA,

STEREO AUDIO, RS-232 AND IR

UP TO 1,000 FT AWAY

Quick Start Guide

VIDEO

Format RGBHV, RGsB,YUV, Y/C, CVBS

Resolution Up to 1900 x 1200 VGA, SVGA, XGA,

SXGA

Connector Type HD 15 socket

AUDIO

Signal Type Stereo unbalanced

Connector 3.5 mm jack socket

OTHER

Power Supply 5VDC @.5A,

2.1 mm DC jack (center +ve)

Dimensions 5.3” W x 3.5” D x .9” H

Weight .8 lbs

Operating Temp. 0 to 40°C (32° to 104° F)

Storage Temp. -20° to 60°C (-4° to 140° F)

Humidity Up to 95% (non-condensing)

NOTICE

The information contained in this document is

subject to change without notice. SmartAVI makes

no warranty of any kind with regard to this material,

including but not limited to, implied warranties of

merchantability and tness for particular purpose.

SmartAVI will not be liable for errors contained

herein or for incidental or consequential damages in

connection with the furnishing, performance or use of

this material.

No part of this document may be photocopied,

reproduced, or translated into another language

without prior written consent from SmartAVI

Technologies, Inc.

800.AVI.2131, 702.800.0005

2455 W Cheyenne Ave, Suite 112

North Las Vegas, NV 89032

SmartAVI.com

TECHNICAL SPECIFICATION

XTPRO

WHAT’S IN THE BOX

PART NO. Q-TY DESCRIPTION

XTP-TX 1 UXGA/YUV/YC, Audio,

RS-232, IR CAT5 Transmitter

XTP-RX 1 UXGA/YUV/YC, Audio,

RS-232, IR CAT5 Receiver

5VDC0.5A 2 5VDC0.5A Power Supply

Quick Start Guide 1

ABOUT UX-PLUS

XTPRO is a high resolution UXGA and stereo audio extender

system (transmitter and receiver) designed to broadcast

desktop video, stereo audio signals, IR and RS-232

over unshielded twisted pair (UTP) cabling. With RS-232

communication support the XTPRO allows users to send

commands to single or multiple devices. This allows the

user to change the volume, change the channel or turn on/

off the display panel remotely.

FEATURES

• Supports dual screens

• Uses easy to install, inexpensive CAT-5/5e/6/7/8

• Each output reaches up to 1,000 feet (300 m)

• Supports high resoluon video up to 1900x1200

• HDTV compable (720p, 1080i, 1080p)

• 300 MHz bandwidth

• Sends high-resoluon VGA, stereo audio signals, RS-

232 or IR from one source to 2 locaons

• Compable with VGA, XGA, Sun, MAC and SGI

• Sync Format / Polarity Preservaon

• Compable with line level stereo audio signals

• High ground loop immunity

• Built-in power surge and transient protecon

• Designated trimmer in the remote unit to compen-

sate for cable length

• Compact metal case enclosure

• External power supply

• RS-232 communicaon support to single or mulple

displays

• IR command to single or mulple displays

1. Connect the output of the computer video card to the video input of the transmitter using the included male to male video

cable.

2. Connect the output of the computer audio card to the audio input of the transmitter using 3.5 mm audio male to male

audio cable.

3. Connect local monitor to the VGA out of the transmitter.

4. Connect external speakers to the transmitter’s audio out (Standard 3.5 mm stereo miniplug).

5. In the back of the unit connect the CAT5 cable that will connect to the receiver (XTPRO-RX).

NOTE: You can not use RS232 and IR at the same time.

6. Connect CAT5 cable (coming from the transmitter) to the back of the receiver.

7. Connect 1-2 display monitors to the VGA out connectors on the front of the receiver.

8. Connect 1-2 sets of external speakers to the audio output connections on the front of the unit (Standard 3.5 mm stereo

miniplug).

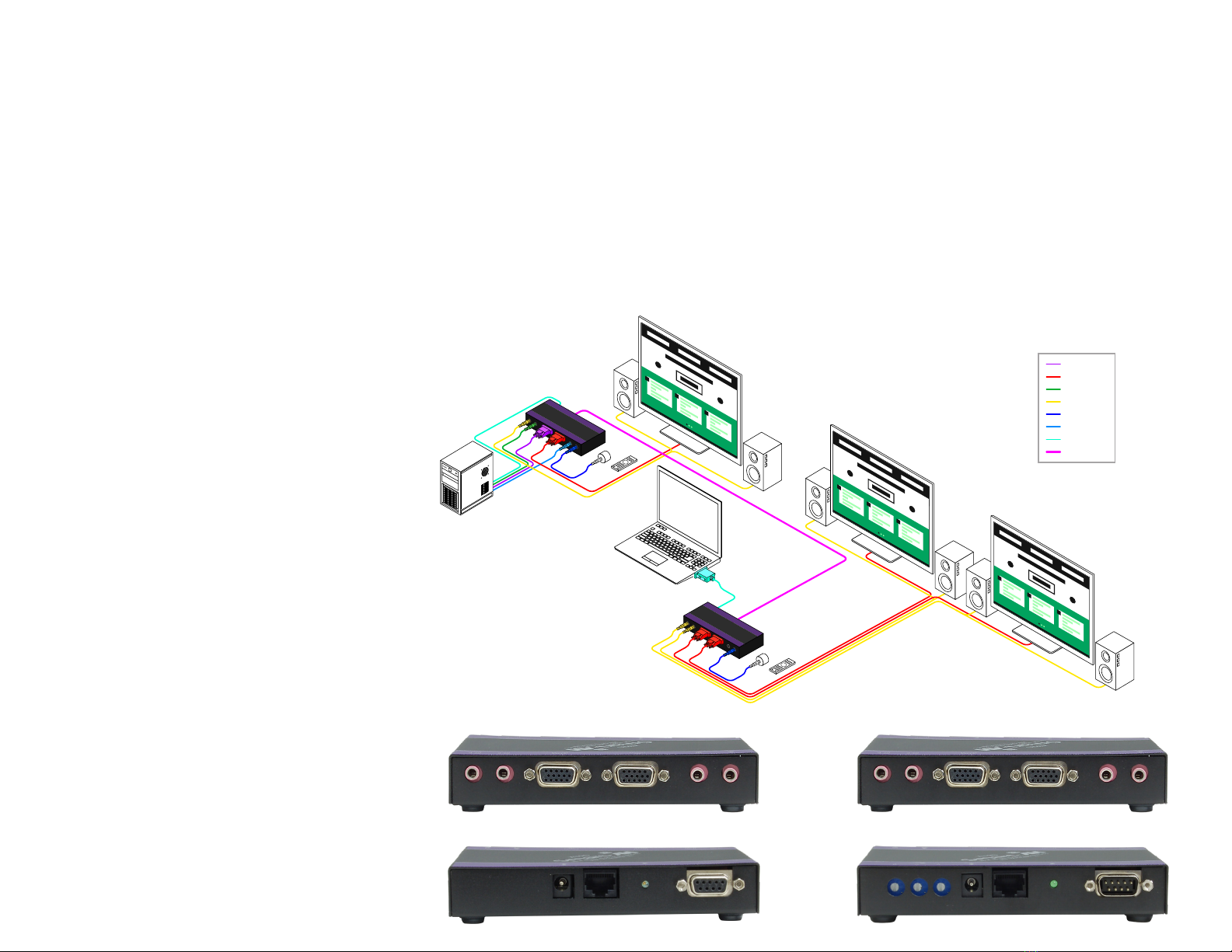

XTP-TX FRONT

XTP-TX BACK XTP-RX BACK

XTP-RX FRONT

HARDWARE INSTALLATION

DVI IN

DVI OUT

AUDIO IN

AUDIO OUT

IR IN

IR OUT

RS232

CAT5e/6

SmartAVI Web

Controller

XTP-RX

XTP-TX

1000 ft
