SMART-AVI VDX Manuel utilisateur

Notice

The information contained in this document is

subject to change without notice. Smart-AVI makes

no warranty of any kind with regard to this material,

including but not limited to, implied warranties

of merchantability and fitness for any particular

purpose.

Smart-AVI will not be liable for errors contained

herein or for incidental or consequential damages

in connection with the furnishing, performance or

use of this material.

No part of this document may be photocopied,

reproduced or translated into another language

without prior written consent from Smart-AVI.

For the complete manual, visit www.smartavi.com.

Use a single CAT5 to broadcast

high resolution UXGA and RS232

1000ft away

VDX

www.smartavi.com

User Manual

2840 N. Naomi Ave.

Burbank, California 91504

Phone: (818) 565-0011

Facsimile: (818) 565-0020

Technical Specifications

VDX SPECIFICATIONS

Video

Bandwidth 400 MHz

Analog Signal Level 1 Volt

Impedance 75 ohms

Connector High Density HD15

Format VGA/SVGA/XGA/UXGA/

RGBH/RGBsB

Sync

TTL horizontal SyncRange:

15 to 130 KHz Vertical Sync

Range 30 to 120 Hz

RS232

Connection Bi-directional Transmit Receive

Only, RXD, TXD

System Cable

Type CAT5 UTP EIA 568A

Connector RJ45

Power

Requirements 5V DC @1A

Connector 5x2.1mm DC jack

Weight .5 lb (0.3 Kg)

ORDER INFORMATION

Model Description

VDX Extends Video and RS232 up to

1000ft using cat5

Introduction

The VDX allows the extension of High Definition

Video and RS232 control signals via a single

Category 5 twisted pair cable up to 1000ft using a

unique method of transparent data transfer.

Features

Uses easy to install, inexpensive CAT5/5e/6/7/8.•

Output reaches up to 1,000 feet (300 m).•

Supports high resolution clear video up to•

1900x1200

HDTV compatible (720p, 1080i,1080p)•

300 MHz Bandwidth.•

Sends high-resolution XVGA and RS232 signals.•

Compatible with VGA, XGA, Sun, MAC and SGI•

Sync Format / Polarity Preservation.•

Bidirectional serial RS-232 (Tx/Rx) control.•

High ground loop immunity.•

Built-in lightning, power surge and transient•

protection.

Designated trimmer in the remote unit to•

compensate for cable length.

Compact metal case enclosure.•

Remote units come with buffered outputs.•

What’s in the box?

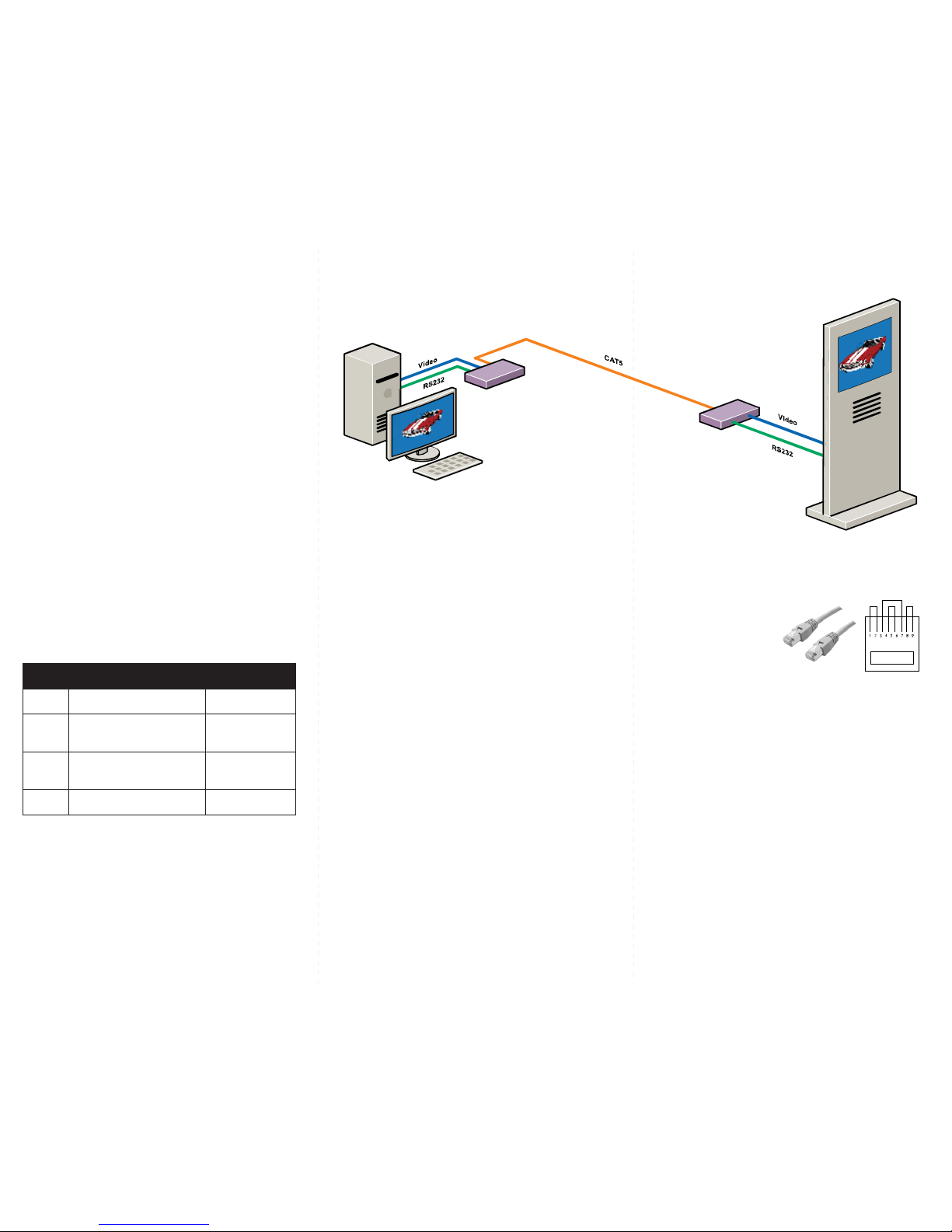

Installation Diagram

Connecting The Transmitter

Connect the output of the computer video card1.

to the video input of the transmitter using the

included male to male video cable.

Connect the CAT5 cable that will connect to the2.

receiver unit.

Connect a cable from the serial output to the RS2323.

input on the transmitter unit.

Connect the power supply.4.

Connecting The Receiver

Connect CAT5 cable (coming from the transmitter)1.

to the back of the receiver.

Connect the RS232 connector to the display device.2.

Connect the display monitor to the VGA out con-3.

nector on the front of the receiver.

Connect the power supply.4.

Observe LED lighting up indicating power present.5.

VDX Package Contents

Qty Description Part Number

1 VCA UXGA/Audio Trans-

mitter VDX-TX

1VCA UXGA/AudioRe-

ceiver VDX-RX

2 5VDC 1A Power Supply PS-5D1A-US

Preparing & Connecting System CAT5 Cable

Following is the wiring standard for terminating CAT 5

cable using RJ-45 connector:

Pair 1 Pins 1 & 2

Pair 2 Pins 3 & 6

Pair 3 Pins 4 & 5

Pair 4 Pins 7 & 8

Connectors: RJ-45

Capacitance: 14 pf/ft (46.2 pf/m)

Conductor Gauge: 24 AWG

Impedance: 100 +/- 15 ohms

4 - Pair

VCAT VR

Transmitter

VCAT VR

Receiver
