Code No. 0816178

Rev. 2 (04/07)

INSTALLATION INSTRUCTIONS FOR EXPOSED GEM•2®

PISTON TYPE WATER CLOSET AND URINAL FLUSHOMETERS

LIMITED WARRANTY

Sloan Valve Company warrants its Gem•2®Flushometers to be made of first class materials, free from defects of material or workmanship under normal use and to

perform the service for which they are intended in a thoroughly reliable and efficient manner when properly installed and serviced, for a period of three years (1 year

for special finishes) from date of purchase. During this period, Sloan Valve Company will, at its option, repair or replace any part or parts which prove to be thus

defective if returned to Sloan Valve Company, at customer’s cost, and this shall be the sole remedy available under this warranty. No claims will be allowed for labor,

transportation or other incidental costs. This warranty extends only to persons or organizations who purchase Sloan Valve Company’s products directly from Sloan Valve

Company for purpose of resale.

THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. IN NO EVENT IS SLOAN VALVE COMPANY

RESPONSIBLE FOR ANY CONSEQUENTIAL DAMAGES OF ANY MEASURE WHATSOEVER.

Closet Flushometer for

1½” Back Spud

MODELS 120, 121, 122 & 137

Urinal Flushometer for

1¼” Top Spud

MODEL 180

Urinal Flushometer for

¾” Top Spud

MODEL 186

Closet Flushometer for

1½” Top Spud

MODELS 110/111, 115 & 136

Made in the U.S.A.

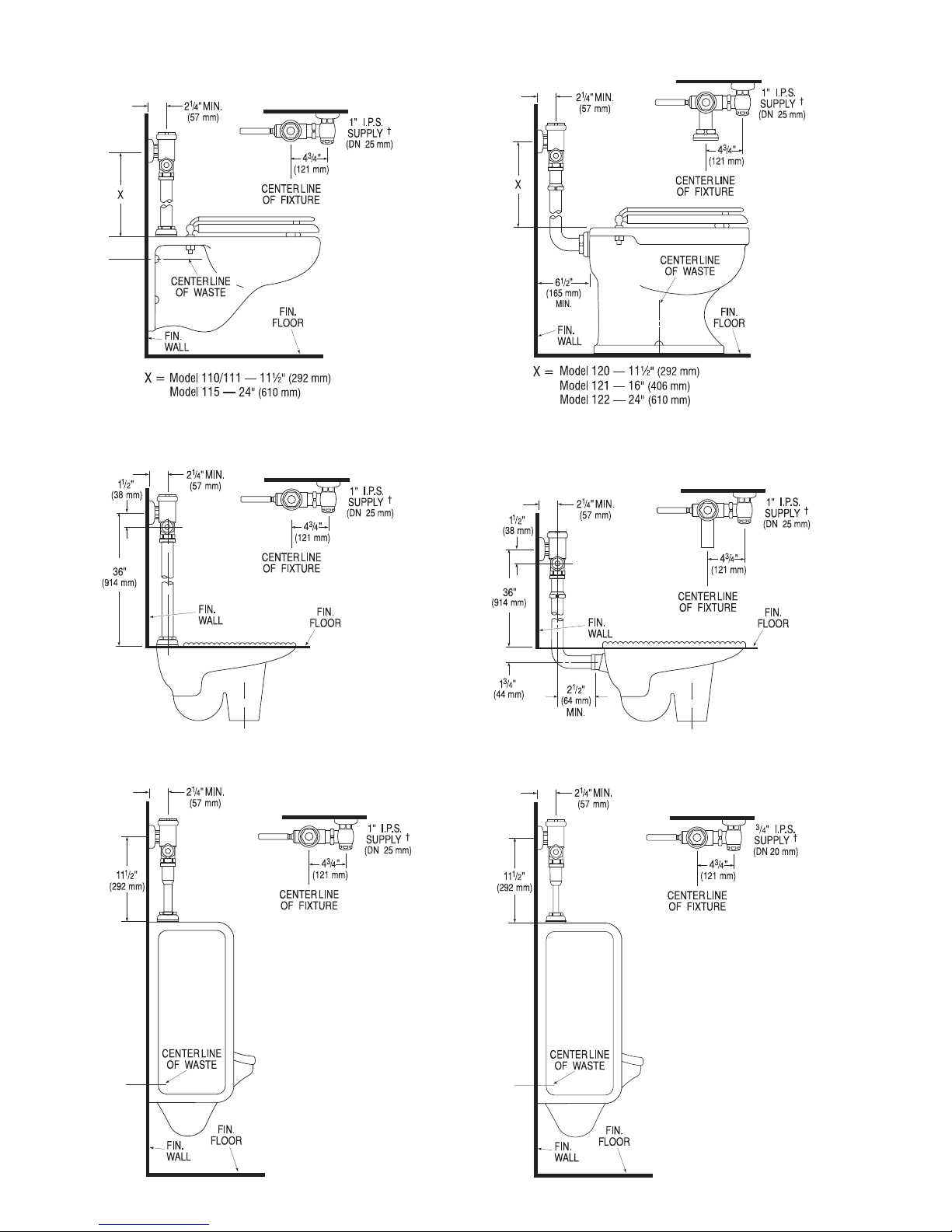

VALVE ROUGH-IN MODELS 110/111, 115 MODELS 120, 121, 122

MODEL 136

MODEL 137

MODEL 180 MODEL 186

NOTE: Requires 1” I.P.S.

(DN 25 mm) Supply.

NOTES:

• WHEN MOUNTED ON AN ADA ACCESSIBLE

BOWL, THE ROUGH-IN TO THE SUPPLY

INLET SHOULD BE NO HIGHER THAN 37½”

(953 mm) OR THE HANDLE WILL EXCEED

MAXIMUM HEIGHT ALLOWANCES UNDER

ADA GUIDELINES.

• NEW ADAAG GUIDELINES ALLOW FOR SPLIT

OR OFFSET GRAB BARS, CHECK WITH

LOCAL AUTHORITIES OR REFERENCE

SECTION 604.5.2 OF ADAAG.

† 1” CONTROL STOP IS AVAILABLE WITH

WHITWORTH THREAD.

PRIOR TO INSTALLATION

Before you install the GEM•2®Flushometer, be sure the items listed below

are installed. Also, refer to the rough-in diagram on Page 2.

• Closet/urinal fixture

• Drain line

• Water supply line

Important:

•ALL PLUMBING SHOULD BE INSTALLED IN ACCORDANCE WITH

APPLICABLE CODES AND REGULATIONS.

• WATER SUPPLY LINES MUST BE SIZED TO PROVIDE AN ADEQUATE

VOLUME OF WATER FOR EACH FIXTURE.

• WHEN INSTALLING A FLUSHOMETER, IT IS IMPORTANT THAT THE

FLUSH MODEL MATCHES THE REQUIREMENTS OF THE PLUMBING

FIXTURE.

• FLUSH ALL WATER LINES PRIOR TO MAKING CONNECTIONS.

The Sloan GEM•2®Flushometer is designed to operate with 10 to 100 psi

(69 to 689 kPa) of water pressure. THE MINIMUM PRESSURE REQUIRED

TO THE VALVE IS DETERMINED BY THE TYPE OF FIXTURE SELECTED.

Consult fixture manufacturer for minimum pressure requirements. Most Low

Consumption water closets (1.6 gpf/6.0 Lpf) require a minimum flowing

pressure of 25 psi (172 kPa).

TOOLS REQUIRED FOR INSTALLATION

• Straight blade screwdriver

• Sloan A-50 Super-Wrench™, Sloan A-109 Plier Wrench or smooth

jawed spud wrench

With the exception of Control Stop Inlet, DO NOT use pipe sealant

or plumbing grease on any valve component or coupling!

!!! IMPORTANT !!!

Protect the chrome or special finish of Gem•2 Flushometers — DO

NOT USE toothed tools to install or service these valves. Use a

Sloan A-50 Super-Wrench™, Sloan A-109 Plier Wrench or smooth

jawed spud wrench to secure all couplings. Also see “Care and

Cleaning” section of this manual.

!!! IMPORTANT !!!

This product contains mechanical and/or electrical components

that are subject to normal wear. These components should be

checked on a regular basis and replaced as needed to maintain

the valve’s performance.

!!! IMPORTANT !!!

If you have questions about how to install your Gem•2 Flushometer,

consult your local Sloan Representative or call Sloan Installation

Engineering Department at:

1-888-SLOAN-14 (1-888-756-2614) OR 1-847-233-2016

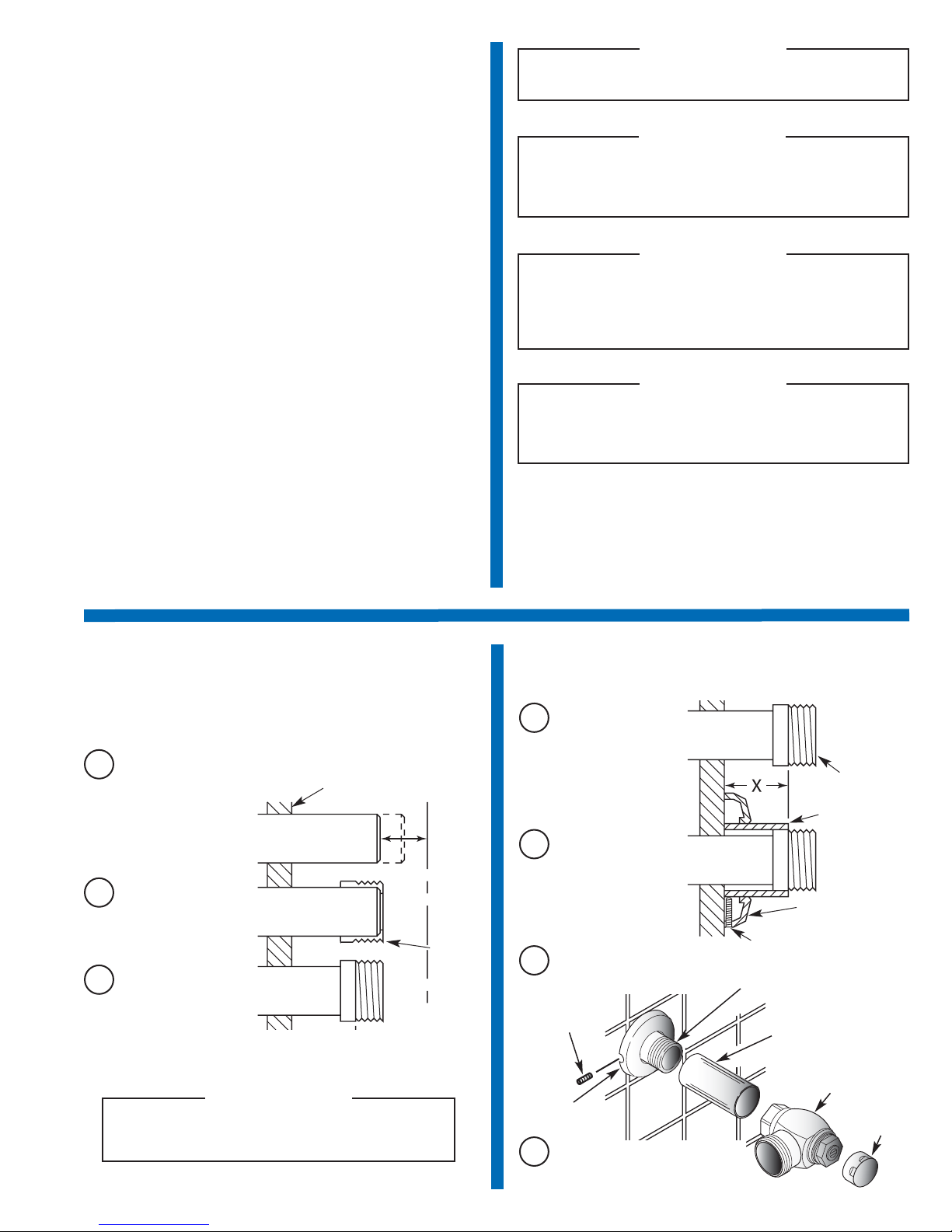

1Install Optional Sweat Solder

Adapter (only if your supply pipe

does not have a male thread)

AMeasure from finished

wall to C/L of Fixture

Spud. Cut pipe 1¼"

(32 mm) shorter than

this measurement.

Chamfer O.D. and I.D. of

water supply pipe.

WATER SUPPLY PIPE

FINISHED WALL

1-1/4”

(32 mm)

C/L OF

FIXTURE

SPUD

SWEAT

SOLDER

ADAPTER

BSlide Threaded Adapter

fully onto pipe.

CSweat solder the Adapter

to pipe.

Thread Control Stop onto pipe.

Tighten with a wrench.

2Install Cover Tube, Wall Flange

and Control Stop to supply pipe

BAK-CHEK®

CONTROL STOP

COVER TUBE (COVERING

TUBE AND CAST SET SCREW

AVAILABLE IN “YBYC” SWEAT

SOLDER KIT)

IRON PIPE NIPPLE OR COPPER PIPE

WITH SWEAT SOLDER ADAPTER

SET SCREW

SUPPLY

FLANGE

WATER

SUPPLY PIPE

SWEAT

SOLDER ADAPTER

COVER TUBE

WALL

FLANGE

SET SCREW

AMeasure from finished

wall to first thread of

Adapter or threaded

supply pipe (dimension

“X”). Cut Cover Tube to

this length.

BSlide Cover Tube over

pipe. Slide Wall Flange

over Cover Tube until

against wall.

Tighten Set Screw with a 1/16” hex

wrench. DO NOT install Vandal

Resistant Stop Cap at this time.

With the exception of Control Stop Inlet, DO NOT use pipe

sealant or plumbing grease on any valve component or

coupling!

!!! IMPORTANT !!!

CONTROL

STOP CAP

Never open Control Stop to where the flow from the valve

exceeds the flow capability of the fixture. In the event of a

valve failure, the fixture must be able to accommodate a

continuous flow from the valve.

!!! IMPORTANT !!!

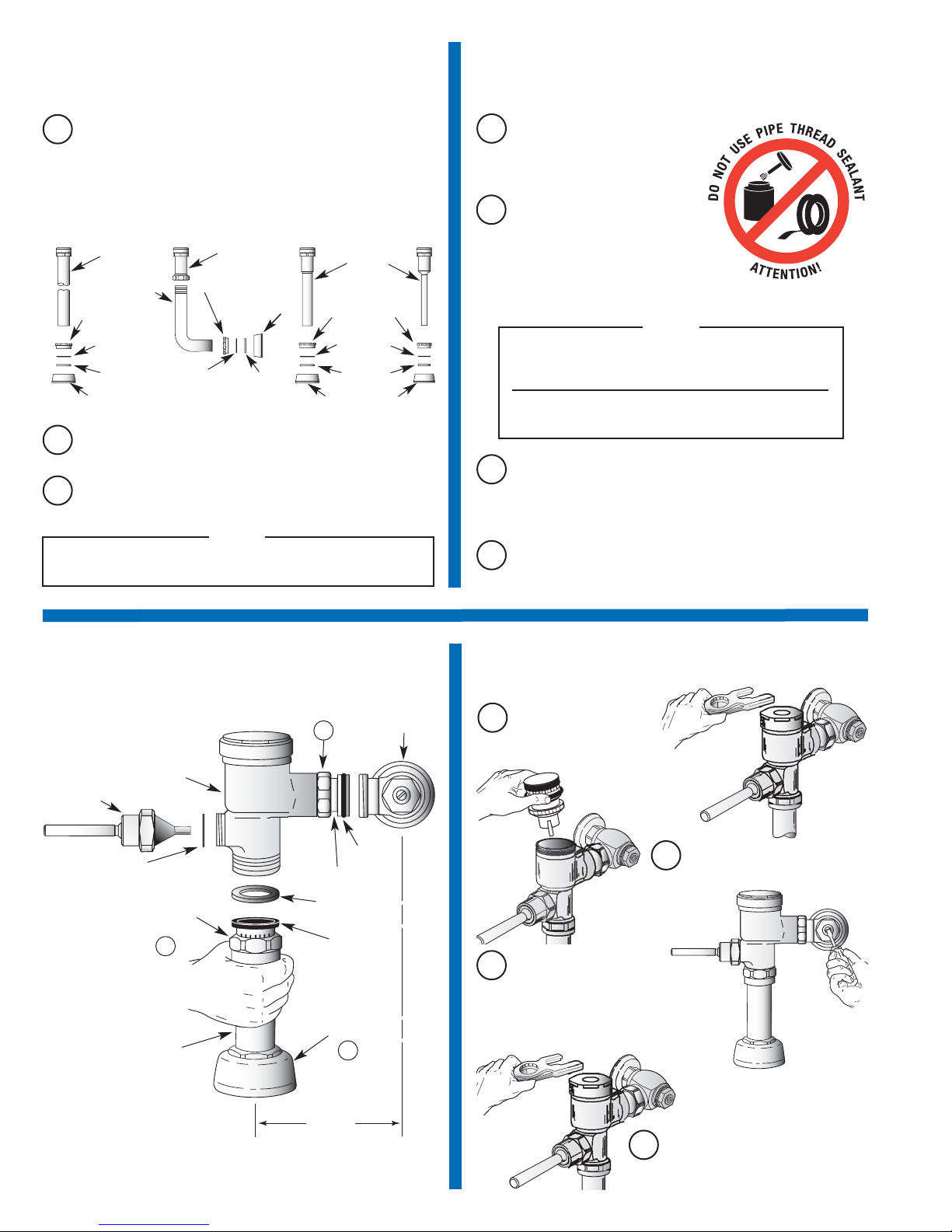

3Install Vacuum Breaker Flush

Connection

VACUUM

BREAKER

TUBE

SPUD COUPLING

NYLON SLIP

GASKET

RUBBER

GASKET

SPUD FLANGE

ASlide Spud Coupling, Nylon Slip Gasket, Rubber Gasket and Spud

Flange over Vacuum Breaker Tube.

BInsert Tube into Fixture Spud.

CHand tighten Spud Coupling onto Fixture Spud.

VACUUM

BREAKER

TUBE

SPUD COUPLING

NYLON SLIP

GASKET

RUBBER

GASKET

SPUD FLANGE

SPUD COUPLING

NYLON

SLIP

GASKET

RUBBER

GASKET

SPUD FLANGE

MODELS 110/111,

115, 136

MODELS 120,

121, 122, 137

MODEL 180 MODEL 186

ELBOW FLUSH

CONNECTION

4A Install Flushometer

4BInstall Flushometer (Continued)

CAlign Flushometer Body and securely tighten first the Tailpiece

Coupling (1), then the Vacuum Breaker Coupling (2), and finally

the Spud Coupling (3). Use a wrench to tighten these couplings in

the order shown.

BAlign Flushometer directly above

the Vacuum Breaker Flush

Connection by sliding the

Flushometer Body IN or OUT as

needed. Tighten Vacuum Breaker

Coupling by hand.

ALubricate tailpiece O-ring with

water. Insert Adjustable Tailpiece

into Control Stop. Tighten

Tailpiece Coupling by hand.

Maximum adjustment of the Sloan Adjustable Tailpiece is

1/2" (13 mm) IN or OUT from the standard 4-3/4" (121 mm)

(centerline of Flushometer to centerline of Control Stop).

If roughing-in measurement exceeds 5-1/4” (133 mm),

consult factory for longer tailpiece.

NOTE

TAILPIECE COUPLING CONTROL

STOP

FLUSHOMETER

BODY

VACUUM

BREAKER

COUPLING

ADJUSTABLE TAILPIECE

O-RING

G-44 FRICTION

RING

SPUD

COUPLING

C/L

FIXTURE

C/L

SUPPLY

VACUUM

BREAKER

FLUSH

CONNECTION

4-3/4”

(121 mm)

±1/2”

(13 mm)

5Flush Out Supply Line

AMake sure Control Stop

is CLOSED and remove

Flushometer Cover.

CInstall Flushometer Cover wrench

tight. Open Control Stop to flush

supply line. Close Control Stop

and remove Flushometer Cover.

BLift out Piston Assembly.

DReinstall Piston Assembly and

Flushometer Cover. Tighten

Flushometer Cover wrench tight.

VACUUM

BREAKER

On valves furnished less vacuum breaker (XYV Variation) connect flush

tube to the bottom of the valve using the slip gasket supplied.

NOTE

HANDLE

ASSEMBLY

GASKET

DIf not installed, install Handle Assembly with Gasket to handle

opening on Flushometer Body. Tighten Handle Assembly securely.

VACUUM

BREAKER

REPAIR

KIT

CONTROL STOP CAP

H-700-A BAK CHEK®CONTROL STOP

DInstall Vandal Resistant Control

Stop Cap onto Control Stop.

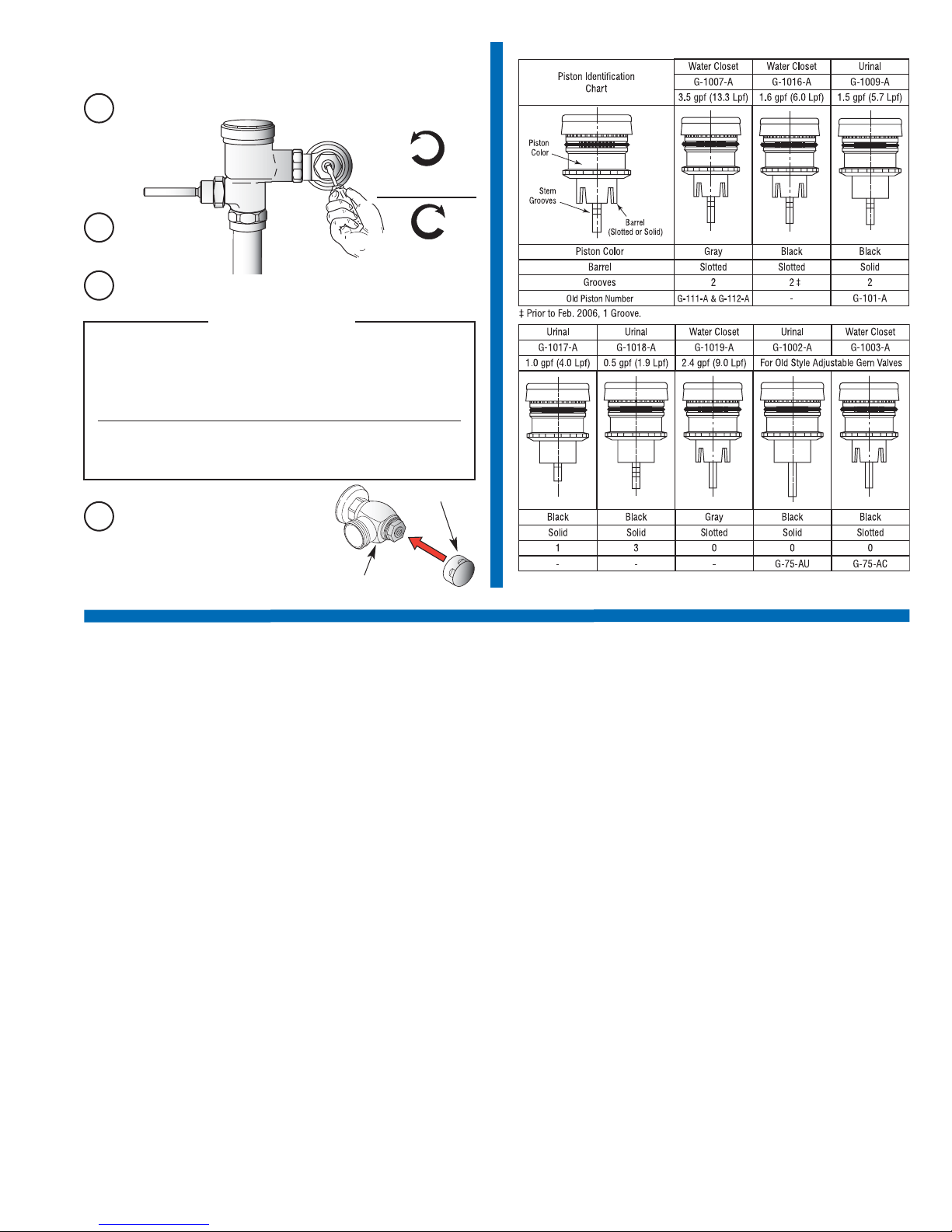

6Adjust Control Stop and Install

Vandal Resistant Stop Cap

BActivate

Flushometer.

AOpen Control Stop COUNTERCLOCKWISE 1/2 turn from closed

position.

CAdjust Control Stop after each flush until the rate of flow delivered

properly cleanses the fixture.

TURN COUNTER-

CLOCKWISE TO OPEN

TURN CLOCKWISE

TO CLOSE

TROUBLESHOOTING GUIDE

1. Valve does not function (no flush).

A. Control Stop or Main Valve is Closed. Open Control Stop or Main Valve.

B. Handle Assembly is worn. Replace Sloan Handle Assembly (G-143-A).

C. Relief Valve is worn and sticking in UP position. Replace Piston.

2. Volume of water is not sufficient to siphon fixture.

A. Control Stop not open enough. Adjust Control Stop for desired delivery of

water.

B. Urinal Piston Parts inside a Closet Flushometer. Replace Piston Parts with

proper Closet Piston.

C. Low Consumption Flushometer installed on a non-Low Consumption fixture.

Replace with proper Piston Kit.

D. Inadequate volume or pressure at supply. Increase water pressure or supply

(flow) to Flushometer. Consult Factory for assistance.

3. Length of flush is too short (Short Flushing) or Flushometer

closes off immediately.

A. Piston Assembly is not hand-tight. Screw the assembly hand-tight.

B. Enlarged Bypass orifice from corrosion or damage. Install NEW Inside Piston

Kit to correct problem and update Flushometer.

C. Urinal Piston in Closet Flushometer. Replace Piston with proper Closet Piston.

D. Low Consumption Piston installed in non-Low Consumption fixture. Replace

Piston with proper Closet Piston.

E. Handle Assembly is worn. Replace Sloan Handle Assembly (G-143-A).

4. Length of flush is too long (Long Flushing) or fails to close off.

A. Piston is not seating properly or Bypass orifice is clogged because of foreign

material, or Bypass orifice is closed by an invisible gelatinous film from

“over-treated” water.

Disassemble the working parts and wash thoroughly. NOTE: SIZE OF THE

ORIFICE IN THE BYPASS IS OF UTMOST IMPORTANCE FOR THE PROPER

METERING OF WATER INTO THE UPPER CHAMBER OF THE FLUSHOMETER.

DO NOT ENLARGE OR DAMAGE THIS ORIFICE. REPLACE PISTON IF

CLEANING DOES NOT CORRECT PROBLEM.

B. Line pressure has dropped and is not sufficient to force Relief Valve to seat.

Shut off all control stops until pressure has been restored, then open them

again.

C. 3.5 gpf Closet Piston has been used in a 1.0 or 1.5 gpf Urinal or on a 1.6 gpf

Toilet. Replace with proper Piston.

D. G-21 Main Seat is fouled with debris or is worn. Clean or replace G-21 Main

Seat.

5. Leaking at Handle Assembly.

A. The B-39 Seal is worn or deteriorated. Install new B-39 Seal. NOTE: The B-39

Seal will easily slide onto the Bushing if it is wet.

B. Handle gasket has been omitted. Replace Sloan Handle Assembly (G-143-A).

C. Valve Handle Bushing is worn. Replace Sloan Handle Assembly (G-143-A).

Refer to the GEM•2 Flushometer Maintenance Guide for additional

Troubleshooting and Repair Part information.

When assistance is required, please contact Sloan Valve Company

Installation Engineering Department at:

1-888-SLOAN-14 (1-888-756-2614) OR 1-847-233-2016

CARE AND CLEANING OF CHROME AND SPECIAL

FINISHES

DO NOT use abrasive or chemical cleaners (including chlorine bleach) to

clean Flushometers that may dull the luster and attack the chrome or special

decorative finishes. Use ONLY mild soap and water, then wipe dry with clean

cloth or towel.

While cleaning the bathroom tile, protect the Flushometer from any

splattering of cleaner. Acids and cleaning fluids will discolor or remove

chrome plating.

The Sloan Gem•2 Flushometer is engineered for quiet operation.

Excessive water flow creates noise, while too little water flow may not

satisfy the needs of the fixture. Proper adjustment is made when

plumbing fixture is cleansed after each flush without splashing water out

from the lip AND a quiet flushing cycle is achieved.

Never open Control Stop to where the flow from the valve exceeds the

flow capability of the fixture. In the event of a valve failure, the fixture

must be able to accommodate a continuous flow from the valve.

!!! IMPORTANT !!!

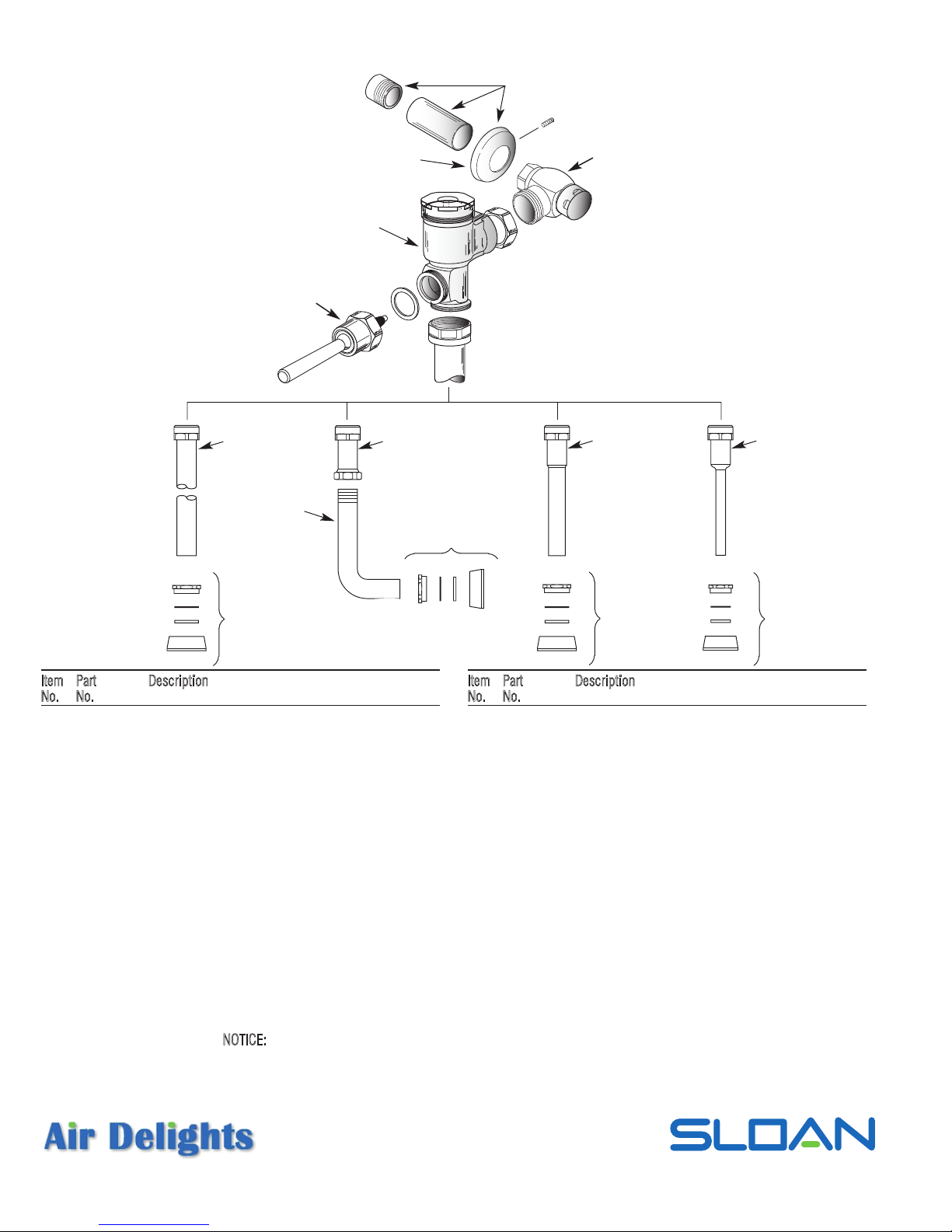

PARTS LIST

8 §

Item Part Description

No. No.

1 † Valve Assembly

2 G-143-A Handle Assembly

3 H-700-A Bak-Chek ®Control Stop

4A V-500-AA 1-1/2" (38 mm) x 9" (229 mm) Vacuum Breaker

Assembly CP (Model 110/111) ‡

V-500-AA 1-1/2" (38 mm) x 21-1/2" (546 mm) Vacuum Breaker

Assembly CP (Model 115) ‡

4B V-500-AA 1-1/4" (32 mm) x 9" (229 mm) Vacuum Breaker

Assembly CP (Model 180) ‡

4C V-500-AA 3/4" (19 mm) x 9" (229 mm) Vacuum Breaker

Assembly CP (Model 186) ‡

4D V-500-A 1-1/2" (38 mm) Vacuum Breaker Assembly CP ‡

Item Part Description

No. No.

5 F-109 1-1/2" (38 mm) Elbow Flush Connection

6A CR-1010-A 1-1/2" (38 mm) Spud Coupling Assembly

(Models 110/111, 115, 120, 121 & 122)

6B CR-1009-A 1-1/4" (32 mm) Spud Coupling Assembly

(Model 180)

6C CR-1008-A 3/4" (19 mm) Spud Coupling Assembly (Model 186)

7 F-7 Supply Flange (Supplied when Valve is Not Ordered

with Sweat Solder Kit)

8 H-633-AA 1" (25 mm) Sweat Solder Kit with Cast Set Screw

Flange (YBYC Variation) §

H-636-AA 3/4" (19 mm) Sweat Solder Kit with Cast Set Screw

Flange (YBYC Variation) §

6B 6C

4A ‡4D ‡4B ‡4C ‡

† Part number varies with valve model variation; consult factory.

‡ If valve was specified less vacuum breaker (XYV variation), a straight flush tube is supplied in place of the vacuum breaker assembly. Consult Factory for part

number.

§Furnished only when ordered with YBYC variation.

For a complete listing of GEM•2 Flushometer Valve Components and Repair Kits, refer to the Maintenance Guide or consult your nearest plumbing wholesaler.
