SLIK SH-806E Manuel utilisateur

Components

J048

SH-806E,807E

Operating Instructions

Thank you very much for choosing SLIK Pan head.

SLIK Corporation has designed your pan head to be a sturdy,

rugged, dependable product that will provide you with many years of

satisfactory use.

Please take a few moments to read this operating instruction careful-

ly before use so that you can take full advantage of your Pan head's

many fine features.

Retain this operating instruction in case you might want to refer back to it.

Caution

This caution icon refers to information pertaining to important safety

procedures in preventing injuries, or damages which may occur as a

result of mishandling this product.

Prohibition

This prohibited icon refers to information pertaining to prohibited con-

tents. Please refer to instructions closely to avoid accidents.

Specification

SH-807E

Height 150mm

(5 11/12")

Weight 1.0 kg

(2lbs 4oz)

Camera mounting screw U1/4

Tripod mounting screw U3/8

SH-806E

Height 134mm

(5 1/3")

Weight 0.7kg

(1lbs 9oz)

Camera mounting screw U1/4

Tripod mounting screw U1/4

This product has been designed to

handle equipment weighing under

5 kgs (11 lbs). Do not overload.

Some equipments weighing under

5 kgs (11 lbs), such as long lenses,

may not balance well due to its

weight distribution. In such case,

please use a larger Panhead.

Equipment that can be

loaded on this pan head

Carrying the tripod

Carrying a tripod with a camera

left on can result in unexpected

accidents. We therefore,

recommend you to remove your

camera while carrying the tripod.

Prohibition

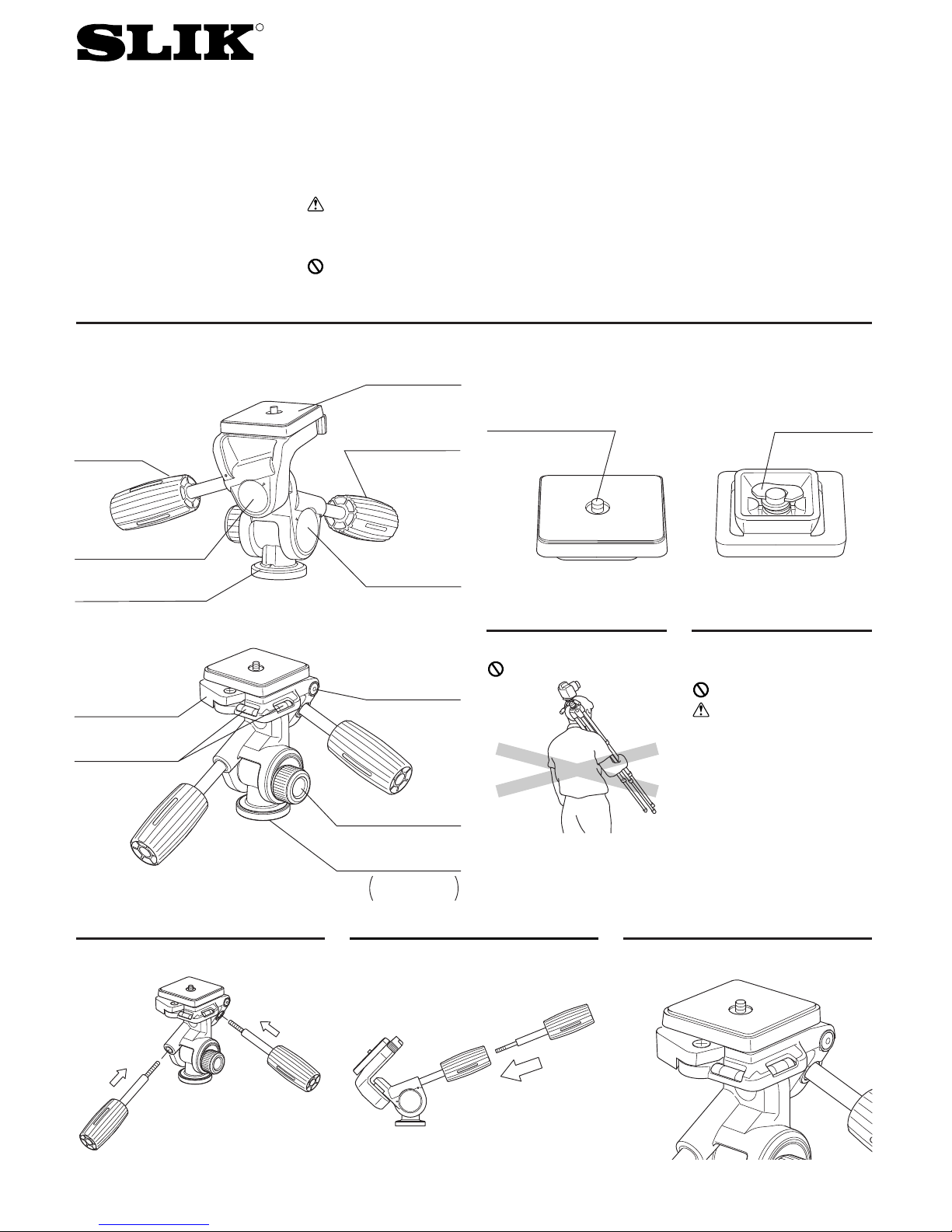

Install the panhandle

Panhandle are installed as shown.

There is not difference in length between the

panhandle. Panhandle is installed in both side.

Camera mounting

plate

Vertical tilt

handle Pan & tilt handle

Built-in level

Panning lock knob

Built-in level

Tripod mounting screw

Tilt scale

Horizontal tilt scale

Pan scale

SH-806E:U1/4"

SH-807E:U3/8"

Quick release

lock lever

Prohibited

Caution

Remove the vertical tilt handle from the

panhead, and screw into the back of the pan &

tilt handle.

Storage Built-in level

Camera mounting screw Mounting wing nut

Adjust the built-in level to fit into the middle.

Printed in Thailand.

Care of the Tripod

・DO NOT apply any grease or oil to this product.

・Clean with a mild detergent and a soft cloth only.

・DO NOT use close to flame. Avoid extreme heat.

Slik Corporation reserves the right to make changes in design and/or improvements on the products without any obligation and advanced notice.

SLIK CORPORATION

OIL

THINNER

Use the following instructions if you wish to change to another heads, or

attach accessories.

First, lock the panning lock knob, then grasp the pan, or vertical tilt handle

and turn the head, counter-clockwise to loosen.

Removing the pan head from the center column

Set the new head, or accessory on the tripod's threaded post, and turn

clockwise until it comes to a stop. Tighten the panning lock knob and turn

clockwise slightly more.

Setting the pan head from the center column

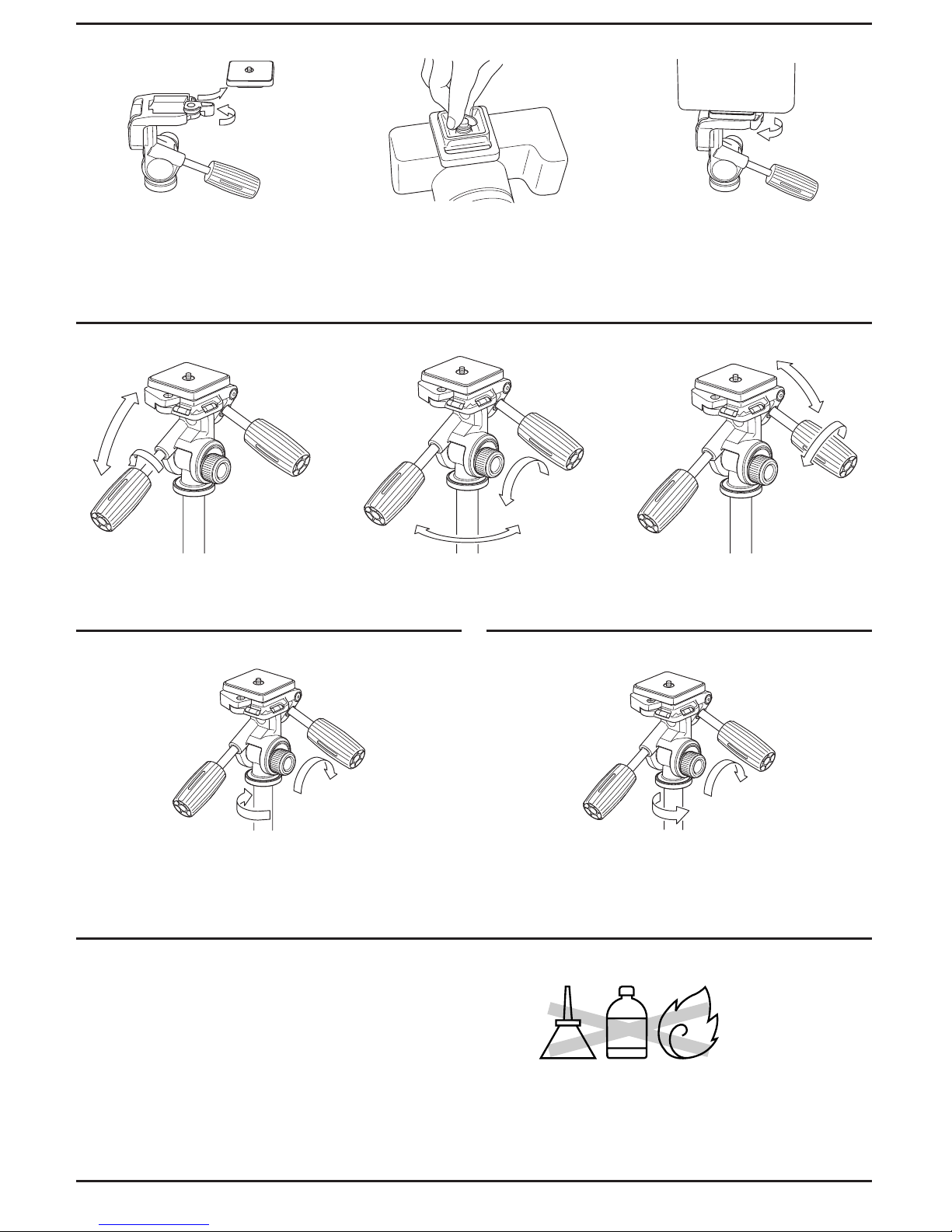

Using the pan head

Loosen the pan & tilt handle, and the head will

tilt back and forth.

Loosen the panning lock knob, and the head will

rotate along the horizontal direction.

Loosen the vertical tilt handle, and the level

can be adjusted.

Remove the quick release platform turning the

lock lever.

In this case, please do not put the lock lever

back by force as it has been stood by the

stopper.

Attaching the camera to the quick release platform

Align the length of the platform along the base

of the camera body, and securely tighten the

mounting wing nut.

When you fix this quick release platform to pan

head, the quick release lock lever will return to

the original position automatically.

We, however, recommend you to tighten this

lever more to secure the fixing.
