Sliger CL530 Manuel utilisateur
CL530
Console Style Mini-ITX PC Case for 3-slot GPU

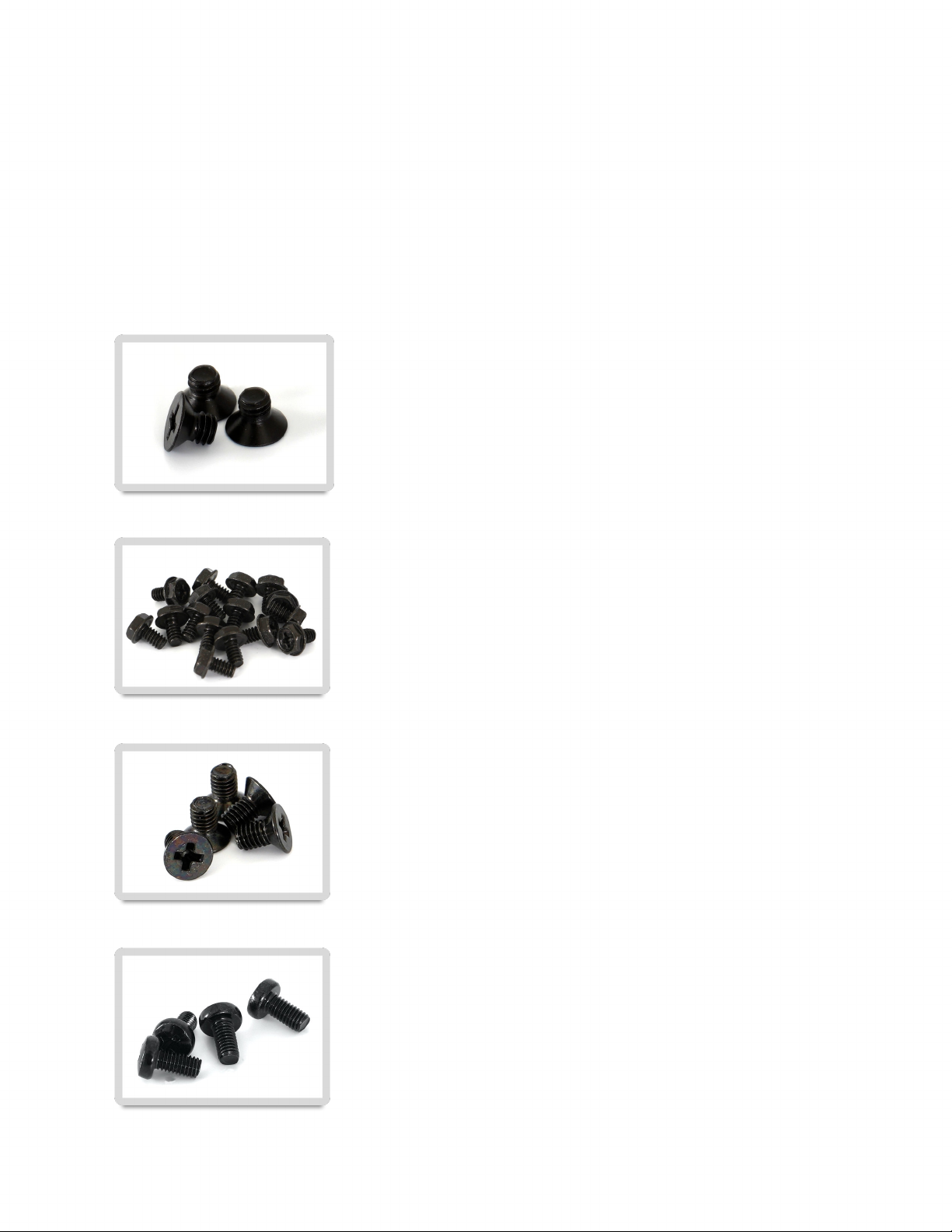

SCREWS
CYAN M4 .7 x 5mm FLAT HEAD
Base Plate
Other Exterior Brackets
VIOLET 6-32 x 1/4” HEX HEAD
Motherboard
Power Supplies
PCI-E Riser
RED M3 x 5mm FLAT HEAD
Power Cord Mount Bracket
SSDs
GREEN M3 x 6mm PAN HEAD
Securing PCIe Cards
The CL530 comes with a total of 8 dierent screws. For the
purposes of this guide we will assign a unique color to each
of the screw to signify their locations through out this guide.
PINK M3 x 8mm FLAT HEAD
Power Cord

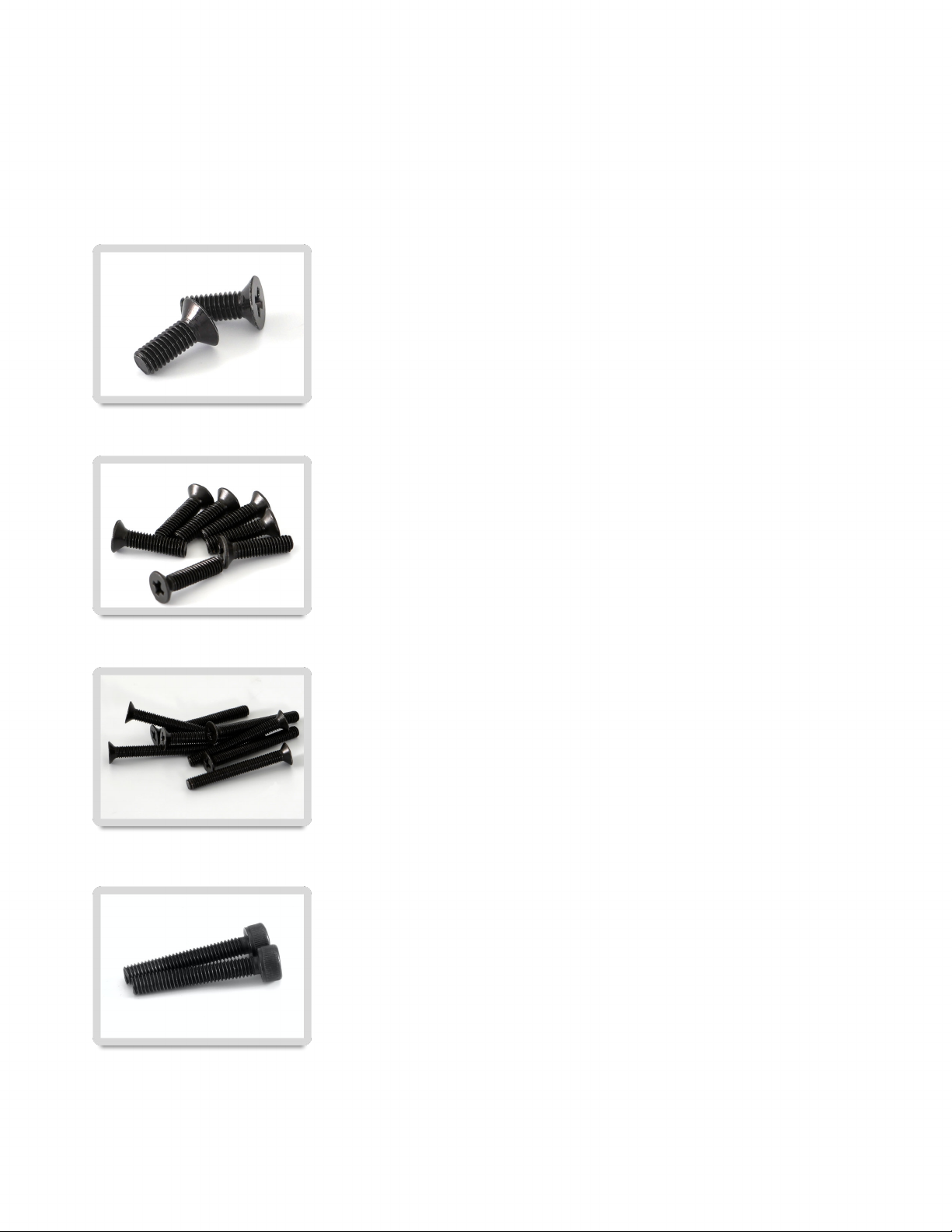

SCREWS Cont.
BLUE M3 x 25mm FLAT HEAD
25mm Fans
Fan Bracket
YELLOW M3 x 12mm FLAT HEAD
15mm Case Fans
Fan Bracket
GREY M3 x 25mm SOCKET CAP
Case Handle

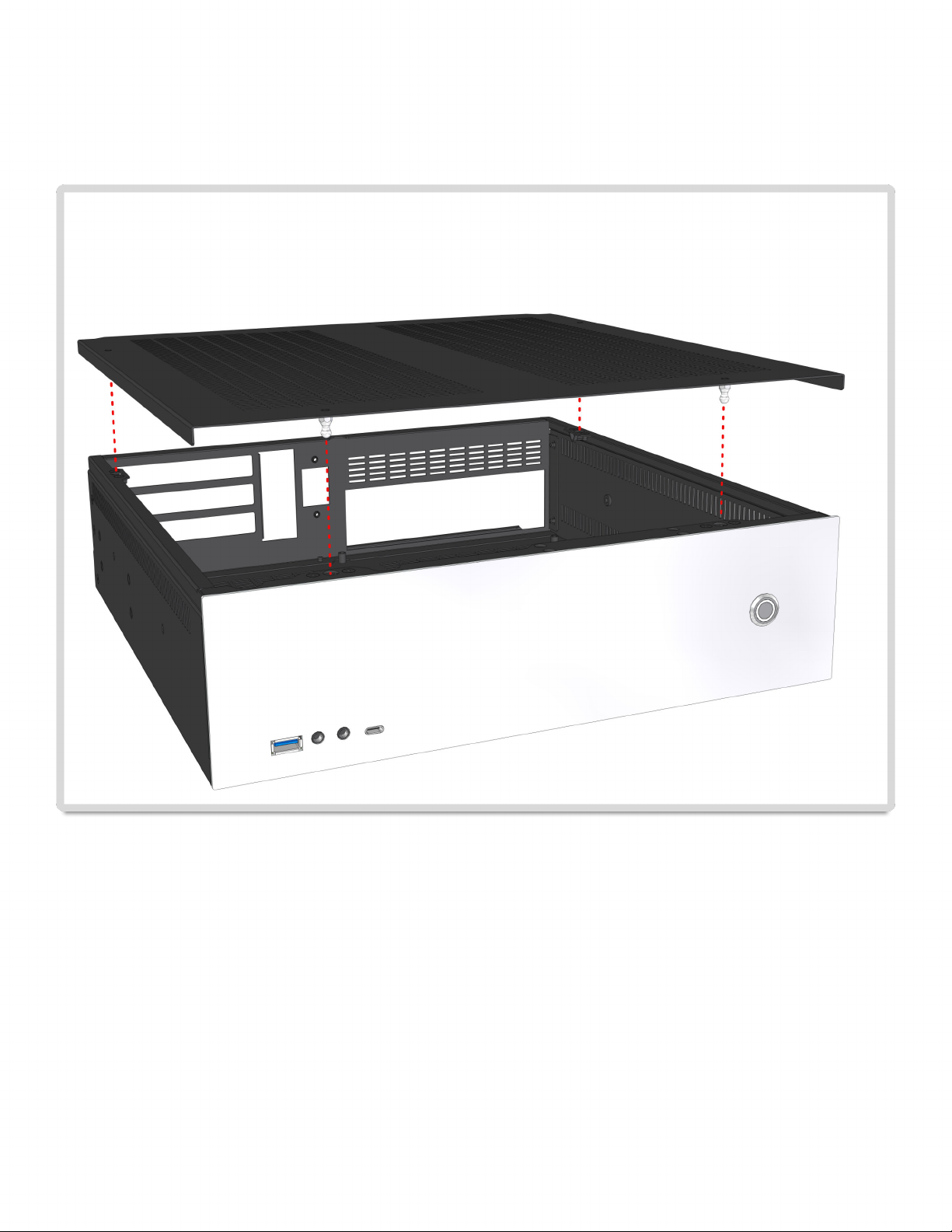

TOOL-LESS TOP PANEL
The CL530 top features tool-less removal via ball-stud mounting points. Grasp the lip on the
rear of the cover panel and pull upward to remove. The front ball studs may require altering
the angle you are pulling from to release.
Note: This panel may be very tight on the rst few times on/o! Use caution with using
extreme force to avoid damage.

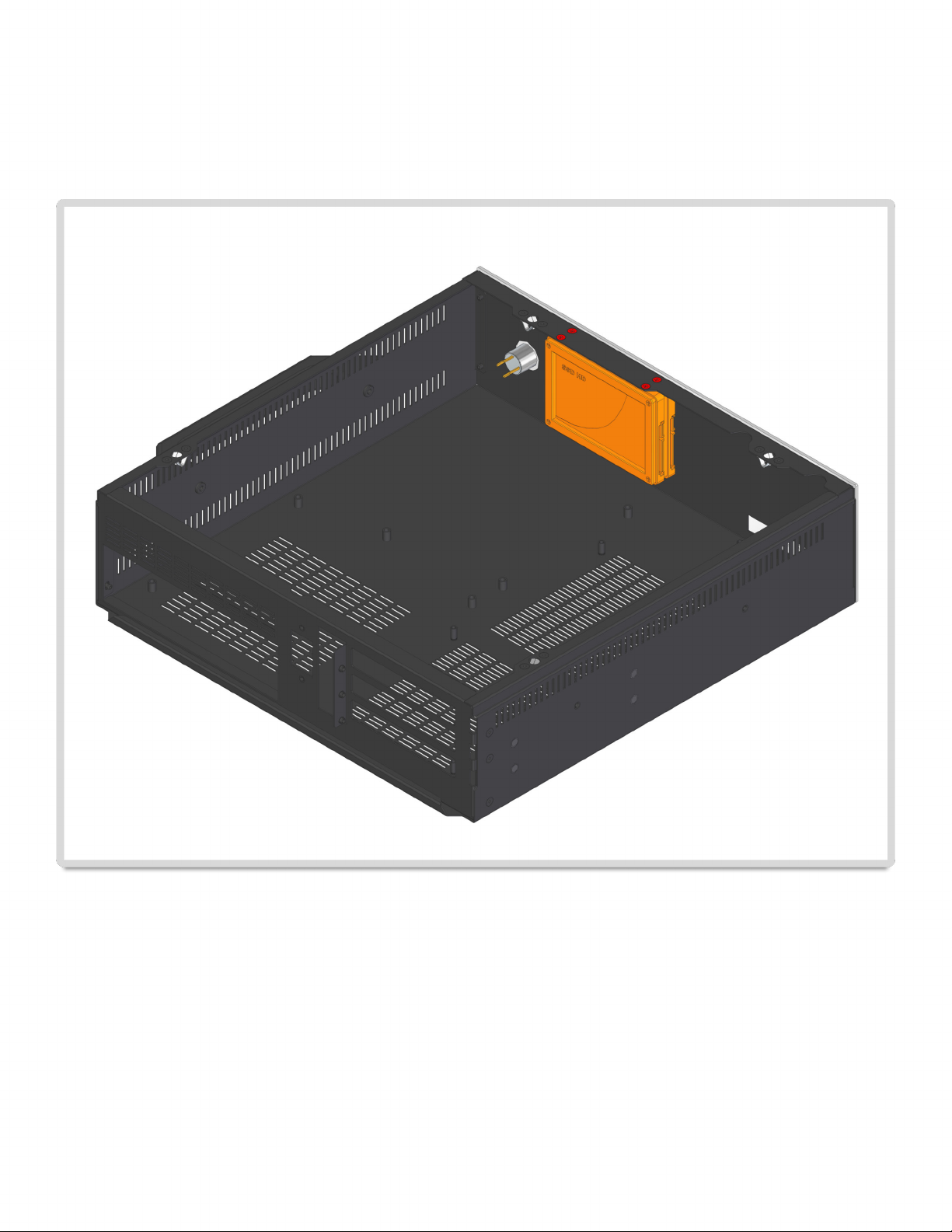

SSD MOUNTING
The CL530 can t 2 x 2.5" SDD, located beside the power switch. Attach
drives with 2x
M3 x 5mm FLAT HEAD.
Note: We recommend connecting the SATA data cable and power cable
prior to screwing drives to chassis.

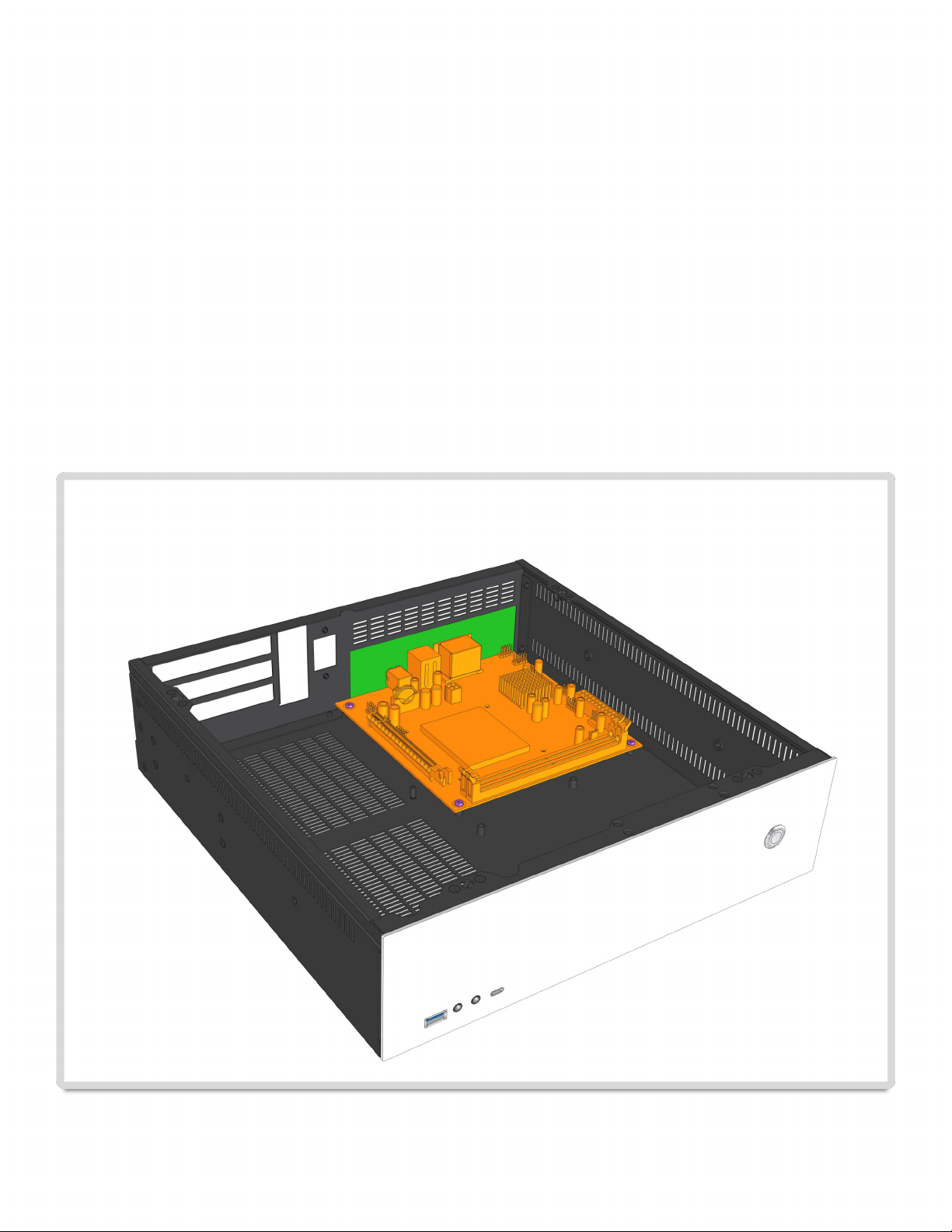

MOTHERBOARD
Don’t forget to install your IO shield rst!
Some CPU coolers may require a back plate to be installed before installing the
motherboard into the case. It is advised to also check that any M.2 drives on the back of
the motherboard are installed before mounting the motherboard. Once the IO shield is
properly installed the motherboard can be mounted using
4x 6-32 x 1/4” HEX HEAD screws.
A Phillips #2 screw driver with a minimum 3” shaft length is recommended for installing
these screws.
NOTE: Make sure your CPU heatsink and fan is less than 75mm tall.

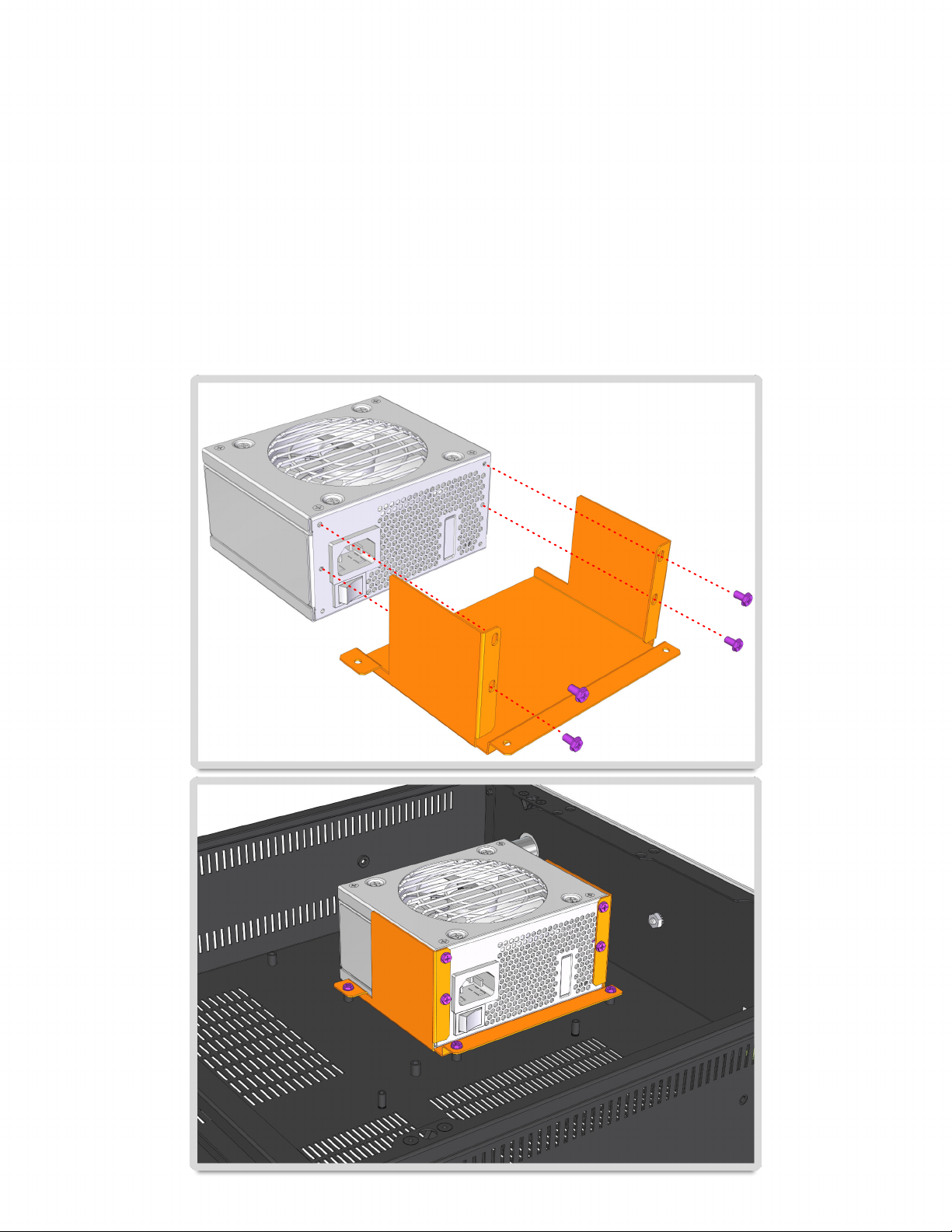

POWER SUPPLY
Remember to connect all required modular power cables FIRST
The power supply is required to be positioned with the fan side towards the
top of the case.
Once positioned, the SFX PSU can be attached to the PSU Mounting Bracket
with up to 4x 6-32 x 1/4” HEX HEAD screws. The mounting bracket can then
be mounted to case with 3x 6-32 x 1/4” HEX HEAD screws.

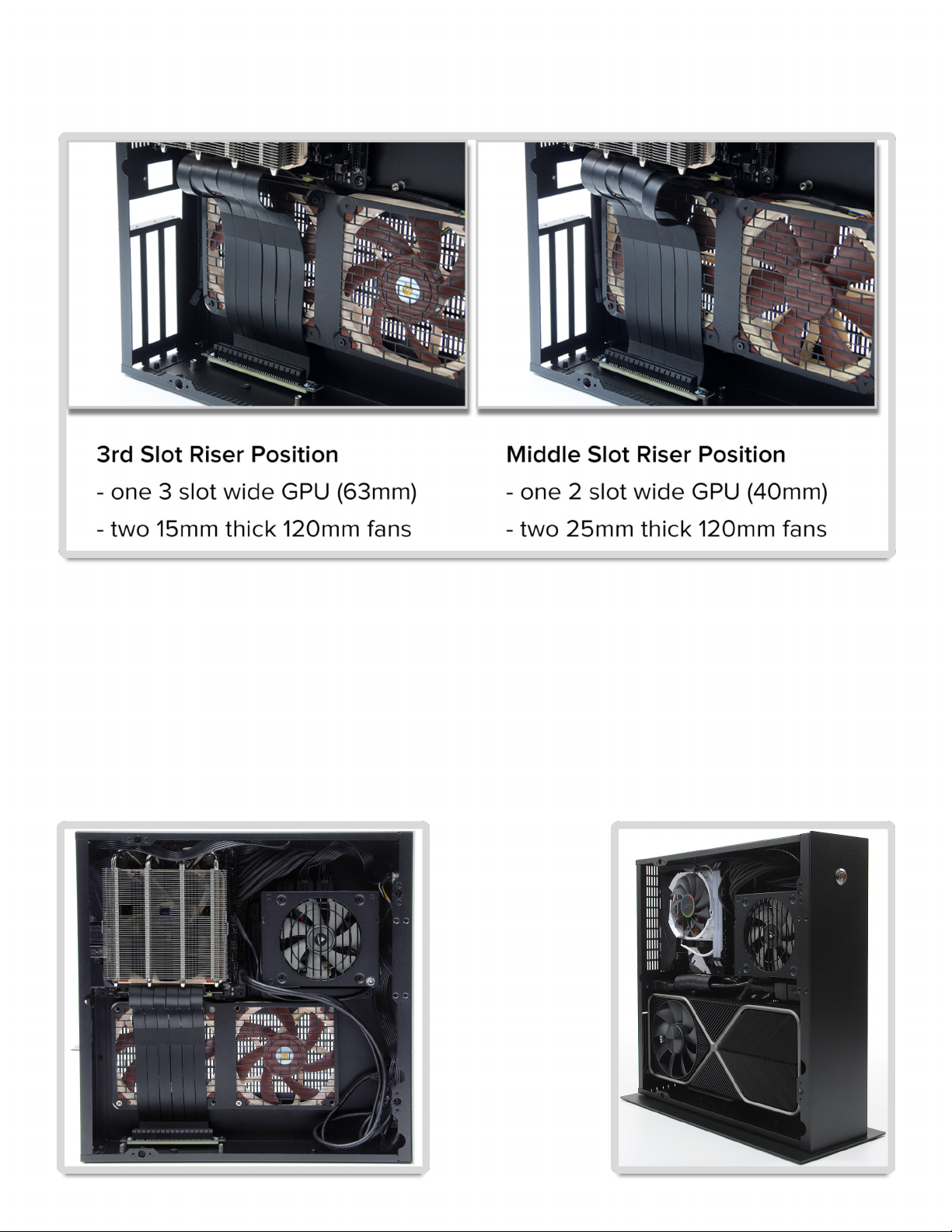

Using 15mm fans allows for 3-slot GPUs to t while also having the option to use a 2-
slot GPU in either the rst PCIe slot, or second PCIe slot for increased air ow.

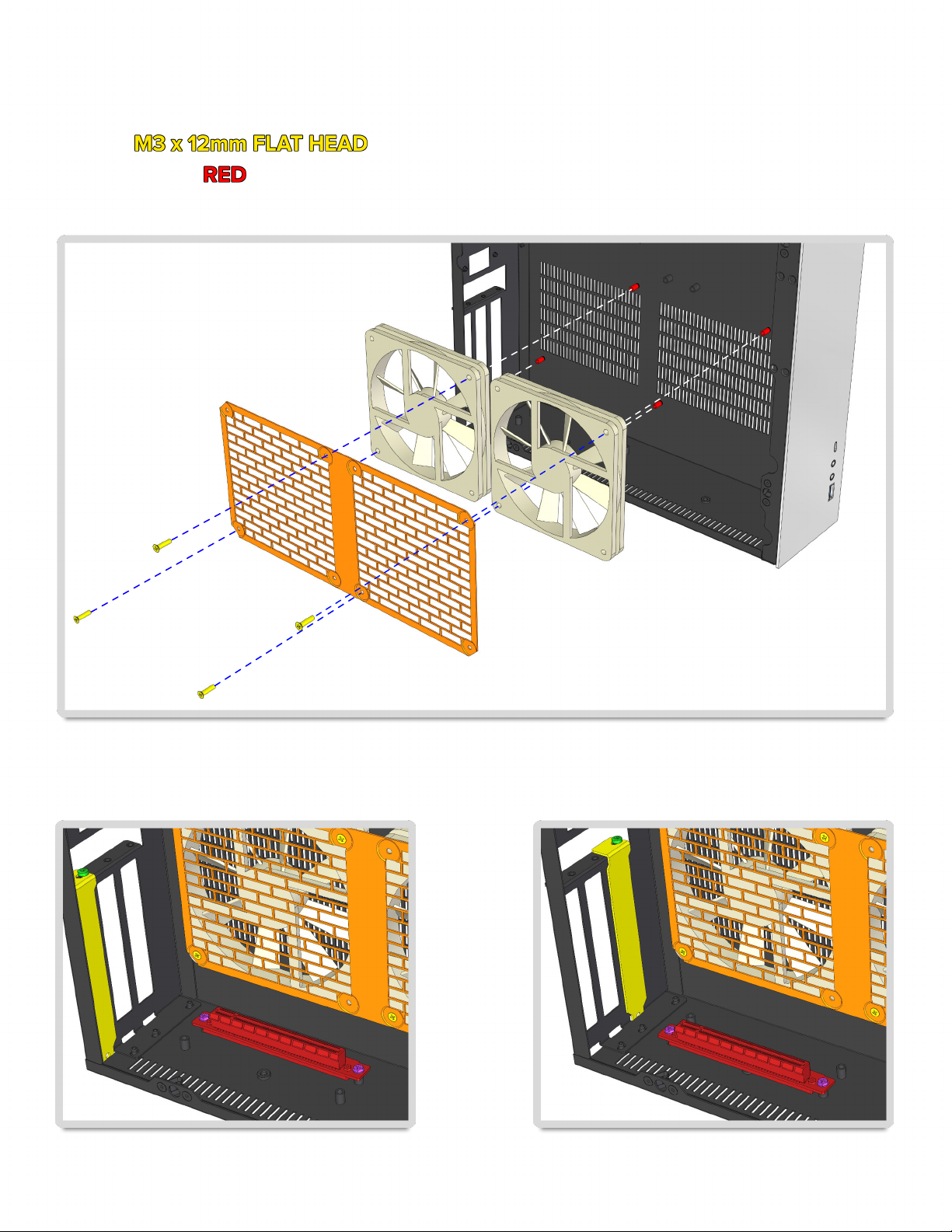

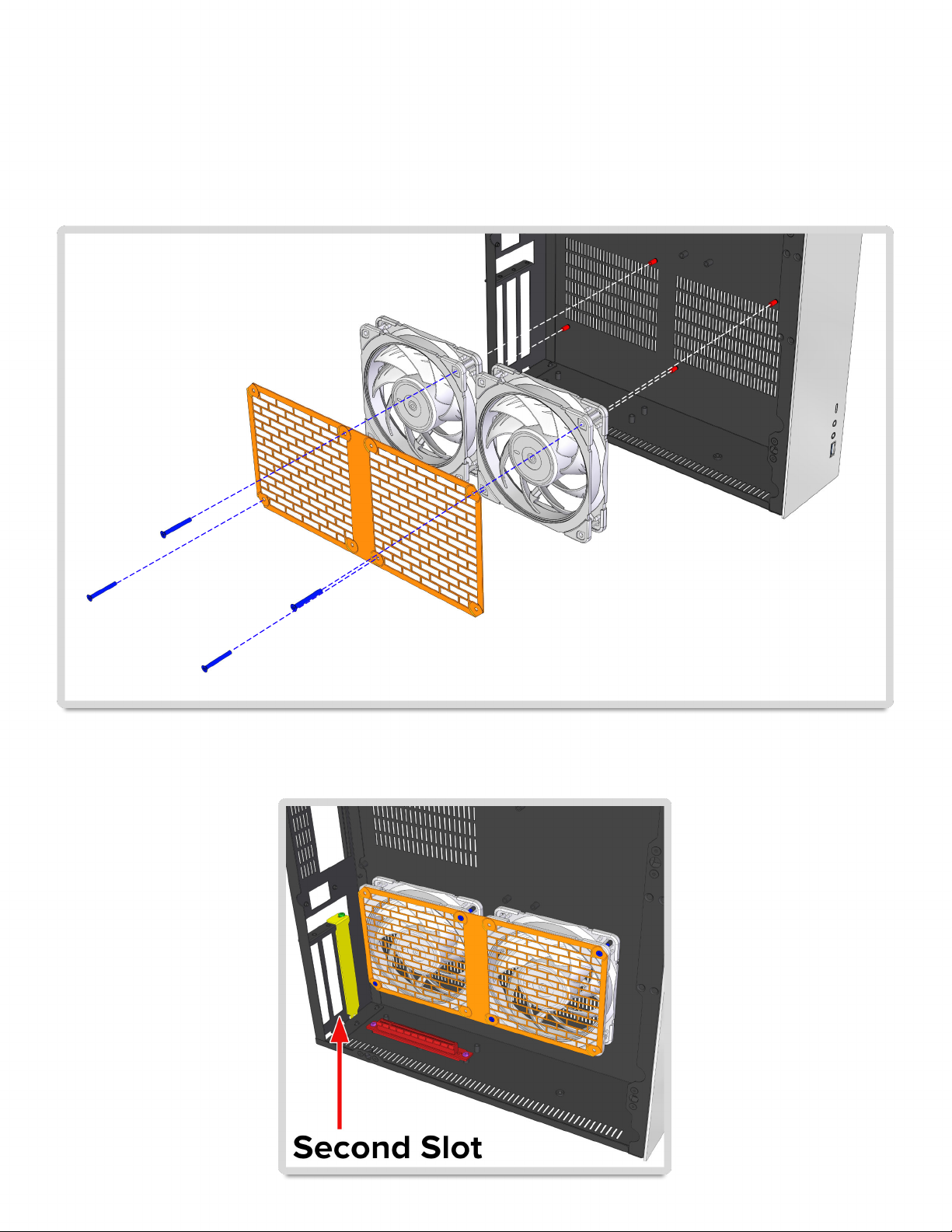

INSTALLING 15mm CASE FANS
Use 4x M3 x 12mm FLAT HEAD screws to attach the fan guard. Place fans into chassis
sliding in the RED fan studs. Follow the proper orientation of the fan guard in photo
below. NOTE: Fans MUST exhaust air out of the case.
First Slot Second Slot
First Slot
Note: Using 25mm fans in CL530 will only allow for a 2-slot GPU to t.
INSTALLING 25mm CASE FANS
Use 4 x M3 x 25mm FLAT HEAD screws to attach the fan guard. Make sure to follow
the proper orientation of the fan guard in photo below.
NOTE: Fans MUST exhaust air out of the case.
GPU MOUNTING
Process of installing the GPU is same it would be on a standard PC case, just on a PCIe
riser. Slide the card into position, push down into the slot, and then secure the PCIe card
bracket with the M3 x 6mm PAN HEAD screws.
If your GPU only has a 2-slot wide PCIe bracket. The CL530 includes a single color
matched slot cover.
