Industrial 85
Assembly Guide
CONGRATULATIONS ON YOUR PURCHASE
An exceptional system, delivering 150 Inch water lift* and 10,000 Litres per minute
air flow.* Capable of accessing gutters up to 12m / 40 feet / 4 stories in height, the
skyVac Industrial 85, comes with a lightweight, carbon fibre pole system, along with
an array of tools, to tackle the contents and shape, of every gutter challenge.

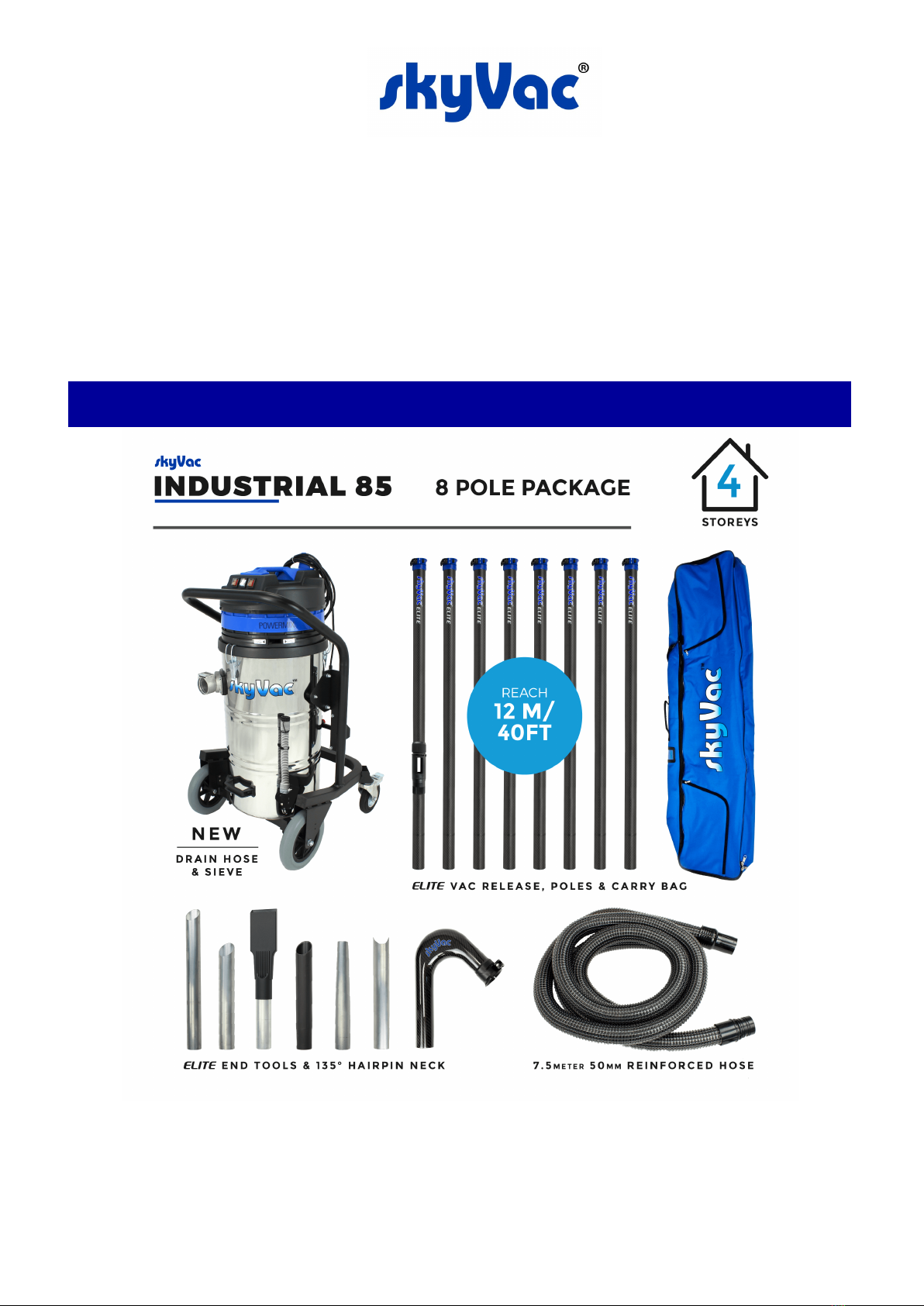

MAXIMUM 8 POLE HEIGHT
Pole number will vary, depending on height package purchased.
*LIGHT DEBRIS SETTING: 10,000 LPM / 95 Inch Water Lift.
HEAVY DEBRIS SETTING: 8,600LPM / 150 Inch Water Lift

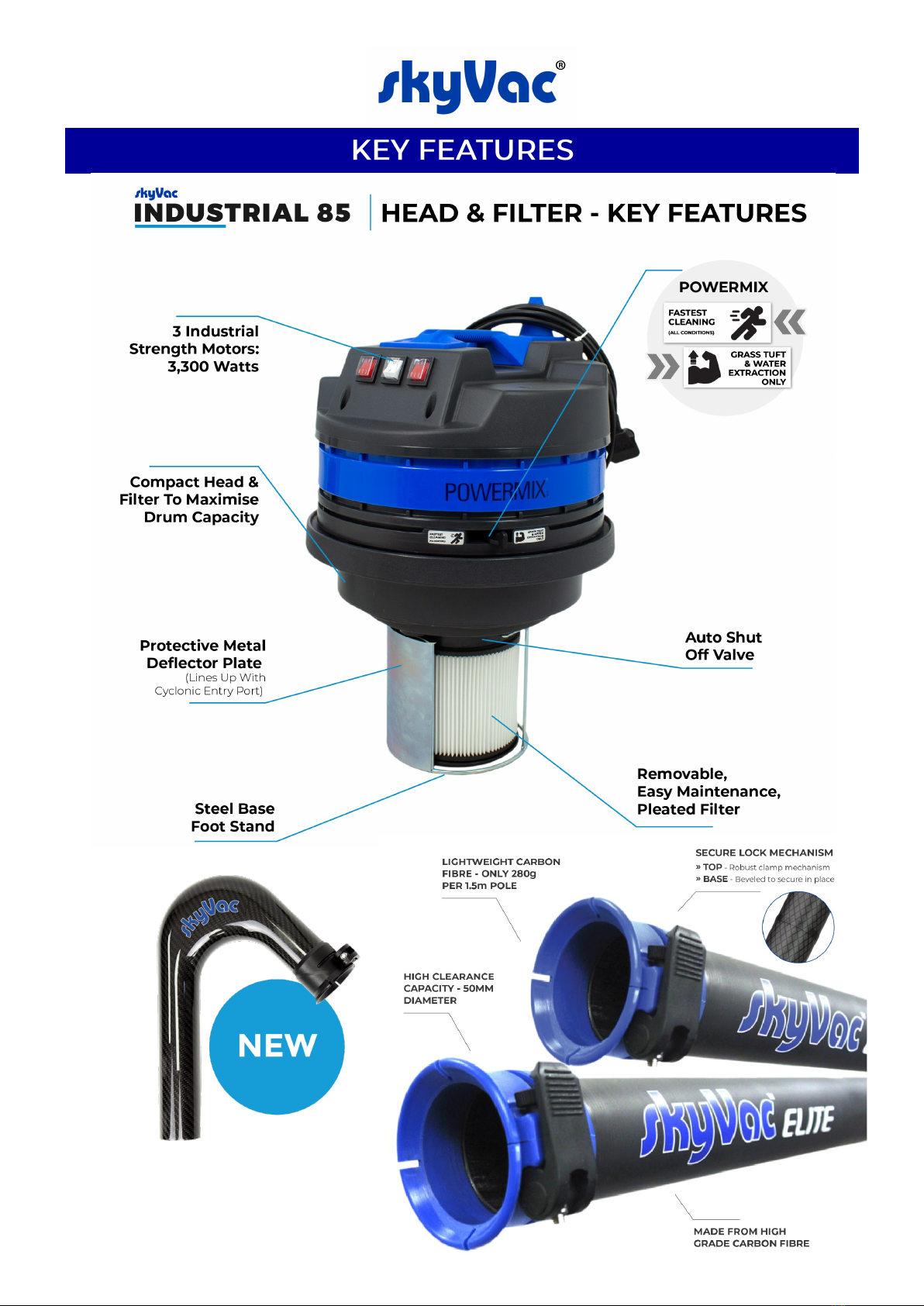

skyVac® Elite Drum with
Darin Hose & Sieve Basket
skyVac® Elite Hairpin Neck
Tool Holder : UK Design
POWERMIX LEVER
For the RIGHT suction power for each job – at the flick of a switch.
Our unique, patented “Power Mix” system, reconfigures the power supply, from parallel to series,
to deliver an unprecedented 150 Inch Water lift, on the HEAVY DEBRIS setting, which is +50%
higher than the standard 3 motor, wet and dry machines.
KEEP RIGHT: Use “FASTEST CLEANING” as your
standard setting.
FAST, EVERYDAY GUTTER
CLEARANCE.
USE AS STANDARD SETTING
FOR STUBBORN BLOCKAGES
AND WATER REMOVAL.
SHORT TERM USE ONLY.
TO PREVENT THE MOTORS
FROM OVERHEATING.
FASTEST CLEANING: GRASS TUFT & WATER EX-
TRACTION ONLY:
POLE / TOOL ASSEMBLY INSTRUCTIONS
Insert your chosen Elite
End Tool, into the
clamped end of the Elite
Hairpin Neck Tool and
close the clamp.
STEP 1:
STEP 2:
Open the clamp on the top
of the Elite pole and insert
the Elite, Hairpin Neck Tool.
Close clamp to secure.
STEP 3:
Adjust tension of clamp
if needed, by turning it
clockwise and close the
clamp.
POLE / TOOL ASSEMBLY INSTRUCTIONS
STEP 4:
Build poles up to your
desired height, by slotting in
each pole, up to the positive
stop.
We recommend resting the
poles against the side of the
building you will be cleaning,
to achieve the required height.
STEP 5:
NB: Always fit the Vac
Release Pole, as your
base pole
Open clamp and insert pole, up to the positive stop marking and no further. Adjust
tension of the clamp and close.
ASSEMBLY INSTRUCTIONS
STEP 6:
Screw the Soft Cuff onto
the end of the Flexi Hose,
then onto the bottom of
the Elite Suction Pole.
STEP 7:
Insert the Hard Flexi Hose
Cuff, into the Vacuum Port
- you will hear a click, once
it is secured.
STEP 8:
Start Machine:
FIRST: Switch on Middle /
white button.
Then activate either / both
red buttons, dependant on
power required.
Central motor must always be
switched on during use.
POLE / TOOL ASSEMBLY INSTRUCTIONS
VAC RELEASE POLE:
Place the end tool on the grass tuft and lift
away from the gutter. Open up the Vac Re-
lease door, to release the suction, this will
release grass from the end tool.
IMPORTANT: Ensure you can drop the grass
safely to the ground.
Control suction with a simple twist of the cuff, with the Vac Release Pole. This innovative and ultra
-lightweight carbon fibre pole, enables the operator to safely and efficiently release gutter debris,
without having to lower poles, or cut vacuum power.
HOW TO USE:
EMPTYING YOUR MACHINE
DRAIN HOSE:
To remove liquid from the base
of the drum, unclip the hose
from the base of the drum, un-
cork the drain hose cap.
Pour the contents into a drain.
Ensure the hose cap is securely
fastened to the drain hose after
use.

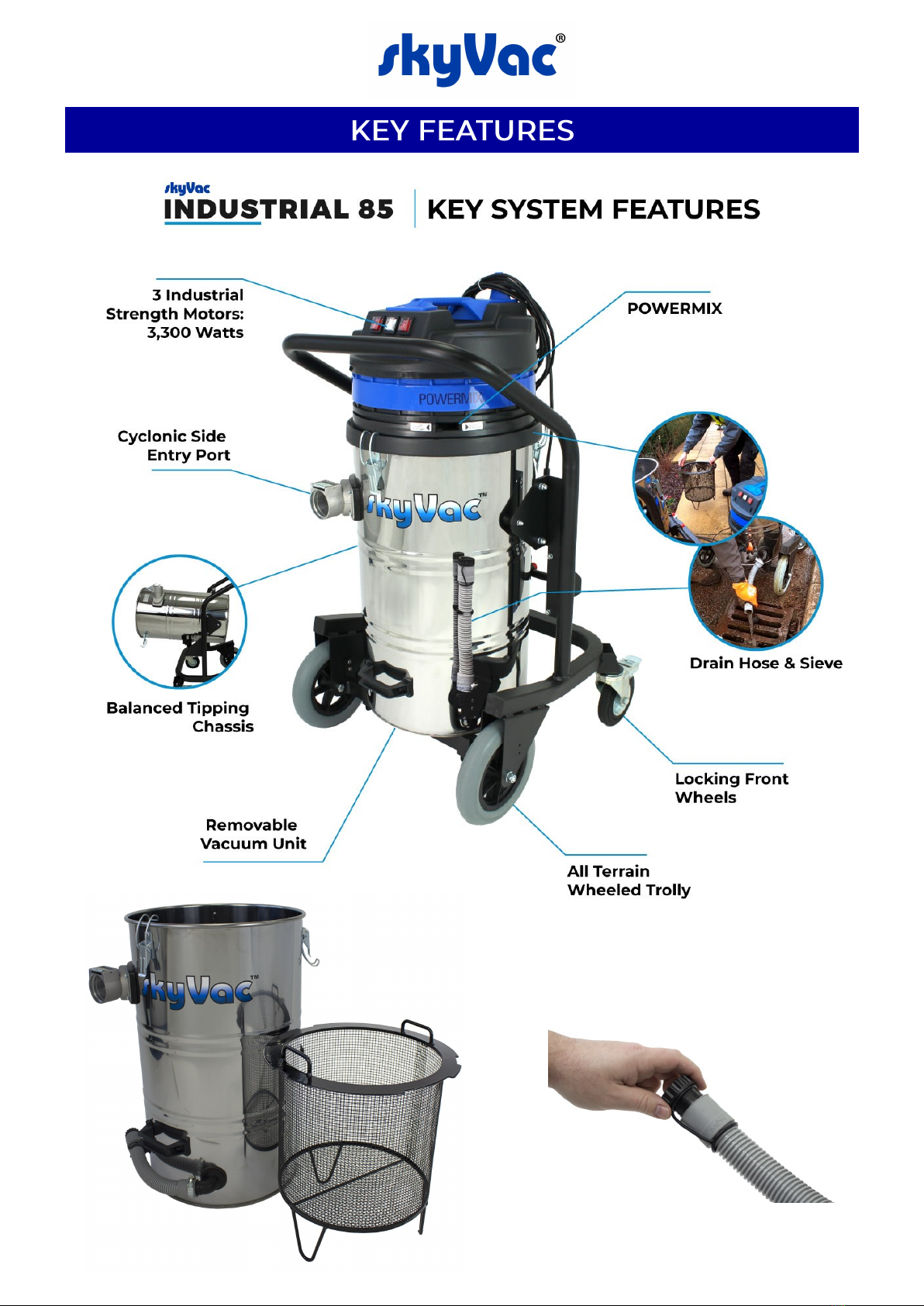

The skyVac® Industrial now features a Drain Hose and Sieve Basket, a more flexible and
user friendly approach, to gutter waste disposal. These additions separate the gutter
contents into liquid and organic matter.
DRAIN HOSE
STEP 1:
SIEVE BASKET
To access the sieve basket,
remove the Vac head.
Unclip the side clamps on-
to both sides of the drum.
To undo, place your hand
under the base of the clip,
and pull, up and out.
STEP 2:
