SkyTraxx 3.0 Supplément

skytraxx 3.0

Short Guide

High-performance ﬂight instrument

with real-time variometer technology

www.skytraxx.eu

skytraxx 3.0

High-performance ﬂight instrument

with real-time variometer technology

We are pleased that you have decided to purchase a SKYRAXX ﬂight instrument

and thank you for the conﬁdence you place in our products.

The SKYTRAXX 3.0 is the new top product developed on the basis of the revoluti-

onary SKYTRAXX concept, which is already used in thousands of devices around

the world to great success. It offers all the functions you could expect from a mo-

dern ﬂight instrument and combines maximum usability, reliability, long battery

life, very compact size and a reasonable weight.

We now hope to provide the top level of support to demanding pilots while in

ﬂight with easy-to-use, ﬂexible customisation options, which can be adapted to

your ﬂying style, your preferences, requirements and current conditions.

We hope you have fun ﬂying with the SKYTRAXX 3.0.

Michael Blank, Managing Director, Dr. (Eng.) Jürgen Eckert, Chief Developer at

SKYTRAXX GmbH

Foreword

The pilot is at the centre of all advancements made at SKYTRAXX. Our products

are the result of our own passion for ﬂying and our continual contact with count-

less pilots around the world – from beginners to professionals at the top of their

league.

We will accept nothing less than perfection in functionality and technology and

make use of intuitive user interfaces, which are desgined with the demands of

day-to-day ﬂying in mind. We intend for our products to provide the very best

support mid-air.

Our high standards are achieved using ﬂexible concepts perfected over time, only

using top-quality components, an outstanding team, creativity and sheer love for

what we do. Maintaining a good balance between what is technically possible

and what is meaningful for real-life ﬂying is just as important to us as close con-

sultation with our regional component manufacturers and ongoing contact wih

our customers.

SKYTRAXX

> Very extensive functions

> Exceedingly reliable and easy-to-use

> Outstanding colour display with automatic brightness adjustment

> Accelerometer-supported real-time variometer technology

> Customisable display pages

> Quick, precise and secure navigation

> Extensive map functions

> Highly-precise, latest generation sensor system and GPS module

> Optimised power management

> Enhanced airspace display in accordance with ICAO map

> Pre-installed airspace data

> Airspace information with current ﬂying altitude

> AGL function with altitude data

> Integrated worldwide take-off/landing site database

> File manager

> Maximum compatibility

> Music player

Main features

Function buttons 8

Up and away 10

Quick start 12

Screen display 14

Airspace 16

Flight statistics / ﬂight log 19

Pilot proﬁles 20

Entering letters and numbers 21

USB connections / internal memory 22

Conﬁguration 24

Easy Menu 25

Easy Menu >Settings 26

Updating software 28

Warranty / disclaimer 30

Environmental protection / disposal 31

Technical data 32

Safety notices 33

Support 34

Table of Contents

Function buttons

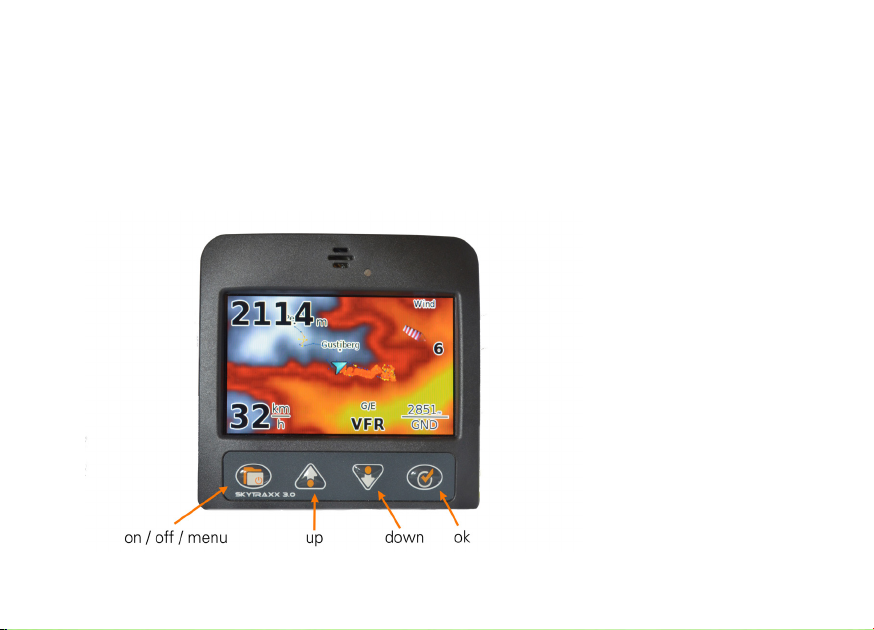

All the device’s functions and settings can be adjusted using the function buttons

– even when wearing gloves

The far-left button ( >menu ) offers the following functions:

> Turn on/off (press and hold for a few seconds each time)

> Menu (press to access the main menu)

> Back (press to move back one menu level)

In some sub-menus, a small rectangle will appear above the >Menu button,

which shows that an additional function is available. To access, press >Menu

until the rectangle becomes shaded in. Additional options will then be available.

Functions offered by the two central buttons ( >up / >down )

> Browse through menu sections/adjust settings

> Change scale in map mode

If small points appear in the top right-hand corner of the screen on menu pages,

the current menu consists of several sub-pages (number of points = number of

pages)

The right-hand button ( >OK ) offers the following functions:

> Conﬁrm selection

> Switch between display pages

SKYTRAXX 3.0 is operationally ready straight from the factory, however, you

should charge the battery before your ﬁrst ﬂight (see Quick start on page 13).

There are a great number of individual conﬁguration options offered by the SKY-

TRAXX 3.0 for the high-tech pilot of today.

New real-time variometer technology

For users of the SKYTRAXX 2.0 and other ﬂight instruments, the ﬁrst thing

they notice with the new model is the quick reaction of the real-time varios.

After time, the other great advantages of the new vario technology within the

SKYTRAXX 3.0 become clear and never before have thermals been so easy to

navigate.

For more information, see the SKYTRAXX 3.0 online-manual on our website:

www.skytrax.eu under »Operating instruction«.

Up and away
