Skytech SKY-6601 Manuel utilisateur

SKY-6601

INSTALLATION AND OPERATING INSTRUCTIONS

INTRODUCTION

This SKYTECH remote control system was developed to provide a safe, reliable, and

user-friendly remote control system for gas heating appliances. The system can be

operated thermostatically or manually from the transmitter. The system operates on

radio frequencies (RF) within a 20”range using non-directional signals. The system

operates one of 256 security codes that are user programmable; the remote receiver’s

code must be matched to that of the transmitter prior to initial use.

Review COMMUNICATION SAFETY SECTION under TRANSMITTER

section and THERMO SAFETY SECTION under REMOTE RECEIVER section.

These signal/temperature safety features shut down the fireplace system when a

potentially unsafe condition exists.

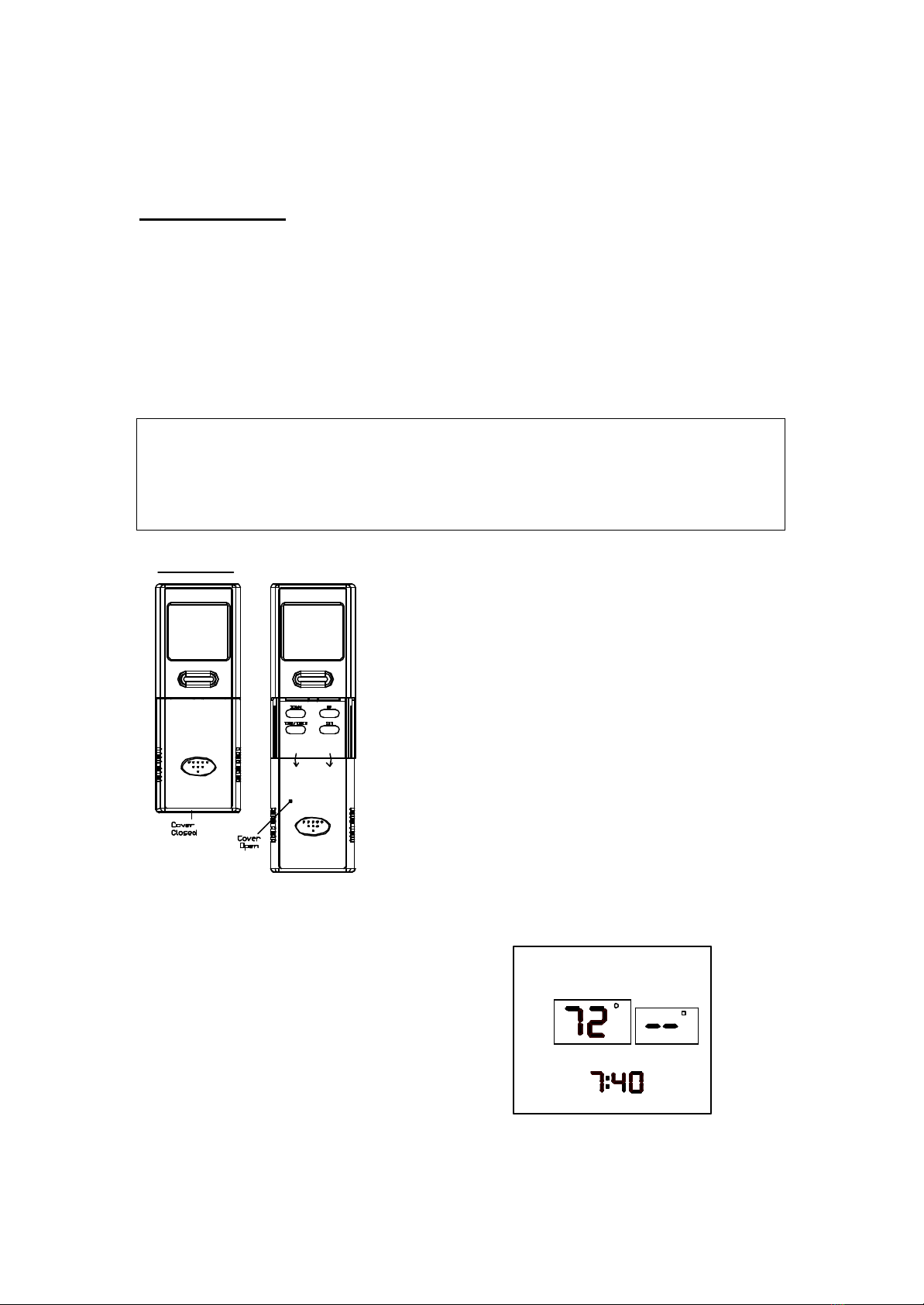

The transmitter operates on 2 AAA-size 1.5V

batteries. It is recommended that ALKALINE

batteries always be used for longer battery life and

maximum operational performance.

IMPORTANT: New or fully charged batteries are

essential for proper operation of the multi-function

transmitter. Insert 2 AAA-size 1.5V batteries into the

battery compartment on the back of the transmitter,

positioning the (+) and (-) ends of the batteries as

indicated on the casing. When the batteries are

inserted, the screen at right (with similar numbers)

will display.

Note: If a LOW battery icon appears on the

screen, check the position of the batteries; a

reversed battery will not activate transmitter.

Note:Due to the sensitive

temperature-monitoring components in the

transmitter, it may be necessary to allow the

transmitter to stabilize to room temperature

before accurate room temperatures are displayed on the screen. If the transmitter is

TRANSMITTER

SET

LCD DISPLAY

ROOM

activated from a severe cold condition, it can take up to fifteen minutes for accurate

temperature readings to appear.

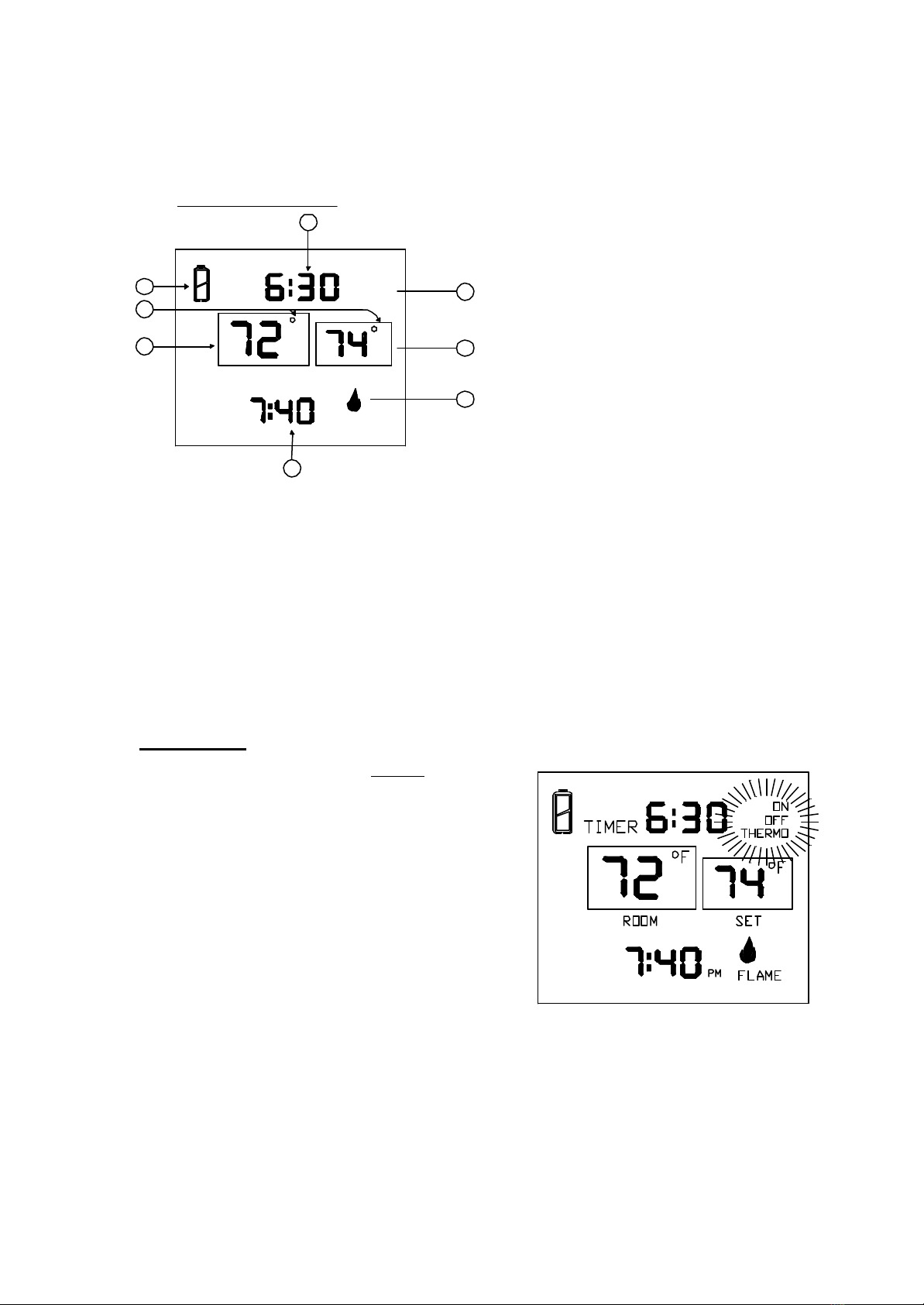

1. LOW-Battery power is low.

Replace batteries within two

weeks.

2. TIMER-Indicates time remaining

before system shuts off, when

timer-programmed; 9-hour

maximum setting.

3. MODE-Indicates operation

MODE of system. ON indicates

the system is on, either manually

or thermostatically. OFF indicates

the entire system is turned off THERMO indicates the system will automatically

cycle on/off, depending on programmed

4. SET-Indicates desire SET room temperature for THERMO operation

5. FLAME-Indicates burner/valve in operation.

6. CLOCK-Indicates the current time in AM/PM

7. ROOM-Indicates CURRENT room temperature.

8. ℉indicates degrees Fahrenheit (℃indicates degrees Celsius).

FUNCTIONS

To operate the system, press the MODE button on

the front of the transmitter to select the

operational MODE desired.

lON indicates the system is on, either

manually, timed or thermostatically.

lTHERMO indicates the system will

automatically cycle ON/OFF, depending

ON programmed set temperature.

lOFF indicates the entire system is turned off.

SET

ROOM

FLAME

LCD DISPLAY SCREEN

1TIMER

OFF

THERMO 3

Slide down the plastic cover on the front of

the transmitter to expose the “SET”buttons.

The Slide cover protects the SET buttons from

being changed accidentally. Close the cover

after completing the following

settings/programming.

Flashing numbers on the display indicate the

system is awaiting user input, such as using

the UP and DOWN buttons to program a new

setting. If no change is made to flashing digits within 15 seconds, the system will

complete the procedure last programmed and reset the display to its normal state.

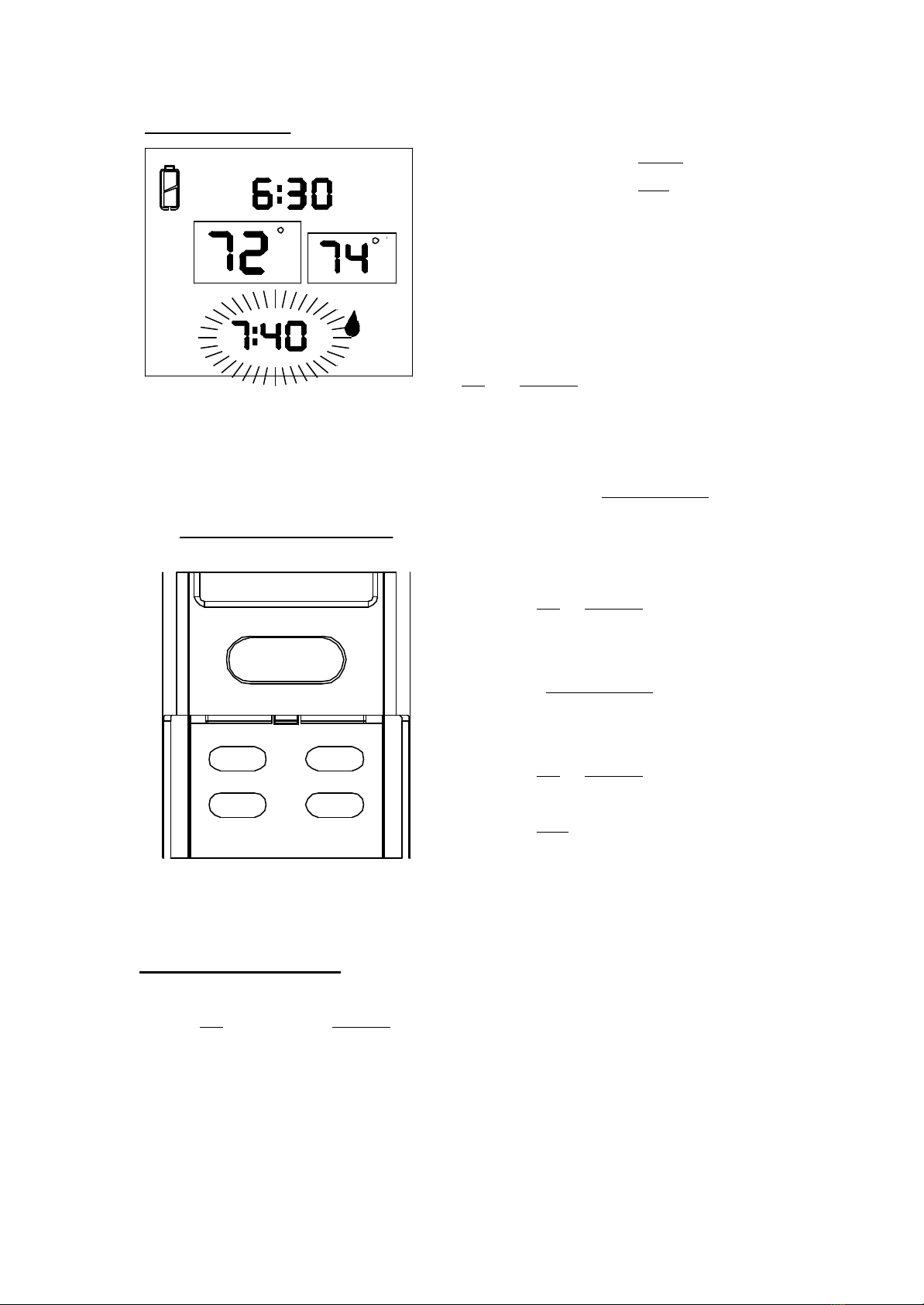

1. Press and hold the TIME /TIMER button

on the transmitter for more than two

seconds. The hour digit(s) will begin

flashing.

2. Press the UP or DOWN button until the

desired hour is displayed in AM or PM.

3. After setting the desired hour, press and

release the TIME/ TIMER button again to

set the minutes; the minute digits will

begin flashing.

4. Press the UP or DOWN button until the

desired minutes are displayed.

5. Press the SET button on the transmitter to

stop the time digits from flashing and set

the time. The time digits will cease

flashing, indicating the clock has been successfully set.

SETTING ℉/℃SCALE

The factory setting for temperature is ℉. To change this setting to ℃, first press and

hold the UP button and the DOWN button on the transmitter at the same time. Follow

this same procedure to change from ℃back to ℉. When changing between the ℉

and ℃scales, the temperature in the SET frame defaults to the lowest temperature

(45℉, or 8℃). The highest SET temperature is 99°Fahrenheit (37°Celsius).

OFF

THERMO

ROOM

PM FLAME

SET

SETTING THE CLOCK

TIMER

DOWN

TIME/TIMER

SET

MODE

BUTTON SETTINGS

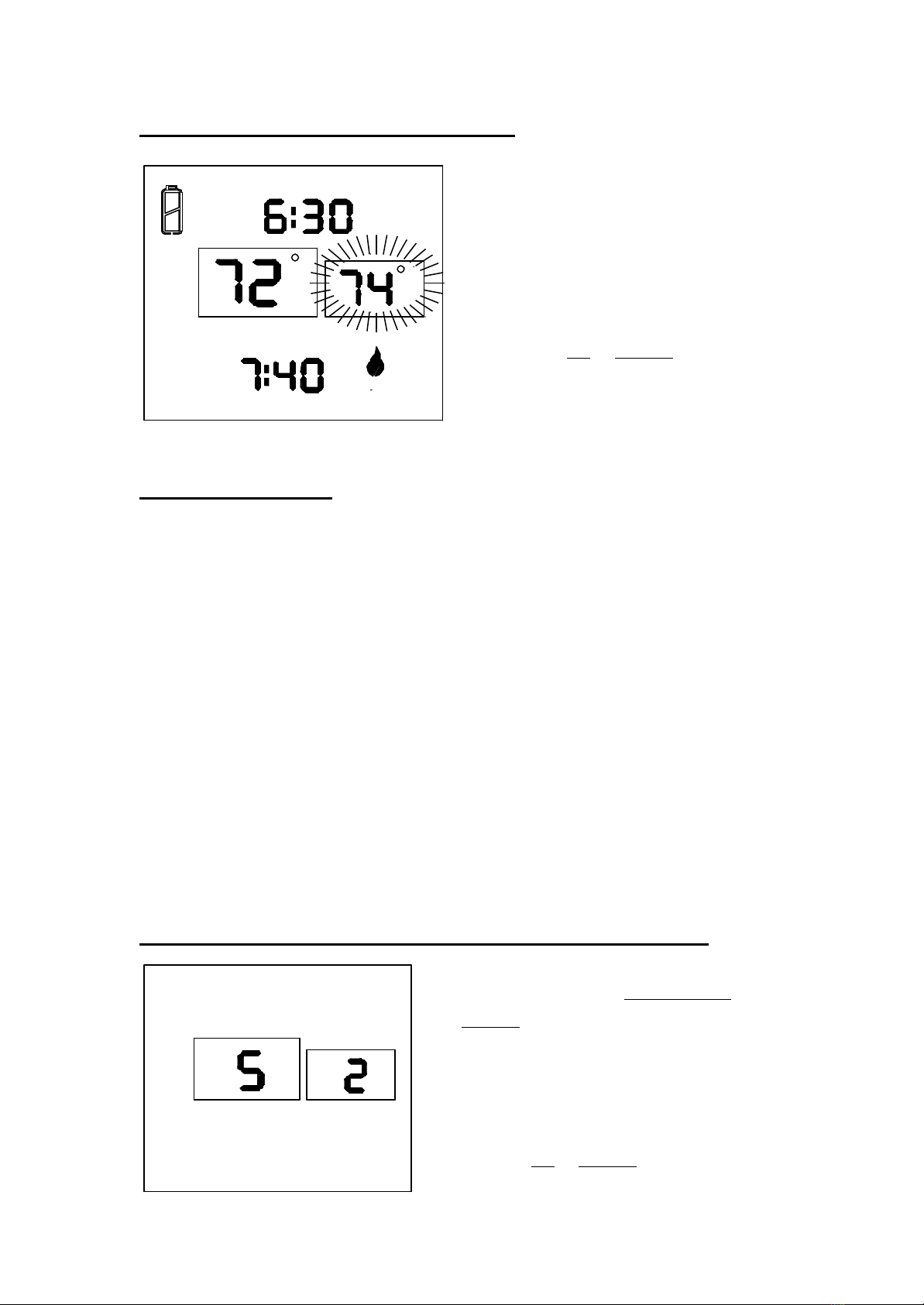

SETTING DESIRED ROOM TEMPERATURE

This remote control system can be

thermostatically controlled when the

transmitter is in the THERMO mode

(THERMO must be displayed on the

screen). To set the DESIRED room

temperature, press the MODE button to

place the transmitter into THERMO mode,

then press the UP or DOWN button to

select the desired room temperature. The

highest SET temperature is 99°

Fahrenheit (37°Celsius).

OPERATIONAL NOTE: TO CONSERVE BATTERY POWER, CHANGES IN

ROOM TEMPERATURE ARE AUTOMATICALLY UPDATED EVERY TWO

MINUTES TO THE TRANSMITTER.

The Thermo Mode on the transmitter operates the appliance whenever the ROOM

TEMPERATURE varies a certain number of degrees from the SET TEMPERATURE.

This variation is called the “SWING”or TEMPERATURE DIFFERENTIAL. The

normal operating cycle of an appliance may be 2-4 times per hour depending on how

well the room or home is insulated from the cold or drafts. A smaller “swing number”

increases the number of cycles so the room temperature is more constant. A larger

“swing number”decreases the number of cycles, which saves energy, in most cases.

The factory setting for the “swing number”is 2. This represents a temperature

variation of +/-2℉(1℃) between SET temperature and ROOM temperature, which

determines when the fireplace will be activated. The “SWING”number values are:

1=±1℉(.5℃), 2=±2℉(1℃) and 3=±3℉(1.6℃).

SETTING THE TEMPERATURE SWING (TEMPERATURE DIFFERENTIAL)

1. To change the temperature “SWING”

setting (1-3), press the TIME/ TIMER and

DOWN buttons simultaneously to display

the current “SWING”setting in the SET

TEMP frame. The letter “S”will display in

the ROOM TEMP frame on the LCD

screen.

2. Press the UP or DOWN button to change

OFF

THERMO

ROOM

PM FLAME

SET

TIMER

the temperature differential or “SWING”(1-3). See above for 1-3 “SWING”

temperature valves.

3. To store the “swing number”press the SET button or allow 15 seconds to lapse,

and the new “swing number”will be automatically programmed.

MANUAL CHECK OF “SWING”OR TEMPERATURE DIFFERENTIAL

The operation of the factory set “THERMO SWING”can be checked by adjusting the

SET TEMP 2℉above or below the room temperature. This will cause the system to

turn OF or OFF. Normally the system will only respond to temperature changes every

two minutes. Manually changing the SET temperature will activate the system in less

than 10 seconds. IF the “SWING”is changed, then a new room temperature

differential will respond. Factory setting of “SWING”temperature is 2℉.

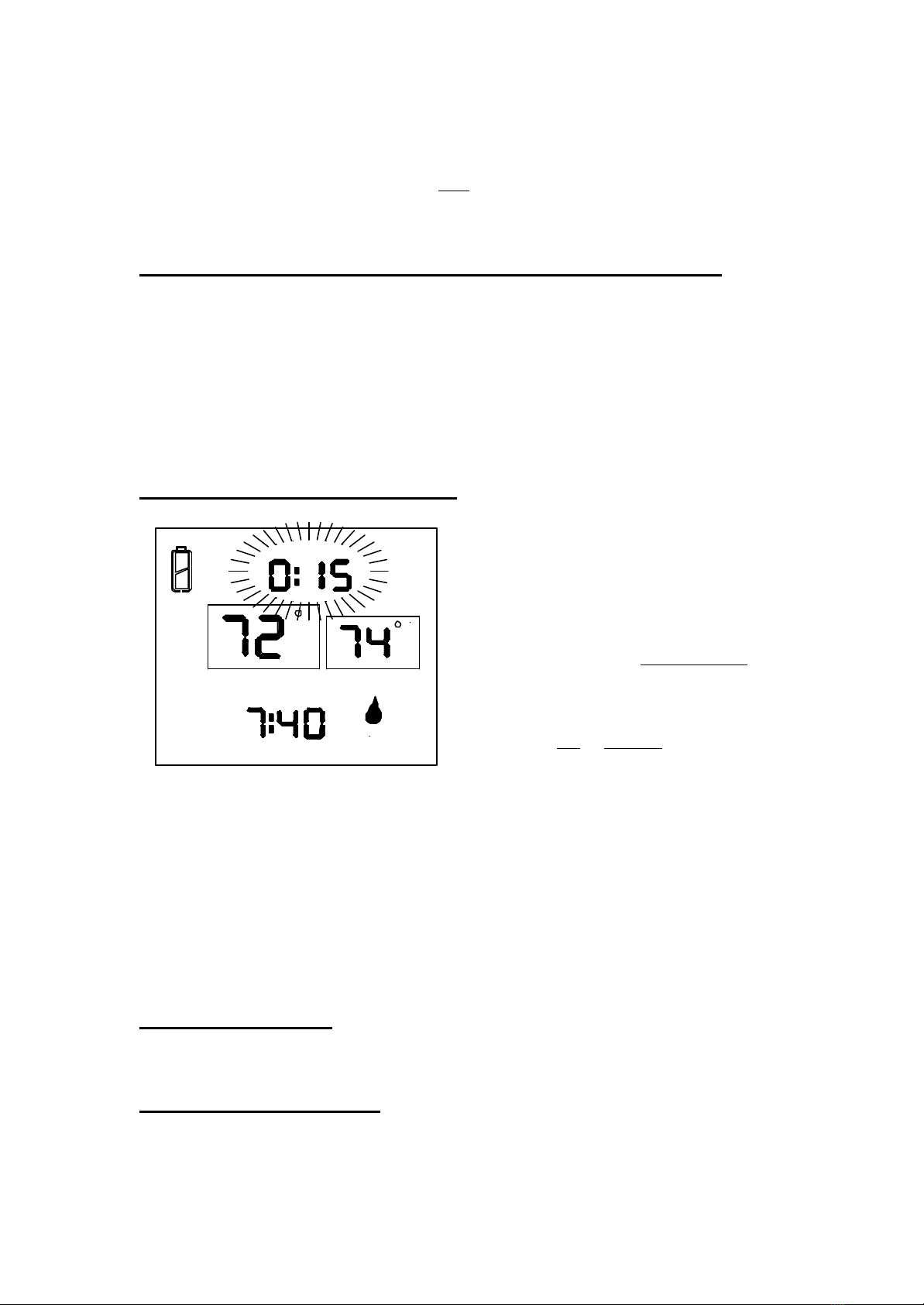

SETTING THE COUNTDOWN TIMER

This remote control system can operate

with a built-in countdown timer when the

transmitter is in the ON or THERMO

modes (THERMO or ON must be

displayed on the screen).

1. Press and release the TIME/ TIMER

button on the transmitter. The word

TIMER and 0:15 flash on the screen.

2. Press the UP or DOWN button on the

transmitter to begin advancing through

each of the countdown time options. Available countdown times are 15 minutes,

30 minutes, 45 minutes, 1 hour, 1 hour 30 minutes, 2 hours, 2hours 30 minutes,

and each additional half-hour up to nine hours.

3. To set the TIMER press the SET button on the transmitter if the system is ON. It

will remain on until the time has expired. If the system is in the THERMO mode,

it will cycle on and off as the room temperature requires until the “time”has

expired.

OPERATIONAL NOTE: When the timer is used in the THERMO mode, the

THERMO operation will discontinue when the “time”has expired.

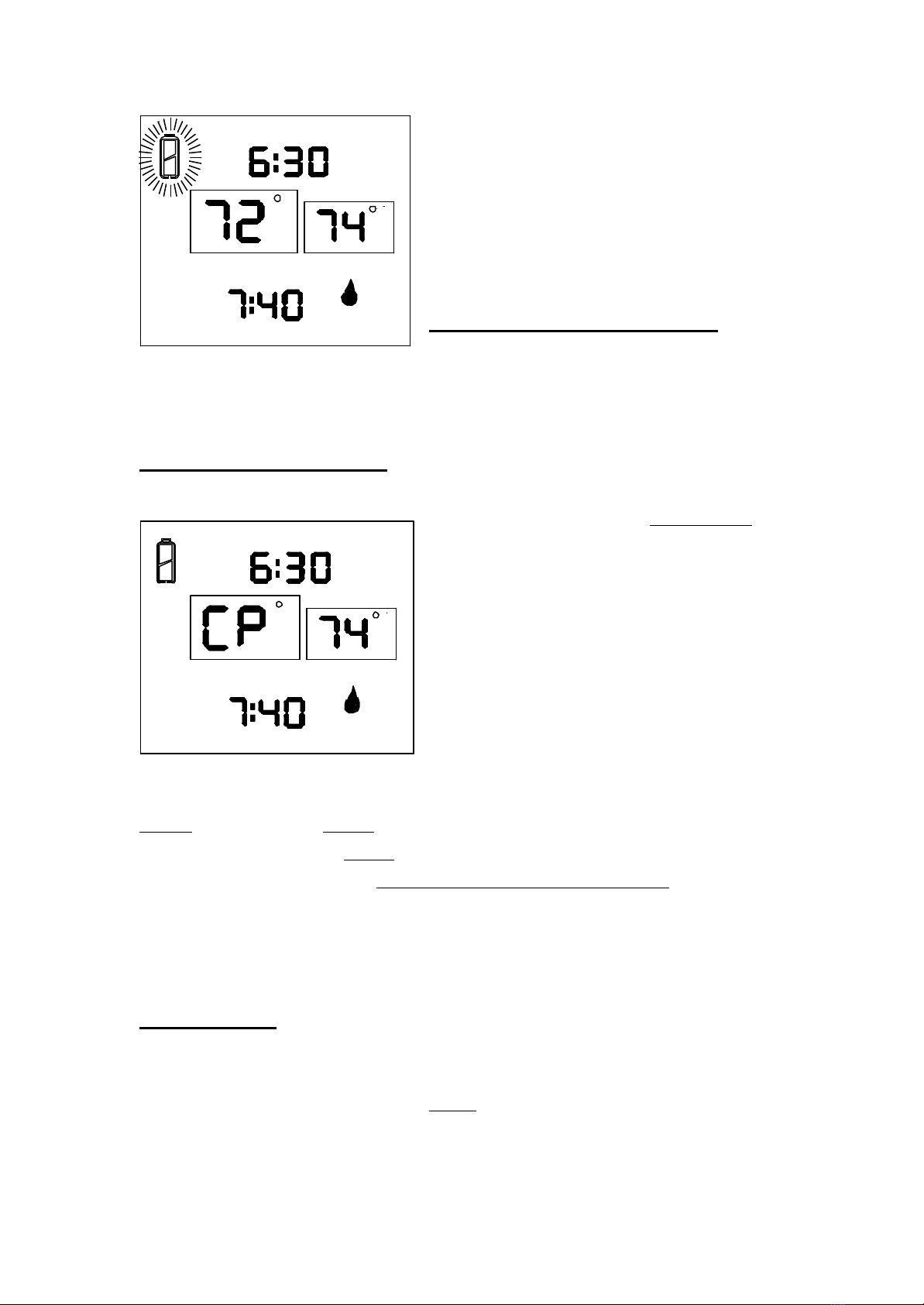

LOW/BATTERY INDICATOR

ROOM

TIMER

FLAME

SET

OFF

THERMO

The low battery icon on the left side of the

LCD screen will appear when battery power

has dropped significantly. At this time,

approximately two weeks of battery power

remains until the transmitter may experience

partial or complete loss of functions.

CHILDPROOF “LOCK-OUT”–(CP)

This SKYTECH remote control includes a

CHILDPROOF “LOCK-OUT”feature that allows the user to “LOCK-OUT”

operation of the appliance, from the TRANSMITTER.

SETTING “LOCK-OUT”–(CP)

1. To activate the “LOCK-OUT”feature,

press and hold the UP and TIME/TIMER

buttons, together, for 5seconds. The letters

CP will appear in the TEMP frame on the

LCD screen.

lTo disengage the “LOCK-OUT”, press and

hold the UP and TIMER buttons, together

for 5 seconds or more, and the letters CP

will disappear from the LCD screen and

the transmitter will return to its normal

operating condition.

NOTE: If the appliance is already operating in the ON or THERMO MODES,

engaging the “LOCK-OUT”will not cancel the operating MODE. Engaging the

“LOCK-OUT”prevents only the manual operation of the TRANSMITTER. If in the

auto modes, the THERMO operation will continue to operate normally. To totally

“LOCK-OUT”the operation of the TRANSMITTER’S operating signals; the

transmitter’s MODE must be set to OFF.

TRANSMITTER

The SKYTECH remote control operates, on RF (radio frequency) signals that are sent

by the TRANSMITTER (remote) to the RECEIVER that operates the appliance. It is

recommended that the TRANSMITTER always be located within the 20 foot

operating range, preferably in the same room in which the appliance is located.

ROOM

TIMER

OFF

THERMO

FLAME

SET

PM FLAME

OFF

THERMO

TIMER

ROOM

SET

THERMO UPDATING FEATURE -TRANSMITTER -(T/S -TX)

This SKYTECH remote control has a THERMO UPDATING Feature built into its

software. The THERMO UPDATING Feature operates in the following manner, but

only in the THERMO MODES:

The transmitter normally reads the ROOM temperature every 2 minutes checking

the ROOM temperature against the SET temperature and then sends a signal to

the receiver.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one of the

following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may

cause undesired operation.

Important Note:

FCC Radiation Exposure Statement:

This equipment complies with FCC RF radiation exposure limits set forth for an

uncontrolled environment. To maintain compliance with FCC RF exposure

compliance requirements, please avoid direct contact to the transmitting

antenna during transmitting.

This transmitter must not be co-located or operating in conjunction with any

other antenna or transmitter.

Table des matières

Autres manuels Skytech Télécommande

Skytech

Skytech 3002 Mode d'emploi

Skytech

Skytech SKY-4001TH Manuel utilisateur

Skytech

Skytech 5001 Manuel utilisateur

Skytech

Skytech 1001-A Manuel utilisateur

Skytech

Skytech SKY-4001 Manuel utilisateur

Skytech

Skytech 1001 BE Manuel utilisateur

Skytech

Skytech SR 1001 TH Manuel utilisateur

Skytech

Skytech 4001-A TX Manuel utilisateur

Skytech

Skytech 5301P Manuel du propriétaire

Skytech

Skytech Smart Batt III Instructions d'installation

Skytech

Skytech 5301 Instructions d'utilisation et d'installation

Skytech

Skytech 1420TH-A Manuel utilisateur

Skytech

Skytech 3301P Manuel utilisateur

Skytech

Skytech 1315 Manuel utilisateur

Skytech

Skytech RCAF-1035 Manuel de service

Skytech

Skytech 3301PF Manuel utilisateur

Skytech

Skytech 5301P Manuel utilisateur

Skytech

Skytech CON1001TH-1 Manuel utilisateur

Skytech

Skytech 4001TH Manuel utilisateur

Skytech

Skytech 3301P Manuel utilisateur

Skytech

Skytech TS/R-2A Manuel utilisateur

Skytech

Skytech 1410 T/LCD-A Manuel utilisateur

Skytech

Skytech 1001-A Manuel utilisateur

Skytech

Skytech RCT-MLT III Manuel utilisateur

Manuels Télécommande populaires d'autres marques

Panasonic

Panasonic EUR7622KB0 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen Beo4 Manuel utilisateur

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuel utilisateur

Multiplex

Multiplex PROFI TX 9 Manuel utilisateur

One Remote

One Remote RMB4 Manuel utilisateur

FUTABA

FUTABA 9ZAP - PART2 Manuel utilisateur

HR Matic

HR Matic HR MULTI 3 Manuel utilisateur

Yamaha

Yamaha ACC-GNRST-30-20 Manuel utilisateur

EisSound

EisSound KBSOUND Manuel utilisateur

Marantz

Marantz RC101 Manuel utilisateur

Conrad

Conrad FS20 TC6 Manuel utilisateur

Anritsu

Anritsu MP1777A Manuel utilisateur

Niles

Niles WVC100 Guide de dépannage

RCA

RCA RCU1300 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen BEO6 Manuel utilisateur

GE 94901 Manuel utilisateur

Onbon

Onbon YQ1-75 Manuel utilisateur

FUTABA

FUTABA R7108SB Instructions d'installation
