Skypatrol SP4700 Manuel utilisateur
SP4700s
erie
s products
user manua
1
SP4700 User manual
SP4700s
erie
s products
user manua
2
Copyright and Disclaimer
The user manual may be changed without notice.
Without prior written consent of Skypatrol LLC Company Ltd., this user manual, or any
part thereof, may not be reproduced for any purpose whatsoever, or transmitted in
any form, either electronically or mechanically, including photocopying and recording.
Skypatrol LLC Company Ltd. shall not be liable for direct, indirect, special, incidental, or
consequential damages (including but not limited to economic losses, personal
injuries, and loss of assets and property) caused by the u e, inability, or illegality to
use the product or documentation.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposur limits set forth for an
uncontrolled environment. This equipment should be installed and
minimum distance 20cm between the radiator & your body.
operated with
FCC Warning
This device complies with Part 15
following two conditions:
of the FCC Rules. Operation is subject to the
(1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
NOTE: Any changes or modifications to this unit not expressly approved by the arty
responsible for compliance could void the user's authority to operate the equipment.
SP4700s
erie
s products
user manua
3
INSTRUCTIONS OF SAFETY
This chapter contains information on how to operate “SP4700 series product” safely.
By following these requirements and recommendations you will avoid dangerous
situations. You must read these instructions carefully and
operating the device!
ollow them strictly before
The built‐in battery of device need to be charged regularly every two months to
avoid over‐discharge and need to be stored in the dry and cool place.
The device uses 8V‐32V DC power supply. The nominal voltage is 12V DC.
It is advised to transport the device in an impact‐proof package.
Before usage, the device should be placed properly to ensure LED indicators (device
operation status) are visible.
Before demounting the device from the vehic e, it should be disconnecting all the
connection first.
SP4700s
erie
s products
user manua
4
CONTENTS
1.
SP4700 Series Introduction.....................................................................................5
2.
SP4700 series products specifications .......................................................................6
3.
Product overview.......................................................................................................7
3.1
Check Part List.................................................................................................7
3.2
Open the device cap.........................................................................................9
3.3
Install SIM card..............................................................................................10
3.4
Connect USB data line...................................................................................10
3.5
Close the case.................................................................................................11
3.6
Installation Direction .....................................................................................12
4.
Interface Definition & Cable Color.........................................................................13
5.
User Combine Command.........................................................................................13
5.1
Command Error SMS ....................................................................................14
5.2
Command Success SMS................................................................................14
6.
SMS Report Explanation .........................................................................................15
6.1
“W” Mode Report..........................................................................................15
6.2
“T” Mode GPS Report...................................................................................16
6.3
“T” Mode LBS Report...................................................................................17
7.
Common commands ................................................................................................18
7.1
Set User Cell Phone Number.........................................................................18
7.2
Set User Password..........................................................................................19
7.3
Set Report Interval Mode Switching Condition.............................................20
7.4
Set timing Report Interval to User.................................................................21
7.5
Set SIM Card APN.........................................................................................22
7.6
Set GPRS Main erver...................................................................................23
7.7
Set GPRS Backup Server...............................................................................24
7.8
Set Timing Report Interval to GRPS Server..................................................26
8.
LED Indicator Behavior...........................................................................................27
SP4700s
erie
s products
user manua
5
1. SP4700 Series Introduction
The SP4700 series products are new generation vehicle or asset trackers and
telemetry device designed for maximum autonomy and ease for use. It is intended
for use to
protect and trace items such as containers‐caravan ‐fixed plant‐construction
equipment‐in
shore boats and truck trailers. It can also be used for temporary
tracking of vehicles for onsignment purposes as well as covert “slap and track”
operations. The features as follows:
Double GPRS servers
Flexible packet
Dynamic report
Profile
Private hour mode
Driving behavior
Accident detection
Single event
Combination event
Event flow
Output wave shape
Geo‐fence
Firmware OTA
SP4700s
erie
s products
user manua
6
2. SP4700 series products specifications
Specification
Dimension
94(L)X47(W)X20.5(H)mm
Weight
~83g (With battery)
Environment
Operating
temperature
‐40°C ~+80°C (without backup battery)
‐10°C ~+50°C (with backup battery)
USB
Mini USB
2.0
CPU
ARM
STM32F103
LED indicator
3 LED indicators
GSM & GPS & POWER
Power supply
External
DC 8 to 32V
Backup battery
Type :
Rechargeable, Li‐Po .7V, 750mAh
Power
consumption
≥230mA (Active Tracking)
≥25mA (Power Saving Mode)
≥10mA (Deep Sleeping Mode)
GSM/GPRS
Model (3G)
Built‐In
Air Prime HL8548
Band: GSM 850/900/1800/1900MHz
UMTS 850/900/1800/1900/2100MHz
Multiple‐slot Class 8 (dual band)/10 (quad band)
GPRS class 10/Station class B
TCP/IP over PPP
Model(2G)
Built‐In
Air Prime HL6528
Band : GSM 850/900/1800/1900MHz
Multiple‐slot Class 8 (dual band)/10 (quad band)
GPRS class 10/Station lass B
TCP/IP over PPP
SIM card
1.8V & 3. V
GPS
Internal antenna
25*25 with amplifier
External antenna
N/A
SP4700s
erie
s products
user manua
7
Model 1
U‐Blox NEO 6M
Channel
50 Parallel Channels
Accuracy
Autonomous<2.5M
Sensitivity
‐162dBm
Sensor
Accelerate sensor
Built‐In, 3‐axis
Flash storage
16Mbits
Built‐In
3. Product overview
3.1
Check Part List
Before starting, check all the following items
missing, please contact your supplier.
have been included. If anythi g is

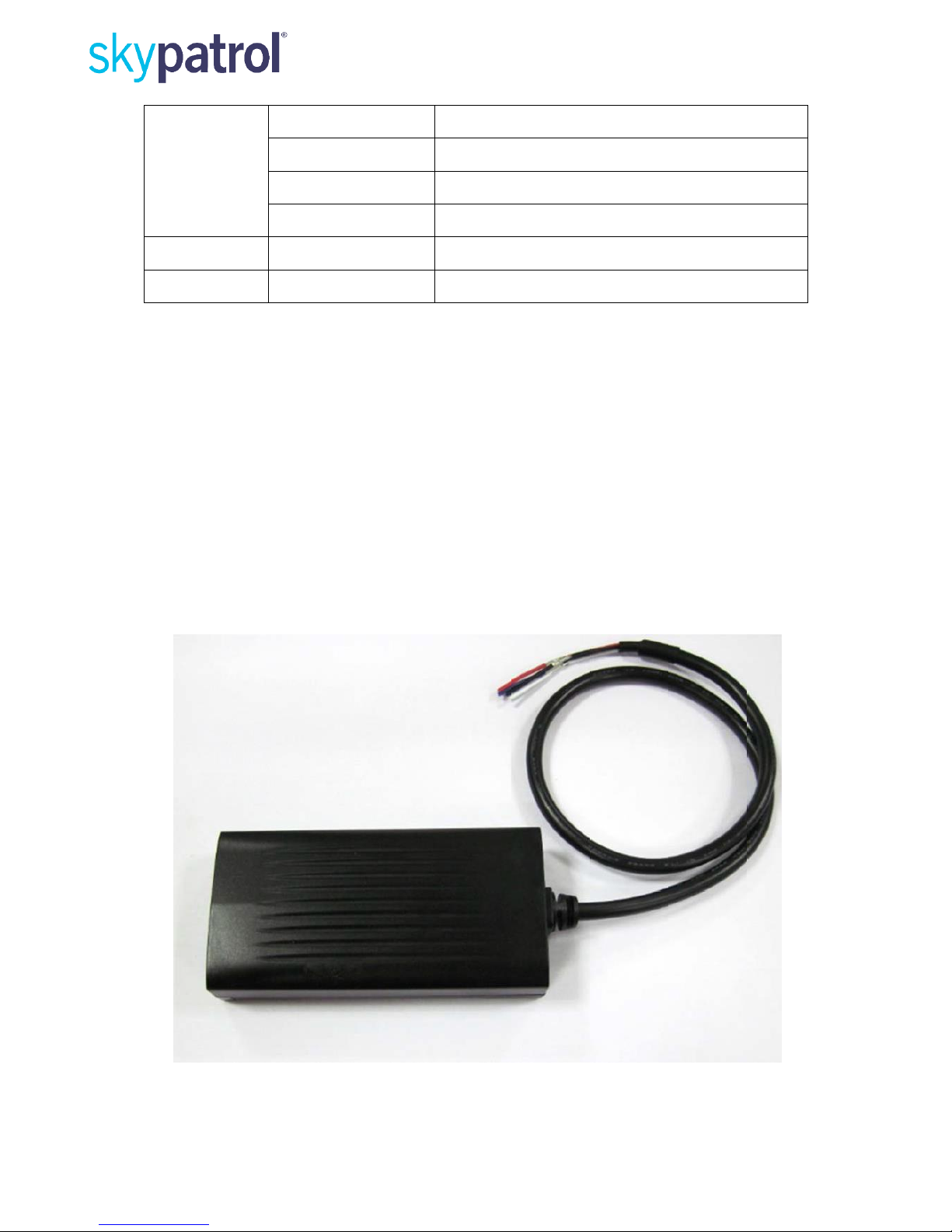

①Standard Part List
SP4700s
erie
s products
user manua
8

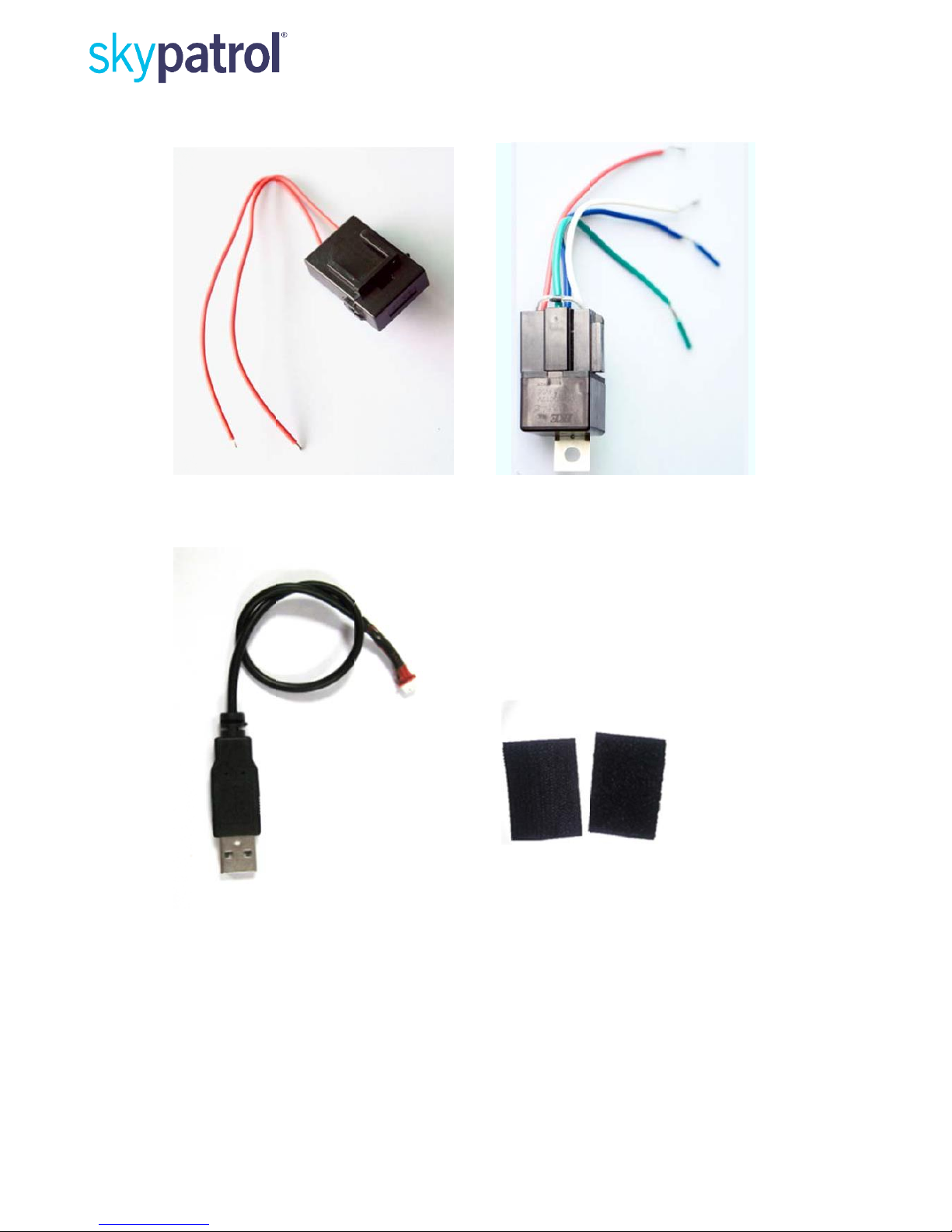

②Optional Part List
Fuse
USB cable
Relay
Fasten tape
SP4700s
erie
s products
user manua
9

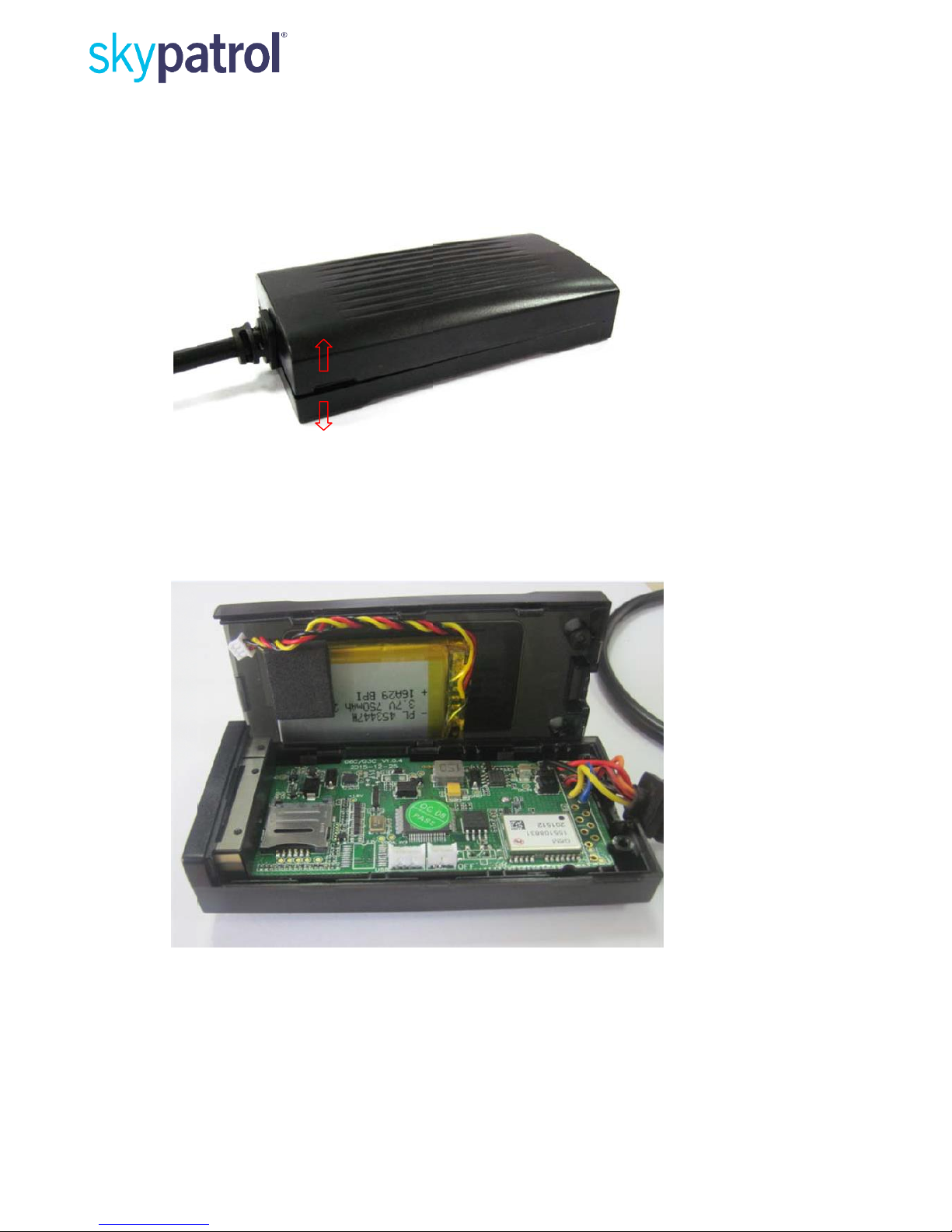

3.2
Open the device cap
(Take G3C US‐3G product for example)
Remove screws in the back of device first. Then force to open the device cap as the
arrow direction.
Remove the device cap carefully.
SP4700s
erie
s products
user manua
10

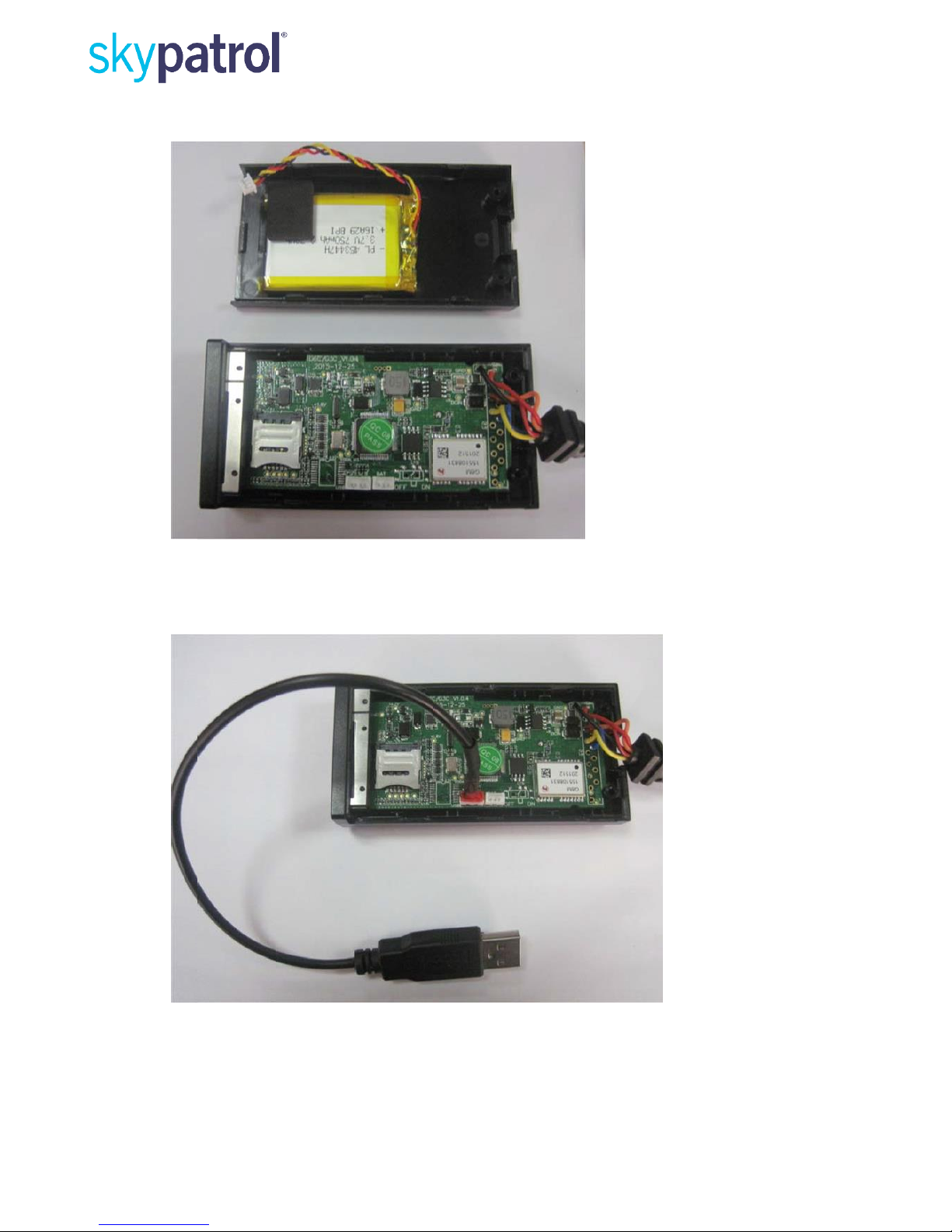

3.3
Install SIM card
Please note the installation direction of the SIM card.
3.4
Connect USB data line
The USB cable is optional not for standard part, only for se ial interface using.
