User Manual of
Thermal Label
Printer
Model: M8
Brand: SoonMark
Table of Content
Kindly follow this user guide instruction:
Clicking at each topic below will bring you to the relevant page
directly.
1. Equipment checklist 3
2. The different parts of the printer 5
3. Getting the printer ready 6
4. The driver installation 7
5. Setting the printing preferences 13
6. Inserting the new label roll 15
7. Paper calibration 16
8. Printing the eAWB 17
Page No.
1. Equipment checklist.
3
1) Adapter + Power Jack Adapter
2) USB Printer Cable
3) Operation Manual
4) Driver Disk
5) Power Cord
5) Power Cord
2) USB Printer Cable
4) Driver Disk
3) Operation Manual
1) Adapter + Power Jack
Adapter
1. Equipment checklist.
4
Core Adapter
will be placed
at both sides
to secure the
label roll while
printing.
Insert the label roll using the ‘Roll Mount’.
Core
Adapter
Label
Spindle
1
Label Roll
2
3
2
1
3
Notes: Make sure all pieces of equipment are assembled and in good condition.
Roll Mount
2. The different parts of the printer.
The Front view
The Back view
The Open
button for the
Top Cover
Feed
Button
Power
Switch
SD Card
Slot Power Jack
Adapter Slot
USB Printer Port
I -On
O - Off
5
Clear
Window
is to view
the label roll
inside the
printer.
is used for
the
calibration
process.
3. Getting the printer ready.
Step 1
Please connect the ‘USB’ to the PC/Laptop and plugin
the ‘Power Cord’ into the socket.
Step 2
The ‘USB Printer Cable’ and ‘Power Jack Adapter’
need to connect with the printer. Then, turn on the switch
button, and it will beep once.
USB Printer Cable Power Jack Adapter
6
Step 4
After unzipping the file, double click at
‘Driver (for Win7 Win8 Win10)’ to install the printer
driver.
Step 5
Kindly tick ‘I accept the terms in the license agreement’
and click on the ‘Next’ button.
8

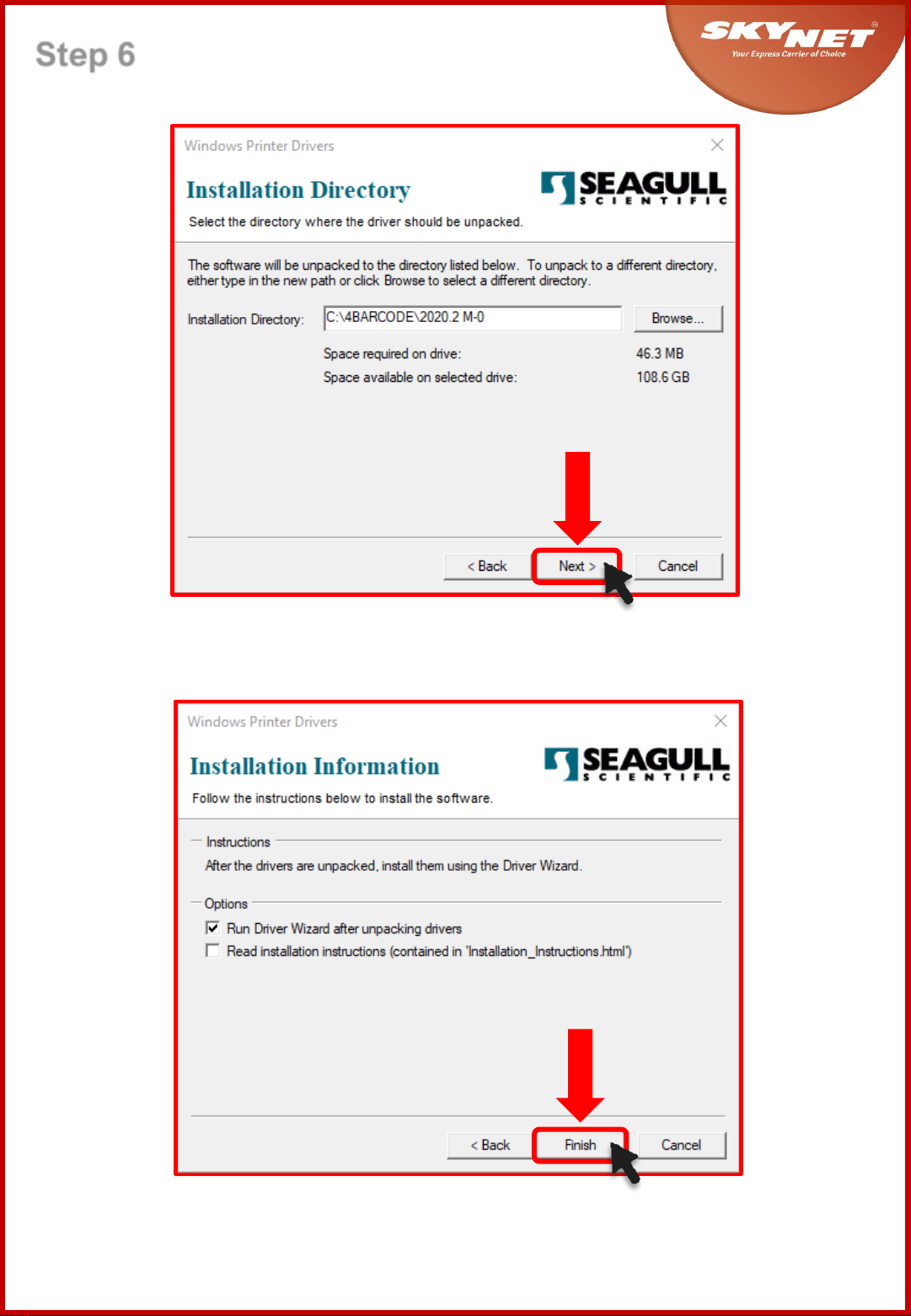

Step 6
Click the ‘Next’ button.
Then, click at the ‘Finish’ button.
9
Step 7
This ‘Shield icon’ will blink at the PC/Laptop
taskbar. Kindly click at the icon to continue the
installation.
Then, click on the ‘Next’ button.
10
