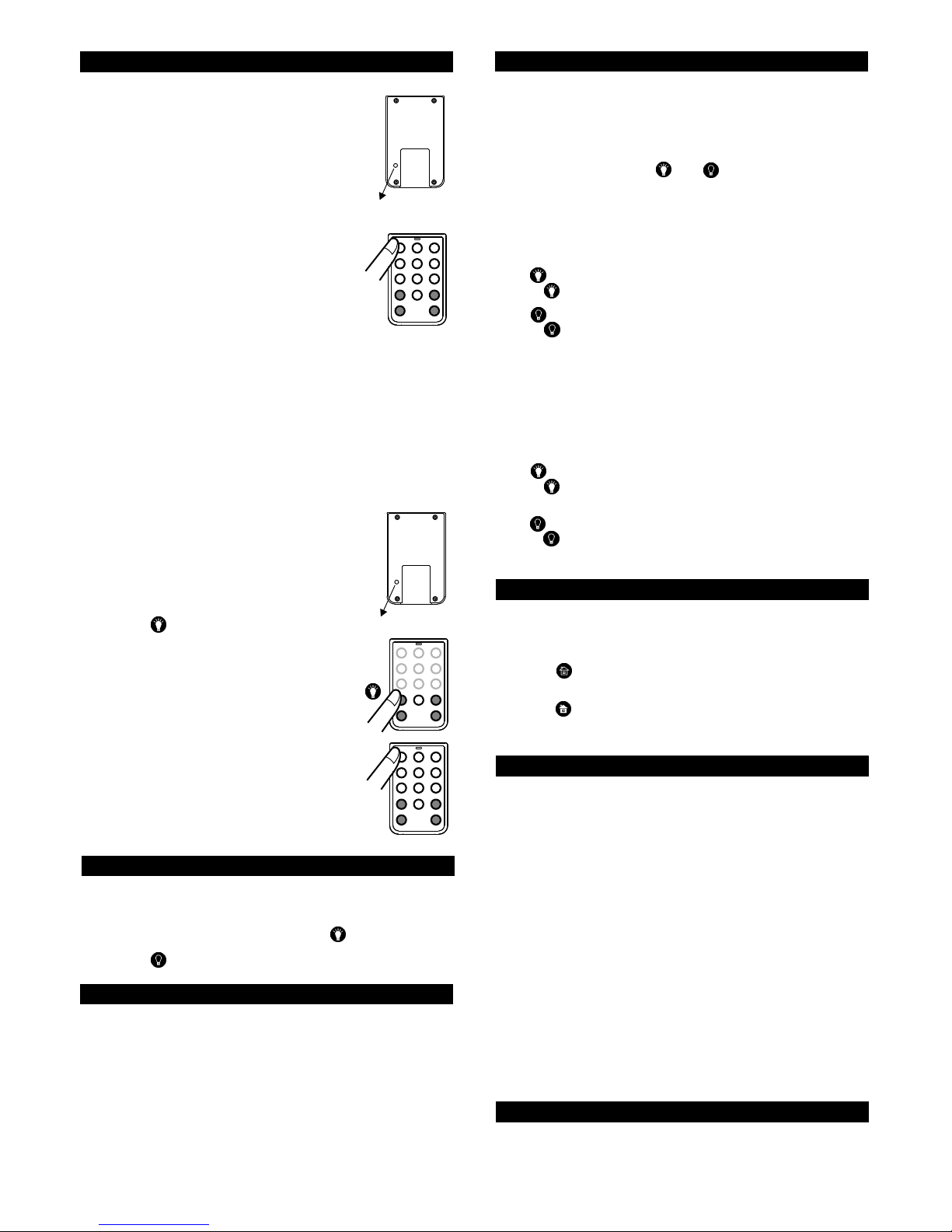

2. PROGRAMMING TRANSMITTERS TO RECEIVER MODULE (CONT)
1. Put the receiver module that you plan to program
into programming mode. Refer to the User's
Instructions of that receiver module.
2. Once the receiver module is in programming mode,
you may transmit the programming signal from the
transmitter by pressing the “PROG” button on the
back of the transmitter with a sharp object. The red
LED on the transmitter will be on.
3. Press the number button on the transmitter that
you plan to program. Red LED will flash then off.
4. Once the transmitter is programmed, the
receiver module will quit from programming
mode.
5. The programmed button on the transmitter is
ready to be used now to operate that receiver.
You may follow the same instructions to program different buttons on the
transmitter to different receiver modules.
“PROG” button
Programming for Zone Operation

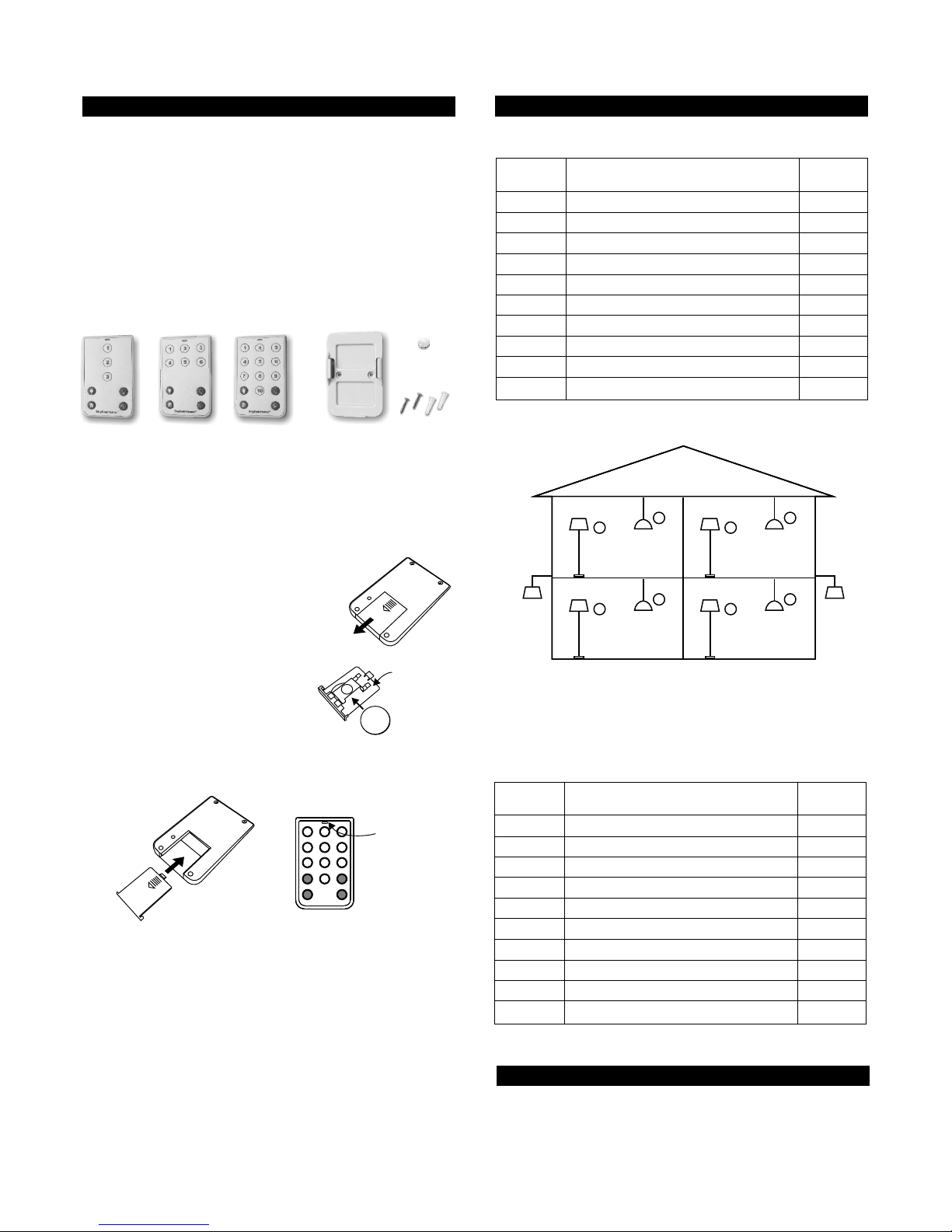

In the above example, both the Family Room Ceiling Lighting and Family
Room Floor Light are in zone 1. You need to assign the zone 1 signal
to both receiver modules in these 2 locations.
To assign a zone to a receiver module, follow the instructions below:
1. Put the receiver module that you plan to program
into programming mode.
2. Once the receiver module is in programming
mode, press the “PROG” button on the back
of the transmitter with a sharp object. The red
LED on the transmitter will be on.
3. Press the [ ] button until the red LED flashes
three times and keeps on, release the held
button and press the zone number button on
the transmitter. i.e. “1” for zone 1.
Red LED will flash then off.
4. Once the zone number is programmed, the
receiver module will quit from programming
mode.
Following the same instructions to program the
zone number into various receiver modules
to form a zone with multiple lights, i.e. Zone 1 signal
to both Family Room Ceiling Light Module and
Family Room Floor Light Module.
“PROG” button
4. BRIGHTNESS CONTROL OPERATION
5. ZONE OPERATION
6. ALL ON / ALL OFF OPERATION
3. ON / OFF OPERATION
Pressing the programmed button on the remote once will toggle the status
of the load that is connected to the receiver module, i.e. if a light is off,
pressing the button turns on the light, and vice versa. You can make sure
that you will actually turn on a light by pressing [ ] first, then the pro-
grammed button. Similarly, you can make sure that you will turn off a light
by pressing [ ] first, then the programmed button.
Besides turning on and off the light, you may also control the brightness
of a light if the receiver module and the light bulb is dimmable, i.e. either
incandescent light and dimmable compact fluorescent light.
To change the brightness, first turn on the light.
Press and hold the programmed button on the transmitter will change its
brightness. Hold the button until the desired brightness is reached,
then release the button.
Press and hold the same button again on the transmitter to change the
brightness again in the opposite way. When the desired brightness is
reached, then release the button.
You may turn on all the lights and appliances with one touch of a button,
or turn them all off as well. All Off function is especially useful when you
are leaving home or going to sleep.
TM
Press the [ ] button to turn off all the items connected to SkylinkHome
system.
TM
Press the [ ] button to turn on all the items connected to SkylinkHome
system.
7. ERASING TC SERIES TRANSMITTERS
You may erase a transmitter from the receiver module, but you cannot
erase a specific device directly, you must erase all the wireless devices,
then program the ones you want to keep. Follow the instructions below
to erase programmed transmitters.
1. Power off the receiver module.
2. Use a sharp object to press the PROG button on the back of the
transmitter.
3. Press and hold the programmed number button on the transmitter for
at least 2 seconds. Do not release this button until step 5.
4. Power up the receiver module, you will hear a beep.
5. You may release the button on the transmitter.
6. When the button is release, you have successfully erased all the
devices from the lighting receiver.
Erasing TC series transmitters from the ON/OFF/Dimming Control
MD-318 or ON / OFF Control model MR-318
If you would like to erase TC series transmitter from other receiver modules,
such as WR-001, WE-001, PA-318, PR-318, PL-318, LS-318 etc., Please
refer to the user’s instructions of that receiver module.
Erasing TC series transmitters from other receivers
Programming for Individual Operation A Zone Command allows you to operate multiple lights altogether in the
same zone.
Zone Operation - On / Off
To turn on or off a zone, hold [ ] or [ ] until the red LED flashes
three times and keeps on, then release the held button and press the
zone number.
For example:
Hold [ ] until the red LED flashes three times and keeps on, then
release [ ] and press [1], all lights in zone 1 will be turned on.
Hold [ ] until the red LED flashes three times and keeps on, then
release [ ] and press [1], all lights in zone 1 will be turned off.
Zone Operation - Brightness Control
You can also change the brightness of lights in a zone altogether, if the
receiver modules and all lights connected are dimmable. If non-dimmable
lights or appliances are connected to a zone, do not operate Zone
Brightness Control.
For example:
Hold [ ] until the red LED flashes three times and keeps on, then
release [ ] and hold [1] , all lights in zone 1 will be brightened, you
may release [1] at the desired brightness level.
Hold [ ] until the red LED flashes three times and keeps on, then
release [ ] and hold [1] , all lights in zone 1 will be dimmed, you
may release [1] at the desired brightness level.
8. PASSWORD PROTECTION
Any deluxe remote (7 buttons and up) has password protection function.
If you enable the password protection, you can only operate the remote
after you input the correct password first.
