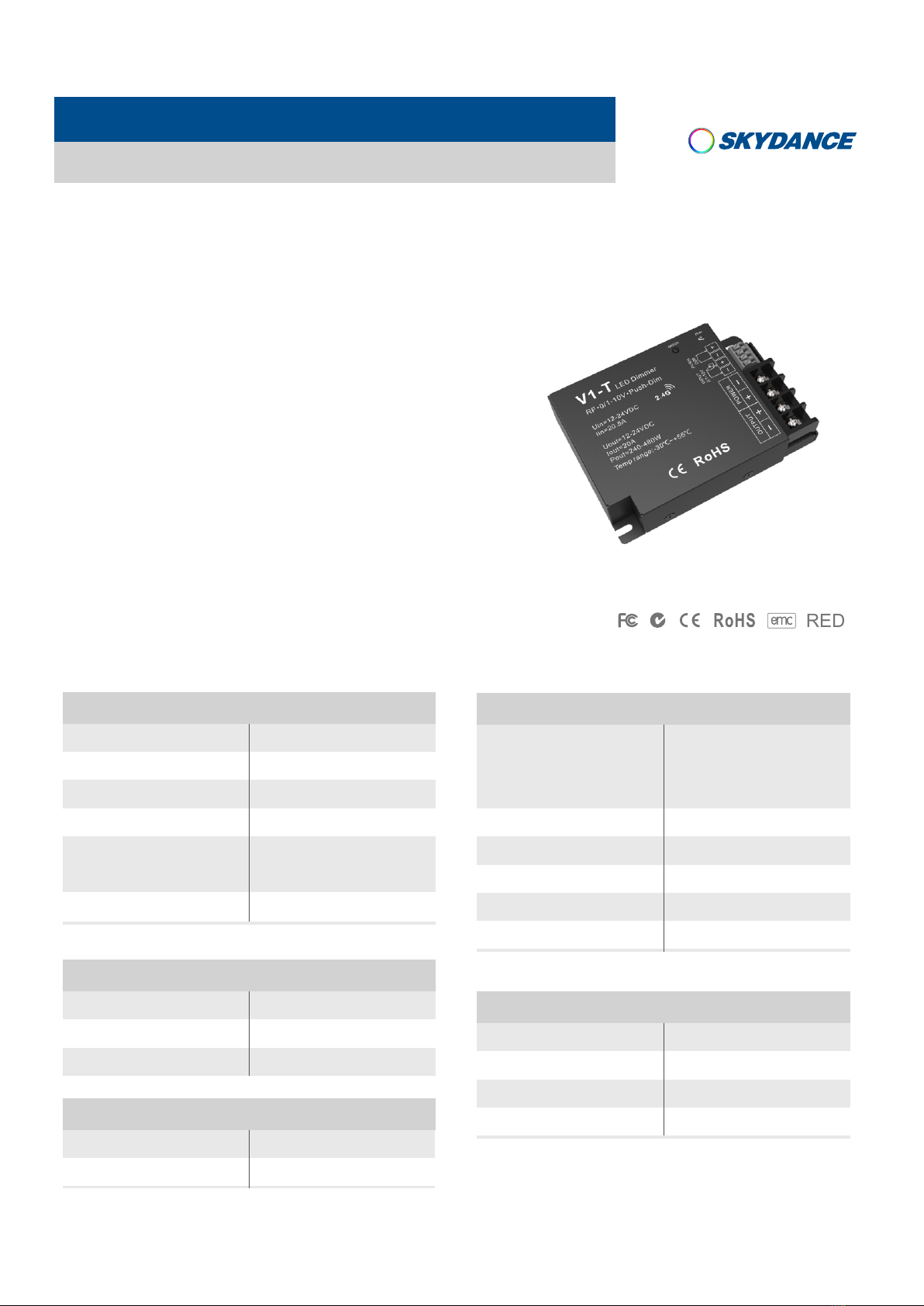

SKYDANCE V1-T Manuel utilisateur

Operation temperature

Case temperature (Max.)

Environment

IP20

IP rating

Dimming data

Dimming range

RF 2.4GHz

0/1-10V

Push Dim

15m

4096 levels

0 -100%

Technical Parameters

Output power 240W/480W

(12V/24V)

Output voltage 12-24VDC

Output current 1CH,20A

Input and Output

Input voltage 12-24VDC

Input current 20.5A

Safety and EMC

EMC standard (EMC) EN301 489,EN 62479

Radio Equipment(RED) EN300 328

Certification CE,EMC,LVD,RED

EN60950

Safety standard(LVD)

Output type Constant voltage

Warranty and Protection

5 years

Protection Reverse Polarity

Warranty

Input signal

Control distance

Dimming level

Ta: -30

C ~ +55

T c: +85

RED

Model No.: V1-T

Single Color LED Controller

3-in-1 dimming/RF remote/0-10V/Push Dim/20A output/Auto-transmitting/Synchronize

Features

● RF remote, 0/1-10V, Push Dim (3-in-1) dimming.

● Match with Skydance’s 2.4G dimming remote control,

one RF controller accept up to 10 remote control.

● Auto-transmitting function: Controller automaticly transmit

signal to another controller with 15m control distance.

● Synchronize on multiple number of controllers.

● Connect with external push switch to achieve on/off and

dimming function.

500Hz

PWM Frequency

Dimming curve Logarithmic

User Manual Ver 1.0.2 2018.11.01 Page 1

www.iskydance.com

V1-T Single Color LED Controller

Mechanical Structures and Installations

LED output -

LED output +

Power input -

Power input +

LED indicator

Match key

Push switch com

Push switch in

Installation rack

Push Switch

Power Supply

12-24VDC

Constant Voltage

0/1-10V Dimmer

V1-T

PU SH

DI M

IN PUT

0/ 1-1 0V

- -

LED Dimmer

+Single color LED strip

AC100-240V

107.00 mm

75.00 mm

24.50 mm

75.00 mm

PU SH

DI M

IN PU T

0/ 1- 10V

- -

0/1-10V input

GND

User Manual Ver 1.0.2 2018.11.01 Page 2

www.iskydance.com

Push Dim Function

● Short press:

Turn on or off light.

● Long press (1-6s):

Press and hold to step-less dimming,

With every other long press, the light level goes to the opposite direction.

● Dimming memory:

Light returns to the previous dimming level when switched off and on again, even at power failure.

Match Remote Control (two match ways)

Use the controller’s Match key

Match:

Short press match key, immediately press on/off

key (single zone remote) or zone key (multiple zone

remote) of the remote.

Use Power Restart

Match:

Switch off the power, then switch on power again,

immediately short press on/off key (single zone remote)

or zone key (multiple zone remote) 3 times on the remote.

The light blinks 3 times means match is successful.

Delete:

Switch off the power, then switch on power again,

immediately short press on/off key (single zone remote)

or zone key (multiple zone remote) 5 times on the remote.

The light blinks 5 times means all matched remotes were

deleted.

Delete:

Press and hold match key for 5s to delete all match,

The light blinks 5 times means all matched remotes

were deleted.

End user can choose the suitable match/delete ways. Two options are offered for selection:

● 0-100% dimming.

● Compliant with 0-10V, 1-10V, 10V PWM, RX(4 in 1).

0/1-10V Dimming

Page 3

www.iskydance.com

V1-T Single Color LED Controller

User Manual Ver 1.0.2 2018.11.01

Malfunctions Analysis & Troubleshooting

Malfunctions

Causes Troubleshooting

1. Output cable is too long.

2. Wire diameter is too small.

3. Overload beyond power supply capability.

4. Overload beyond controller capability.

1. Reduce cable or loop supply.

2. Change wider wire.

3. Replace higher power supply.

4. Add power repeater.

No response

from the remote

1. The battery has no power.

2. Beyond controllable distance.

3. The controller did not match the remote.

1. Replace battery.

2. Reduce remote distance.

3. Re-match the remote.

1. No power.

2. Wrong connection or insecure.

1. Check the power.

2. Check the connection.

No light

Uneven intensity

between front and

rear,with voltage drop

100

PWM duty(%)

5.0 6.0. 7.0 8.0 9.0 10.0

0/1-10V(V)

1.0 2.0 3.0 4.0

Gamma=1.6

Dimming Curve

0/1-10V dimming

100

PWM duty(%)

50 60 70 80 90 100

Brightness(%)

10 20 30 40

Gamma=1.6

RF and Push dimming

Page 4

www.iskydance.com

V1-T Single Color LED Controller

User Manual Ver 1.0.2 2018.11.01
