Service Manual

MAN80304 Rev. 1.2 Jan. 2023

SC430N

Upright Glass Door Fridge

SC430N

Single Door Vertical Fridge

Service Manual

MAN80304

Rev. 1.2 Jan. 2023

SKOPE Industries Limited reserves the right to alter specifications without notice.

is a registered trademark of SKOPE Industries Limited.

SKOPE INDUSTRIES LIMITED

Head Office

PO Box 1091, Christchurch

New Zealand

A.B.N. 73 374 418 306

AU: 1800 121 535

NZ: 0800 947 5673

E-mail: [email protected]

Website: www.skope.com

Trademark Infringement

The SKOPE trademark on this product is infringed if the owner, for the time being, does

any of the following:

• Applies the trade mark to the product after its state, condition, get-up or packaging

has been altered in any manner

• Alters, removes (including part removal) or obliterates (including part obliteration) the

trade mark on the product

• Applies any other trade mark to the product

• Adds to the product any written material that is likely to damage the reputation of the

trade mark

Notice of the above contractual obligations passes to:

• Successors or assignees of the buyer

• Future owners of the product

SC430N

Service Manual iii

Contents

1 Servicing Hydrocarbon

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2 Specifications

Model. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

3 Product Features and Selling Points

Product Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Product Promotion and Selling Points. . . . . . . . . . . . . . . . . . . . . . . . .6

4 Product Appearance

SC430N Overall Product View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

5 Product Information and Improvements

Product Main Technical Parameters . . . . . . . . . . . . . . . . . . . . . . . . . .8

6 Function Adjustment Method

Electrical Temperature Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

7 Schematics and Wiring Diagram

Schematic SC430N Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

8 Working Principle and Parameters

Thermostat and Compressor Model Data . . . . . . . . . . . . . . . . . . . . . 11

Thermostat Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Compressor Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

9 Refrigeration Basic Parts

Sectional View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

10 Production Installation and Disassembly Process

Component Removal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

11 Troubleshooting

Typical Failures and Solutions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

12 Servicing

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Condenser Coil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Refrigeration System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Before Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

On-site Work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Off-site Work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

13 Spare Parts

Main Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Unit Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Details of Exploded Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Servicing Hydrocarbon

Service Manual

SC430N

1 Servicing Hydrocarbon

Overview

This cooler uses hydrocarbon (HC) R290 as its refrigerant. R290 is a natural refrigerant that

has a very low environmental impact.

Special service requirements are needed as R290 is a flammable refrigerant.

Safety hazards

The main R290 safety hazards are:

• Flammable refrigerant.

• Venting of R290 and compressor oil.

• Asphyxiation.

SKOPE does NOT recommend performing hazardous activities on the refrigeration system.

See “Refrigeration System” on page 18 for more information, including examples of hazardous

activities.

SC430N

Specifications

Service Manual 5

2 Specifications

Model

This service manual is applicable to the Haier SC430N bottom mount chiller, detailed in the

table below. Refer to the relevant product specification sheet (available on the SKOPE

website: www.skope.com) for specifications.

Table 1: Model specifications

Model SKOPE ID

SC430N SC430N

Product Features and Selling Points

Service Manual

SC430N

3 Product Features and Selling Points

Product Features

• The refrigeration module, electronic control module and appearance of the SC430N and

products are fully upgraded vertical refrigerators. The product design climate type meets

the ST climate type requirements.

• The air duct combination design of fin evaporator + centrifugal fan is adopted for the

refrigeration part of the product, the cooling speed is faster and more uniform, and the

efficiency is higher and energy saving.

• There is internal cabinet lighting, and an illuminated display box on the cabinet top. The

display box holds a sign decal for advertising branding. This type of sign promotes the

product to the consumer and enhances the overall cabinet aesthetic.

• Sign decal graphics or imagery can be applied to the side of the cabinet. This improves

product and brand awareness for the consumer.

• The glass door has the customer's trademark, which glows to better display the

customer's brand image and highlight the brand charm.

• There are four swivel casters on the base for the flexible movement.

Product Promotion and Selling Points

• Overall curved appearance

• Detachable light box

• Tempered transparent glass door

• Forced air-cooled circulation system in the box, fin evaporator with high heat exchange

efficiency

• Swivel casters (× 4) + front adjustable feet (× 2)

SC430N

Product Appearance

Service Manual 7

4 Product Appearance

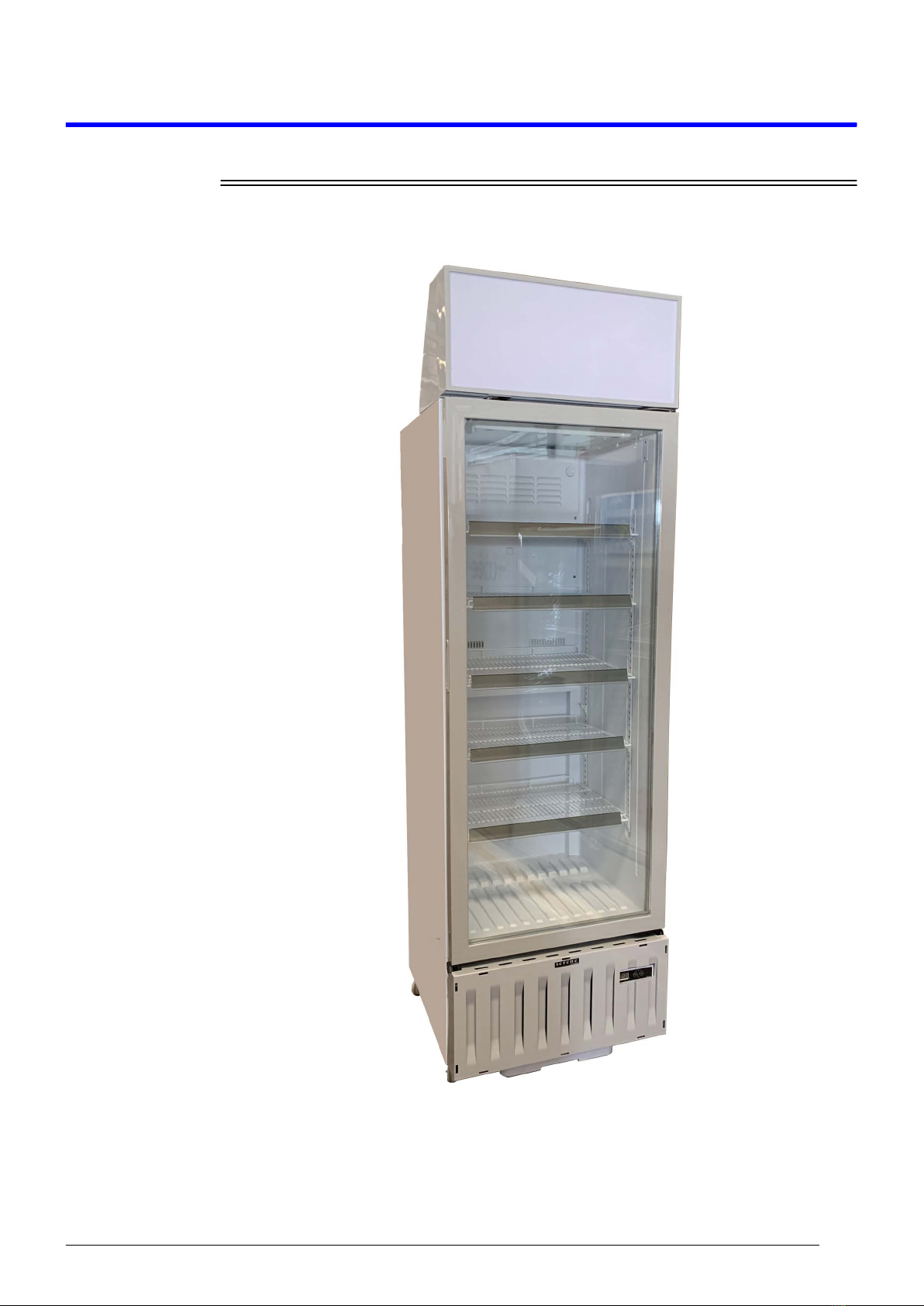

SC430N Overall Product View

Product Information and Improvements

Service Manual

SC430N

5 Product Information and Improvements

• The refrigerant is R290.

• The side panel at the top of the cabinet is formed as part of the side of the cabinet.

• The SC430N uses a Wanbao compressor for refrigeration and a electronic controller.

• The refrigeration system uses two DC centrifugal fans.

Product Main Technical Parameters

Unit Technical Parameter

1. Refrigerator type description

Refrigerator type - Commercial refrigerator

Model - SC430N

Door body type - Transparent door

Colour - White/Grey

2. Main features

Power consumption kWh/24h 1.61

Total effective volume L 420L

Effective volume of refrigerator

compartment L 420L

Climate class - S

Input total power W 450W

Rated current A 2.3A

Refrigerant - R290/50g

Defrost type

(refrigeration/freezing) - Timed natural defrost

Noise (sound power level) dB(A) 60

3. Electrical control

Electrical control method

(electronic/mechanical) - Electronic

Lighting type - LED

4. Dimensions and instability

Body size (D/W/H) mm 660 × 630 × 2208mm

Packing size (D/W/H) mm 720 × 740 × 2312mm

Net weight kg 102

Gross weight kg 112

SC430N

Function Adjustment Method

Service Manual 9

6 Function Adjustment Method

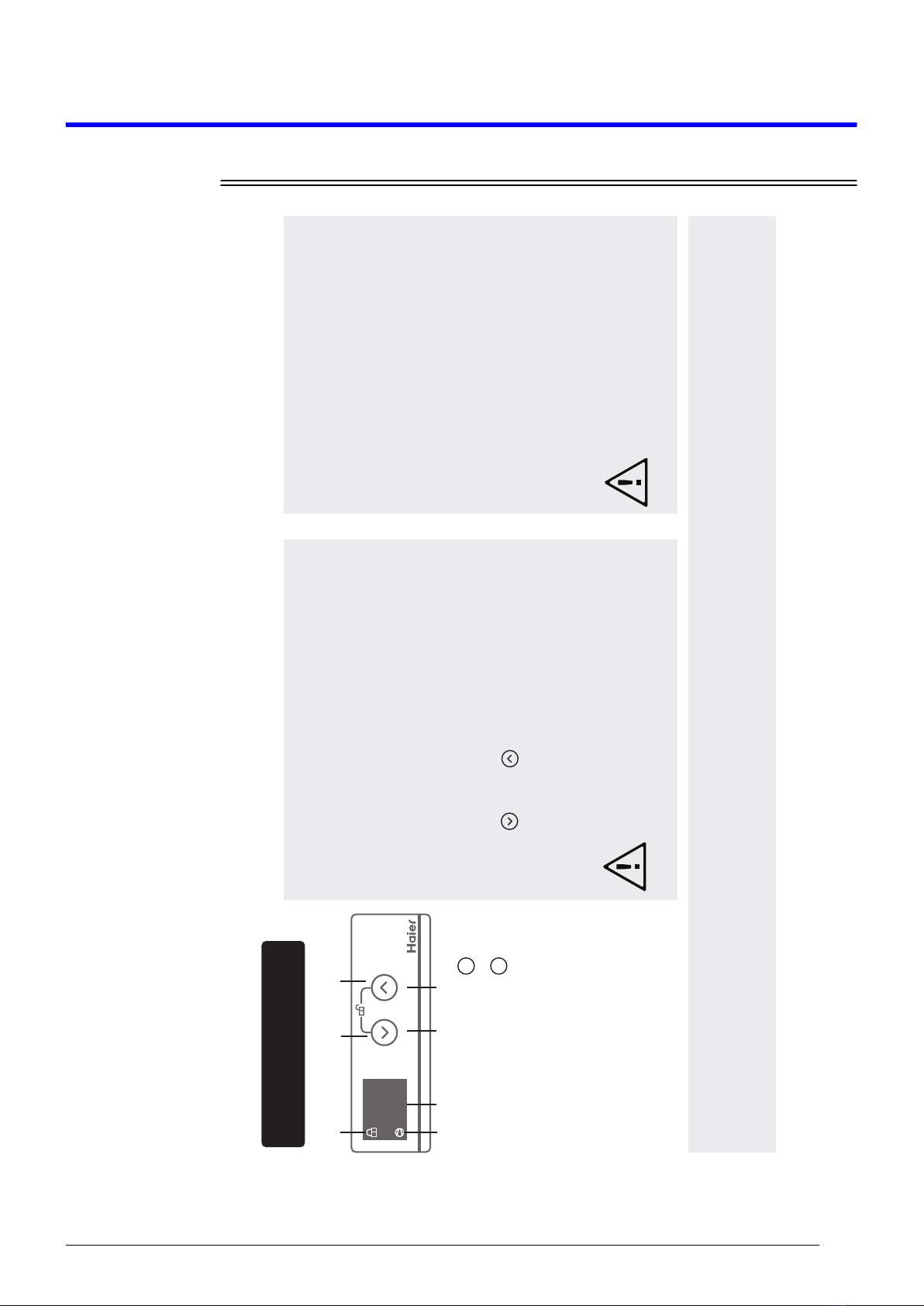

Electrical Temperature Control

-88-

°C

Electrical Temperature

Control

A1 Temperature adjustment

A2 Temperature adjustment

B Temperature display

C D Temperature adjustment icon

E Lock icon

F Compressor on icon

Function introduction

EA1 A2

BC D

Start

Connect electrical power, then display will be on and

under unlock status; Icon-B will show actual tempera-

ture

Display lock & unlock

When display is under lock status, push A1 & A2

together for 3 seconds then display will be unlocked

and available for adjustment. When display is under

unlock status, if pushing A1 & A2 together for 3

seconds, or if no any key is pushed in 30 seconds,

display will be locked and lock icon will show.

Pushing “ ” and “ ” together can switch between

lock & unlock status.

When display flashes F3, it means sensor

has problem. Please call 4006992008 for

customer service. F3 will disappear only

after problem solved.

Temperature Shift

If the A1 or A2 control buttons are pushed

while in unlock mode, the temperature will

change by -1° or +1°. By holding either

button continously will cycle through minus

or positive temperatures. This can range

from 0° to 8° degrees, up or down.

Temperatures can be set-up within the

system. After 5 seconds of initiating change,

the system will save and lock the control

system.

Power-off memory

The controller has power-off memory

function. When not in use, its work status

will be locked. Once operational the system

will revert to last settings.

Default setup temperature is 5 °C.

Adjusting at electrical temperature

control panel is only for SC series

electrical temperature products.

GPRS Model Instructions (for products with GPRS function)

This cabinet has instant messaging function as a low power radio transmitter & receiver. When it’s on it will intermittently receive & transmit

radio signal. Operator network system will control the transmitting power of module. This cabinet complies with the regulations regarding RF

energy leakage of your country.

Schematics and Wiring Diagram

Service Manual

SC430N

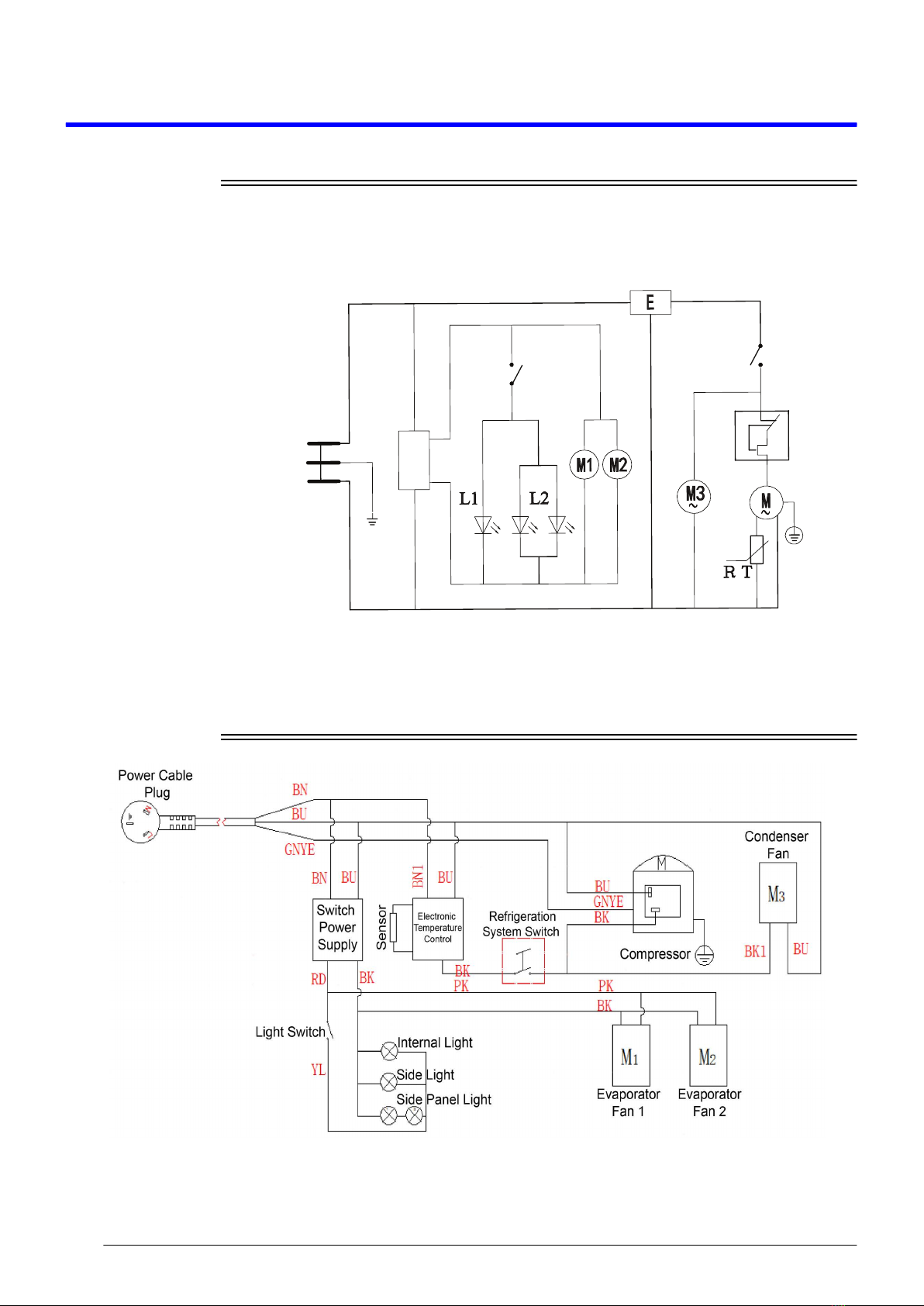

7 Schematics and Wiring Diagram

Schematic SC430N Series

Wiring Diagram

LAB80296 Rev. 1.1 Jan. 2022

SC430N

L2: Box LED

F: Motor protector

L1: Light box LED

XP: Power plug

S2: Compressor switch

B1: Power PCB

S1: LED Lamp switch

M1/M2: Inner fan

E: Thermostat

RT: Starter

M: Compressor

M3: Cooling fan
