Skope HB260 Manuel utilisateur
nstallation and Operating nstructions
MAN5955 Rev. 1.0 March 2006 edition
HB260/HB400
SKOPE Single Door Vertical Cooler
HB260/HB400
SKOPESingle Door Vertical Cooler
New Zealand
SKOPE INDUSTRIES LIMITED
PO Box 1091,Christchurch
NewZealand
Freephone: 0800 947 5673
Fax: (03) 983 3896
E-mail: enquiry@skope.co.nz
Website: www.skope.co.nz
Australia
SKOPE AUSTRALIA PTY LTD
A.C.N. 000 384 270
PO Box 7543,Baulkham Hills B.C.
NSW 2153, Australia
Freephone: 1800 121 535
Fax: 1800 121533
E-mail: enquiry@skope.com.au
Website: www.skope.com.au
CONTACT ADDRESSES
i
HB260/HB400
SKOPESingle Door Vertical Cooler
HB260/HB400
SKOPE SingleDoorVertical Cooler
Installation and Operating Instructions
MAN5955
Rev. 1.0 March 2006 edition.
Copyright© 2006
SKOPE IndustriesLimited.
All rights reserved.
SKOPE IndustriesLimited reserve the
right toalter specifications without notice.
is a registeredtrade
mark of SKOPE Industries Limited.
ii
TRADE MARK NFR NGEMENT
TheSKOPE trade mark onthis product is infringedif the owner, for thetime
being, does any of the following:
•Applies thetrade mark to theproduct aftertheir state, condition,get-up
or packaging has been altered in anymanner
•Alters, removes (includingpart removal) or obliterates (includingpart
obliteration) thetrademark ontheproduct
•Applies any other trade mark to the product
•Addsto the product any writtenmaterial that is likely to damage the
reputation ofthetrademark
Noticeof the above contractual obligations passes to:
•Successors or assigns of the buyer
•Future owners ofthe product
HB260/HB400
SKOPESingle Door Vertical Cooler
1NSTALLAT ON
1.1Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
1.2Positioning of Machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
1.3Before Operating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
2OPERAT ON
2.1Cabinet Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
2.2Loading. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
2.3Temperature Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . .12
3MA NTENANCE
3.1Lighting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
3.2Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
3.3Servicing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
TABLE OF CONTENTS
iii
6HB260/HB400
SKOPE Single Door Vertical Cooler
1.1Safety nformation

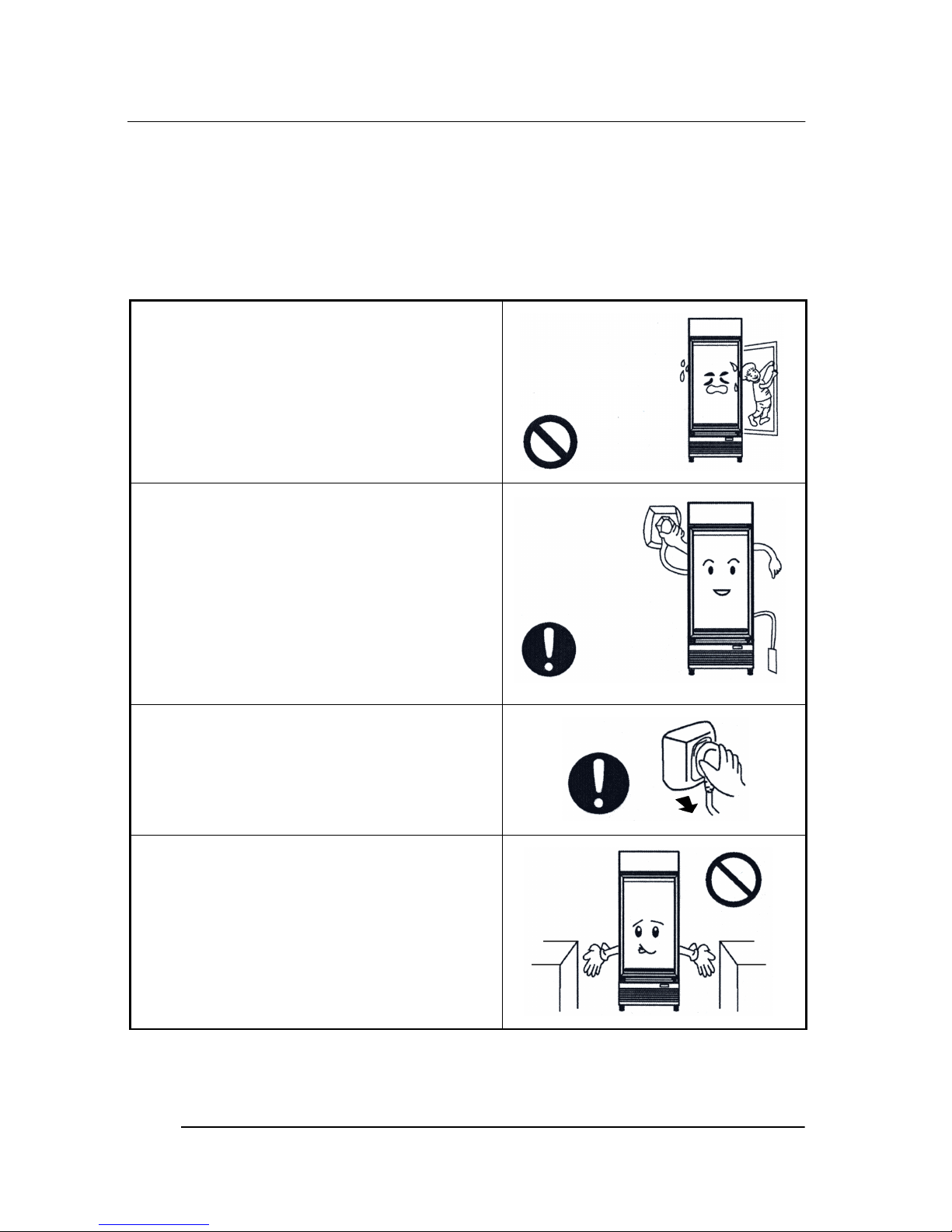

When using any electrical appliance, safety precautions should
always be observed. Read these instructions carefully and retain for
future reference.
When used by, or near, young
children or infirmpersons, close
supervision is necessary. Young
children should be supervised to
ensure that they do not play with the
appliance.
Only use this appliance with voltage
specified on the rating label.
Regulations require that all
electrical work be carried out by
authorised persons. For your own
safety and that of others, ensure
this is done.
Disconnect the cabinet from the
power supply before cleaning the
cabinet.
Ensure adequate ventilation of the
refrigeration system.
Do NOT cover the grilles or block
the entry or exhaust of airflow by
placing objects up against the
refrigeration unit.
NSTALLAT ON
1
7
HB260/HB400
SKOPESingle Door Vertical Cooler
Be careful not to touch moving parts
or hot surfaces.
Do NOT probe any opening.

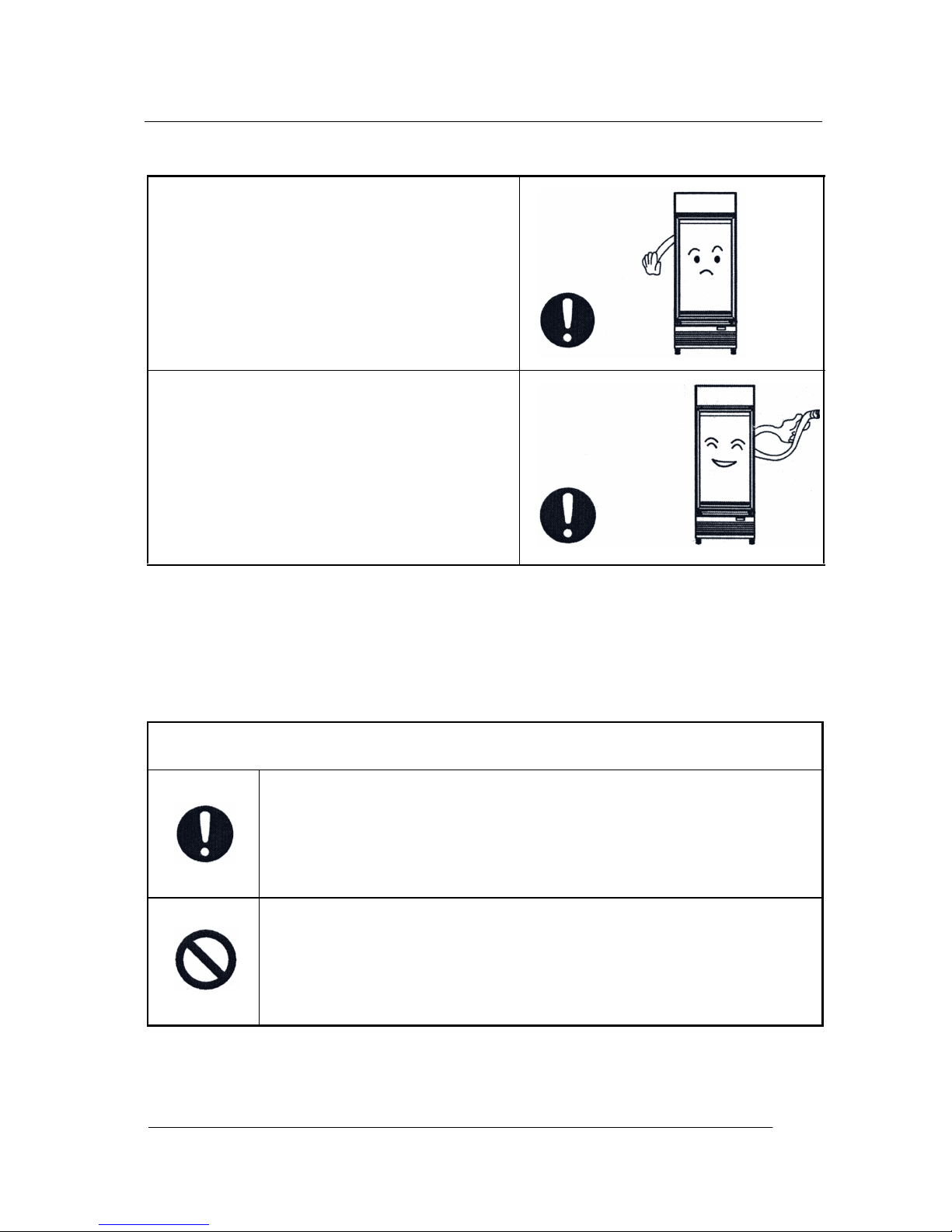

If the supply cord becomes
damaged, it must be replaced by a
SKOPE authorised service agent,
or similarly qualified person.
The meaning of the safety symbols used in this manual:
The content with this ‘Warning’ symbol is in association
with product safety and user’s personal safety.
Operation should be strictly in accordance with the
warning material.
The content with this ‘Forbid’ symbol is operation that is
absolutely forbidden, otherwise it may cause damage
to equipment or to user’s personal safety.
NSTALLAT ON
1
8HB260/HB400
SKOPE Single Door Vertical Cooler
1.2Positioning of Machine

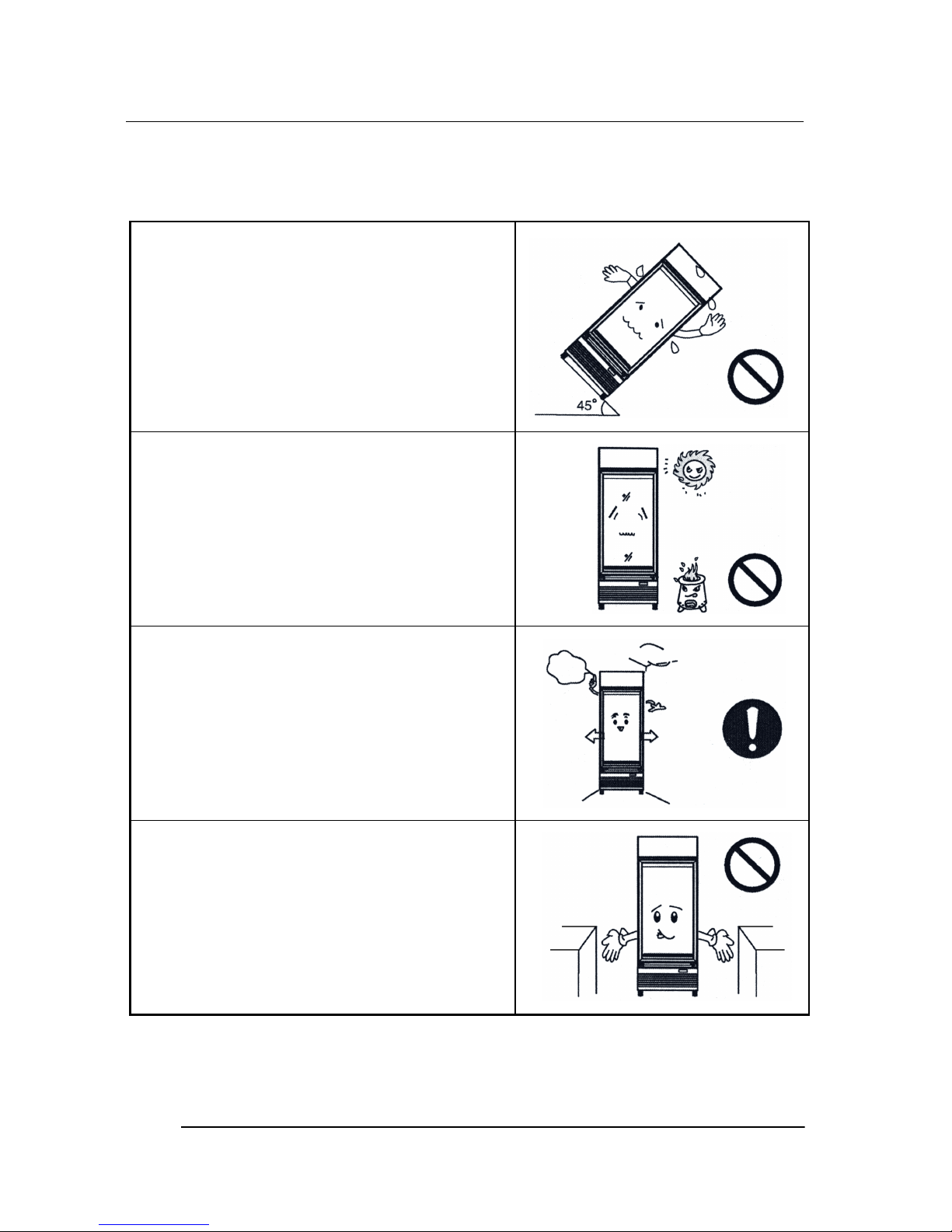

The cooler must be positioned on a
level surface to ensure the cabinet is
stable, as well as to prevent the
condensate tray from overflowing.
When being moved the cabinet
should not be angled more than 45°.
When installing the cooler, avoid
direct sunlight, hot surfaces and
warm drafts etc.
Normal maximum operating
conditions are 40°C at 75% RH.
For efficient operation of the cooler, it
is essential that adequate ventilation
be provided around the refrigeration
unit.
A gap of at least 50mmshould be
kept between the back and wall.
Never store cardboard cartons or
other items in front of the
refrigeration unit. The ventilation
slots in the front and rear of the
cabinet must be kept clear at all
times.
NSTALLAT ON
1
9
HB260/HB400
SKOPESingle Door Vertical Cooler
1.3Before Operating

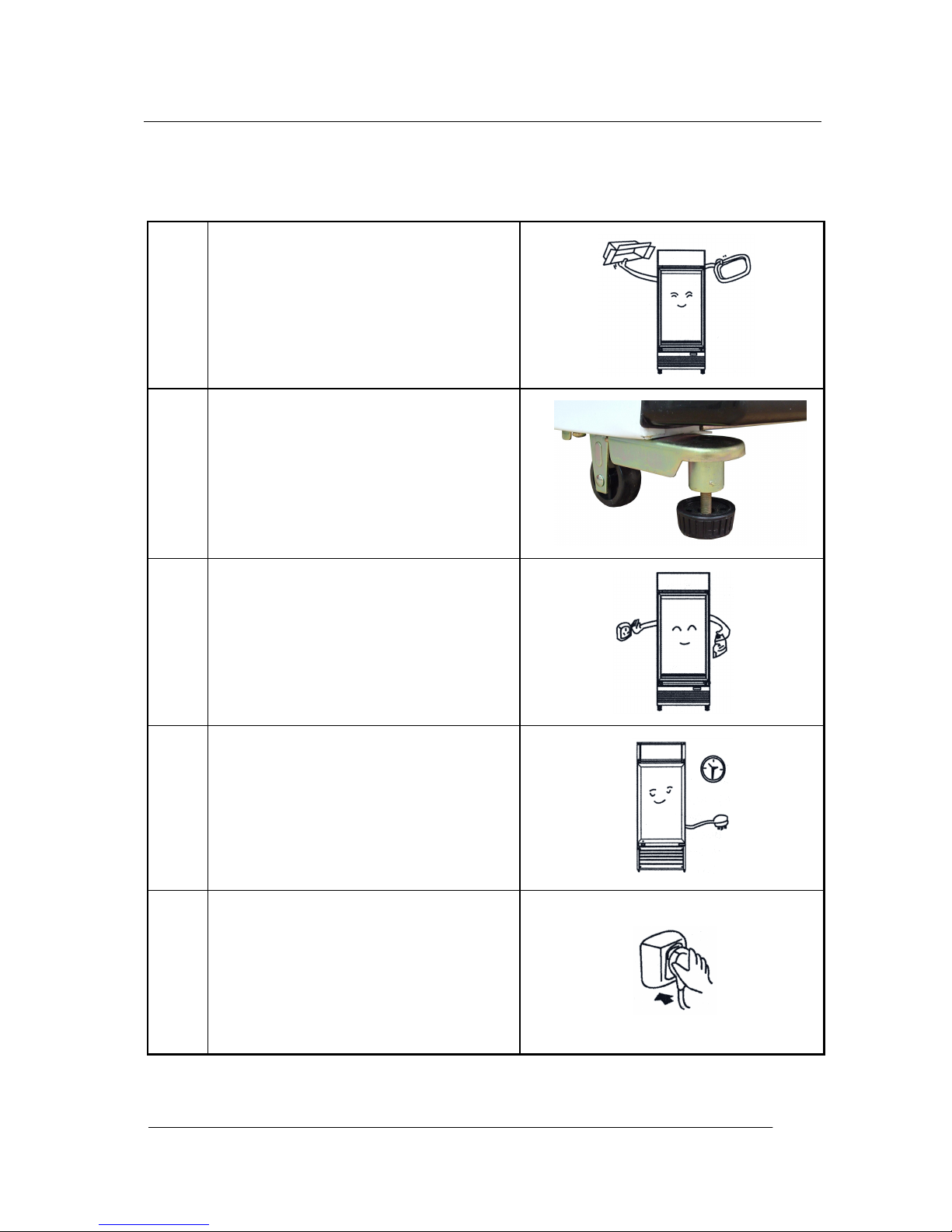

1.Unpack all the packing
material fromthe cabinet,
including the foam base.
2.Ensure both the front
stabiliser feet are screwed
firmly down to floor level.
3.Clean the cooler before
using, by wiping both the
interior and exterior of the
cabinet with a damp cloth.
4.After moving the cooler, allow
the cabinet to stand for at
least 30 minutes before
connecting to the power
supply.
5.Connect the cabinet to the
mains power supply and
check operation of the
refrigeration unit and cabinet
lighting.
NSTALLAT ON
1
10 HB260/HB400
SKOPE Single Door Vertical Cooler
2.1Cabinet Operation
Connect the cabinet to the mains power supply and check operation
of the refrigeration unit and cabinet lighting.
Refrigeration Unit
The refrigeration unit evaporator and condenser fans should all
operate continuously from the time the cabinet is plugged in. This
may be verified by checking air movement inside the cabinet and out
of the top of the front kick panel.
Lighting
The sign light and cabinet interior light will both go on when the
cabinet is plugged in, and will stay on permanently. The fluorescent
lights will require aperiod of time to stabilise following initial start up.
OPERAT ON
2
