SKMEI 1464 Manuel utilisateur

User Manual of SKMEI Mode #1464

A:Features

OLED display hour,minute, second,week, date, month, day,temperature function

12/24 H Format selectable

Pedometer

7-day step data query function

Compass

Alarm and Chime hourly

Stopwatch(maximum 23:59"59)

Count Down

Dual time

the LED will light on 10 seconds when press any key.

B:Synchronous needle function

In the Time mode, press E key to set the needle function, press and hold down E key to move the minute hand quickly.

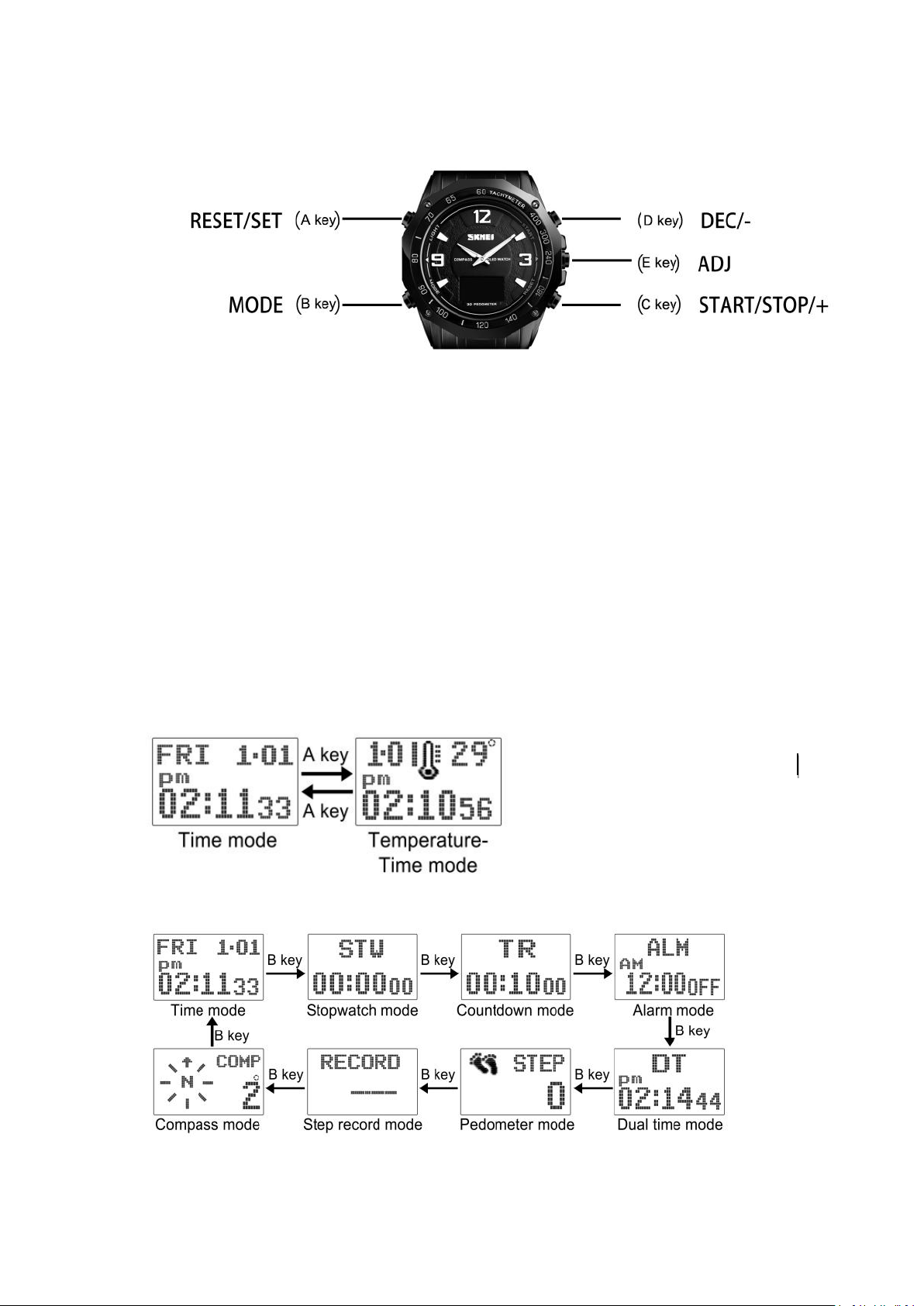

C:Product mode loop

D:Product function mode

E:Product function settings

1. Time and date setting function

In the Time mode, press A key for 3 seconds to enter the time setting state. At this time,

“12H”

flashes, press B key

“second”starts to flash,then press B key to select setting item (flashing) as following sequence:

Press C key to increase the selected value, and press D key to decrease the selected value.

Press A key to confirm and return to the Time mode.

2.Stopwatch and segment timing function

The measurement range is 23 hours 59 minutes 59.99 seconds.

Set stopwatch: In the stopwatch mode, press C key to start running the second, then press C key to stop running,

press A key to remove when the running seconds stop.

Process time

C key C key C key C key A key

Start Stop Restart Stop Remove

When the stopwatch is running, press B key to switch to other display modes,the stopwatch will continue to

measure time.

3.Countdown function

The countdown timer can be set from 1 second to 24 hours. An alarm sounds when the countdown reaches zero.

Press C key to start/stop the countdown; when the countdown stops, press A key,the countdown time will

automatically return to the initial setting time.

When the countdown reaches to zero, the alarm sounds for about 10 seconds or until you stop it by pressing any

button. the countdown time is automatically reset to the initially setting time after the alarm stops.

Timing setting: In the countdown mode, hold down A key for 3 seconds until the “hour”starts to flash, press B key

to select setting item (flashing) as following sequence:

Press C key to increase the selected value, and press D key to decrease the selected value.

Press A key to confirm and return to the Countdown mode.

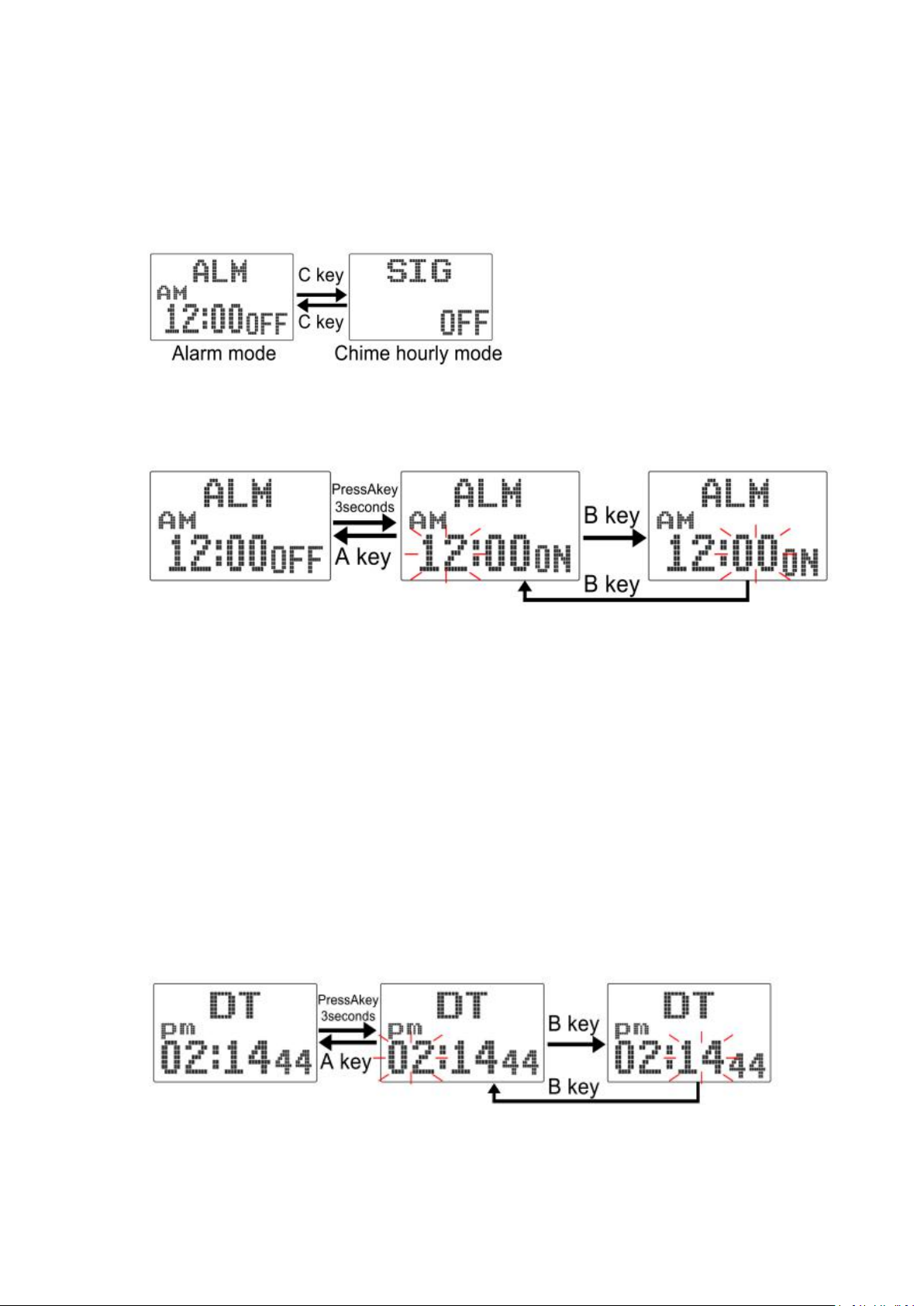

4.Alarm function

In the Alarm mode, press C key to switch the mode as follows:

In the relative mode, press A key to turn on/off the alarm and Chime Hourly function.

In the Alarm mode, hold down A key for 3 seconds until the “hour”starts to flash, press B key to select setting

item (flashing) as following：

Press C key to increase the selected value, and press D key to decrease the selected value.

Press A key to confirm and return to the Alarm mode.

Remarks：

In any mode, the alarm will sound for 10 seconds when it reaches the preset time. During the alarm, press any

button can stop ringing.

The intermittent alarm sounds once every 5 minutes, sounds 7 times in total. You can press any key to interrupt

the ringing.

After turned on Chime Hourly function,the watch will beep twice at each hour.

5.Dual time function

In the Dual time mode, hold down A key for 3 seconds until the “hour”starts to flash, press B key to select flashing

item.

Press C key to increase the selected value, and press D key to decrease the selected value.

Press A key to confirm and return to the Dual time mode.

6.Pedometer function

In Pedometer mode, press C key to“turn on/pause”the function.

In Pedometer mode,press A key to switch the mode as following.

In Pedometer mode,hold down A key for 3 seconds to start setting.

Metric/Inch: The default is metric system, press C key to switch to metric or imperial.

Set weight: The default weight is 50kg (20IN), adjustable range: 20-200kg/44-440Lb;

Set step distance: the default step distance is 70cm (154LB), adjustable range: 30-200cm/12-79in;

Press C key to increase the selected value, and press D key to decrease the selected value.Metric/Imperial has no

fast adjust function.

Press A key to confirm and return to the Pedometer mode.

7.Step record query function

In the Step record mode, press C key to query historical data within 7 days, and press A key to view the data for a

certain day.

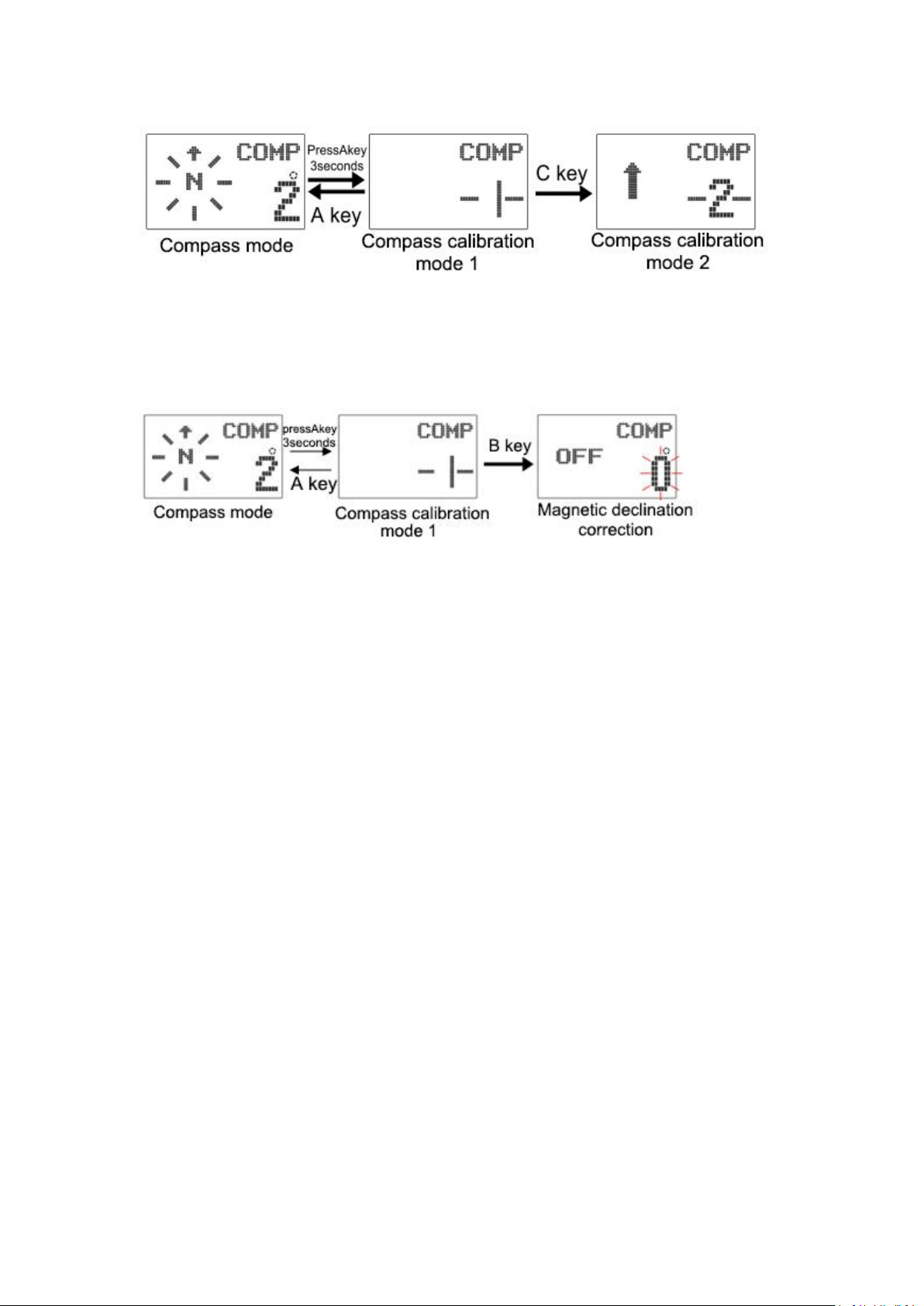

8.Compass function

In Compass mode, turn the movement to display the compass angle.

hold down A key for 3 seconds into the Compass calibration mode.

In Compass calibration mode 1,press C key when the arrow points to the 6 position , when OK appears then into

Calibration mode 2.

In Compass calibration mode 2, hold the watch upside down ,press C key when the arrow points to the 12

position, when OK appears then the calibration is completed and back to the Compass mode.

Magnetic declination correction

Press C key to increase the selected value, and press D key to decrease the selected value.

Press A key to confirm and return to the Compass mode.

F:Quality standards

6. Movement size: Ф38.1mm

7. Thickness (with buzzer): 8.10mm

8. Working temperature: 0°C ~ +50 °C

9. Working voltage: 3.0V

10. Battery model and capacity: CR2032 (capacity 220m Ah)

11. Accuracy: ±90 seconds / month

12. Static average current: ≤6.0u A

13. Alarm average current: ≤5.0m A

14. OLED light average current: ≤10m A

15. Battery life (85%): ≥18 months (Japan Electric)

(The light is on 5 times a day, 10 seconds for each time , light on 50 seconds in total; sounds for 20 seconds every day.)
