SKMEI 1746 Manuel utilisateur
SKMEI 1746 Operation Manual
Key S1 : Up ,Begin timing ,Pause,Switch,Photograph
Key S2 : Selection,Setting,Reset
Key S3 : Mode Conversion,Confirming and Save
Key S4 : EL Back Light, Bluetooth Switch
Function instruction:
12-digit timer function, the normal time mode display Week,Hours,Minutes, seconds
(Synchronize automatically with your phone when connected with the phone)
S1
UP
S2
SET/DOWN
S4
EL/BLE
SMS,QQ,WeChat,Twitter
,Facebook,WhatsApp,Sk
ype Reminding
Photograph
Heart rate detection
Calling
Pedometer
Alarm mode
Calorie consumption
Stopwatch
Distance
S3
MODE
12/24 hour Format setting selection (Synchronize automatically with your phone when connected
with the phone)
24 hours precise 3D pedometer / calorie consumption / distance detection (the data can be uploaded
to the phone when connected with the phone )
Heart rate detection
Sleep monitoring
Alarm:Timing Alarm( The alarm time can be set by the APP when connected with phone).
Stopwatch/Chronograph: Maximum stopwatch timing 23 hours, 59 minutes and 59 seconds, can be
split.
EL backlight, press Key S4 one time the light will last 2 seconds.
The Bluetooth function can be turned on and off (different application mode to save power).
When connecting with APP of phone or Tablet PC,it can upload sport data and backup to the cloud
server.
Synchronize the time, date and alarm setting smartly in your phone, instead of the cumbersome
manual operations.
Reminding of Calls, SMS, QQ, WeChat, Twitter, Facebook,Whatsapp and Skype.
Taking Photo from Phone Camera by remote control.
APP supports 12 languages: Simplified Chinese, Traditional Chinese, English, Italian,French, German,
Russian, Spanish, Portuguese, Arabic, Japanese and Korean.

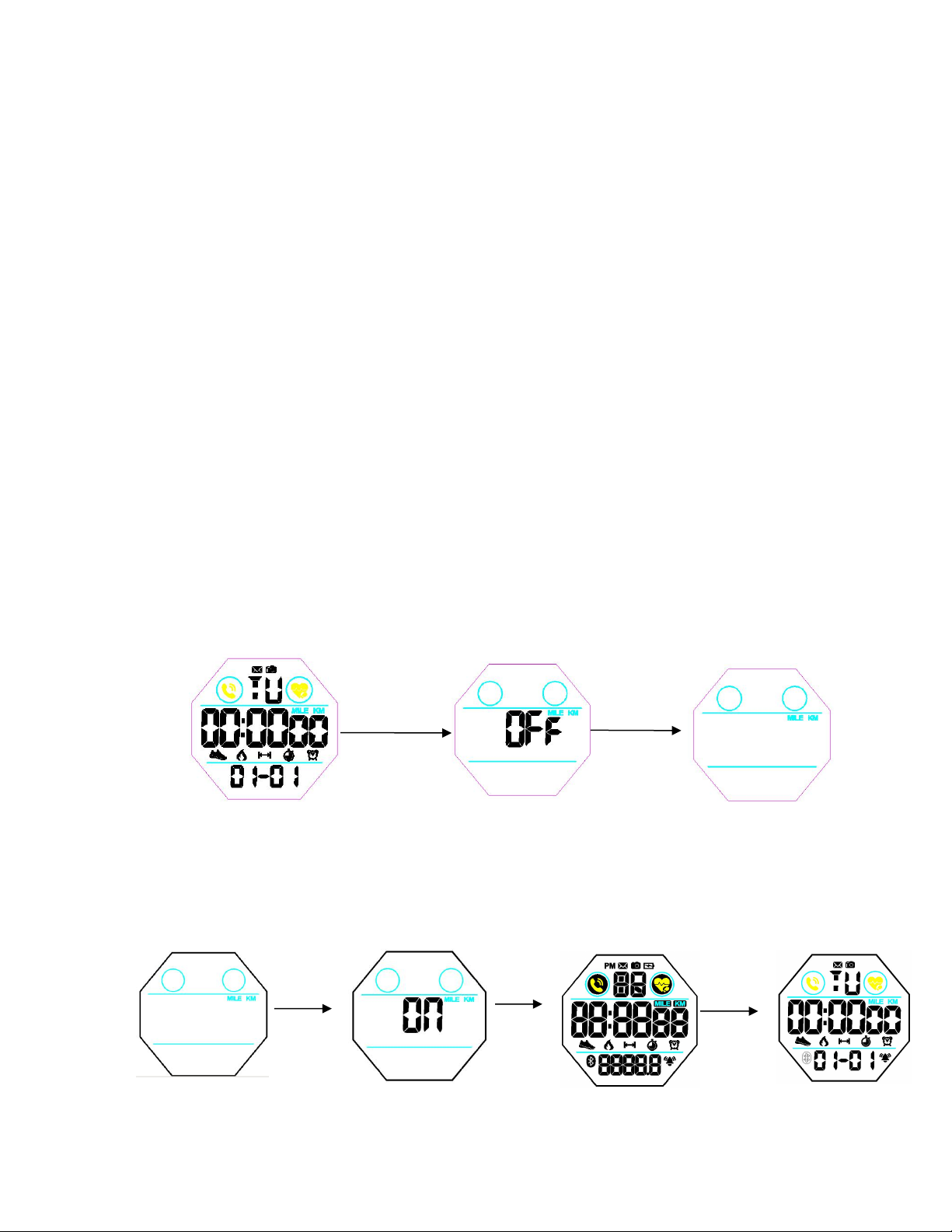

ON/OFF MODE
At any mode,press S1 and S3 at the same time to enter into Shutdown mode.
S2 ,进入多运动界面
In shutdown mode, press and hold Key S1 and S3 for 3s at the same time to
enter into boot mode.
Press and
hold Key
S1 and S3
for 3s at
the same
time
Display
Automatically
Press and hold
Key S1 and S3
for 3s at the
same time
Shutdown
Mode
Boot Display
Mode
Boot Mode all
information displays
Normal time display when
the Bluetooth is turning on
(Bluetooth icon is flashing)

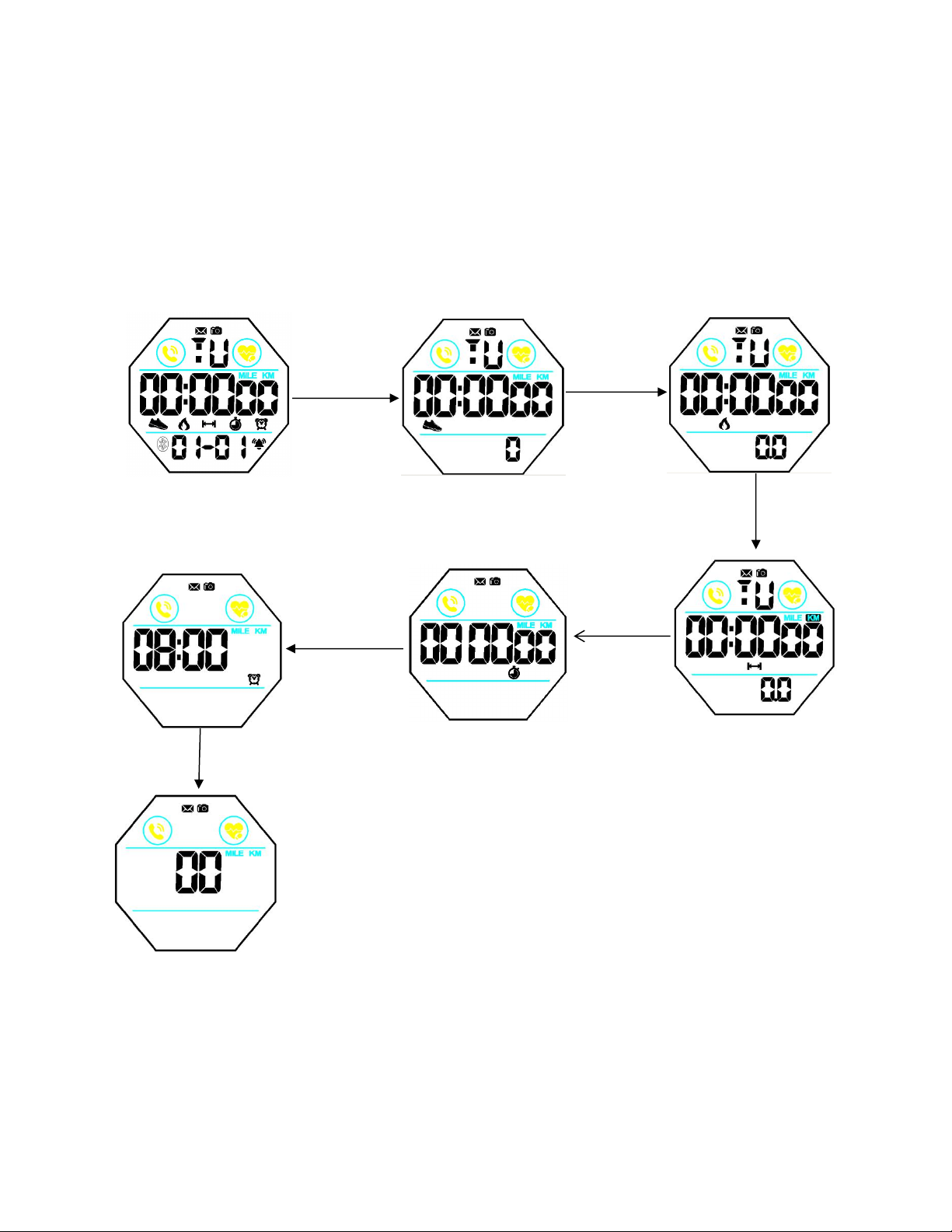

Switch Mode
Key S3
Key S3
Distance
Pedometer
Key S3
Stopwatch
Alarm
Key S3
Key S3
Heart rate detection
Key S3
If do not perform any
operation on this interface,
you will stay in this interface
forever, press the S2 key to
return to the time display
interface
Normal time display

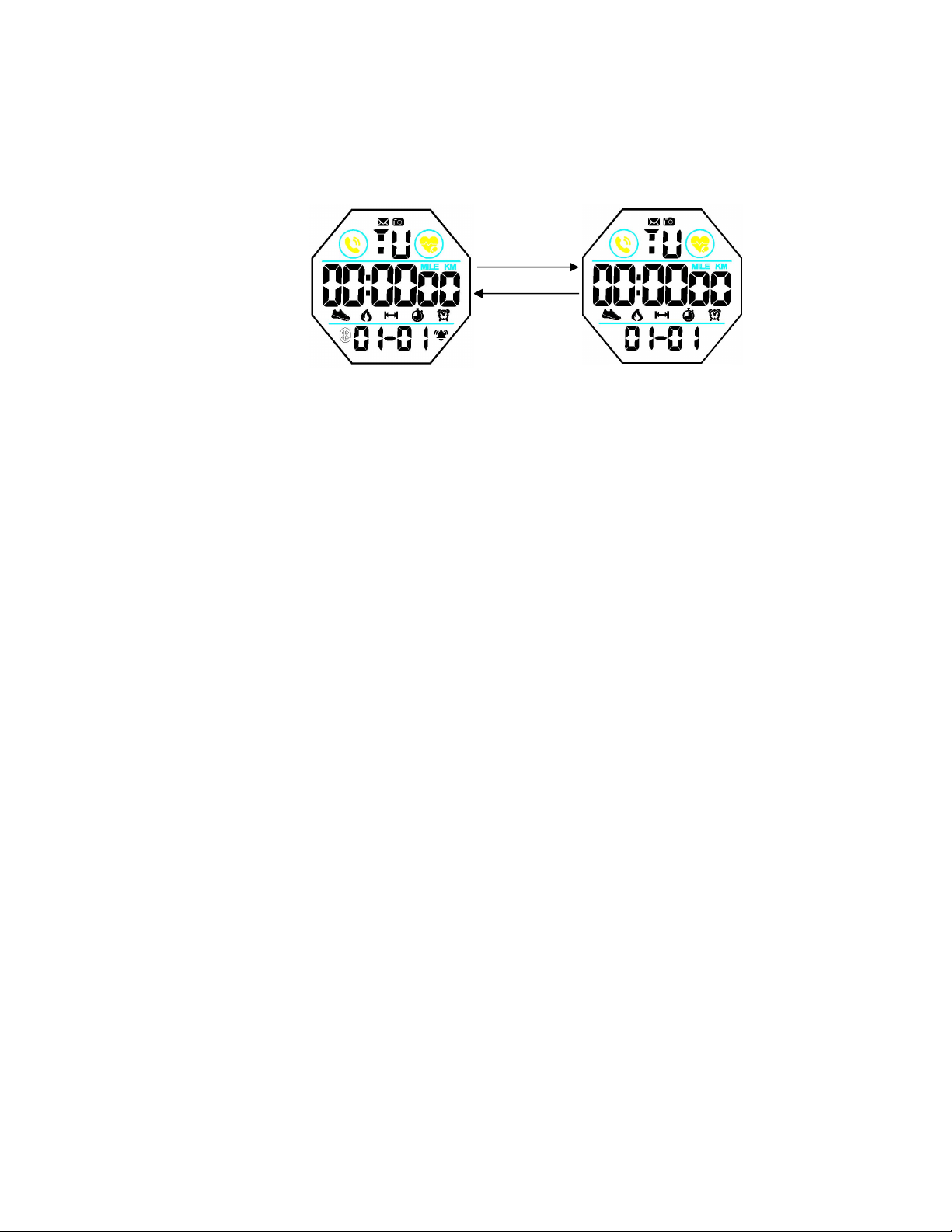

Bluetooth ON/OFF Mode
血此据仅供参考）
Press and hold
Key S4 for 3s
Press and hold
Key S4 for 3s
Bluetooth on
Bluetooth off

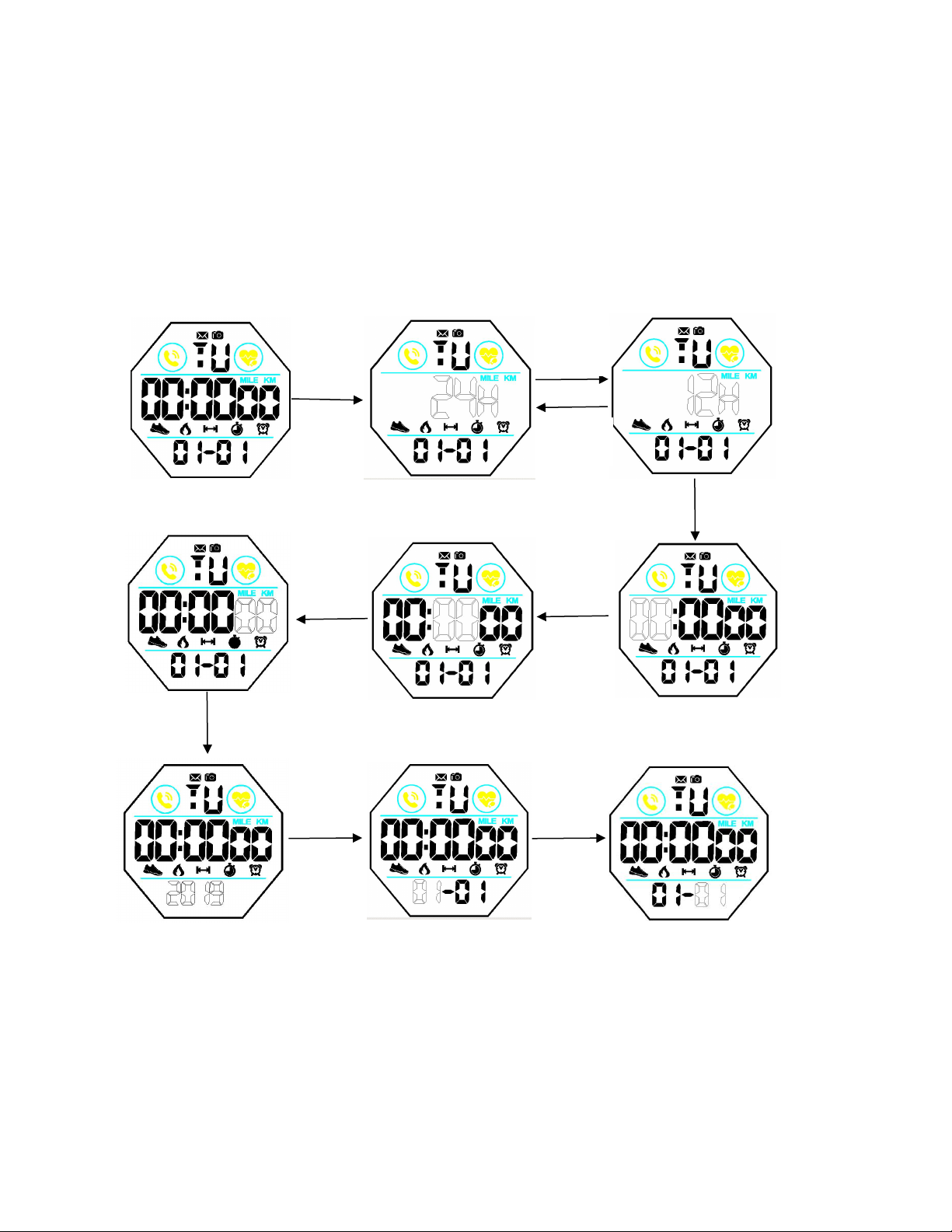

Time and date setting
Time and 12/24H Setting(when Bluetooth OFF)
Remarks
1.In any setting mode, it will return to the Normal Time Display automatically if without any operation
more than 10s.
2.In any setting mode, press S3 to save the current setting and return to the previous menu.
Press
Key S2
Press
Key S2
Press
Key S2
Press
Key S2
Press Key
S2
Press
Key S2
“Second” is flashing,
press S1 to adjust
Press and
hold Key S2
for 3s
“24H” is flashing,
press S1 to adjust
Normal time display
Press
Key S1
“24H” is flashing,
press S1 to adjust
“Hours” is flashing,
press S1 to adjust
“Minutes” is flashing,
press S1 to adjust
“Year” is flashing,
press S1 to adjust
“Month” is flashing,
press S1 to adjust
“Date” is flashing,
press S1 to adjust
Press S3
to save
and
return to
the time
display
Press
Key S1

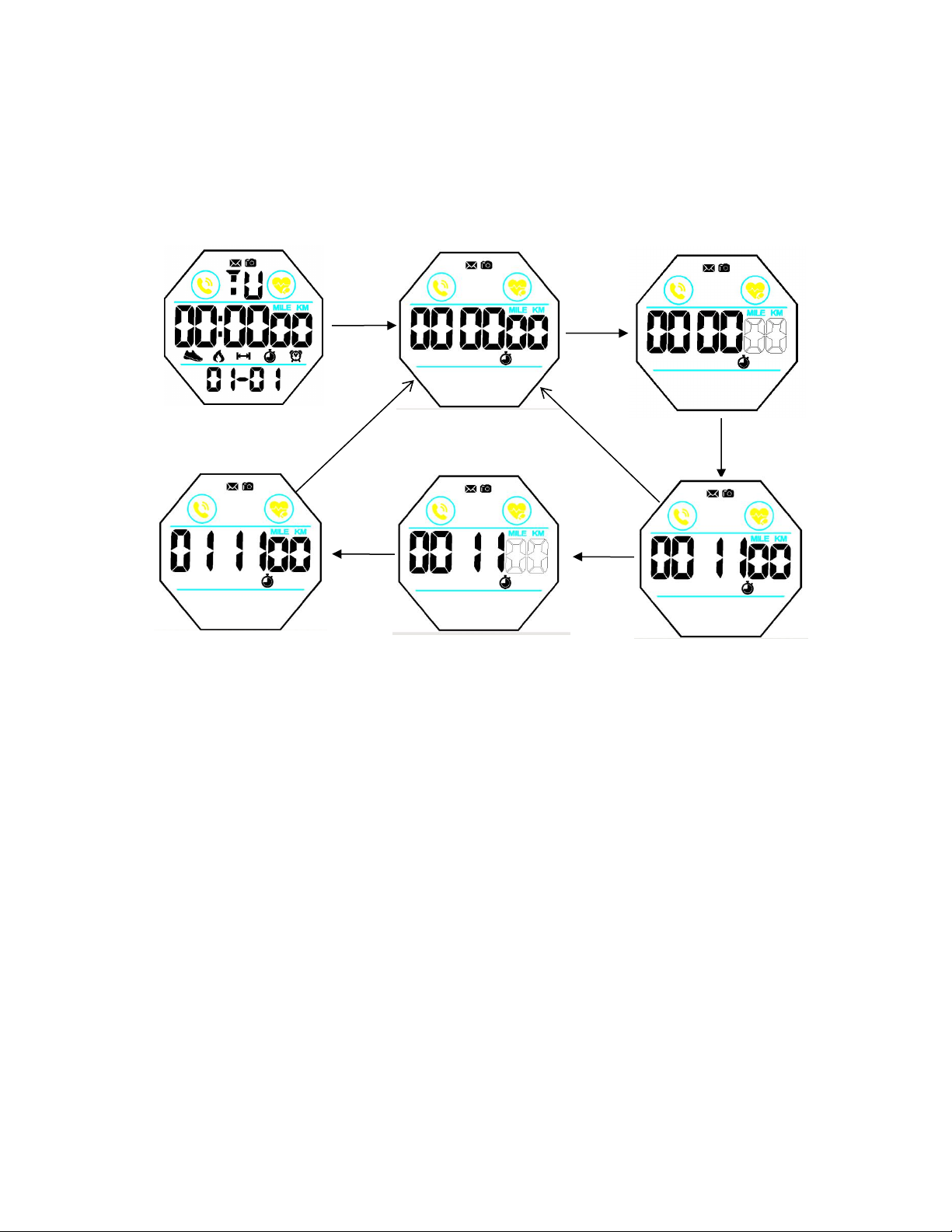

Chronograph Setting Mode
4
N
f
4trewtqgrehg
Remarks
The maximum chronograph time is 23 hours 59 minutes 59.99 seconds,the first 23 minutes and 59.99
seconds are accurate to milliseconds and then to the second;
If the record runs up to the maximum, the stop watch will start recording from zero again.
If the stop watch is running and hasn’t been reset, while switch to other function mode, the
stopwatch will run continually in backstage.
Press S2 to
return to zero
Press S2 to
return to zero
Press
Key S1
Stopwatch starts,
Milliseconds is running
Press
Key S1
Press Key
S3 four
times
Normal time display
(Bluetooth off)
Press
Key S1
Press
Key S1
Split,digits stop
Stopwatch continue,
Digits run
Stopwatch suspend,
digits stop

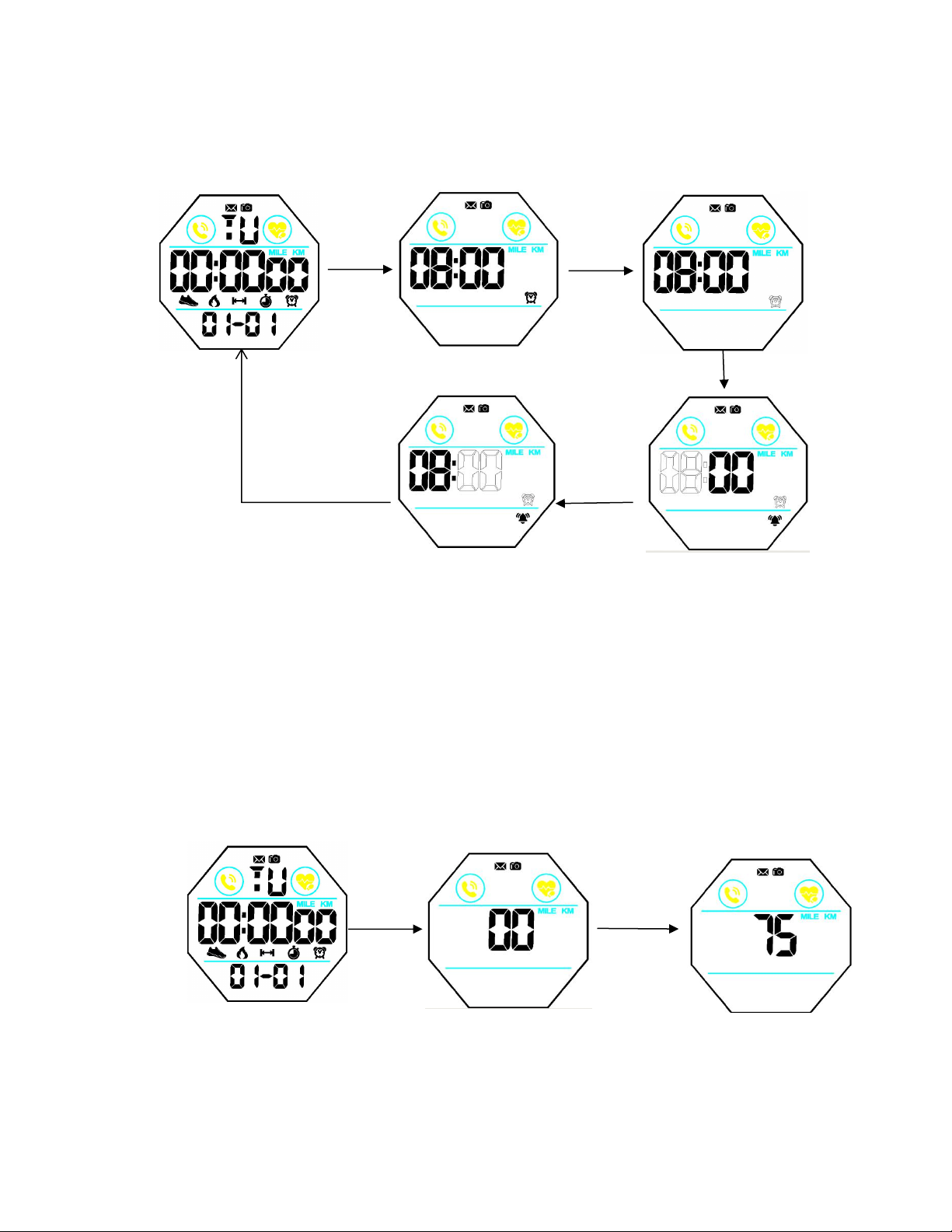

Alarm Setting Mode
指南
针设
置模
式
APP
连接
APP
指南
针设
置模
式
指南针设置模式
Heart Rate Monitor Mode
心率测试模式
Press
Key S2
Alarm mode,
“Minutes” is flashing,
press S1 to adjust
Automatically
Press
Key S3
six times
Press and
hold S2 for
3s
Press S3
five times
Alarm mode
Alarm mode,
“Hours” is flashing,
press S1 to adjust
Press Key S3 to
save the set alarm
time and return to
the main interface
The green light flashes and
the test starts
Remarks:
When the heart rate test is aimed at whites, blacks, and people with hairy hands, the test data will be
biased;
When testing, the watch must be firmly worn on the wrist;
When the battery voltage is low to a certain level (less than 2.75V), enter the heart rate test interface,
the low battery symbol will keep flashing to remind you that you need to replace the battery to use
the heart rate test, and return to the time interface after 10 seconds. Other functions can also be
used normally
Download APP and Use
APP download and install：
1.Scan the QR code
Android phones (foreign users), scan the QR code of the product shown in P6 to download and install
the APP.
Android phones (China Domestic users), scan the QR code of the product shown in P7 to download
and install the APP..
IOS phones scan the product QR code shown in P5 to download and install the APP.
2.Keyword search
Foreign Android: Foreign/Hong Kong, Macao and Taiwan regions Search for sports+ on Google Play.
Domestic Android: App Store in Mainland China Search for sportplus on App Store.
Apple: Search for sports+ by guanghui on the App Store (note that there is a space before and after
“by”).
P5(IOS App QR code) P6(Android for google play)
P7 Android for China

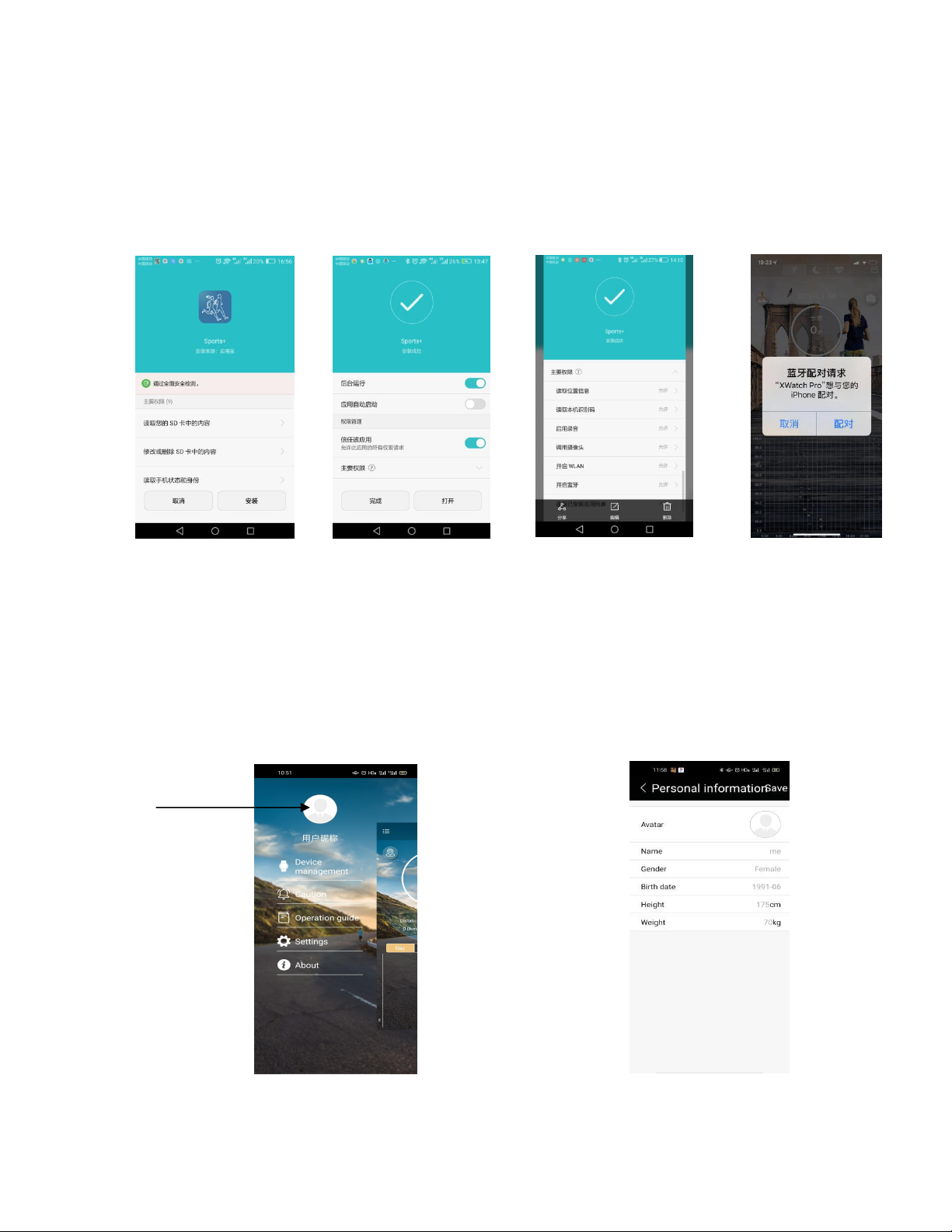

Android phone APP Installation Notes
Click "Install",entering into the "background" then click "trust the application" to open the permissions
(Select "OK” for all the warning prompts)
Set the personal information after the first sign in,Including avatar,nickname,gender,date of
birth,height, weight,after entering the main interface,you can modify personal information
Click on the avatar

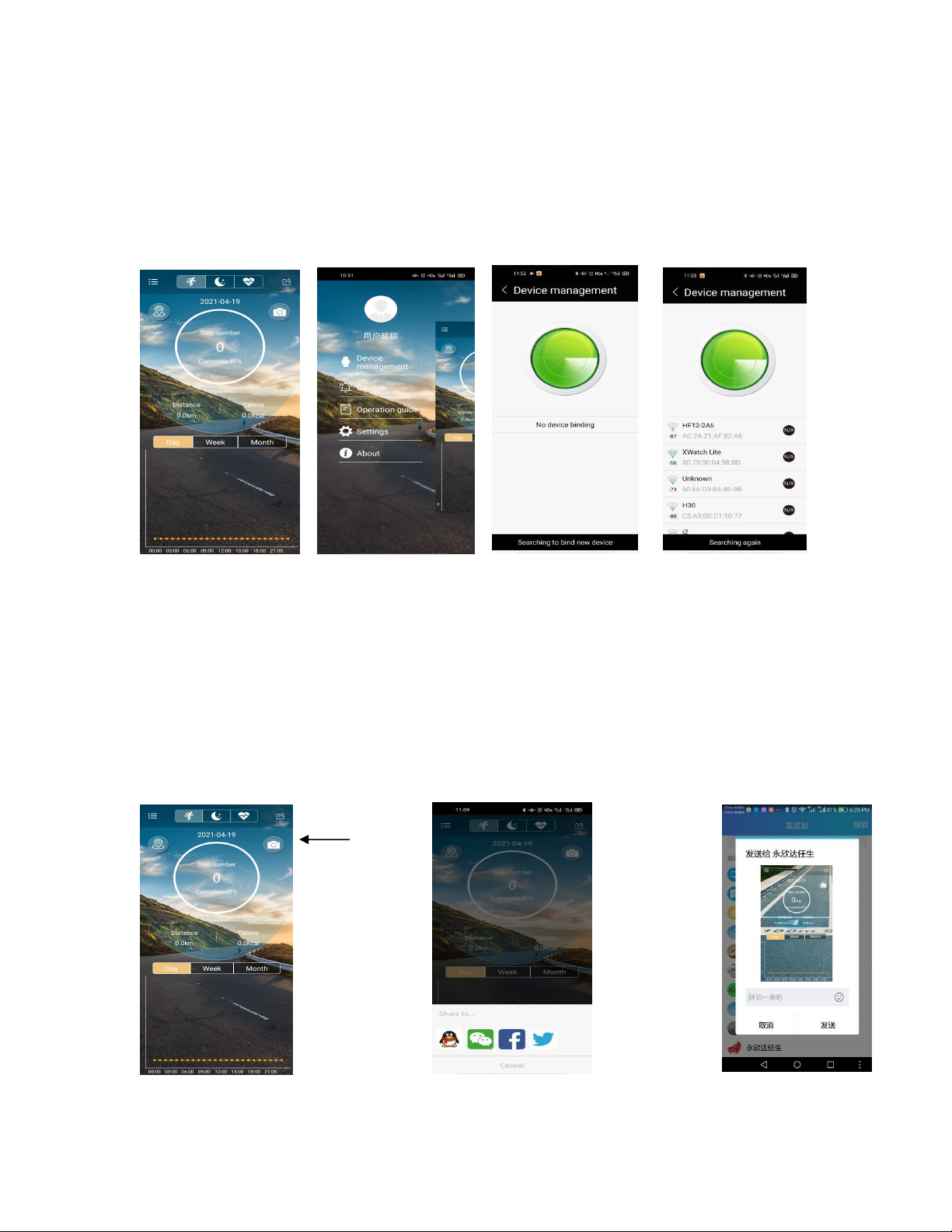

Apple phone pairing
Bluetooth Connection And Binding
Turn on the bluetooth both on mobile phone and Xwatch before use bluetooth to connection and
binding them.Open the APP then click the left upper icon to enter into the setting interface,selecting
"Device Binding”→ "Search and Binding the new device”,searching around Xwatch and connecting
→Matching the Xwatch.
Main interface Click Connect Device Click "Search and Binding the new device” Click XWatch Lite to
automatically connect
Remarks: The android mobile operating system must be or Above android version 4.3. The android mobile
bluetooth must be above 4.0 version; The apple mobile phone must be or above IPHONE 4S versions.
Exercise data sharing
Click to
divide
Share
icon
QQ
We Chat Moments
Facebook
Twitter
Select a friend in QQ
