SKF 83753 Mode d’emploi

User and maintenance instructions

Models  and , series “B”

Air and water reels

Date of issue October 2018

Form number 404665

Version 2

Contents

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Explanation of safety signals. . . . . . . . 3

Dimensions . . . . . . . . . . . . . . . . . . . . . . 4

Speciﬁcations . . . . . . . . . . . . . . . . . . . . 4

Mount hose reel . . . . . . . . . . . . . . . . . . 5

Install connecting hose. . . . . . . . . . . . . 5

Adjust hose bumper . . . . . . . . . . . . . . . 6

Remove guide arm . . . . . . . . . . . . . . . . 6

Position guide arm . . . . . . . . . . . . . . . . 6

Replace latch pawl . . . . . . . . . . . . . . . . 6

Replace hose . . . . . . . . . . . . . . . . . . . . . 7

Remove hose . . . . . . . . . . . . . . . . . . . . . 

Install hose . . . . . . . . . . . . . . . . . . . . . . . 

Replace swivel . . . . . . . . . . . . . . . . . . . . 7

Illustrated parts breakdown . . . . . . . . 8

Warranty . . . . . . . . . . . . . . . . . . . . . . . . 12



Explanation of safety

signals

Safety

• Personal injury and/or equipment damage

may result if proper safety precautions are

not observed.

• Ensure that reel is properly installed

before connecting input and output hoses.

• Bleed air/water pressure from system

before servicing reel.

• Before connecting reel to supply line,

ensure pressure does not exceed

maximum working pressure rating of reel.

• Low pressure is very dangerous and can

cause personal injury or death.

• Be aware of machinery and personnel in

work area.

• If leak occurs in hose or reel, remove

system pressure immediately.

• High tension spring assembly is

contained within reel. Exercise

extreme caution.

• Pull hose from reel by grasping hose itself,

not control valve.

• Ensure reel, hose and equipment being

serviced are properly grounded.

• Use an ohmmeter to check ground

continuity.

• If reel ceases to unwind or rewind, remove

system pressure immediately. Do not pull

or jerk on hose. Treat hose reel as any

other piece of machinery, observing all

safety practices.

NOTE

Emphasizes useful hints and

recommendations as well as

information to prevent property damage

and ensure efﬁcient trouble-free

operation.

CAUTION

Indicates a dangerous situation that

may lead to light personal injury if

precautionary measures are ignored.

WARNING

Indicates a dangerous situation that

may lead to death or serious injury if

precautionary measures are ignored.

DANGER

Indicates a dangerous situation that will

lead to death or serious injury if

precautionary measures are ignored.



A. in (520,9 mm)

B. in (490.2 mm)

C. in (119,8 mm)

D. in (75,9 mm)

E. in (206,5 mm)

Speciﬁcations

Model Maximum

pressure

Delivery

hose

Weight Delivery hose outlet

external threads

Connecting hose inlet

external threads

Maximum operating

temperature

psi bar in x ft mm x m lbs kg °F °C

  21 3/8x  9,5 x 15,2 . 15,6 1/4in NPTF 1/4in NPTF  66

  21 1/2x  12,7 x 15,2  16,8 1/2in NPTF 1/2in NPTF  66

Fig. 1

Dimensions



Mount hose reel

1 Prior to mounting hose reel, ensure supply

line pressure does not exceed maximum

working pressure of hose reel.

2 Do not exceed maximum installation

height of  ft (4,8 m).

3 Unpack and inspect reel for damage.

Turn spool by hand to check for

smooth operation.

4 Position reel on ﬂoor, wall or ceiling (not

recommended for mobile applications).

Refer to Fig. 3, 4and 5.

5 Secure into place using four mounting

bolts (not included). Refer to Fig. 2.

6 Depending on where reel is placed, it may

be necessary to adjust hose bumper and

guide arm to use hose properly.

7 Refer to page 6) to adjust hose bumper

and reposition guide arm.

Install connecting

hose

1 Apply pipe thread sealant to threads

on reel.

2 Thread connecting hose onto input

(† Fig. 6).

3 Tighten connecting hose ﬁtting to a torque

of  lbf-ft (94 Nm).

Fig. 2 Fig. 3

Mounting applications – ﬂoor

Fig. 4

Mounting applications – wall

Fig. 5

Mounting applications – ceiling

NOTE

Do not use rigid plumbing. Use ﬂexible

hose connection at input.

Do not exceed recommended torque

of  lbf-ft (94 Nm).

Model  requires 1/4in NPTF

hose and model  requires

1/2in NPTF hose.

Connecting hose not included.

Fig. 6



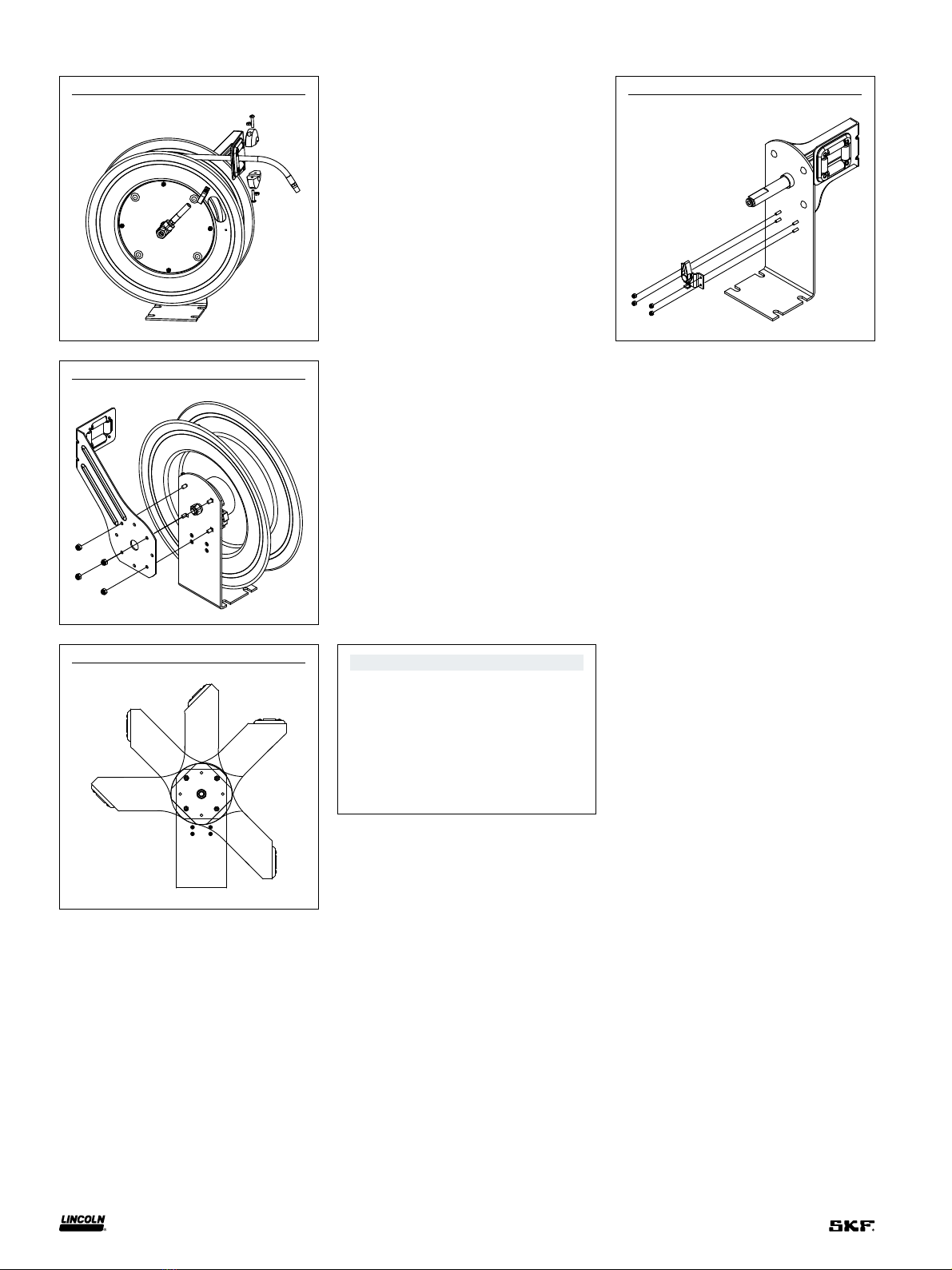

Adjust hose bumper

1 Pull out hose until latch pawl engages.

2 Loosen slotted screws († Fig. 7).

3 Slide bumper to desired position.

4 Tighten screws.

5 Pull hose to disengage latch pawl.

6 Allow hose to retract into reel.

Remove guide arm

1 Pull out hose until latch pawl is engaged.

2 Remove slotted screws holding bumper in

place († Fig. 7).

3 Remove bumper.

4 Allow hose to retract into reel.

5 Remove  nuts holding guide arm on base

(† Fig. 8).

6 Pull guide arm off base.

Fig. 7

Fig. 8

Fig. 9

Fig. 10

NOTE

Recommended guide arm positions

for mounting applications, refer to

Figs. 3, 4and 5, page 3.

Replace latch pawl

1 Retract hose onto reel until bumper is

against guide rollers and latch pawl is

not engaged.

2 Remove nuts that fasten latch pawl

assembly with socket-head cap screws.

3 Replace latch pawl assembly and

tighten nuts.

Position guide arm

1 Remove guide arm.

2 Position guide arm in one of ﬁve positions

(† Fig. 9).

3 Install and tighten four nuts on guide arm.

4 Tighten drive spring by turning spool two

or three revolutions to engage latch pawl.

5 Pull hose through roller opening in

guide arm.

6 Position bumper on hose.

7 Install and tighten screws in bumper.

Refer to Fig. 7.



Replace hose

Remove hose

1 Pull out hose leaving

 to  ft (0,6 to 0,9 m) on spool.

2 Engage latch pawl.

3 Remove screw nuts on inside of spool

(† Fig. 11).

4 Remove hose clamp.

5 Unthread hose at connection to swivel.

6 Use wrench on both ﬁttings or swivel may

be damaged.

7 Remove hose.

Install hose

1 Route hose through guide arm rollers and

opening of spool.

2 Apply thread tape or sealant to hose

threads.

3 Screw hose ﬁtting into threaded ﬁtting on

swivel.

4 Tighten connection with wrench on

both ﬁttings.

5 Install hose clamp († Fig. 11).

6 Install hose bumper on working end

of hose.

7 Disengage latch pawl and allow hose

to retract.

Fig. 11

Fig. 12

NOTE

Do not use rigid plumbing. Use ﬂexible

hose connection at input.

Do not exceed recommended torque

of  lbf-ft (94 Nm).

Model  swivel assembly has

1/4in NPTF internal threads and

model  swivel assembly has

1/2in NPTF internal threads.

Connecting hose not included.

Replace swivel

1 Remove hose († Replace hose).

2 Remove swivel by unscrewing threaded

stem from main shaft († Fig. 12).

3 Replace swivel by screwing threaded stem

of swivel into main shaft of reel.

4 Replace hose.



151617

Service parts

Item

Description

Quantity

Model 83753

3/8in x  ft

(0,37 mm x 15,24 m)

Model 83754

1/2in x  ft

(12,7 mm x 15,24 m)

Swivel assembly   )*  )*

Nut M N/A N/A

Snap ring  N/A N/A

Washer  N/A N/A

Adjust washer N/A N/A

Spring case cover N/A N/A

Drive spring assembly N/A N/A

 Arbor  N/A N/A

Spring case stud N/A N/A

 Spring case N/A N/A

 Spring case sheave N/A N/A

 Hex washer screw N/A N/A

 Sheave ﬂange N/A N/A

 Screw M x  N/A N/A

 Hose clamp   

 Nyloc nut M N/A N/A

 Screw M x  N/A N/A

Fig. IPB 1

) 1/4in NPT.

) 1/2in NPT.

*Indicates change.



Fig. IPB 2

Guide arm and roller assembly kit 279090*

Option  Item  and  rivets to install

Option  Items , ,  and 

Service parts continued

Item

number

Description

Quantity

Model 83753

3/8in x  ft

(0,37 mm x 15,24 m)

Model 83754

1/2in x  ft

(12,7 mm x 15,24 m)

 Ratchet and spacer assembly   

 Step nut N/A N/A

 Main shaft spacer N/A N/A

 Main shaft N/A N/A

 Bolt GB/T  M x  N/A N/A

 Base  N/A N/A

 Washer GB/T   N/A N/A

 Nut GB/T  M N/A N/A

 Guide arm )*   

 Nyloc nut M 

 Hose assembly   

 Bumper assembly   

 Universal roller )*   

 Screw M x  N/A N/A

 Latch pawl assembly   

 Nyloc nut M N/A N/A

) Included in guide arm and roller assembly kit .

*Indicates change.


