SKATEY 3200 lithium Manuel utilisateur
Instructions manual
Skatey 2800 Lithium
Skatey 3200 Lithium
Important
Make sure you read and understand this maual before before you use the Skatey.
Belangrijk
Gebruik de Skatey pas nadat u deze handleiding gelezen en begrepen hebt. De NL versie vind u op www.skatey.com.
Wichtig
Verwenden Sie die Skatey erst, nachdem Sie die Gebrauchsanleitung gelesen und verstanden haben.
Deutsche Anleitung nden Sie auf www.skatey.com
INSTRUCTIONS MANUAL Skatey 2800L/3200L
2
Skatey, catch the power wave
Congratulaons! You are the new owner of a Skatey electric skateboard. A praccal and fun means of transport that will
bring you a great deal of pleasure. Now that you own a Skatey product you can always contact us if you have quesons
about your board. We will help you if you need spare parts and when there is a problem with your board.
Warning
We assume that you will handle your Skatey in a safe and responsible manner. The use of an electric skateboard is not
enrely without risk. Certainly if you do not use your Skatey in a responsible manner. You need to learn how to ride a
Skatey electric skateboard, just like you learned how to ride a bicycle.
The use of a Skatey electric skateboard is enrely at your own risk.
Read these instrucons carefully and take noce of the warnings and instrucons. Don’t use your Skatey before these
instrucons have been read and the user is familiar with them.
Skatey Electric B.V. cannot be held responsible for any physical injury and wounds to you or others. You should there-
fore protect yourself well by wearing protecve clothing, a helmet, knee, elbow and wrist pads. The protecon will
absorb a large part of the impact should you fall.
Stay up to date; follow us on:
Skatey 2800L/3200LINSTRUCTIONS MANUAL
3
Content
1. Content packing 4
2. Skatey electric skateboard product descripon 4
2.1 The electric skateboard 5
2.2 The remote control 5
3. Start with your Skatey 6
3.1 Safety measures 6
3.2 Acvate the Skatey board 6
3.3 Acvang the remote control 6
3.4 Stepping on and o 7
3.5 Relax 7
3.6 Driving 7
3.7 Turning your Skatey 8
3.8 Uphill and Downhill Riding 8
3.9 Deacvang skateboard 8
3.10 Charging the skateboard 8
4. Warnings and advice 9
5 Maintenance 10
5.1 Cleaning 10
5.2 Baery 10
5.3 Check your board before driving 11
5.4 Wear and tear 11
6. Performance 12
7. Skatey board and charger specicaons 12
7.1 Skatey charger specicaons 13
8. Baery details 13
8.1 Specicaons 13
8.2 Low baery capacity 13
8.3 Special situaons 14
9. Troubleshoong 15
10. Storage 16
11. Warranty 16
12. Terms and condions 17
13. Baery disposal 18
14. EC declaraon of conformity 18
15. Contact and customer service 18
INSTRUCTIONS MANUAL Skatey 2800L/3200L
4
1. Content packing
A Skatey electric skateboard comes complete with the following items in the packing:
• Skatey electric skateboard with unique serial number.
• Remote control
• Baery for the remote control
• Charger for the skateboard
• Toolkit
• Quick start manual with unique serial number
2. Skatey electric skateboard product description
The Skatey electric skateboard is equipped with an electric motor, a baery and a remote control so you can drive au-
tomacally. All Skatey components are manufactured and assembled by hand with great care. Take careful note of the
instrucons and safety measures in this document and your Skatey board will provide you with many hours of fun.
Details:
• Innitely variable speed control with the remote control for easy driving.
• Electronic brake for powerful and safe braking, even at high speeds.
• Remote control that operates your Skatey.
• Driving at 2 preset speeds.
• Baery-saving mode for the Skatey and the remote control. When not in use the Skatey and the remote control
both power o automacally aer 5 minutes.
• High quality an slip deck.
Skatey 2800L/3200LINSTRUCTIONS MANUAL
5
2.1 The electric skateboard
The skateboard comes complete with the charger and the remote control. The deck designs may vary. The unique serial
number is located on a scker on the baery box of your skateboard.
The on/o buon and the charge socket is located on the side of the black box, that is aached to the boom of the
skateboard. The electric motor(s) of the Skatey 3200L is located on the rear axle. The Skatey 2800L has in-hub motors on
the rear wheels.

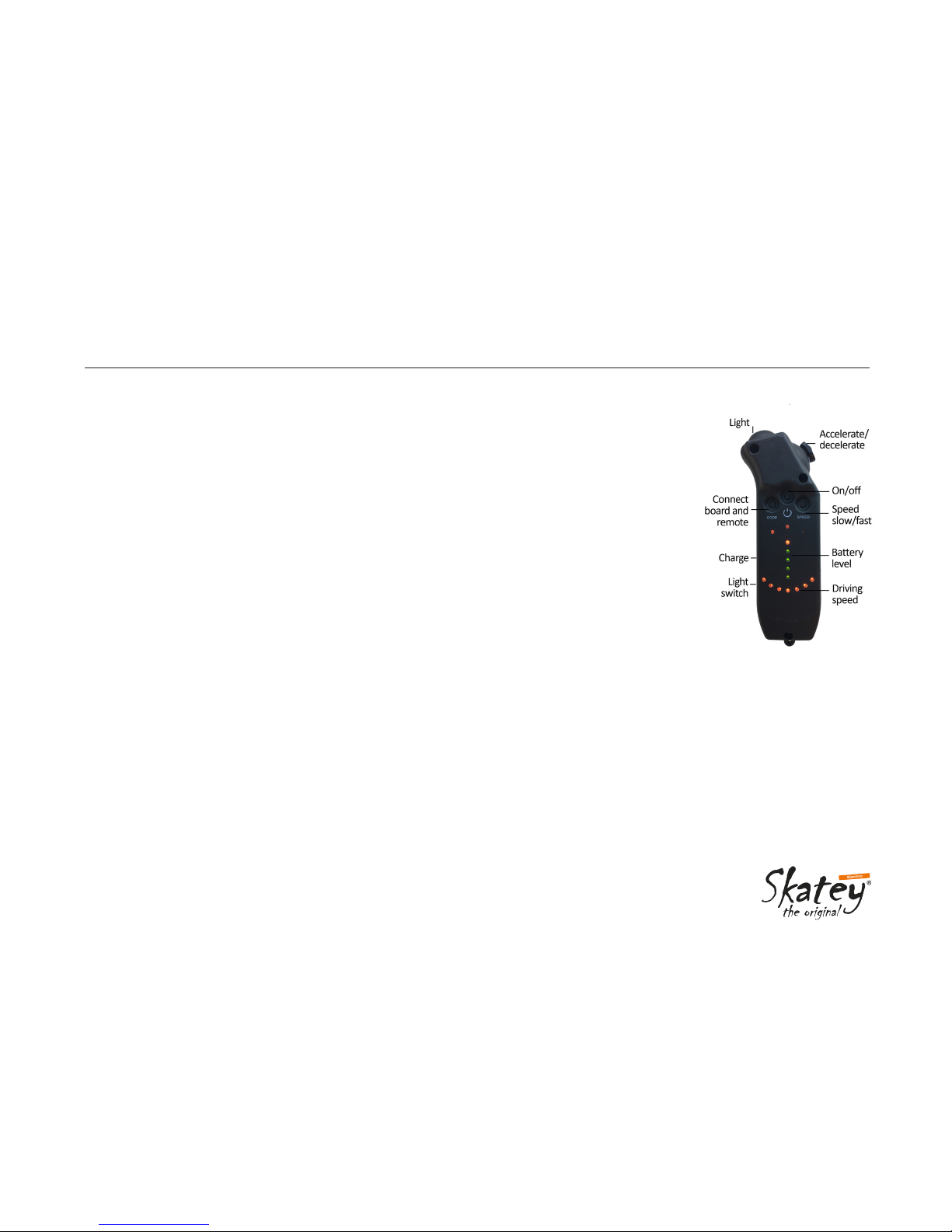

2.2 The remote control
Use the remote control for acceleraon and braking. By pulling the trigger towards you, the Skatey will accelerate.
You can regulate your speed by pulling the trigger hard or gently towards you. Push the trigger forward to brake.
Connecon:
The remote control must be within 1,5 meter of the skateboard in order to operate it. If this distance is greater there is
no connecon between the remote control and the skateboard.
Switch on/o and changing the preset speed:
• Switch on the remote by pressing the on/o buon.
• Set the preferred speed
Slow: for beginners. Press the “speed” buon; the light under the buon blinks slowly.
Fast: for professional and advanced riders. Press the “speed” buon; the light under the buon blinks fast.
• Switch o the remote pressing the on/o buon.
Pairing the skateboard with the remote control
In order to be able to control the skateboard, the board and the remote must communicate with each other. To make
INSTRUCTIONS MANUAL Skatey 2800L/3200L
6
the connecon rst switch on the skateboard, then switch on the remote control. If the red
“code” light on the remote control blinks press the “code” buon. When the light stops blink-
ing and remains red, the remote and the board are connected. Now you can drive. You only
have to do this once.
Baery
The remote control will power o aer approximately 5 minutes if not in use, this extends
the baery life. To reacvate the remote control power it o and back on again. Charge the
remote with the USB cable. If you don’t charge the baery the remote control will automa-
cally power o aer a few minutes.
3. Start with your Skatey
3.1 Safety measures
When you ride your Skatey electric skateboard you need to use protecve equipment. You should at least wear a hel-
met, wrist, elbow and knee pads. If you fall, this protecve equipment will absorb a great deal of the impact and helps
prevenng serious physical injury.
3.2 Activate the Skatey electric skateboard
To acvate the skateboard press the red colored buon on the side of the board located on the black “control box”. The
blue indicator light will light up.
3.3 activating the remote control
Acvate the remote control with the switch.
Make sure that you don’t touch the trigger during startup (if you do your board will drive away without you).
Skatey 2800L/3200LINSTRUCTIONS MANUAL
7
3.4 Stepping on and off
Make sure that you have enough space to pracce. If you are not experienced ask if someone can help you.
Place one foot on the board in the riding direcon above the front truck. Put some weight on this foot and slightly bend
your knee. Now place your other foot diagonally on the board above the rear truck. Remember to keep pung weight
on your front foot, thereby moving your bodyweight forward.
Only step o the board when you are standing sll. If you are stepping o while driving, you may fall.
3.5 Relax
It usually takes no more than a few minutes before you can stand properly and relaxed on your board with the remote
control in your hand.
3.6 Driving
If you have to learn how to drive an electric skateboard, make sure the remote is set in “slow mode”. In “slow mode”
you are less likely to fall. To put the Skatey in moon, gently pull the trigger of the remote control. Once the Skatey
starts moving, rst pracce braking. You do this by pushing the trigger forward with your index nger. Once you are used
to driving in “slow mode” you can switch to medium or fast mode.
Warning: Do not drive outside your driving abilies, adapt your driving speed to your skills!!
3.7 Turning your Skatey
The Electric Skateboard turns like any other skateboard. First assume the basic posion. Bend your knees a lile more
and apply pressure to the deck with your heels or toes and the board will turn in that direcon. More pressure will
result in ghter turns. First pracce a le turn and then a right turn.
INSTRUCTIONS MANUAL Skatey 2800L/3200L
8
3.8 Uphill and Downhill Riding
On an uphill run, you will nd that you need to keep your weight over the rear wheels to keep them from slipping. If
the hill is too steep the motor may overheat. Stop, step o and walk the steep hills. The board will take lighter riders up
hills faster and will slow down as the rider’s weight increases. On downhill runs, the motor remains engaged at all mes.
Frequent minor speed correcons with the brakes are preferable to leng your speed build and then breaking suddenly.
Never ride down hills that require constant breaking. This may damage the board’s electronics.
3.9 Deactivating skateboard and remote (switch off)
The skateboard and the remote control will switch o automacally if they have not been used for 5 minutes. The board
can be switched o manually by pushing the power switch. On the skateboard the buon is located on the side of the
Skatey on the black box (the light will dim). On the remote control the switch is located on top of the controller.
3.10 Charging skateboard
Only use the adapter supplied. Insert the adapter plug into the wall socket (the adapter light will turn green). Plug the
connector on the other side of the adapter into the socket on the board located on the side of the Skatey on the black
box. The adapter light is now red; charging has started, when the light on the adapter turns green your board is fully
charged.
Tip: do not charge the Skatey longer than necessary. The quality of the baery will deteriorate and the baery will
drain faster if you do so. Never charge the baery longer than 10 consecuve hours. Longer charge may
irreparably damage the baery.
Skatey 2800L/3200LINSTRUCTIONS MANUAL
9
4. Warnings and advice
This secon contains some warnings and advice. It is important that you read and understand these warnings and advice
in order to ensure that your experiences with the Skatey electric skateboard are always posive and enjoyable. Failing to
observe these measures may result in injuries and serious, possibly fatal wounds. Skatey Electric B.V. is under no circum-
stances responsible for any damage caused by any person to himself/herself or others.
The warnings and advice
• Always check if the Skatey is in perfect working order every me you use it. Make sure that all screws are ghtened
and that all axle units and other mechanical- and electronic components are funconing properly.
• Riding a Skatey is not allowed on public roads.
• The remote control can operate dierent Skatey’s, therefore keep enough distance from each other.
• The Skatey 2800L and the Skatey 3200L are not suitable for children under the age of 12 years.
• Young riders should not use an electric skateboard without adult supervision.
• If you are riding a Skatey for the rst me always start on the lowest speed to get familiar with the board.
• Always start o slowly, never pull trigger too hard from sll posion, its dangerous!
• Pregnant women and disabled persons may not use a Skatey.
• The Skatey should only be used if you are physically t.
• A Skatey must be operated by only one rider at a me.
• Never use the Skatey if you are under the inuence of alcohol or medicaon that infects your driving skills.
• Always wear suitable clothing and protecve gear if you are riding the Skatey. This includes elbow- wrist- and
kneepads and proper footwear However, don’t forget that wearing protecve gear when riding the Skatey will not
provide 100% protecon against injuries.
• If you’re riding a Skatey for the rst me always make sure that there’s someone nearby that can help if necessary.
INSTRUCTIONS MANUAL Skatey 2800L/3200L
10
• Before using a Skatey, make sure that you have enough riding space.
• When you are riding your Skatey don’t endanger persons, animals or objects.
• Be considerate towards other people and animals and make sure that nobody else is exposed to danger or injury, or
is obstructed or inconvenienced.
• A Skatey is electric powered and is not waterproof. Don’t ride in rain, on wet streets and trough puddles of water.
• Avoid slippery ground such as ice, snow and wet ground. The Skatey may slip.
• Avoid potholes, surface cracks and roads with obstacles such as branches, loose stones and other objects.
• Be cauous when riding on an irregular surface.
• On your board you are about 10 cm taller than you usually are. Keep this in mind when you drive.
• User’s weight should be within skateboard’s max load capacity.
• Should not be used for tricks, jumps, ramps, grinds, rough handling and prolonged steep hills.
• Never hitch a ride from a car, bicycle, etc.
5. Maintenance
5.1 Cleaning
To clean your Skatey only use a damp cloth and do not use corrosive cleaning soluons. Always prevent water, moisture
or dirt from entering the electronic components, the On buon, the charging port, under the rubber mats. This can lead
to irreparable damage. Check before and aer using the Skatey for dirt between the moving parts, if present remove
immediately.
5.2 Battery
When the Skatey is not being used for a long me it’s very important that the baery is charged at least ones a month.
Otherwise the baery loses its capacity. Never charge your Skatey longer than 10 hours.
