Sitecom WL-367 Manuel utilisateur

WL-358/359/363/367

Wireless ADSL2+ router

Annex-A (WL-358,WL-359,WL-363) & Annex-B (WL-367)

ser Manual

Version: 1.0

ABLE OF

ONTENTS

KEY FEATURES .................................................................................................................... 4

PACKAGE CONTENTS ....................................................................................................... 5

PRODUCT LAYOUT............................................................................................................. 6

SYSTEM REQUIREMENTS............................................................................................... 8

MODEM/ROUTERPLACEMENT..................................................................................... 9

SETUP LAN, WAN ............................................................................................................... 9

PC NETWORK ADAPTER SETUP................................................................................ 10

BRINGING UP THE WL-35 /359/363/367...................................................... 13

INITIAL SETUP WL-35 /359/363/367 ............................................................. 13

CONFIGURATION WIZARD......................................................................................... 23

WIRELESS SETTINGS .................................................................................................... 25

FIREWALL SETTINGS .................................................................................................... 35

ADVANCED SETTINGS................................................................................................... 42

TOOLBOX SETTINGS ...................................................................................................... 54

Introduction

Congratulations on your purchase of the WL-358,359,363 or 367 Wireless

ADSL2+ Modem. The Modem is fully compliant with 802.11n. This modem is

also fully compliant with 802.11g & 802.11b. This modem provide the best

performance when used in combination with 802.11n client adapters.

The WL-358,359,363 or 367 is not only a Modem or Wireless Access Point,

but can also be used to connect wired-Ethernet devices.

For data protection and privacy, the modem can encode all wireless

transmissions with WEP, WPA, and WPA2 encryption. By default, the modem

is secured with a WPA2(AES) encryption key. (The WPA2-key is printed on the

label underneath the modem.)

With a built-in DHCP Server & powerful SPI firewall the modem protects your

computers against intruders and known Internet attacks, and also provides

safe VPN pass-through.

1Key Features

Features Advantages

IEEE 802.11b/g/n compliant Fully Interoperable with IEEE

02.11b / IEEE 02.11g / 02.11n

compliant devices

Four 10/100 Mbps Fast Ethernet

Port (Auto-Crossover)

To connect four wired PC's as well.

Firewall supports Virtual Server

Mapping, DMZ, IP Filter, ICMP

Blocking, SPI

Avoids the attacks of Hackers or

Viruses from Internet

Support 802.1x authenticator,

802.11i (WPA/WPA2, AES), VPN

pass-through

Provide mutual authentication

(Client and dynamic encryption keys

to enhance security

Integrated modem (Annex B) Fully compatible with the fastest

ADSL2+ connections up-to-date.

2Package Contents

Open the package carefully, and make sure that none of the items listed

below are missing. Do not discard the packing materials, in case of return;

the unit must be shipped back in its original package.

1. WL-358,359,363 or 367 modem/router

2. 220V ~ 240V Power Adapter

3. Quick Install Guide

4. CD ( ser’s Manual)

5. Warranty card

6. TP cable

3Product Layout

Port Description

ADSL Connect your telephone/ADSL cable this port

LAN Connect the cable from your PC or network device

to this ports.

Power

connector Connect your power adapter to this port.

Power button Turn the modem On or Off.

Power connector

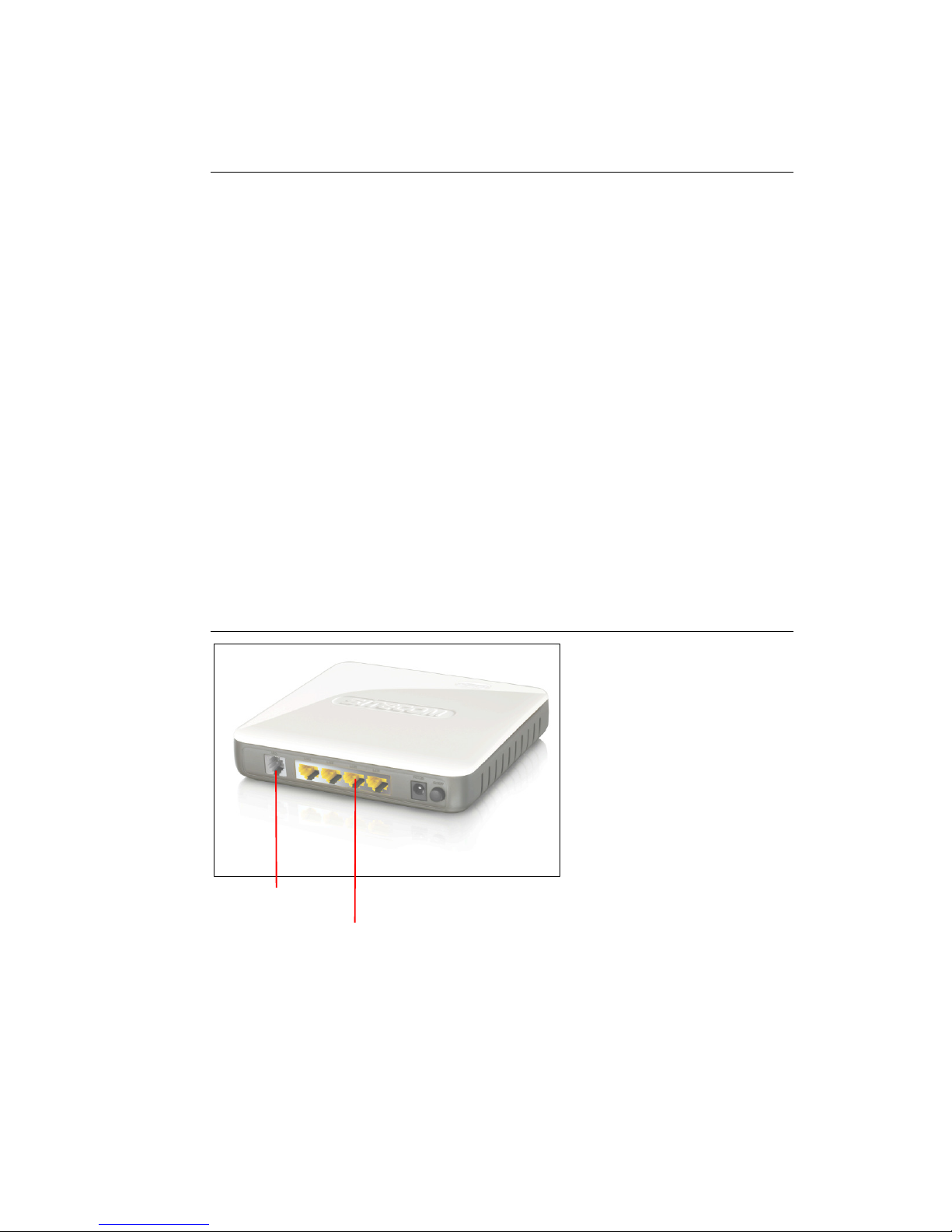

LAN / computer connections

Modem connection

WPS/Reset butto

Power button

Back label

The back label describes the corresponding LED indications and port functionality.

LED Description

Power Lights up when powered ON. Blinks on

TEST/RESET

ADSL Lights up when an ADSL cable is

connected.

Internet Lights up when internet connection is P.

WLAN Lights up in Blue when WLAN is enabled.

Blinks on traffic

OPS Blinks when OPS mode is on

LAN1~4 When a LAN cable is connected the

corresponding light lights up.

4System Requirements

To begin using the WL-358/359/363/367, make sure you meet the

following as minimum requirements:

•PC/Notebook.

•1 Free Ethernet port.

•Wi-Fi card/ SB dongle (802.11 b/g/n) – optional.

•Annex B, ADSL internet connection.

•PC with a Web-Browser (Internet Explorer, Safari, Firefox,

Opera)

•Ethernet compatible CAT5 cables.

5MODEM/ROUTER Placement

You can place the modem on a desk or other flat surface, or you can

mount it on a wall. For optimal performance, place your Wireless

Broadband Modem/Router in the center of your office (or your home)

in a location that is away from any potential source of interference,

such as a metal wall or microwave oven. This location must be close to

a power connection and the ADSL/phone line should not be over 2

meters long.

6Setup LAN, WAN

Modem connection

LAN / computer connections

7PC Network Adapter setup

Windows XP

•Go to [Start Menu],  [Control panel],  [Network Connections].

•Right-mouse-click on the [Local Area Connection]) icon, and select

[properties]

•Select [Internet Protocol (TCP/IP)] =>Click [Properties].

•Select the [General] tab.

The Modem/Router supports DHCP. Please select both [Obtain an IP

a ress automatically] and [Obtain DNS server a ress automatically].
