Sitecom WLR-4003 Manuel utilisateur

WLR-4003

Wireless Gigabit Router N300

(802.11 b/g/n)

All manuals and user guides at all-guides.com

all-guides.com

User Manual

ABLE OF

ONTENTS

KEY FEATURES .................................................................................... 4

PACKAGE CONTENTS ........................................................................... 5

CAUTIONS .......................................................................................... 6

PRODUCT LAYOUT ............................................................................... 7

SYSTEM REQUIREMENTS .................................................................... 10

WLR-4003 PLACEMENT ....................................................................... 10

SETUP LAN WAN .............................................................................. 11

PC NETWORK ADAPTER SETUP ............................................................ 12

BRINGING UP THE WLR-4003 ............................................................. 16

INITIAL SETUP WLR-4003 .................................................................. 16

CONFIGURATION WIZARD .................................................................. 25

WIRELESS SETTINGS ......................................................................... 27

FIREWALL SETTINGS ......................................................................... 39

ADVANCED SETTINGS ........................................................................ 45

TOOLBOX SETTINGS .......................................................................... 55

APPENDIX ........................................................................................ 67

Revision 1.0

Note: All the information contained in this manual was correct at the time of

publication.

However as our engineers are always updating and improving the product your

device’s software may have a slightly different appearance or modified

functionality than presented in this manual.

All manuals and user guides at all-guides.com

Introduction

Congratulations on your purchase of the WLR-4003 Wireless Gigabit Router

N300. The WLR-4003 is compliant with 802.11n and up to 6 times faster than

standard 802.11g based routers while still being compatible with 802.11g &

802.11b devices. The WLR-4003 is not only a Wireless Access Point but also

doubles as a 4-port full-duplex Gigabit switch that connects your wired-

Ethernet devices together at 10/100/1000 Mbps speeds.

At 300 Mbps wireless transmission rate the Access Point built into the Router

uses advanced MIMO (Multi-Input Multi-Output) technology to transmit

multiple streams of data in a single wireless channel giving you seamless

access to multimedia content. The robust RF signal travels farther eliminates

dead spots and extends the network range. For data protection and privacy

the WLR-4003 encodes all wireless transmissions with WEP WPA or WPA2

encryption.

With the inbuilt DHCP Server & powerful SPI firewall the WLR-4003 protects

your computers against intruders and most known Internet attacks and also

provides safe VPN pass-through. With the incredible speed and QoS function of

802.11n the WLR-4003 is ideal for media-centric applications like streaming

video gaming and VoIP telephony to run multiple media-intense data streams

through the network at the same time with no degradation in performance.

This product can be used safely in the countries listed below:

This product complies with the following European Union regulations:

All manuals and user guides at all-guides.com

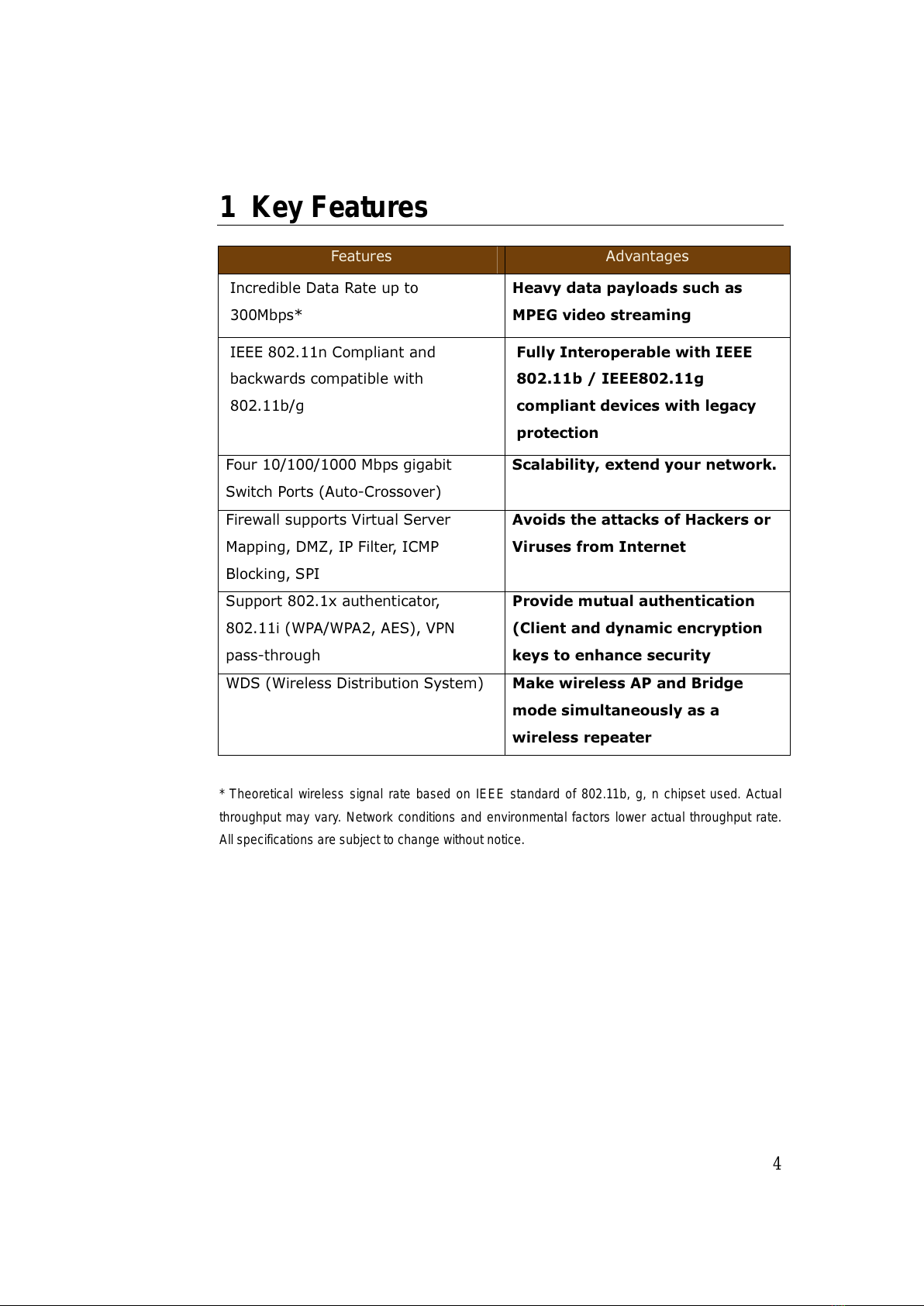

1 Key Features

Features

Advantages

Incredible Data Rate up to

300Mbps*

Heavy data payloads such as

MPEG video st eaming

IEEE 802.11n Compliant and

backwards compatible with

802.11b/g

Fully Inte ope able with IEEE

802.11b / IEEE802.11g

compliant devices with legacy

p otection

Four 10/100/1000 Mbps gigabit

Switch Ports (Auto-Crossover)

Scalability, extend you netwo k

Firewall supports Virtual Server

Mapping DMZ IP Filter ICMP

Blocking SPI

Avoids the attacks of Hacke s o

Vi uses f om Inte net

Support 802.1x authenticator

802.11i (WPA/WPA2 AES) VPN

pass-through

P ovide mutual authentication

(Client and dynamic enc yption

keys to enhance secu ity

WDS (Wireless Distribu

tion System)

Make wi eless AP and B idge

mode simultaneously as a

wi eless epeate

* Theoretical wireless signal rate based on IEEE standard of 802.11b, g, n chipset used. Actual

throughput may vary. Network conditions and environmental factors lower actual throughput rate.

All specifications are subject to change without notice.

All manuals and user guides at all-guides.com

2 Package Contents

Open the package carefully and make sure that none of the items listed

below are missing. Do not discard the packing materials in case of return;

the unit must be shipped back in its original package.

1. The WLR-4003 Router

2. A 110V~240V to 12V 1A Switching Power Adapter

3. A Quick Install Guide

4. A CD (User’s Manual)

5. A Warranty card

6. An UTP cable

All manuals and user guides at all-guides.com

3 Cautions

This router’s design and manufacturer has your safety in mind. In order to

safely and effectively use this router please read the following before usage.

3.1 Usage Cautions

The user should not modify this router. The environmental temperature

should be within +5 ~ +35 degrees Celsius.

3.2 Powe

The router’s power voltage is DC 12V 1A.

When using this router please connect the supplied AC adapter or AC adapter

cable to the router’s power jack. When placing the adapter cable make sure

it can not get damaged or be subject to pressure. To reduce the risk of

electric shock unplug the adapter first before cleaning it. Never connect the

adapter to the router in a humid or dusty area. Do not replace the adapter or

cable’s wire or connector.

3.3 Repai

If the router has a problem you should take it to an appointed repair centre

and let the specialists do the repair. Never repair the router yourself you

might damage the router or endanger yourself.

3.4 Disposing of the Route

When you dispose of the router be sure to dispose it appropriately. Some

countries may regulate disposal of an electrical device please consult with

your local authority.

3.5 Othe s

When using this router please do not let it come into contact with water or

other liquids. If water is accidentally spilled on the router please use a dry

cloth to absorb the spillage. Electronic products are vulnerable when using

please avoid shaking or hitting the router and do not press the buttons too

hard.

- Do not let the router come into contact with water or other liquid.

- Do not disassemble the router repair the router or change the design of the

router any damage done will not be included in the repair policy.

- Avoid hitting the router with a hard object avoid shaking the router and

stay away from magnetic fields.

- If during electrostatic discharge or a strong electromagnetic field the

product will malfunction unplug the power cable. The product will return to

normal performance the next time it is powered on.

All manuals and user guides at all-guides.com

all-guides.com

4 Product Layout

Po t

Desc iption

Power connector

Connect the 12V DC adapter

to this port

LAN (

Yellow

)

Connect your PC’s or network devices to this port

WAN (

Blue

)

Connect your ADSL/Cable modem to this port

All manuals and user guides at all-guides.com

Backlabel

The backlabel describes the IP address login details SSID security code and

WPS button functionality.

Button

Desc iption

OPS BUTTON

Press 2 seconds for

PS mode

Press 10 seconds to reset the router

Press 15 Seconds to reset the router to factory defaults.

All manuals and user guides at all-guides.com

LED Definition

From left to right.

Port

Description

LAN (

Blue

)

Shows the cable is connected.

LAN

(

Blue

)

Shows the cable is connected.

LAN (

Blue

)

Shows the cable is connected.

LAN (

Blue

)

Shows the cable is connected.

WAN (

Blue

)

Shows the cable is connected.

WiFi (

Blue

)

Shows WiFi activity.

Power (

Red

)

Shows the device is turned on.

OPS (

Blue

)

Sho

ws OPS activity.

All manuals and user guides at all-guides.com

5System Requirements

To begin using the WLR-4003 make sure you meet the following as minimum

requirements:

•PC/Notebook.

•Operating System – Microsoft Windows XP/Vista/Seven

•1 Free Ethernet port.

•WiFi card/USB dongle (802.11 b/g/n) – optional.

•External xDSL (ADSL) or Cable modem with an Ethernet port (RJ-45).

•PC with a Web-Browser (Internet Explorer Safari Firefox Opera)

•Ethernet compatible CAT5 cables.

6WLR-4003 Placement

You can place the WLR-4003 on a desk or other flat surface or you can mount

it on a wall. For optimal performance place your Wireless Broadband Router

in the center of your home (or your office) in a location that is away from any

potential source of interference such as a metal wall or microwave oven. This

location must be close to a power connection and your ADSL/Cable modem.

All manuals and user guides at all-guides.com
