Siqura FD820M1 Manuel utilisateur

FD820 Series

High-Definition Fixed-Dome Camera with Day/Night

Installation Manual

Note: To ensure proper operation, please read this manual thoroughly before using the product and retain the

information for future reference.

FD820 1.0

Installation Manual v1 (122003-1)

AIT5.2-MW07SP2

Nothing from this publication may be copied, translated, reproduced, and/or published by means of printing,

photocopying, or by any other means without the prior written permission of Siqura.

Siqura reserves the right to modify specifications stated in this manual.

Brand names

Any brand names mentioned in this manual are registered trademarks of their respective owners.

Liability

Siqura accepts no liability for claims from third parties arising from improper use other than that stated in this

manual.

Although considerable care has been taken to ensure a correct and suitably comprehensive description of all

relevant components, the manual may nonetheless contain errors and inaccuracies.

Should you detect any errors or inaccuracies in the manual, we would be grateful if you would inform us. This helps

us to further improve our documentation.

More information

If you have any comments or queries concerning any aspect related to the product, please do not hesitate to

contact:

The Netherlands

Corporate Headquarters

Siqura B.V.

Zuidelijk Halfrond 4

2801 DD Gouda, The Netherlands

General : +31 182 592 333

Fax : +31 182 592 123

E-mail : [email protected]

WWW : www.siqura.com

USA

US Corporate Offices

TKH Security Solutions USA, Inc.

12920 Cloverleaf Center Drive

Germantown, Maryland 20874, USA

General : +1 301 444 2200

Fax : +1 301 444 2299

E-mail : [email protected]

WWW : www.tkhsecurity-usa.com

Page i

Contents

1INTRODUCTION 3

2SAFETY INFORMATION 5

2.1 CAUTIONS 5

2.2 REGULATIONS 6

3PRODUCT DESCRIPTION 7

3.1 PRODUCT OVERVIEW 7

3.2 PACKAGE CONTENTS 8

4CABLE DEFINITION AND REQUIREMENTS 9

4.1 INTERFACE REQUIREMENTS 9

4.2 SYSTEM COMPATIBILITY 9

4.3 POWER AND ETHERNET CABLE CONNECTION 10

4.4 CONNECTORS AND RESET BUTTON 11

5INSTALLATION 13

5.1 CAMERA DIMENSIONS 13

5.2 SURFACE MOUNT 13

5.3 LONG/MINI WALL MOUNT 18

5.4 RECESSED CEILING MOUNT 22

5.5 CORNER MOUNT 28

5.6 4S MOUNT ELECTRICAL BOX 32

APPENDIX: TECHNICAL SPECIFICATIONS 35

Page 3

Chapter 1

1Introduction

Document scope

This manual applies to Siqura's high-definition (HD) vandal-proof fixed-dome FD820 series

cameras. It describes how to install and connect the FD820 camera. Operation and configuration

of the FD820 camera is covered in the user manual.

Intended audience

This manual is aimed at installers and technicians involved in the installation of network devices,

such as the FD820.

Assumed skills and know-how

To work with the FD820 camera, an installer or technician must have adequate knowledge and

skills in the fields of:

CCTV systems and components

Electrical wiring and low-voltage electrical connections

Ethernet network technologies and Internet Protocol (IP)

Windows environments

Web browsers

Video, audio, data, and contact closure transmissions

Video compression methods

Specifications

The information given in this manual was current when published. Siqura reserves the right to

revise and improve its products. All specifications are subject to change without notice.

Important Information

Before proceeding, please read and observe all instructions and warnings in this manual. Retain

this manual with the original bill of sale for future reference and, if necessary, warranty service.

When unpacking your product, check for missing or damaged items. If any item is missing, or if

damage is evident, do not install or operate this product. Contact your supplier for assistance.

FD820 Series

Page 4

Typographical conventions

Before you start using this guide, it is important to understand the typographical conventions

used in the documentation. The following kinds of formatting in the text identify special

information.

Formatting convention Type of Information

Numbered list Step-by-step procedures. You can follow these instructions to

complete a specific task.

Special Bold Items you must select, such as menu options, command buttons, or

items in a list.

Emphasis Used to emphasize the importance of a point or for variable

expressions such as parameters.

CAPITALS Names of keys on the keyboard. for example, SHIFT, CTRL, or

ALT.

KEY+KEY Key combinations for which the user must press and hold down one

key and then press another, for example, CTRL+P, or ALT+F4.

Page 5

Chapter 2

2Safety Information

This chapter provides cautions on what to do and what not to do when working with or handling

your FD820 unit. It also offers information on product compliance with environmental

regulations and explains how to dispose of the product at the end of its service life.

In This Chapter

Cautions ........................................................................... 5

Regulations....................................................................... 6

2.1 Cautions

Handle the camera carefully.

Do not abuse the camera. Avoid striking, shaking, etc. as the camera can be damaged by

improper handling or storage.

Do not disassemble the camera.

To prevent electric shock, do not remove screws or covers. There are no user serviceable parts

inside. Please consult technical support if a camera is suspected of malfunctioning.

Do not operate the camera beyond the specified temperature,

humidity, and power source ratings

Verify that the power source is appropriate before you plug in and operate the unit. If the camera

is installed outdoors, make sure it is sheltered from direct sunlight.

Do not use strong or abrasive detergents when cleaning the

camera.

Use a dry cloth to clean the camera when it is dirty. If the dirt is hard to remove, use a mild

detergent and wipe gently. To clean the lens, use lens tissue or a cotton tipped applicator and

ethanol. DO NOT clean the lens with strong detergents.

Ensure that camera installation is performed by a specialist.

Only qualified service personnel or system installers should install and connect this product.

Never face the camera towards the sun.

Do not aim the camera at bright objects. Whether the camera is in use or not, never aim it at the

sun or other extremely bright objects, as this can damage the camera.

FD820 Series

Page 6

2.2 Regulations

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following conditions.

This device may not cause harmful interference.

This device must accept any interference received, including interference

that may cause undesired operation.

This symbol on the product or on its packaging indicates that this product shall not

be treated as household waste in accordance with Directive 2002/96/EC. Instead

it shall be handed over to the applicable collection point for the recycling of

electrical and electronic equipment. By proper waste handling of this product you

ensure that it has no negative consequences for the environment and human

health, which could otherwise be caused if this product is thrown into the garbage

bin. The recycling of materials will help to conserve natural resources.

For more information on how to recycle this product, please contact your local city

office, your household waste disposal service or the seller of the product.

Compliance is evidenced by written declaration from our suppliers, assuring that

any potential trace contamination levels of restricted substances are below the

maximum level set by EU Directive 2002/95/EC, or are exempted due to their

application.

Page 7

Chapter 3

3Product Description

Utilizing progressive scan sensors, the FD820 cameras produce images of rapid moving objects

with minimum motion blurring. Dual streaming enables users to view MJPEG and H.264 video to

achieve superior image quality and conserve bandwidth. With ultra-high resolution, users can

monitor critical areas with greater detail than ever before.

In This Chapter

Product Overview............................................................... 7

Package Contents .............................................................. 8

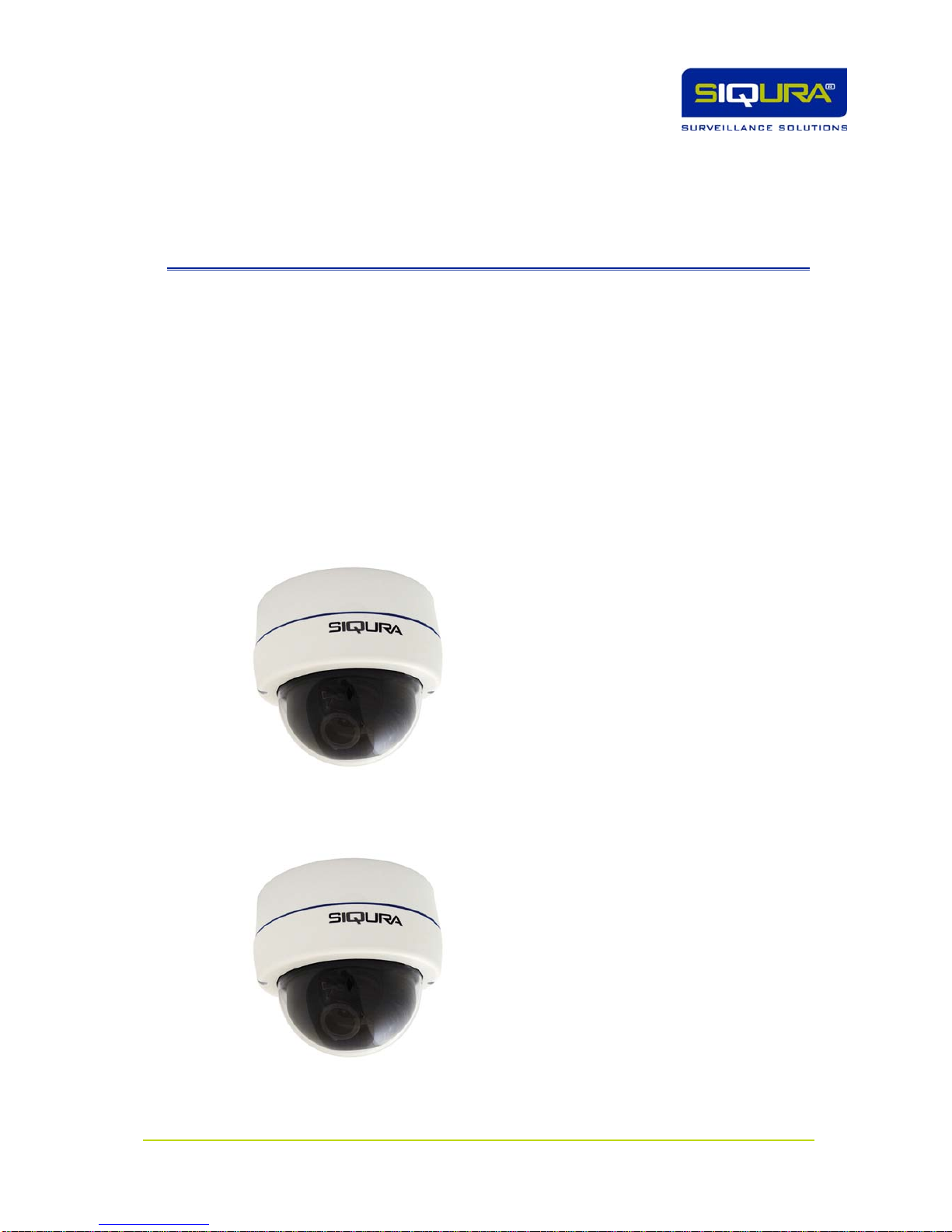

3.1 Product Overview

FD820M1

Multiple Resolutions: 1080p/720p

1/2.7” Progressive scan CMOS Imager

Dual stream of H.264 and MJPEG video

Onvif compliant

Two-way audio

Day/Night (IR Cut-filter)

3.0 - 9mm Varifocal, motorized lens

IP66 Ingress Rating

24VAC/12VDC/802.3af PoE

Contact closures (alarms) - 1 output, 1 input

FD820M1IR

Multiple Resolutions: 1080p/720p

1/2.7” Progressive scan CMOS Imager

Dual stream of H.264 and MJPEG video

Onvif compliant

Two-way audio

Day/Night (IR Cut-filter)

IR Illuminator (effective distance: 25m)

3.0 - 9mm Varifocal, motorized lens

IP66 Ingress Rating

24VAC/12VDC/802.3af PoE

Contact closures (alarms) - 1 output, 1 input

FD820 Series

Page 8

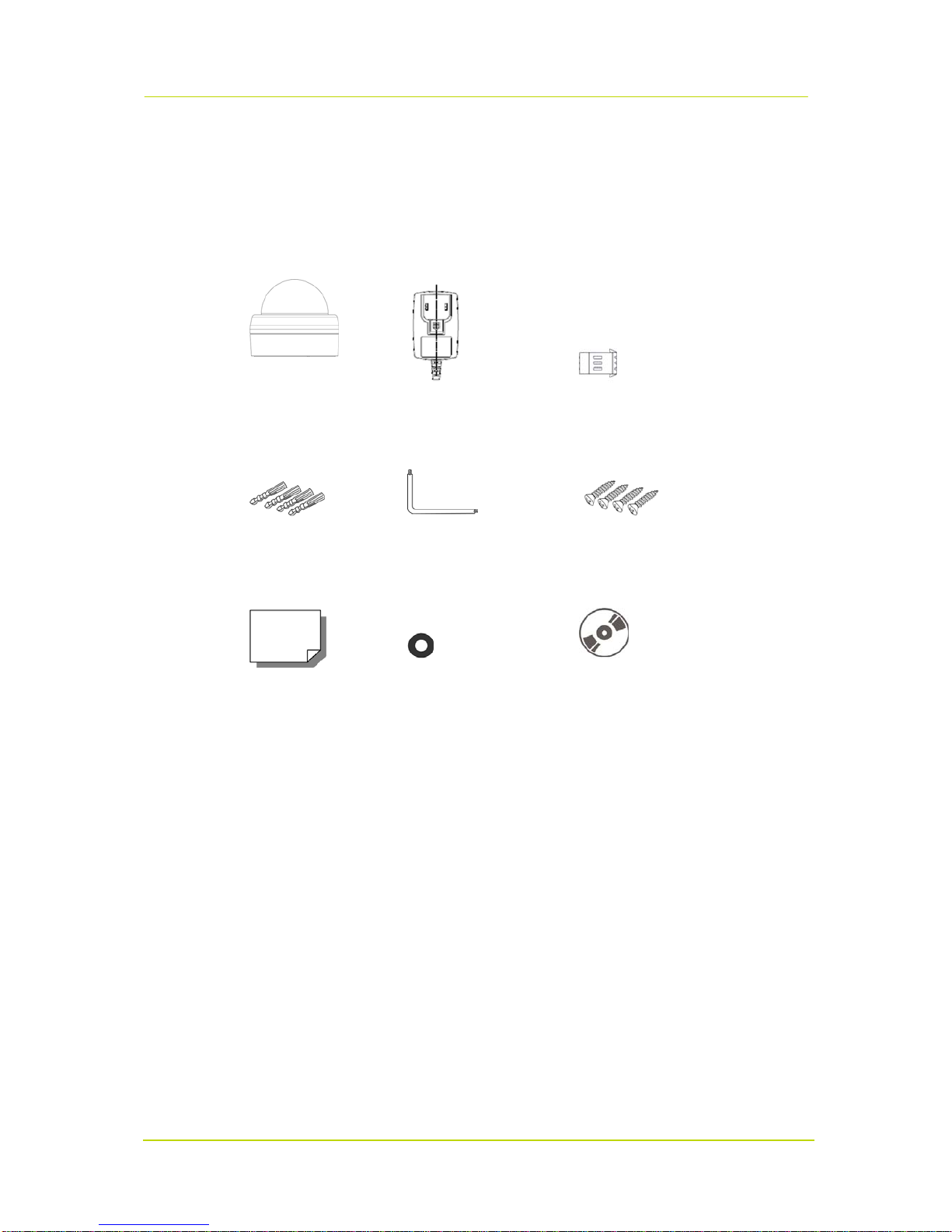

3.2 Package Contents

Before proceeding, please verify that the box contains the items listed here. If any item is

missing or has defects, do not install or operate the product. Contact your supplier for

assistance.

FD820 package contents

FD820 camera 1.5A power adapter

(indoor use only) Power terminal block

Plastic screw anchors

(x4) Security TORX Self-tapping screws (x4)

Quick start guide Rubber washers (x6) CD (Device Search software

and manuals)
