Sinoboom GTJZ0408SE Manuel utilisateur

GTJZ0408SE&0408ME&0608SE&0608ME

Parts Manual

GTJZ0408SE/0408SE/1530SE

GTJZ0608SE/0608SE/1930SE

GTJZ0408ME/0408ME/1532ME

GTJZ0608ME/0608ME/1932ME

Parts

Manual

Part No.501055120002

Rev: C

Jun 2021

GTJZ

0608E (2132E)

GTJZ

0808E (2732E)

GTJZ

0808E (2732E)

GTJZ

0808E (2732E)

长沙市宁乡高新技术产业园区金洲大道东

128 号

0731-87116111 hr@sinoboom . c om . cn ww w .sinoboom . c om . cn

Al w ays F or B e t t er A cc ess Solution s

我们一直在追求新的高度

尺寸：

210×285mm

20mm

产品说明书

PRODU C T MAN U AL

Operating, servicing and maintaining this vehicle or

equipment can expose you to chemicals including engine

exhaust, carbon monoxide, phthalates, and lead, which

are known to the State of California to cause cancer and

birth defects or other reproductive harm. To minimize

exposure, avoid breathing exhaust, do not idle the engine

except as necessary, service your vehicle or equipment in

a well-ventilated area and wear gloves or wash your

hands frequently when servicing. For more information

go to: www.P65warnings.ca.gov.

Please contact us:

Website :www.sinoboom.com

E-mail :[email protected]

Sales Tel :0086-0731-87116222

Service Tel :0086-0731–87116333

Address :No.128, East Jinzhou Avenue, Ningxiang High-tech Industrial Park, Changsha,

Hunan, China

Zip Code :410600

The final interpretation right of this manual belongs to Hunan Sinoboom Intelligent Equipment Co., Ltd.

Manual revision history：

REV DATE DESCRIPTION REMARK

AAug, 2020 Original issue of the manual

B Mar, 2021 Updated manual, adding information on quick fold-down

rails, etc.

CJun, 2021 Updated manual.

APPLICATION

Use the following table to identify the specific serial number for models included in this

manual. Check the model of your machine before consulting the manual, and then use

the correct manual according to the serial number of the model. See the nameplate on

your machine to identify the model and serial number. (See Decals section of this

manual for details.)

MODELS

Trade identification

SERIAL NO.

Metric Imperial

GTJZ0408SE 0408SE 1530SE From 0105700200 to Present

GTJZ0608SE 0608SE 1930SE From 0105800300 to Present

GTJZ0408ME 0408ME 1532ME From 0105500200 to Present

GTJZ0608ME 0608ME 0932ME From 0105600300 to Present

NOTE:

•Product model is applied in product nameplate for distinction of products of different main

parameters.

•Product trade identification is applied in marketing and machine decals for distinction of

products of different main parameters, and can be classified as metric type and imperial

type: The metric type of trade identification is applicable to machines for countries/regions

using metric system or as specially required by customers; The imperial type of trade

identification is applicable to the machines for countries/regions using imperial system or

as specially required by customers.

STATEMENTS

Hunan Sinoboom Intelligent Equipment Co., Ltd. (Hereinafter referred to as

Sinoboom) will upload the latest product manual information to the website www.

sinoboom. com as soon as possible. However, due to continuous product

improvement, the information in this manual is subject to change without prior notice.

This manual covers the basic parts information of one or more products. Therefore,

please use this manual according to your needs. If you find problems in the manual or

have suggestions for improvement, feel free to share your feedback with Sinoboom,

and we will address these issues as soon as possible.

Feel free to consult and download the Operation Manual,Maintenance Manual and

Parts Manual of the products you need online at www.sinoboom.com.

Hunan Sinoboom Intelligent Equipment Co., Ltd. retains the right of final interpretation

of the manual.

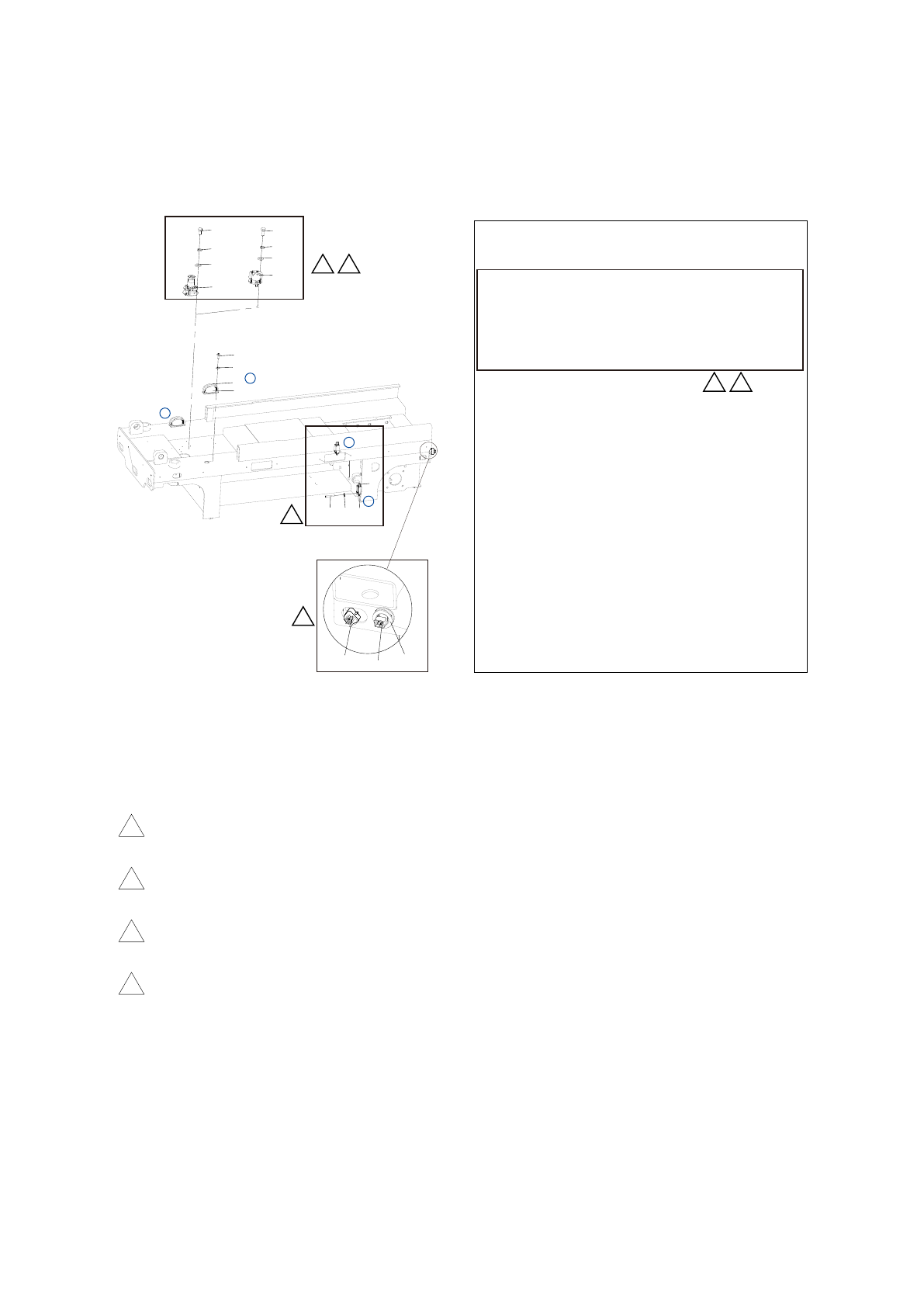

GENERAL INFORMATION

The special meanings expressed in the illustrations and tables in this manual are

explained as follows：

Add "-1, -2, -3…" after the number to represents an options (one multiple choice),

such as choose 4-1 and 4-2 according to specific needs.

Add "lowercase a, b, c…" after the number to indicate by a variety of components,

such as 4a, 4b, 4c and 4d composition 4.

"A,B,C..." in figure indicates the same parts in many places, and the same place is

indicated by the same symbol.

The diagram indicated by the lead is a local enlargement or a local illustration.

4-1b

4-2b

4-2a

4-1d

4-2d

4-1a

4-1c

4-2c

1 215020000110 4 Screw M5×12-A2-70 GB/T 818

No. Part No. Qty. Description

2 215040000003 4 Washer 5-A2-70 GB/T 93

3 203990000003 4 Guard

5 203050000038 2

LED light, beacon

4 101053063017 Options, Level sensor installation

4-1a 203150000066 1 Level sensor

4-1b 215010000049 3

Bolt M6×12-A2-70 GB/T 5783

4-1c 215040000004 3

Washer 6-A2-70 GB/T 93

4-1d 215040000033 3 Washer 6-A2 GB/T 97.1

4-2a 203060000076 1 Level sensor

4-2b 215010000050 3 Bolt M6×16-A2-70 GB/T 5783

4-2c 215040000004 3 Washer 6-A2-70 GB/T 93

4-2d 215040000033 3 Washer 6-A2 GB/T 97.1

6 201990003005 2 Connector

7 203060000055 2 Limit switch

8 215040000003 2 Washer 5-A2-70 GB/T 93

9 215020000215 2

Screw M5×40-A2-70 GB/T 818

10 203080000173 1 Charger cord and plug

11 203080000343 1 3 pins plug

12 101032030115 1

Rubber grommet

TABLE OF CONTENTS

1 Chassis Components............................................................... 3

1.1 Drive Installation .. . . . . . .. . . . . . .. . . . . . . . .. . . . . .. . . . . . .. . . . . . . .. . . . . . .. . . . . . .. . . . . . . 4

1.2 Drive reducer, DC 203010003012 . . . . .. . . . . . . .. . . . . . .. . . . . . . .. . . . . . .. . . . . . .. . . . . . . 6

1.3 Steer Installation.. . . . . .. . . . . . .. . . . . . . .. . . . . . . .. . . . . . .. . . . . . . .. . . . . . .. . . . . . .. . . . . . . 7

1.4 Drive Installation. . . . . . . .. . . . . . .. . . . . . .. . . . . . . .. . . . . . .. . . . . . . .. . . . . . .. . . . . . .. . . . . . . 9

1.5 Pothole Protection System Installation.. . . . . . . .. . . . . . .. . . . . . . .. . . . . . .. . . . . . .. . . . . . 11

1.6 Left Door Installation .............................................................13

1.7 Left Door Installation (AS). . . . . . .. . . . . . .. . . . . . . .. . . . . . .. . . . . . . .. . . . . . .. . . . . . .. . . . . .15

1.8 Right Door Installation............................................................17

1.9 Ladder and Counterweight Installation (GTJZ0408SE&0408ME). . . . . . . . . . . . . . . . 19

1.10 Ladder and Counterweight Installation (GTJZ0608SE&0608ME) . . . . . . . . . . . . . . 21

1.11 Chassis Shield Installation . . . .. . . . . . .. . . . . . . .. . . . . . .. . . . . . . .. . . . . . .. . . . . . .. . . . . .23

2 Scissor Components............................................................... 25

2.1 Scissor Components (GTJZ0408SE&0408ME). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

2.2 Scissor Components (GTJZ0608SE&0608ME). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

3 Platform Components........................................................... 33

3.1 Platform Components(Japanese Specs). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . 34

3.1.1 Fixed Platform Assembly (Japanese Specs). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

3.1.2 Extended Platform Assembly (Japanese Specs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

3.1.3 Fixed Platform Rails Installation (Japanese Specs). . . . . . . . . . . . . . .. . . . . . . . . . . . . 39

3.1.4 Extended Platform Rails Installation(Japanese Specs) . . . .. . . . . . .. . . . . . .. . . . . .41

3.1.5 Platform Entry Gate Installation (Japanese Specs) . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

3.2 Platform Components (Korean Specs). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . 45

3.2.1 Fixed Platform Assembly (Korean Specs) . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . 46

3.2.2 Extended Platform Assembly (Korean Specs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

3.2.3 Fixed Platform Rails Installation (Korean Specs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

3.2.4 Extended Platform Rails Installation (Korean Specs) . . . . . . . . . . . . . . . . . . . . . . . . . . 52

3.2.5 Platform Entry Gate Installation (Korean Specs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

3.3 Platform Components(Fold-down) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

3.3.1 Fixed Platform Assembly(Fold-down) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

GTJZ0408SE&0608SE&0408ME&0608ME Parts Manual II © Jun 2021

3.3.2 Extended Platform Assembly(Fold-down). . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . 59

3.3.3 Fixed Platform Rails Installation(Fold-down) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

3.3.4 Extended Platform Rails Installation(Fold-down). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

3.3.5 Platform Entry Gate Installation(Fold-down) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

3.4 Platform Components(AS Models).. . . . . . .. . . . . . .. . . . . . .. . . . . . . .. . . . . . .. . . . .. . . . . .67

3.4.1 Platform Components(AS Models).. .. . . . . . . .. . . . . . .. . . . . . . .. . . . . . .. . . . . . .. . . . . .68

3.4.2 Platform Components(AS Models). . .. . . . . . . .. . . . . . .. . . . . . . .. . . . . . .. . . . . . .. . . . . .70

3.4.3 Platform Components(AS Models). . . . . .. . . . . . .. . . . . .. .. . . . . .. . . . . . .. . . . . . .. . . . . .71

3.4.4 Extended Platform Assembly(AS Models) . . . .. . . . . . .. . . . . . . .. . . . . . .. . . . . . .. . . . . .72

3.4.5 Extended Platform Assembly(AS Models) . . . .. . . . . . .. . . . . . . .. . . . . . .. . . . . . .. . . . . .74

3.4.6 Extended Platform Assembly(AS Models) . . . .. . . . . . .. . . . . . . .. . . . . . .. . . . . . .. . . . . .76

3.5 Extended Platform Assembly(AS Models) . . . . . .. . . . . . .. . . . . . . .. . . . . . .. . . . . . .. . . . . .78

3.5.1 Extended Platform Assembly(AS Models) . . . .. . . . . . .. . . . . . . .. . . . . . .. . . . . . .. . . . . .79

3.5.2 Extended Platform Assembly(AS Models) . . . .. . . . . . .. . . . . . . .. . . . . . .. . . . . . .. . . . . .81

3.5.3 Extended Platform Assembly(AS Models) .. . . . . . .. . . . . . . . .. . . . . . .. . . . . . .. . . . . .82

3.5.4 Extended Platform Assembly(Quick Fold-down Platform) . . .. . . . . . .. . . . . . .. . . . . .83

3.5.5 Extended Platform Assembly(Quick Fold-down Platform).. . . . . . .. . . . . . .. . . . . .85

3.5.6 Platform Entry Gate Installation(Quick Fold-down Platform) .. . . . . . .. . . . . . .. . . . . .87

4 Chassis-Scissor-Platform Installation....................................... 89

4.1 Chassis-Scissor-Platform Installation (GTJZ0408SE&0408ME) . . . . . . . . . . .. . . . . . 90

4.2 Chassis-Scissor-Platform Installation (GTJZ0608SE&0608ME) . . . . . . . . . . .. . . . . . 92

5 Electrical System................................................................. 95

5.1 Emergency Decent Handle Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . 96

5.2 Right Door Hydraulic Components Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

5.3 Power unit 202010000056 . . . . . . .. . . . . . .. . . . . . . .. . . . .. . . . . . . .. . . . . . . . . . . . .. . . . 100

5.4 Hose Clamp Installation........................................................ 101

5.5 Lift Control Valve Installation. . . . . .. . . . . . .. . . . . .. . . . . . . .. .. . . . .. . . . . . . . . . . . . .. . . . 103

5.6 Lift Control Valve 202040003293 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

5.7 Lift Control Valve 202040003295 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

5.8 Hydraulic Tubes Layout. . . . . .. . .. . . . . . .. . . . . . . .. . . . . . .. . . . . . . .. . . . . . ... . . . . .. . . . 106

5.9 Hydraulic Valves Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . 107

5.10 HydraulicSchematic.......................................................... 108

6 Electrical System................................................................109

6.1 Chassis Electrical Components. . . .. . . . . . . . . . .. . . . . . .. . . . . . . .. . . . . . .. . . . . . .. . . . .110
