USER'S MANUAL

ASH-09AIP PT, ASH-12AIP PT

POLAR SERIES



This symbol stands for the items

should be forbidden.

This symbol stands for the items

should be followed

■Installation and Maintenance of Healthy Filter .......................... 24

■Install snow guard (Optional) ................................................ 25

Do not dispose this product as unsorted municipal waste.

Collection of such waste separately for special treatment

is necessary.

The products in this manual may be different with the real one, according to different

models, some models have displayer and some models without displayer, the position

and shape of the displayer please refer to the real one.

This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities or lack of experience and knowledge,

unless they have been given supervision or instruction concerning use of the appliance

by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

CONTENTS

■

Operation and maintenance

Notices for operation ............................................................. 1

Notices for use .................................................................... 3

Names and functions of each part ........................................... 5

■Operation of wireless remote control ........................................ 6

Clean and care .................................................................. 12

Troubleshooting ................................................................. 14

Installation service

Notices for installation ......................................................... 17

Installation dimension diagram

.............................................. 19

Install indoor unit

................................................................ 20

Install outdoor unit

.............................................................. 22

Check after installation and test operation ............................... 23

Emergency operation .......................................................... 11

★

Operation and maintenance-notices for operation

１

★★Be sure to pull out the power

★

★★

★

Earth: The ground

be connected!

If not, please ask the qualified person-

nel to install. Furthermore, don't conn-

ect each wire to the gas pipe, water

pipe, drainage pipe or any other impr-

oper places.

plug when not using the air co-

nditioner for a long time.

Otherwise, the accumulated dust

may cause fire or electric shock.

Select the most appropriate tem-

perature.

Keep room cool-

er than outside

about 5 degree.

It can preclude the electricity wasted.

Don't leave windows and

doors open for a long time

while operating the air conditioner.

It can decrease the air conditioning

capacity.

Don't block the air intake or outlet

vents of both the outdoor and indoor

units.

It can decrease the air conditioning

capacity or cause a malfunction.

Keep combustible spray away

from the units more than 1m.

It can cause afire or explosion.

If it is damaged, it may lead to

the fall of the unit and cause

the injury.

Please note whether the installed

stand is firm enough or not.

Don't step on the top of the

outdoor unit or place something

on it.

As falling off the outdoor unit

can be dangerous.

Don't attempt to repair

the air conditioner by yourself.

The wrong repair will lead to

an electric shock or fire, so

you should contact the service

center to repair.

２

★

Notices for operation

If the supply cord is damaged, it must be replaced

by the manufacturer or its service agent or a

similarly qualified person in order to avoid a

hazard.

The airflow direction can be adjusted appro-

priately. At operating, adjust the vertical airflow

direction by adjusting the louvers of upward/do-

wnward direction. And then, hold two ends of

left and right louver to adjust the horizontal air-

flow.

Louver of left/right directionLouver of upward/

downward direction.

Don't insert your hands or stick into the air

intake or outlet vents.

Otherwise it will cause accident.

Don't blow the wind to animals and plants

directly. It can cause a bad influence to them.

Don't apply the cold wind to the body for a

long time.

It can cause the health problems.

Don't use the air conditioner for other purposes,

such as drying clothes, preserving foods, etc.

Splashing water on the air conditioner can

cause an electric shock and malfunction. Don't place a space heater near the air

conditioner.

Or CO toxicosis may occur for imcomplete

burning.

Anti-cool wind function:

In "Heat" mode, under the following three kinds of state, if indoor heat exchanger doesn't

arrive at certain temp., indoor fan will not act, in order to prevent cool wind blowing(within

2 mins):

1. Heating starts. 2. After Auto Defrost finished. 3. Heating under the low temperature.

Gentle Breeze

In the following situation, the indoor unit may blow gentle breeze, and

the guide louver rotate to a certain position:

1. In “Heat” mode, the unit turned on, the compressor doesn’t arrive the starting condition

2. In “Heat” mode, the temperature arrive at the setting value and the compressor stop

running about 1min.

Notices for use

Working principle and special functions for cooling

Principle:

Anti-freezing function:

Working principle and special functions for heating

Principle:

Defrosting:

Air conditioner absorbs heat in the room and transmit to outdoor and discharged, so that

indoor ambient temperature decreased, its cooling capacity will increase or decrease by

outdoor ambient temperature.

If the unit is running in COOL mode and in low temperature, there will be frost formed on

the heat exchanger, when indoor heat exchanger temperature decreased below 0 , the

indoor unit microcomputer will stop compressor running and protect the unit.

℃

Air conditioner absorbs heat from outdoor and transmits to indoor, in this way to increase

room temperature. This is the heat pump heating principle, its heating capacity will be

reduced due to outdoor temperature decrease.

If outdoor temperature becomes very low, please operate with other heating equipments.

When outdoor temperature is low but high humidity, after a long while running, frost will

form on outdoor unit, that will effect the heating effect, at this time, the auto defrosting

function will act, the heat running will stop for 8-10mins.

During the auto defrosting, the fan motors of indoor unit and outdoor unit will stop.

During the defrosting, the indoor indicator flashes, the outdoor unit may emit vapor.

This is due to the defrosting, it isn't malfunction.

After defrosting finished,the heating will recover automatically.

Notices for use

The operating temperature range (outdoor temperature) for cooling unit is -15℃~46℃；

for cooling and heating unit is -15℃~

24℃.

Working temperature range

Maximum cooling

Minimum cooling

Maximum heating

Minimum heating

Indoor sideDB/WB(oC) Outdoor sideDB/WB(oC)

32/23

21/15

27/---

20/---

-15/--

24/18

-15/--

46/---

Names and functions of each part

⑹

⑸

⑵

⑻

⑷

⑺

⑶

⑴

Indoor unit

Outdoor unit

Wireless

remote control

Power cable

Remote control

Front panel

Filter

Guide louver

Wall pipe

Bind tape

Drainage pipe

⑹

⑺

Receive window

Heat

Cool

Run

Dry

SET TEMP

ON/OFF

Air out

Air in

⑻

Air out

Air in

⑻

Air in

Air out

⑶

⑸

⑴

⑷

⑵

●

AUTO

COOL

DRY

FAN

HEAT

FAN FAN speed button

Press this button once, fan speed will change

as below: Auto

Low speed Middle speed

High speed

Note:Under the Dry mode, the fan speed isn't

●

Simpleness swing mode is defaulted for wireless

remote control, in this mode, press this button,

(＋/－)

16～30℃。

●

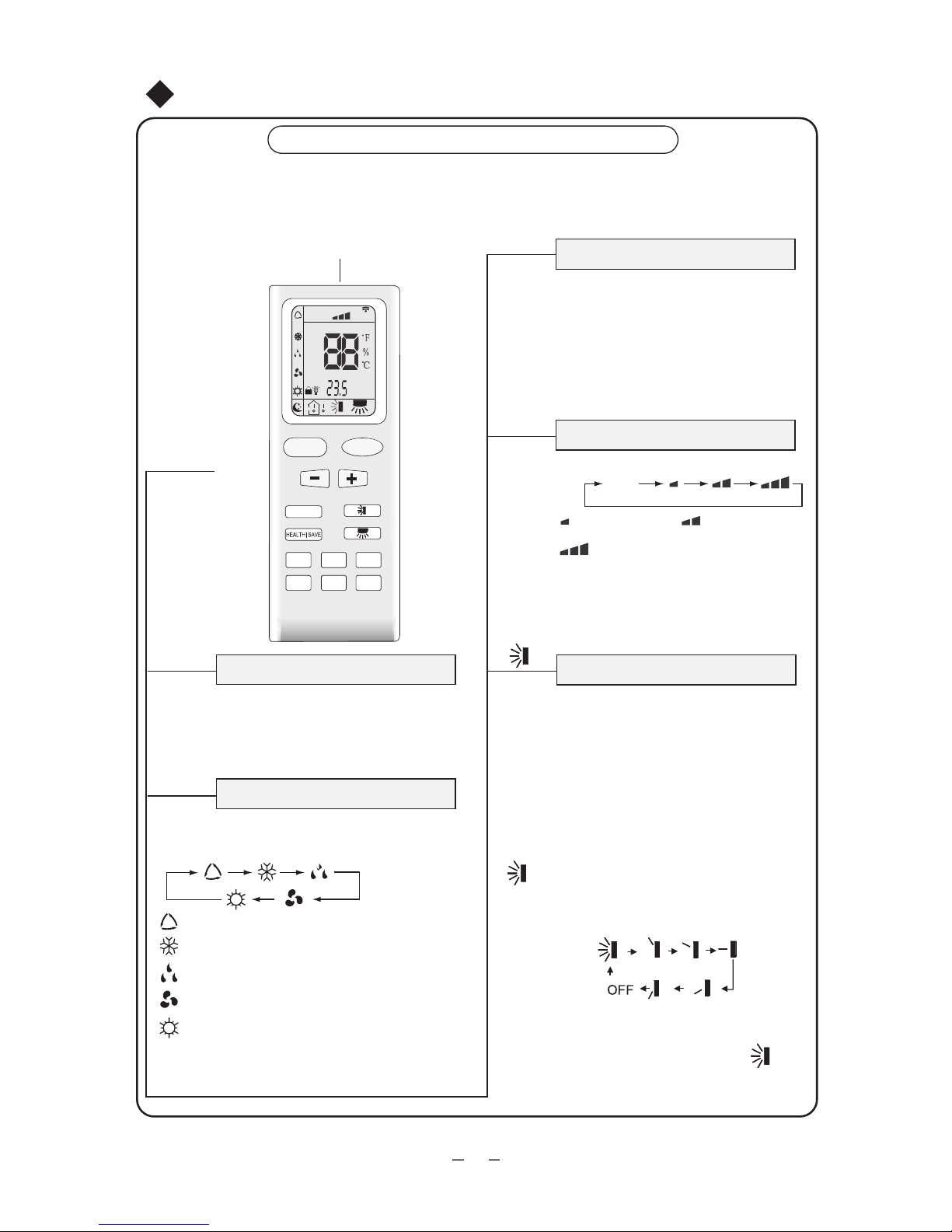

Names and functions of remote control buttons

Note: Be sure that there are no obstructions between receiver and remote control; Don't drop

or throw the remote control; Don't let any liquid in the remote control and put the remote control

directly under the sunlight or any place where is very hot

Signal transmitter

Remote control

ON/OFF

ON/OFF button

Press this button, the unit will be started or stopped,

which can clear the timer or sleeping function of

last time.

●

TEMP(+/-) button

When press +button , the setting temp. will b

increased by 1 ,When press -button,the

setting temp. will be decreased by 1

The temp. will be changed quickly

the button continuously and setting temp. range

℃

by pressing

●

Operation of wireless remote control

Swing up and down button

℃

below.

Press this button, the running mode

will change as

Mode button

MODE

FAN

AUTO

OPER

HEALTH

AIR

FILTER

TURBO

ON/OFF

X-FAN

HOUR

HUMIDITY

ON/OFF

MODE

FAN

X-FAN

TURBO

TEMP TIMER

SLEEP LIGHT

could turn on or turn off the Up and down

swing function.

When unit is turned off, synchronously press

"+" and Up and down swing buttons, it could

be switched between the simpleness swing

mode and stationary swing mode, at this time,

blinks 2 seconds.

In Stationary swing mode, press this button,the

angle for Up and down swing as show in below:

When up and down swing louver is working,

when turn off the unit, the siwng louver will

●

immediately stop at current position.

shows up and down swing louver swings back

and forth as show in the above figure.

adjustable, low fan speed is imperative,

but when operating this button, the wireless

remote control will send this signal.

(Only for cooling and heating unit.)

(As for cooling only unit, it won’t have

any action when it receives the signal

of heating operation. )

HEALTH function:there is no this function

for this unit. If press this key, the main unit

will click, but it also runs under original status.

Health save

HEALTH

SAVE

FAN

AUTO

OPER

HEALTH

AIR

FILTER

TURBO

ON/OFF

X-FAN

HOUR

HUMIDITY

ON/OFF

MODE

FAN

X-FAN

TURBO

TEMP TIMER

SLEEP LIGHT

Operation of wireless remote control

TIMER

●

NOTE: This Remote control is universal, it could be used formany units, some buttons

of this control which are not available to this unit will not be described below.

On the status of the unit on, press this

button to set timer off. On the status of

the unit off, press this button to set timer

off. Press this key once, words Hour on(off)

will appear and flicker. In which case, press

+/- button to adjust time (press+/- button

the setting time range is from 0.5 to 24 hr.

;

continuously to change timing value quickly

then remote controller will send out the signal

immediately and hour on/off will stop flickering.

If the time of that no press timer button

under flickering status is above 5s,the timer

setting will quit. If the timer has been set,

press this button once again to quit it.

press this key once again to fix the time,

●

Remote control

TURBO Turbo button

Set turbo on or off (the characters of turbo

will appear or disappear ) by pressing this

●

key under cooling or heating mode.Once

energized, the unit will be defaulted to be

turbo off. This function can not be set under

of turbo won't appear.

auto, dehumidify or fan mode, and characters

button

Timer button

Names and functions of remote control buttons

Left and right swing button

There is no this function for this unit. If press

this key, the main unit will click, but it also

runs under original status.

●

“Electricity Save mode”, repress this button,

the whole unit will quit this mode, other mode

button is not available. Under the EnergySave

mode, the Temperature and the Fan speed

on the remote control are not adjustable.

● Save energy function: Under Cool mode,press

the right part of this button, the remote control

will display“ ”, the whole unit will enter into

Autres manuels pour ASH-09AIP PT

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sinclair Climatiseur

Sinclair

Sinclair MS-H07AIZ Manuel utilisateur

Sinclair

Sinclair MC-C24AI Manuel utilisateur

Sinclair

Sinclair ASH-28AT Manuel utilisateur

Sinclair

Sinclair SF-85H Manuel utilisateur

Sinclair

Sinclair ASE-18AH Manuel utilisateur

Sinclair

Sinclair UNI SPLIT DUCT ASD BI Series Manuel utilisateur

Sinclair

Sinclair MS-H07AICN PT Manuel utilisateur

Sinclair

Sinclair MS-H07AIC PT Manuel utilisateur

Sinclair

Sinclair ASH-09AIE2 Manuel utilisateur

Sinclair

Sinclair ASH-09CS Manuel utilisateur

Sinclair

Sinclair SDV4 series Manuel utilisateur

Sinclair

Sinclair SDV4 F Manuel utilisateur

Sinclair

Sinclair SF-C4M Series Manuel utilisateur

Sinclair

Sinclair SDV6 Manuel d'utilisation

Sinclair

Sinclair ARCTIC Series Manuel utilisateur

Sinclair

Sinclair SDV4 series Manuel d'utilisation

Sinclair

Sinclair MS-E24AI Manuel utilisateur

Sinclair

Sinclair ASGE BI-3 Series Manuel utilisateur

Sinclair

Sinclair CONSOLE ASP-09BI Manuel utilisateur

Sinclair

Sinclair AST-24BI Manuel utilisateur

Sinclair

Sinclair SDV5 Series Manuel utilisateur

Sinclair

Sinclair ASGE-48BI-3 Manuel utilisateur

Sinclair

Sinclair FREE COMBI SERIES Manuel utilisateur

Sinclair

Sinclair ASC BI Series Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur
