sinaCAM About this Document

Quick Start Guide Rev.: 1.0 3

1. About this Document

Document Revision History

Table 1:

Revision History

Revision Date Description

1.0

ril

18, 2012

First edition

Purpose

This document provides a basic description, safety and quick start information

for the sinaCAM camera system. However, this document does not replace the

detailed user manual, which can be downloaded from:

www.sinacam.eu

All text, graphics, design and other works contained herein are copyrighted

works of Solectrix Systems and anadicon solutions. Any redistribution or re-

production of any materials contained herein is strictly prohibited without the

written consent of the copyright holders.

sinaCAM®is a registered trademark of Solectrix Systems and anadicon solu-

tions and is their sole and exclusive property.

On the following pages of this document the (®) mark is no longer used.

Information

Due to continuous product development, the information within this docu-

ment is subject to change without notice.

If you find any problems or inaccuracies in this document, please report them

to us in writing.

Solectrix Systems GmbH

Fuerther Str. 244b

“Auf AEG”

90429 Nuremberg

Germany

mailto: [email protected]

www.sinacam.eu

anadicon solutions GmbH

Kammergasse 34

85354 Freising

Germany

Safety Instructions sinaCAM

4 Rev.: 1.0 Quick Start Guide

2. Safety Instructions

2.1 Warning Signs and Indications

CAUTION

Indicates a hazardous situation which, if not avoided, could result in minor

or moderate injury.

NOTICE

Indicates a potentially hazardous situation which, if not avoided, may result

in property damage.

2.2 General Safety

Read and follow all safety and operating instructions before installing and

operating the camera system.

2.3 Specific Safety

Only use the type of power source specified for this camera system. The

use of a wrong power source could damage the camera system and/or

cause fire or electric shock!

Do not open the housing of the camera system. Risk of electric shock!

Do not open the housing or attempt to repair, or modify, any part of the

camera system. Repairs must only be carried out by authorized sinaCAM

service centers.

Do not store the camera system near a strong magnetic field, or in areas

where it would be subjected to direct sunlight, extreme temperatures, high

levels of humidity or severe vibrations.

Do not use the camera system outside the specified operating temperature

range.

Keep all liquids away from the camera system. Do not place containers

with liquids on top of the camera housing. Risk of fire, electric shock

and/or damage!

Do not use the camera system in places where it could come in contact

with water, moisture, steam or dust. This could damage the camera system

and/or cause fire or electric shock!

Unplug the power cable by the plug, do not pull the cable.

Unplug all cables before transporting the camera system or storing it in-

side a camera case.

Always put the protection cap onto the lens mount when transporting the

remote camera heads without lenses.

sinaCAM Regulatory Compliance

Quick Start Guide Rev.: 1.0 5

3. Regulatory Compliance

The sinaCAM base station and the sinaCAM remote heads comply with the

following regulations:

Low Voltage Directive (LVD), 2006/95/EC

Electromagnetic compatibility (EMC):

–2004/108/EC

–FCC 47 CFR Part 15 Subpart B Class B

RoHS

4. Disposal

For European Union member states only:

The use of this symbol indicates that this product must not be disposed

of with household waste. By ensuring this product is disposed of cor-

rectly, you will help prevent negative consequences for the

environment and human health. At the end of its lifespan, take the product to

an appropriate recycling station. For more information about correct disposal

of electrical and electronic equipment please contact your local authorities or

your supplier where you purchased the product.

5. Introduction to sinaCAM

sinaCAM is a small remote head HD studio camera system for professional

2D/3D broadcast and cinema production.

Two signals of two sinaCAM remote heads are processed by the same im-

age processor. This enables:

–Pixel synchronous 3D output

–Identical image properties, like white balance, brightness and contrast

C-mount threads and the option to adjust the back focus by changing the

flange back distance make it possible to use C-mount lenses for profession-

al production.

A choice of professional accessories, such as different battery adaptors,

lens adaptors, lens accessories, handles, mounting plates and a carrying

case increases application possibilities.

Description sinaCAM

6 Rev.: 1.0 Quick Start Guide

6. Description

6.1 Remote Head HDC1-100

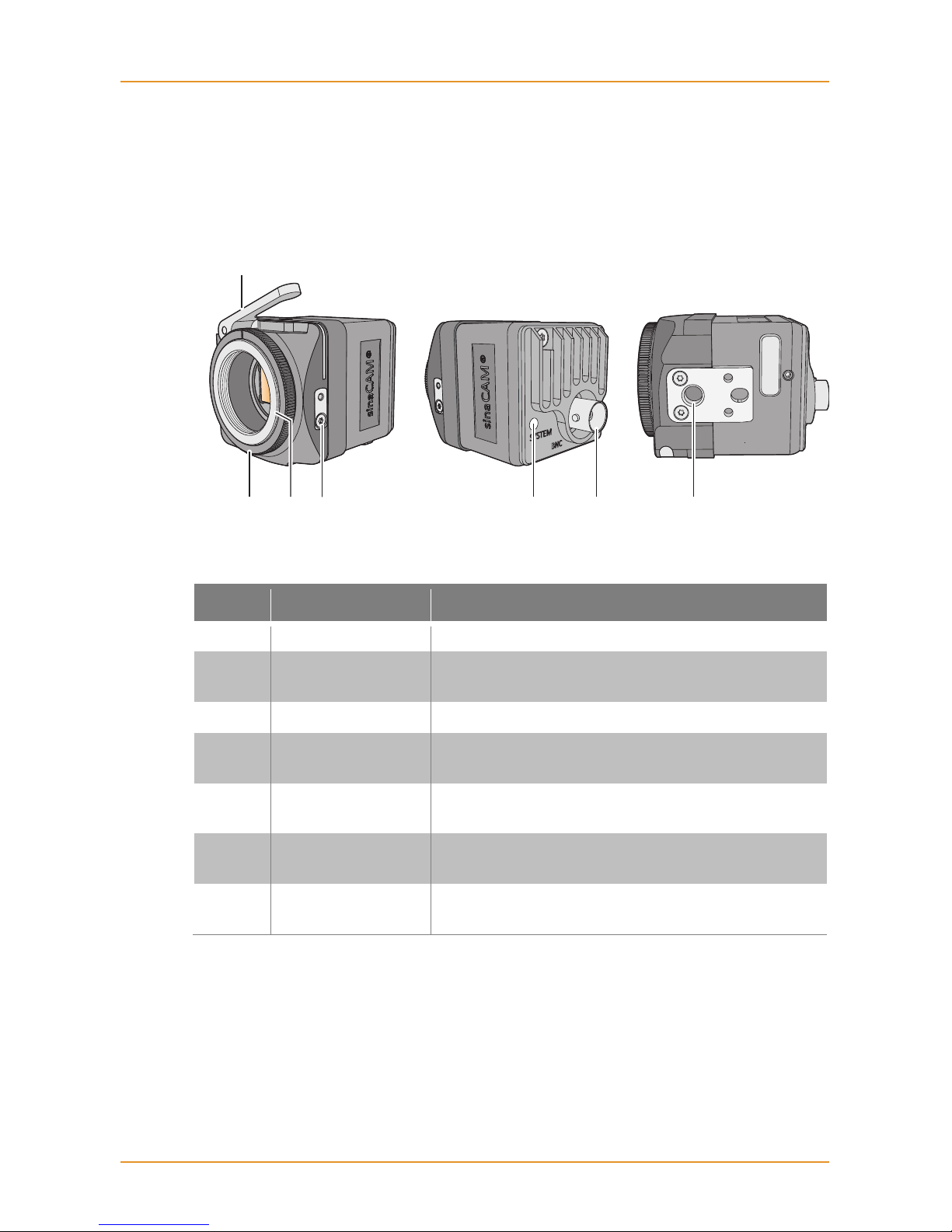

Figure 1:

The Remote Head

Table 2:

Elements and Controls of the Remote Head

Item Designation Description

A Locking lever Locking/unlocking the adjustment ring

B Flange back

adjustment ring

Flange back distance adjustment ring rotates

independently of C-mount and lens

C Lens mount Standard C-mount thread

D Lens scale

alignment screw

Allows for lens scale position alignment

E System LED Glows permanently when on, and flashes in

case of malfunction

F CoaXPress

interface

Remote head connection with base unit

(via 75 ohms coaxial cable with BNC plug)

G Bottom mount ¼”thread for attaching a tripod, handle, base-

plate, holder, etc.

E F GB C D

sinaCAM Description

Quick Start Guide Rev.: 1.0 7

6.2 Base Unit HDC1-200

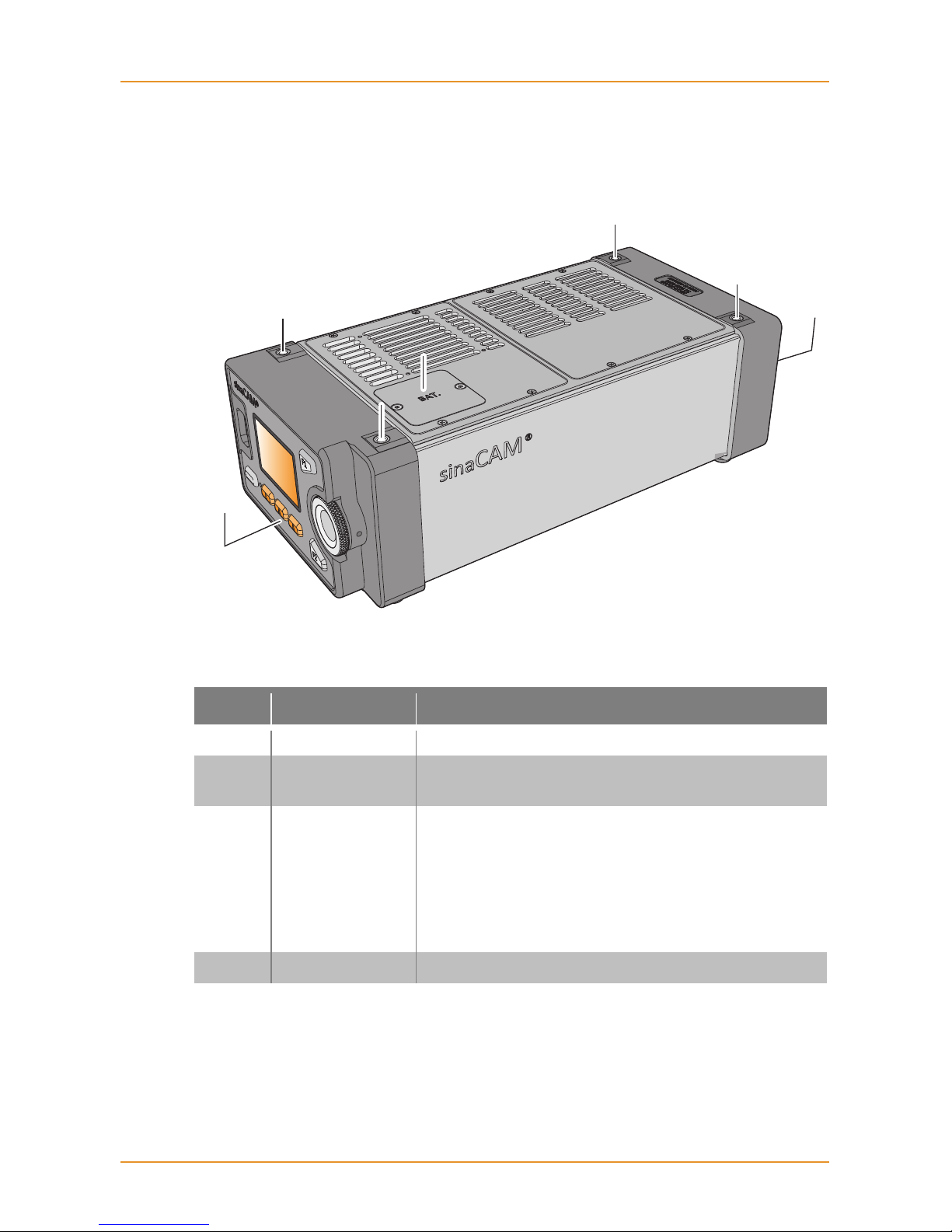

Figure 2:

The Base Unit

Table 3:

Elements of the Base Unit

Item Designation Description

A Control panel Controls and graphical user interface display

B Mounting

points

M4 thread for attaching a handle or to fix the

base unit to a mounting plate

C System battery

compartment

The system battery supplies power to the inter-

nal memory only, to store settings, date/time,

firmware, etc. It does not supply the camera with

power. Do not open the system battery com-

partment. Replacement of the system battery

must only be carried out by authorized sinaCAM

service centers.

D Rear panel Panel with all terminals to connect equipment

Description sinaCAM

8 Rev.: 1.0 Quick Start Guide

6.2.1 The Control Panel

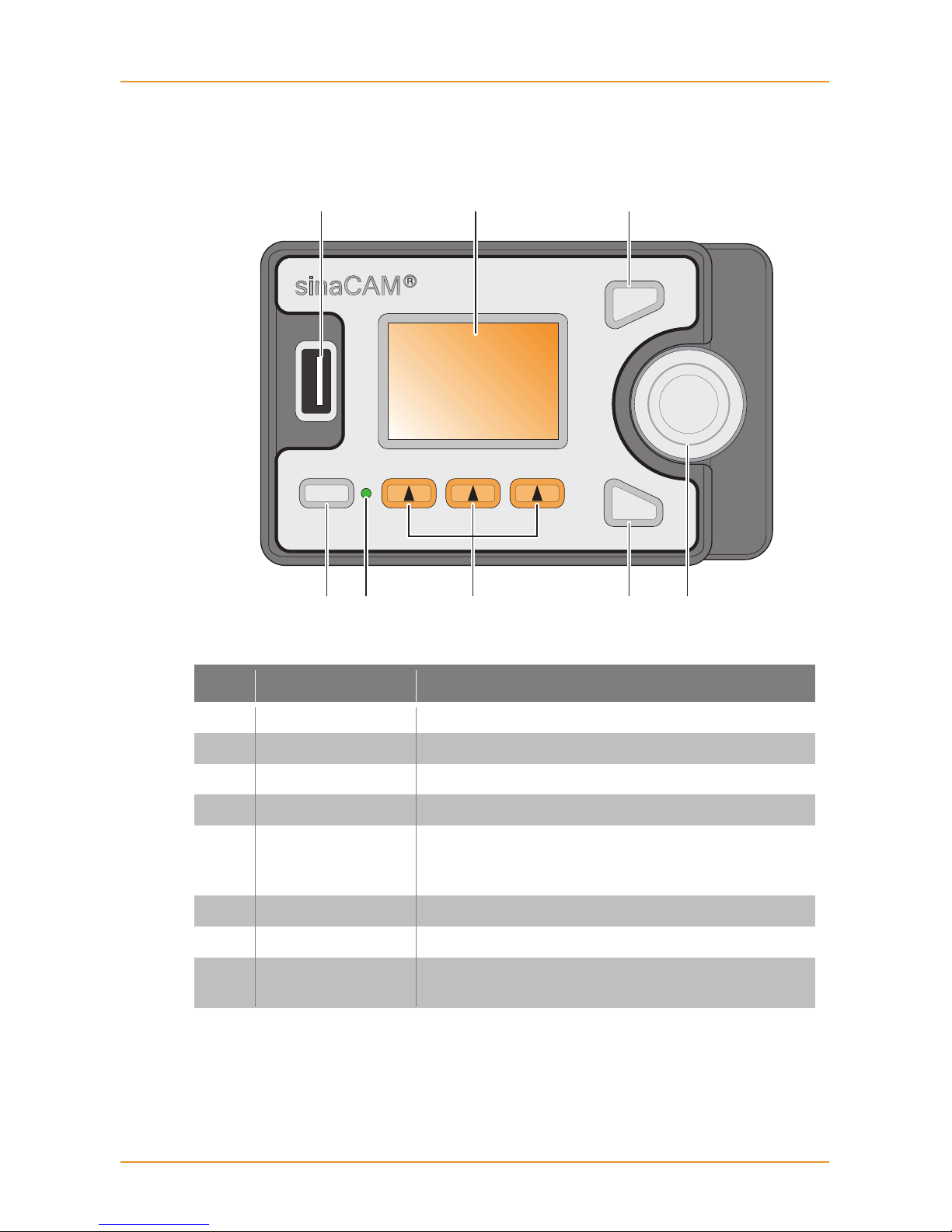

Figure 3:

The Control Panel

Table 4:

Controls and their Functions

Item Designation Description

A USB 2.0 port Enables frame grabs to USB sticks

B Display Graphical user interface display

C F1 button To select a menu item as displayed

D Power switch Turns power ON or OFF

E Power LED Glows red when the unit is connected to the

power supply, and glows green when the unit

is powered on

F Arrow buttons To select a menu item as displayed

G F2 button To select a menu item as displayed

H Scroll wheel Scroll wheel and pushing button to navigate

through the menus and select options

POWER

B C

GD E H

sinaCAM Description

Quick Start Guide Rev.: 1.0 9

6.2.2 The Rear Panel

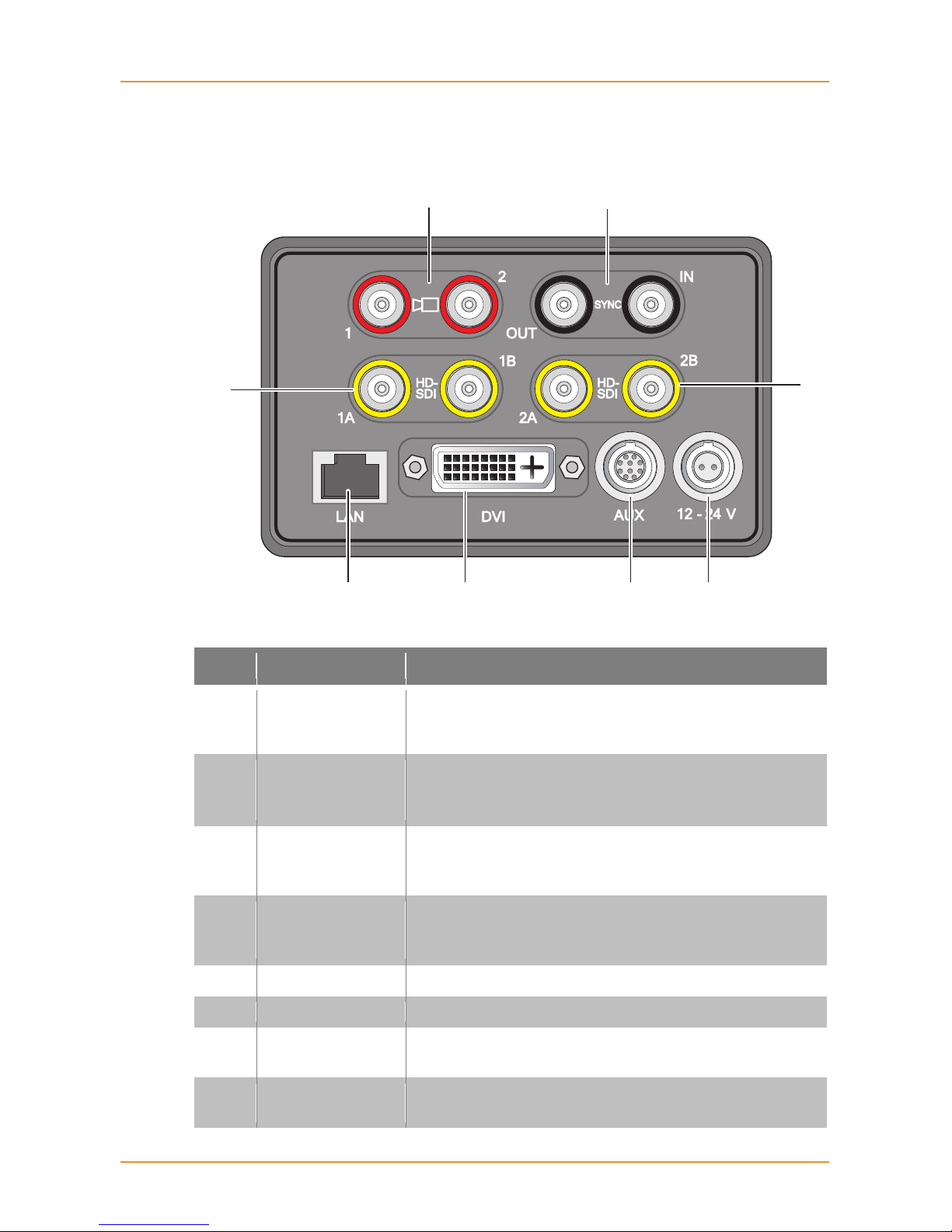

Figure 4:

Arrangement of the Terminals

Table 5:

Terminals on the Rear Panel

Item Designation Description

A Remote head

terminals

(1, 2)

CoaXPress interface with 18V power supply for

the remote camera heads, connection via 75 ohms

coaxial cable with BNC plug

B SYNC

(OUT, IN)

Terminals for, e.g.

an additional camera

an external sync generator

C HD-SDI output

(1A, 1B)

Terminals for, e.g., a HD-SDI monitor, a recording

device or a 2D/3D converter; 1A/1B provides the

image signal coming from remote head terminal 1

D HD-SDI output

(2A, 2B)

For the same equipment as listed next to item C;

2A/2B provides the image signal coming from

remote head terminal 2

E LAN 100 MBit Ethernet service communication port

F DVI output Connection of a digital HD monitor

G AUX 10 pin terminal, auxiliary signals for remote con-

trol unit, timecode or exposure trigger

H Power input

12 – 24V

Connection of a power supply adapter,

12 – 24V DC, minimum 30W

HFE

Installation sinaCAM

10 Rev.: 1.0 Quick Start Guide

7. Installation

7.1 Minimum System Requirements

Shooting with sinaCAM requires the below listed minimum equipment:

A sinaCAM camera system, consisting of

–sinaCAM base unit

–one or two sinaCAM remote heads (depending on shooting in 2D or 3D)

Further equipment, like

–C-mount lens suitable for 2/3”CCD cameras

–Remote head cable, 75 ohms coaxial cable with BNC plugs

–Video output cable for DVI and/or HD-SDI

–Digital HD monitor, able to display the desired output format and

frame rate

–Digital recording device

–DC power supply for the sinaCAM base unit

7.2 Power Supply

It is recommended to only use official sinaCAM accessories as a power supply.

For official sinaCAM accessories please refer to www.sinacam.eu

CAUTION

The use of a wrong power supply can cause fire or electric shock.

NOTICE

The use of a wrong power supply may cause damage to the camera system.

7.3 Remote Camera Head Connection

The base unit supplies 18V power to the remote camera head terminals 1 and 2.

NOTICE

Connect only sinaCAM remote camera heads to terminals 1 and 2 of the base

unit. Connection of any other equipment to terminal 1 or 2 may not only

cause damage to the camera system, but also to the connected equipment.

7.4 Connecting the Hardware

Make sure that all hardware to be installed is switched off.

Connect all hardware to the base unit.

Switch on all hardware and the base unit.

Autres manuels pour HDC1-D

Table des matières

Autres manuels sinaCam Appareil photo numérique

sinaCam

sinaCam HDC1-D Manuel utilisateur

Manuels Appareil photo numérique populaires d'autres marques

Mercury

Mercury 350K Manuel utilisateur

Pentax

Pentax Optio LS 465 Manuel utilisateur

Sanyo

Sanyo VPC-S1085 Manuel utilisateur

GE SMART A1255 Manuel utilisateur

Point Grey

Point Grey Gazelle Manuel utilisateur

Nikon

Nikon COOLPIX A Manuel utilisateur

Pentax

Pentax P-5 Manuel utilisateur

BlazeVideo

BlazeVideo A280 Manuel utilisateur

Sony

Sony MCA-20 Manuel utilisateur

Sony

Sony Alpha DSLR-A290 Manuel utilisateur

ATIK Cameras

ATIK Cameras One Manuel utilisateur

CohuHD Costar

CohuHD Costar 3930 Series Manuel utilisateur

Leica

Leica M10-R Manuel utilisateur

FujiFilm

FujiFilm FinePix A700 Manuel utilisateur

Lorex

Lorex LNZ81P25 Series Manuel utilisateur

GE J1470S Manuel utilisateur

Sony

Sony A6700 Guide de l'utilisateur

Canon

Canon EOS ELAN7 Manuel utilisateur
