SImx LHT1115 Manuel utilisateur
INSTALLATION INSTRUCTIONS
Power Source 220-240V AC Class I
Lumens 7W: 235 lm
13W: 360 lm
Colour Temperature Warm White 3000K
Protection Rating IP65
Mounting Wall
Construction Powder Coated Aluminium,
UV Stabilsed Polycarbonate
BEFORE YOU START
TECHNICAL SPECIFICATIONS
Please read all the instructions prior to installation.
This product is suitable for use only with a supply voltage of 220-240V AC 50Hz.
All electrical work must be carried out in accordance with local and national electrical codes as applicable.
We strongly recommend that this light fitting is installed by a registered electrician.
Always switch power off prior to installation. A means of mains power isolation must be installed in the circuit
for the purpose of safe access for any internal cleaning, recalibration, or maintenance.
This light fitting is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Young children should be
supervised to ensure that they do not play with the appliance.
Any changes or modifications made or attempted to this product, without the prior written approval of the
manufacturer, will void any and all stated warranties.
IMPORTANT
!
WAKATIPU
The Simx Lighting Wakatipu Wall Light is a contemporary design, high quality LED luminaire.
Water proof and dust proof, it is rated for exposed exterior locations.
The Wakatipu Wall Light should be wired to its own light switch.
Do not connect with other lamp types on the same switch.
An earth connection must be used for electrical safety.
For all locations, please check that the direction of the beam will not cause undue glare to neighbouring
properties.
LHT1115 ANTHRACITE / LHT1116 WHITE
7W LED Wall Light
LHT1117 ANTHRACITE / LHT1118 WHITE
13W LED Wall Light
We strongly recommend this light fitting is installed by a registered electrician

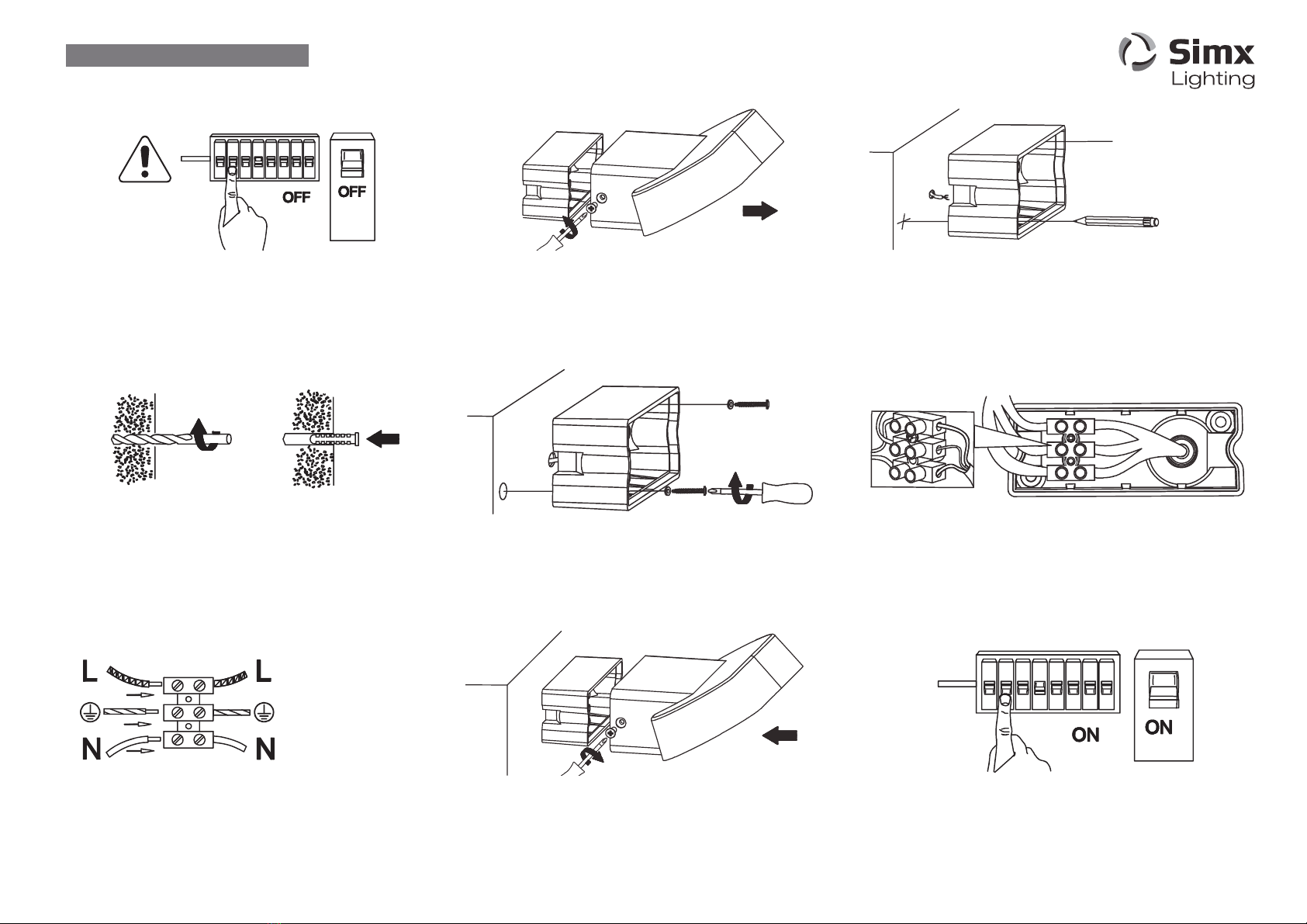

INSTALLATION
= Brown
= Green / Yellow
= Blue
We strongly recommend this light fitting is installed by a registered electrician
12 3
456
789
Switch off the power supply before commencing
any electrical work.
Unscrew the fixing cover screws with the allen key
supplied and remove the rear mounting base.
Use the rear base to mark the position of screw
holes onto the mounting surface. Use a spirit level to
ensure correct orientation.
Drill the wall to depth of about 40mm and fit the wall
plugs (supplied).
Care should be taken to avoid drilling or screwing
into concealed electrical wiring/plumbing.
Connect the power cables to the terminal block
securely using the wiring diagram in Step 7.
Terminate the power supply cable. Reattach and screw securely the cover to the base.
Ensure cables are not pinched when closing the unit.
Reconnect mains power and test circuit.
Push the power supply through the cable gland. Affix
the rear base to the mounting surface with mounting
wall screws supplied. To maintain the IP rating, a
round 3 core 0.75mm² (min) cable should be used.
Distributed by: Simx Limited
Ph: +64 9 259 1660 | Technical Support Ph: +64 9 259 1662
MANUFACTURERS EXTENDED WARRANTY
PRODUCT COMPLIANCES
Product complies with:
EN55015:2013+AI EN61549:2009 EN61000-3-3:2013 EN61000-3-2:2014 EN60598-1:2015
EN60598-2-1:1989 EN62471:2008 EN62493:2010 & 2015 LV Directive 2014/35/EU
AS/NZS3820:2009 and relevant amendments
PUB1557 2001
Specifications are subject to change without notice
This product is guaranteed by SIMX Ltd for 5 years from the date of purchase against faulty materials or
workmanship which affects its designed ability to operate. During this period if the product has a defect of
this nature it will be repaired or replaced free of charge by SIMX with the same item, or a similar one of
higher specification.
ON CONDITION THAT:
The buyer returns it to the seller from whom it was bought, freight paid.
The product has been bought by the user. ie a receipt/sales invoice is produced as proof of purchase.
The product has not been misused or handled carelessly, installed in anyway contrary to the installation
instructions, used on a supply voltage other than that indicated in the product specifications, or installed
in any unusually exposed or harsh environmental conditions.
This guarantee excludes liability for discolouration of paint or plastic, or any user serviceable parts. It
does not confer any rights other than those expressly set out above and does not cover any claims for
consequential loss or damage.
Our Goods come with guarantees that cannot be excluded under the New Zealand Consumer Law. You
are entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the Goods repaired or replaced if the Goods fail
to be of acceptable quality and the failure does not amount to a major failure.
