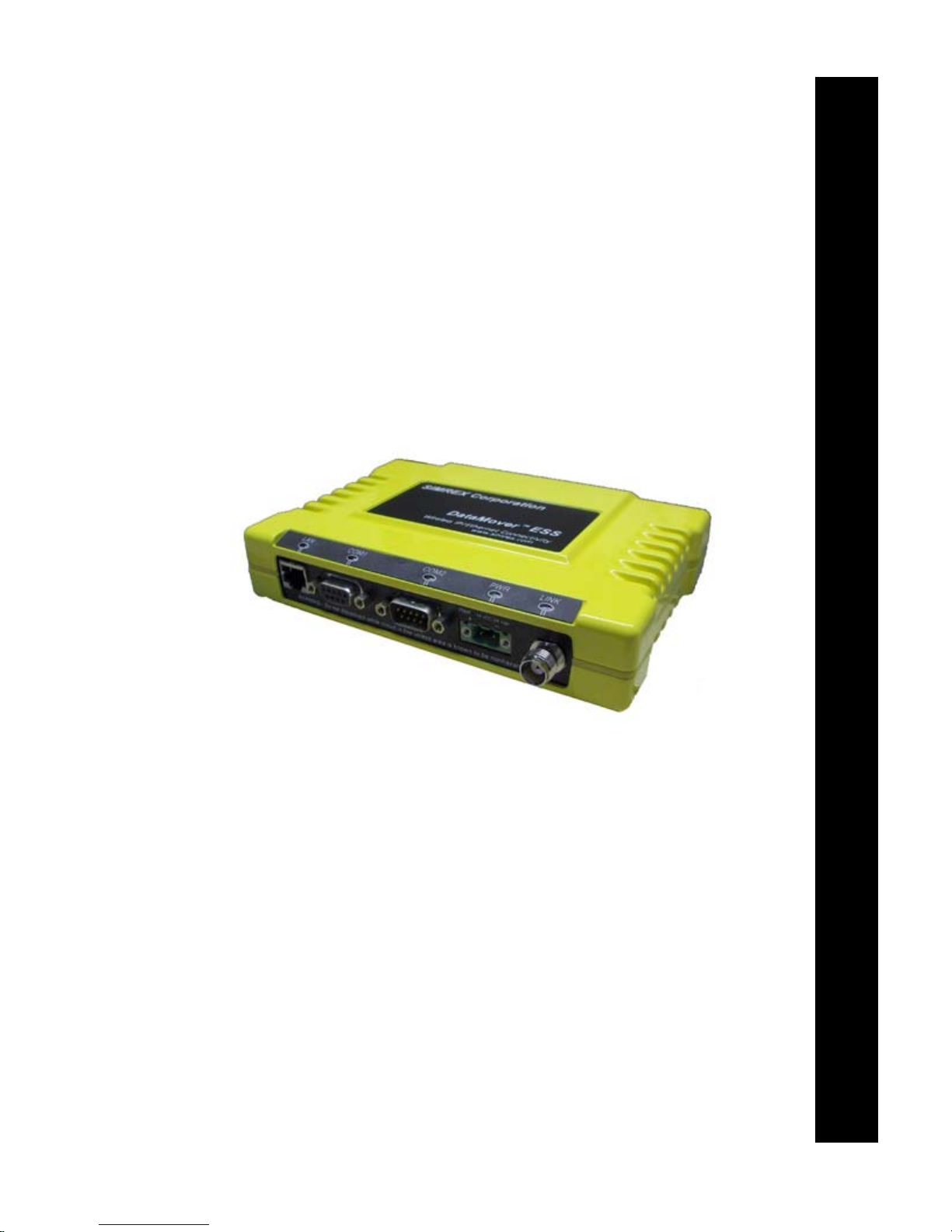

SIMREX DataMover ESS Manuel utilisateur

User’s Guide

SIMREX MAN.ESS-01, Rev. F

MARCH 2006

Wireless IP/Ethernet Transceiver

DataMover ESS-II Firmware Release 1

DataMover ESS Firmware Release 6.2.1

DataMover ESS

DataMoverTM ESS

DataMoverTM ESS-II

SIMREX Corporation

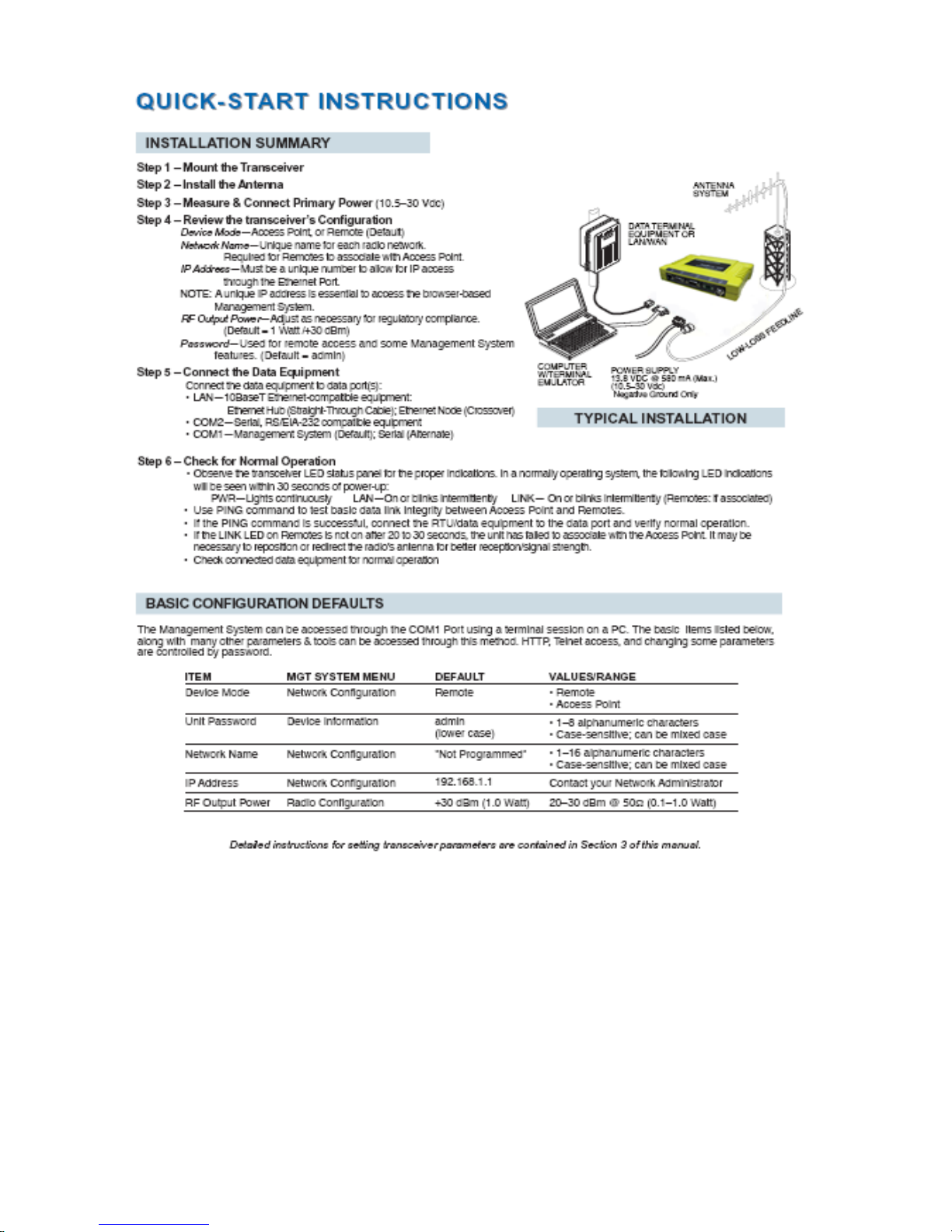

SIMREX MAN.ESS-01, Rev. F DataMover ESS User’s Guide i

SIMREX CORPORATION

TABLE OF CONTENTS

1 PRODUCT OVERVIEW AND APPLICATIONS .......... 1

1.1 PRODUCT DESCRIPTION................................................................................................... 3

1.1.1 Model Offerings ..........................................................................................................................5

1.1.2 Differences Between ESS and iNET-II .......................................................................................6

1.2 APPLICATIONS.................................................................................................................... 6

1.2.1 Wireless LAN ..............................................................................................................................6

1.2.2 Point-to-Point LAN Extension .....................................................................................................7

1.2.3 Backhaul for Serial Radio Networks ...........................................................................................7

1.2.4 Multiple Protocols and/or Services .............................................................................................8

1.2.5 Wireless LAN with Mixed Services .............................................................................................9

1.2.6 Upgrading Older Wireless Network with

Serial Interfaces ..................................................................................................................................10

1.2.7 High-Speed Mobile Data ...........................................................................................................10

1.3 NETWORK DESIGN CONSIDERATIONS...........................................................................11

1.3.1 Extending Network Coverage with Repeaters ..........................................................................11

1.3.2 Protected Network Operation using Multiple Access Points .....................................................13

1.3.3 Collocating Multiple Radio Networks ........................................................................................13

1.4 MDS CYBER SECURITY SUITE........................................................................................ 14

1.5 ACCESSORIES.................................................................................................................. 16

2 TABLETOP EVALUATION AND TEST SETUP ....... 19

2.1 OVERVIEW......................................................................................................................... 21

2.2 STEP 1—INSTALL THE ANTENNA CABLING .................................................................. 21

2.3 STEP 2—MEASURE & CONNECT THE PRIMARY POWER............................................ 22

2.4 STEP 3—CONNECT PC TO THE TRANSCEIVER ........................................................... 22

2.5 STEP 4—REVIEW TRANSCEIVER CONFIGURATION ....................................................23

2.5.1 Getting Started .........................................................................................................................23

2.5.2 Procedure .................................................................................................................................23

ii DataMover ESS User’s Guide SIMREX MAN.ESS-01, Rev. F

SIMREX CORPORATION

2.5.3 Basic Configuration Defaults ....................................................................................................23

2.6 STEP 5—CONNECT LAN AND/OR SERIAL EQUIPMENT............................................... 24

2.7 STEP 6—CHECK FOR NORMAL OPERATION ................................................................ 25

3 EMBEDDED MANAGEMENT SYSTEM ................... 27

3.1 MS INTRODUCTION..........................................................................................................29

3.1.1 Differences in the User Interfaces ............................................................................................29

3.2 ACCESSING THE MENU SYSTEM................................................................................... 31

3.2.1 Methods of Control ...................................................................................................................32

3.2.2 PC Connection & Log In Procedures .......................................................................................32

3.2.3 Navigating the Menus ...............................................................................................................37

3.3 BASIC DEVICE INFORMATION......................................................................................... 38

3.3.1 Starting Information Screen ......................................................................................................38

3.3.2 Main Menu ................................................................................................................................39

3.3.3 Configuring Basic Device Parameters ......................................................................................40

3.4 CONFIGURING NETWORK PARAMETERS ..................................................................... 42

3.4.1 Network Configuration Menu ....................................................................................................42

3.4.2 IP Address Configuration Menu ...............................................................................................44

3.4.3 Ethernet Port Configuration Menu ............................................................................................45

3.4.4 DHCP Server Configuration .....................................................................................................46

3.4.5 SNMP Agent Configuration ......................................................................................................48

3.5 RADIO CONFIGURATION.................................................................................................. 50

3.5.1 Radio Configuration Menu ......................................................................................................50

3.5.2 Mobile Data Configuration ........................................................................................................57

3.6 CONFIGURING THE SERIAL INTERFACES..................................................................... 60

3.6.1 Overview ..................................................................................................................................60

3.6.2 Serial Data Port Configuration Menu ........................................................................................63

3.6.3 Configuring for UDP Mode .......................................................................................................64

3.6.4 Configuring for TCP Mode ........................................................................................................67

3.6.5 Configuring for PPP Mode ........................................................................................................70

3.6.6 IP-to-Serial Application Example ..............................................................................................71

3.6.7 Point-to-Point Serial-to-Serial Application Example .................................................................72

3.6.8 Point-to-Multipoint Serial-to-Serial Application Example ..........................................................73

3.6.9 Mixed Modes ............................................................................................................................75

3.7 CYBER SECURITY CONFIGURATION ............................................................................. 77

3.7.1 Device Security ........................................................................................................................77

SIMREX MAN.ESS-01, Rev. F DataMover ESS User’s Guide iii

SIMREX CORPORATION

3.7.2 Wireless Security ......................................................................................................................79

3.7.3 RADIUS Authentication ............................................................................................................81

3.7.4 RADIUS Configuration .............................................................................................................82

3.7.5 Certificate Management (Remote transceivers only) ...............................................................83

3.8 PERFORMANCE VERIFICATION...................................................................................... 84

3.8.1 Performance Information Menu ................................................................................................84

3.8.2 Network Performance Notes ....................................................................................................95

3.9 MAINTENANCE.................................................................................................................. 99

3.9.1 Reprogramming Menu ............................................................................................................100

3.9.2 Configuration Scripts Menu ....................................................................................................105

3.9.3 Authorization Keys Menu .......................................................................................................114

3.9.4 Auto-Upgrade/Remote-Reboot Menu .....................................................................................114

3.9.5 Radio Test Menu ....................................................................................................................115

3.9.6 Ping Utility Menu ....................................................................................................................117

3.9.7 Reset to Factory Defaults .......................................................................................................117

4 TROUBLESHOOTING AND

RADIO MEASUREMENTS .....................................119

4.1 TROUBLESHOOTING...................................................................................................... 121

4.1.1 Interpreting the Front Panel LEDs ..........................................................................................121

4.1.2 Troubleshooting Using the Embedded Management System ................................................122

4.1.3 Using Logged Operation Events .............................................................................................126

4.1.4 Alarm Conditions ....................................................................................................................126

4.1.5 Correcting Alarm Conditions ..................................................................................................128

4.1.6 Logged Events ........................................................................................................................129

4.2 RADIO (RF) MEASUREMENTS....................................................................................... 131

4.2.1 Antenna System SWR and Transmitter Power Output ...........................................................132

4.2.2 Antenna Aiming ......................................................................................................................133

5 PLANNING A RADIO NETWORK .......................... 135

5.1 INSTALLATION PLANNING ............................................................................................. 137

5.1.1 General Requirements ...........................................................................................................137

5.1.2 Site Selection .........................................................................................................................139

5.1.3 Terrain and Signal Strength ....................................................................................................139

5.1.4 Antenna & Feedline Selection ................................................................................................140

5.1.5 How Much Output Power Can be Used? ...............................................................................143

5.1.6 Conducting a Site Survey .......................................................................................................143

5.1.7 A Word About Radio Interference ...........................................................................................144

5.2 dBm-WATTS-VOLTS CONVERSION CHART.................................................................. 147

iv DataMover ESS User’s Guide SIMREX MAN.ESS-01, Rev. F

SIMREX CORPORATION

6 TECHNICAL REFERENCE ..................................... 149

6.1 DATA INTERFACE CONNECTORS................................................................................. 151

6.1.1 LAN Port .................................................................................................................................151

6.1.2 COM1 Port .............................................................................................................................152

6.1.3 COM2 Port .............................................................................................................................152

6.2 FUSE REPLACEMENT PROCEDURE ............................................................................ 153

6.3 TECHNICAL SPECIFICATIONS....................................................................................... 154

6.4 CHANNEL HOP TABLE.................................................................................................... 157

6.5 SNMP USAGE NOTES..................................................................................................... 159

6.5.1 Overview ................................................................................................................................159

7 GLOSSARY OF TERMS & ABBREVIATIONS ....... 165

rights reserved.

ISO 9001 Registration

SIMREX Corporation DataMover products adheres to the internationally-accepted ISO 9001

quality system standard.

To our Customers

We appreciate your patronage. You are our business. We promise to serve and anticipate your

needs. We will strive to give you solutions that are cost effective, innovative, reliable and of the

highest quality possible. We promise to build a relationship that is forthright and ethical, one that

builds confidence and trust.

What Products are Covered in this Manual?

This manual covers two members of the SIMREX DataMover ESS Transceiver Series, both of

which are designed to be operated under the FCC’s Part 15 license-free rules. The ESS radio is a

Frequency Hopping Spread Spectrum (FHSS) transceiver that operates at data speeds of 256 and

512 kbps.

The ESS-II is a similar design, but it is certified under the Digital Transmission System (DTS) pro-

visions of FCC Part 15 and can operate at data speeds of 512 or 1024 kbps. Operational differences

between these two models are identified, as necessary, in this manual.

NOTE: DataMover ESS and DataMover ESS-II transceivers are not over-the-air compatible.

SIMREX MAN.ESS-01, Rev. F DataMover ESS User’s Guide v

SIMREX CORPORATION

Other DataMover ESS Documentation

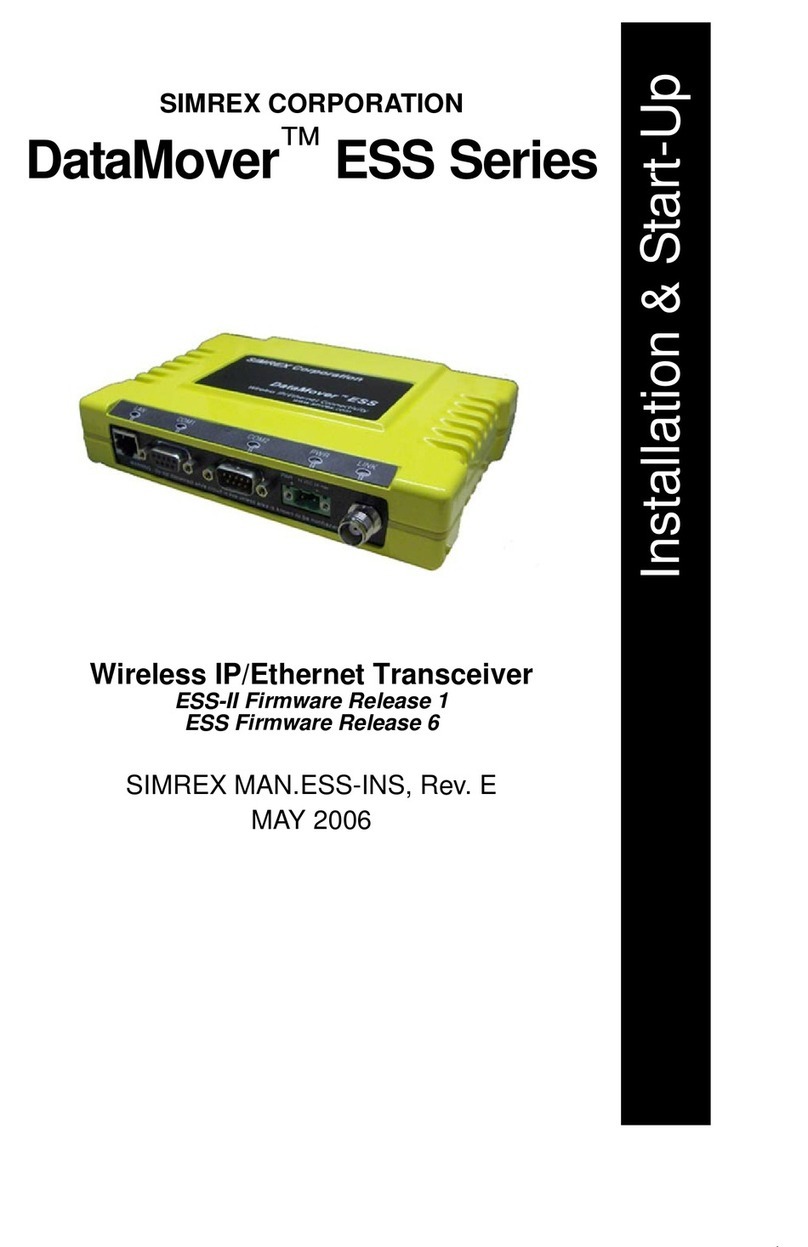

InstallationGuide—The associatedDataMover ESSInstallationGuide, P/NMAN.ESS-INSTALL,

is provided with the transceiver and is limited to essential information needed for installers. The

installation guide assumes some guidance to installers will be provided by the readers of this

manual. This includes such things as antenna selection, radio communication site survey tools and

techniques, and network design.

Related Materials on the Internet—Data sheets, frequently asked questions, case studies, applica-

tion notes, firmware upgrades and other updated information is available on the SIMREX Web site

at www.simrex.com.

About SIMREX Corporation

For almost 2 decades, SIMREX Corporation’s wireless products have been providing wireless net-

working solutions with applications in SCADA, telemetry, telecommunications, mobile data and

online transaction markets. SIMREX Corporation provides licensed and unlicensed solutions,

installed worldwide.

The majority of SIMREX DataMover radios deployed are still installed and performing within our

customers' wireless networks. That’s because our DataMover products are designed and manufac-

tured according to ISO 9001 control guidelines and meet stringent global quality standards.

Thanks to our durable products and comprehensive solutions, SIMREX is a wireless leader in

industrial automation—including oil and gas production and transportation, water/wastewater

treatment, supply and transportation, electric transmission and distribution and many other utility

applications. SIMREX is also at the forefront of wireless communications for private and public

infrastructure and online transaction processing. Now is an exciting time for SIMREX and our cus-

tomers as we look forward to further demonstrating our abilities in new and emerging markets.

As your wireless needs change you can continue to expect more from SIMREX. We'll always put

the performance of your network above all. Visit us at www.simrex.com for more information.

OPERATIONAL & SAFETY NOTICES

UL/CSA Notice

This product is available for use in Class 1, Division 2, Groups A, B, C & D Hazardous Locations. Such locations are

defined in Article 500 of the National Fire Protection Association (NFPA) publication NFPA 70, otherwise known as

the National Electrical Code.

The transceiver has been recognized for use in these hazardous locations by two independent agencies —Underwriters

Laboratories (UL) and the Canadian Standards Association (CSA). The UL certification for the transceiver is as a Rec-

ognized Component for use in these hazardous locations, in accordance with UL Standard 1604. The CSA Certifica-

tion is in accordance with CSA STD C22.2 No. 213-M1987.

UL/CSA Conditions of Approval: The transceiver is not acceptable as a stand-alone unit for use in the hazardous

locations described above. It must either be mounted within another piece of equipment which is certified for

hazardous locations, or installed within guidelines, or conditions of approval, as set forth by the approving agencies.

These conditions of approval are as follows:

Professional installation required. The radio equipment described in this guide emits radio

frequency energy. Although the power level is low, the concentrated energy from a direc-

tional antenna may pose a health hazard. Do not allow people to come closer than 23 cm

(9 inches) to the antenna when the transmitter is operating in indoor or outdoor environ-

ments. More information on RF exposure is on the Internet at

www.fcc.gov/oet/info/documents/bulletins.

RF Exposure

vi DataMover ESS User’s Guide SIMREX MAN.ESS-01, Rev. F

SIMREX CORPORATION

The transceiver must be mounted within a separate enclosure which is suitable for the intended application.

The antenna feedline, DC power cable and interface cable must be routed through conduit in accordance with the

National Electrical Code.

Installation, operation and maintenance of the transceiver should be in accordance with the transceiver's installation

manual, and the National Electrical Code.

Tampering or replacement with non-factory components may adversely affect the safe use of the transceiver in haz-

ardous locations, and may void the approval.

A power connector with screw-type retaining screws as supplied by SIMREX must be used.

Do not disconnect equipment unless power has been switched off or the area is known to

be non-hazardous.

Refer to Articles 500 through 502 of the National Electrical Code (NFPA 70) for further

information on hazardous locations and approved Division 2 wiring methods.

FCC Part 15 Notices

The transceiver series complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. This device is specifically designed to be used under Section 15.247

of the FCC Rules and Regulations. Any unauthorized modification or changes to this device without the express

approval of SIMREX Corporation may void the user’s authority to operate this device. Furthermore, the DataMover

ESS is intended to be used only when installed in accordance with the instructions outlined in this manual. Failure to

comply with these instructions may also void the user’s authority to operate this device.

Part 15 rules also require that the Effective Isotropic Radiated Power (EIRP) from an DataMover ESS installation not

exceed 36 dBm. Refer to Antenna & Feedline Selection on Page 140 for more information.

Industry Canada RSS Notices

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device

must accept any interference, including interference that may cause undesired operation of the device.

To reduce potential radio interference to other users, the antenna type and its gain should be chosen so that the Equiv-

alent Isotropic Radiated Power (EIRP) is not more than that permitted for successful communication.

This device as been designed to operate with the antennas listed below, and having a maximum gain of 12 dB.

Antennas not included in this list or having a gain greater than 12 dB are strictly prohibited for use with this device.

The required antenna impedance is 50 ohms. Refer to Table 5-3 on Page 146 for a list of antennas acceptable for use

with this transceiver.

Manual Revision and Accuracy

This manual was prepared to cover a specific version of firmware code. Accordingly, some screens and features may

differ from the actual unit you are working with. While every reasonable effort has been made to ensure the accuracy

of this publication, product improvements may also result in minor differences between the manual and the product

shipped to you. If you have additional questions or need an exact specification for a product, please contact our Cus-

tomer Service Dept. using the information at the back of this guide. In addition, manual updates can often be found on

the SIMREX Web site at www.simrex.com.

Environmental Information

The manufacture of this equipment has required the extraction and use of natural resources. Improper disposal may

contaminate the environment and present a health risk due to hazardous substances contained within. To avoid dissem-

ination of these substances into our environment, and to limit the demand on natural resources, we encourage you to

use the appropriate recycling systems for disposal. These systems will reuse or recycle most of the materials found in

this equipment in a sound way. Please contact SIMREX Corporation or your supplier for more information on the

proper disposal of this equipment.

EXPLOSION

HAZARD!

SIMREX MAN.ESS-01, Rev. F DataMover ESS User’s Guide 1

SIMREX Corporation

1PRODUCT OVERVIEW

AND APPLICATIONS

1 Chapter Counter Reset Paragraph

Contents

1.1 PRODUCT DESCRIPTION .....................................................3

1.1.1 Model Offerings ........................................................................5

1.1.2 Differences Between ESS and ESS-II .....................................6

1.2 APPLICATIONS.......................................................................6

1.2.1 Wireless LAN ...........................................................................6

1.2.2 Point-to-Point LAN Extension ...................................................7

1.2.3 Backhaul for Serial Radio Networks .........................................7

1.2.4 Multiple Protocols and/or Services ...........................................8

1.2.5 Wireless LAN with Mixed Services ...........................................9

1.2.6 Upgrading Older Wireless Network with

Serial Interfaces ..................................................................................10

1.2.7 High-Speed Mobile Data ..........................................................10

1.3 NETWORK DESIGN CONSIDERATIONS ..............................11

1.3.1 Extending Network Coverage with Repeaters .........................11

1.3.2 Protected Network Operation using Multiple Access Points ....13

1.3.3 Collocating Multiple Radio Networks ........................................13

1.4 SIMREX CYBER SECURITY SUITE.......................................14

1.5 ACCESSORIES.......................................................................16

2 DataMover ESS User’s Guide SIMREX MAN.ESS-01, Rev. F

SIMREX Corporation

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels SIMREX Émetteur-récepteur

SIMREX

SIMREX DataMover ESS Series Manuel d'installation

Manuels Émetteur-récepteur populaires d'autres marques

Yaesu

Yaesu FT-7B Manuel utilisateur

Kenwood

Kenwood ProTalk TK-3201 Manuel utilisateur

Texas Instruments

Texas Instruments TLK10232 Manuel utilisateur

Mizuho

Mizuho MX-2 Guide produit

Kenwood

Kenwood TK-3180 Manuel d'utilisation et d'entretien

Blitz

Blitz MJ-398U Manuel utilisateur

Utilicom

Utilicom LongRanger 2050 Manuel utilisateur

Standart

Standart HX290UKA Manuel utilisateur

Altronix

Altronix Pace1PTM Manuel utilisateur

Kirisun

Kirisun PT2208 Manuel utilisateur

ELECRAFT

ELECRAFT KX2 Manuel utilisateur

Zodiac

Zodiac K3 Manuel utilisateur

Assa Abloy

Assa Abloy SecureComm HKC GSM-WIFI U Manuel utilisateur

Kenwood

Kenwood TK-2217 Manuel utilisateur

Siemens

Siemens PSO 4000 Manuel utilisateur

Kenwood

Kenwood TS-590SG Manuel utilisateur

Midland

Midland G8E-BT Manuel

ComNav

ComNav Mariner X2 Manuel utilisateur
