Simply Elegant 220-111 Manuel d'instructions
Page 1 of 7www.simplyelegantproducts.com/rts-in
ASSEMBLY AND INSTALLATION INSTRUCTIONS
DOUBLE INSWING
220-111 (Retro) / 220-112 (Full-Size) / 220-116 (8/0)
RETRACTABLE SCREEN
13
4
5
2
FIG. 1ASTEP 1: REVIEW & CHECK
A) CONFIRM DOOR HEIGHT & WIDTH
You have purchased a DOUBLE Retractable Screen for an
INSWING door.
HEIGHT: This unit is available in two sizes: Retro and Full-Size.
Please make sure that the screen unit you have purchased
matches your door height.
WIDTH: This screen unit will fit door widths of 6/0 (without
cutting) and 5/10 (Retro Only), 5/4 or 5/0 (with cutting).
If you need additional information on measurements, download
sizing document here: http://bit.ly/SEsizing.

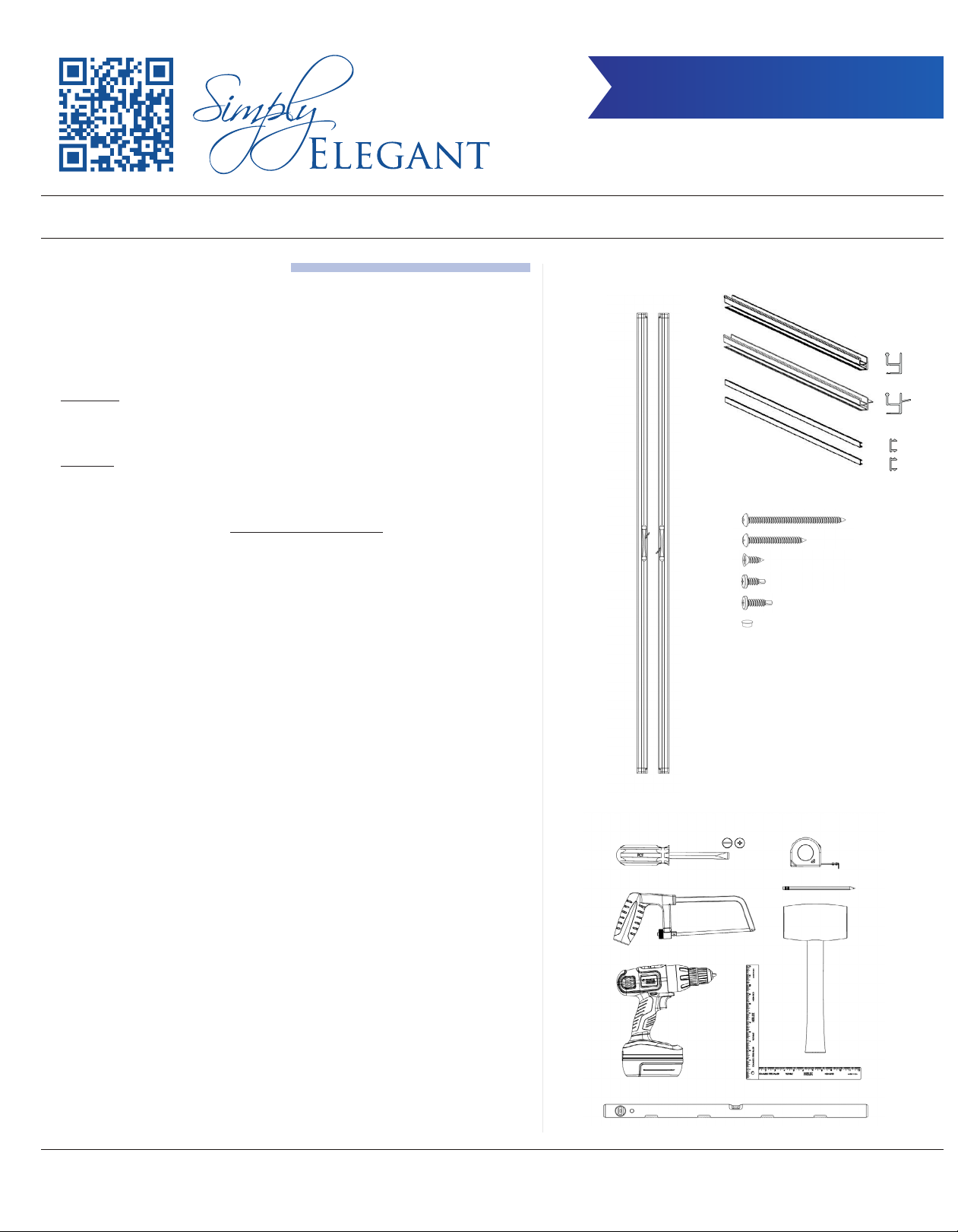

B) PART REVIEW
Verify that the following components are included in the box.
Parts are listed from left to right. See Figure 1A >
1. Screen Housing marked A and D (1)
2. Screen Housing marked B and C (1)
3. Header (top) Screen Track with locking hardware marked
A and B (1)
4. Sill (bottom) Screen Track with locking hardware marked
C and D (1)
5. Screen Track Covers (2)
6. Mounting Screws for corner and tracks
a. Four - #8 x 3” phillips head tapping screws
b. Five - #8 x 1-1/2” phillips head tapping screws
c. Four - #8 x 5/8” phillips head tapping screws
d. Five - #8 x 1/2” phillips head self-drilling screws
e. Four - #8 x 1” self-drilling screws
7. Screen Housing Circular Screw Covers (4)
C) TOOLS REQUIRED See Figure 1B >
• Level
• Square
• Tape Measure
• Drill
• Rubber Mallet
• Screwdriver: flat head and
Phillips head
• Pencil
• Hacksaw
6a
6b
6c
6d
6e
FIG. 1B
7
Page 2 of 7www.simplyelegantproducts.com/rts-in
ASSEMBLY AND INSTALLATION INSTRUCTIONS
DOUBLE INSWING
220-111 (Retro) / 220-112 (Full-Size) / 220-116 (8/0)
RETRACTABLE SCREEN

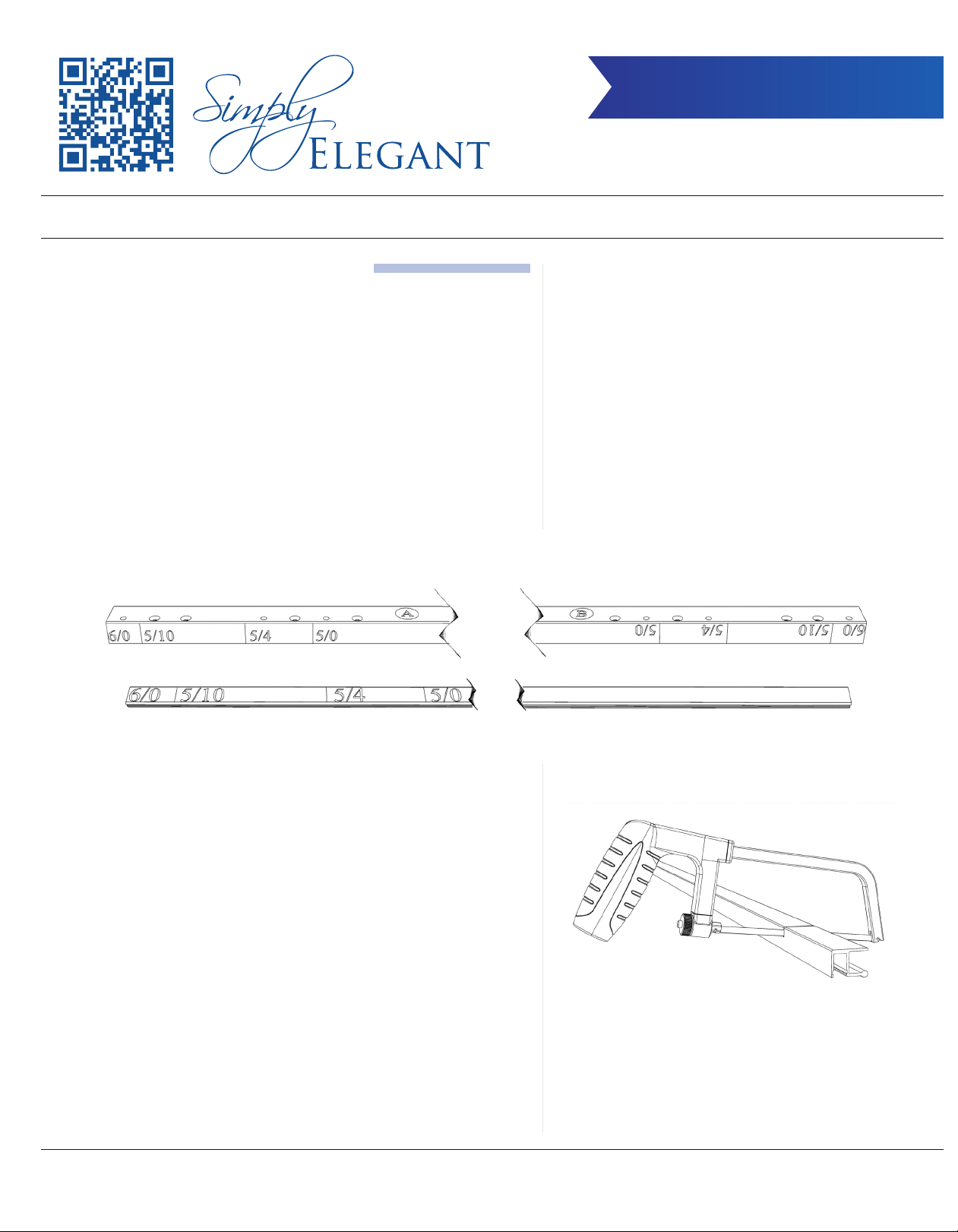

STEP 2: ASSEMBLY PREPARATIONS
Very important! Please examine the picture at right for additional
details. See Figure 2A >
Before proceeding to assembly, please look at the back of the
header and sill screen tracks (Items 3 & 4). There you will find
the numbers 6/0, 5/10 (Retro only), 5/4 and 5/0 printed on
each end of the track. These numbers correspond to the door
unit size that the screen will fit onto.
For 5/10 (Retro only), 5/4 or 5/0 doors, you will need to cut the
header and sill screen tracks on both ends (Items 3 & 4). The
header and sill screen track covers need to be cut on only one
end (Item 5). NOTE: The 6/0 size does not require cutting.
Using a hacksaw, saw the header screen track (marked A and
B) on the line - 5/10 (Retro only), 5/4 or 5/0 - that corresponds
to your door size. NOTE: the track must be cut on both sides.
Repeat for the sill screen track (marked C and D). See Figure
2B >
You will now need to cut the screen track covers (Item 5) to
match the NEW width of the header (Item 3) and sill screen
tracks (Item 4).
FIG. 2A
FIG. 2B
Page 3 of 7www.simplyelegantproducts.com/rts-in
ASSEMBLY AND INSTALLATION INSTRUCTIONS
DOUBLE INSWING
220-111 (Retro) / 220-112 (Full-Size) / 220-116 (8/0)
RETRACTABLE SCREEN

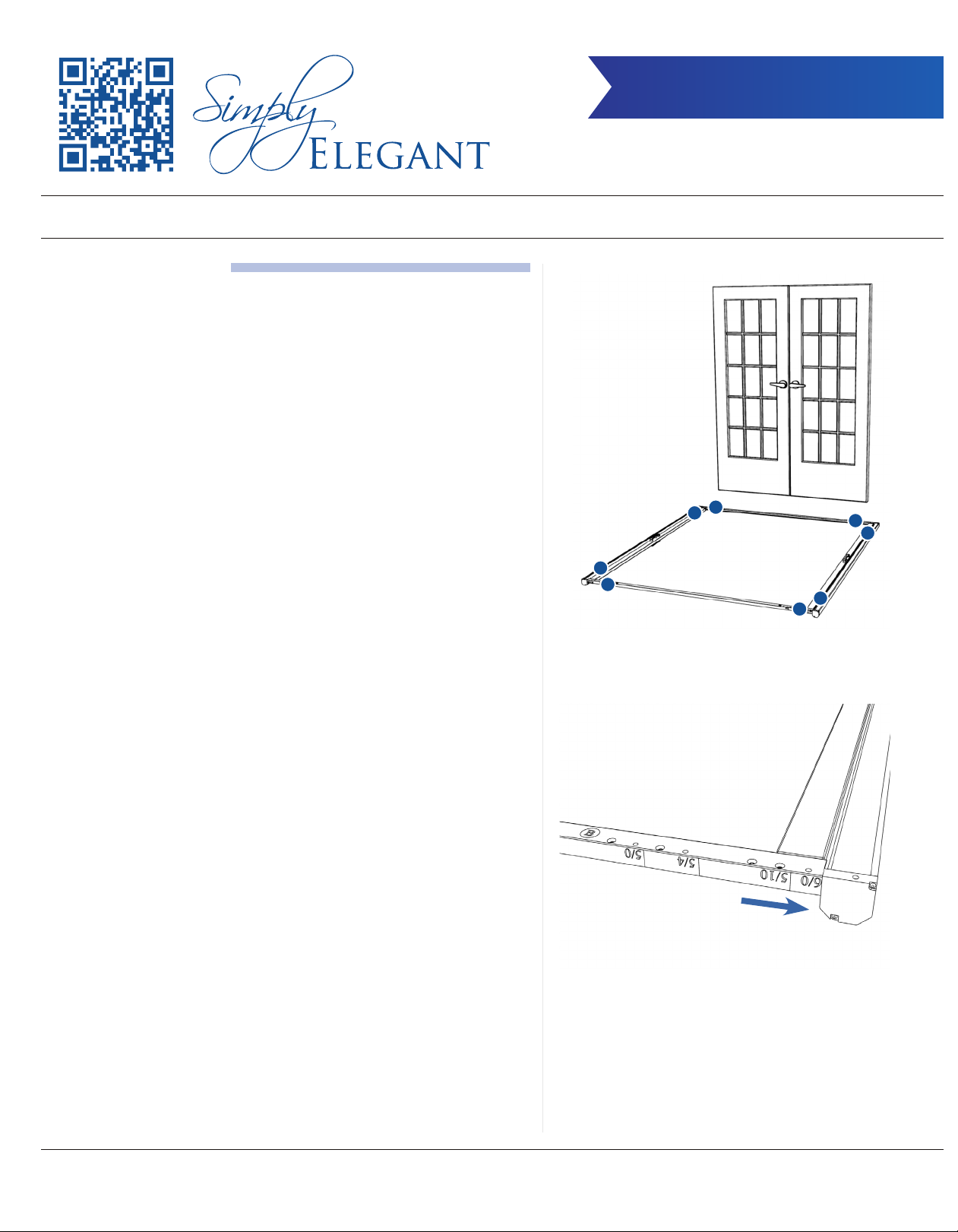

STEP 3: ASSEMBLY
Place all the items from the box on the floor in front of the patio
or single door where the single screen is to be installed (colored
stickers facing up).
The screen housings and tracks should line up with their
corresponding letters in a counter-clockwise fashion, as shown
at right: A to A, B to B, C to C, D to D.
Be sure to place corner D to D closest to the bottom, left corner
of your door (when facing your door from outside your home).
See Figure 3A >
Slide each screen track onto both the handle and housing slide
guides. It is very important that these lock in place correctly.
See Figure 3B >
Lock in counter-clockwise fashion as indicated below: A to A, B
to B, C to C and D to D. The screen frame unit is now assembled
and ready for locking the assembly together.
FIG. 3A
B
B
C
C
A
A
DD
FIG. 3B
View from
outside home
Page 4 of 7www.simplyelegantproducts.com/rts-in
ASSEMBLY AND INSTALLATION INSTRUCTIONS
DOUBLE INSWING
220-111 (Retro) / 220-112 (Full-Size) / 220-116 (8/0)
RETRACTABLE SCREEN

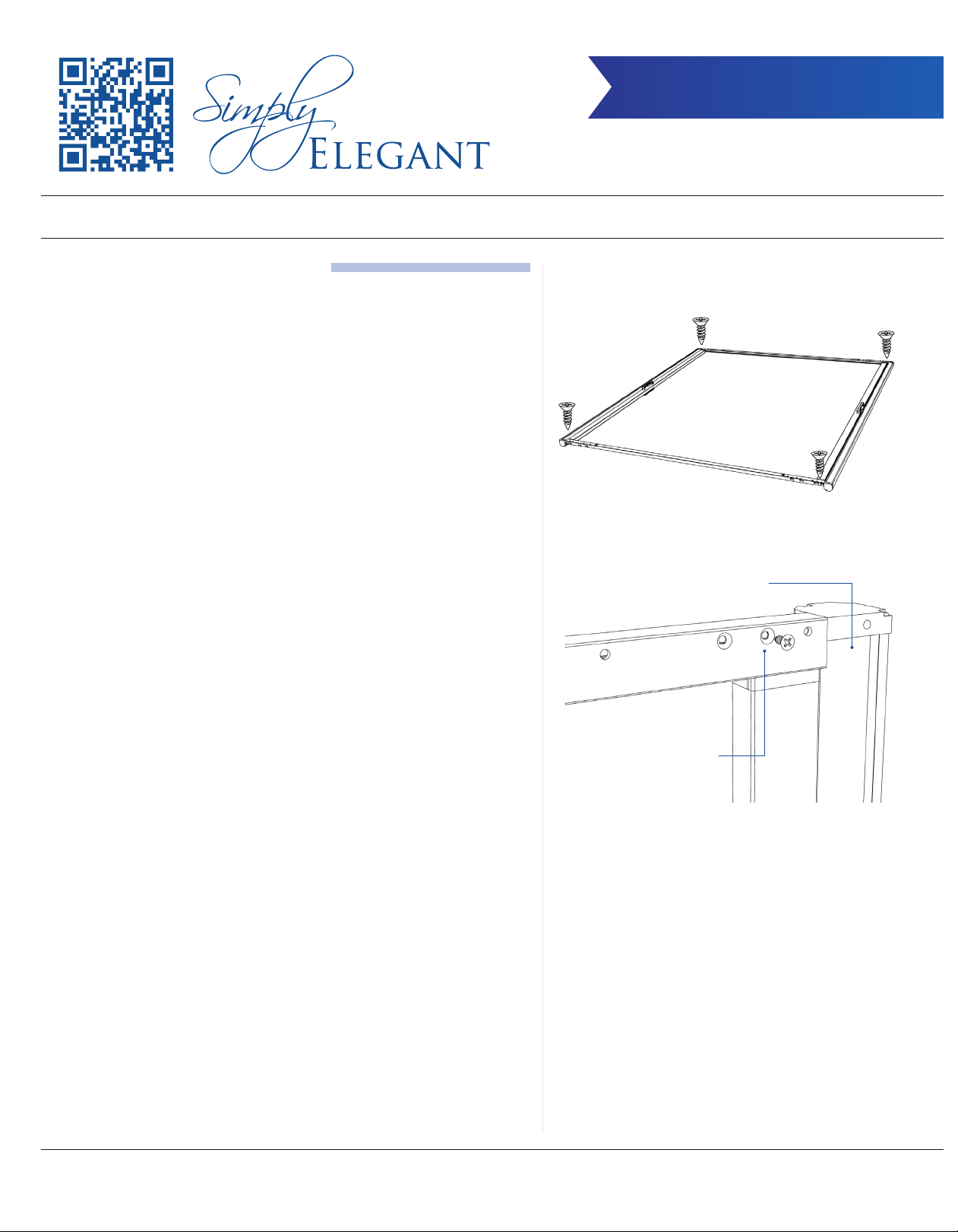

FIG. 3CSTEP 3: ASSEMBLY (continued)
TIGHTEN
We now need to tighten the assembled screen unit.
Using the four #8 x 5/8” phillips head tapping screws (Item 6c),
lock the screen housing arm to the screen track (Items 3 & 4)
by placing a screw in the second hole on the track from the end
for all four corners. See Figure 3C >
Screen Housing Arm
Second Hole
From The End
Page 5 of 7www.simplyelegantproducts.com/rts-in
ASSEMBLY AND INSTALLATION INSTRUCTIONS
DOUBLE INSWING
220-111 (Retro) / 220-112 (Full-Size) / 220-116 (8/0)
RETRACTABLE SCREEN

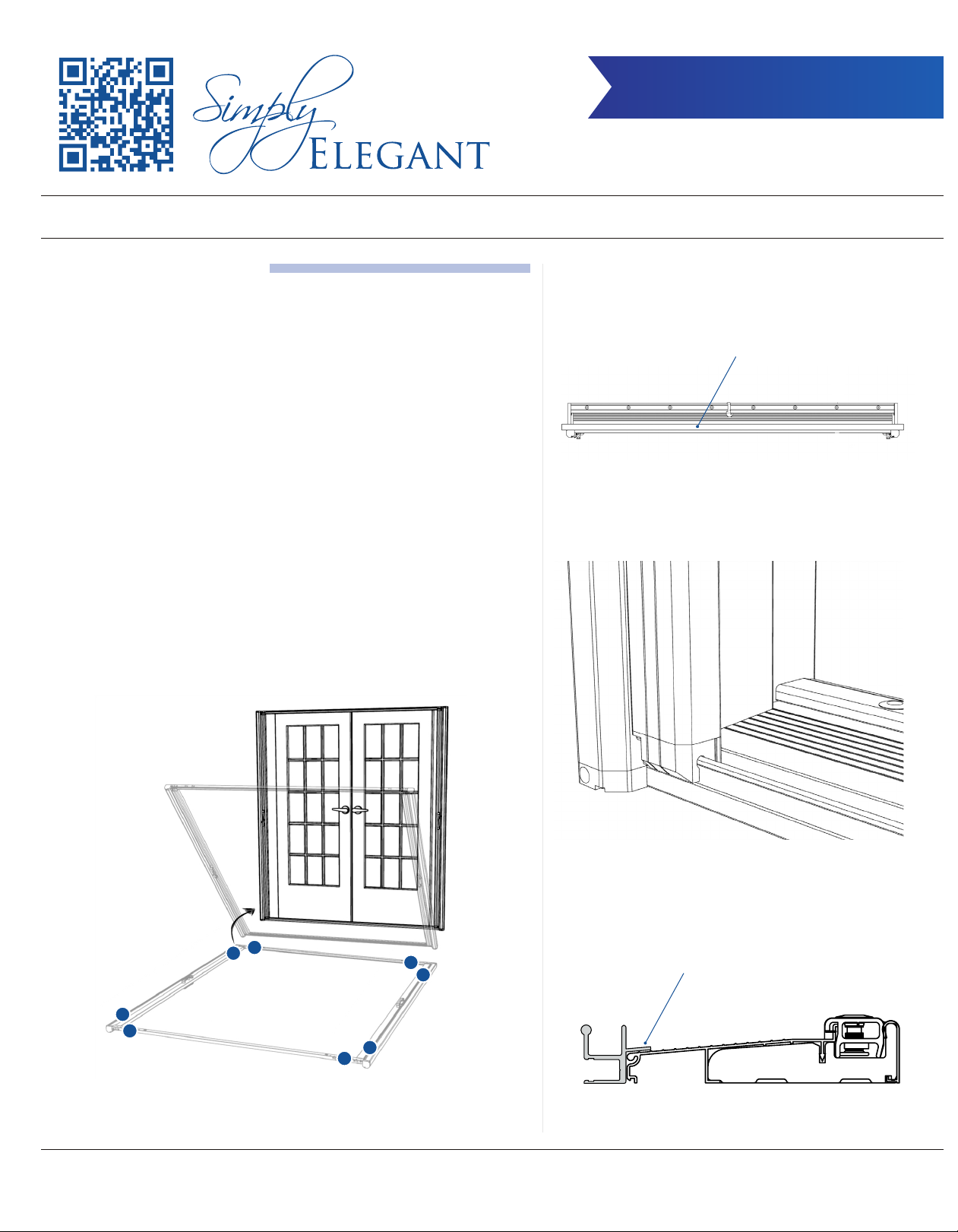

STEP 4: INSTALLATION
CONFIRM BRICKMOLD SURROUNDS DOOR
The screen unit will be mounted directly to the brickmold on
the outside of the door frame. If there is no brickmold outside
your door frame, you will need to purchase the Simply Elegant
Molding Kit (Part #: 100-110). This will ensure that the jamb, head
and sill are flush so that the screen unit will operate smoothly.
See Figure 4A >
POSITION SCREEN
Now move the assembled screen unit up and center it on the
door unit. The sill track should be positioned with the flange on
the back side of the sill track, resting on the outside sill edge.
NOTE: The inside edge of the sill screen track will be mounted
directly onto the sill. See Figure 4B >
Corner A-A should be at the top, left corner of your door unit
(when facing your door from outside your home).
See Figure 4C >
FIG. 4A
FIG. 4B
Ensure brickmold
completely surrounds door
Mount sill screen track
directly onto sill
FIG. 4C
B
B
C
C
A
A
DD
View from
outside home
FIG. 4D
Page 6 of 7www.simplyelegantproducts.com/rts-in
ASSEMBLY AND INSTALLATION INSTRUCTIONS
DOUBLE INSWING
220-111 (Retro) / 220-112 (Full-Size) / 220-116 (8/0)
RETRACTABLE SCREEN

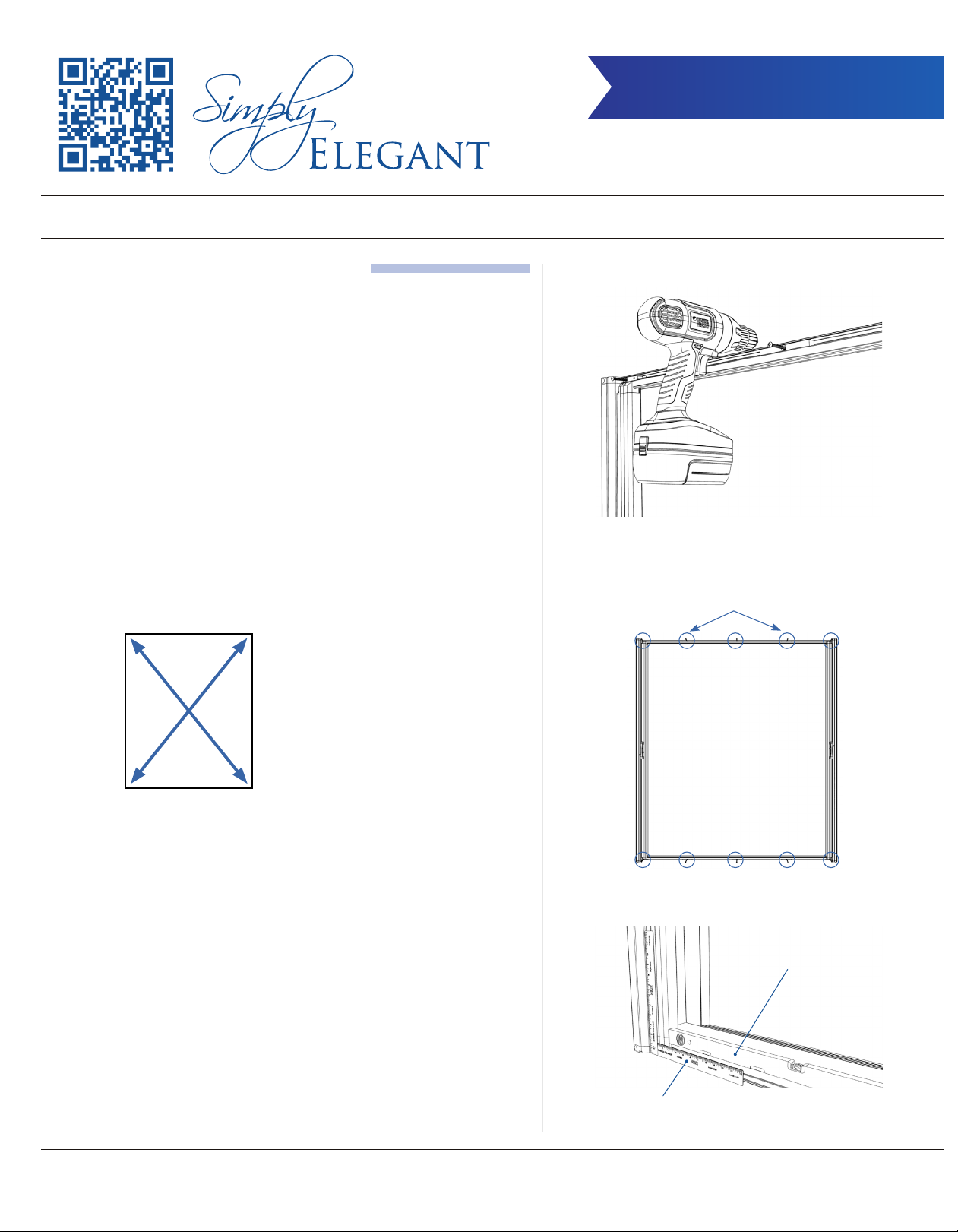

STEP 4: INSTALLATION (continued)
MOUNT HEAD TRACK TO DOOR FRAME
Position the screen frame on the door opening and make sure
the two screens meet up in the center correctly with the door.
Screw in only two of the five #8 X 1-1/2” screws (Item 6b) at the
header screen track (Item 3) because you may need to adjust
the position of the screen to make sure that the screen is square
and level by checking all four corners and sides. See Figures 4E
and 4F >
MOUNT SILL TRACK TO DOOR SILL
Once this is done, check again to make sure the screen is square
and level. See Figure 4G > (The diagonal distance on both sides
should be about the same; the dierence should be no greater
than 1/8”.)
Finally, test that the retractable screen opens and closes
smoothly and easily without twisting. If it is not square and level
or does not operate smoothly, it may need adjustments.
Once all adjustments have been made, screw the header screen
track (Items 3) to the door frame using the three remaining #8
x 1-1/2” screws (Item 6b).
Next screw in five #8 x 1/2” self-drilling screws (Item 6d) along
the front of the sill screen track (Item 4).
Lastly, screw four #8 x 1” self-drilling screws (Item 6e) into the
sill. See Figures 4F and 4D (page 5) >
A B The dierence between
distances A and B should be
no greater than 1/8”.
FIG. 4E
FIG. 4G
SQUARE
LEVEL
Header Screen Track
(Screws: Item 6b)
Sill Screen Track
(Screws: Item 6d)
Screw in first two
screws
FIG. 4F
Page 7 of 7www.simplyelegantproducts.com/rts-in
ASSEMBLY AND INSTALLATION INSTRUCTIONS
DOUBLE INSWING
220-111 (Retro) / 220-112 (Full-Size) / 220-116 (8/0)
RETRACTABLE SCREEN
FIG. 4K

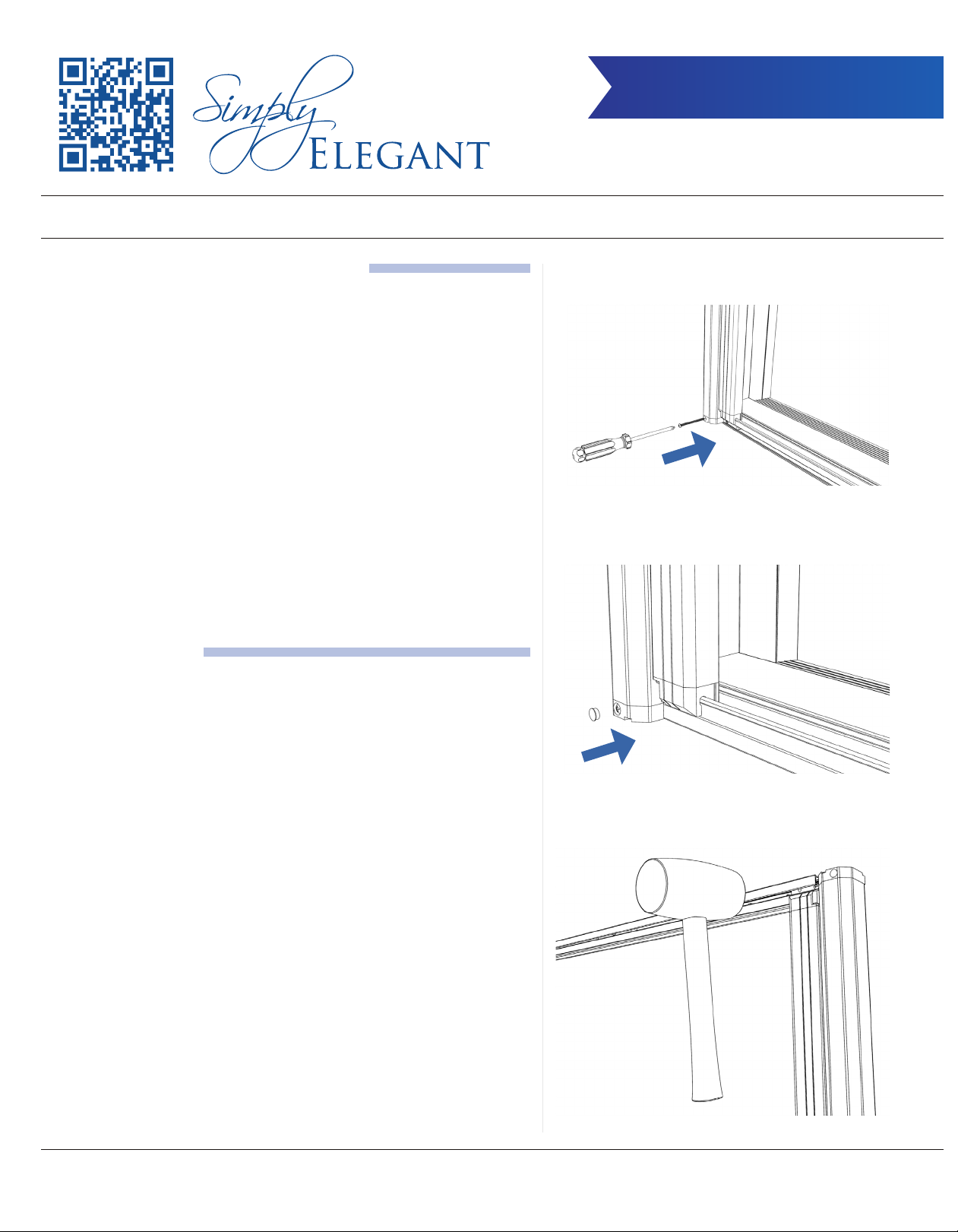

STEP 4: INSTALLATION (continued)
INSERT REMAINING SCREWS
Finish by screwing the screen housing at each corner with the
four #8 x 3” screws (Item 6a). See Figure 4H > Cover these
screws with four screw covers (Item 7). See Figure 4J >
SNAP IN SCREEN TRACK
Now snap in the screen track covers to the front sides of both
screen tracks. Use a mallet to lightly tap these in place. See
Figure 4K >
YOUR RETRACTABLE SCREEN
INSTALLATION IS NOW COMPLETE!
MAINTENANCE
For continued high performance, check from time to time
to make sure the bottom track is clear of debris. In addition,
occasionally apply a dry silicone spray to the top and bottom
tracks to ensure smooth screen operation.
FIG. 4H
FIG. 4J
