Input/Output Module Model UMI
Simply Automated, Incorporated
6108 Avenida Encinas, Suite B, Carlsbad, CA 92011 USA
Technical Support: www.simply-automated.com or 800-630-9234
452-0003-0001 Rev. F November 30, 2011
FUNCTION
The Input/Output Module, model UMI, is used to control UPB devices via
scene-links triggered by low-voltage and 120VAC inputs (e.g. a contact
closure, voltage, current, motion sensor, doorbell, telephone ring, etc.),
and to activate low-voltage outputs based on UPB scene-links or
commands. The module accepts up to 3 inputs and provides 2 outputs.
CAUTION: Do not connect voltages higher than 30Vrms/DC
to the input/output terminals, other than telephone / 120VAC
input #1, to prevent a shock hazard.
INSTALLATION
The Input/Output Module is designed for indoor use with low-voltage
sensors and actuators, as well as a 120VAC input. To install the UMI
module:
1. Locate a wall outlet near the wiring to be connected.
2. Connect wires from the device(s) to be monitored or controlled to the
terminal block located on the bottom of the module. See reverse

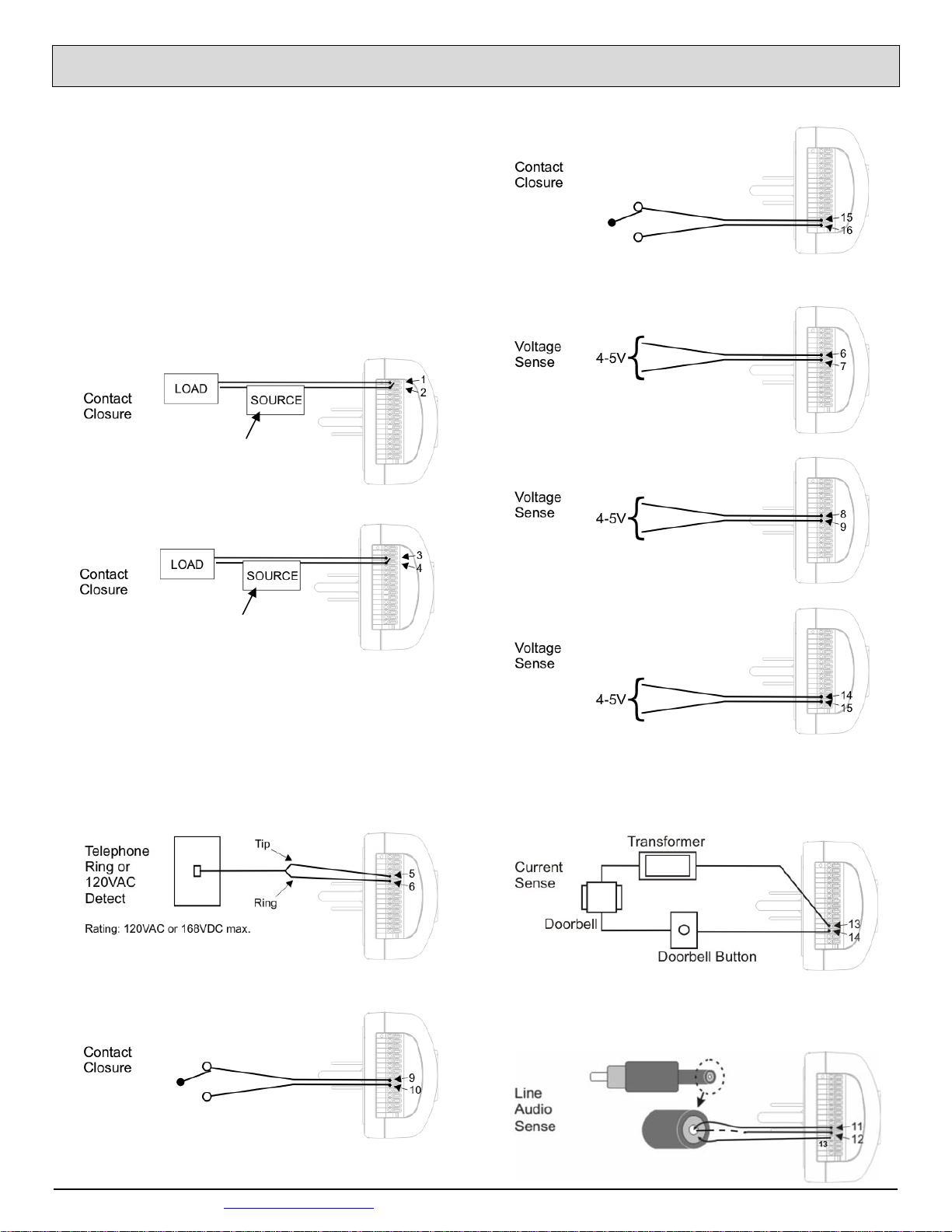

side for examples of applications and proper wiring diagrams. To
make connections, use a small tool (ball-point pen) to depress the
orange release lever above the wire hole until the wire can be
inserted or removed.
3. Plug the UMI module into the wall outlet (see illustration below).
4. If desired, another device can be plugged into the socket on the
front of the module, which is always powered.
IMPORTANT SAFETY INSTRUCTIONS
When using electrical products, basic safety precautions should always
be followed, including the following:
1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
2. Keep away from water. If product comes into contact with water or
other liquid, unplug immediately.
3. Never use products that have been dropped or damaged.
4. Do not use this product outdoors.
5. Do not use this product for other than its intended use.
6. Do not connect multiple devices that, when combined, exceed the
maximum load ratings of the product.
7. To avoid risk of fire, burns, personal injury and electric shock, install
this product out of reach of small children.
8. Do not cover the product with any material when in use.
9. This product uses polarized plugs and sockets (one blade is wider
than the other) to reduce the risk of electric shock. These plugs and
sockets fit only one way. If they do not fit, consult a technician.
Do not use with an extension cord unless plugs can be fully inserted.
Do not alter plugs.
10. SAVE THESE INSTRUCTIONS.
CONFIGURATION
1. The UMI-32SP is preconfigured for use with the SimplySmartTM
Series of Pre-Configured Kits and Accessories. Reconfiguration of
the UMI-32SP or UMI-32 requires UPB setup/configuration software,
called UPStart and a model UMC Computer Interface Module.
2. When configuring a UPB system, it may be necessary to place the
UMI in SETUP mode. To do this, press the Program Switch (see
illustration) five times rapidly using a non-metallic tool (e.g. plastic ink
pen or toothpick). The indicator will continuously blink GREEN when
the unit is in SETUP mode. To exit SETUP mode, press the
Program Switch once or wait five minutes.
CAUTION: Do not insert metal objects into the module,
especially in to the program switch, while it is connected
to power.
3. To configure the UMI use UPStart and assign scene-links to control
other UPB devices.
OPERATION
Inputs applied to the UMI module can be set to activate or deactivate
other UPB devices or scenes based on either the presence or absence of
the input, or both. UPStart, UPB configuration software, allows the user
to select an input to operate as normally open (N.O.), or normally closed
(N.C.) or customize the application. Open refers to the absence of input
signal or an open contact closure. Closed refers to the presence of input
signal above the threshold or a contact closure. When the input is
applied, the corresponding INPUT indicator will glow GREEN.
Outputs operate according to commands sent by a controller or UPB
scene-link. When the output is ON, the corresponding OUTPUT indicator
will glow GREEN. The output relay can be configured to close, open or
provide momentary closure upon receiving a UPB scene-link. Note that
outputs can only be activated via UPB commands, and not via inputs
within the same module.
UPB FACTORY DEFAULT SETTINGS
To restore the following UMI-32-W default settings (and overwrite pre-
configured settings of UMI-32-SP), place the UMI in SETUP mode and
then press the Program Switch ten times. The indicator will flash RED.
Press the switch twice to exit this mode.
UMI-32-W UMI-32SP
Network Name “Network 1” “New Network”
Room Name “New Room Name” “New Room Name”
Device Name “New CM01” “New UMI”
Unit ID 40 13
Network ID 255 250
Net. Password 1234 FFFF
Input/Output
LED Indicators
