SimpliPhi PHI 3.8 Series Manuel utilisateur

REV020620

| 2 |

SimpliPhi YourEnergy

Security and Independence

and gain control of your own power.

SimpliPhi Power helps you manage your power as a personal resource. Anytime.

Anywhere. SimpliPhi energy storage optimizes integration of any power

generation source –solar, wind, generator –on or off grid, and protects your

home and mission-critical business functions from power outages and

intermittency. SimpliPhi storage technology reduces operating temperature

constraints, toxic coolants and the risk of thermal runaway. Safe lithium ferrous

phosphate (LFP). No cobalt. No toxic hazards.

SimpliPhi’s battery technology utilizes the industry’s most environmentally

benign chemistry (LFP) combined with proprietary architecture and power

electronics (BMS) to create a portfolio of high performance, scalable and

enduring energy storage solutions that provide power security, resilience and

daily cycling for savings on your utility bill –all with a 98% efficiency rate.

SimpliPhi Power offers proprietary, commercially availableenergy storage and management

systems that are safe, non-toxic, reliable, durable, efficient, highly scalable, and economical over

the lifetime of the PHI Battery.

REV020620



SimpliPhi Power, Inc. | 3100 Camino Del Sol | Oxnard, CA 93030, USA | (805) 640-6700 | info@simpliphipower.com| SimpliPhiPower.com
| 3 |
Table of Contents
0 –Introduction ............................................................................................................................................................................................5
1 –Online Resources..................................................................................................................................................................................5
2 –Technical Support .........................................................................................................................................................................5
3 –Product Overview.........................................................................................................................................................................5
3.1 –Battery Management System (BMS)..........................................................................................................................5
3.2 –Built-In Breaker ...................................................................................................................................................................6
4 –Specifications ..................................................................................................................................................................................7
0 –Safety ..........................................................................................................................................................................................................8
1 –General Safety Instructions......................................................................................................................................................8
2 –Response to Emergency Situations.......................................................................................................................................8
0 –Pre-Installation ......................................................................................................................................................................................9
1 –PHI Battery Performance..........................................................................................................................................................9
2 –PHI Battery System Sizing.........................................................................................................................................................9
2.1 –Sizing for Maximum Instantaneous Discharge (Load Rate)..............................................................................9
2.2 –Sizing for Maximum Instantaneous Charge Rate (DC Coupled) .................................................................11
2.3 –Sizing for Maximum Instantaneous Charge Rate (AC Coupled)..................................................................12
2.4 –Overall Battery System Sizing ....................................................................................................................................13
0 –Installation ............................................................................................................................................................................................14
1 –Installation Options...................................................................................................................................................................14
2 –Environmental Considerations ............................................................................................................................................14
2.1 –Charging at Temperatures Below Freezing .........................................................................................................14
2.2 –Explosive Gas Precautions .................................................................................................................................................14
2.3 –Anti-Corrosion Protection...........................................................................................................................................14
3 –Mounting Hardware .................................................................................................................................................................14
4 –Dimensions and Weight ..........................................................................................................................................................15
5 –PHI Battery Connection Terminals....................................................................................................................................17
5.1 –Batteries with Threaded Studs ..................................................................................................................................17
5.2 –Torque Value for Batteries with Threaded Studs ..............................................................................................17
5.3 –Batteries with Anderson Connectors ......................................................................................................................17
6 –Wiring..............................................................................................................................................................................................18
6.1 –Increasing Storage Capacity via Parallel Wiring.................................................................................................18
6.2 –Parallel Wiring Batteries with Threaded Studs using Battery Cables ......................................................18
6.3 –Parallel Wiring Batteries with Threaded Studs using Interconnecting Busbars ..................................22
7 –Battery System Commissioning...........................................................................................................................................23
8 –Battery Bank Expansion ..........................................................................................................................................................25
0 –Programming.......................................................................................................................................................................................26
1 –Operating Parameters per Warranty................................................................................................................................26
0 –Troubleshooting.................................................................................................................................................................................28
Appendix A –PHI Battery Safety & Green Attributes, Certifications....................................................................................29
Appendix B –PHI Battery Bank Sizing Guide...................................................................................................................................32
Appendix C –PHI Approved External Chargers .............................................................................................................................36
Appendix D –PHI Legacy Battery Parameters ................................................................................................................................37


REV020620

| 4 |

CAUTION: THESE 5 THINGS WILL VOID THE PHI WARRANTY & DAMAGE THE

BATTERIES. READ IN FULL PRIOR TO BATTERY INSTALLATION

The following abbreviated guidelines do NOT encompass all PHI battery Warranty details. Failure to adhere

to the Warranty and Installation Manual requirements will Void the Warranty. Read the battery’s complete

Warranty prior to installation and register the battery according to the form found at the bottom of the same

web page address: https://simpliphipower.com/wp-content/uploads/documentation/phi-series/simpliphi-

power-phi-3-8-2-9-1-4-730-warranty.pdf.

CAUTION: The following will result in damage to your PHI batteries and will Void the Warranty:

1. Incorrect battery wiring and/or installation

a. Verify polarity at all connections with a standard voltmeter (1) before energizing the system and (2)

on batteries with threaded stud connections, before switching the built-in circuit breaker to the “ON”

position. Reverse polarity at the PHI Battery terminals will Void the Warranty and destroy the PHI

Batteries.

b. PHI Batteries must be fully charged before commissioning (i.e. before connecting loads). Failure to do

so will damage the PHI batteries and Void the Warranty.

c. Lugs, washers and lug nuts must be installed according to the Installation Manual. Failure to do so will

damage the PHI Batteries and Void the Warranty.

2. Charging the battery in sub-freezing temperatures.

3. Pairing the battery with incompatible equipment. Use of accessories not recommended or sold by the

manufacturer may result in a risk of fire, electric shock, or injury to persons and will Void the Warranty.

a. Contact SimpliPhi Technical Support at (805) 640-6700 x 1 regarding the compatibility of any

equipment not explicitly listed in the ‘Integration Guides’ section of the Product Documentation web

page (https://simpliphipower.com/product-documentation/).

b. Refer to the SimpliPhi-Approved Chargers list (Appendix C of this document) for all compatible

external / plug-in battery chargers. Use only a SimpliPhi-approved LFP battery charger if ancillary

charging is required before installation, testing or troubleshooting. Failure to use a SimpliPhi-

approved LFP battery charger will damage the PHI Battery and Void the Warranty.

4. Incorrect inverter and/or charge controller settings. Operating the PHI Battery in conjunction with

equipment not programmed to the PHI Battery’s settings will Void the Warranty.

a. Refer to the ‘Integration Guides’ section of the Product Documentation web page

(https://simpliphipower.com/product-documentation/) for all inverter and charge controller settings.

b. Although each PHI Battery contains an internal Battery Management System (BMS) with circuitry

that protects the PHI Battery cells from over-charge, over-discharge and extreme load amperage, the

PHI Battery must always be installed with appropriate inverter and/or charge controller settings and

power electronics to protect the PHI Battery from open solar photovoltaic (PV) voltage and other

high voltage charging sources.

c. Failure to protect the PHI batteries from voltages higher than the battery voltage rating (12, 24 &

48V) will destroy the PHI batteries, cause electrical fires and Void the Warranty.

5. Incorrect battery bank sizing.

a. Exceeding the PHI batteries’ maximum continuous discharge rate or charge rate destroys the PHI

batteries and will Void the Warranty.

b. Refer to Section 3.2 and Appendix B of this Manual for more information on how to accurately and

correctly calculate the PHI battery bank capacity. Failure to do so will destroy the PHI batteries and

Void the Warranty.

REV020620

| 5 |

The PHI Battery Warranty does NOT cover product damage caused by mishandling or improper use per the

Installation Manual, Integration Guides and Warranty, exposure to liquids, impacts from falling objects or

being dropped, or attempts to repair the battery by any party other than SimpliPhi. The complete list of

Warranty Exclusions is included in the PHI Battery Warranty document: https://simpliphipower.com/wp-

content/uploads/documentation/phi-series/simpliphi-power-phi-3-8-2-9-1-4-730-warranty.pdf.

1.0 –Introduction

1.1 –Online Resources

The Product Documentation section of SimpliPhi’s web site (https://simpliphipower.com/product-

documentation/) includes Specification Sheets, Warranties, Installation & Operator’s Manuals, and

Integration Guides for all SimpliPhi’s current and legacy products.

SimpliPhi’s YouTube channel (https://www.youtube.com/channel/UCcuCaLT_G3Hhumteh-pI5yg/videos) has

instructional videos showing various steps of the battery installation process in detail.

1.2 –Technical Support

SimpliPhi Technical Support (805-640-6700 x 1, techsupport@simpliphipower.com) is available to take any

questions regarding this manual or general installation questions. For assistance with battery system

commissioning, SimpliPhi asks that a commissioning call be scheduled ahead of time with Technical Support.

We encourage you or your installer to contact SimpliPhi with any questions. We are committed to working with

you and your installation team to achieve a safe, reliable storage system that will provide years of maintenance-

free service that is covered by our Warranty terms & conditions.

1.3 –Product Overview

The PHI deep-cycle Lithium Ferro Phosphate (LFP) Battery is optimized with proprietary cell architecture,

power electronics, Battery Management System (BMS), manufacturing materials and processes. This assures

the highest grade and quality, longest cycle-life, greatest efficiency and freedom from material impurities,

toxicity and hazardous risk. The PHI Battery is modular, lightweight and scalable. It provides power security

and seamless integration of renewable and traditional sources of energy in conjunction with or independent of

the grid.

1.3.1 –Battery Management System (BMS)

Each PHI Battery contains circuitry that protects the LFP cells from overcharge, over-discharge and

extreme load amperage. If pre-programmed BMS values are exceeded, the protective circuitry will

shut down the flow of electricity to/from the PHI Batteries. In some cases, this will result in the need

to re-set the BMS (see Section 6.0 - Troubleshooting of this Manual) and re-initialize an

inverter/charger. Often, inverter system settings will be saved within the inverter memory storage

and will not need to be reset. However, this is not an absolute standard but is common in most

inverter/chargers and should be anticipated if the PHI Batteries go into a state of self-protection and

shut down the flow of electricity. Refer to SimpliPhi’s Integration Guides for inverter and/or charge

controller settings (https://simpliphipower.com/product-documentation/).

REV020620

| 6 |

CAUTION: Although each PHI Battery contains an internal BMS with circuitry that protects

the PHI Battery cells from over-charge, over-discharge and extreme load amperage, the PHI

Batteries must always be installed with appropriate inverter and/or charge controller

settings to protect the PHI Battery from open PV voltage and other high voltage charging

sources. Exposure to higher voltage than the PHI battery rating (12, 24 &48V) will destroy

the PHI batteries and Void the Warranty.

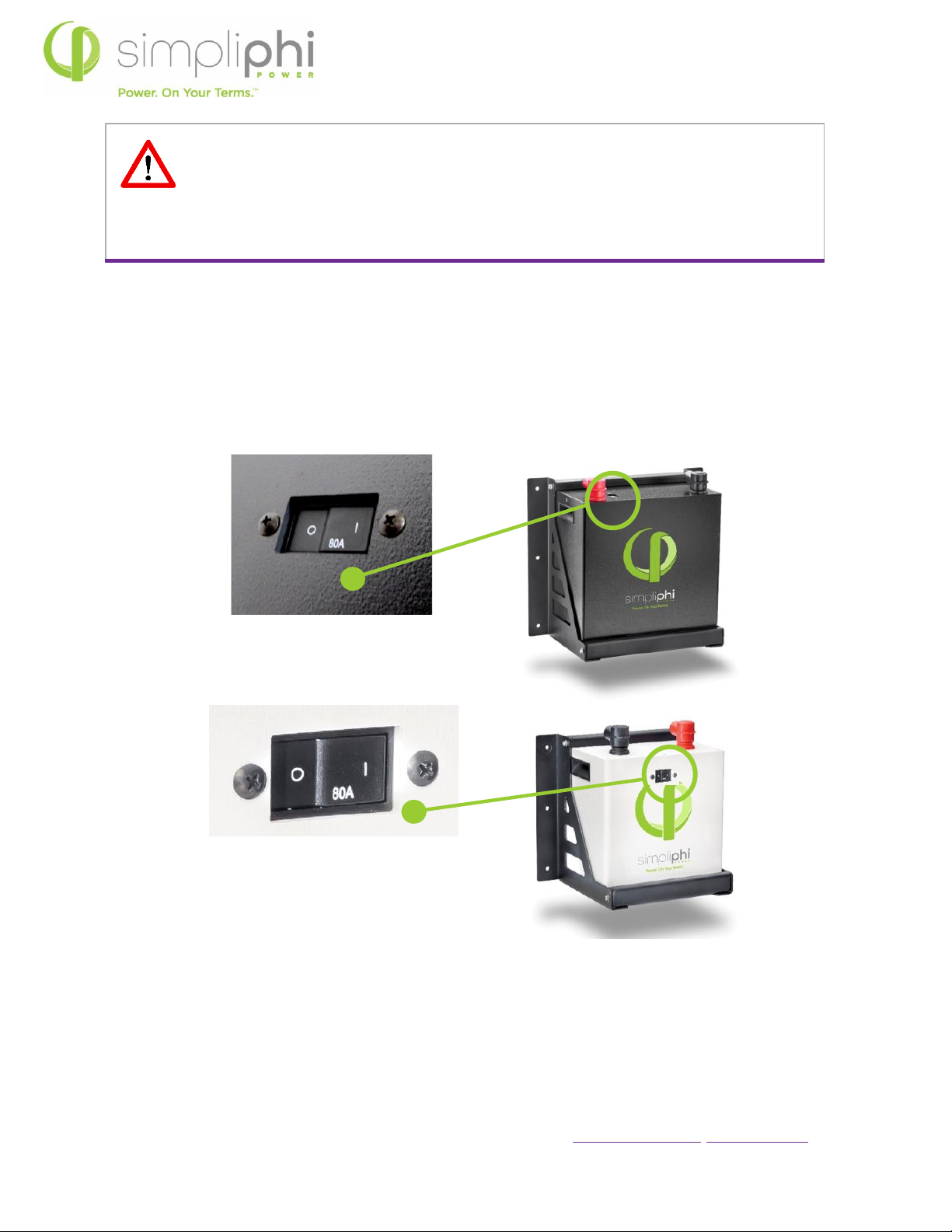

1.3.2 –Built-In Breaker

PHI batteries with threaded stud connections (such as battery models PHI 3.8, PHI 2.9, PHI 3.5, etc.)

are outfitted with a hydraulic/magnetic circuit breaker. This breaker increases safety during shipping

and installations and allows the battery to effectively be turned “OFF” or “ON.” The breaker works in

conjunction with the battery’s built-in BMS and creates additional safety, efficiency and functionality

in the overall power storage system.

Figure 1.0 –PHI 3.8 kWh Circuit Breaker

NOTE: Not all PHI Battery models (such as the PHI 2.9 Lo-Profile, PHI 1.4, PHI 1.2 High Output, etc.) include built-in breakers.

In either case, circuit breakers, disconnects and fuses should be employed throughout several points of a power storage and

generation installation to effectively isolate and protect all components of the system to safeguard against faults, short circuits,

polarity reversals or a failure of any component in the overall system. Fuses, breakers, wiring ratings and values should be

determined by established electrical codes and standards and evaluated by certified electricians, licensed installers, and

regional code authorities.

| 7 |

1.4 –Specifications

Please review Table 1.0 below for PHI Battery specifications, including physical dimensions, Warranty period, and technical data.

Table 1.0 - PHI Battery Specifications

PHI 3.8™

PHI 2.9™

PHI 1.4™

PHI 730™

24V

48V

24V

48V

24V

12V

24V

12V

DC Voltages - Nominal

25.6 VDC

51.2 VDC

25.6 VDC

51.2 VDC

25.6 VDC

12.8 VDC

25.6 VDC

12.8 VDC

Amp-Hours

151 Ah

75 Ah

115 Ah

57 Ah

115 Ah

28.5 Ah

57 Ah

Rated Capacity

3.8 kWh DC

2.9 kWh DC

1.4 kWh DC

730 Wh DC

MAX Discharge Rate

(10 minutes)

60 Amps DC

(1.53 kW DC)

60 Amps DC

(3.07 kW DC)

60 Amps DC

(1.53 kW DC)

60 Amps DC

(3.07 kW DC)

60 Amps DC

(1.53 kW DC)

60 Amps DC

(768 W DC)

25 Amps DC

(640 W DC)

50 Amps DC

(640 W DC)

MAX Continuous Discharge

& Charge Rate

45 Amps DC

(1.15 kW DC)

37.5 Amps DC

(1.92 kW DC)

45 Amps DC

(1.15 kW DC)

28.5 Amps DC

(1.45 kW DC)

28.5 Amps DC

(729.6 W DC)

45 Amps DC

(576 W DC)

14 Amps DC

(358.4 W DC)

28.5 Amps DC

(364.8 W DC)

DC Voltage Range1

24 to 28 VDC

48 to 56 VDC

24 to 28 VDC

48 to 56 VDC

24 to 28 VDC

12 to 14 VDC

24 to 28 VDC

12 to 14 VDC

Depth of Discharge1

up to 100%

Operating Efficiency

98%

Charging Temperature1

32° to 120° F (0° to 49° C)

Operating Temperature1

-4° to 140° F (-20° to 60° C)

Storage Temperature

6 months: 14° to 77° F (-10° to 25° C)

3 months: -4° to 113° F (-20° to 45° C)

Self-Discharge Rate

< 1% per month

Warrantied Cycle Life

10,000 cycles @ 80% DOD / 5,000 cycles @ 90% DOD / 3,500 cycles @ 100% DOD

Memory Effect

None

Warranty Period

10 Years

Weight

78.24 lbs. (35.5 kg)

61.06 lbs. (27.7 kg)

33.28 lbs. (15.1 kg)

17.73 lbs. (8 kg)

Dimensions (W x H x D)

13.5 x 14 x 8 in.

(15.5” H w/terminals) / 0.88 ft3

(34.3 x 35.6 x 20.3 cm / 0.025 m3)

11.25 x 11 x 9.5 in.

(12.75” H w/terminals) / 0.68 ft3

(28.6 x 27.9 x 24.1 cm / 0.019 m3)

11.25 x 9.25 x 6.25 in. / 0.37 ft3

(23.5 x 28.6 x 15.9 cm / 0.011 m3)

11.25 x 5.25 x 6.25 in. / 0.21 ft3

(28.6 x 13.3 x 15.9 cm / 0.006 m3)

Lo-Profile: 17.5 x 14 x 5 in. / 0.71 ft3

(44.45 x 35.56 x 12.7 cm / 0.92 m3)

Notes:

•1Max operating ranges. Refer to Warranty for recommended conditions.

•Specifications are typical/nominal. Subject to change without notice.

•There is less than 1% loss of energy during charging.

REV020620

| 8 |

2.0 –Safety

For safety reasons, read all instructions and cautionary markings on the PHI Batteries, and all appropriate sections

of this manual. Failure to follow instructions provided in the Installation Manual, Integration Guides and Warranty

will Void the Warranty.

2.1 –General Safety Instructions

•Do not operate if the PHI Battery has been damaged in any way during shipping or otherwise.

•To reduce the chance of short-circuits, always use insulated tools when installing or working with PHI

batteries or other electrical equipment.

•Remove personal metal items such as rings, bracelets, necklaces, and watches when working with PHI

batteries and electrical equipment. Wear insulated gloves and rubber shoes.

•PHI Batteries pose some risk of shock or sparking during the installation and initial wiring and connection

process. This is consistent with all other battery-based storage formats. For batteries with threaded stud

connections, be sure the built-in breaker is in the “OFF” position to minimalize the risk of shock or sparks

during the installation and commissioning of the system.

•To avoid a risk of fire and electric shock, make sure that existing system wiring is in good condition and that

the wire is not undersized. Do not operate the PHI Battery in conjunction with damaged or substandard

wiring.

These safety precautions are in addition to the Warnings previously outlined on page 4 of this Manual.

2.2 –Response to Emergency Situations

As with any battery, if the PHI Battery’s cells are severely damaged due to physical abuse, reverse polarity, high

voltage, unmitigated current or other electrical phenomenon incurred outside of Warranted specifications, it can

cause electrolyte leakage and other failures. The electrolyte can be ignited by an open external flame. However,

unlike other lithium ion batteries with cobalt oxides (e.g. LCO, NCM and NCA), the PHI LFP Batteries’ electrolyte

and other material components generate a limited amount of heat and do not go into a state of thermal runaway with

fire propagation. The SimpliPhi UL 1973 Battery Certification verifies “No Thermal Runaway” (see MSDS for

chemical analyses).

While PHI Batteries do not go into thermal runaway with fire propagation, the following protocol should be followed

in the event that the PHI batteries are subjected to electrical fire caused by other system components or failures:

•Ensure that the system is no longer energized, either from the solar array or the grid (main disconnect).

•Separate any external cables from batteries if present (cut if necessary) using insulated tools.

•Wear a respirator or dust mask to avoid inhaling soot/dust.

•Wear insulating and abrasion-resistant gloves (if permeable, over nitrile or similar gloves).

•Move battery debris into non-conductive bins capable of handling the weight.

•Dispose as regulations require.

CAUTION: While water is an acceptable and effective extinguishing agent for the PHI Core

Power and Peak Power Battery models, the Balance of System equipment used in conjunction

with the PHI Batteries may require specialized extinguishers such as FM-200 or CO2

suppression systems.

REV020620

| 9 |

3.0 –Pre-Installation

3.1 –PHI Battery Performance

PHI Batteries do not need to be de-rated unless running continuously at more than 90% capacity, at temperatures

below 32° F (0° C), or above 113° F (45° C). To achieve the greatest warrantied cycle life of 10,000 cycles, PHI

Batteries are typically operated at 80% maximum Depth of Discharge.

All PHI Batteries are balanced during final production and testing stages. Following proper wiring guidelines ensures

that a system will not require any manual balancing processes.

3.2 –PHI Battery System Sizing

PHI Batteries are designed to operate at the continuous ratings specified in Table 1.0 –PHI Battery Specifications.

Therefore, a properly sized PHI Battery bank must be sized to handle both the inverter’s “load rate” as well as the

maximum potential charge rate from the solar photovoltaic (PV) array. Take care to consider not only the energy

(kWh) requirement of the battery bank, but also all other power-related sizing parameters, as outlined in Sections

3.2.1, 3.2.2 or 3.2.3 and 3.2.4. Failure to do so will Void the Warranty.

CAUTION: PHI Battery bank sizing not in accordance with the following sections will damage

the PHI batteries and Void the Warranty

3.2.1 –Sizing for Maximum Instantaneous Discharge (Load Rate)

The load rate is the amount of power that is discharged from the battery bank to the loads. This may include

both alternating current (AC) and/or direct current (DC) loads. PHI Battery banks are sized so that the

batteries’ combined maximum continuous discharge rate meets or exceeds the load rate.

𝑃𝐻𝐼 𝐵𝑎𝑡𝑡𝑒𝑟𝑦 𝐵𝑎𝑛𝑘 𝑀𝐴𝑋 𝑐𝑜𝑛𝑡𝑖𝑛𝑢𝑜𝑢𝑠 𝑑𝑖𝑠𝑐ℎ𝑎𝑟𝑔𝑒 𝑟𝑎𝑡𝑒 𝑘𝑊 𝐷𝐶

≥(𝐼𝑛𝑣𝑒𝑟𝑡𝑒𝑟 𝐷𝐶 𝐿𝑜𝑎𝑑 𝑅𝑎𝑡𝑒)+(𝐷𝐶 𝐿𝑜𝑎𝑑𝑠, 𝑖𝑓 𝑎𝑛𝑦)

Because most loads are AC loads, the load rate is typically represented by the inverter’s AC Power Output

rating. Convert the inverter’s maximum potential AC power draw to the maximum potential DC power draw

from the battery bank by factoring in the inverter’s efficiency rating.

𝐼𝑛𝑣𝑒𝑟𝑡𝑒𝑟 𝐷𝐶 𝐿𝑜𝑎𝑑 𝑅𝑎𝑡𝑒 = (𝐼𝑛𝑣𝑒𝑟𝑡𝑒𝑟 𝑝𝑜𝑤𝑒𝑟 𝑟𝑎𝑡𝑖𝑛𝑔 𝑘𝑊 𝐴𝐶)÷(𝐼𝑛𝑣𝑒𝑟𝑡𝑒𝑟 𝑒𝑓𝑓𝑖𝑐𝑖𝑒𝑛𝑐𝑦)

Example: An inverter rated at 5 kW AC and 92% efficiency potentially draws 5.4 kW DC from the battery

bank.

𝐼𝑛𝑣𝑒𝑟𝑡𝑒𝑟 𝐷𝐶 𝐿𝑜𝑎𝑑 𝑅𝑎𝑡𝑒 = (5 𝑘𝑊 𝐴𝐶)÷(0.92)= 𝟓. 𝟒 𝑘𝑊 𝐷𝐶

If the system includes DC Loads, no AC-to-DC conversion is necessary. Calculate the minimum quantity of

PHI Batteries needed to ensure that the battery bank does not over-discharge by dividing the load rate by

REV020620

| 10 |

the MAX Continuous Discharge Rate per PHI Battery (found in Table 1.0 or on the relevant battery’s

specification sheet).

(𝐿𝑜𝑎𝑑 𝑅𝑎𝑡𝑒)÷(𝑀𝐴𝑋 𝐶𝑜𝑛𝑡𝑖𝑛𝑢𝑜𝑢𝑠 𝐷𝑖𝑠𝑐ℎ𝑎𝑟𝑔𝑒 𝑅𝑎𝑡𝑒 𝑝𝑒𝑟 𝐵𝑎𝑡𝑡𝑒𝑟𝑦)

= 𝑀𝑖𝑛𝑖𝑚𝑢𝑚 𝐵𝑎𝑡𝑡𝑒𝑟𝑦 𝑞𝑢𝑎𝑛𝑡𝑖𝑡𝑦 𝑡𝑜 𝑝𝑟𝑒𝑣𝑒𝑛𝑡 𝑜𝑣𝑒𝑟𝑑𝑖𝑠𝑐ℎ𝑎𝑟𝑔𝑒

Example A: Three PHI 3.8 kWh-51.2Vnominal batteries must be paired with an inverter rated at 5 kW AC and

92% efficiency to ensure the PHI Battery bank does not over-discharge to power the loads.

(5.4 𝑘𝑊 𝐷𝐶)÷(1.92 𝑘𝑊 𝐷𝐶)= 2.83 → 𝑟𝑜𝑢𝑛𝑑 𝑡𝑜 𝟑

Example B: Five PHI 3.8-25.6Vnominal batteries must be paired with an inverter rated at 5 kW AC and 92%

efficiency to ensure the PHI Battery bank does not over-discharge to power the loads.

(5.4 𝑘𝑊 𝐷𝐶)÷(1.15 𝑘𝑊 𝐷𝐶)= 4.72 → 𝑟𝑜𝑢𝑛𝑑 𝑡𝑜 𝟓

Note: Notice that the two different model batteries in the above example (51.2Vnominal and 25.6V nominal) have

the same capacity rating (3.8 kWh) but different MAX Continuous Discharge ratings. In applications where

greater instantaneous power is required of the battery, it is therefore more efficient to use the PHI 3.8

kWh-51.2Vnominal battery with 1.92 kW of maximum continuous discharge versus the PHI 3.8 kWh-

25.6Vnominal battery with 1.15 kW of continuous discharge. The same advantages apply when examining the

two different model batteries’ surge capacity.

Example A and Example B, compared:

𝑘𝑊 =𝑉𝑜𝑙𝑡𝑠 × 𝐴𝑚𝑝𝑠

1,000

AC Load

DC Load

(inv eff =

92%)

PHI 3.8 kWh-51.2V MAX

Continuous Discharge

PHI 3.8 kWh-51.2V Surge

Discharge

Battery QTY

Needed to Meet

Load

Requirement

(Continuous)

Battery QTY

Needed to Meet

Load

Requirement

(10 min. Surge)

5 kW AC

5.4 kW DC

37.5 ADC

1.92 kW DC

60 ADC

3.072 kW DC

2.8 →3

1.8 →2

PHI 3.8 kWh-25.6V MAX

Continuous Discharge

PHI 3.8 kWh-25.6V Surge

Discharge

Battery QTY

Needed to Meet

Load

Requirement

(Continuous)

Battery QTY

Needed to Meet

Load

Requirement

(10 min. Surge)

5 kW AC

5.4 kW DC

45 ADC

1.152 kW DC

60 ADC

1.536 kW DC

4.7 →5

3.5 →4

Refer to the Battery Bank Sizing for Maximum Instantaneous Discharge (Load Rate) tables in Appendix B of

this Manual for a complete list of common battery-based inverters and the minimum quantity of PHI

Batteries those inverters need to be paired with to ensure that the PHI Battery bank does not over-

Autres manuels pour PHI 3.8 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels SimpliPhi Accessoires pour appareils photo

SimpliPhi

SimpliPhi PHI 1.3 Manuel utilisateur

SimpliPhi

SimpliPhi AmpliPHI Manuel utilisateur

SimpliPhi

SimpliPhi PHI2.6 Manuel utilisateur

SimpliPhi

SimpliPhi AmpliPhi-3-8-48 Guide de configuration rapide

SimpliPhi

SimpliPhi PHI 3.5 Manuel utilisateur

SimpliPhi

SimpliPhi PHI 3.8 Series Manuel utilisateur

SimpliPhi

SimpliPhi PHI 2.7 Manuel utilisateur

Manuels Accessoires pour appareils photo populaires d'autres marques

Viltrox

Viltrox EF-NEX Instructions d'installation

Calumet

Calumet 7100 Series CK7114 Manuel utilisateur

Ropox

Ropox 4Single Series Manuel utilisateur

Cambo

Cambo Wide DS Digital Series Mode d'emploi

Samsung

Samsung SHG-120 Manuel utilisateur

Ryobi

Ryobi BPL-1820 Manuel d'utilisation

Aegis

Aegis ABL-36020P Manuel utilisateur

Pentax

Pentax Data Back Fc Manuel utilisateur

Fantasea

Fantasea EyeGrabber F Series Manuel utilisateur

Honeywell

Honeywell HDZ20HD Manuel utilisateur

EGO

EGO BA1400T Manuel utilisateur

Sima

Sima SRW-62 Manuel utilisateur

Shape

Shape A7SSMKIT Manuel utilisateur

Slide Kamera

Slide Kamera HST-2 Manuel utilisateur

Power works

Power works 2902613 Manuel utilisateur

SES

SES SE-2047-2 Manuel utilisateur

Olympus

Olympus PT-EP05L Manuel utilisateur

Starlite

Starlite OctoDome nxt Manuel utilisateur
