Simplified MFG EXTDA Manuel utilisateur
EXTDA
Digital Audio Extender kit for both
Optical and Analog formats
VER 2.0
1
Thank you for purchasing this device
The Simplified MFG EXTDA is designed to provide years of
reliable service. At Simplified MFG, we want the experience
with this device to be the best possible and are committed to
helping achieve that experience.
Surge protection device recommended
This product contains sensitive electrical components that may
be damaged by electrical spikes, surges, electric shock, lighting
strikes, etc. Use of surge protection systems is highly
recommended to protect and extend the life of your equipment.
Set top boxes (STB) that are connected to the outside world can
introduce surges through the system and cause components to
fail. These devices should have surge protection on all outputs
including HDMI and audio.
2
Table of Contents
1. Introduction ..................................................................... 3
2. Features .......................................................................... 3
3. Package Contents ............................................................. 4
4. Specifications ................................................................... 4
5. Operation Controls and Functions....................................... 6
6. Application Example.......................................................... 8
7. Trouble Shooting…….………………………………………………………9
8. Warranty……………………………….………………..…………….………10
9. Contact………………………..………………….……….…….…………….11
3
1. Introduction
The EXTDA is an audio extender that will transmit optical and
analog audio formats over category cable up to 100m at 192kHZ.
Distance can be extended by using lower sampling rates up to
300m. There are optical and RCA analog inputs on the
transmitter that coincide with an optical and RCA analog outputs
at the receiver. The RX has a switch to determine the audio
function. First position is RCA analog to RCA analog, the second
position is for Optical to optical, however, if the display is set to
PCM, the RCA analog outputs should output audio simultaneously
with the optical output in stereo. Power is supplied by a Micro
USB port and only one supply is needed (either end will work).
4
Features
•Both optical and RCA analog formats are supported
•Both can be used at the same time
•Supports 192kHZ./96kHZ./48kHZ audio
•Built in DAC to convert optical stream to analog
stereo audio that is output via RCA connectors
•Sample rates supported are 32kHZ., 44.1kHZ, 48kHZ.,
96kHZ., and 192kHZ. Up to 24-bit resolution.
•LPCM, DTS, Dolby Digital, & Dolby Digital Plus is
supported in digital-to-digital transmission
•Single power supply at either end powers both units
2. Package contents
1x Transmitter
1x Receiver
1x 5V/1A Power Supply
1x Micro USB cable
4x Metal mounting brackets with screws
1x Manual
5
3. Specifications
Technical
Bit Rate by distance
192kHZ. – 100m, 96kHZ. – 150m,
48kHZ. – 300m
Digital-to-Digital
Audio formats
LPCM, DTS, Dolby Digital, Dolby
Digital+
Sample Rates
32kHZ., 44.1kHZ., 48kHZ., 96kHZ.,
192kHZ. up to 24-bit resolution
ESD Protection
Human-body Model：
±8kV (Air-
gap discharge), ±4kV
(Contact discharge)
Connections TX
Input ports
1× Optical (Toslink)
2x RCA
1x Micro USB (power)
Output ports 1× RJ45
Connections RX
Input ports 1x RJ45
Output ports 1x Optical (Toslink)
2x RCA
1x Micro USB (power)
6
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
90mm (3.54”) [W] × 73mm (2.875”)
[D] × 20mm (.79”) [H]
Weight
TX 173g/6.125oz. RX 176g/6.125oz.
Power Supply
Input: AC100~240V 50/60Hz, Output:
DC5V/1A
(US/EU standards, CE/FCC/UL
certified)
Power Consumption
1W (max)
Operating
Temperature
0°C ~ 40°C / 32°F ~ 104°F
Storage
Temperature
-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity
20~90% RH (non-condensing)
5.Operation Controls and Functions

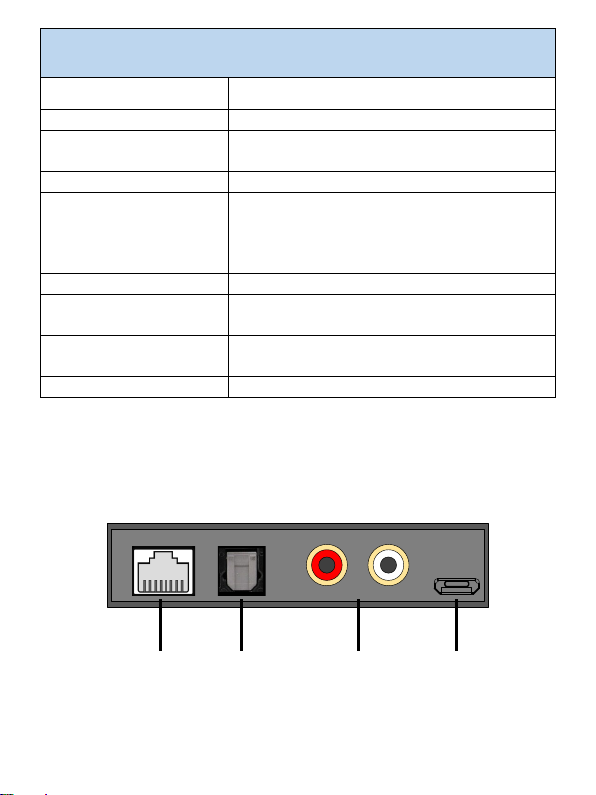

5.1 Transmitter (TX)
❶❷ ❸❹
7
Number
Name
Function description
1
Cat Output
Connects the TX to the RX via category
cable
2
Optical In
(Toslink)
Optical audio input port for audio input
from an optical output (Toslink)
3
RCA
Connectors
Connects to analog audio source
4
Micro USB
Provides power to both units from
either RX or TX
5.2 Receiver (RX)
❶❷❸❹ ❺❻
Number
Name
Function description
1
Cat Input Connects RX to TX via category cable
2
Optical In
(Toslink)
Optical audio output
3 RCA Analog out from TX
4 Micro USB Provides power to both units
5 Power LED Indicates power connection
6 Switch
Selects RCA output options. RCA in or
Toslink in
TX L/R TX Optical
L/R Out
8

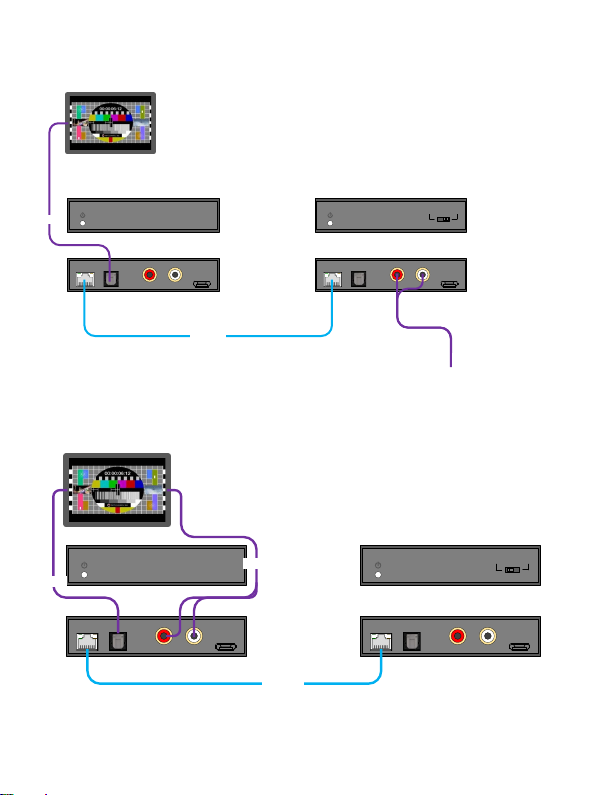

6. Application Example 1
Example 2
TX L/R TX Optic al
L/R Out
Cat 6/6A/7
Optical
Set the audio output to PCM
in the menu of the display
and the RCA connection will
output stereo
To audio system
NOTE: Switch is set to TV/
Optical so that the RCA audio
selection will get PCM audio
from optical out of display
TX L/R TX Op tical
L/R Out
Cat 6/6A/7
NOTE: Switch is set to TV L/R
In this case the RCA audo
comes from the RCA input.
The optical will now pass
multichannel audio from
optical input from display
Optical
Analog
Optical supports
multichannel audio. RCA
audio comes from RCA audio
inputs at TX.
9
7.Trouble Shooting
Symptom Possible Cause(s)/Check
No Power at RX
If Micro USB is plugged in to RX, check power
supply and/or USB cable. If powered at TX,
examine category cable
No Power at TX Same as above but in reverse
No Digital Audio Output is disabled at display or toslink cable
has failed. There should be light at end of the
toslink cable
No Analog Audio Make sure there is RCA output going into the
RCA connection at the TX. If using toslink
make sure switch is set to “TV Optical” and
that the display is set to PCM audio in the
display’s set up menu
