EX2ARC

HDMI 2.0b (18Gbps) 90m Extender with

ARC, LAN, IR, and RS232

VER 1.0

Thank you for purchasing this device

The Simplified MFG EX2ARC was designed to provide years of reliable

service. At Simplified MFG we want your experience with this device to be

the best possible and are committed to helping achieve that experience.

Please read and keep this manual for future reference.

Surge protection device recommended

This product contains sensitive electrical components that may be damaged

by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge

protection systems is highly recommended in order to protect and extend

the life of your equipment.

Table of Contents

1. Introduction...............................................................................

2. Features. ....................................................................................

3. Package Contents. .....................................................................

4. Specifications.............................................................................

5. Operation Controls and Functions. ............................................

5.1 Transmitter Panel..……………………………………………………4

5.2 Receiver Panel………………………………………………………….5

5.3 Audio Output Function……………………………………………….6

5.4 IR Pin Definition…..…………………………………………………..7

5.5 IR System Diagram……………………………………………………7

6. Application Example. ................................................................. 9

7. Warranty and Contact Information……………………………………10

**Please use 568b protocol when terminating the category

cable.

1 / 10

Introduction

The EX2ARC 18Gbps HDMI Extender can extend HDR/DolbyVision™ 4K

Audio/Video, RS-232, bi-directional IR, Audio Return, and a LAN connection

up to 295ft / 90 meters between transmitter and receiver via a single

CAT6/6a cable and supports resolutions up to 4K2K@60Hz 4:4:4. In

addition, the transmitter can be set to extract audio from the ARC, the

S/PDIF at the RX, or from the HDMI source. Power is supplied via a single

24V power supply that can be used at either the RX or the TX.

The EX2ARC is a perfect solution for instances when you need a LAN

connection in an extender and has the added benefits of ARC, S/PDIF Audio

return from the display, and Audio extraction depending on the setting of

the function switch.

Features

•HDCP 2.2 / 1.4 and DVI 1.0 compliant

•Supports the entire HDMI 2.0b (18Gbps) format

•Supports video resolutions up to 4k2k@60Hz YUV 4:4:4

•Supports all HD audio formats

•Extends 4K signals up to 90m (295ft)

•Supports ARC, S/PDIF return, Audio Extraction

•Control features include CEC passthrough, bi-directional 12V IR,

RS232, and LAN pass through

•Supports HDR, HDR10+, Dolby Vision™ and HLG function

•Single power supply can be used at either the RX or the TX

2 / 10

Package Contents

Qty

Item

18Gbps HDMI over HDBaseT Extender (Transmitter)

18Gbps HDMI over HDBaseT Extender (Receiver)

IR Blaster cable (1.5 meters)

20~60KHz IR Receiver cable (1.5 meters)

Mounting Ears

3-pin Phoenix connector

24V/1A Locking Power adapter

User Manual

Machine screws- KM3*4mm

Specifications

Technical

HDCP Compliance

HDCP 2.2 / 1.4

Video Bandwidth

18Gbps

Video Resolution

4K2K 50/60Hz 4:4:4

4K2K 50/60Hz 4:2:2

4K2K 50/60Hz 4:2:0

4K2K 30Hz 4:4:4

1080p, 1080i, 720p, 720i, 480p, 480i

All PC resolutions including 1920 x 1200

Color Space RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0

Color Depth

8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr

4:2:2/4:2:0)

8-bit (4K60Hz 4:4:4 )

HDMI Audio Formats

LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby

TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS

HD Master, DTS HD-HRA, DTS-X

L/R Audio Formats

PCM 2.0

SPDIF Audio Formats

LPCM2.0, Dolby Digital, Dolby Digital Plus, DTS

ESD Protection

Human body model — ±8kV (Air-gap discharge) &

±4kV (Contact discharge)

3 / 10

Connection

Transmitter

Inputs: 1x HDMI Type A [19-pin female]

Outputs: 1x HDBT OUT [RJ45, 8-pin female]

1x SPDIF OUT [S/PDIF]

1×L/R OUT [3.5mm Stereo Mini-

jack] 1×LAN [RJ45]

Control: 1x IR IN [3.5mm Stereo Mini-jack]

1x IR OUT [3.5mm Stereo Mini-jack]

1x RS-232 [Phoenix jack]

1x SERVICE [Mini-USB, Update port]

Receiver

Inputs: 1x HDBT IN [RJ45, 8-pin female]

1x SPDIF IN [S/PDIF]

Outputs: 1x HDMI Type A [19-pin female]

1x LAN [RJ45]

Control: 1x IR IN [3.5mm Stereo Mini-jack]

1x IR OUT [3.5mm Stereo Mini-jack]

1x RS-232 [Phoenix jack]

1x SERVICE [Mini-USB, Update port]

Mechanical

Housing

Metal Enclosure

Color

Black

Dimensions

Transmitter / Receiver:

163mm (6.4”) [W] x 90mm (3.5”) [D] x 16mm

(.63”) [H]

Weight

Transmitter: 170g (6oz.), Receiver: 165g (5.8oz.)

Power Supply

Input: AC 100 - 240V 50/60Hz

Output: DC 24V/1A (Locking connector)

Power Consumption

13 W

Operating

Temperature

32 - 104°F / 0 - 40°C

Storage Temperature

-4 - 140°F / -20 - 60°C

Relative Humidity

20 - 90% RH (no condensation)

Resolution

Distance

4K2K

296ft /90M

1080P

328ft /100M

4 / 10

TX RX

Function

ARC SPIDIF

SERVICE

Resolution /

Cable

Length

4K60 -

Feet /

Meters

4K30 -

Feet /

Meters

1080P60 -

Feet / Meters

HDMI IN / OUT

16ft / 5M

32ft / 10M

50ft / 15M

The use of “Premium High-Speed HDMI” cable is highly recommended.

Operation Controls and Functions

5.1

Transmitter Panel

DC 24V HDBT OUT HDMI IN IR IN IR OUT L/R OUT SPDIF OUT RS-232

LAN

Name

Function Description

Power LED

Red LED is on when the transmitter is working.

LED is off when the transmitter is on standby.

ARC LED

Green LED is on when ARC function is turned on.

SPIDIF LED Green LED is on when SPDIF OUT port outputs the audio

signal returned from SPDIF IN on receiver.

FUNCTION Used to select ARC from Display to SPDIF/3.5mm, SPDIF at

RX to SPDIF/3.5mm, or Audio breakout from source.

SERVICE port

Firmware update port.

DC 24V

DC 24V input for 24V 1A power adapter.

Note that the extender supports PoC function, it means that either

transmitter or receiver is connected to 24V/1A power supply, the other

doesn’t need power supply.

HDBT OUT RJ45 connector for connecting the HDBT IN port of receiver

with CAT 6/6a cable.

5 / 10

TX RX

Function

ARC SPIDIF

SERVICE

Green Connection

Signal Indicator

LED

(on the left side of

the HDBT OUT port)

▪Illuminated: Transmitter and Receiver are in good

connection status.

▪Flashing: Transmitter and Receiver are in poor

connection status.

▪Dark: Transmitter and Receiver are not connected.

Amber Data

Signal Indicator

LED

(on the right

side of the HDBT

OUT port)

▪Illuminated: HDMI signal with HDCP.

▪Flashing: HDMI signal without HDCP.

▪Dark: No HDMI signal.

HDMI IN

HDMI source input.

IR IN

IR input port for IR from Control system or remote.

IR OUT IR output port for control of source device. This IR output

signal is from IR IN port of receiver.

L/R OUT

3.5mm stereo connector for analog audio output.

SPDIF OUT

SPDIF connector for optical audio output.

RS-232

3-pin Phoenix connector for RS-232 command transmission.

The RS-232 command will pass-through from transmitter to

receiver or receiver to transmitter.

LAN

RJ45 connector for connecting Hub or router.

5.2

Receiver Panel

DC 24V

HDBT IN

HDMI OUT

IR IN

IR OUT

SPDIF IN

RS-232

LAN

Name

Function Description

Power LED Red LED is on when the receiver is working.

LED is off when the receiver is on standby.

ARC LED Green LED is on when ARC function is turned on.

6 / 10

SPIDIF LED

Green LED is on when SPDIF OUT port outputs the

audio signal returned from SPDIF IN on receiver.

FUNCTION Press the button to switch the output audio signal source

for SPDIF OUT and L/R OUT port.

SERVICE port Firmware update port.

DC 24V

DC 24V input for 24V 1A power adapter.

Note that the extender supports PoC function, it means that

either transmitter or receiver is connected to 24V/1A power

supply,

the other doesn’t need power supply.

HDBT IN

RJ45 connector for connecting the HDBT OUT port of

transmitter with CAT 6/6a cable.

HDMI OUT

HDMI output for display.

IR IN

IR input port for receiving the signal of IR remote.

IR OUT

IR output port for control of display device. This IR output

signal is from IR IN port of transmitter.

SPDIF IN

SPDIF connector for optical audio input.

RS-232

3-pin Phoenix connector for RS-232 command transmission.

The RS-232 command will pass-through from transmitter to

receiver or receiver to transmitter.

LAN

Ethernet Pass through from TX

5.3

Audio Signal OutputSwitching

Switch the output audio signal source for SPDIF OUT and L/R OUT port

via the “Function” button on the panel (the corresponding LED will

illuminate). The states of ARC LED and SPDIF LED indicate the specific output

audio signal source, as shown in the table below:

ARC LED

State

SPDIF LED

State

Output Audio Signal Source for SPDIF OUT

port and L/R OUT port

On Off

The audio signal returned from HDMI IN port on

the receiver

Off On The audio signal returned from SPDIF IN port on the

receiver

Off

The audio signal extracted from the transmitter

7 / 10

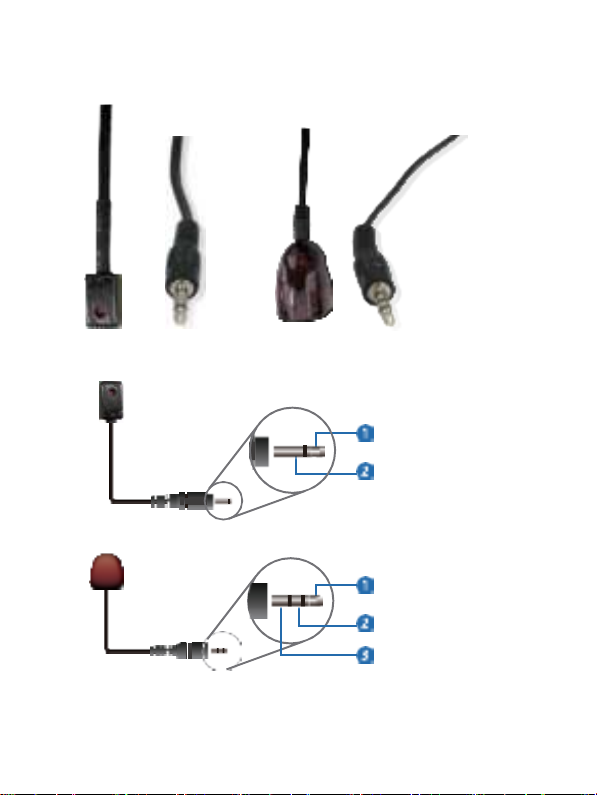

5.4

IR Pin Definition

IR Receiver and Blaster pin’s definition is as below:

IR BLASTER IR RECEIVER

IR SIGNAL

GROUNDING

POWER 12V

Note: IR remote sends signal at the distance of 0~5 meters / 0~8 meters

with the angle of ± 45° in vertical direction.

IR BLASTER

IR RECEIVER

8 / 10

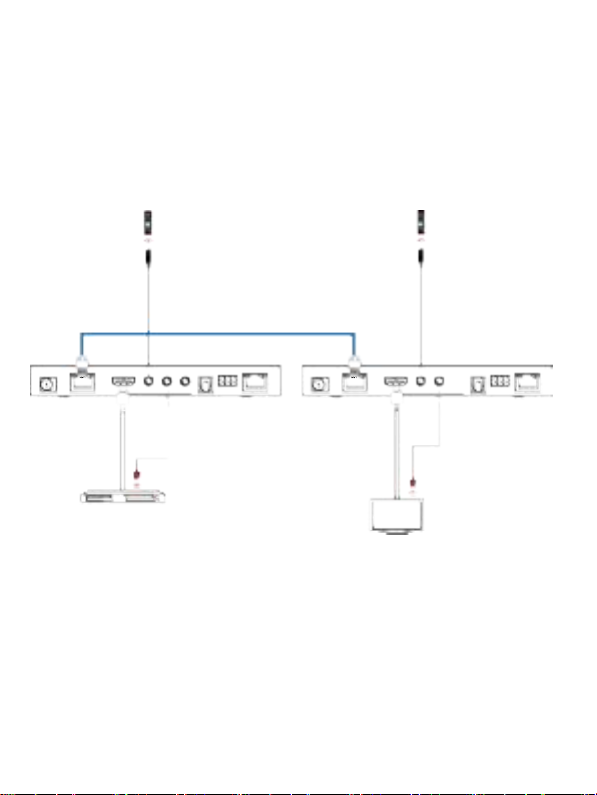

The following is IR system diagram about IR cable use method.

TV remote Remote

IR Receiver cable

CAT 5e/6 cable

Transmitter Receiver

IR Blaster cable

BRP or Streamer

Note: When the angle between the IR receiver and the remote control is ± 45 °, the

transmission distance is 0-5 meters; when the angle between the IR receiver and

the remote control is ± 90 °, the transmission distance is 0-8 meters.

5.5

IR System Diagram

Table des matières

Autres manuels Simplified MFG Extenseur

Simplified MFG

Simplified MFG ARCEX Manuel utilisateur

Simplified MFG

Simplified MFG REX2 Manuel utilisateur

Simplified MFG

Simplified MFG EXTDA Manuel utilisateur

Simplified MFG

Simplified MFG EXeARC1 Manuel utilisateur

Simplified MFG

Simplified MFG EXACKT Manuel utilisateur

Simplified MFG

Simplified MFG EXFBR Manuel utilisateur

Simplified MFG

Simplified MFG TXIWKT Manuel utilisateur

Simplified MFG

Simplified MFG EX3-8K Manuel utilisateur

Simplified MFG

Simplified MFG REX2 Manuel utilisateur

Simplified MFG

Simplified MFG EX1502K Manuel utilisateur

Simplified MFG

Simplified MFG EX1L Manuel utilisateur

Simplified MFG

Simplified MFG EXUSB2.0 Manuel utilisateur

Simplified MFG

Simplified MFG EX1L Manuel utilisateur

Simplified MFG

Simplified MFG EXARC Manuel utilisateur

Manuels Extenseur populaires d'autres marques

SY HDBT-60T Manuel utilisateur

Appsys ProAudio

Appsys ProAudio ADX-16 Manuel utilisateur

Atlona

Atlona RS232 Manuel utilisateur

IDK

IDK OPF-TH1000-A Manuel utilisateur

Enable-IT

Enable-IT 824WP Manuel utilisateur

Worx

Worx Landroid RadioLink WA0864 Fiche technique

TP-Link

TP-Link TL-WA730RE Manuel utilisateur

Camplex

Camplex CMX-HDMI-SFPL Manuel utilisateur

SC&T

SC&T HE03-4K Manuel utilisateur

Marmitek

Marmitek MegaView70 Manuel utilisateur

Samsung

Samsung SCS-26UC4 Manuel utilisateur

Foxun

Foxun SX-GES24 Manuel utilisateur

MuxLab

MuxLab 500771 Manuel utilisateur

foxunhd

foxunhd SX-AEX01 Manuel utilisateur

TERK Technologies

TERK Technologies LFIRX2 Manuel utilisateur

Devolo

Devolo Audio Extender Manuel

Edimax

Edimax EW-7438RPn V2 Manuel utilisateur

Shinybow USA

Shinybow USA SB-6335T5 Manuel utilisateur
