Simplicity Baron Manuel utilisateur

How to use this file...(Operators Manuals)

————————————————————————————————————————————–––

Instructions for

Print Vendors (Paper Manuals)

Paper Size: * 11 x 17

* Body—50 lbs brilliant white offset or equivalent.

* Cover—on pre-printed two-tone “Swash” stock.

Press: * Body—1-color, 2-sided

* Cover imprint —1-color, 1-sided

Bindery: * Saddle Stitch, Face Trim, 3-Hole Drill

* Face Trim

COVERS: * This file contains several manuals, which differ only in their covers.

* Covers are all present at the beginning of this file.

* Back cover for a particular manual is the page IMMEDIATELY AFTER the front cover.

• Check the front cover for the individual part number (typically a 171xxxx number).

BODY: • The body of the manual is identical, regardless of the cover used.

* REMEMBER: ODD number pages are ALWAYS right hand pages, and EVEN number are ALWAYS

left hand pages.

General: * This instruction page is NOT part of the manual and must NOT be printed.

• Pages labeled with the text “THIS PAGE INTENTIONALLY BLANK” are placement pages ONLY,

and should NOT be printed.

————————————————————————————————————————————–––

If you have further questions on how to utilize this file, please contact

Simplicity Technical Publications Department at (414) 284-8650.

THIS PAGE INTENTIONALLY BLANK

MANUFACTURING, INC.

500 N Spring Street / PO Box 997

Port Washington, WI 53074-0997 USA

www.simplicitymfg.com

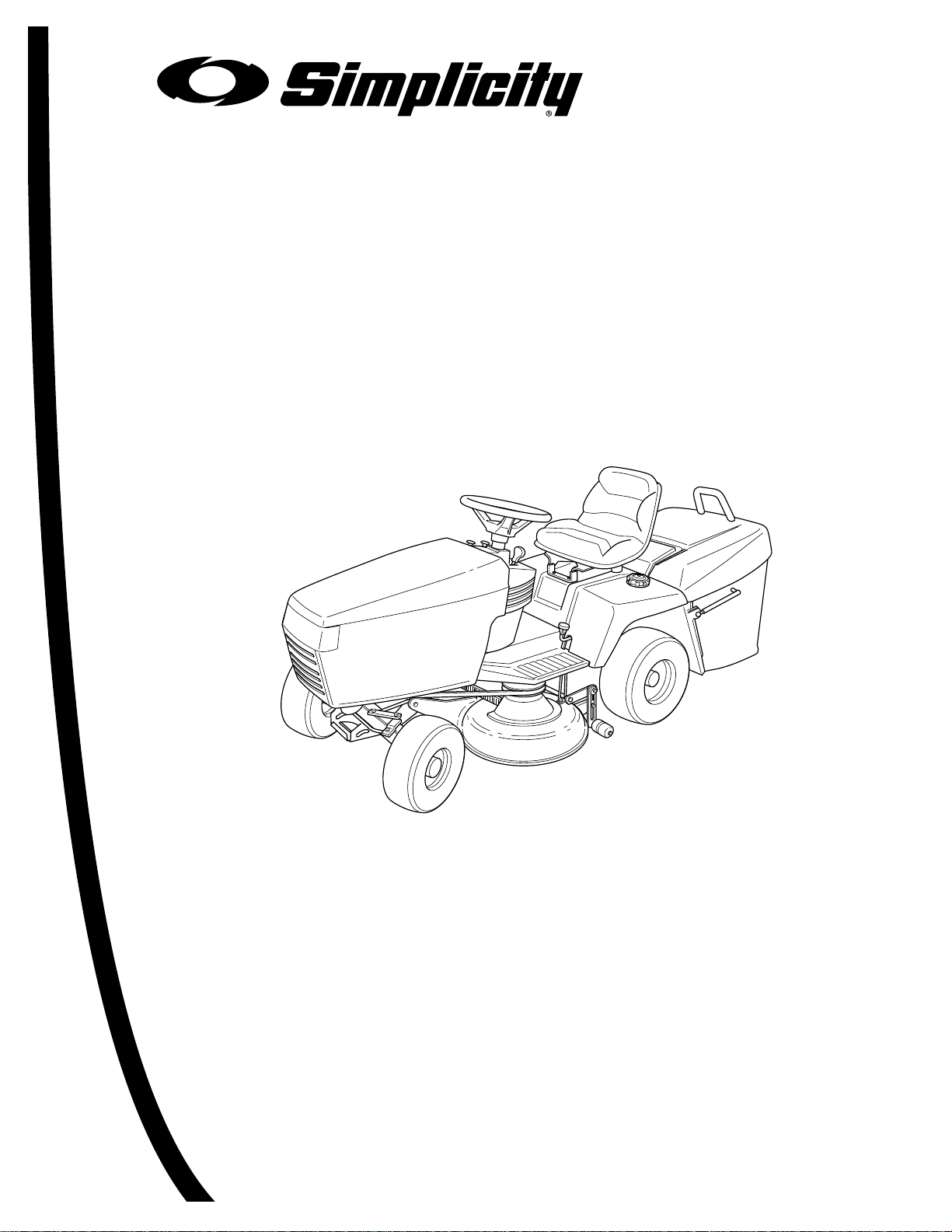

Operator’s manual

Baron

1693494 Baron tractor

1693575 102 cm (40") deck

1720602

Rev. 05/1999

TP 100-2282-00-BR-S

Adjustments and service ....................................................................................................F

Specifications and Identification numbers........................................................................ii-v

Safety rules and information...............................................................................................A

Features and controls.........................................................................................................B

Operating the tractor..........................................................................................................C

Lawn care and mowing information ...................................................................................D

Regular maintenance .........................................................................................................E

Troubleshooting..................................................................................................................G

Initial setup.........................................................................................................................H

123...

TP 100-2282-00-BR-S

107cm (42")

92cm (36")

188cm (74")

246cm (97")

130cm (51")

109cm

(43")

Specifications

Weight

Tractor 218 kg (480 lb)

Grass catcher 18 kg (40 lb)

Mower deck 50 kg (110 lb)

Crate (approx) 57 kg (125 lb)

Capacities

Grass catcher 310 liters

Fuel tank 9,3 l (3,5 gal)

Engine

Make Briggs & Stratton

Model InTek™ V-Twin

Horsepower 18 HP

Transmission

Make Tuff Torq

Model K-51

Max. forward speed 8,8 kph (5,5 mph)

Max. reverse speed 5,5 kph (3,4 mph)

Transmission oil SAE 10W30, API SG, Motor

Oil capacity 1,7 l (2,5 qt)

Wheels

Tire size

Front 15 x 6,0-6

Rear 18 x 8,5-8

Tire pressure

Front 83-104 kPa (12-15 psi)

Rear 41-55 kPa (6-8 psi)

123...

iii

Identification numbers

Record the identification numbers for your model in

the space provided. The identification tags (A) are located

on the tractor (B) and the mower deck (C). For the location

of the engine identification numbers, refer to the engine

manual.

When contacting your authorized dealer for replacement

parts, service or information, you MUST have these

numbers.

Be sure to fill out and return the warranty registration card

supplied with your unit.

Identification numbers

Tractor manufacturing number Tractor serial number

169 __ __ __ __

Mower deck manufacturing number Mower deck serial number

169 __ __ __ __

Dealer name Date purchased

Engine make and model Engine serial number

169XXXX

MFG

Simplicity Manufacturing, Inc.

Port Washington, WI 53074-0997 U.S.A.

SERIAL

XXXXX

SSAAMMPPLLEE

A-1

Safety rules

and information

Safety rules and

information

About this manual and tractor

• Read, understand and follow all instructions in the manual

and on the unit before starting.

• Before first time operation, drive in an open area without

mowing to become accustomed to the unit.

The alert triangle signifies important

cautions or warnings which must be

followed to prevent injury to persons.

The DO NOT symbol precedes cautions

which must be followed to prevent damage

to equipment.

The information circle indicates information

which can be helpful in understanding and

using the equipment.

Read all safety rules and follow them closely. Failure to

obey these rules could result in loss of control of unit,

severe personal injury or death to you or bystanders, or

damage to property or equipment.

A-2
