Simplicity 4808 Guide de configuration

Attachment

Illustrated

Parts List

Rev. 11/2007

500 N. Spring Street / PO Box 997

Port Washington, WI 53074-0997 USA

www.simplicitymfg.com

MANUFACTURING, INC.

. No. Descri

tion

Attachment

1695419 Tiller 36"

1723861

Part No.:

Table Of Content

Torque Specification Chart ..................................................................... Inside Back Cover

PRODUCT COMPONENTS PAGES

Drive Group .......................................................................................................................................................... 4

Housing Group ..................................................................................................................................................... 8

Lift Group .............................................................................................................................................................. 10

Tine & Deflector Group ........................................................................................................................................ 12

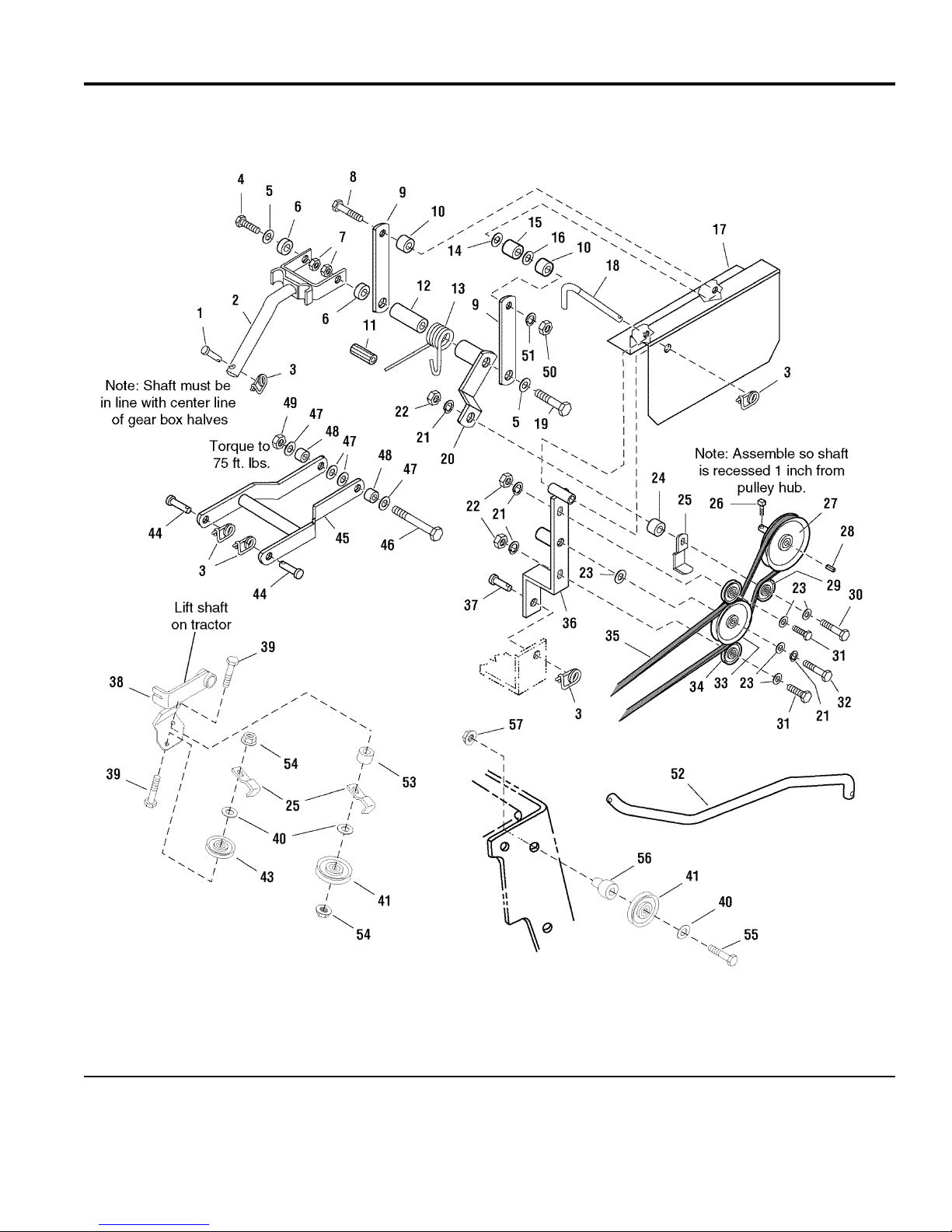

Drive Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

987907

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1695419 - Tiller 36"

TP 400-4808-00-AT-SMA

PART NO. DESCRIPTIONREF NO QTY.

Drive Group

Footnotes

PIN, Round Head Drilled, 3/8 x 21 2118053SM 1 LIFT ASSEMBLY2 1707569ASM 1 PIN, Spring Retainer3 2176012SM 5 CAPSCREW, Hex Head, 7/16-14 x 1-1/4, Black4 2823471SM 1 WASHER, 7/165 1925125SM 2 SPACER6 2105346SM 2 NUT, Hex Flange Lock, 7/16-14, Black7 1930650SM 2 CAPSCREW, Hex Head, 5/16-18 x 2-3/4, Balck8 1923141SM 1 SUPPORT, Rear Belt Guard9 2105359ASM 2 SPACER10 1704716SM 2 ANCHOR, Spring11 1707599SM 1 SPACER12 2105339ASM 1 SPRING, Torsion13 1707593SM 1 WASHER, Special, Nylon14 2860171SM 1 BUSHING, .343" x .750" x 1.060"15 1666106SM 1 WASHER, 5/16, Black16 1919326SM 1 COVER, Belt17 1707564ASM 1 ROD18 1657562SM 1 CAPSCREW, Hex Head, 7/16-14 x 3-1/2, G819 1930585SM 1 ARM & HUB ASSEMBLY20 2105295ASM 1 LOCKWASHER, 3/8, Black21 1916965SM 6 NUT, Hex, 3/8-16, Black22 1960687SM 3 WASHER, 3/8, Black23 1924940SM 2 SPACER24 1709923SM 1 GUARD, Spring25 1708352ASM 3 SCREW, Set Square Head, Cup Point, 3/8-16 x 1/226 1960474SM 1 PULLEY, 7.96" OD x .752" ID, w/.562" GROOVE, w/HUB27 1723854SM 1 KEY, Parellel28 2157427SM 1 PULLEY, Idler, 2.75" OD x .377" ID x .87 WD29 1721133SM 1 CAPSCREW, Hex Head, 3/8-16 x 3-1/2, Black30 1923938SM 1 CAPSCREW, Hex Head, 3/8-16 x 1-3/4, Black31 1921971SM 2 CAPSCREW, Hex Head, 3/8-16 x 1-1/4, Black32 1920415SM 1 PULLEY, Idler, 4" OD x .375" ID x .83" WD33 1706510SM 1 PULLEY, Idler, 1.875" OD x .375" ID x .97" WD34 1706511SM 2 V-BELT,167.40" Long35 1723478SM 1 SHAFT & SUPPORT ASSEMBLY36 1708961ASM 1 PIN, Round Head Drilled, 3/8 x 1, Black37 1708298SM 1 ARM ASSEMBLY, Tiller Idler38 1735064ASM 1 CAPSCREW, Hex Head, .375-16 x 2-1/439 1922130SM 2 WASHER, 3/8, Black40 1922755SM 3 PULLEY, Idler, 4.00" OD x .669" ID x 1WD, w/Bearing41 1724387SM 1 PULLEY, 3" OD x .378" ID x .75" WD, w/Bearing43 1721134SM 1 PIN, Round Head Drilled, 7/16 x 1-3/444 2155037SM 2 FRAME ASSEMBLY45 1651844ASM 1

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1695419 - Tiller 36"

TP 400-4808-00-AT-SMA

Drive Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

987907

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1695419 - Tiller 36"

TP 400-4808-00-AT-SMA

PART NO. DESCRIPTIONREF NO QTY.

Drive Group

Footnotes

CAPSCREW, Hex Head, 1/2-13 x 5, G8 Black46 1926159SM 1 WASHER, 1/2, Black47 1924361SM 4 SPACER48 2105386SM 2 NUT, Hex Flange Lock, 1/2-13, Black49 1930644SM 1 NUT, Hex, 5/16-18, Black50 1917372SM 1 LOCKWASHER, 5/16, Black51 1917356SM 1 ROD, Diff Lock, 15" Long52 1735052SM 1 SPACER53 1667812SM 1 NUT, Flange, ESNA, 3/8-1654 1960687SM 2 CAPSCREW, 3/8-16 x 2-1/255 1921972SM 1 SPACER56 1706644SM 1 NUT, Flange, 3/8-1657 1928352SM 1

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1695419 - Tiller 36"

TP 400-4808-00-AT-SMA

Housing Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

984364

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1695419 - Tiller 36"

TP 400-4808-00-AT-SMA

PART NO. DESCRIPTIONREF NO QTY.

Housing Group

Footnotes

CHAIN, # 401 2105336SM 2 CHAIN, # 502 2178174SM 1 TRANSMISSION SUB ASSEMBLY (Incl. Ref. Nos. 1-16, 18-38 on this page) & Incls. Ref.

Nos. 1-5,7,11,17,18,19,34,36 & 38 in the 36" Tiller Drive Group)

3 1650841SM 1

FITTING, Grease4 2815019SM 2 BOLT, Hex Head, Drilled & Tapped5 2105132SM 2 LOCKWASHER, 1/26 1916966SM 4 BAR, Side7 2105320ASM 2 NUT, Hex, 5/16-18 1917372SM 4 LOCKWASHER, 5/169 1917356SM 4 BEARING10 1669337SM 2 LOCKNUT, 5/16-1811 1923362SM 13 CASE ASSEMBLY, Half, R.H.12 2105366ASM 1 SEAL13 2105365SM 2 PLATE ASSEMBLY, Upper Bearing14 1669338SM 2 RING, Retaining15 2827320SM 4 WASHER, 116 2860208SM 4 SPACER, Inter.18 2105192SM 1 SHAFT ASSEMBLY, Pulley19 2105298SM 1 SPROCKET & BEARING ASSEMBLY, (Incl. Ref. Nos. 17 & 21)20 1650975SM 1 SPROCKET & BEARING ASSEMBLY, (Incl. Ref. Nos. 17 & 24)25 1650976SM 1 BEARING, Roller17 2105195SM 4 SPROCKET ASSEMBLY, (See Ref. No. 20)21 * 1 SPACER22 2105360SM 2 SHAFT ASSEMBLY, Tine23 2178177SM 1 SPROCKET (See Ref. No. 25)24 * 1 SPACER, Internal26 2105292SM 1 LOCKNUT, Hex, Jam, 3/8-1627 1930645SM 6 PLATE ASSEMBLY28 1669298SM 2 SEAL29 2105357SM 2 BEARING30 2105309SM 2 CAP, Grease31 2105363SM 2 LOCKNUT, Flange, 1/2-1332 1930644SM 2 CASE ASSEMBLY, Half, L.H.33 2105367ASM 1 CAPSCREW, Hex Head, 5/16-18 x 5/834 1925205SM 13 WASHER, 1/235 1918431SM 1 CAPSCREW, Hex Head, 1/2-13 x 436 1926158SM 1 CAPSCREW, Hex Head, 1/2-20 x 137 1929528SM 2 GASKET38 2105373SM 1 CAPSCREW, Hex Head, 5/16-1 8 x 1-1 /439 1921977SM 1 WASHER, 3/840 1924940SM 2 LOCKNUT, Flange, 5/16-1841 1935048SM 2 HOOK, "S"42 1679204SM 1

Note* Not a servicable part.

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1695419 - Tiller 36"

TP 400-4808-00-AT-SMA

Lift Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986147

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1695419 - Tiller 36"

TP 400-4808-00-AT-SMA
