Simplicity 1694161 Manuel utilisateur

Parts Manual

Rev. 11/2005

Rear Tine Tillers

6HP Series

TP 400-2625-01-RT-S

. No. Descri

tion

HP Product

1694161 6016 RT, 6HP Tiller

1694908 6016 RT, 6HP Tiller

1730319

Part No.:

Table Of Content

Torque Specification Chart ..................................................................... Inside Back Cover

PRODUCT COMPONENTS PAGES

Handle Bar Group ................................................................................................................................................ 4

Hood, Drag Stake & Tine Group .......................................................................................................................... 6

Engine, Belts & Wheels Group ............................................................................................................................ 8

Transmission Group ............................................................................................................................................. 10

Wheel & Tiller Shaft Group .................................................................................................................................. 12

Decal Group ......................................................................................................................................................... 14

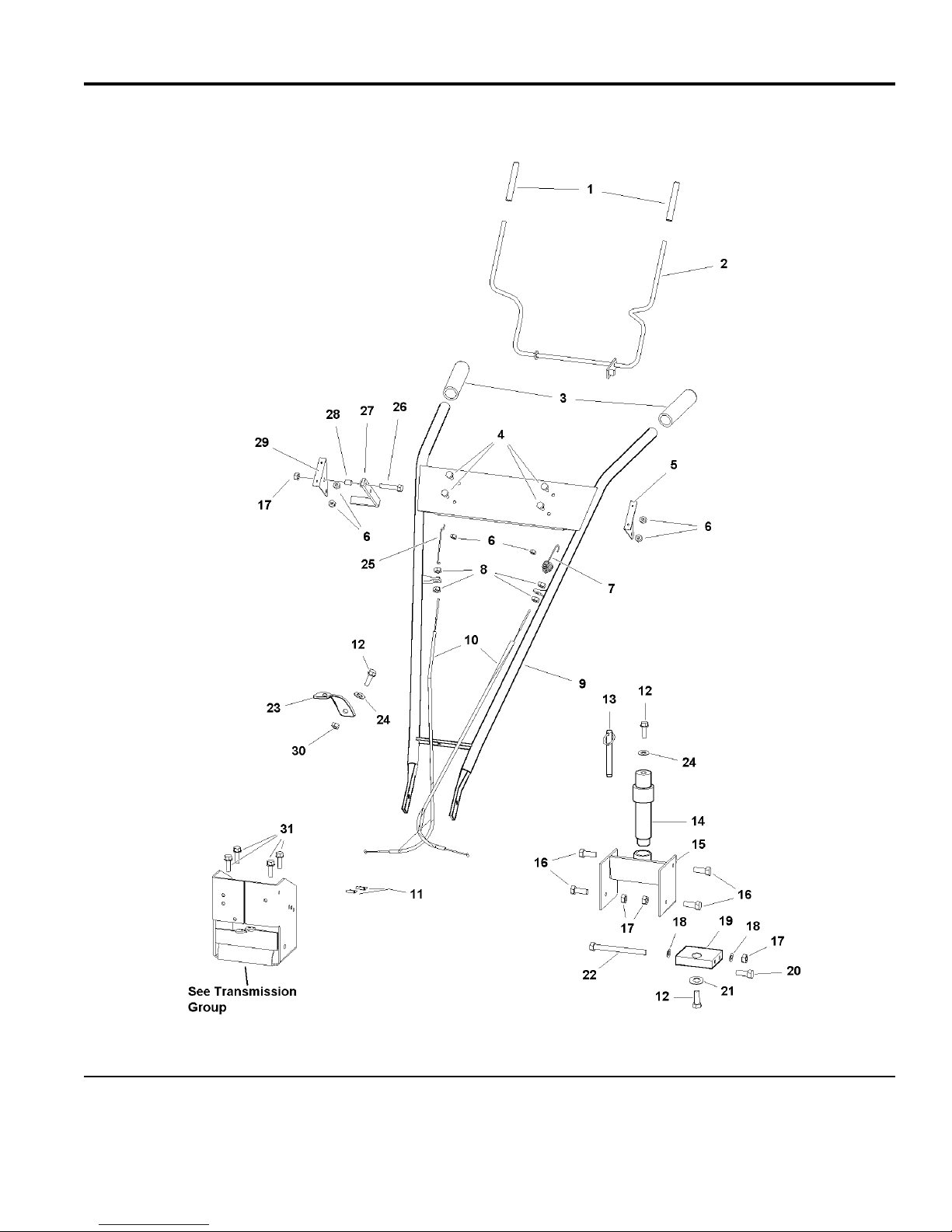

Handle Bar Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986100

The above parts group applies to the following Mfg. Nos.:

2005 4

1694161 - 6016 RT

1694908 - 6016 RT

TP 400-2625-01-RT-S

PART NO. DESCRIPTIONREF NO QTY.

Handle Bar Group

Footnotes

1 1716699 2 HANDLE GRIP, Drive Control Lever

2 1722325 1 LEVER, Drive Control

3 1719038 2 HANDLE GRIP

4 1960392 4 SCREW, Pan Head Phillips #10-24 x 1/2

5 1716723 1 BRACKET, Drive Control Lever LH

6 1933896 6 NUT, Hex Nylock, 10-24

7 1716720 1 SPRING, Forward Cable Adjustment

8 2820438 4 NUT, Hex Jam, 5/16-24

9 1723692 1 HANDLE BAR ASSEMBLY

10 1719037 2 CABLE ASSEMBLY

11 1719063 2 C-CLAMP

12 1921332 3 CAPSCREW, Hex Head, 5/16-18 x 3/4

13 1723703 1 PIN, Detent

14 1723695 1 PIVOT ROD ASSEMBLY

15 1723696 1 PIVOT MOUNT ASSEMBLY

16 1921210 4 CAPSCREW, Hex Head, 3/8-16 x 1

17 1916950 5 NUT, Hex, 3/8-16

18 1924940 2 WASHER

19 1723694 1 PIVOT, Handle Bar Mount

20 1920415 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/4

21 1716770 1 WASHER

22 1922648 1 CAPSCREW, Hex Head 3/8-16 x 4

23 1723697 1 PIVOT, Hnadle Bar Height Adjustment

24 1960044 2 WASHER

25 1716729 1 LINK, Reverse

26 1921977 1 CAPSCREW, Hex Head, 5/16-18 x 1-1/4

27 1716725 1 HANDLE, Reverse

28 1716704 1 BUSHING, Pivot, 5/16

29 1716722 1 BRACKET, Drive Control Lever RH

30 1935048 2 NUT, Hex Flange Tow Way Lock, 5/16-18

31 1921332 4 BOLT, Hex Flange Head, 5/16-18 x 3/4

The above parts group applies to the following Mfg. Nos.:

2005 5

1694161 - 6016 RT

1694908 - 6016 RT

TP 400-2625-01-RT-S

Hood, Drag Stake & Tine Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986101

The above parts group applies to the following Mfg. Nos.:

2005 6

1694161 - 6016 RT

1694908 - 6016 RT

TP 400-2625-01-RT-S

PART NO. DESCRIPTIONREF NO QTY.

Hood, Drag Stake & Tine Group

Footnotes

1 1723703 1 PIN, Detent, 5/16

2 1723702 1 LEVER, Depth Regulator

3 1921958 2 CAPSCREW, Hex Head, 1/4 - 20 x 1/2

4 1722329 1 HOOD, Tiller, No Decal

5 1917356 2 LOCKWASHER, Spring, 5/16

6 1920787 2 CAPSCREW, Hex Head, 5/16-18 x 1/2

7 1921971 2 CAPSCREW, Hex Head, 3/8-16 x 1-3/4

8 1721513 1 TINE ASSEMBLY, LH

9 1916965 2 LOCKWASHER, Spring, 3/8

10 1930651 2 NUT, Hex Center Lock, 3/8-16

11 1935048 2 NUT, Hex Flange, 5/16-18

12 1721514 1 TINE ASSEMBLY, RH

13 1716701 2 BOLT, Hex Flange Head, 5/16-18 x 1/2

The above parts group applies to the following Mfg. Nos.:

2005 7

1694161 - 6016 RT

1694908 - 6016 RT

TP 400-2625-01-RT-S

Engine, Belts & Wheels Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986102

The above parts group applies to the following Mfg. Nos.:

2005 8

1694161 - 6016 RT

1694908 - 6016 RT

TP 400-2625-01-RT-S

PART NO. DESCRIPTIONREF NO QTY.

Engine, Belts & Wheels Group

Footnotes

1 1722157 1 BRACKET, Engine

2 1723711 1 SPACER, Engine

3 1722158 1 PULLEY, Engine 2 Groove

4 1716770 1 WASHER

5 1917356 2 LOCKWASHER, Spring, 5/16

6 1921515 2 CAPSCREW, Hex Head, 5/16-24 x 3/4

7 2805850 2 KEY, PARALLEL PLN, 3/16 x 3/16 x 1-3/32

8 1960345 1 CAPSCREW, Hex Head, 3/8-24 x 2

9 1716728 2 YOKE, Cable

10 1722159 1 ARM, Pivot

11 1716702 2 PIN, Link Forward/Reverse

12 1722162 1 GUIDE, Belt Reverse

13 1924940 4 WASHER, 3/8

14 1716805 1 PULLEY, Idler Reverse

15 1916950 2 NUT, Hex Center Lock, 3/8-16

16 1716703 2 PIN, Cotter

17 1723710 1 BOLT, Flat Head, 5/16-24 x 1-1/2

18 1722160 1 PIVOT

19 1960044 3 WASHER, 5/16

20 1716766 1 V-BELT, Forward

21 1716802 2 SPRING, Idler Arm

22 1935048 3 NUT, Hex Flange Lock, 5/16-18

23 1921332 3 BOLT, Hex Flange Head, 5/16-18 x 3/4

24 1722161 1 GUIDE, Belt Forward

25 1722165 1 COVER, Belt

26 1722163 1 PULLEY, Transmission 2 Groove

27 1721525 1 WHEEL & TIRE ASSEMBLY TILLER, Left

28 1721524 1 WHEEL & TIRE ASSEMBLY TILLER, Right

29 1716776 2 PIN, Lock

30 1716803 1 PULLEY, Forward Idler

31 1722166 1 ARM, Idler Forward

32 1722168 1 SCREW, Hex Socket Shoulder, 5/16-18 x 3/8

33 1925690 1 CAPSCREW, Hex Head, 5/16-18 x 3-1/2

34 1722144 1 V-BELT, Reverse

35 1922127 4 CAPSCREW, Hex Head, 5/16-18 x 1-3/4

36 *1* ENGINE, 6HP B&S INTEK,2005- Engine Model 126412 , EngineType 0023-E2

36 *1* ENGINE, 6HP B&S INTEK,2006- Engine Model 121212 , EngineType 0112-E1

37 1721528 1 ** BUMPER, Guard

38 1919384 1 WASHER

39 2860164 1 WASHER

Note* See your local Briggs & Straton distributor for Parts & Service.

Note** The bumper quard is not standard, order the bumper guard (Ref# 37), 4 nuts (Ref# 22) and 4 capscrews (Ref# 35).

The above parts group applies to the following Mfg. Nos.:

2005 9

1694161 - 6016 RT

1694908 - 6016 RT

TP 400-2625-01-RT-S

Transmission Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986103

The above parts group applies to the following Mfg. Nos.:

2005 10

1694161 - 6016 RT

1694908 - 6016 RT

TP 400-2625-01-RT-S
