Simplicity 1733092 Manuel utilisateur

Parts Manual

Rev. 8/2008

Citation

Series Zero-Turn Riders & Mower Decks

TP 400-7287-S-CI-S

. No. Descri

tion

21HP Product

2690444 Citation, 21HP Briggs & Stratton Zero Turn Rider w/48"

Mower

. No. Descri

tion

23HP Product

2690445 Citation, 23HP Briggs & Stratton Zero Turn Rider w/52"

Mower

1733092

Part No.:

Table Of Content

Torque Specification Chart ..................................................................... Inside Back Cover

PRODUCT COMPONENTS PAGES

Main Frame & Front Suspension Group .............................................................................................................. 4

Rear Bumper Group ............................................................................................................................................. 6

Engine & PTO Group ........................................................................................................................................... 8

Instrument Control Panel Group .......................................................................................................................... 10

Pump Drive Group ............................................................................................................................................... 12

Motion Control Group - S/N: 201317250 & Below ............................................................................................... 14

Motion Control Group - S/N: 201317251 & Above .............................................................................................. 18

Hydraulic Group ................................................................................................................................................... 22

Hydraulic Mount Group ........................................................................................................................................ 26

Electrical Group .................................................................................................................................................... 28

Seat, Mount & Floor Group .................................................................................................................................. 30

Fuel Supply Hose Group & Tank Replacement Parts Group .............................................................................. 32

Fuel Tank & Mount Group .................................................................................................................................... 34

Parking Brake Group ............................................................................................................................................ 36

Rear Suspension Group ...................................................................................................................................... 38

Deck Lift Group - S/N: 2013202961 & Below ...................................................................................................... 40

Deck Lift Group - S/N: 2013202962 & Above ...................................................................................................... 44

Wheel & Tire Group ............................................................................................................................................. 48

Decals - Brand & Model ....................................................................................................................................... 50

Decals - Safety & Operation ................................................................................................................................ 52

48" & 52" Mower Deck - Hanger Chains .............................................................................................................. 54

48" & 52" Mower Deck - Housing, Cover, Spindle & Blade ................................................................................. 56

48" & 52" Mower Deck - Pulleys, Belts & Idler Arm ............................................................................................. 58

48" & 52" Mower Deck - Rollers ........................................................................................................................... 60

48" & 52" Mower Deck - Spindle Service Parts Group ........................................................................................ 62

Main Frame & Front Suspension Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

287frm0

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

2690444 - Citation

2690445 - Citation

TP 400-7287-S-CI-S

PART NO. DESCRIPTIONREF NO. QTY.

Main Frame & Front Suspension Group

Footnotes

MAIN FRAME ASSEMBLY (Serial No.: 2013170250 & Below)1 5400257CSM 1

GREASE SEAL2 5021072SM 2

COTTER PIN, 1/8" X 1-1/4"3 5025203X10SM 2

SCREW, 5/16-18 X 1 FLAT HD SC4 5025303SM 8

NUT, 5/16-18 Hex Nylon Lock5 5025057SM 8

BOLT, 3/8-16 X 1-3/4"6 5025013X14SM 2

NUT, 3/8-16 Hex Nylock Flange7 5025394SM 4

BOLT, 3/8-16 X 4"8 5025013X32SM 2

FRICTION PLATE9 5045990SM 2

SHOCK & SPRING ASSEMBLY10 5023483SM 2

BEARING, Tapered Roller11 5020884SM 4

CAP12 5021073SM 2

CASTER YOKE13 5047049CSM 2

NUT, 3/4-16 Hex Slotted14 5025104SM 2

WASHER, 3/4" SAE15 5025160SM 6

NUT, 3/4-16 Hex Nylon Lock16 5025284SM 1

SPACER, .75 X 1.00 X 2.3817 5047489SM 1

BOLT, 3/4-16 X 6-1/2"18 5025265X52SM 1

ASSM, PIVOTING FRONT END (Includes Ref. #'s 20 and 21)19 5401410SM 1

PIVOT BEARING20 5022852SM 1

PIVOT BEARING21 5100358SM 1

WASHER, 3/8" SAE22 5025156SM 4

WASHER, 3/8" FENDER23 5025165SM 6

WELD, PIVOTING FRONT END - ORG (Serial No.: 2000676809 & Above)24 5402536CSM 1

CAP, CASTER SPINDLE LOW PROFILE (Serial No.: 2000676809 & Above)25 5100882SM 2

NUT, 3/4-16 HEX JAM NYLON LOCK (Serial No.: 2000676809 & Above)26 5025448SM 2

BELLEVILLE WASHER, 1.500 X .755 (Serial No.: 2000676809 & Above)27 5025449SM 4

BEARING CUP (Serial No.: 2000676809 & Above)28 5020883SM 4

WELD, CASTER YOKE - ORG. (Serial No.: 2000676809 & Above)29 5402208CSM 2

BOLT, 1/4-28 X 1/2, GD5 YZ (Serial No.: 2000676809 & Above)30 5025457SM 2

WELD, Main Frame Assembly (Serial No.: 2013170251 & Above)31 5404316CSM 1

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

2690444 - Citation

2690445 - Citation

TP 400-7287-S-CI-S

Rear Bumper Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

287bmp1

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

2690444 - Citation

2690445 - Citation

TP 400-7287-S-CI-S

PART NO. DESCRIPTIONREF NO. QTY.

Rear Bumper Group

Footnotes

MAIN FRAME1- -

HEAT SHIELD2 5401174CSM 1

BUMPER3 5403268CSM 1

PLATE, SEAT BELT ANCHOR - LH4 5400844CSM 1

PLATE, SEAT BELT ANCHOR - RH5 5400847CSM 1

WASHER, 1/2" SAE6 5025158SM 4

NUT, 1/2-13 HEX NYLOCK FLANGE7 5025396SM 6

BOLT, 1/2-13 X 3-1/4" GD58 5025017X26SM 4

CARB PROTECTOR PLATE9 5061725CSM 1

PLUG, PANEL, 1.25 BLACK10 5023484SM 6

ROLL BAR TOP LOOP11 - 1

ROLL BAR POST, RH12 - 1

ROLL BAR POST, LH13 - 1

WASHER 3/8" SAE14 5025156SM 2

BOLT, 3/8-16 X 1" GD515 5025013X8SM 2

NUT, 3/8-16 X 1" GD516 5025394SM 2

BOLT, 5/16-18 X 3/4" GD517 5025011X6SM 4

NUT, 5/16-18 HEX NYLOCK FLANGE18 5025392SM 4

BOLT, 1/2-13 X 1-3/4 GD5 YZ19 5025017X14SM 2

NUT, 1/2 X 13 HEX NYLOCK FLANGE20 5025396SM 2

SEAT BELT ASSEMBLY, STANDARD21 5100139SM 1

SEAT BELT ASSEMBLY, EXTRA LONG21 5100397SM 1

ROLL BAR HARDWARE BAG22 5100377SM 1

PIN, HITCH, BLACK W/ PLASTIC LANYARD23 5100079SM 2

RUBBER BUMPER24 5100383SM 2

SCREW, 1/2-13 X 1.00, SHCS25 5100267SM 2

*BOLT26 - 2

*NUT27 - 2

ROPS COMPLETE IN BOX, IS150028 5100186SM 1

WASHER, 5/16"SAE29 5025155SM 4

SPACER, .52 X 1.00 X .7530 5045178SM 1

SPACER, .515 X 1.00 X .21831 5100520SM 1

CAP, VINYL32 5101049SM 1

RUBBER WASHER (Not shown)33 5100545SM 2

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

2690444 - Citation

2690445 - Citation

TP 400-7287-S-CI-S

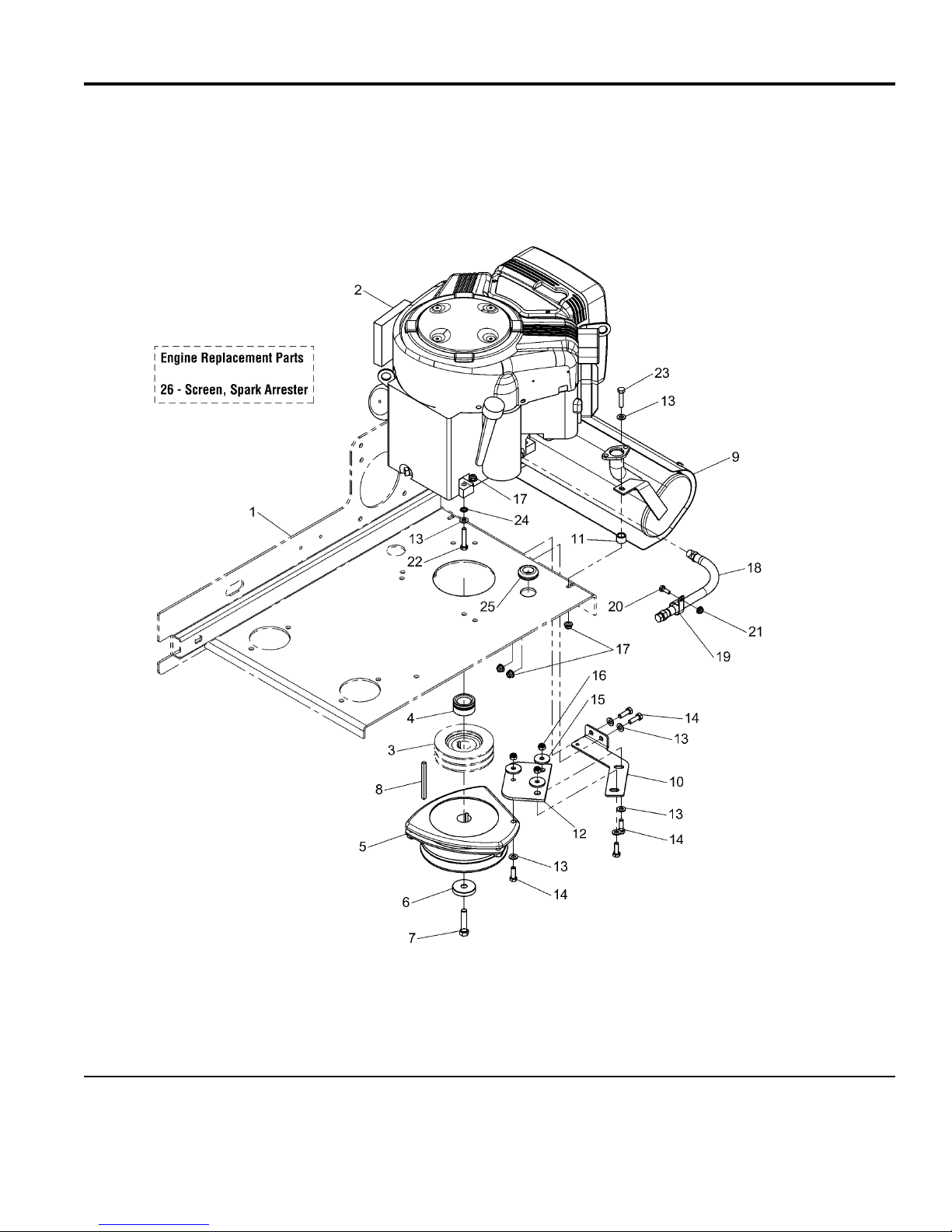

Engine & PTO Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

287engb0

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

2690444 - Citation

2690445 - Citation

TP 400-7287-S-CI-S

PART NO. DESCRIPTIONREF NO. QTY.

Engine & PTO Group

Footnotes

MAIN FRAME1- -

ENGINE, 21HP Briggs & Stratton (Model 385777)2- 1

ENGINE, 23HP Briggs & Stratton (Model 386777)2- 1

CRANKSHAFT PULLEY3- 1

SPACER, 1.13 X 1.75 X .974 5046845SM 1

CLUTCH5 5023432SM 1

SPACER, .45 X 1.88 X .386 5045475SM 1

BOLT, CRANKSHAFT, 7/16" X 2"7 5044853SM 1

KEY, 1/4" SQ. X 3-1/2"8 5050407X28SM 1

MUFFLER9 5100361SM 1

CLUTCH ANCHOR PLATE10 5061857CSM 1

SPACER, .51 X .75 X .5611 5047027SM 2

CLUTCH ANCHOR PAD12 5043636SM 1

WASHER, 5/16" SAE13 5025155SM 11

BOLT, 5/16-18 X 1"14 1921333SM 5

WASHER, Clutch Anchor15 5044617SM 3

NUT 5/16-18 Hex Nylon Lock16 5025057SM 3

NUT, 5/16-18 Hex Nylock Flange17 5025392SM 8

OIL DRAIN HOSE18 5048681SM 1

CLAMP, Vinyl Insulated19 5021500SM 1

BOLT, 1/4-20 X 3/4"20 1923341SM 1

NUT, 1/4-20 Hex Serrated Flange21 5025126SM 1

BOLT, 5/16-18 X 1-3/4"22 1922127SM 4

BOLT, 5/16-18 X 1-1/2"23 502501112SM 2

WASHER, 5/16" Internal Tooth Lock24 5025188SM 4

GROMMET, 7/8"25 5021379SM 1

SCREEN, SPARK ARRESTER (NOT SHOWN)26 5101641SM 1

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

2690444 - Citation

2690445 - Citation

TP 400-7287-S-CI-S

Instrument Control Panel Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

287ins0

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

2690444 - Citation

2690445 - Citation

TP 400-7287-S-CI-S
