Parts Manual

Rev. D

Axion

Series Zero-Turn Riders & Mower Decks

TP 400-4496-D-ZT-S

. No. Descri

tion

20HP Product

2690642 Axion, 20HP Zero Turn Rider w/42" Mower

2690715 Axion, 20HP Zero Turn Rider w/42" Mower (CE/Export)

7800376 Axion, 20HP Zero Turn Rider w/42" Mower (CE/Export)

. No. Descri

tion

24HP Product

2690644 Axion, 24HP Zero Turn Rider w/50" Mower

2690771 Axion, 24HP Zero Turn Rider w/50" Mower (CE/Export)

. No. Descri

tion

Mower Decks

1695447 50" Mower Deck (CE/Export)

1734807

Not for

Reproduction

Not for

Reproduction

Table Of Content

Torque Specification Chart ..................................................................... Inside Back Cover

PRODUCT COMPONENTS PAGES

Frame, Body & Seat Group .................................................................................................................................. 4

Engine Group - 20HP Briggs & Stratton .............................................................................................................. 8

Engine Group - 20HP Briggs & Stratton (CE/Export) .......................................................................................... 12

Engine Group - 24HP Briggs & Stratton .............................................................................................................. 16

Transmission Group ............................................................................................................................................. 18

Controls Group ..................................................................................................................................................... 22

Electrical Group - Main Harness 1734127SM ..................................................................................................... 26

Electrical Group - Main Harness 7103103YP ...................................................................................................... 28

Lift Group .............................................................................................................................................................. 30

Wheel & Tire Group ............................................................................................................................................. 32

Decals Group ....................................................................................................................................................... 34

42" Mower Deck - Clutch & Support Group ......................................................................................................... 36

42" Mower Deck - Housing & Arbor Group .......................................................................................................... 38

42" Mower Deck - Housing & Arbor Group (CE/Export) ...................................................................................... 40

50" Mower Deck - Clutch & Support Group ......................................................................................................... 42

50" Mower Deck - Housing & Arbor Group .......................................................................................................... 44

Not for

Reproduction

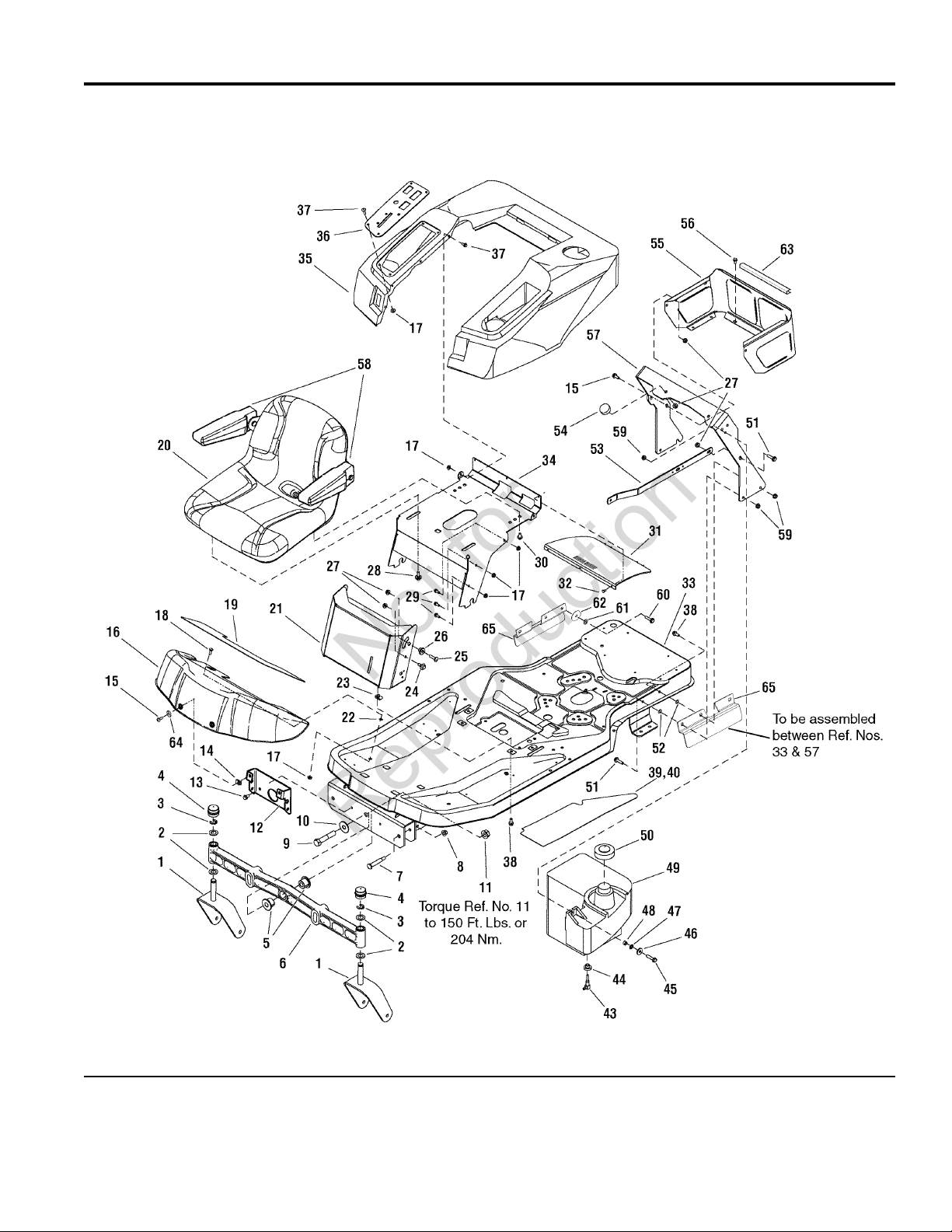

Frame, Body & Seat Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

987484

The above parts group applies to the following Mfg. Nos.:

2009

2690642 - Axion

2690644 - Axion

2690715 - Axion

2690771 - Axion

7800376 - Axion

TP 400-4496-D-ZT-S

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Frame, Body & Seat Group

Footnotes

CASTER ASSEMBLY1 1733448ASM 2

WASHER, 3/4 ID x 1.6 OD x .05 THK2 1960160SM 4

RING, Klipring, 3/43 1611710SM 2

CAP, Hub4 1734135SM 2

BUSHING, Axle Pivot5 1730186SM 2

AXLE, Casting (Includes Ref. Nos. 1, 2, 3, 4 & 5)6 1733426ASM 1

BOLT, Shoulder, G57 1733571SM 2

NUT, Hex Flange, 3/8-16 ESNA8 1960687SM 3

CAPSCREW, Hex Head, 5/8-11 x 3-1/4, G59 2860744SM 1

WASHER, 5/8, .64 ID x 1-3/4 OD x .11 THK10 1960035SM 1

NUT, Hex Flange Two-Way Lock, 5/8-1111 2860646SM 1

BRACKET, Front Footrest Support12 1733304ASM 1

SCREW, Hex Head Taptite, 5/16-18 x 5/813 1930601SM 2

NUT, Speed Lug Type, 1/4-2014 1960368SM 2

SCREW, Truss Head Torx, 1/4-20 x 3/415 1960715SM 8

FRONT FOOTREST (Black)16 1726025ZSM 1

FRONT FOOTREST (Orange)16 1726025CSM 1

NUT, Hex Flange, 1/4-20 ESNA17 1960694SM 14

BOLT, Carriage, 1/4-20 x 3/4, G518 1931317SM 2

PAD, Footrest Panel19 1726306SM 1

SEAT ASSEMBLY, with Armrests20 1726018SM 1

PANEL, Front with Slot21 1733573ASM 1

PANEL, Front, Manual Brake (CE/Export)21 7300752AYP 1

NUT, Push, 1/422 1960518SM 2

NUT, Speed Lug Type, 5/16-1823 1935255SM 4

BOLT, Shoulder24 009X67MA 2

BOLT, Carriage, 5/16-18 x 1-1/4, G525 1960223SM 2

PIVOT, Hood, Powdered Metal26 1728086SM 2

NUT, Hex Flange Whiz Lock, 5/16-1827 1931277SM 8

BOLT, Shoulder, G528 1716654SM 2

SCREW, Hex Whiz Lock Flange, 1/4-20 x 5/829 1960295SM 6

SCREW, Hex Flange Whiz Lock, 5/16-18 x 3/4 Dog PT30 1960738SM 2

SCREEN, Seat Deck31 1708504SM 1

SCREEN, Seat Deck (CE/Export)31 7102141SM 1

RIVET, Pop32 1673320SM 3

FRAME ASSEMBLY33 1733227ASM 1

SUPPORT, Seat34 1733965ASM 1

SEAT DECK, Plastic35 1734144SM 1

PLATE, Control36 1727699ASM 1

PLATE, Control (CE/Export)36 1734252BMYP 1

The above parts group applies to the following Mfg. Nos.:

2009

2690642 - Axion

2690644 - Axion

2690715 - Axion

2690771 - Axion

7800376 - Axion

TP 400-4496-D-ZT-S

Not for

Reproduction

Frame, Body & Seat Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

987484

The above parts group applies to the following Mfg. Nos.:

2009

2690642 - Axion

2690644 - Axion

2690715 - Axion

2690771 - Axion

7800376 - Axion

TP 400-4496-D-ZT-S

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Frame, Body & Seat Group

Footnotes

SCREW, Truss Head Torx, 1/4-20 x 3/437 1960715SM 6

SCREW, Hex Whiz Lock Flange, 5/16-18 x 3/438 1930591SM 5

PAD, Footrest R.H.39 1728986SM 1

PAD, Footrest L.H.40 1728987SM 1

ELBOW, Gas Tank43 1674792SM 1

BUSHING, Fuel44 1726400SM 1

CAPSCREW, 5/16, 18 x 1-1/245 1921221SM 1

WASHER, 5/16, .34 ID x 1 OD x .13 THK46 1919381SM 1

LOCKWASHER, External Tooth, 3/847 2820427SM 1

SPACER, .33 ID x 1/2 OD x 5/16 LG48 1710437SM 1

TANK, Fuel49 1734257SM 1

TANK, Fuel (CE/Export)49 7102378SM 1

CAP, Fuel Tank50 1714020SM 1

CAPSCREW, Hex Head, 5/16-18 x 1-1/4, G551 1921977SM 5

NUT, Push Pal, 5/16 DIA Thread, 5/8 OD52 1933988SM 4

BRACE, Tank53 1727810ASM 1

BUMPER, Rubber54 1726390SM 2

SHROUD, Rear55 1715962ASM 1

SCREW, Hex Washer Head Taptite, 1/4-20 x 1/256 1925003SM 6

SUPPORT, Seat Deck57 1733393ASM 1

ARM REST KIT, L.H. & R.H.58 1687021SM 1

NUT, Hex Flange Nylock, 5/16-1859 1960686SM 5

CAPSCREW, 3/8 - 16 x 1-1/460 1920415SM 1

NUT, Push Pal, 3/861 1931942SM 1

WASHER, 3/862 1960534SM 1

TRIM, 8"63 1735680SM 1

WASHER, External Tooth, 1/464 1921880SM 2

GUARD, Debris65 1734392ASM 2

The above parts group applies to the following Mfg. Nos.:

2009

2690642 - Axion

2690644 - Axion

2690715 - Axion

2690771 - Axion

7800376 - Axion

TP 400-4496-D-ZT-S

Not for

Reproduction

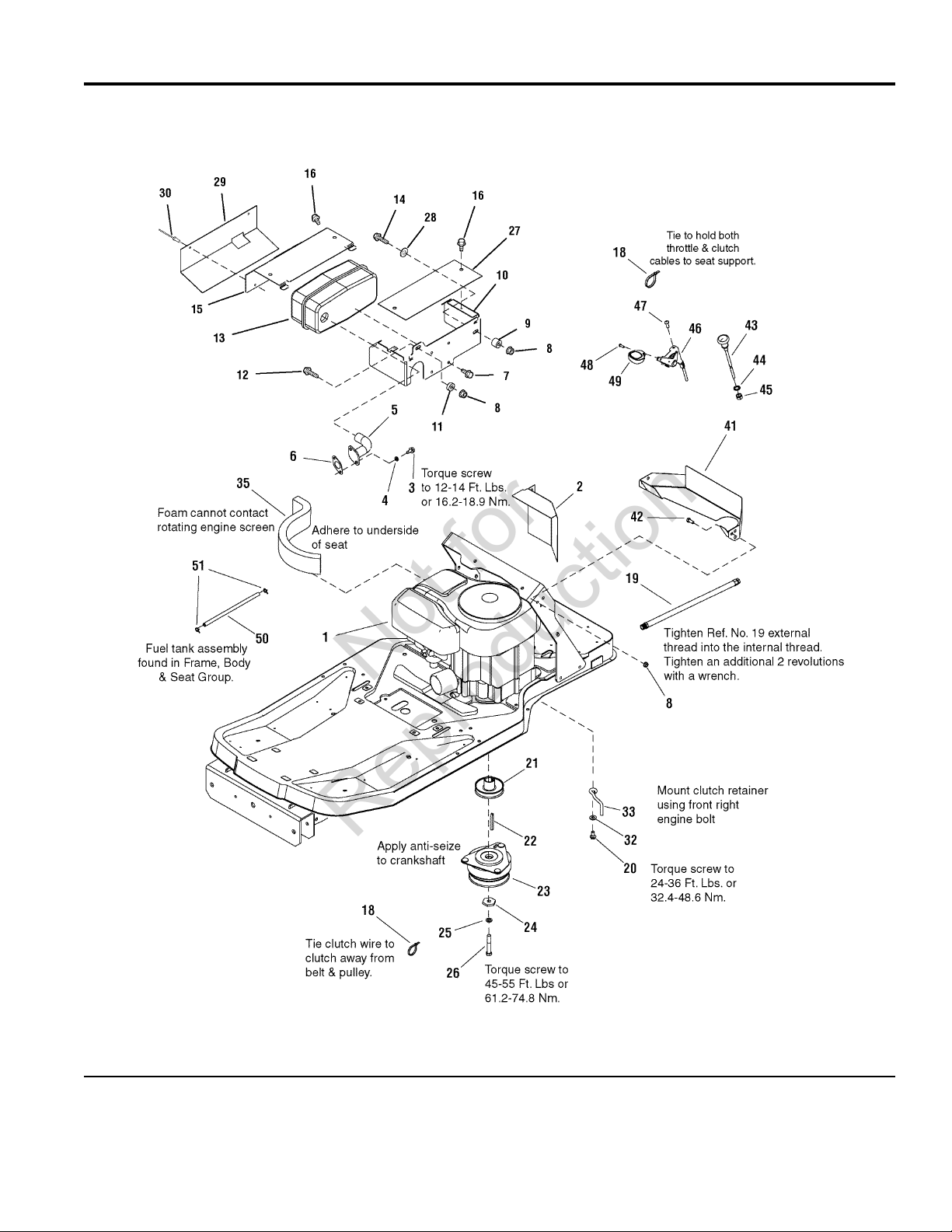

Engine Group - 20HP Briggs & Stratton

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

987607

The above parts group applies to the following Mfg. Nos.:

2009

2690642 - Axion

TP 400-4496-D-ZT-S

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

Engine Group - 20HP Briggs & Stratton

Footnotes

*ENGINE, 20 HP B&S Intek (Engine Model: 31M977-0111-E1)1 31M977-0111-E1 1

HEAT SHIELD, Inner2 1734150ASM 1

CAPSCREW, Hex Head, 5/16-18 x 3/4, G83 1936228SM 2

LOCKWASHER, Spring, 5/164 1917356SM 2

PIPE ASSEMBLY, Exhaust5 1732259SM 1

GASKET, Exhaust6 1731214SM 1

SCREW, Hex Whiz Lock Flange, 1/4-20 x 5/87 1960295SM 4

NUT, Hex Whiz Lock Flange, 5/16-188 1927557SM 4

SPACER9 1667812SM 1

BRACKET, Muffler/Heat Shield10 1732255SM 1

SPACER, .390 ID x .9 OD x .34 LG, Powdered Metal11 1667811SM 1

CAPSCREW, Hex Head, 5/16-18 x 1-1/4, G512 1921977SM 1

MUFFLER ASSEMBLY, Single13 1732273SM 1

CAPSCREW, Hex Head, 5/16-18 x 1-1/2, G514 1921221SM 1

HEAT SHIELD, Outer Single15 1727996ASM 1

CAPSCREW, Thread Cutting, # 10 x 1/216 1960720SM 4

TIE, Self Locking, 3-5/8 LG18 2832747SM 2

HOSE, Oil Drain, 16-1/2 LG19 1726498SM 1

SCREW, Hex Washer Head Taptite, 3/8-16 x 1-1/420 2828635SM 3

PULLEY ASSEMBLY, Engine21 1727816SM 1

KEY, Hi-Pro, 1/4 x 2-1/222 1720463SM 1

CLUTCH, Electric23 1717664SM 1

WASHER, Hex, .453 ID x 1-1/224 1708264SM 1

LOCKWSHER, Spring, .43825 1918199SM 1

CAPSCREW, Hex Head, 7/16-20 x 2-3/4, G526 1960648SM 1

HEAT SHIELD27 1732885ASM 1

WASHER, 5/16, .34 ID x 3/4 OD x .06 THK28 1919326SM 2

HEAT SHIELD29 1733063SM 1

RIVET, Pop30 1675044SM 2

WASHER, 3/8, .41 ID x .87 OD x .08 THK32 1924940SM 1

RETAINER, Clutch33 1734049SM 1

SEAL, Foam Air Duct, 1 x 2-1/2, 12" LG35 1734189SM 1

AIR DUCT, Inlet41 1734180ASM 1

CAPSCREW, Hex Head, 5/16-18 x 3/4, G542 1921332SM 1

CABLE, Choke43 7100416SM 1

WASHER, Lock Internal Tooth, 3/844 7090390SM 1

NUT, Hex, 3/845 7091630SM 1

CONTROL, Throttle46 7075449SM 1

SCREW, Pan Head Taptite Torx, 1/4-20 x 5/847 7090999SM 2

SCREW, Pan Head Taptite Combo, 310-16 x 3/448 7091195SM 1

Note * See Briggs & Stratton Engine Repair Parts.

The above parts group applies to the following Mfg. Nos.:

2009

2690642 - Axion

TP 400-4496-D-ZT-S

Not for

Reproduction

Engine Group - 20HP Briggs & Stratton

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

987607

The above parts group applies to the following Mfg. Nos.:

2009

2690642 - Axion

TP 400-4496-D-ZT-S

Not for

Reproduction
