Simplicity 1695415 Manuel utilisateur
Parts Manual
Rev. 11/2008
Conquest
4WD Series Garden Tractors & Mower Decks
TP 400-4805-A-CQ-S
Mf
g
. No. Descri
p
tion
23HP Product
1695415 Conquest, 23HP B&S Hydro 4WD
2690679 Conquest, 23HP Hydro 4WD RMO and 50" Mower Deck
(CE/Export)
2690744 Conquest, 23HP Hydro 4WD RMO and 50" Mower Deck
Mf
g
. No. Descri
p
tion
Mower Decks
1695395 50" Mower Deck
1735723
Part No.:
Not for
Reproduction
Not for
Reproduction
Table Of Content
s
Torque Specification Chart ..................................................................... Inside Back Cover
PRODUCT COMPONENTS PAGES
Frame & Front Axle Group - 4WD ....................................................................................................................... 4
Power Steering & Hydraulic Lift Group ................................................................................................................ 8
Steering Group - Tilt Steering .............................................................................................................................. 10
Engine Group - 20HP, 22HP & 23HP Briggs & Stratton, Vanguard Twin ........................................................... 12
Transmission Group ............................................................................................................................................. 14
Controls Group ..................................................................................................................................................... 18
Cruise Control Group ........................................................................................................................................... 20
Electrical Group .................................................................................................................................................... 22
Hood, Grille & Dash Group .................................................................................................................................. 26
Seat & Seat Deck Group ...................................................................................................................................... 28
Lift Group - Manual Lift ......................................................................................................................................... 30
Wheels & Tires Group .......................................................................................................................................... 32
Decals Group ....................................................................................................................................................... 34
44" & 50" Mower Deck - Clutch & Support Group ............................................................................................... 36
50" Mower Deck - Height Adjustment & Roller Bar Group .................................................................................. 38
50" Mower Deck - Height Adjustment & Roller Bar Group .................................................................................. 40
50" Mower Deck - Housing, Arbors & Blades Group ........................................................................................... 44
50" Mower Deck - Housing, Arbors & Blades Group ........................................................................................... 48
Not for
Reproduction

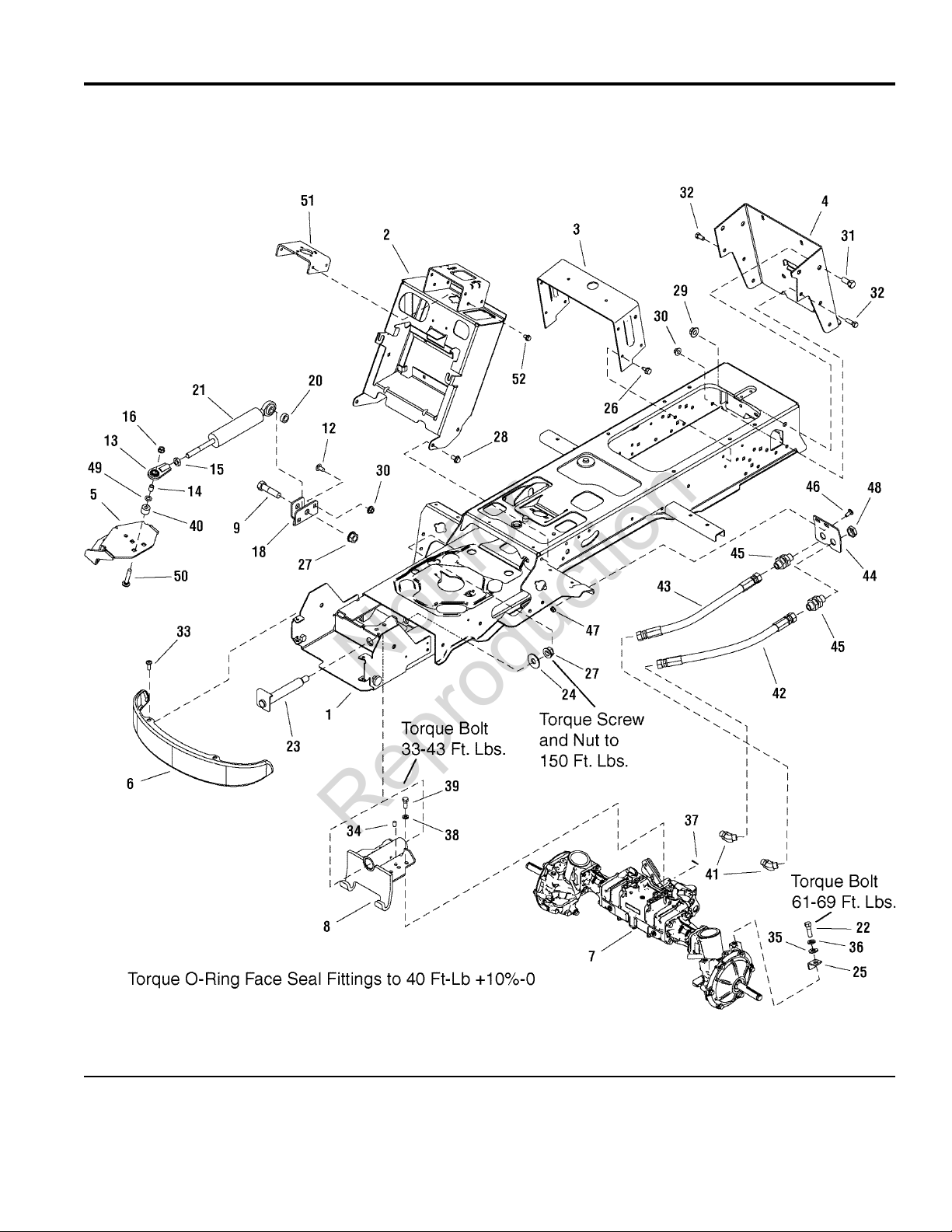

Frame & Front Axle Group - 4WD
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987590
The above parts group applies to the following Mfg. Nos.:
4
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695415 - Conquest
2690679 - Conquest
2690744 - Conquest
TP 400-4805-A-CQ-S
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Frame & Front Axle Group - 4WD
Footnotes
FRAME ASSEMBLY, Front & Rear 4WD1 1734731ASM 1
TOWER & SUPPORT ASSEMBLY2 1733139ASM 1
SUPPORT, Seat Deck3 1723528ASM 1
BACKPLATE, Hitch4 1722602ASM 1
BRACKET ASSEMBLY, Steering 4WD5 1733918ASM 1
BUMPER, 4GA6 1721805ASM 1
AXLE ASSEMBLY, Front7 1733480SM 1
PIVOT ASSEMBLY, Axle w/Bushings8 1734241ASM 1
CAPSCREW, Hex Head, 5/8-11 x 2-1/2 G59 1960755SM 1
CARRIAGE BOLT, 3/9-16 x 3/4 G512 1931348SM 2
JOINT, Ball 1/2-2013 1702779SM 1
SPACER14 1708236SM 1
NUT, Hex Jam, 1/2-2015 1919262SM 1
NUT, Hex Flange, 3/8-16 Two-Way Lock16 1930645SM 1
BRACKET, Cylinder Mounting18 1733166ASM 1
SPACER20 2172914SM 1
CYLINDER, Hydraulic Steering21 1733759SM 1
CAPSCREW, Hex Head, M12-1-3/4 x 3522 197487SM 3
SHAFT & BRACKET ASSEMBLY, Axle Pivot23 1733863SM 1
WASHER, 5/824 1960035SM 2
STOP, "L" Steering25 1734511ASM 1
SCREW, Hex Washer Head Taptite, 5/16-18 x 3/426 1664847SM 4
NUT, Hex Flange 5/8-11 Two-Way Lock27 2860646SM 2
SCREW, Hex Washer head, Taptite, 3/8-16 x 3/428 1923683SM 4
NUT, Hex Flange 1/2-13 Whiz Lock29 2860668SM 2
NUT, Hex Flange 3/8-16 Whiz Lock30 1928352SM 4
CAPSCREW, Hex Head 1/2-13 x 1 G531 1923114SM 2
CAPSCREW, Hex Head 3/8-16 x 1 G532 1921210SM 2
SCREW, Truss Head Torx Drive 5/16-18 x 7/833 1960086SM 4
PIN, Dowel34 1733581SM 2
WASHER, 1/235 1960170SM 3
LOCKWASHER, Spring36 1916966SM 3
PIN, Cotter37 1923360SM 1
LOCKWASHER, Spring38 1960754SM 6
CAPSCREW, Hex Head39 1950036SM 6
SPACER, Powdered Metal40 1667812SM 1
FITTING, Hose Elbow, 45 Degrees, 13/16-16 x 3/4-1641 1733403SM 2
HOSE ASSEMBLY, Hydraulic42 1733400SM 1
HOSE ASSEMBLY, Hydraulic43 1733891SM 1
BRACKET, Hose Mounting 10GA44 1733501ASM 1
FITTING, Bulkhead Union 13/16-1645 1733402SM 2
CARRIAGE BOLT, 5/16-18 x 3/4 G546 1931333SM 2
NUT, Hex KEPS, 5/16-1847 1960636SM 2
The above parts group applies to the following Mfg. Nos.:
5
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695415 - Conquest
2690679 - Conquest
2690744 - Conquest
TP 400-4805-A-CQ-S
Not for
Reproduction
Frame & Front Axle Group - 4WD
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987590
The above parts group applies to the following Mfg. Nos.:
6
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695415 - Conquest
2690679 - Conquest
2690744 - Conquest
TP 400-4805-A-CQ-S
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Frame & Front Axle Group - 4WD
Footnotes
NUT, Jam 13/16-1648 1733947SM 2
WASHER, 3/849 1960103SM 1
CARRIAGE BOLT, 3/8-16 x 2-1/4 G550 1931355SM 1
SUPPORT, Steering Unit 7GA51 1733044ASM 1
SCREW, Hex Washer Head Taptite 5/16-18 x 1/252 1924856SM 4
The above parts group applies to the following Mfg. Nos.:
7
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695415 - Conquest
2690679 - Conquest
2690744 - Conquest
TP 400-4805-A-CQ-S
Not for
Reproduction
Power Steering & Hydraulic Lift Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987548
The above parts group applies to the following Mfg. Nos.:
8
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695415 - Conquest
2690679 - Conquest
2690744 - Conquest
TP 400-4805-A-CQ-S
Not for
Reproduction
PART NO. DESCRIPTIONREF NO QTY.
Power Steering & Hydraulic Lift Group
Footnotes
POWER STEERING UNIT, 32CC, 4 Ports1 1733409SM 1
LOCKWASHER, Spring2 1916964SM 4
CAPSCREW, Hex Head3 2860444SM 4
TUBE, Hydraulic4 1722138SM 1
TIE, Self Locking5 2825094SM 2
TUBE, Hydraulic6 1733727SM 1
SCREW, Hex Whiz Lock Flange 1/4-20 x 1/27 1931646SM 2
FITTING, Straight8 1722123SM 4
FILTER, Oil9 1719168SM 1
BASE, Oil Filter10 1719169SM 1
TUBE, Hydraulic11 1733427SM 1
FITTING, Hose Elbow Perma Push 9/16-1812 1733230SM 2
SCREW, Round Head Plastite13 1722607SM 1
COVER, Lift14 1722285SM 1
HOSE ASSEMBLY, 27" Port R25 1733893SM 1
HOSE ASSEMBLY, 18" Port T26 1733791SM 1
HOSE ASSEMBLY, 26" Port P27 1733780SM 1
HOSE ASSEMBLY, 31" Port L28 1733595SM 1
POWER STEERING ASSEMBLY (Includes Ref Nos 1, 25, 26, 27 & 28)29 1733894SM 1
The above parts group applies to the following Mfg. Nos.:
9
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695415 - Conquest
2690679 - Conquest
2690744 - Conquest
TP 400-4805-A-CQ-S
Not for
Reproduction
Steering Group - Tilt Steering
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987424
The above parts group applies to the following Mfg. Nos.:
10
2008Copyright © by Briggs and Stratton Corporation
Briggs and Stratton Yard Power Products Group
Milwaukee, WI, USA. All rights reserved
1695415 - Conquest
2690679 - Conquest
2690744 - Conquest
TP 400-4805-A-CQ-S
Not for
Reproduction
